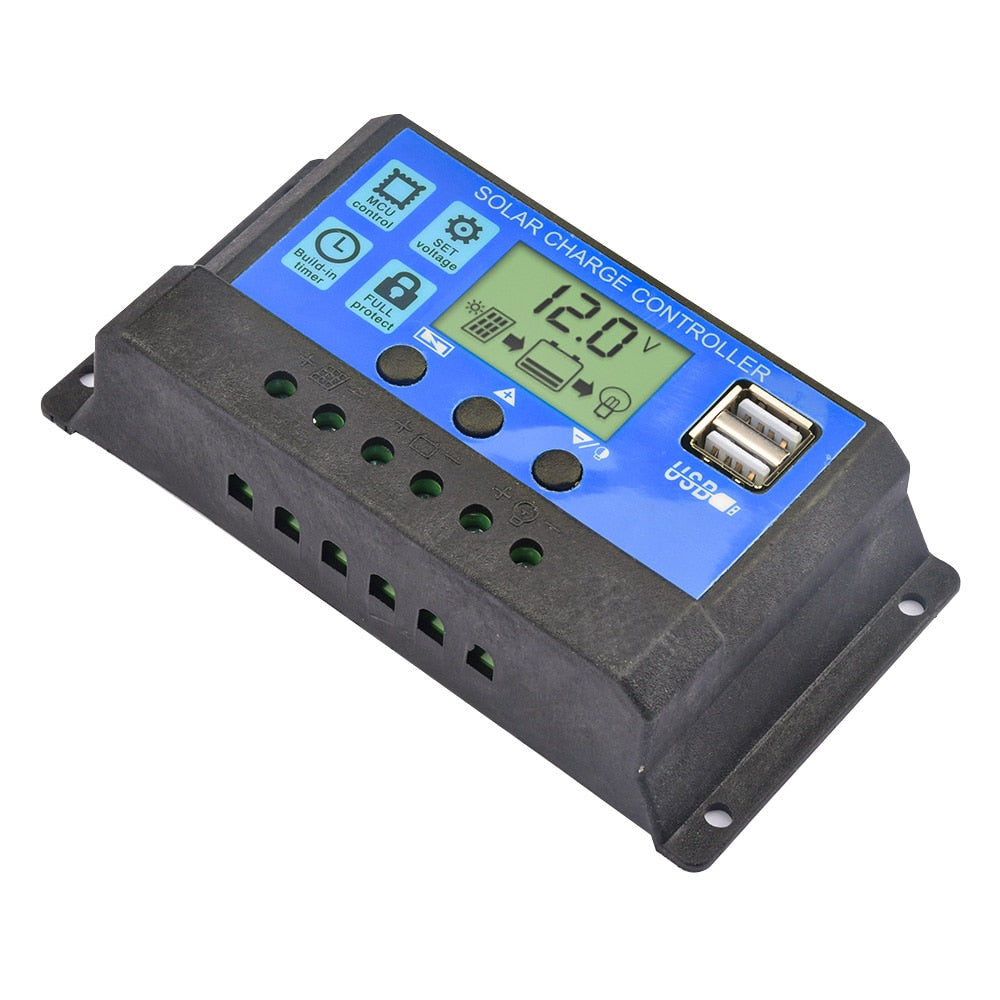

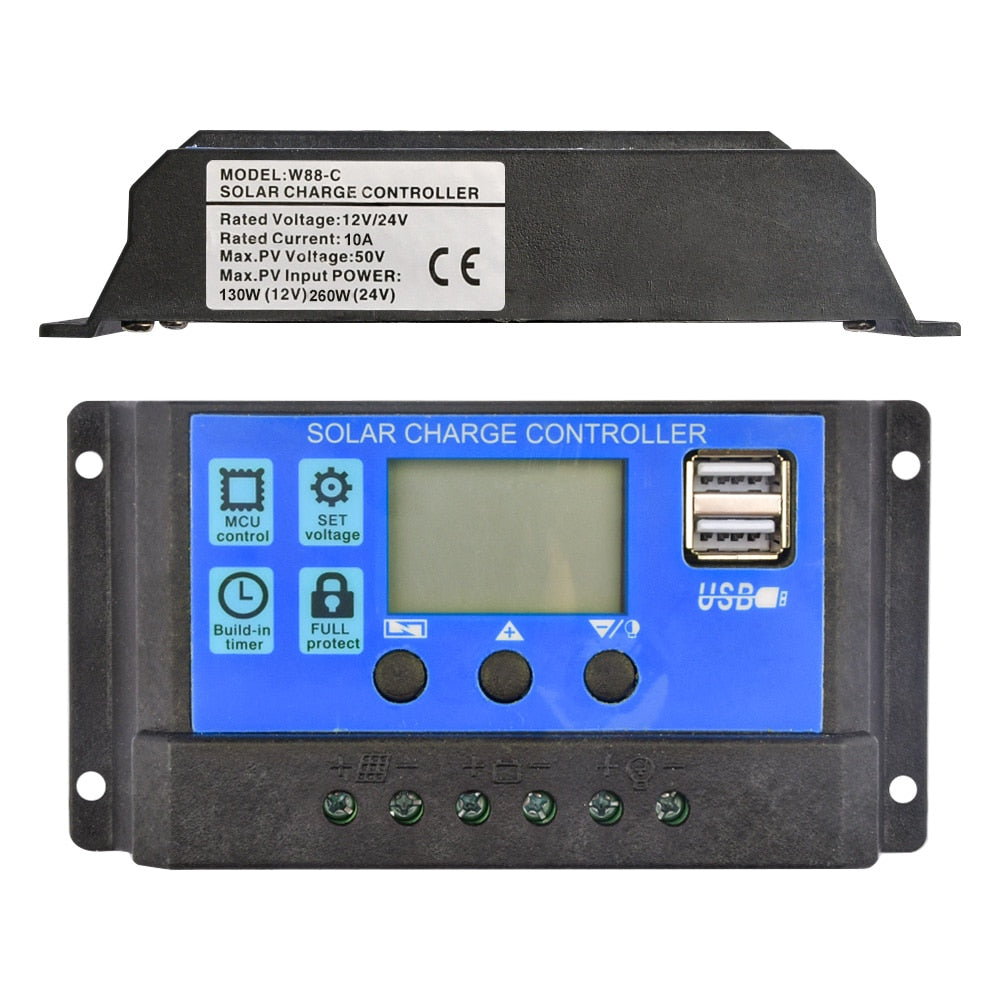

30A 20A 10A Solar Panel Controller 12V/24V Battery Charge Regulator 2USB 10A~100A Photovoltaic Cell Panel Charger Regulator
30A 20A 10A Solar Panel Controller 12V/24V Battery Charge Regulator 2USB 10A~100A Photovoltaic Cell Panel Charger Regulator
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Origin: Mainland China
Model Number: 30A 20A 10A 12V/24V LCD PWM Voltage Solar Controller Battery PV Cell P
Maximum Current: 30A
Is Smart Device: No
Certification: CE
Brand Name: Aideepen
Application: Solar System Controller
Features:
1. Adopt industrial-grade main control chip.
2. Complete 3-stage PWM charging management.
3. Dual MOS anti-backflow circuit, ultra-low heat generation.

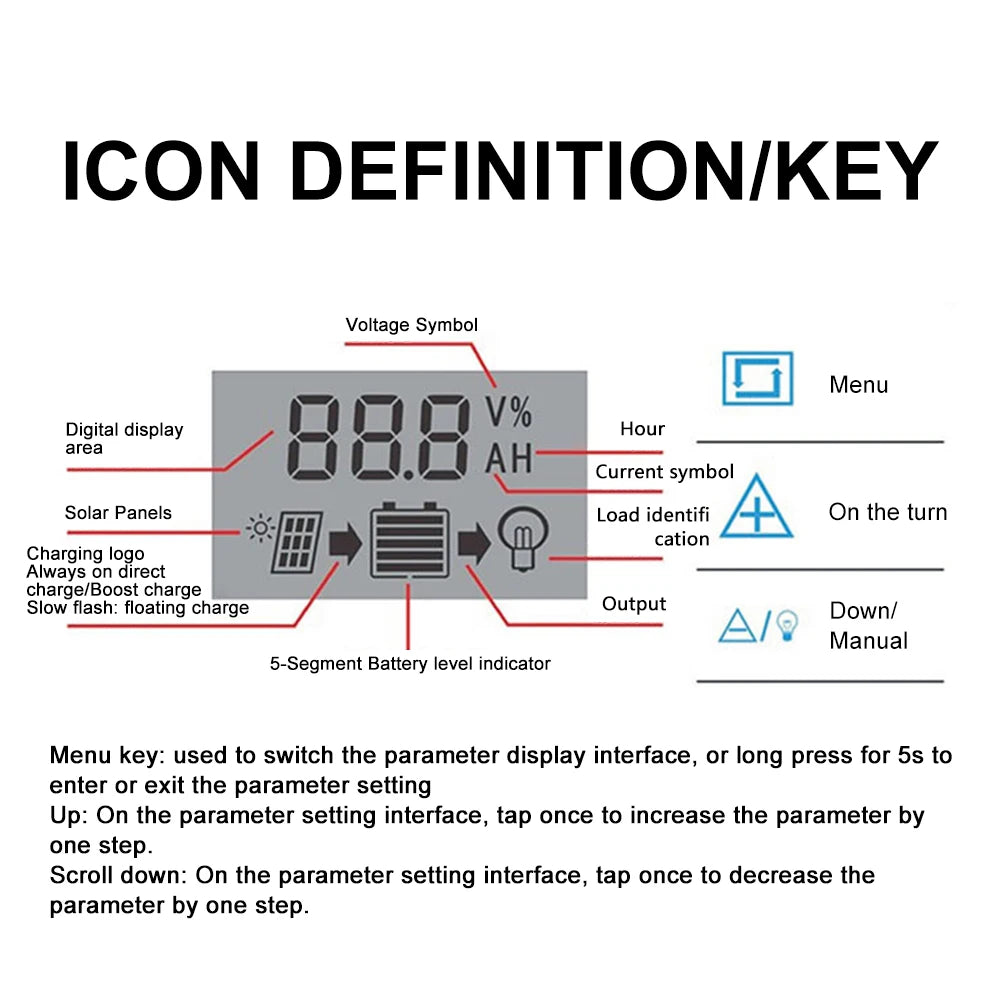

4. Large-screen LCD display, adjustable charging and discharging parameters.
5. Built-in overcurrent/short circuit protection, open circuit protection, reverse connection protection, all are self-recovery type, do not damage the controller.
Note:
1. The controller will heat up when it is running. Install the controller on a flat, well-ventilated surface.
2. The controller can only use photovoltaic panels as the charging source, please do not use DC or other power sources as the charging source.

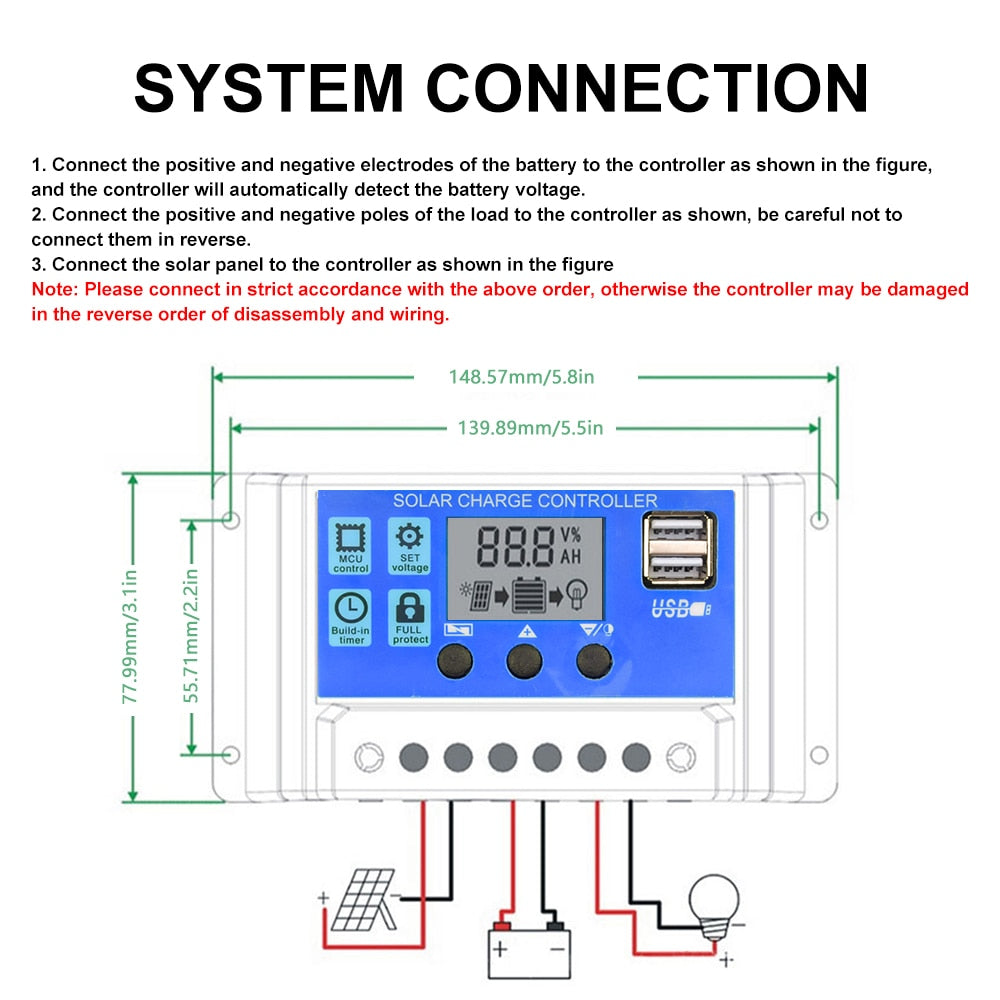

3. Install the controller as close to the battery as possible to avoid voltage drop caused by too long wires and affect the judgment of normal voltage.
4. The controller automatically adapts to 12V/24V. When installing for the first time, make sure the battery has enough voltage for the controller to recognize the correct battery type.
5. This controller is only suitable for various lead-acid batteries (including openings, seals, gels, etc.), and do not use with other batteries (including lithium batteries, nickel-metal hydride batteries, etc.).
Package list:
Solar Controller X1

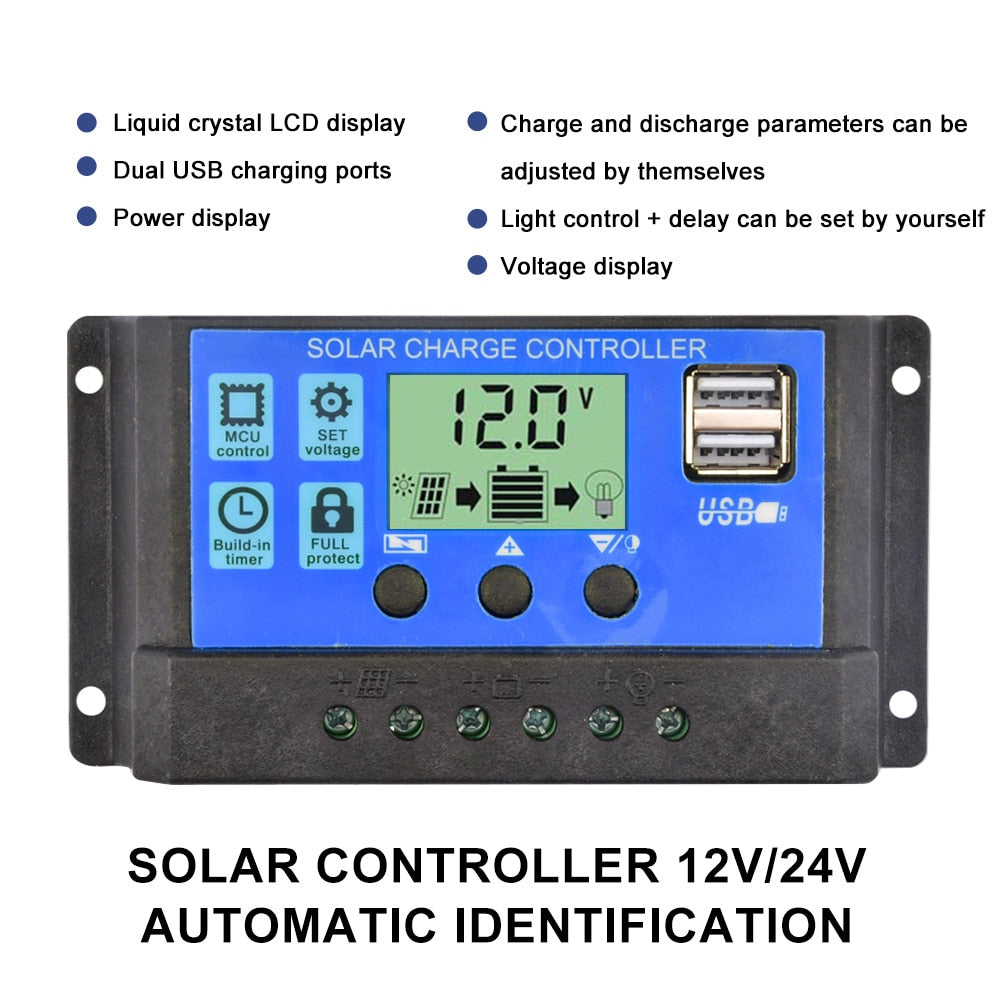

This solar charge controller features a liquid crystal display that shows charge and discharge parameters. Dual USB charging ports can be adjusted independently. You can set the delay time and voltage displays. Additionally, this controller has built-in full-time protection and automatic 12V/24V identification.
Solar charge controller with built-in timer for 12V or 24V battery charging, featuring 30A/20A/10A adjustable current and 2x USB ports.
