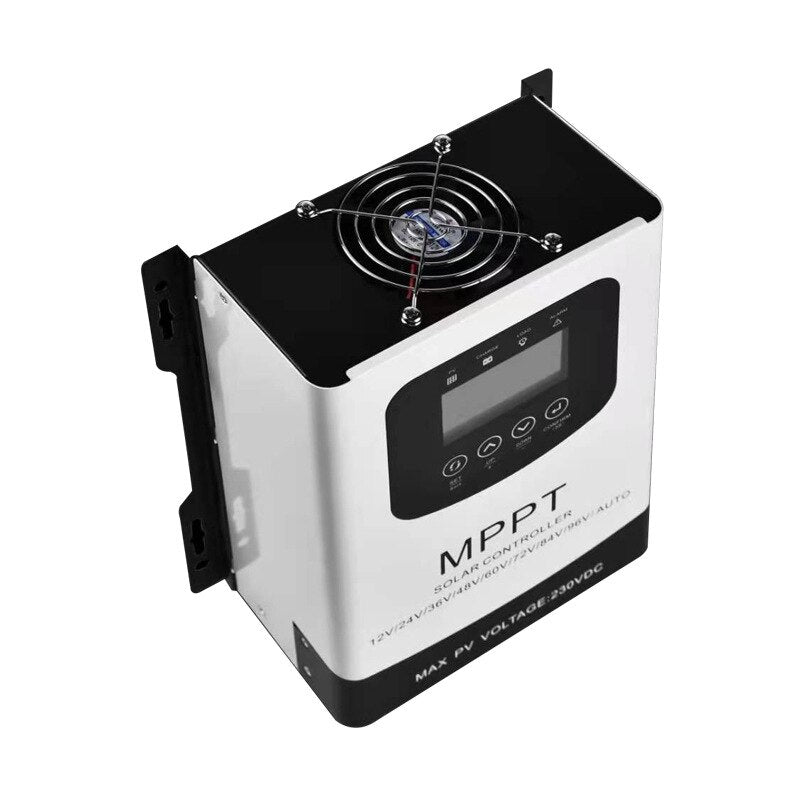

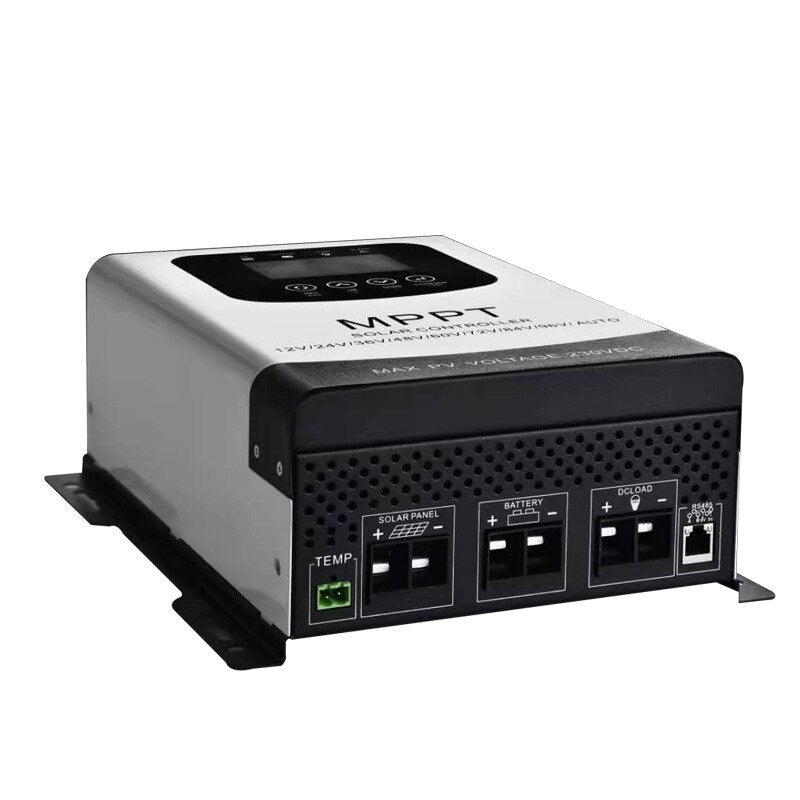

30A 40A 50A 60A 70A 80A MPPT Solar Charge Controller 12V 24V 48V 60V 72V 84V 96 PV Regulator For Lifepo4 Lithium GEL Battery

30A 40A 50A 60A 70A 80A MPPT Solar Charge Controller 12V 24V 48V 60V 72V 84V 96 PV Regulator For Lifepo4 Lithium GEL Battery

Regular price $147.38 USD
Regular price Sale price $147.38 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Waterporrf level: IP21

Suggestion battery voltage: 12V,24V,36V,48V,60V,72V,84V,96V

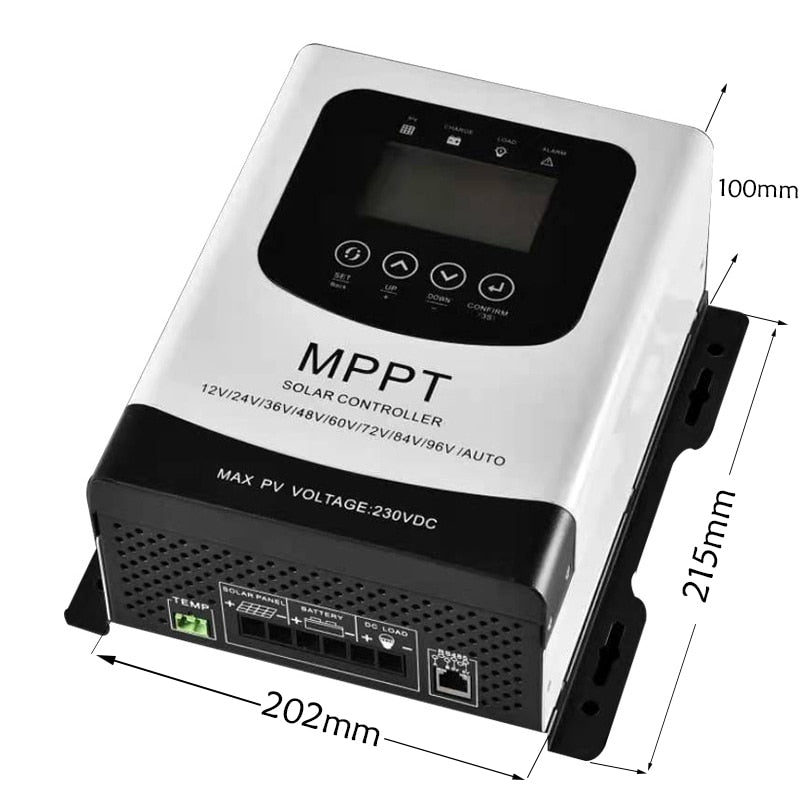

Produce size: 202*215*100mm

Origin: Mainland China

Model Number: 30A 40A 50A 60A 70A 80A Solar Controller

Maximum Current: 80A

MAX DC Voltage Input: 230V

Is Smart Device: YES

Certification: CE,FCC,RoHS

Brand Name: HXCONTROLLER

Battery type: Lead Acid,Gel,LifePo4 and other battery

Application: Charger Controller,Voltage Controller





About how to adjust charging voltage, please check this video.

Features self-testing and electronic protection to prevent damage from installation errors or system failures.
Connect 24V power or briefly connect solar panel to activate display's LED indicator.
Connect battery terminals first (+ to +, - to -).
This MPPT controller optimizes battery charging for extended lifespan and improved system performance.
Optimized MPPT charging extends battery life and enhances system performance.
Advanced tracking algorithm maximizes solar energy harvesting and charging, protects battery from damage.
Extend battery life and stabilize voltage with our equalizer or purchase a 2KW inverter with discounted shipping.

FAQ:

Why i connect 12V battery into controller, controller screen can't show light?



Because 12V battery is low, controller can't start to work, you need to use 24V or connect solar panel for a moment, controller screen will show light.


Basic functions:

Innovative maximum power point tracking technology, which can significantly improve the energy utilization rate of the solar system, and the conversion efficiency is as high as 97%;
Quickly scan the entire I-V curve, and efficiently track the maximum power point;
Three types of lead-acid batteries, sealed, colloidal, and open type, and lithium battery series charging programs are optional;
With automatic protection functions for overcharge, overdischarge, overload and short circuit;
RS485 communication interface, multi-machine communication is possible, and it is convenient to view the operating parameters of the controller;

MPPT control features

This controller is used in solar off-grid power generation system to automatically adjust battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery; at the same time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage.
The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to allow you to better use all the functions of the controller and

Connect solar controller wires in order: positive wire, negative wire, and finally ground wire.

MPPT model

30A

40A

50A

60A

80A

100A

Rated charging current

30A

40A

50A

60A

80A

100A

Maximum PV Input Power

12v system

36ow

480w

600w

720w

960W

1200w

24v system

720w

960w

1200w

1400w

1920W

2400w

36v system

1080w

1440w

1800w

2160w

2880W

3600w

48V system

1440w

1920w

2400w

2880w

3840W

4800w

6ov system

1800w

2400w

3000w

3600w

4800W

6000w

72v system

2160w

2880w

3600w

7320w

5760W

7200w

84v system

2520w

3360w

4200w

5040w

6720W

8400w

96v system

2880w

3840w

4800w

5760w

9600w

9600w

Charging mode

MPPT automatic maximum power tracking

charging mode

MPPT tracks maximum power, fast charging,
balanced charging and floating charging

Battery type

Lead acid battery

(12V / 24v / 36v / 48v / 96v automatic identification)
+(12v / 24v / 36v / 48v / 6ov /72v/ 84v / 96v adjustable)

Gel Battery

12v / 2av/ 36v ] 48v / 6ov / 72v / 84v / 96v adjustable

Lithium iron
phosphate

Unit voltage 3.2 * number of strings (2-45 adjustable)

Ternary lithium
battery

Unit voltage 3.7 * number of strings (2-45 adjustable)

User defined

Equalizing charge, floating charge,
DC discharge limit voltage adjustable: 8v -- 170v

with lithium activation function

with photovoltaic input, there is charging voltage (activate lithium battery),
and Dcoutput can be used without battery

Photovoltaic minimumvoltage start
Charging

The photovoltaic voltage is greater than
+ 3v of the battery voltage (it can also be
charged with small current in rainy days)

PV maximum open circuit input voltage

0-230V

0-430V

Photovoltaic charging current adjustable

0-30A

0-40A

0-50A

0-60A

0-80A

0-100A

Dc current output (street lamp function)

Dc continuous output 25A

continuous output 60A

Dc continuous output 100A

temperature compensation

Automatically compensate the charging voltage and current
according to the battery temperature to prolong the battery life

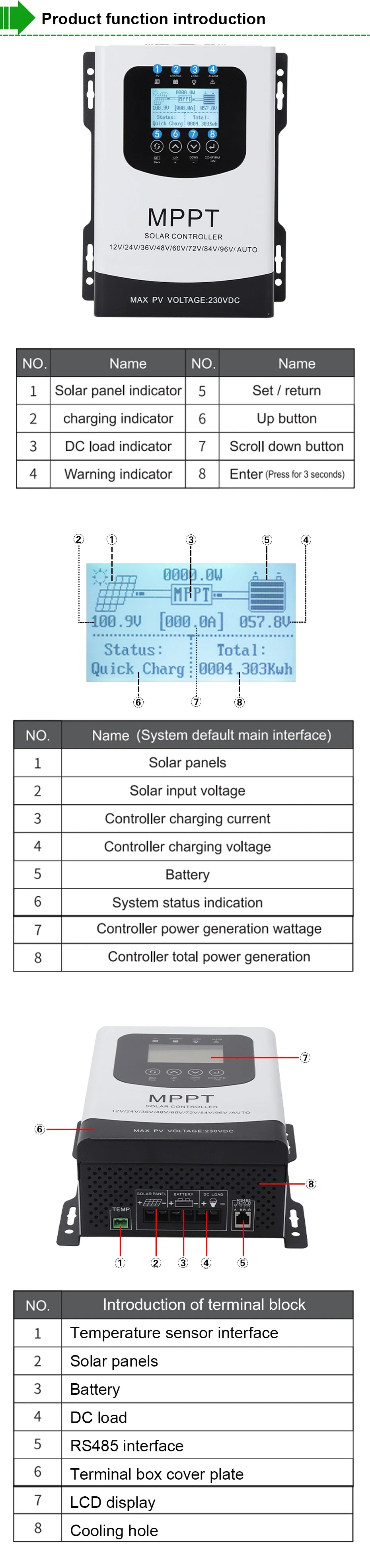

LCD touch button

LCD display: (generating capacity / photovoltaic voltage / battery voltage / charging
current / power / operation status)

Setting: (battery type, charging current, return to factory),
Chinese and English display

485 communication

8-pin RS485 communication interface (operation status and
setting can be queried)

Working environment temperature

~-10℃一+45℃

Static power consumption

2w

overall efficiency

96.5%~99%

Temperature protection

85℃

Temperature rise protection

Reduce power output above 8o ℃

Protection function

Photovoltaic array short-circuit,over-voltage,over-current reverse connection
protection,battery overcharge,reverse connection protection,under voltageprotection

humidity

o~90% RH (no condensation)

Mechanical protection level

P21

Altitude

0~3000m

size

202mm*215mm*100mm

218mm*265mm*100mm

Net / gross weight

1.95KG

2.6KG

Package size

265mm*224mm*120mm

315mm*240mm*120mm


Off-grid energy solution for solar-powered homes, boats, and streets using Lifepo4 lithium batteries.

Installation safety distance:

Observe the following safety clearances and ensure that other equipment or objects are not within this range to ensure that there is enough space for heat dissipation.

Safe distance guidelines for solar panel installation: 30cm left, 20cm sides, and 30cm below, with MPPT module at the bottom.

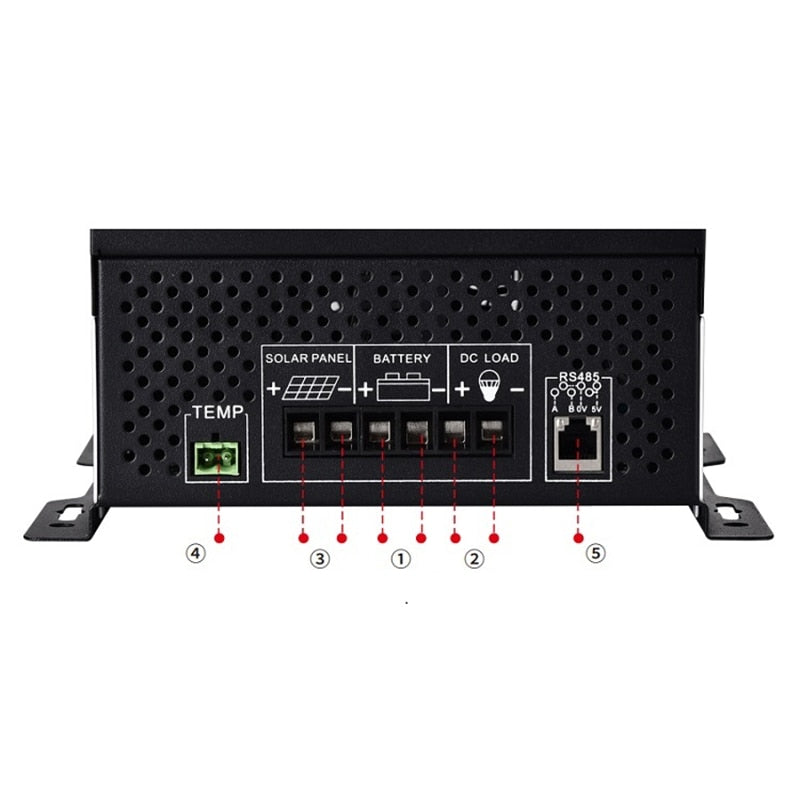

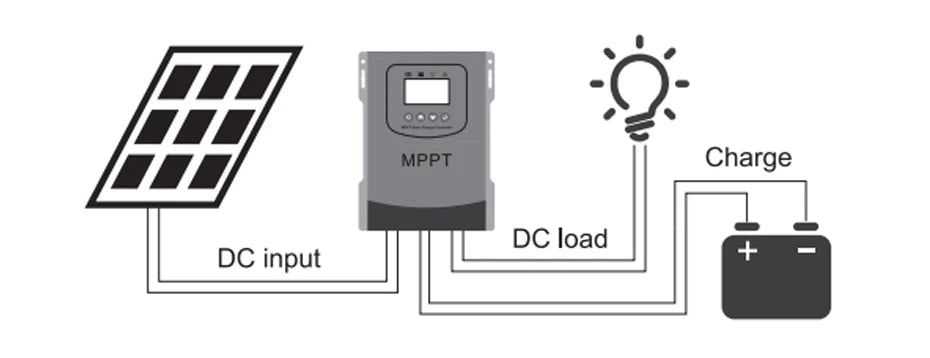

Line connection method:

The correct wiring sequence of the solar controller is as follows:
1. First connect the positive and negative electrodes of the battery;
2. Connect the positive and negative poles of the DC load;
3. Finally, connect the positive and negative poles of the solar panel.

MPPT Solar Charge Controller supports multiple battery types and voltages with auto-detection.

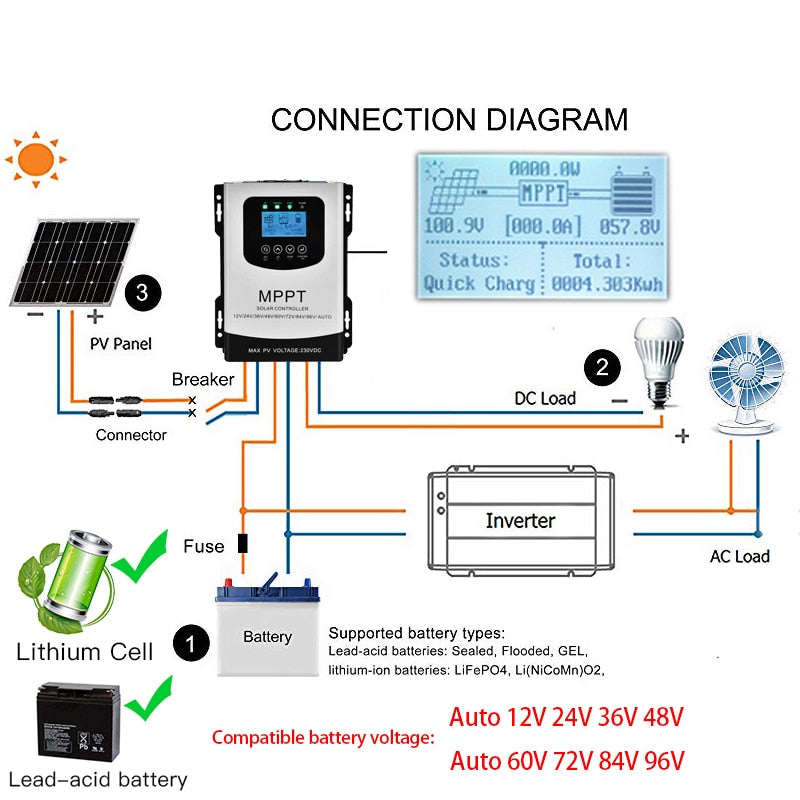

Product Overview: The 30A to 80A MPPT Solar Charge Controller supports lithium-ion batteries (LiFePO4, Li(NiCoMnJ02), lead-acid batteries (sealed flooded and GEL), and other battery types. It features auto-detection for 12V, 24V, 36V, 48V, 60V, 72V, 84V, and 96V battery voltages. The controller includes a MPPT tracker, PV panel connector, DC load connector, inverter, fuse, AC load connector, and breaker. It's suitable for various applications, including Lifepo4 lithium batteries.

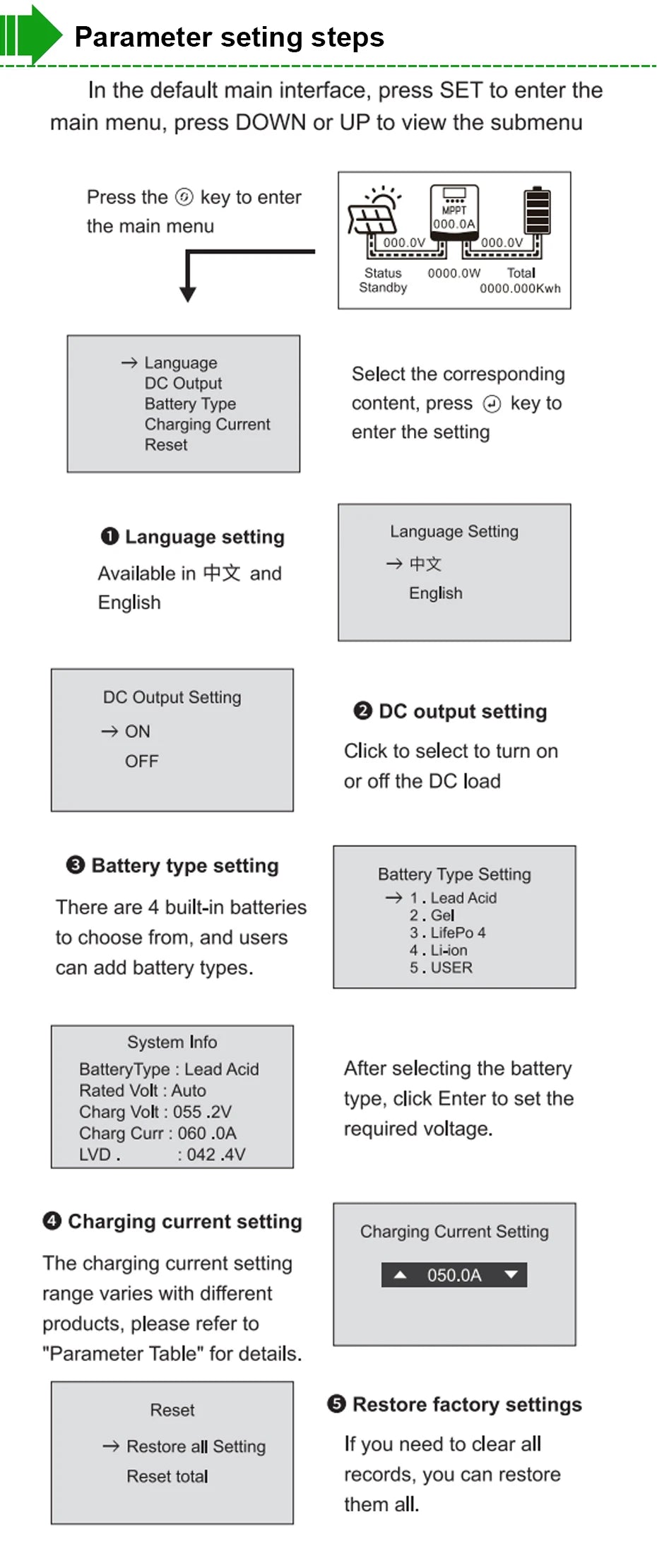

MPPT Solar Charge Controller 12V 24VParameter TableLaamu MPPT Solar Charge Controller: High-efficiency charger for Lifepo4 lithium batteries with multiple voltage inputs.

Introducing the Laamu MPPT Solar Charge Controller, designed for Lifepo4 Lithium GEL Batteries. This high-efficiency controller supports multiple input voltages (12V, 24V, 48V, 60V, 72V, and 84V) and output voltages (30A, 40A, 50A, 60A, 70A, and 80A). With its maximum power point tracking (MPPT) technology, this controller ensures safe and efficient charging for your solar-powered systems. Features include overcharge protection, short-circuit prevention, and auto-voltage detection.

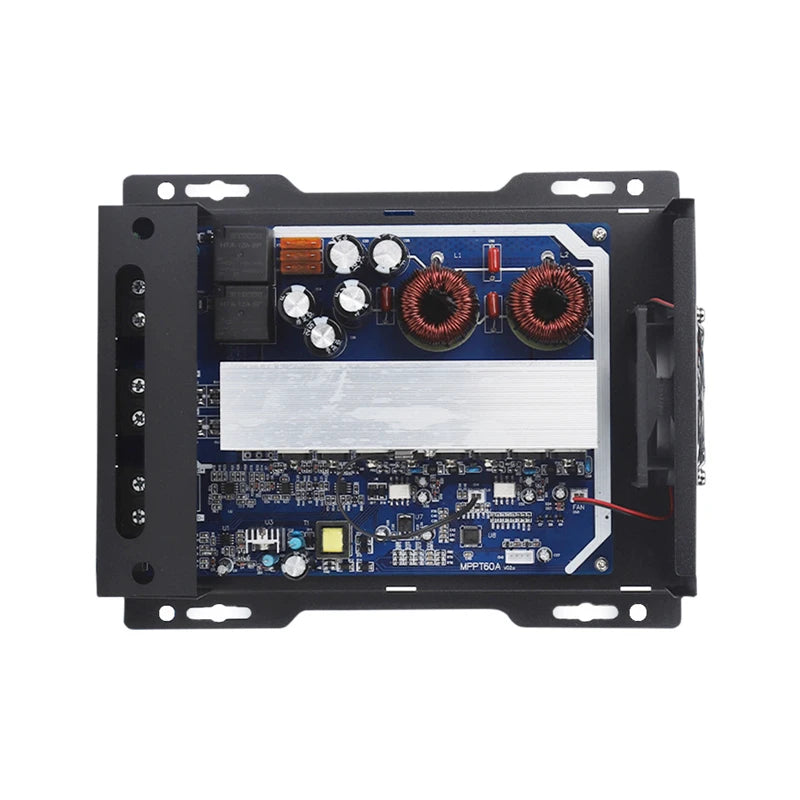

Controller with self-test and electronic protection prevents damage from errors and failures.30A-80A MPPT Solar Charge Controller for LiFePO4 Batteries, Compatible with Various Voltage Systems.

Optical character recognition (OCR) result: 30A to 80A MPPT solar charge controller for Lifepo4 lithium batteries, compatible with 12V, 24V, 48V, 60V, and 72V PV systems.


If you want to extend the life of the battery and solve the problem of inconsistent battery voltage, you can buy our battery equalizer together, please check following picture

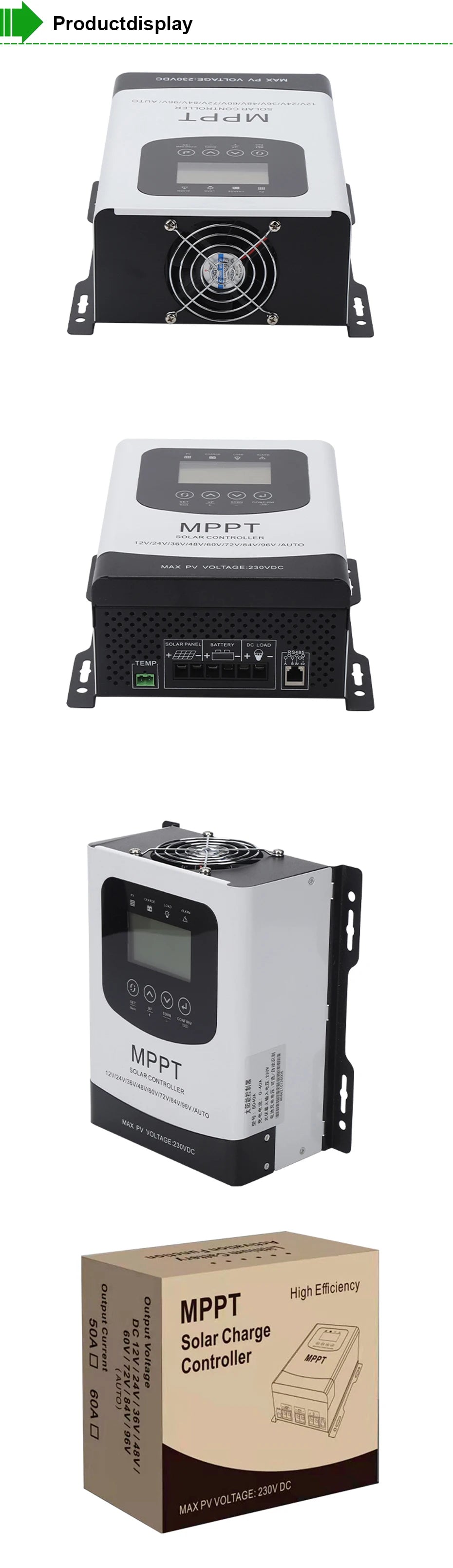

Robust aluminum enclosure with excellent heat management and protection against water, shock, and outdoor elements.

Durable aluminum case with good heat dissipation, waterproof, and shockproof design. Perfect for outdoor use.

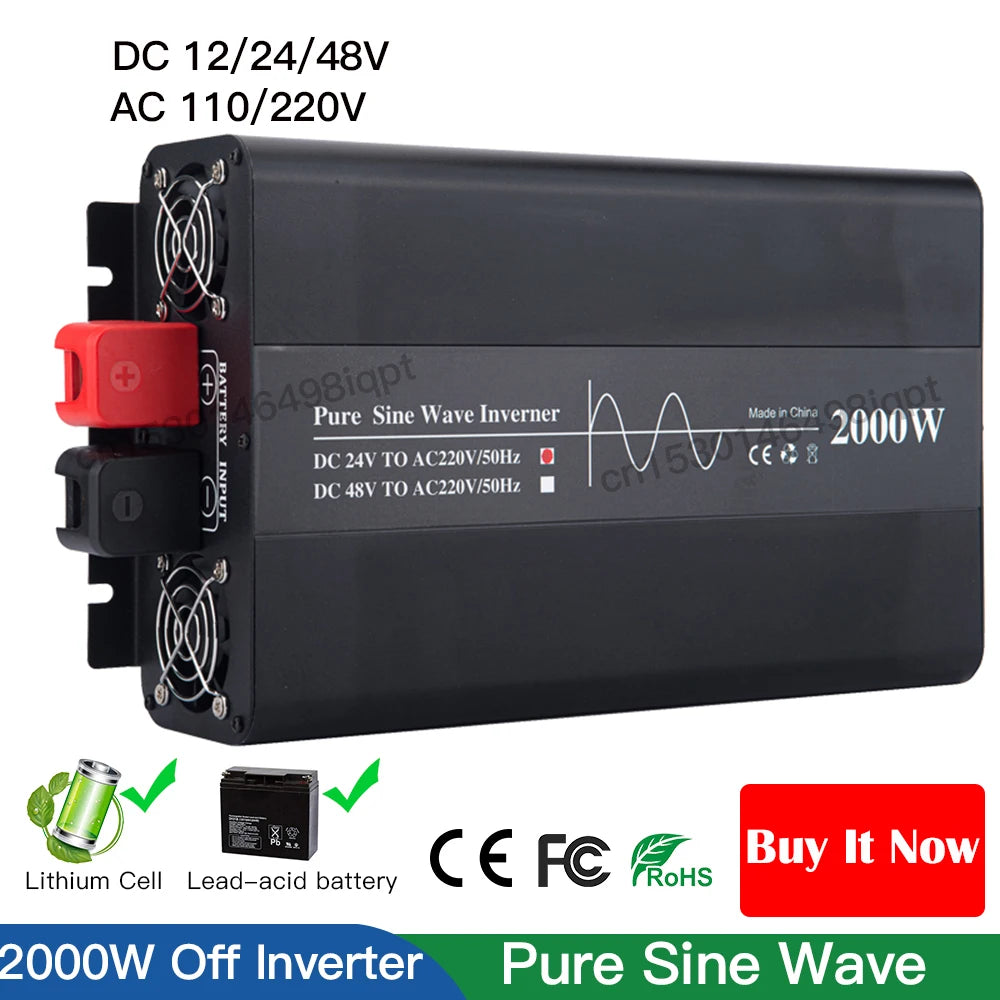

If you need to buy off inverter together, i can also provide 2KW off inverter together, buying off inverter together, which will save freight cost, please check the following picture.
