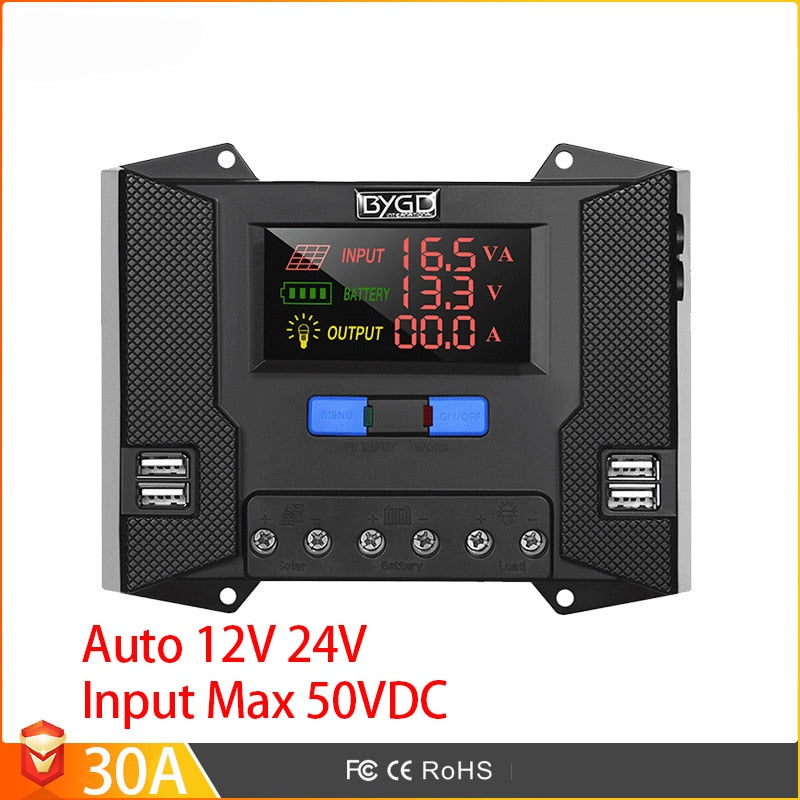

30A Solar Charge Controller 12V 24V 50VDC PWM PV Charging Regulator For 100W 200W 300W 400W 500W Solar Panel

30A Solar Charge Controller 12V 24V 50VDC PWM PV Charging Regulator For 100W 200W 300W 400W 500W Solar Panel

$34.05 USD
$34.05 USD
Sale Sold out
Shipping calculated at checkout.
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Model Number: 20A 30A Solar charge controller

Maximum Current: 30A

Is Smart Device: No

Certification: CE

Brand Name: HXCONTROLLER

Application: Charger Controller,Voltage Controller,Solar System Controller

30A Solar Charge Controller, Displays battery voltage and charge status with flashing indicator during charging.

About Our brand

Thanks for choosing CP Series solar charge controller, BYGD is always pursuing thecombination of high quality and fashion design,to change the industrial productmore acceptable by common family.BYGD product chooses high performancecomponents,with strict production standard,BYGD ensures product with longlifespan and stable quality,before enjoy the advantages BYGD bring toyou,please read the user manual carefully.


About this controller:

1.Show current

Connect the controller to 12V or 24V battery,the screen will show thecurrent for 5 seconds,user knows the specification you purchase.

2.Input current &.voltage display

User can see the input current and voltage from the solar panel,thefunction helps user to test the quality of solar panel(current x voltage =power).


3.Battery voltage display &.charge status

When battery is being charged ,theis indicate light will flashing,meanwhile you can read the battery voltage. The function helps user master battery statusclearly.

4.Output current display

When 12V or 24V load connected to the controller works,the screenshow the output current,this function helps user master the workingstatus of the load.

5. 4 pcs of USB output

This controller have 2 groups of USB output(4 pcs),each group with 2Acurrent which able to charge 4 pcs of iPhone 6s at the same time.

6. 12V/24V auto.voltage distinguish function

7.Over-charge,Over-discharge,short-circuit protections,to ensuresystem safe and prolong battery life.

8. With battery temperature compensation,ensure best charge status indifferent environment.

9.Three stage charge mode:strong charge,constant current,floatingcharge intelligent control.

10.lf no operation after three minutes, the system automatically sleep,press any key to restore.

30A Solar Charge Controller,

Model NO.

CP10A

CP20A

CP30A

CP40A

lnput Voltage

<50V

Battery Voltage

12V/24v auto.Distinguish

Max input Current

10A

20A

30A

4OA

Full Voltage Cut-off

14.4V/28.8V+/-0.2

Low Voltage Cut-off

10.7V/21.4V+/-0.2

Charge Mode

PwM




No load loss

10 mA

20 mA

Temp.Compensation


~4mV/degress centigrade



30A Solar Charge Controller, Two groups of four USB ports each, supporting simultaneous charging of up to eight devices.

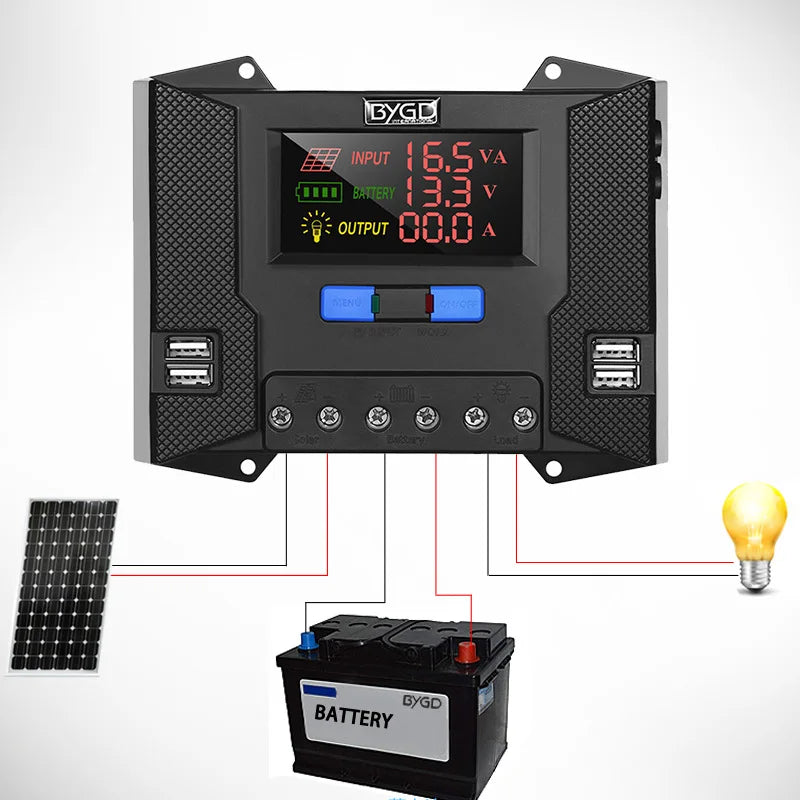

30A Solar Charge Controller, Input: 6V, Output: Battery (VA) or Syrd battery30A Solar Charge Controller, Smart solar charge controller regulates DC power for charging batteries and powering devices.

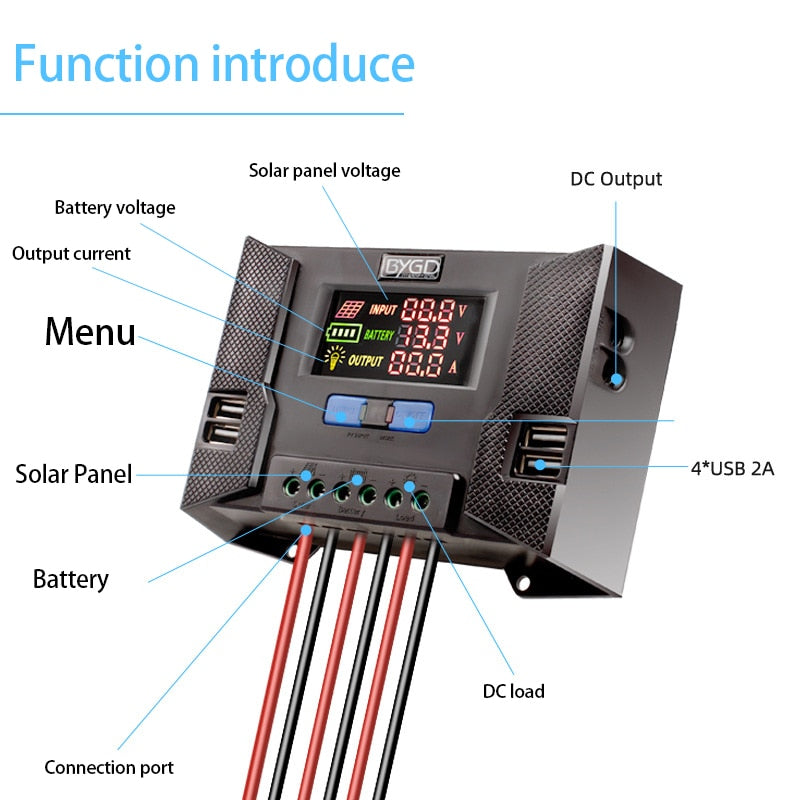

This solar charge controller regulates DC output, charging batteries from 12V to 50V with PWM technology. It features input/output menus, 4 USB ports (2A each), and connection ports for solar panels and DC loads.

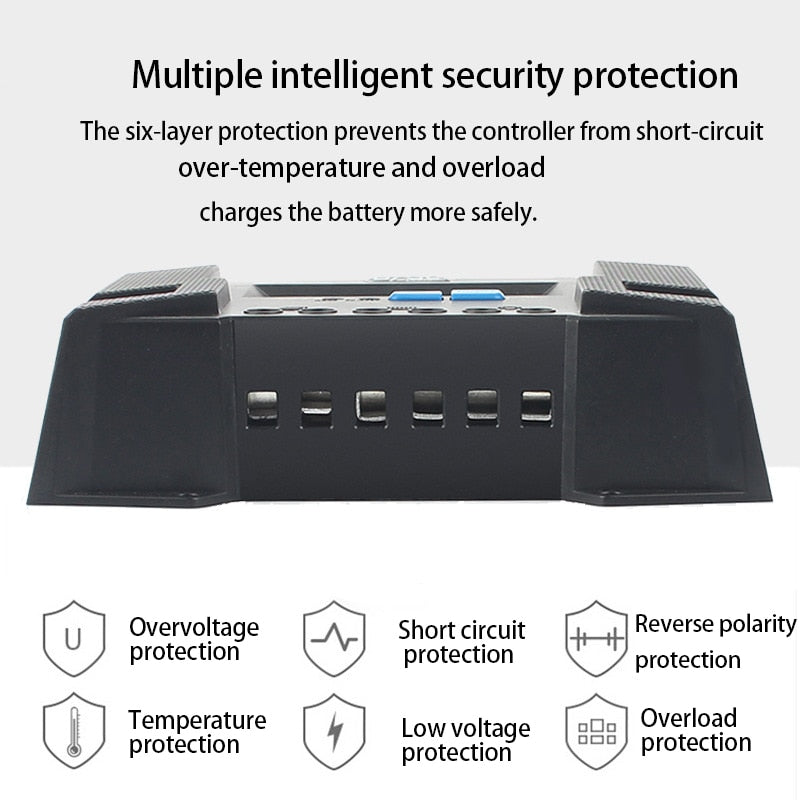

30A Solar Charge Controller, Solar charge controller with advanced safety features prevents common charging errors.

Equipped with six-layer intelligent security, this solar charge controller ensures safe charging by preventing short-circuit, over-temperature, overload, reverse polarity, overvoltage, and low voltage issues.

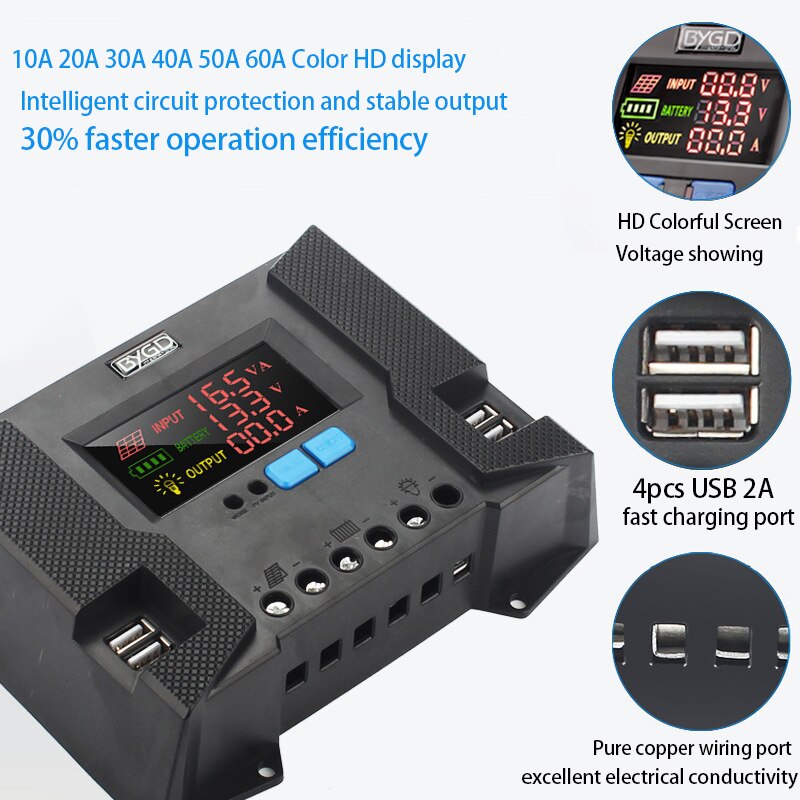

30A Solar Charge Controller, Solar charger with high-def color display, intelligent protection, and 30% faster efficiency.

Featuring a high-definition color display, this solar charge controller boasts intelligent circuit protection and stable output. With 30% faster operation efficiency, it includes an HD colorful screen showing voltage, two USB ports (2A fast charging), and pure copper wiring for excellent electrical conductivity.

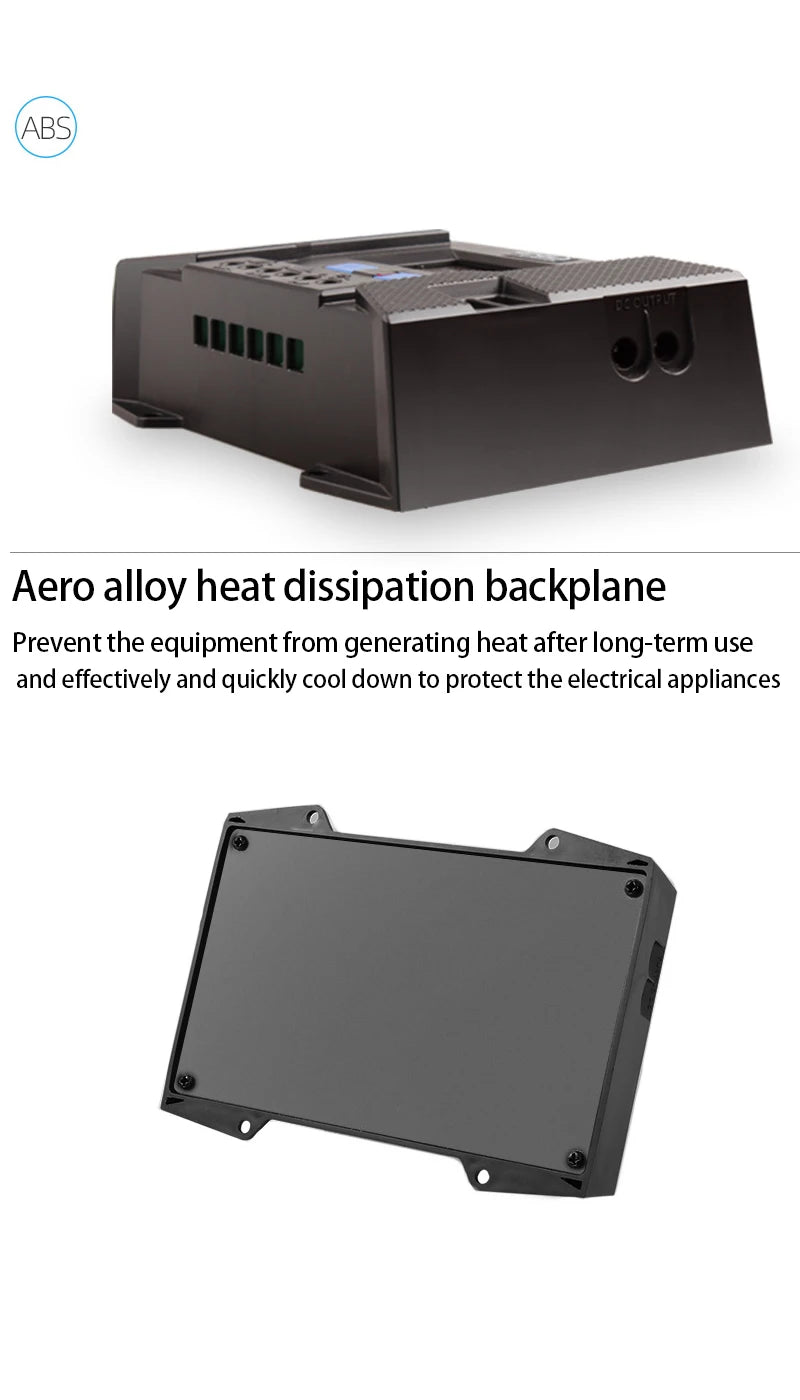

30A Solar Charge Controller, Efficient heat dissipation system for safe solar charge controller operation.

Equipped with an aerodynamic alloy heat dissipation backplate, this solar charge controller efficiently dissipates heat, preventing equipment damage and rapid cooling to ensure safe operation.

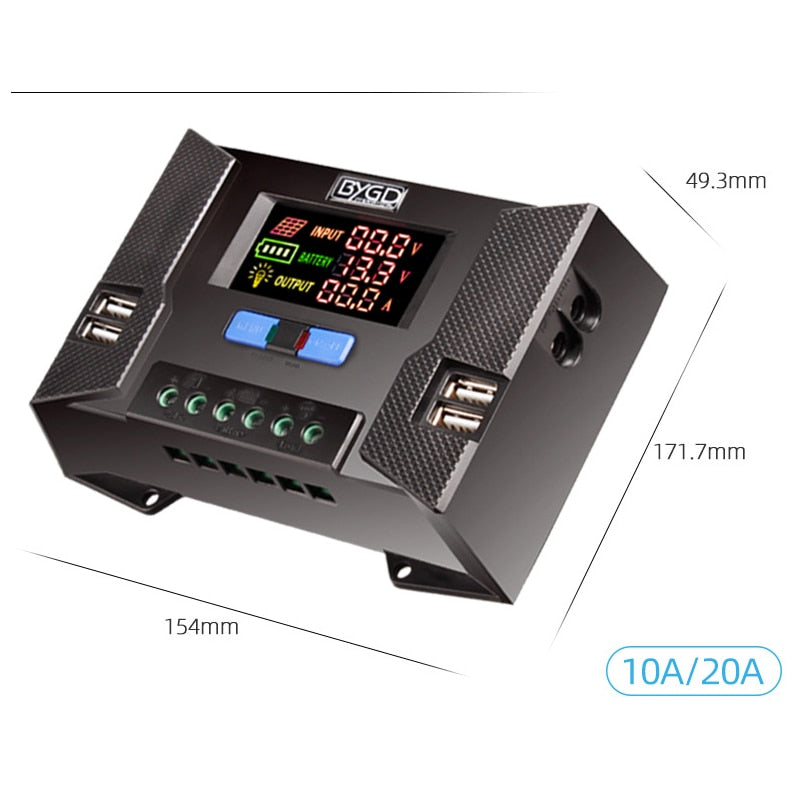

30A Solar Charge Controller, Product dimensions: 49.3mm x 47mm (input) and 171.7mm x 154mm (overall).

Dimensions: 49.3mm x 47mm (input), 171.7mm x 154mm (overall).

30A Solar Charge Controller, Solar charge controller for 100-500W panels, offers efficient charging with PWM and IOA functions.

30A MPPT Solar Charge Controller, 12V/24V/50VDC, for 100W to 500W solar panels, with PWM and IOA functions, offering efficient charging.
