30A20A10A 12V24V LCD PWM Voltage Solar Controller Battery PV Cell Panel Charger Regulator Lamp 100W 200W 300W 400W 500W

30A20A10A 12V24V LCD PWM Voltage Solar Controller Battery PV Cell Panel Charger Regulator Lamp 100W 200W 300W 400W 500W

Regular price $14.40 USD
Regular price Sale price $14.40 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color
Current|Rated Voltage|Controller Type

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Model Number: 1210/1220/1230

Maximum Current: 10A/20A/30A

Is Smart Device: No

Certification: CE,RoHS

Brand Name: Jesudom

Application: Charger Controller,Solar System Controller,Collector Controller,Solar Working Station

30A 20A 10A 12V/24V LCD PWM Voltage Solar Controller Battery PV Cell Panel Charger Regulator Lamp 100W 200W 300W 400W 500W


Wholesale consult the service of store .



This controller is a intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system)requirements.It can recognize 12V and 24V  Lead acid ,Gel battery  automatically.

There are optional 10A 20A 30A 40A 50A 60A model

Model

Battery Voltage

Max solar panel input

10A

12V

25V  120W

24V

50V  240W

20A

12V

25V  240W

24V

50V  480W

30A

12V

25V  360W

24V

50V  720W

40A

12V

25V  520W

24V

  50V  1040W

50A

12V

 25V   650W

24V

  50V  1300W

60A

12V

 25V   780W

24V

  50V  1560W

Features:

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.
Parameter:

MODEL

PWM 10A

PWM 20A

PWM 30A

PWM 40A

PWM 50A

PWM 60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

30A

30A

30A

Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

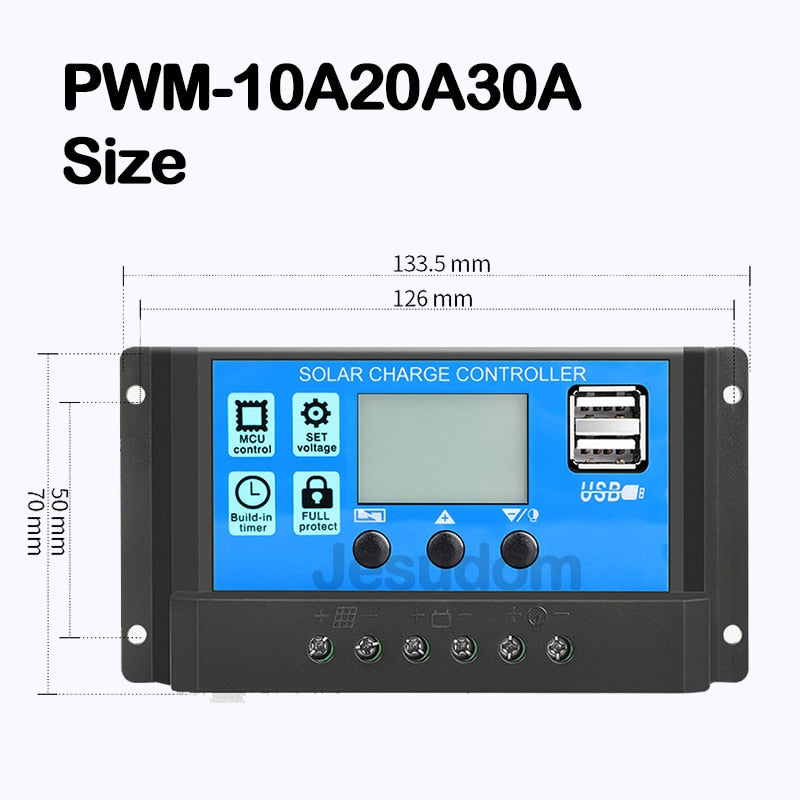

Size

133.5*70*35mm

188*90*47mm

*all red color voltage X2 ,while using 24V system.

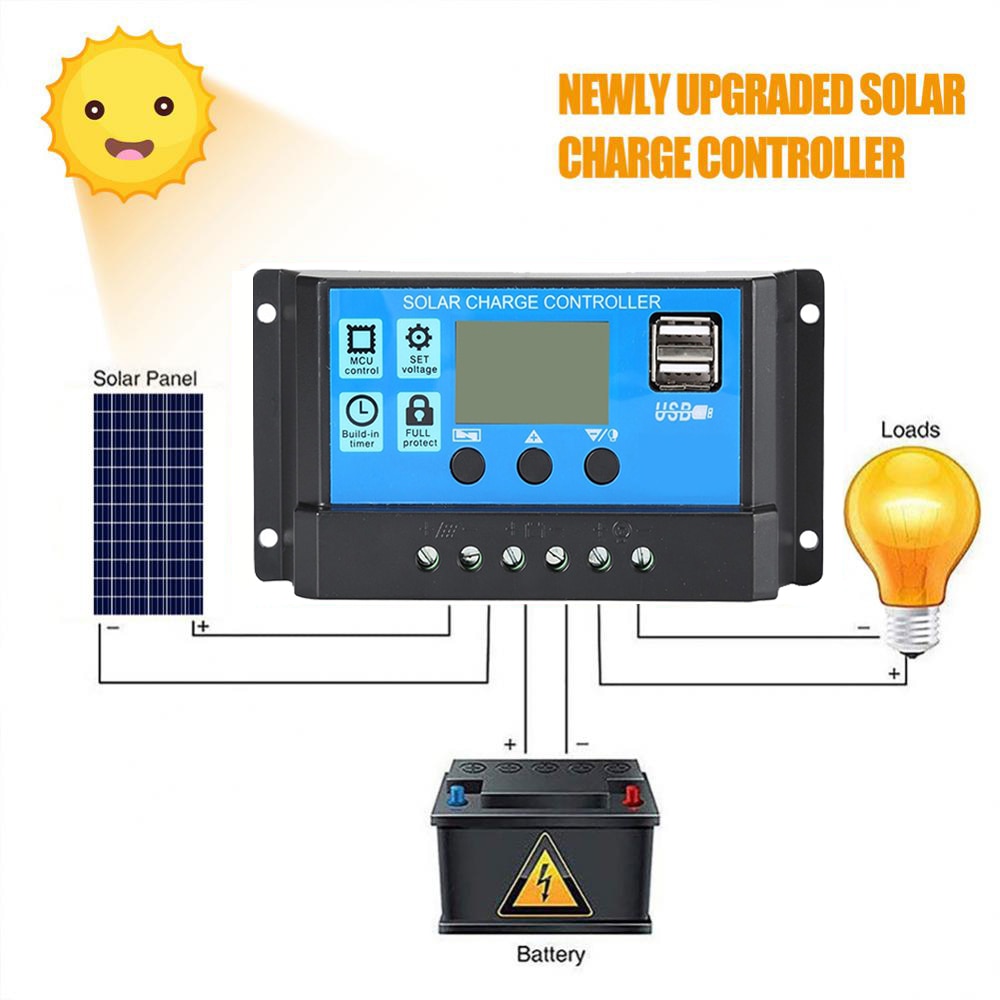

Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

30A20A10A 12V24V LCD PWM Voltage Solar Controller, 30A20A10A 12V24

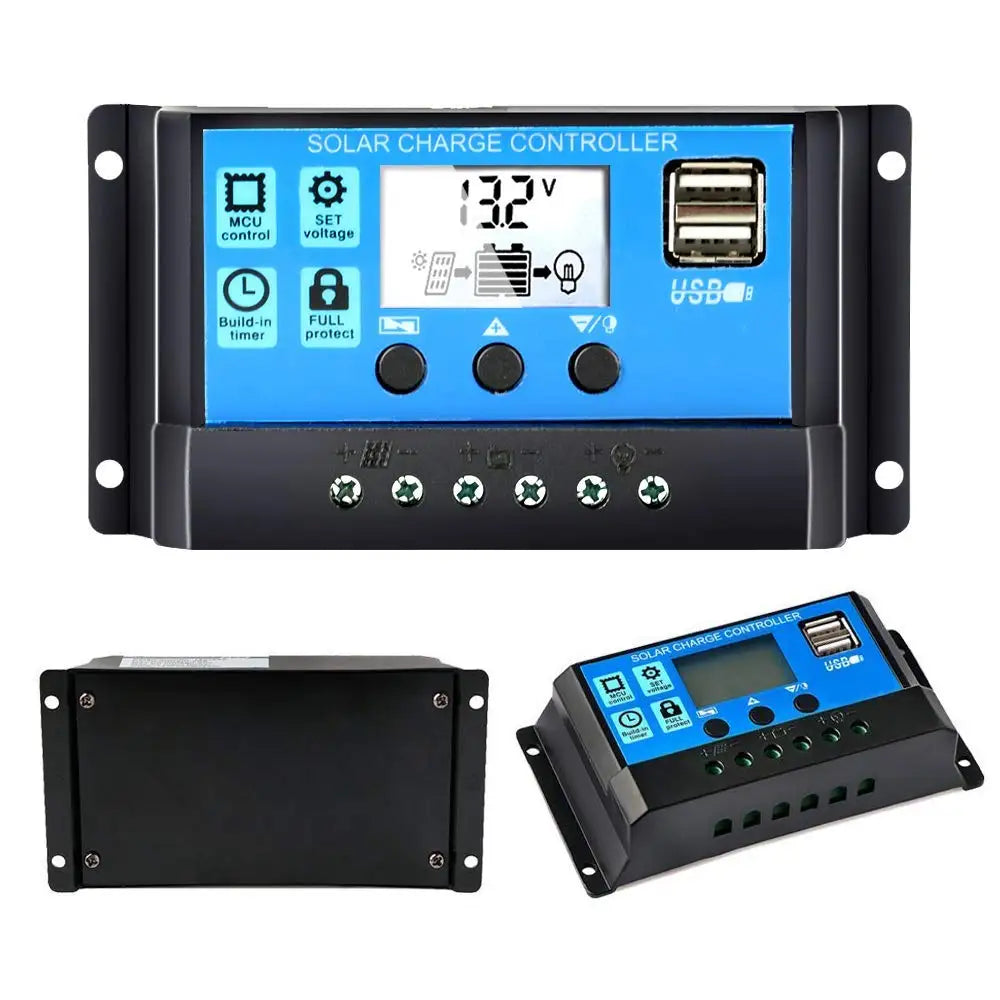

30A20A10A 12V24V LCD PWM Voltage Solar Controller, Smart solar controller with built-in timer, suitable for 6S80 panel systems.

Solar Charge Controller with MCU Set: Built-in full-time timer, supports up to 6S80 solar panels and charge controllers for efficient energy conversion.

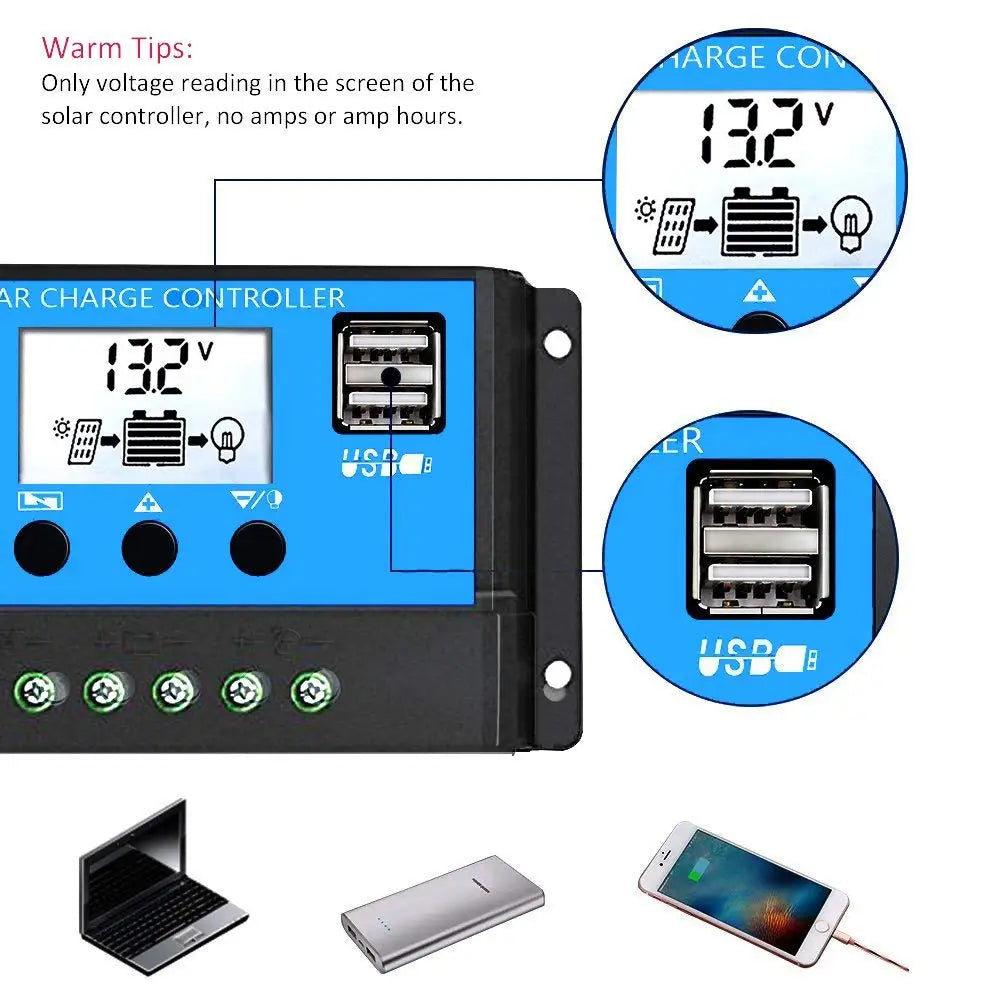

30A20A10A 12V24V LCD PWM Voltage Solar Controller, Displays voltage only, no current or capacity readings, with a USB-C tip.

Display only shows voltage; no current or capacity readings. Solar Charge Controller with USB-C tip.

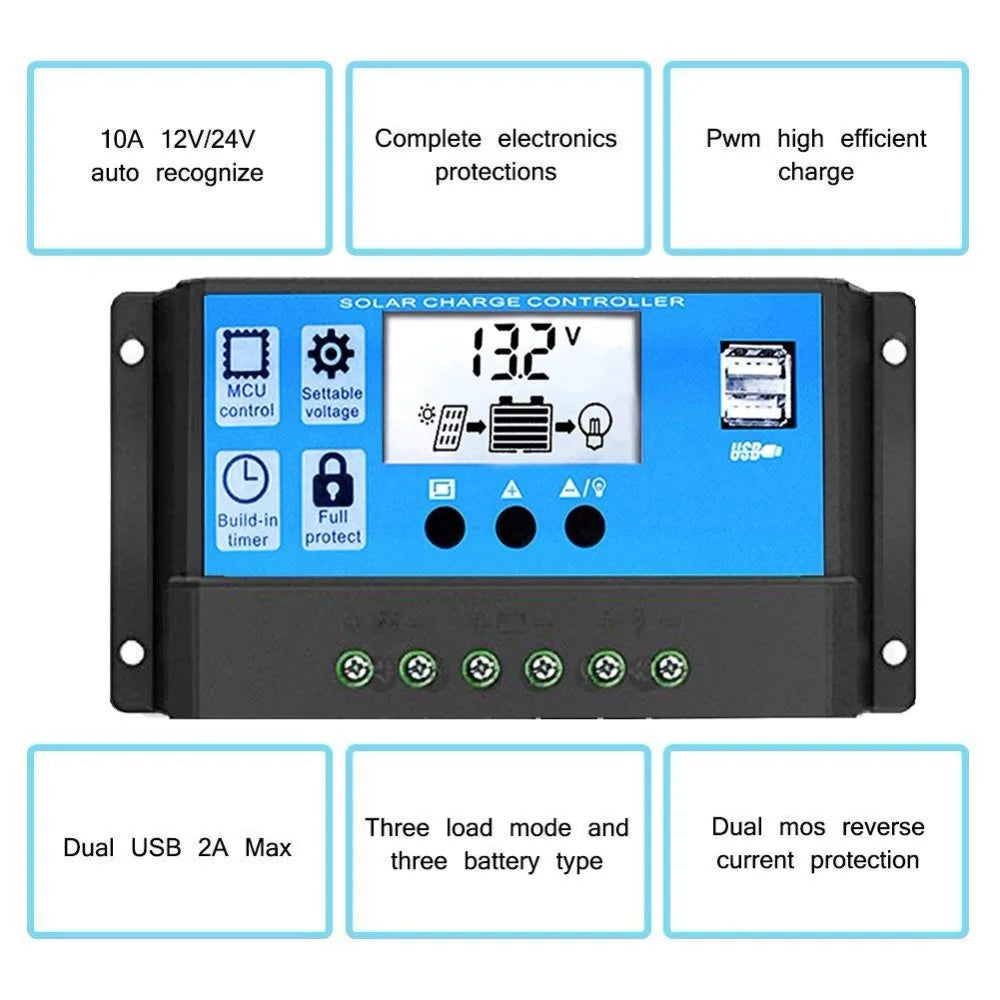

30A20A10A 12V24V LCD PWM Voltage Solar Controller, High-efficiency solar charger controller with auto-recognition and protection features.

12V/24V Solar Charger Controller: A high-efficiency, auto-recognize protected device with MCU control, full-range protection, and three load modes. Features include USB 2A max charging, dual MOSFET reverse protection, and support for multiple battery types.

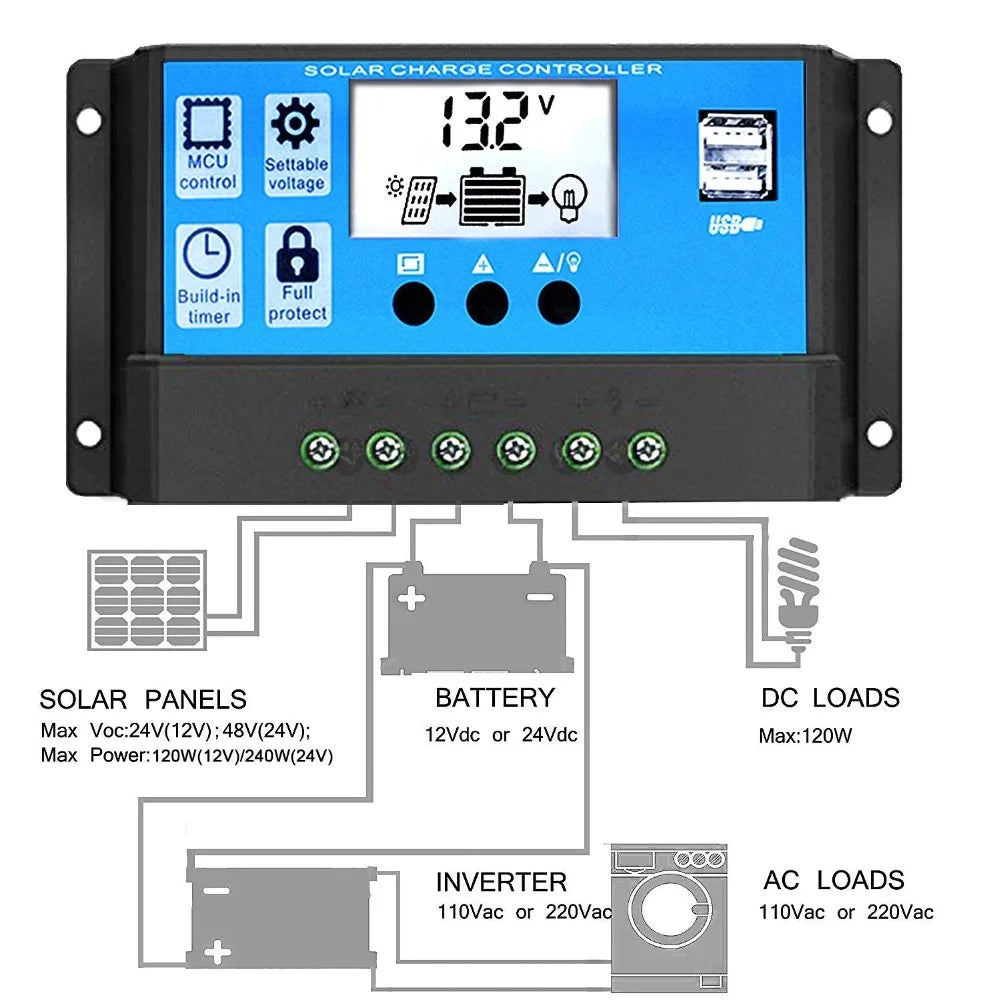

30A20A10A 12V24V LCD PWM Voltage Solar Controller, Adjustable solar controller with built-in protection, supports up to 3 panels and DC loads, with inverter for AC use.

Solar Controller: Adjustable MCU control with built-in full-bridge protection. Supports up to 3 solar panels, batteries, and DC loads. Max voltage: 24V (12V) or 48V (24V); max power: 120W (12V) or 240W (24V). Also features an inverter for AC loads, compatible with 110Vac or 220Vac.

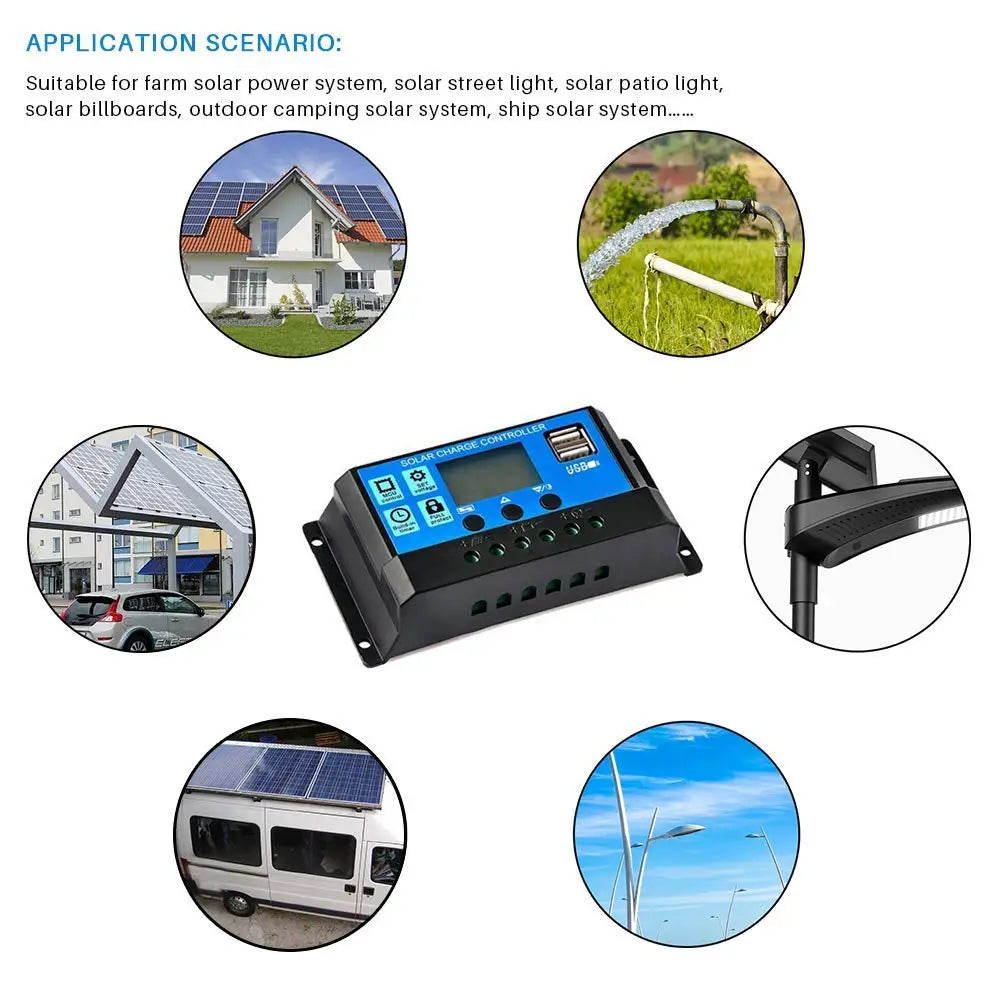

30A20A10A 12V24V LCD PWM Voltage Solar Controller, Off-grid solar power regulator for farms, lighting, camping, and ships; regulates voltage and charges batteries.

Suitable for various applications: farm solar systems, solar-powered lighting (street lights, patios, billboards), outdoor camping, and ships. Perfect for regulating voltage and charging batteries in these scenarios.

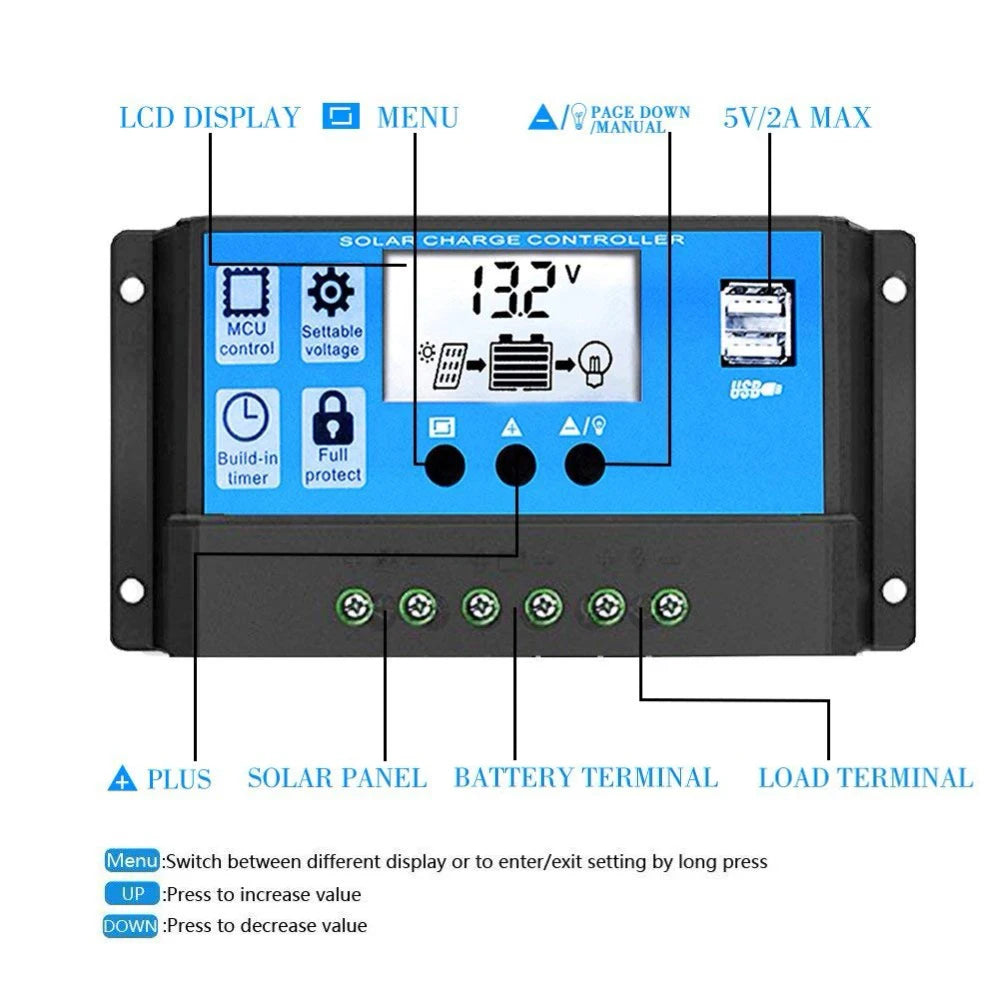

30A20A10A 12V24V LCD PWM Voltage Solar Controller, Control solar panel system with LCD menu featuring adjustable voltage, MCU control, and USB interface.

LCD Display Menu: Control your solar panel system with ease. Features include: * Adjustable voltage (12V-24V) * MCU-controlled for precision * Built-in overcurrent protection * USB interface for programming and monitoring * Load and battery terminals for easy connection * Switch between display modes using the UP/DOWN buttons

30A20A10A 12V24V LCD PWM Voltage Solar Controller, Compact voltage controller for solar panels and battery charging.

12V/24V LCD PWM voltage controller for solar panels and battery charging, regulating up to 500W power output with compact design (4.8cm x 5.9cm) and adjustable LED lamp included.

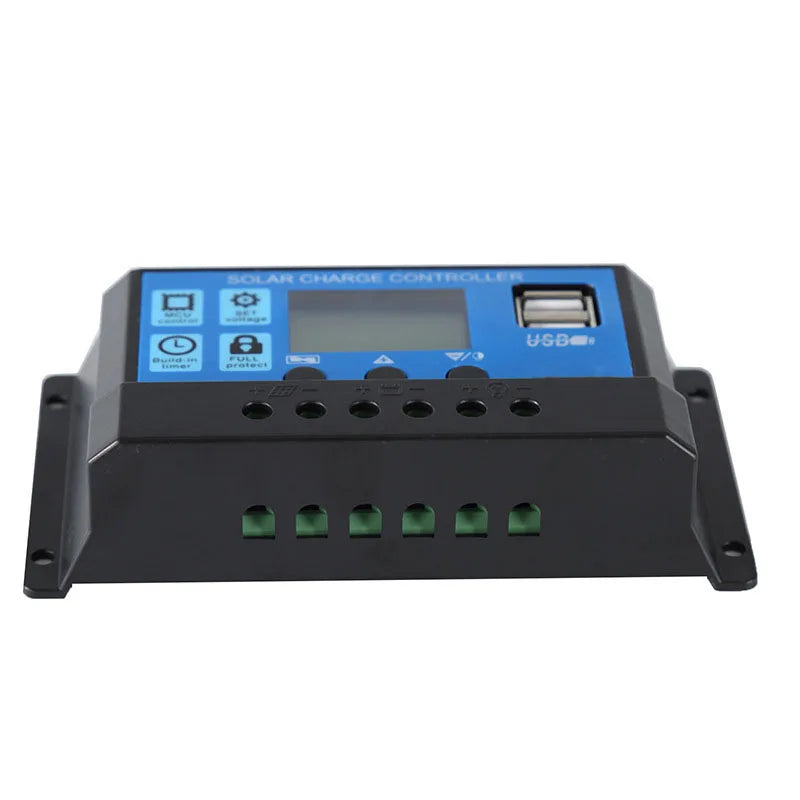

30A20A10A 12V24V LCD PWM Voltage Solar Controller, 30A20A10A 12V24V LCD PWM Voltage Solar Controller, Intelligent solar controller for charging and discharging, suitable for various applications.30A20A10A 12V24V LCD PWM Voltage Solar Controller, Solar controller for 12V/24V batteries with LCD display and regulation features.

Solar Controller for 12V/24V batteries with LCD display, PWM voltage regulator, and charge controller. Suitable for solar panels up to 500W. Regulates charging and discharging current. Ideal for battery-powered devices such as lamps and motors.

30A20A10A 12V24V LCD PWM Voltage Solar Controller, Solar controller regulates 12V/24V power for batteries, PV panels, and lamps up to 500W.

12V24V LCD PWM voltage solar controller, charger, regulator for battery, PV cell panel, lamp, suitable for 100W to 500W power.
