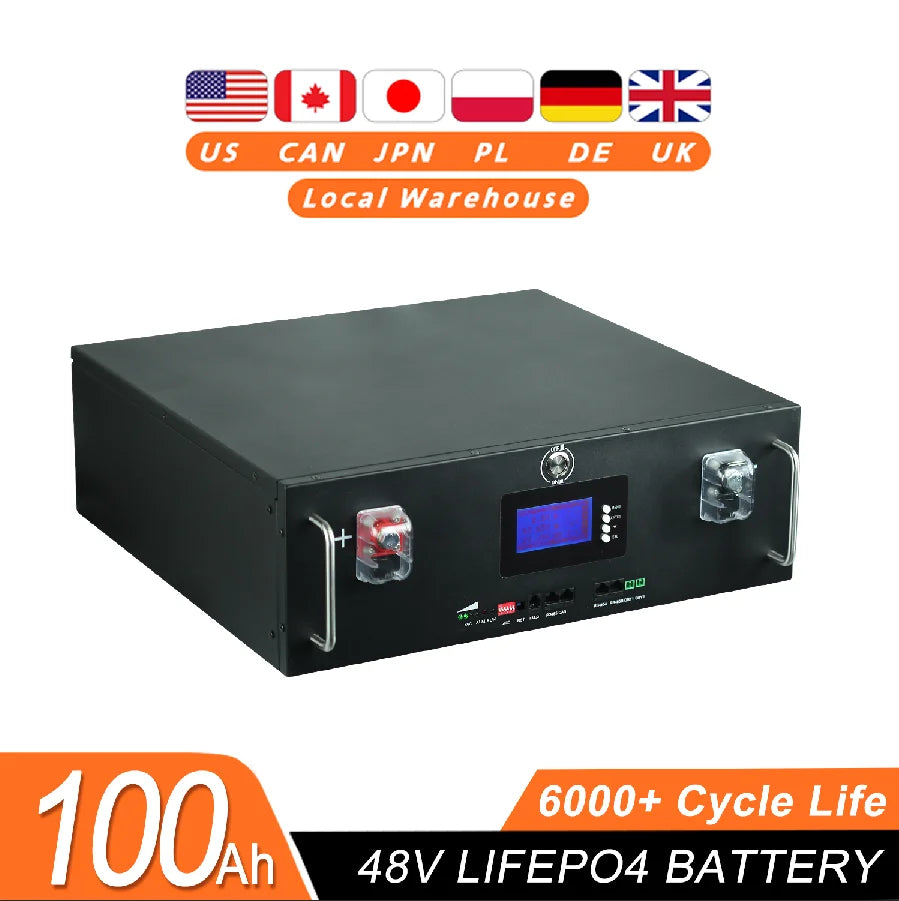

48V 100Ah Lifepo4 Battery

Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 5120Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Charger Current: 20A(0.2C)
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 42kg
Terminal Type: Dual M8

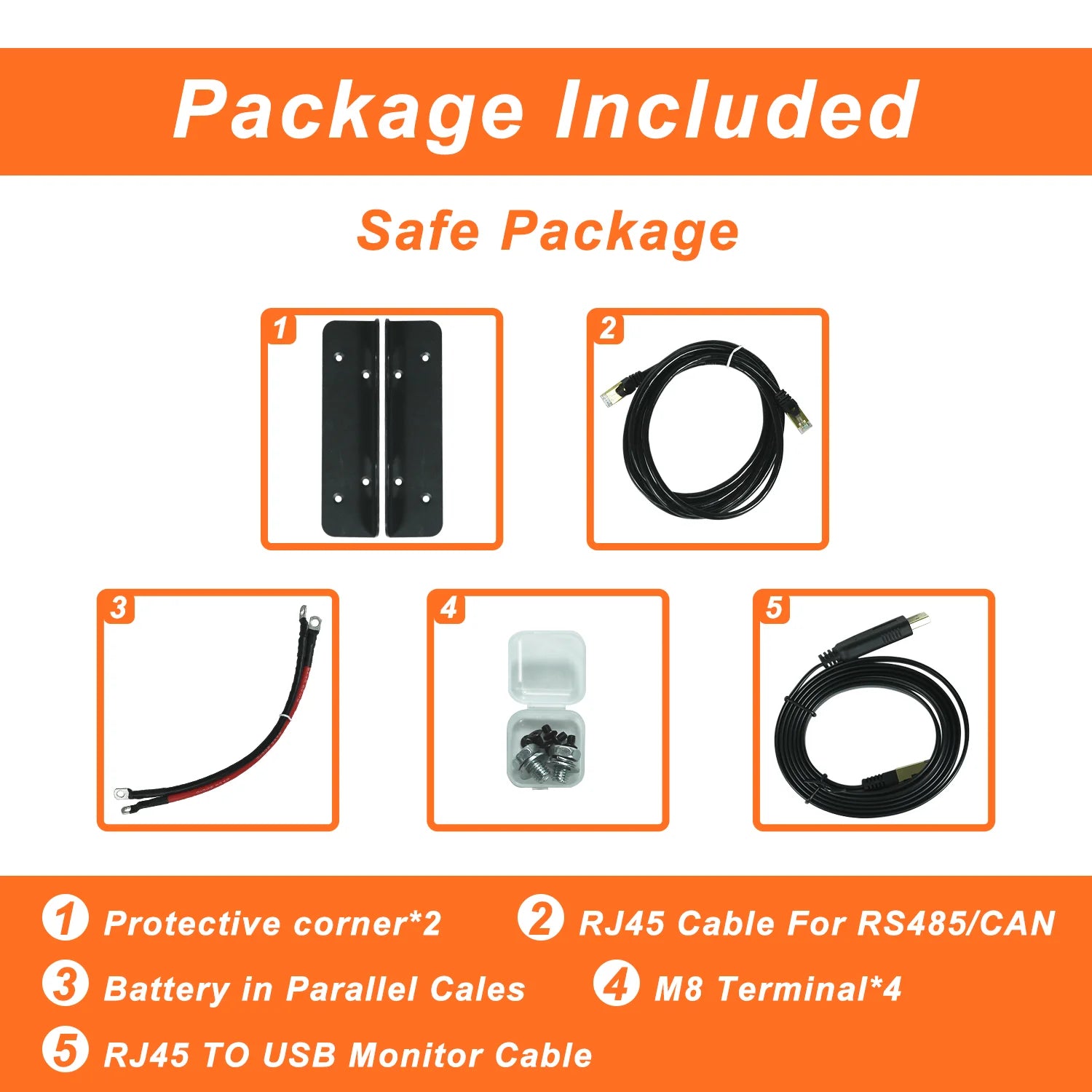

Package Included

1.protective corner*2
2.RJ45 Cable for RS485/CAN
3.Battery in Parallel Cables
4.M8 Terminal*4
5.RJ45 TO USB Monitor Cable

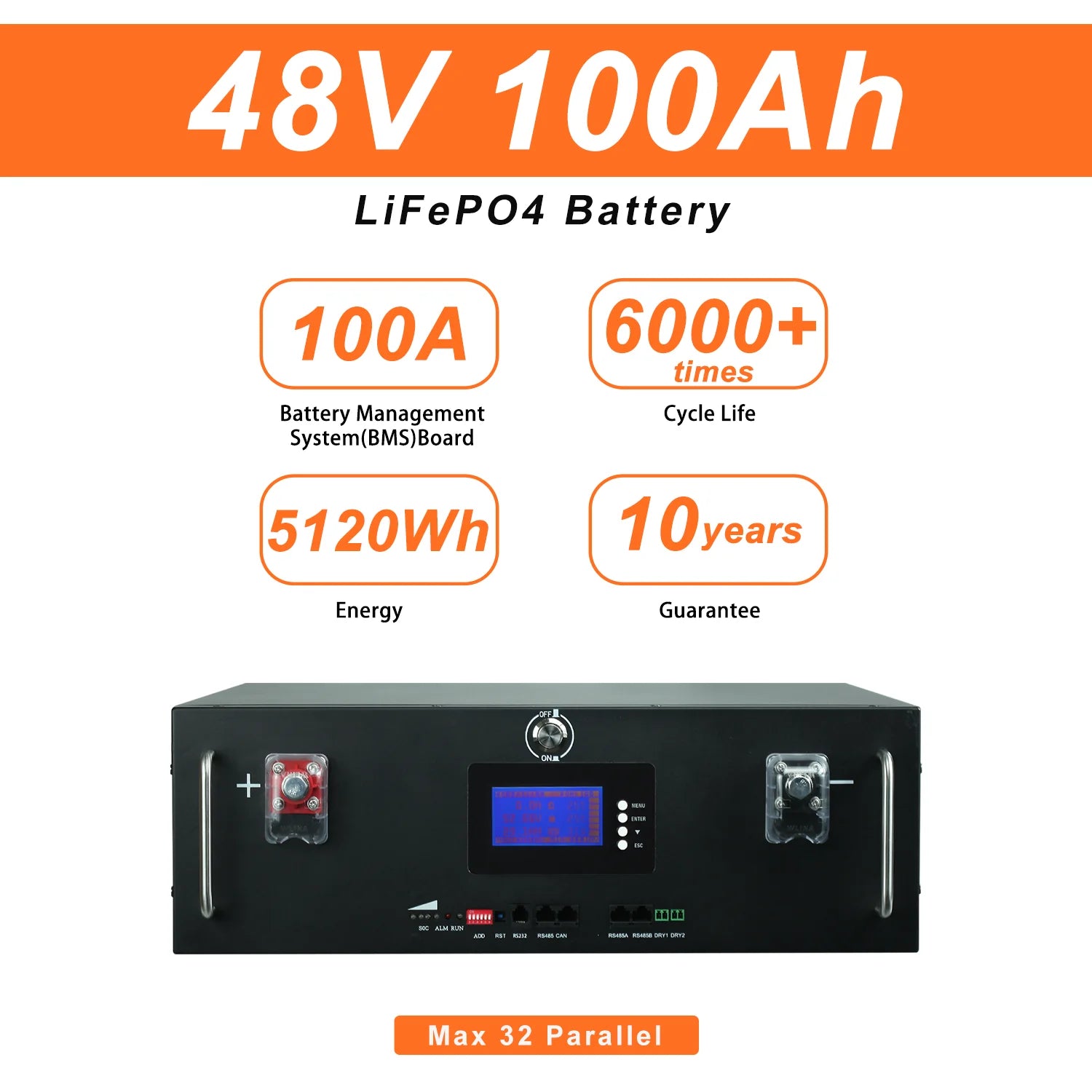

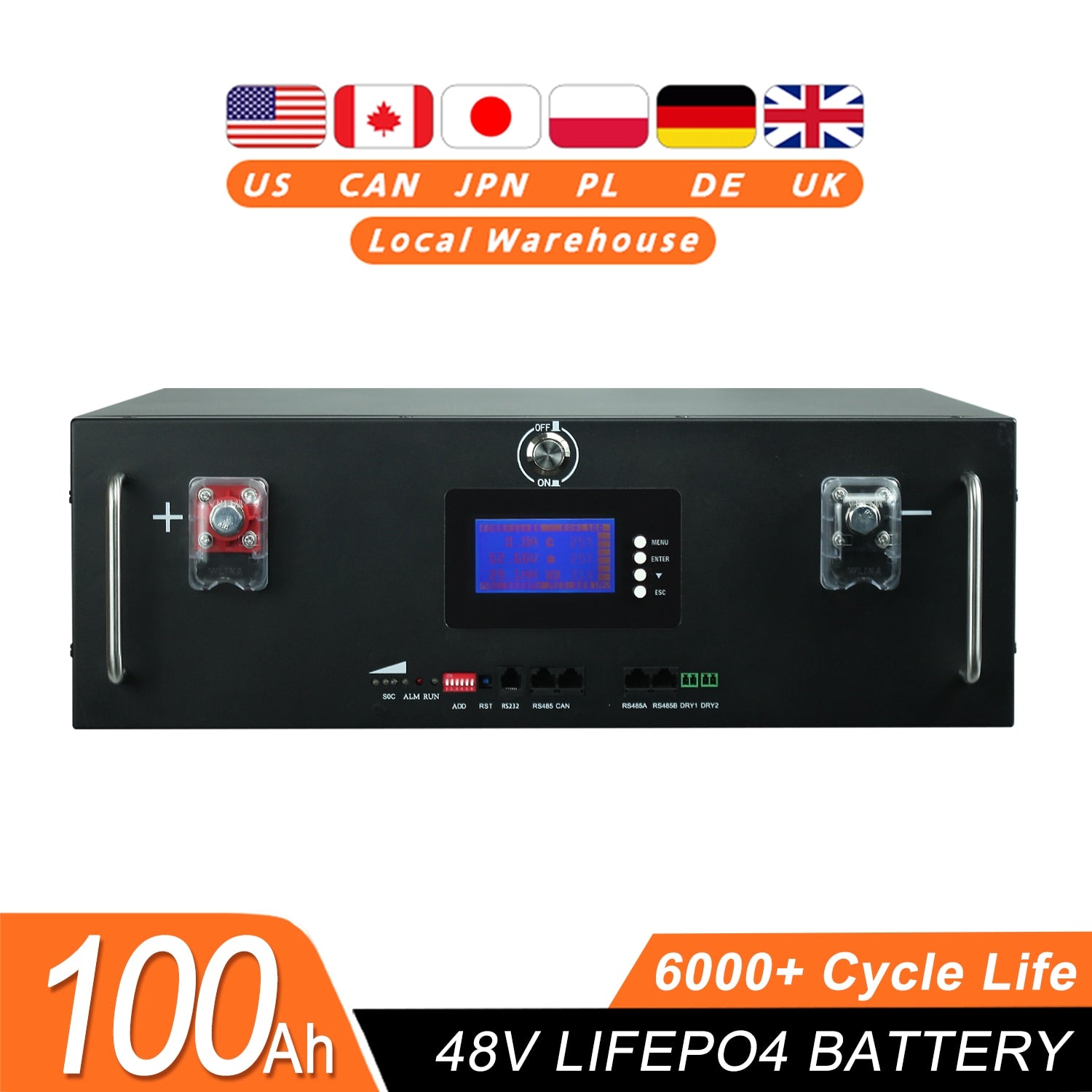

48V 100Ah Pack

With Smart 16S100A Built-in BMS
More 6000+ cycle times
5120Wh engergy
10 Years quality warranty

Made Of New Grade A Cells

Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 300Ah 0.2C
Built-in BMS:4S150A
Energy: 3840Wh
Cycle Life: ＞4000 cycles at 0.2C;
Charge Voltage: 14±0.2V
Suggset Charge Current: 60A
Max. Charge Current: 70A
Max. Continuous Current: 150A
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 530*237*217 mm /
Weight: Approx. 33kg
Terminal Type: M8

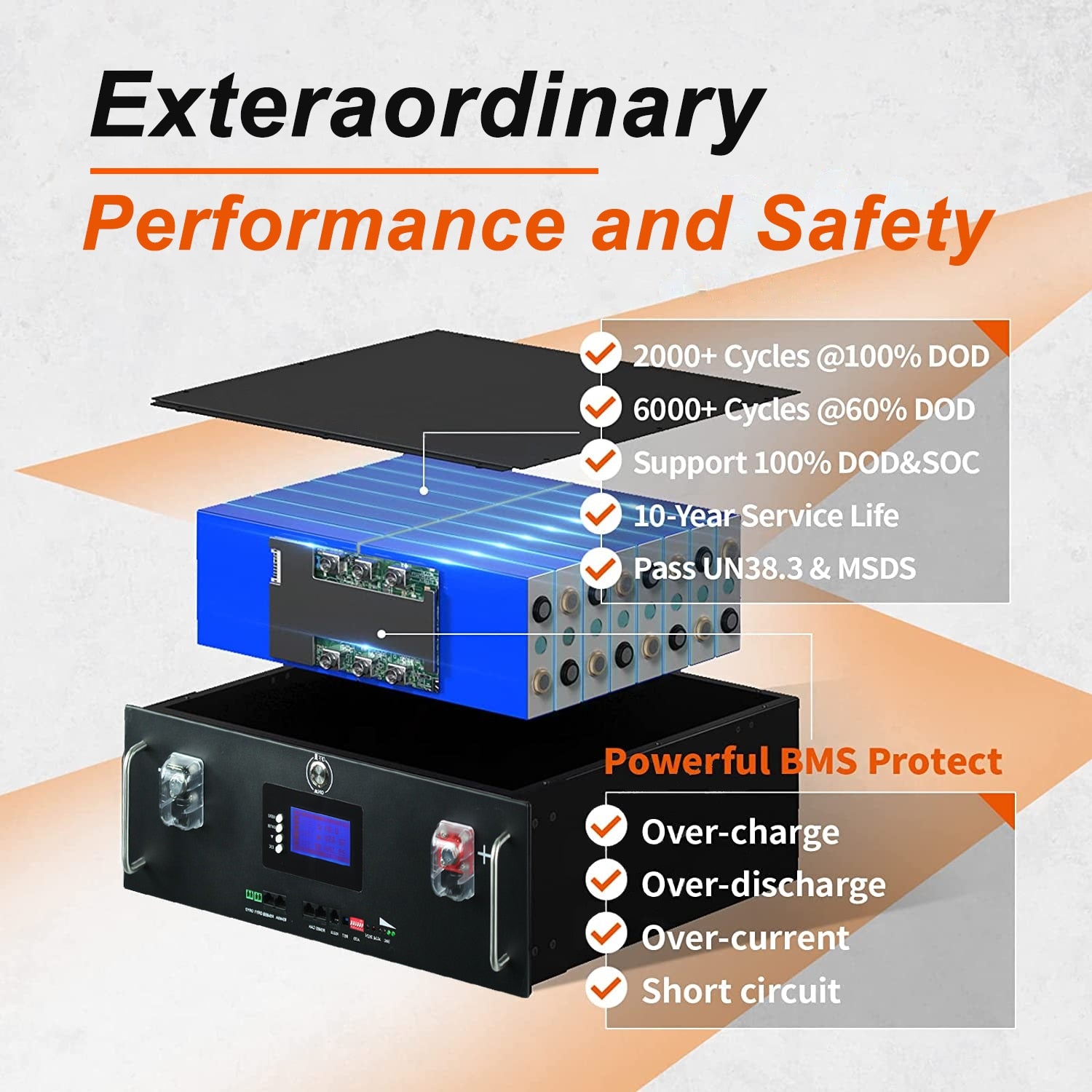

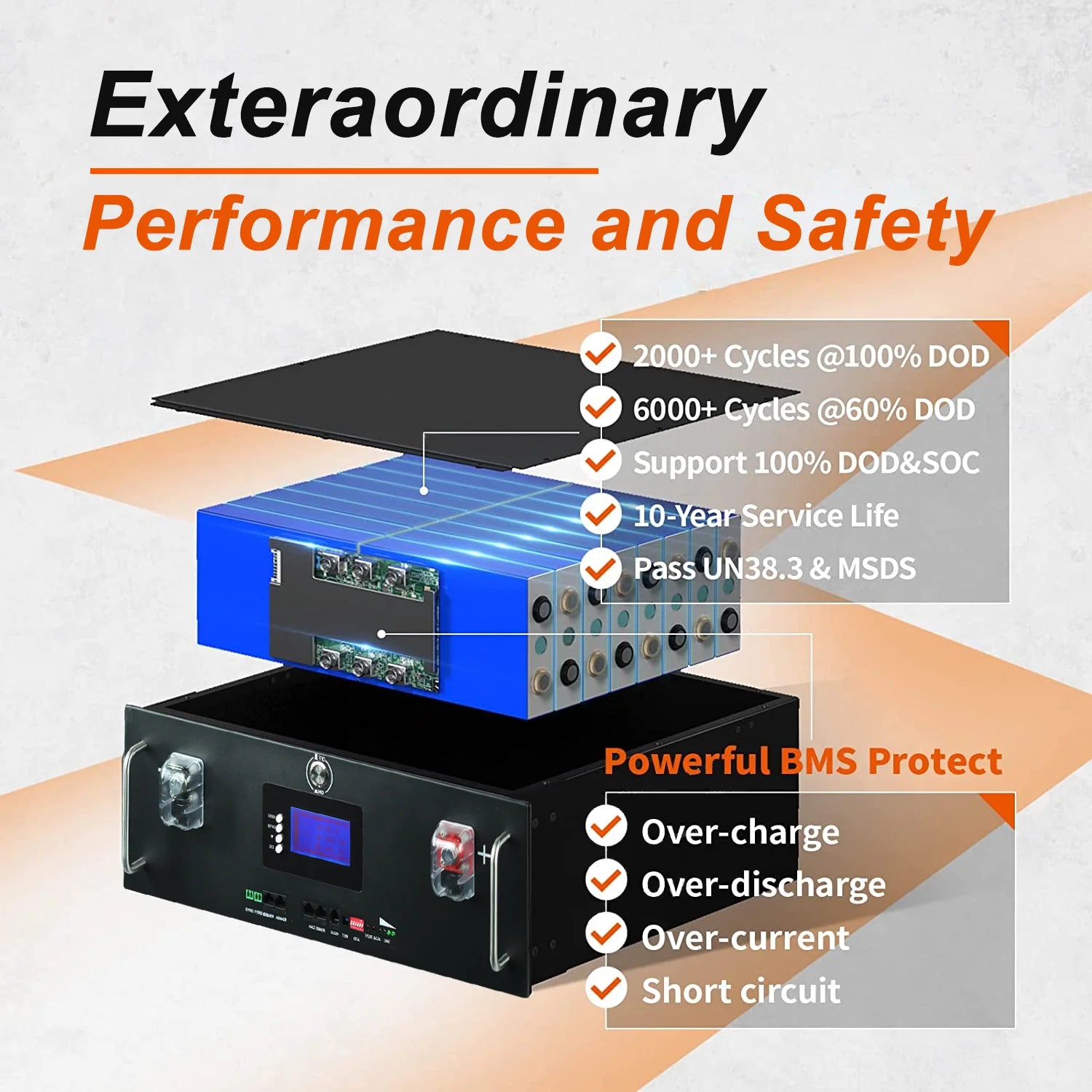

Compact & Safety

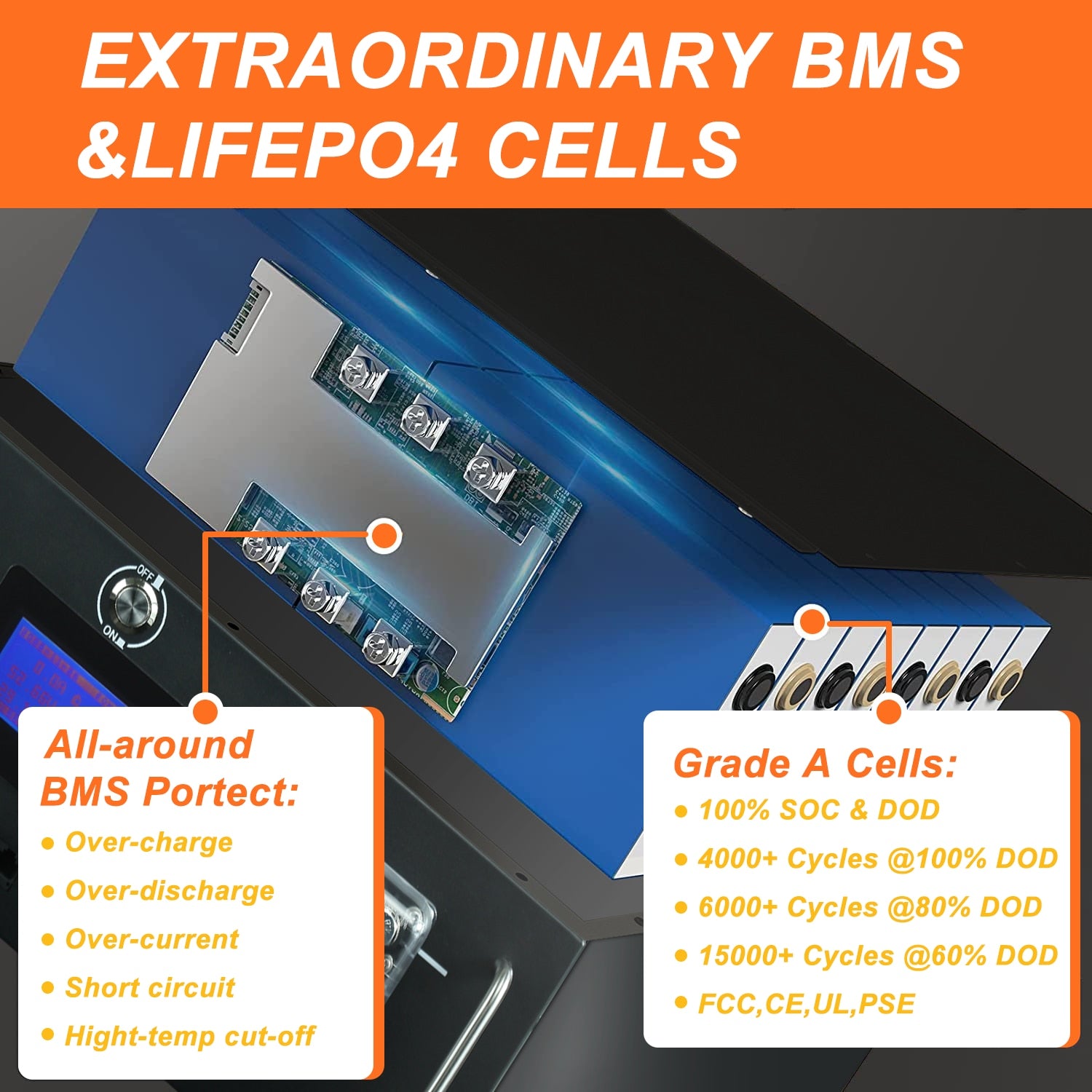

Powerful BMS Protect
over-charge protection
over-current protection
short circuil protection

Match All Hybrid Inverters

It can be compatiable with most Hybrid Inverters,if need communication,you can contact our customer service before purchasing.

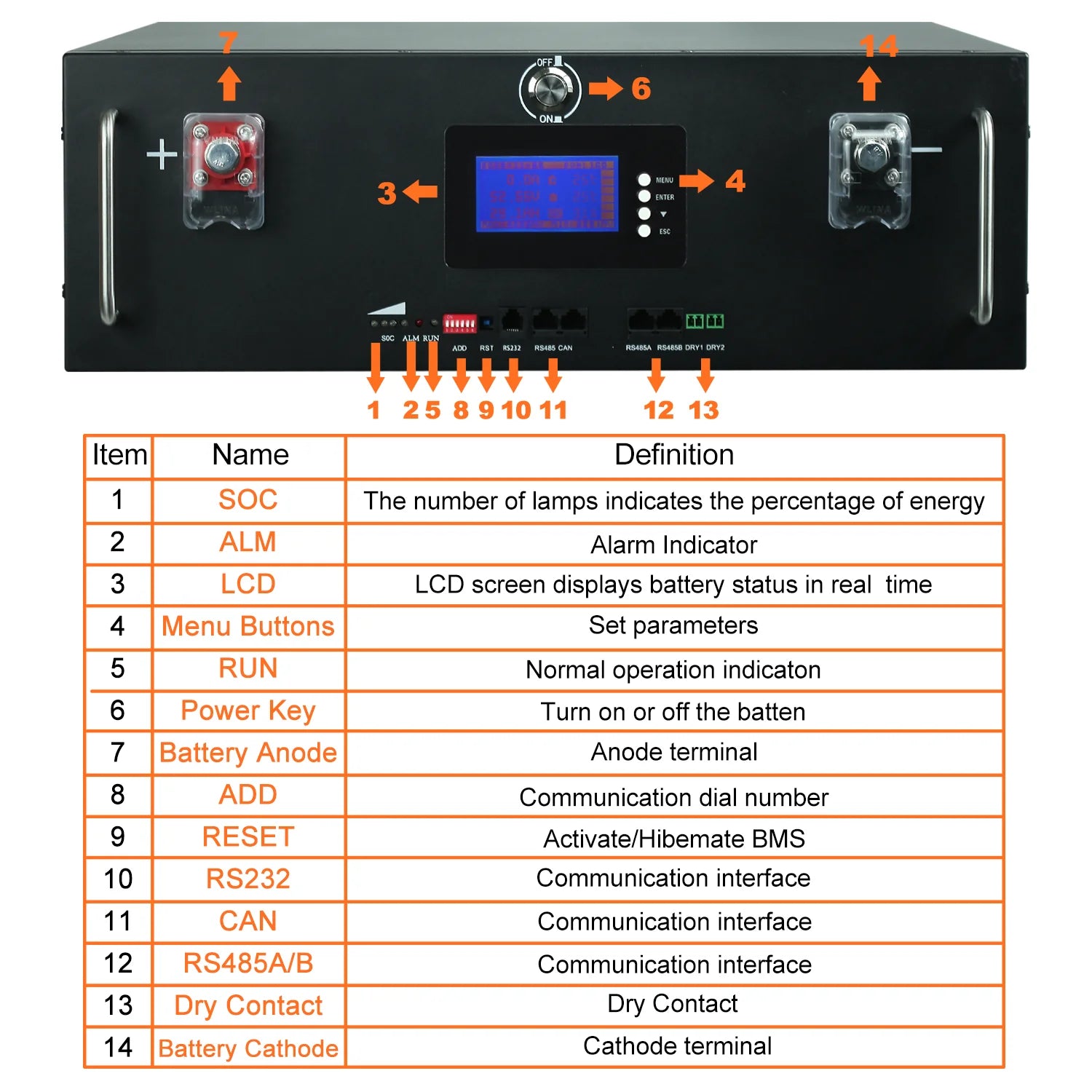

Products Button Definition

1.Soc-The number of lamps indicates the percentage of energy
2..ALM-Alarm Indicator
3.LCD-LCD screen displays battery status in real time
4.Menu Buttons-Set parameters
5.RUN-Normal operation indicaton
6.Power Key-Turn on or off the batten
7.Battery Anode-Anode terminal
8.ADD-Communication dial number
9.RESET-Activate/Hibemate BMS
10.Rs232-Communication interface
11.CAN-Communication interface
12.RS485A/B-Communication interface
13.Dry Contact-Dry Contact
14.Battery Cathode-Cathode terminal

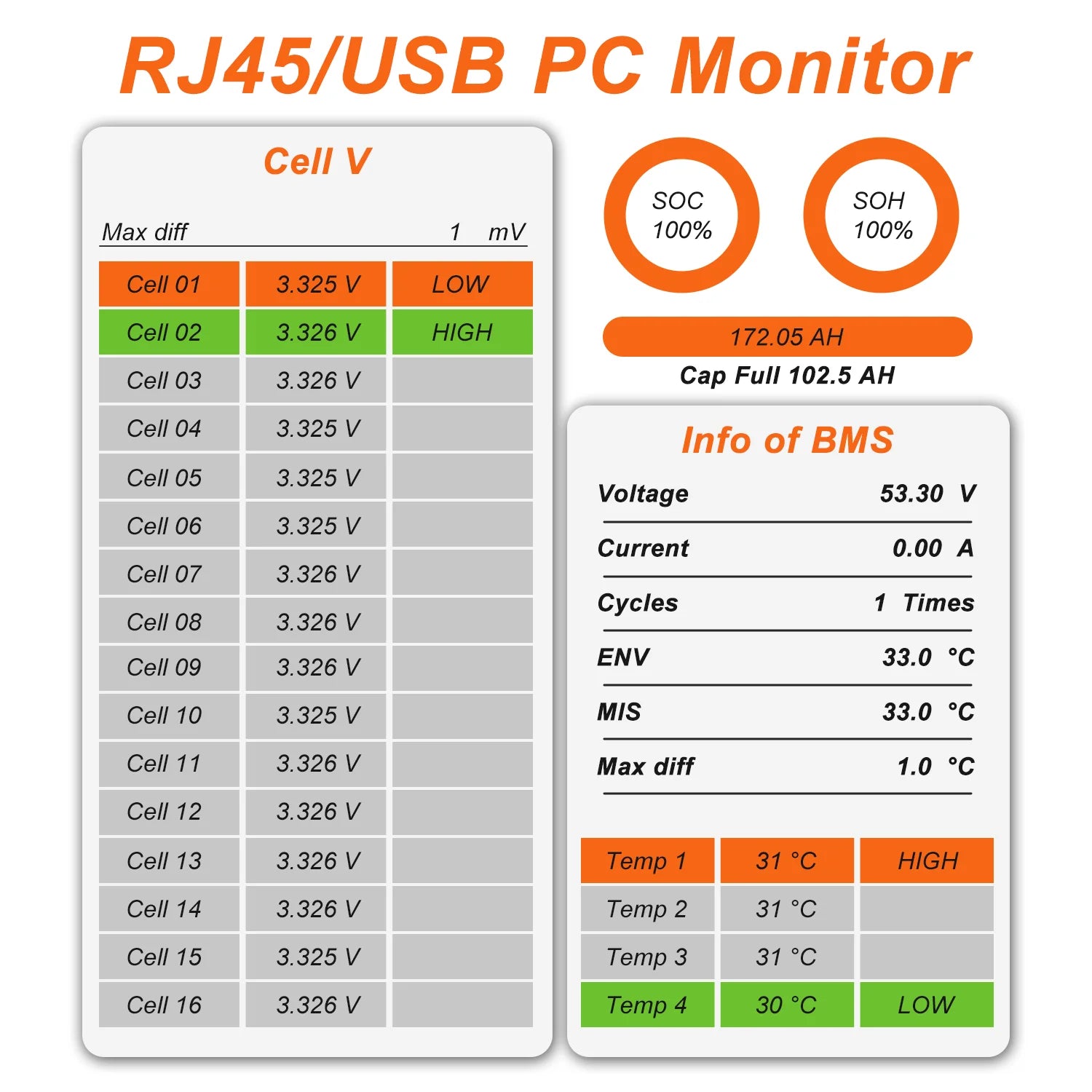

RJ45/USB PC Monitor

5120W High Output Power

More loads can be connected at the same time with 5120W

10 Year Quality Warranty
