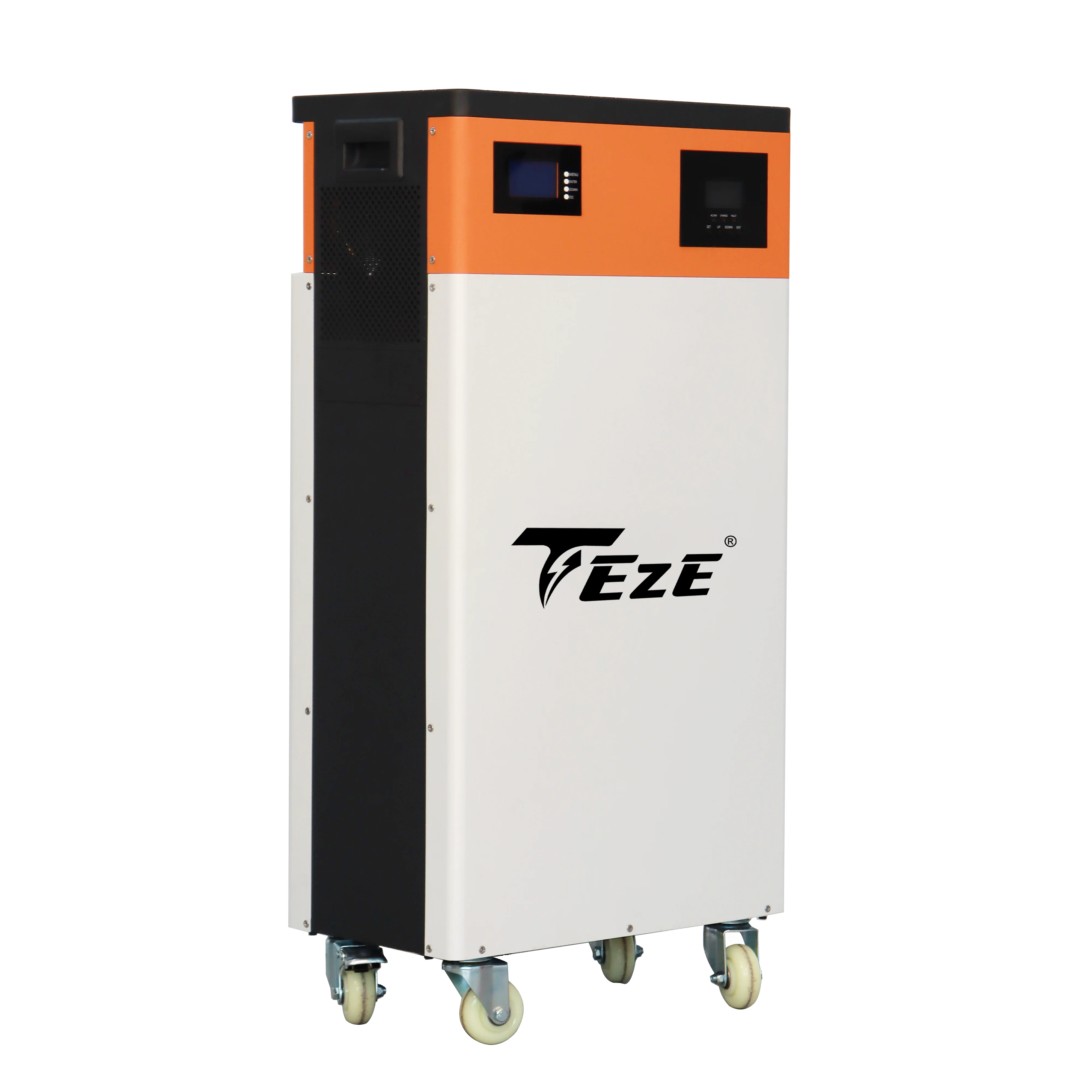

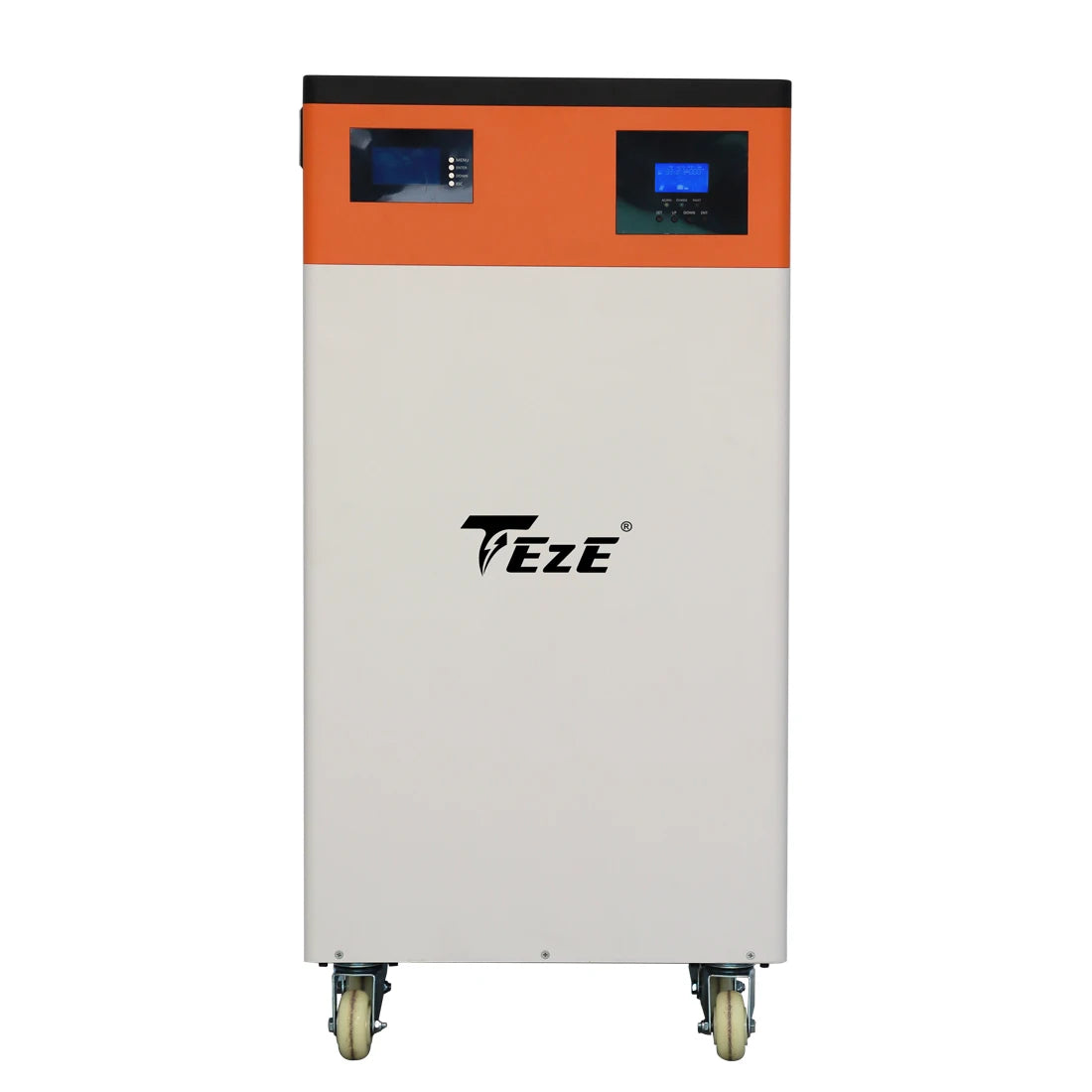

All-in-one Mobile ESS Built-in MPPT&Inverter 15KWh Energy Storage System（15S）

Nominal voltage : 48.0V(15s)
Nominal capacity : 200Ah@0.2C
Battery power : 10240Wh
Internal resistance: ≤100mΩ
Cycle life： 6000times
Self discharge： ≤3.5%（every month@25°C）
Charging voltage： 53.2-54V
Charging cut-off voltage: 54.75V
Standard discharge current:: 20A
Maximum sustained discharge：100A
Maximum pulse current：300A（＜30S）
Standard charging current: 20A
Maximum continuous charging current 100A
Maximum discharge power： 5000W
Charging temperature ：0°C to 45°C
Discharge temperature: -20°C to 60°C
Dustproof and waterproof rating: IP55
Shell material: SPCC

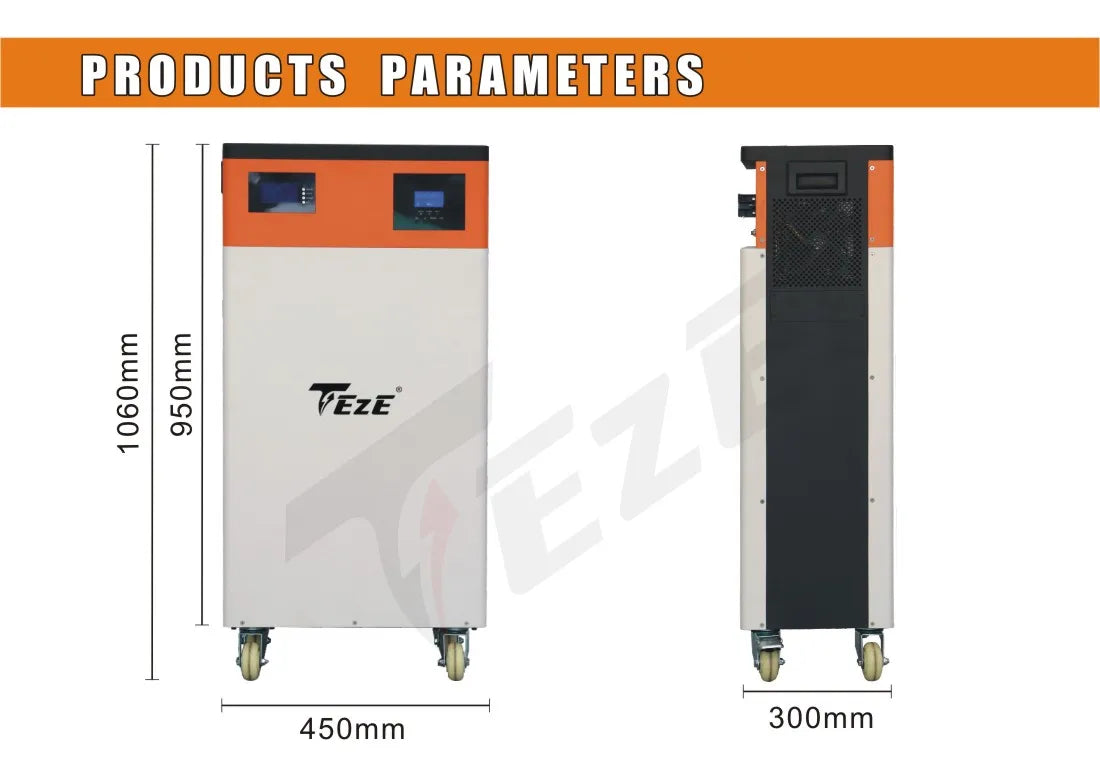

Size: 450x300x1060mm
Weight： 120KG

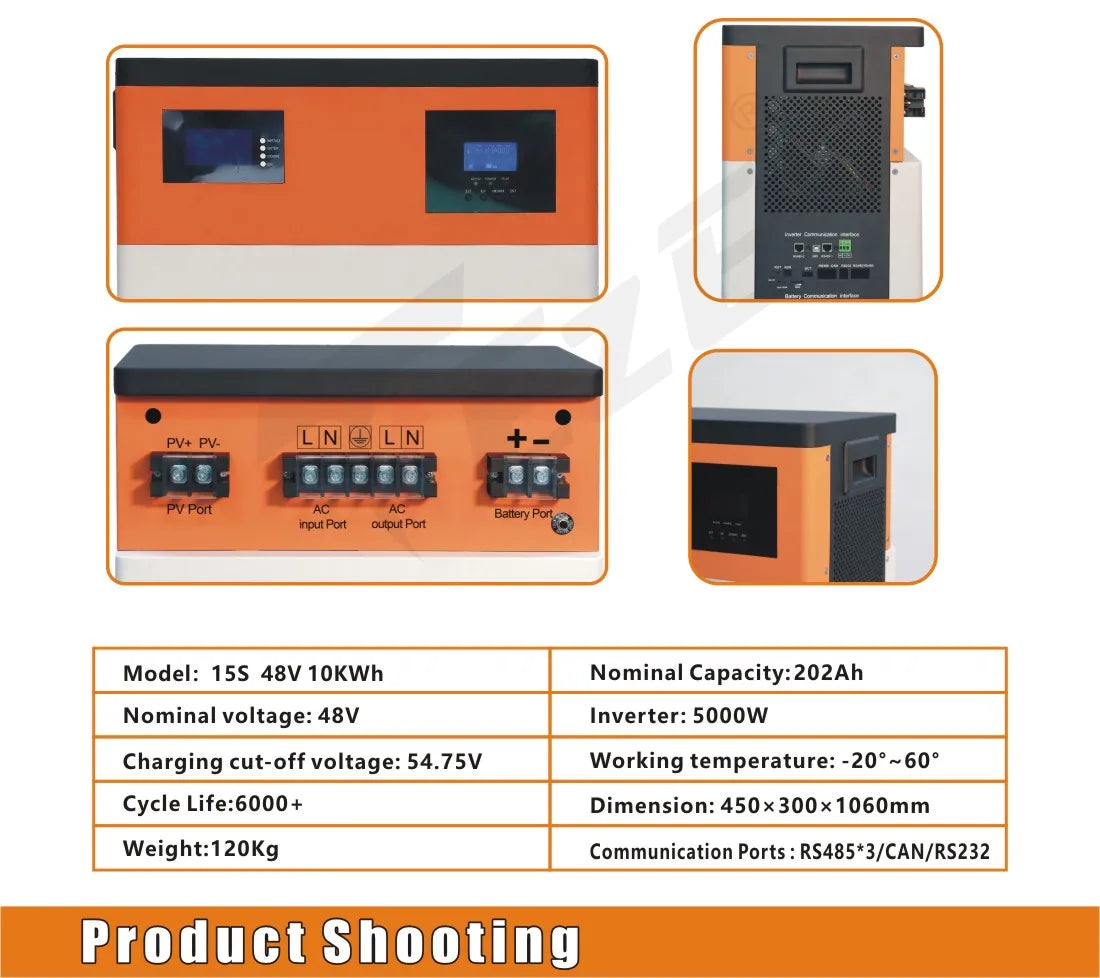

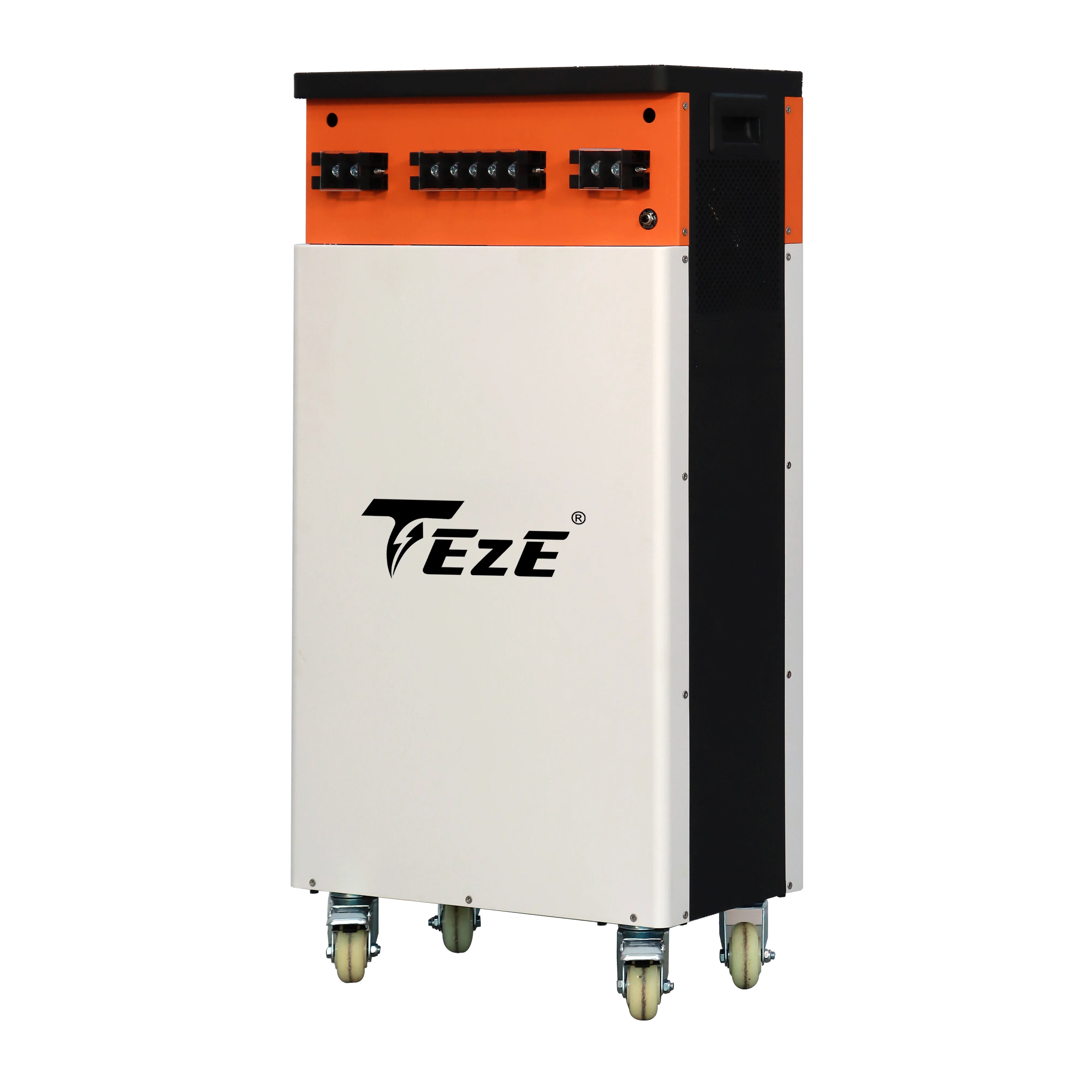

Connection port： 200A quick plug self-locking plug
Communication Ports : RS485*3/CAN/RS232

All-in-one Mobile ESS Built-in MPPT&Inverter 15KWh Energy Storage System（16S）

Nominal voltage : 51.2V(16s)
Nominal capacity : 200Ah@0.2C
Battery power : 10900Wh
Internal resistance: ≤100mΩ
Cycle life： 6000times
Self discharge： ≤3.5%（every month@25°C）
Charging voltage： 53.2-54V
Charging cut-off voltage: 54.75V
Standard discharge current:: 40A
Maximum sustained discharge：150A
Maximum pulse current：300A（＜30S）
Standard charging current: 40A
Maximum continuous charging current 120A
Maximum discharge power： 5000W
Charging temperature ：0°C to 45°C
Discharge temperature: -20°C to 60°C
Dustproof and waterproof rating: IP55
Shell material: SPCC
Size: 450x300x1060mm
Weight： 125KG
Connection port： 200A quick plug self-locking plug
Communication Ports : RS485*3/CAN/RS232

Precautions

•No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.


Prohibited matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).


Very Important! About delivery and transportation Time&Please note:

1,The battery (especially the high-power battery you purchased) is a special commodity, the terms of transportation are very strict, all logistics companies in China, including China Post, UPS, FedEx, DHL, are unable to directly transport electricity Pool,
2,So we have shipped your order. Once the battery arrives in Europe or the US, we will declare the import at European or US customs. When the battery goes through European or US customs, we will ship it to you via UPS or FedEx. So the UPS number we provide will not be updated until the battery is over. This is a normal phenomenon.Secondly, we will help you solve the customs clearance problem.
3,Delivery takes 30-45 working days. Generally, 35-45 working days later, the package will arrive at the transfer station. After the customs clearance is completed, the package will be picked up and delivered, and the logistics information will be updated. Once the shipping number is updated, you can receive the goods within 3-5 days at most.

If we can't find the updated information after delivery, and the transportation time is still within the time we promised, please don't bring up a dispute.
