48V 200Ah Powerwall - 10Kwh LiFePO4 Battery Built-in 200A BMS CAN RS485 51.2V 6000+ Cycles 10 Years Warranty For Solar Off/On-Grid
48V 200Ah Powerwall - 10Kwh LiFePO4 Battery Built-in 200A BMS CAN RS485 51.2V 6000+ Cycles 10 Years Warranty For Solar Off/On-Grid
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
48V 200Ah Powerwall SPECIFICATIONS
Weight: 90KG
Voltage: 48V
Type: Li-Ion
Terminal: Dual Terminal
Size: 830*480*160 mm
Power: 10240Wh
Parallel: Max 32 Parallel
Origin: Mainland China
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Model Number: LF-48200-PW
Maximum Continuous Discharge Current: 200A (1C)
Maximum Charging Voltage: 58.4V
Maximum Charging Current: 200A (1C)
Discharging Temperature: -20~60℃
Cycle Life: 6000 Cycles
Charging Temperature: -5~55℃
Certification: CE,FCC
Case: Stainless Steel Case
Brand Name: PAPOOL
BMS: Smart 16S 200A
Application: Home
More Than 2pcs Give 1% Discount.

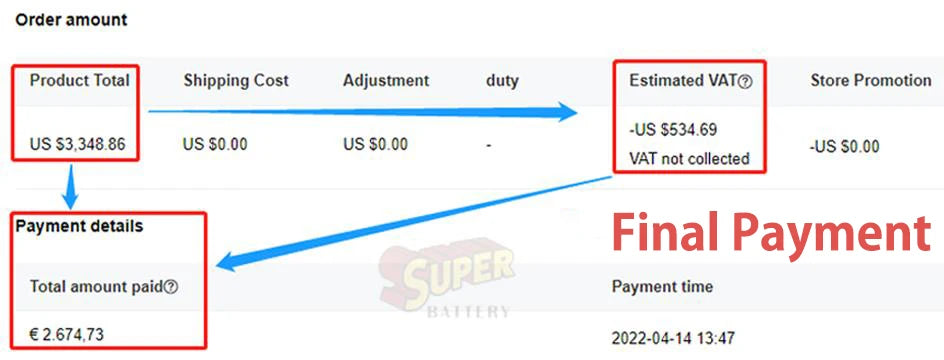

Final Payment = Total Amount Paid (NO VAT NO TAX )
If you have any questions, feel free to contact us.
48V 10Kwh LiFePO4 Powerwall Battery Pack, 6000 Deep Cycles, Connection with CAN/ RS485, Dual Terminal.
Specifications:
Parallel : Max 32 Parallel
Cycle Life : 6000+ Cycles
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Rate Capacity : 200Ah
Energy Power : 10240Wh
Max Charge Voltage : 58.4V
Maximum Charging Current : 200A (1C)
Maximum Dicharge Current : 200A (1C)
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 830*480*160mm
Studs : M8 Terminal
Weight : 90KG

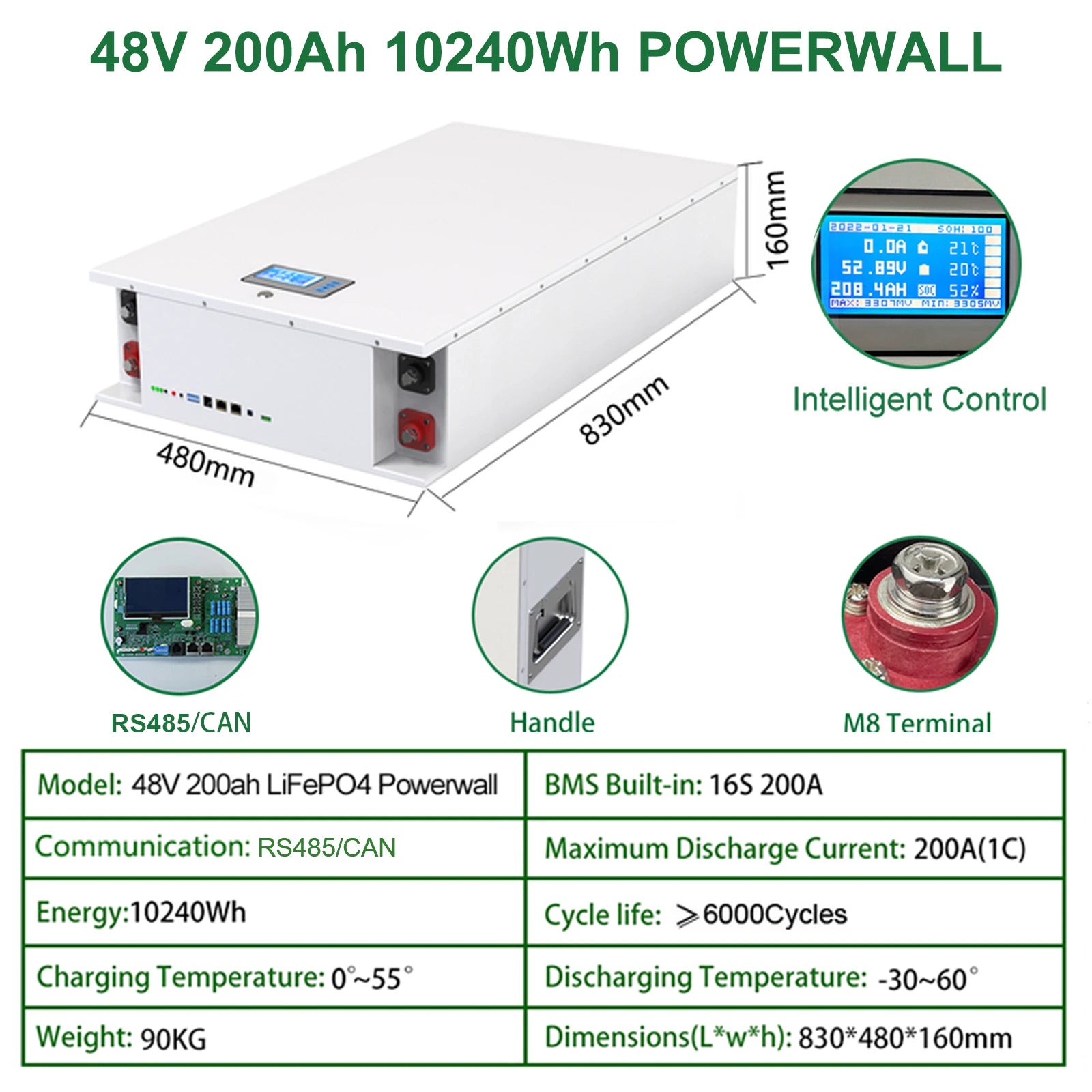

Introducing the POWERWALL, a high-capacity energy storage solution with a built-in intelligent control system. This 48V, 200Ah LiFePO4 battery pack features a 10,240Wh capacity, 6000+ cycle life, and a robust communication protocol via RS485/CAN. Key specifications include: * Maximum discharge current: 200A * Energy capacity: 10,240Wh * Cycle life: 6,000+ * Charging temperature: 0-55°C * Discharging temperature: -30-60°C * Weight: 90KG * Dimensions (LxWxH): 830mm x 480mm x 160mm

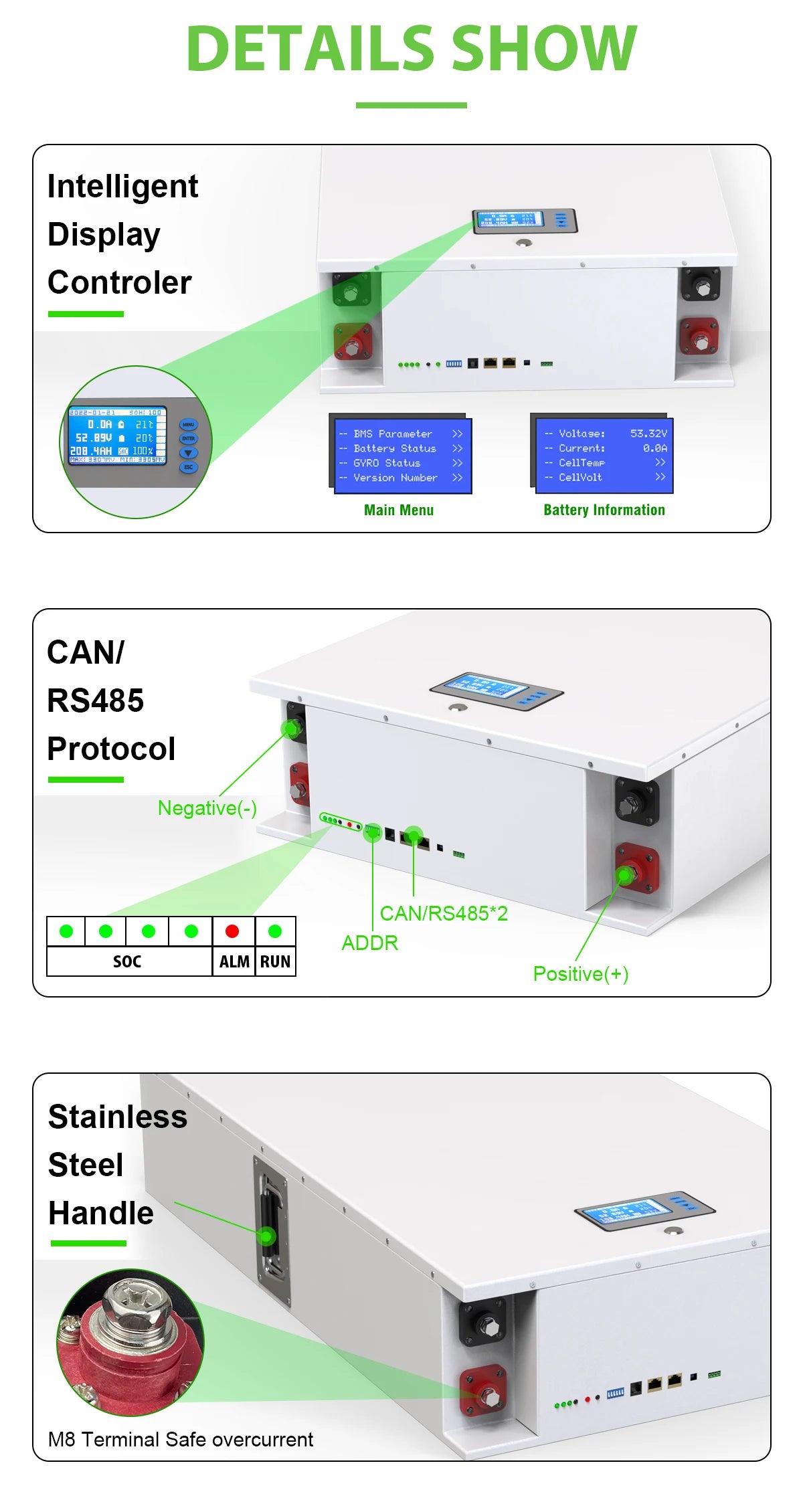

Details display intelligent control with 0.04V/0.08A real-time monitoring. Key features include: * Voltage: 53.32V * Capacity: 200Ah * Battery status: 7 (full) * Current: 0.0A * Temperature: unknown * Version number: unknown * Cell voltage: unknown * Main menu: battery information * Protocol: CAN/RS485 * Negative (-) and positive (+) stainless steel handle with M8 terminal for safe overcurrent protection.

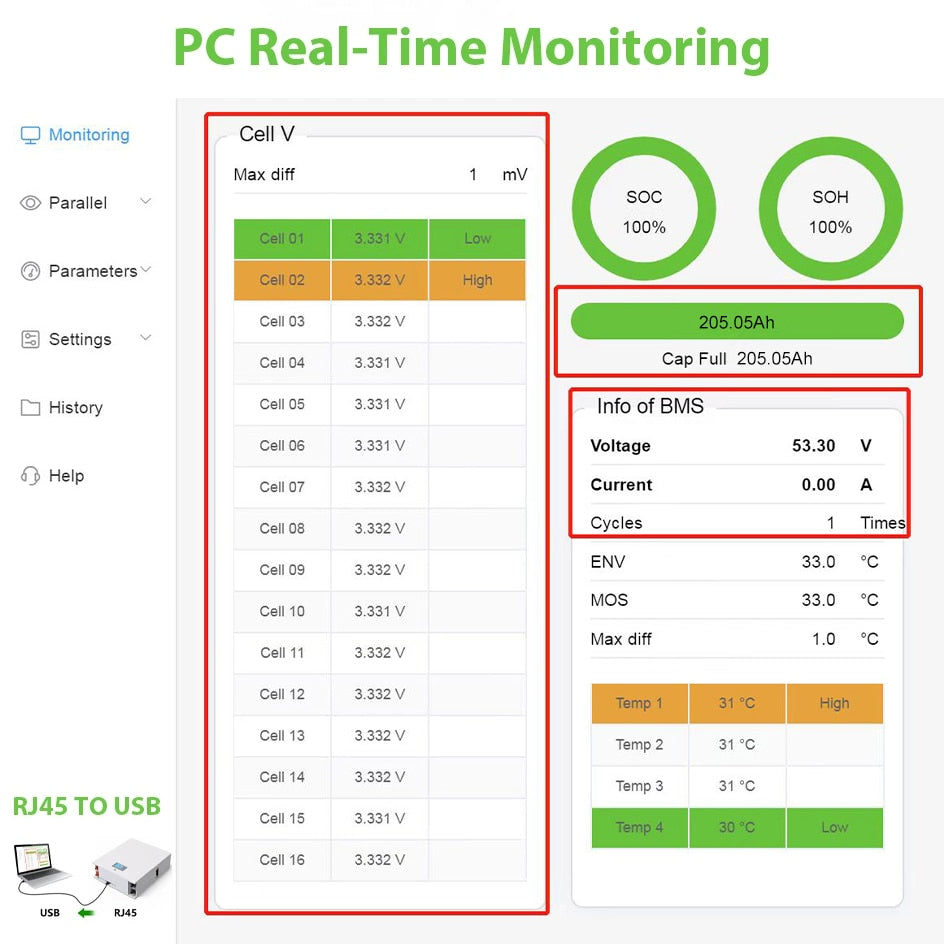

RS485 to USB, PC Monitoring : Monitor Battery Capacity, Voltage and Battery Cell Status

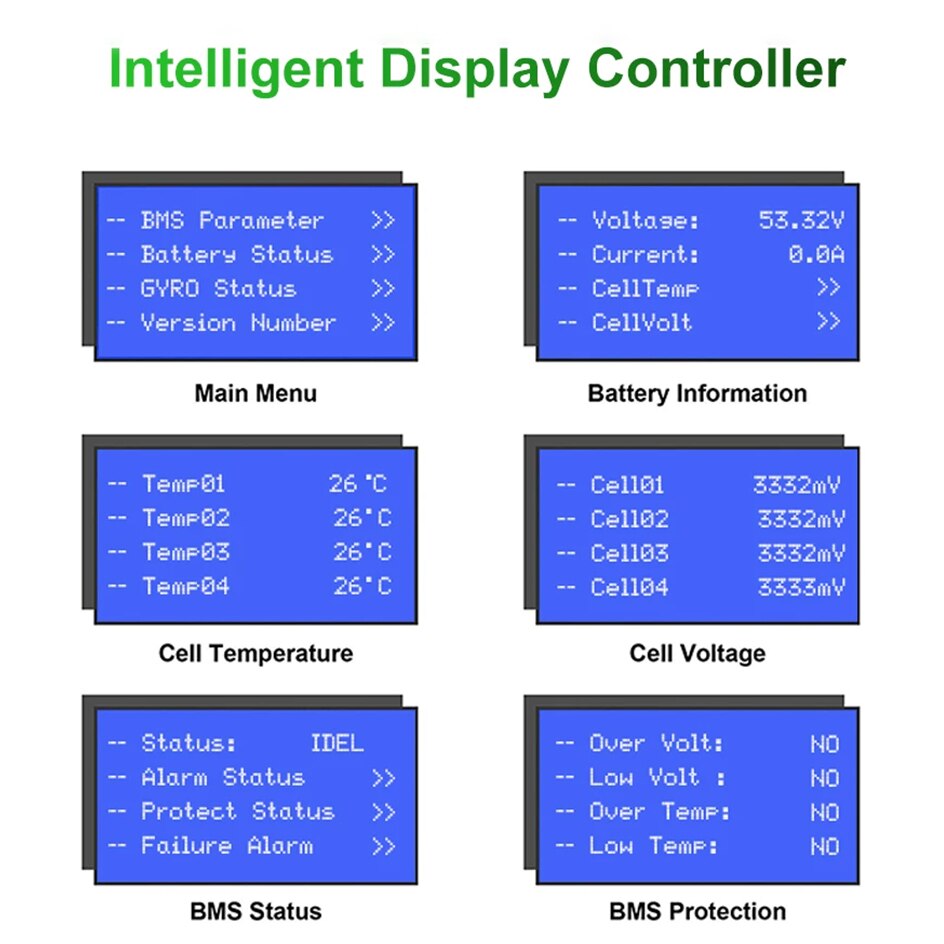

Powerwall Battery Information: Voltage: 53.32V Current: 0A Temperature: 26°C (all cells) Main Menu Options: Battery Info Temp/Volt Status Alarm/Protect Status No alarms or protection issues detected.

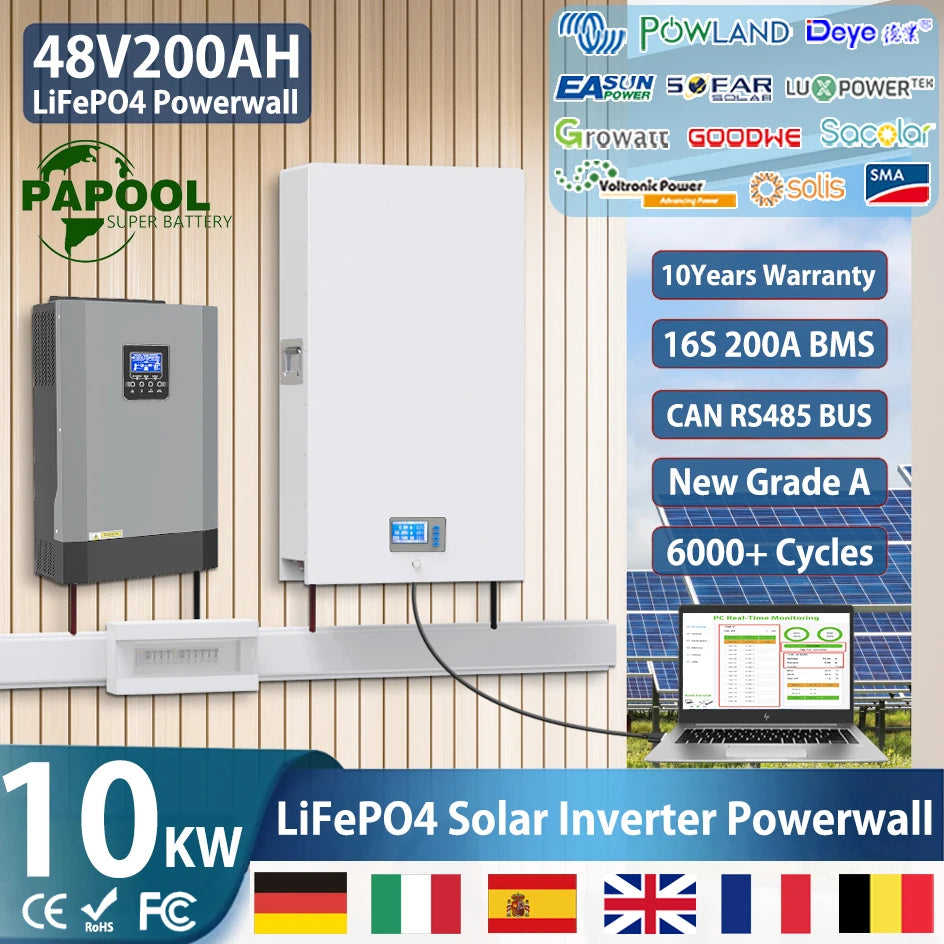

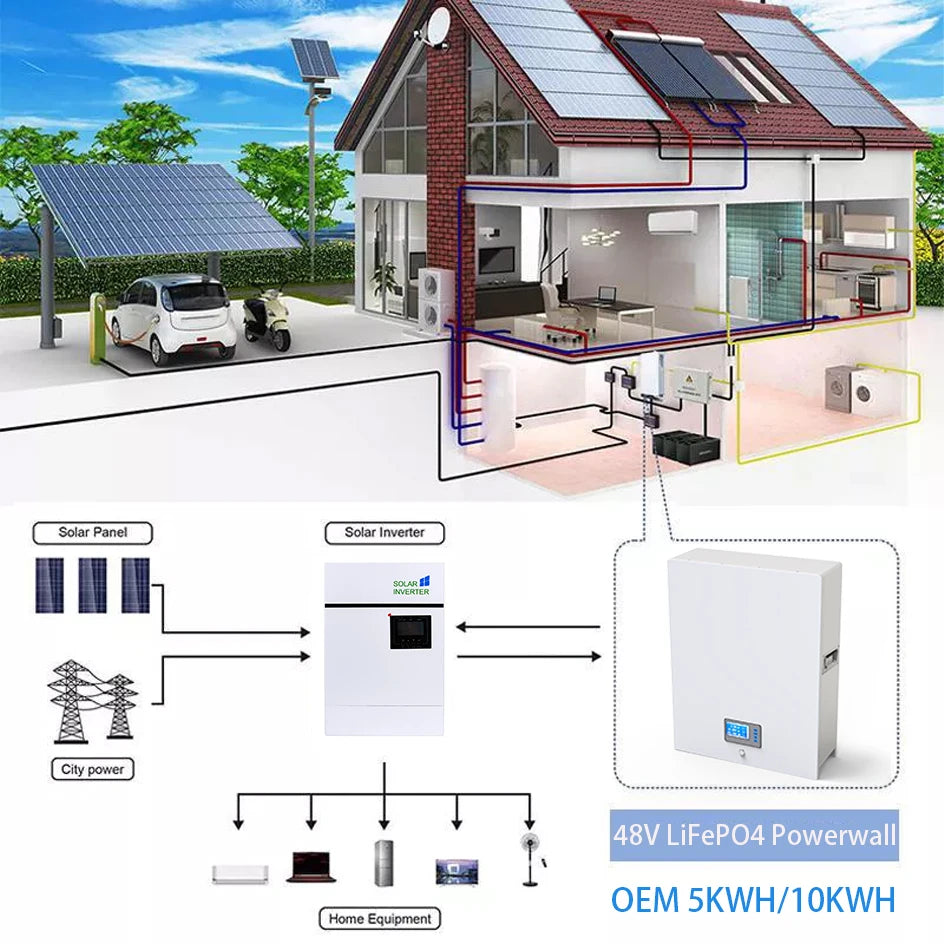

48V 200Ah Powerwall with LiFePO4 battery, built-in BMS, and CAN communication for solar off-grid or on-grid applications.

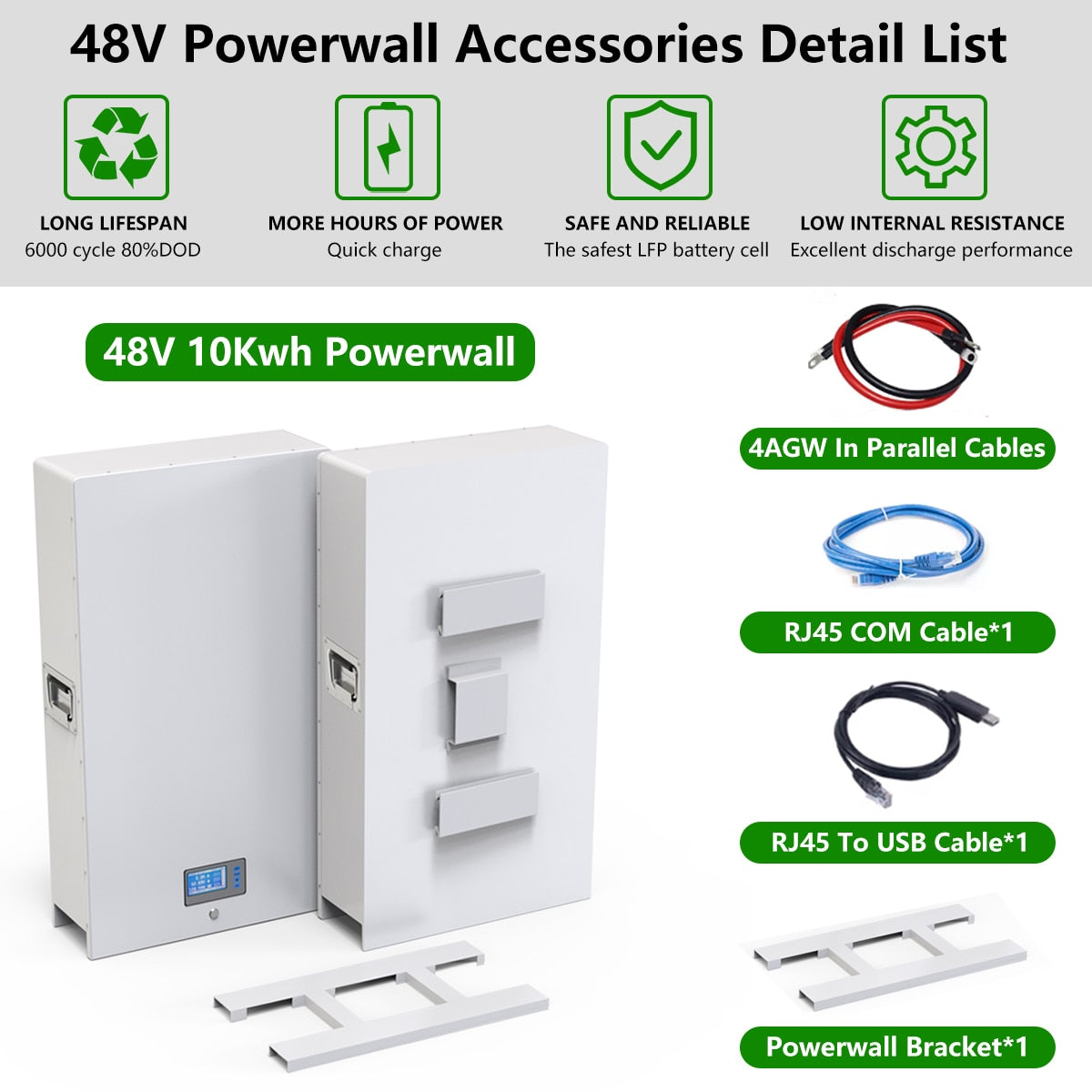

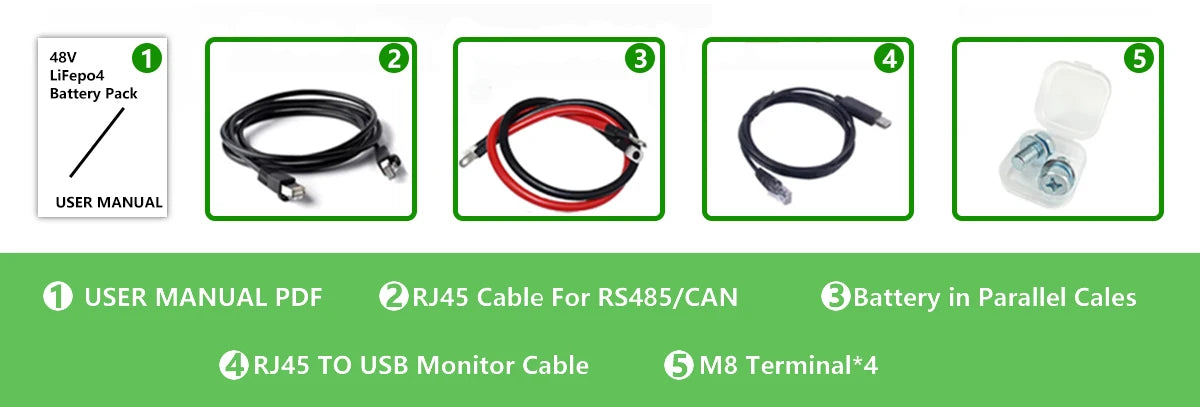

Introducing the 48V Powerwall accessory, offering long lifespan and reliable performance. Features include high-quality LFP battery cells with low internal resistance, supporting up to 6000 cycles at 80% depth of discharge (DOD). Quick charging capabilities ensure faster power restoration. Includes: RJ45 COM cable, USB cable, and bracket.

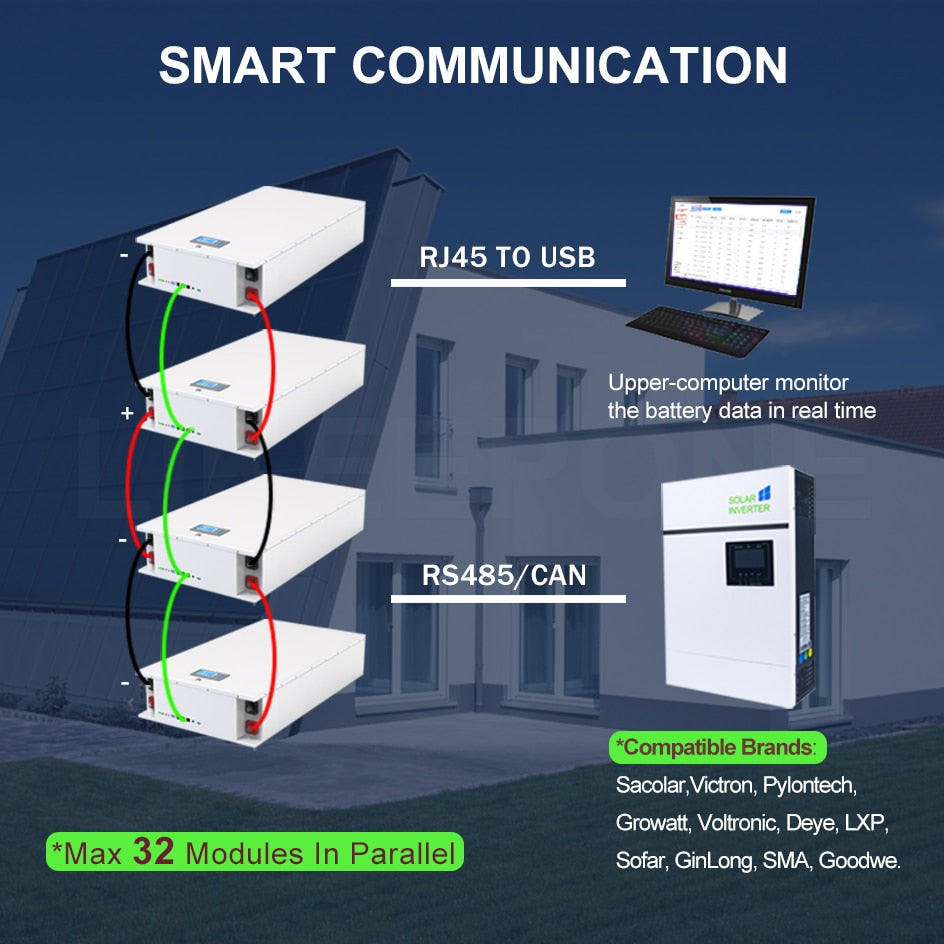

Powerwall features a built-in 200A BMS and CAN bus. Applications include energy storage systems, telecom towers, power stations, UPS systems, and data centers. It supports up to 32 parallel connections and offers reliable performance with >6000 cycles. PC software monitors the system via RS485 communication protocol.
