5A MPPT Solar Panel Controller DC-DC 6-36V Step Down Buck CC/CV Charging Module Dual/Singa LED Display LED Regulator Controllers

5A MPPT Solar Panel Controller DC-DC 6-36V Step Down Buck CC/CV Charging Module Dual/Singa LED Display LED Regulator Controllers

Regular price $11.24 USD
Regular price Sale price $11.24 USD
Sale Sold out
Shipping calculated at checkout.
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

Type: Voltage Regulator

Origin: Mainland China

Model Number: 5A MPPT

Is Customized: Yes

Condition: New

Brand Name: SZEKS

Application: Computer




5A MPPT Solar Panel Controller DC-DC Step-down CC/CV Charging Module Display LED Regulator Controllers

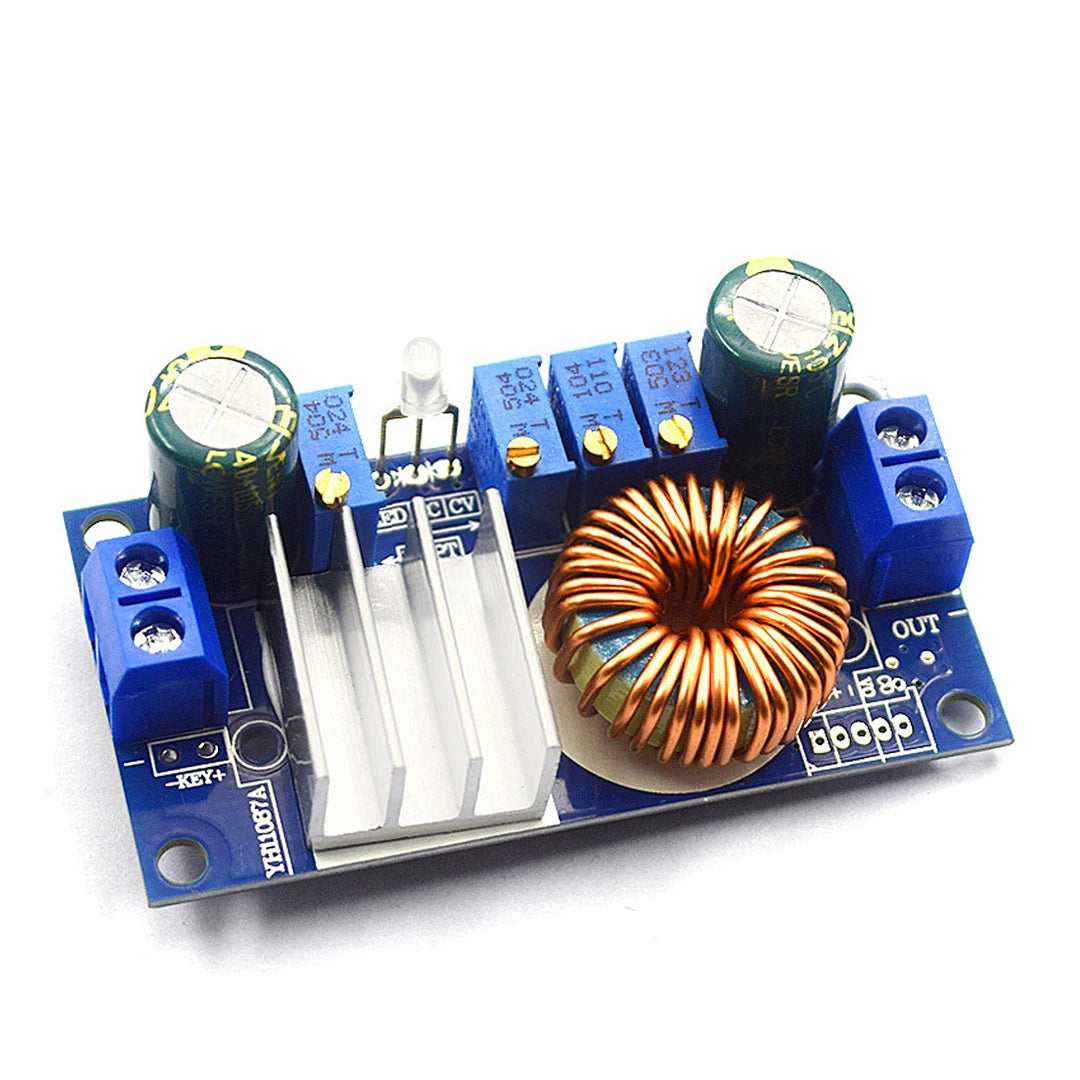

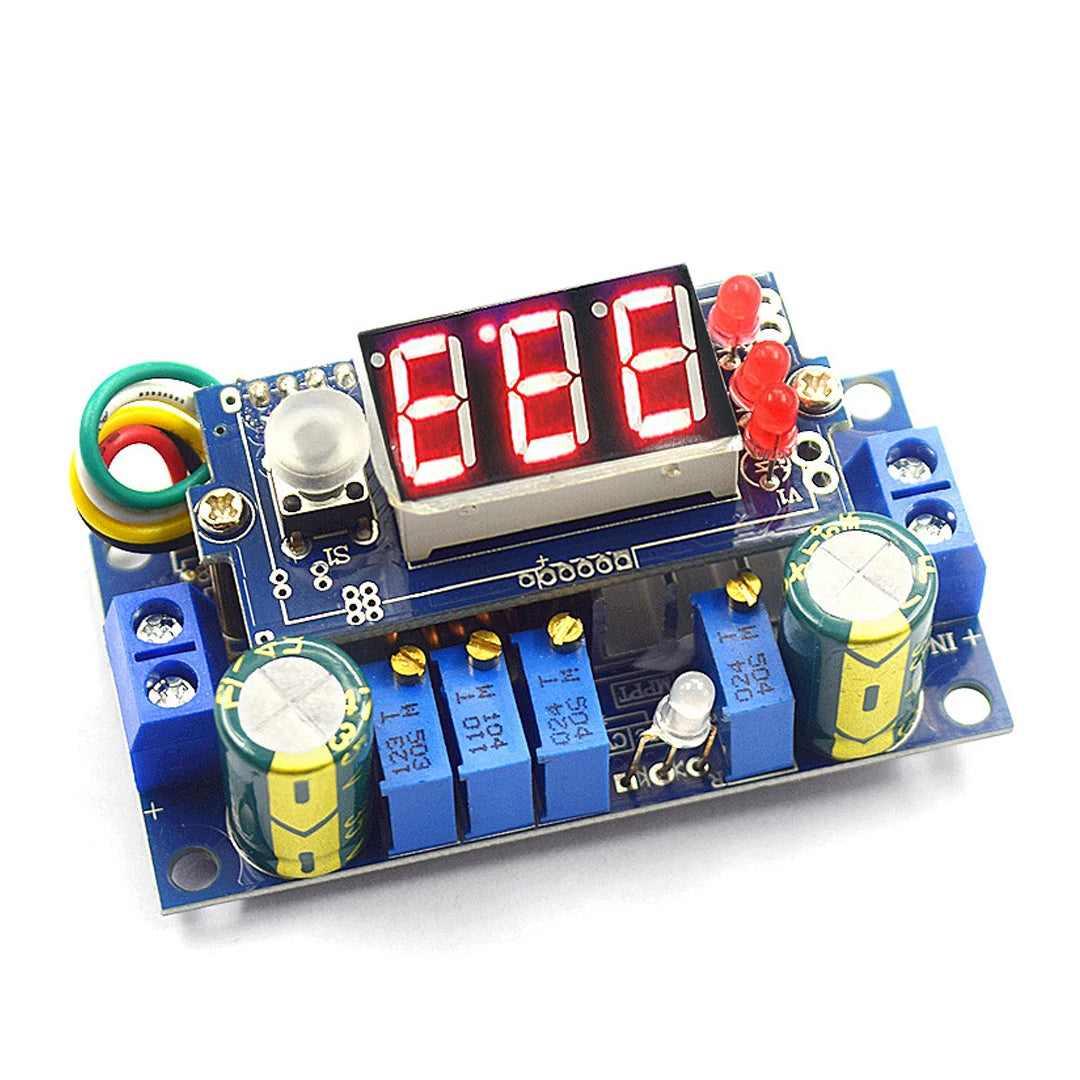

    5A MPPT Solar Panel Controller, Safely powers small electronics with its regulated DC output.5A MPPT Solar Panel Controller, Controller for regulating DC power from 6-36V, suitable for step-down charging and featuring a dual/Singa LED display.5A MPPT Solar Panel Controller, Output current is monitored by the built-in LED display.




Description

Module Properties: Non-isolated buck module (BUCK)
Input voltage: 6~36 V
Output voltage:1.25~32 V continuously adjustable (the default output 5V)
MPPT voltage setting range: 6~36 V
Output current range: 0.05~5A (The default output current is 3A)
Turn lights output range: 0.01~5A (default turn lamp current 0.3A)
the current range will be a little difference because the parts parameter error.
Operating temperature: -40~ + 85 degree
Operating frequency: 180 KHz
Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related)
Short circuit protection: Yes
Over temperature protection: Yes (automatically shut off the output after overtemperature)
Input reverse polarity protection: None, (if necessary, please add the string into the diode)
Output anti-anti-irrigation protection: None, the output must be connected to the battery plus blocking diode, otherwise it will burn the module.
Installation: 4 Pcs 3mm screws(Not Included)
Connection: IN is the input, OUT is output
Multifunction double display: input voltage, output voltage, output current, output power
Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection.
Module dimensions: 6x3.1x2.5cm/2.36x1.22x0.98inch(without meter)

Applications

1.It can support high-power LED.
2.It can power supply for electronic devices.
3.For a variety of battery charge, can observe the state of charge.
4.As a car power supply , it can for your cell phone or digital products supply.
5.DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load.
6.Charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery

Note: Due to the difference between different monitors, the picture may not reflect  the actual color of the item. Thank you!
Compare the detail sizes with yours, please allow 1-4CM differs due to manual measurement, thanks!

Package Included

1 Pcs 5A MPPT Step-down Module
