6-60v lead-acid Battery Charging Controller Protection Board charger switch 12v 24v 36v 48v Solar charging car battery
6-60v lead-acid Battery Charging Controller Protection Board charger switch 12v 24v 36v 48v Solar charging car battery
Regular price
$9.88 USD
Regular price
Sale price
$9.88 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Origin: Mainland China
Model Number: Battery Charging Controller
Maximum Current: 30A
Brand Name: TKXEC

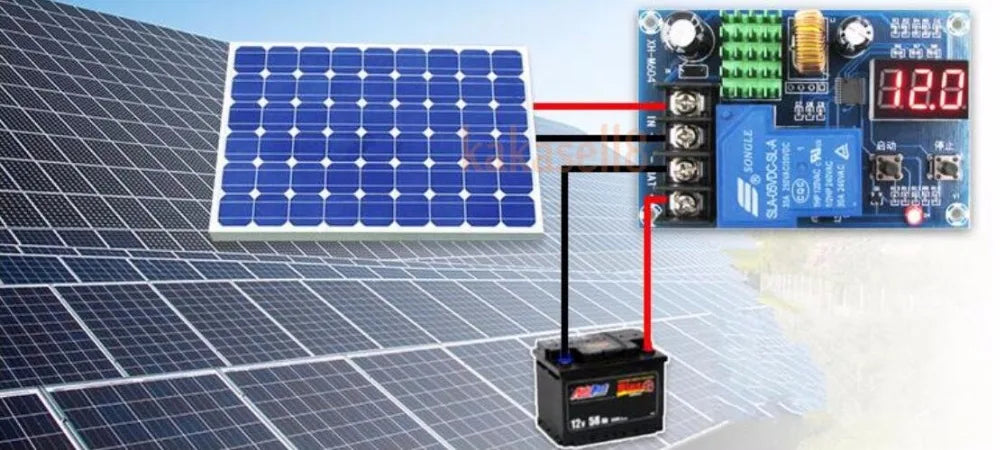

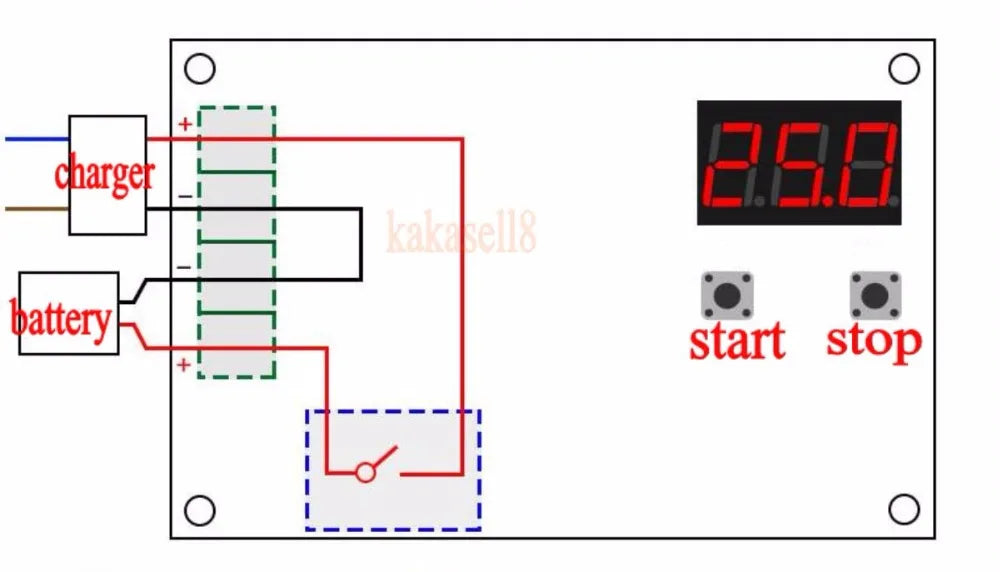

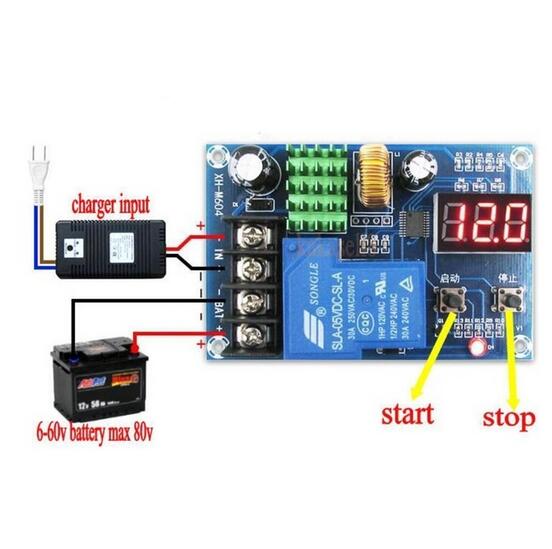

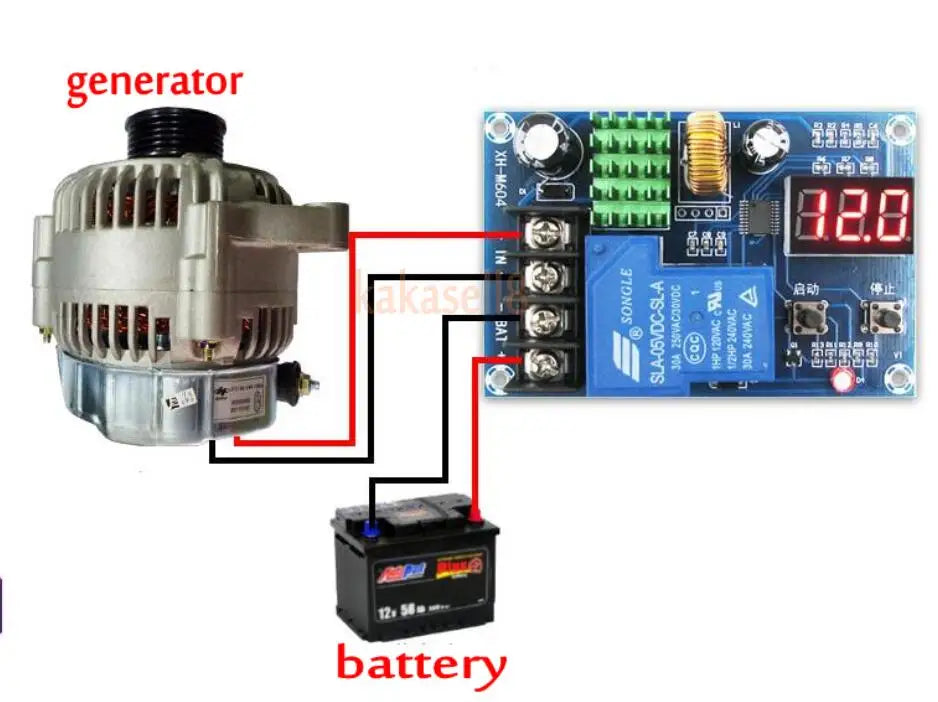

This product is suitable for 6-60V battery charging control, can be set free start charging voltage and stop charging voltage! In the IN input charger 6-60V voltage, the OUT termination Connect the battery, for example, set 12V start, 15V stop ,when the voltage is below 12V ,the relay closes will take the charger charging voltage to the battery, when the charge voltage is greater than 15V ,The relay disconnect to stop charging, suitable for use in household chargers, solar energy, wind turbines.
Input voltage: DC6-60V(Max 80v)
Display Accuracy: 0.1V
Control accuracy: 0.1V
Output Type: Direct Output
Range:6-60V all kinds of batteries
Weight: 40g
Size: 81 * 54 * 18mm

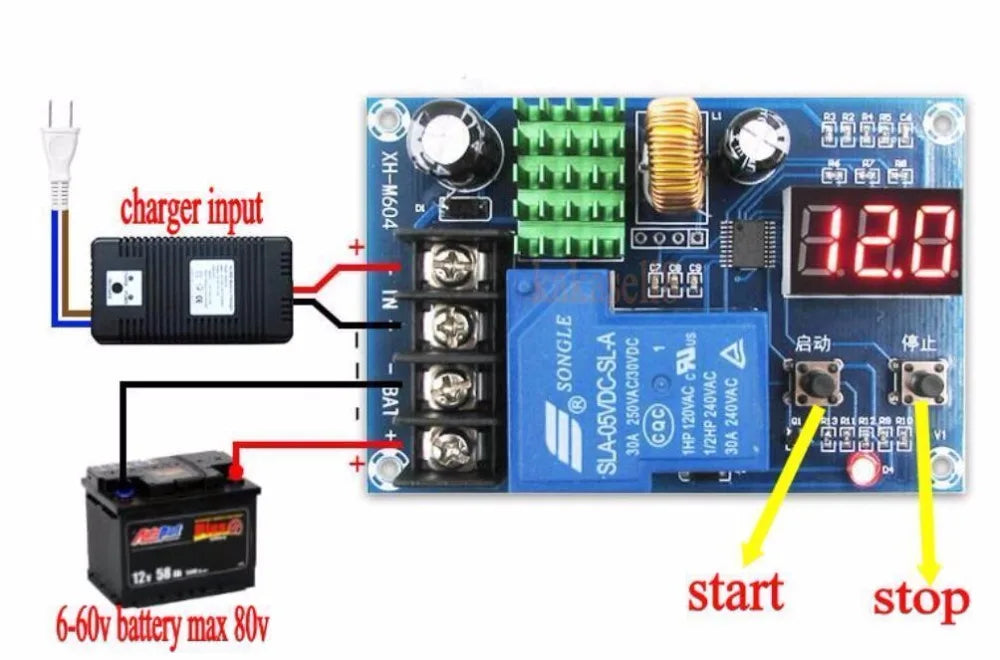

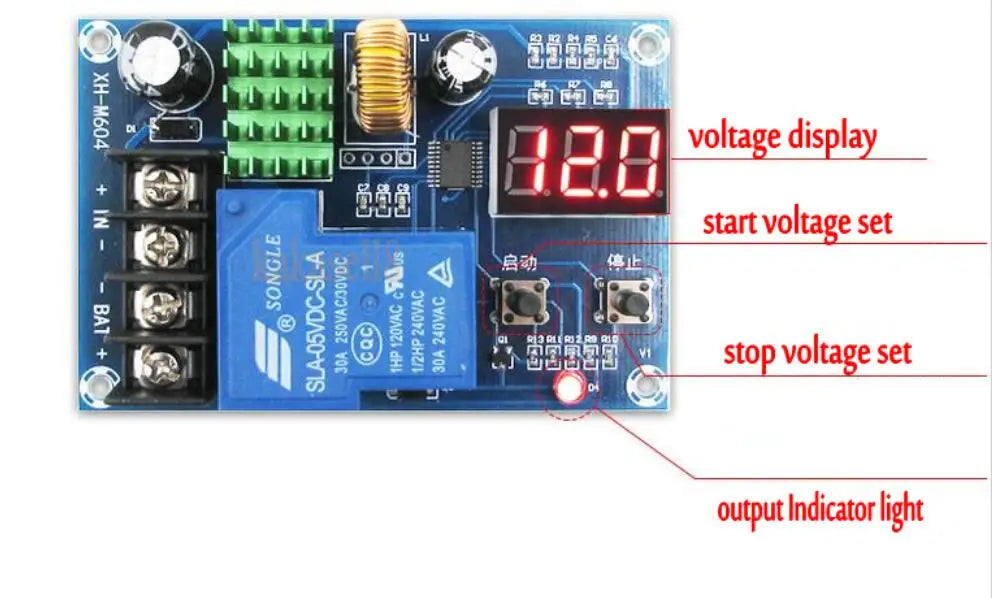

Usage: In the setting voltage value, start button play button raised, about stop button role to down key
1. Set the start voltage:
Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button 3S, digital flashes, by start and stop button, set the start charging voltage value.
2. Set Stop voltage:
Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button 3S, digital flashes, by start and stop button, set the Stop charging voltage value.
3.Factory Reset
Energized state while holding down the start / stop button, digital display 888, which is the factory setting.
Start/stop charger for lead-acid batteries (6V-60V) with solar charging and car battery compatibility.
6-60V Lead-Acid Battery Charging Controller with Protection Board: Charges batteries in 12V, 24V, 36V, or 48V modes. Includes indicator lights for start and stop voltage settings.
