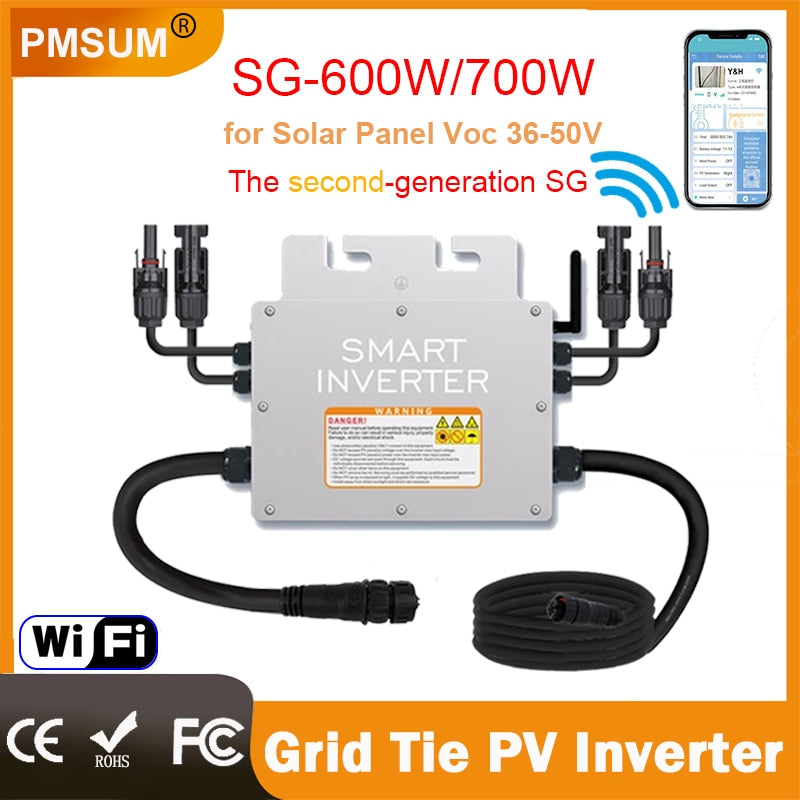

600W 700W Grid-connected Micro Solar Panel Smart Inverter MPPT Stackable DC18-50V Input AC220V Pure Sine Wave Output
600W 700W Grid-connected Micro Solar Panel Smart Inverter MPPT Stackable DC18-50V Input AC220V Pure Sine Wave Output
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 1.6 KG
Type: Micro Inverter
Size: 185mm x 180mm x 38.5mm
Power Factor: >0.99
Peak Efficiency: 95%
Output Type: single
Output Power: 401 - 600KW
Output Frequency: 50HZ/60HZ auto match
Output Current: 12A
Output AC voltage: 110V 220V
Origin: Mainland China
Operation Voltage Range: 18V-50V
Nominal Output Frequency: 50Hz / 60Hz
Nominal MPPT Efficiency: 99.9%
Model Number: SG-600 Series PV Smart Microinverter
Maximum Input Power: 2*300W
Function 2: Grid Tie Inversor
Function: Solar Inverter
Certification: CE
Category: Grid Tie inverter
600W 700w Smart Microinverter Pure Sine Wave Power Solar Micro On Grid Tie inverter 24V 36V DC to 110v 220V AC for Solar Panel
Großhandel konsultieren die service von speicher.

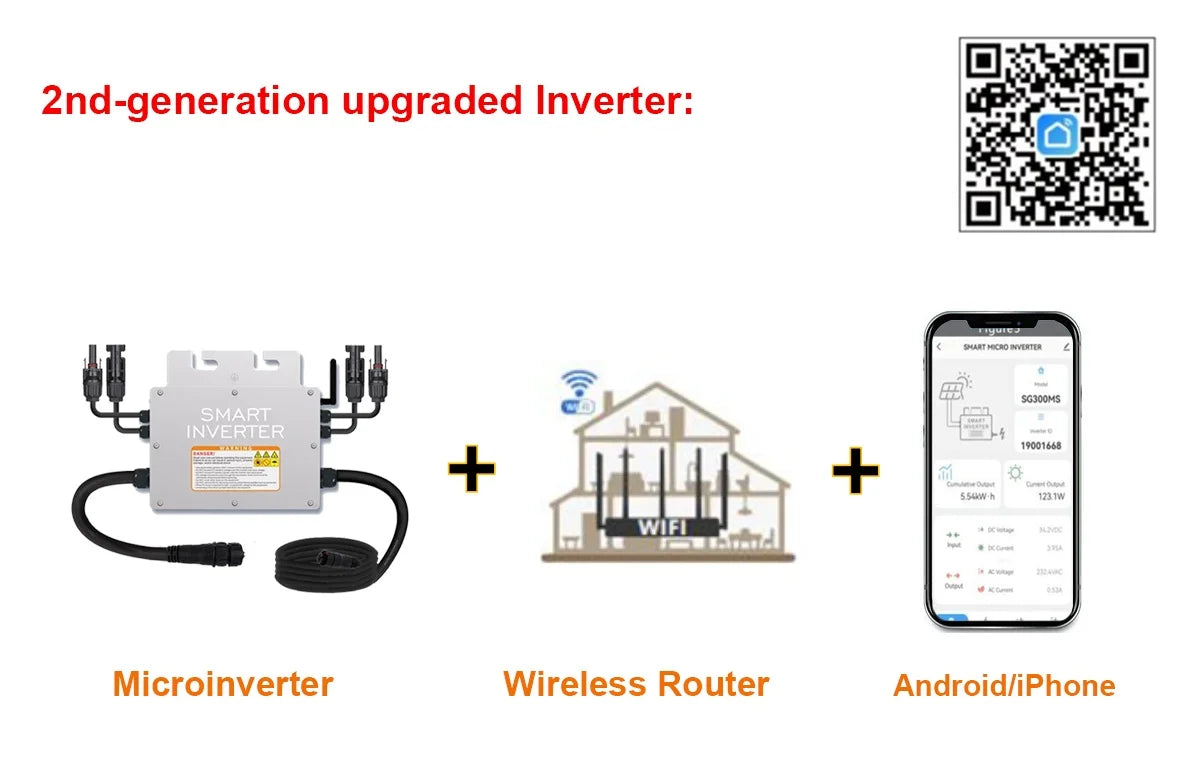

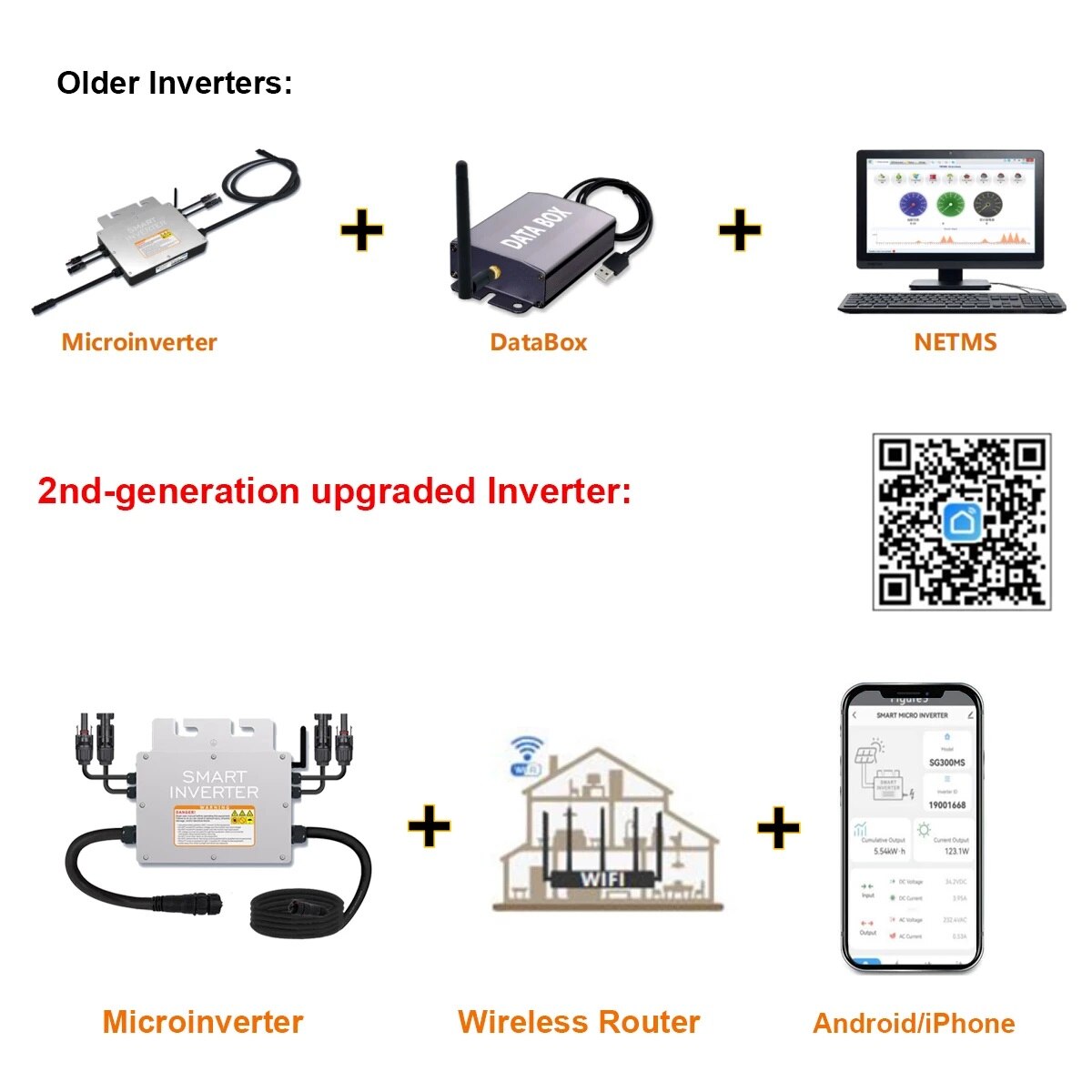

Next-generation smart inverter, Fluke Sg300HS (1900-1668), designed for high-efficiency power conversion. Compatible with microinverters and wireless router, accessible via Android or iPhone.
Description:
Grid Tie Inverter Using IP65 waterproof streamline design,Can effectively prevent rainwater on the surface erosion.High performance Maximum Power Point TraCKING(MPPT) and Autolock maximum Power Point (APL) Please do not install outdoors, avoid rain. You can install it in a ventilated, dry, cool place.
Feature:
1.Single unit connects to one PV module
2.On Grid Tie Inversor Maximum 600W AC output power

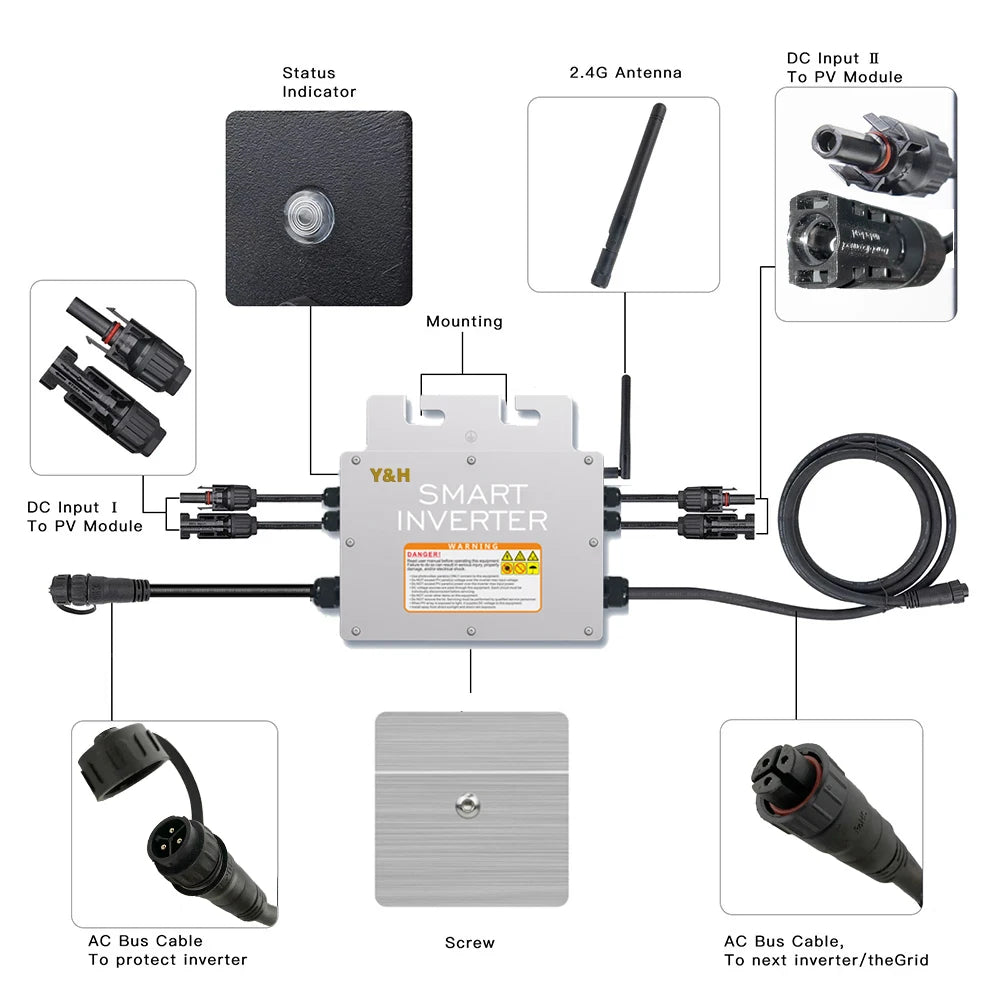

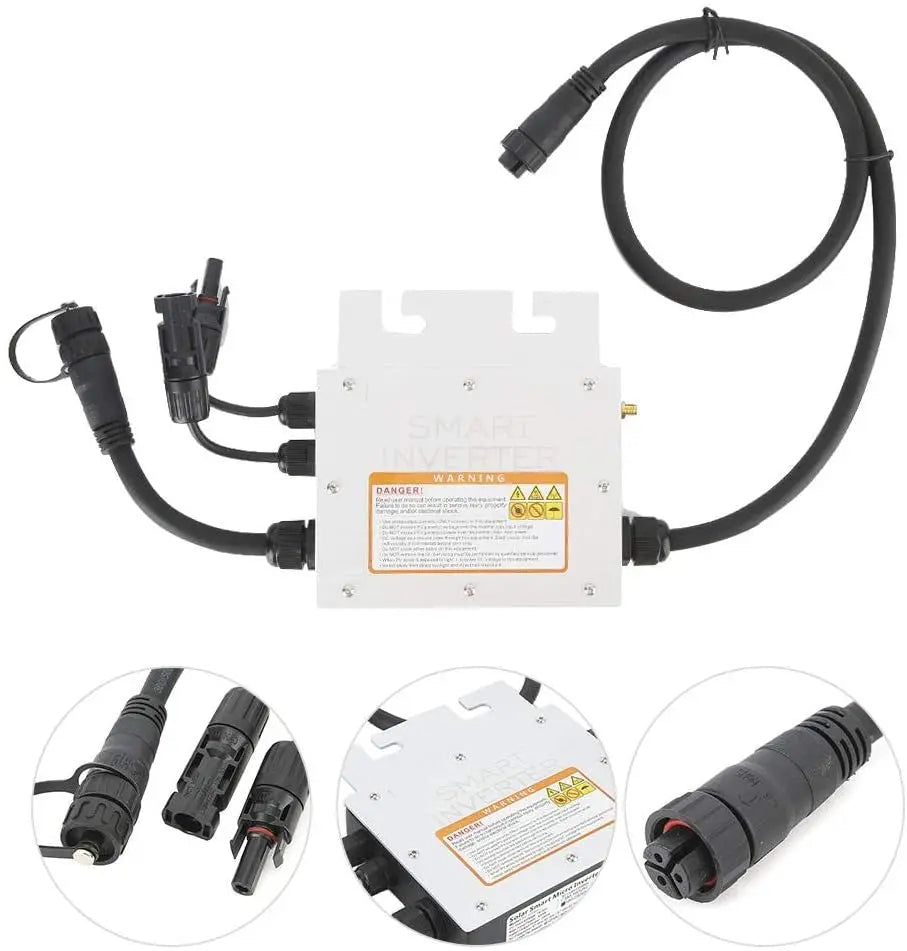

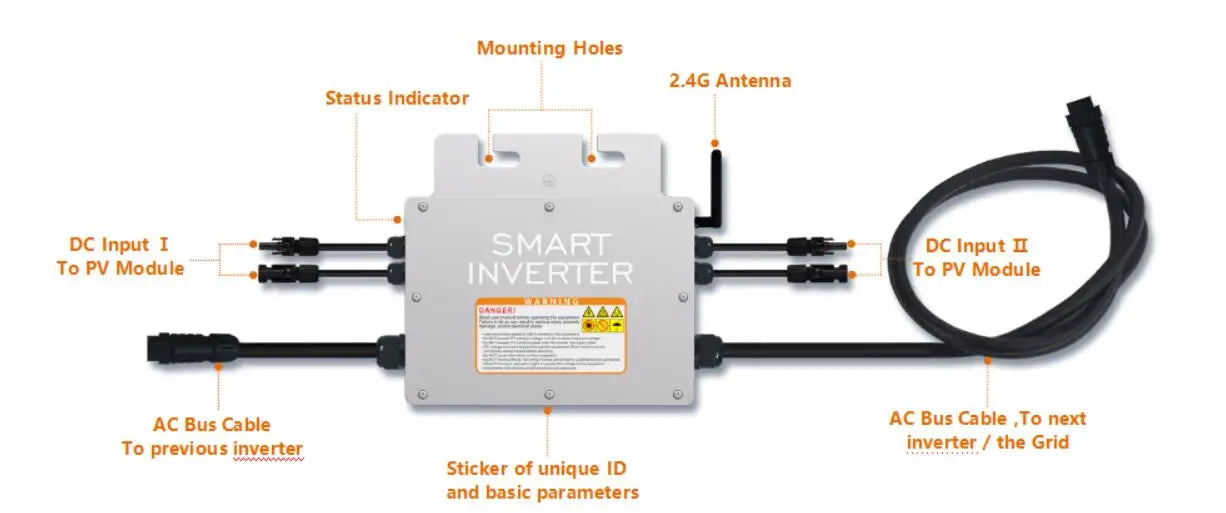

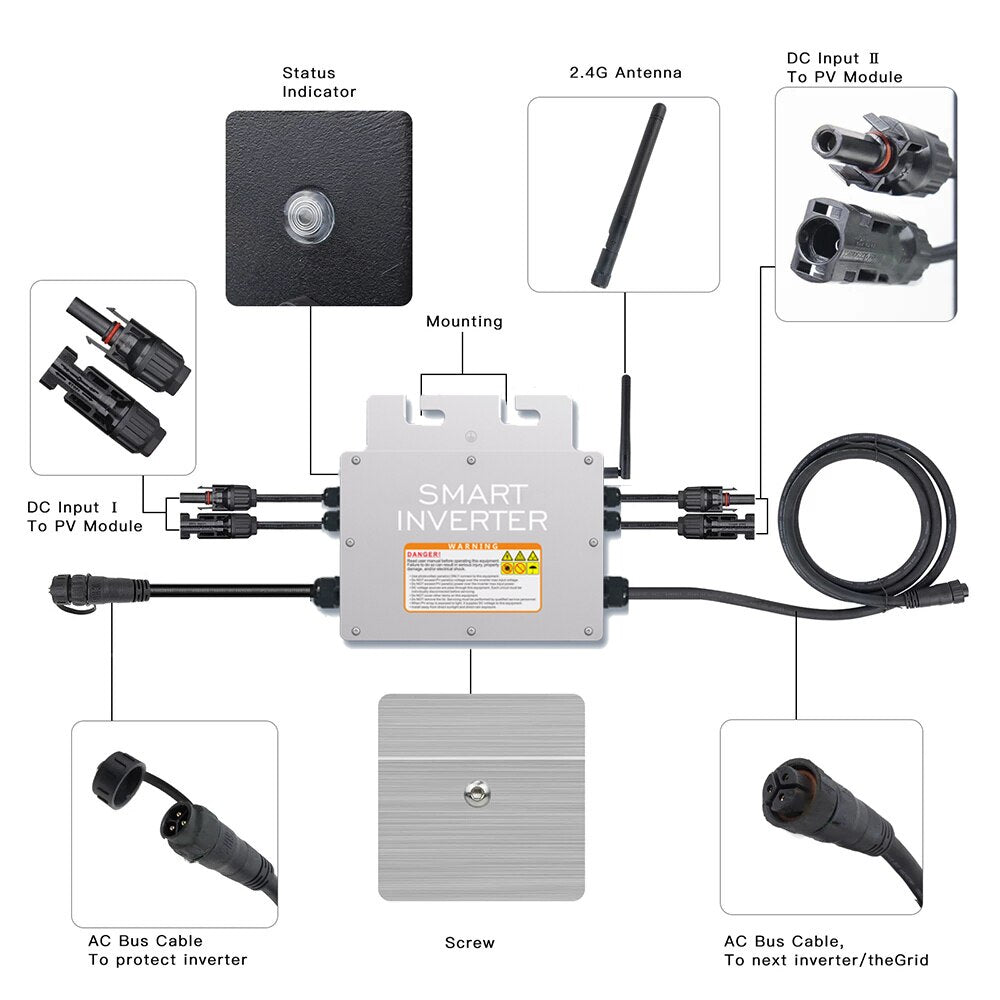

Features include mounting holes, an antenna status indicator, smart DC input, and a grid sticker with unique ID and basic parameters. Stackable design allows for easy connection to other inverters via AC bus cable.

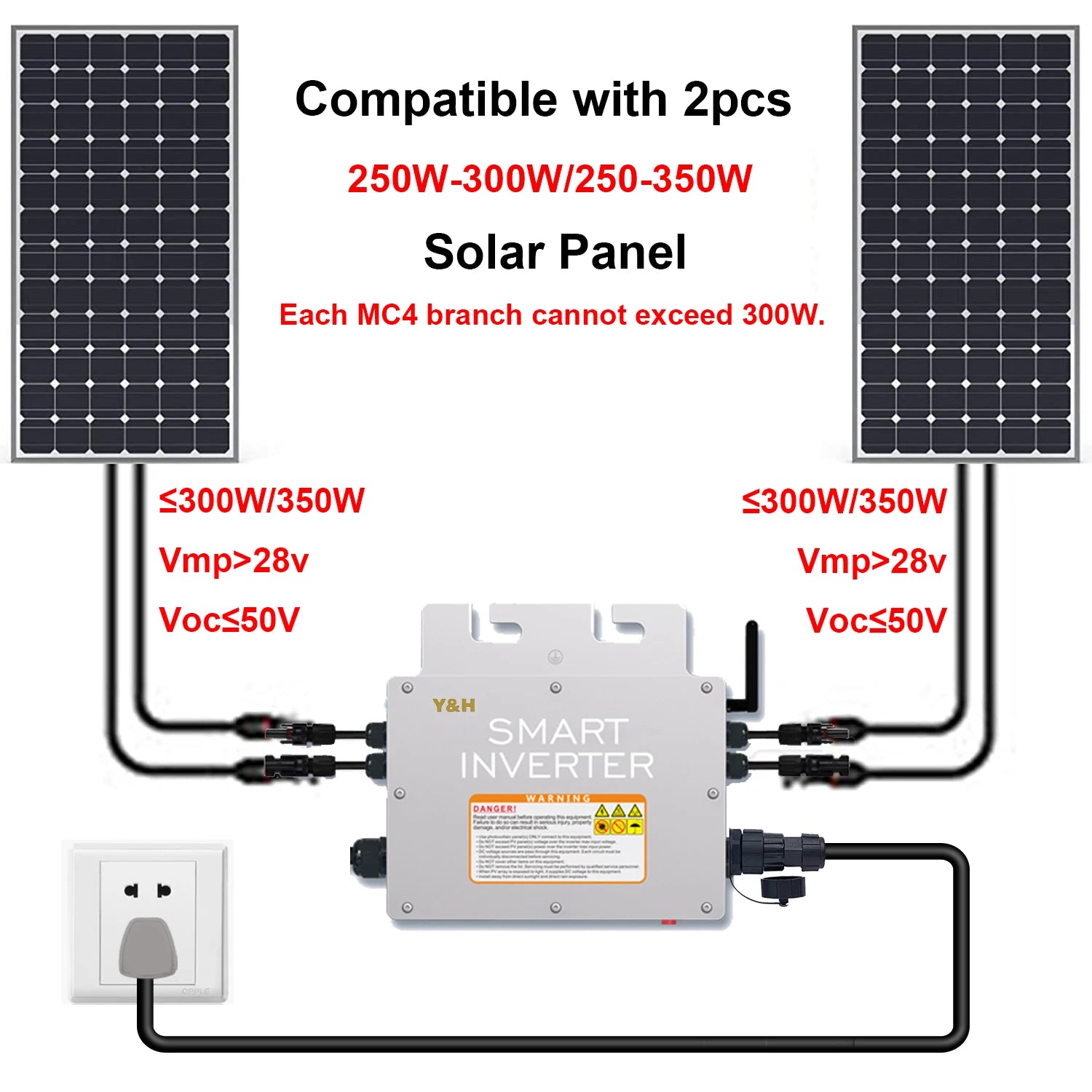

This smart inverter is compatible with ZPCS solar panels up to 300W. Each MC4 branch can handle up to 250-300W, ensuring safe and efficient energy conversion.

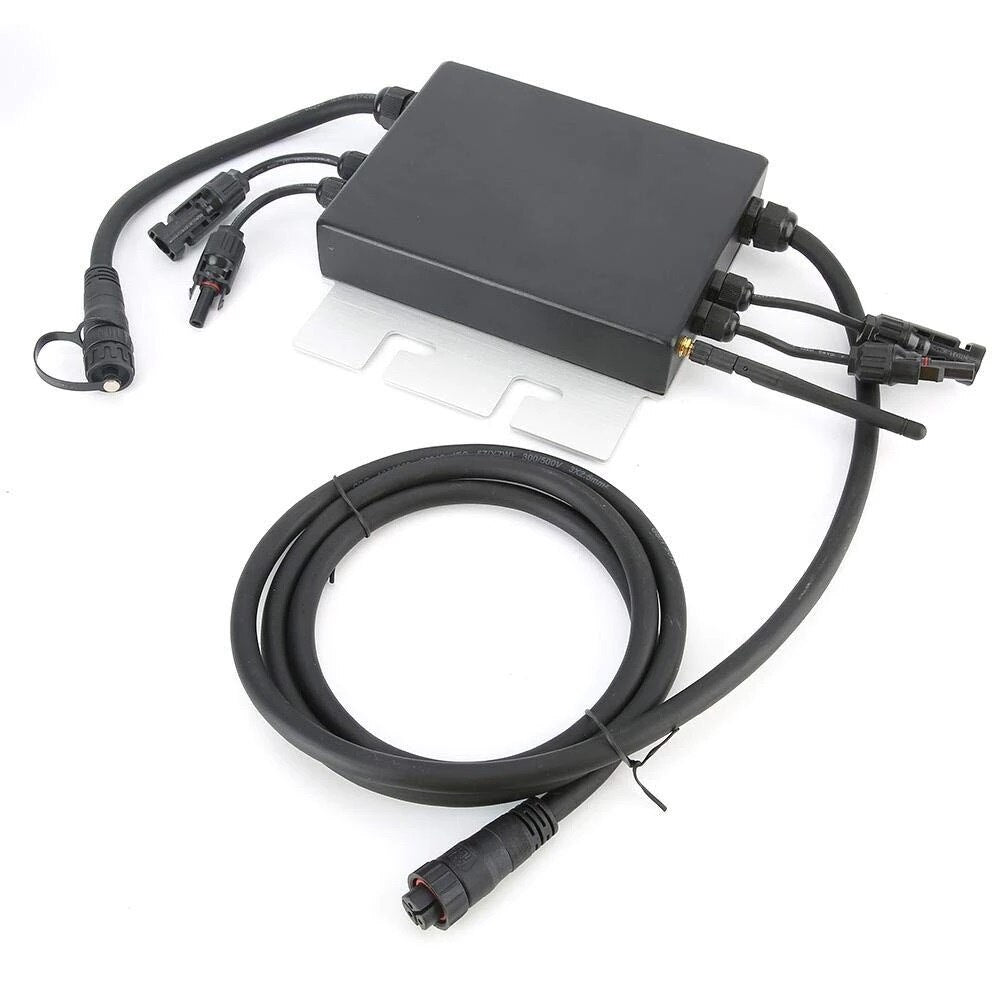

This micro solar panel smart inverter features a DC input status indicator, with an antenna for PV module connection. It also has a mounting system for secure installation and a screw type AC bus cable for connecting to the grid or next inverter.
Solar micro-inverters Product Parameter
Product Series |
SG600 Series |
||
Model |
SG600MD (Regular) |
SG600HD (Custom-made) |
SG600TD (Custom-made) |
Input Data(DC,PV) | |||
Number of Input MC4 Connector |
2 set |
2 set |
2 set |
MPPT Voltage Range |
24V-40V |
36V-60V |
80V-115V |
Operation Voltage Range |
18V-50V |
30V-70V |
70V-120V |
Maximum Input Voltage |
50V |
70V |
120V |
Startup Voltage |
18V |
30V |
70V |
Maximum Input Power |
2*300W |
2*300W |
2*300W |
Maximum Input Current |
2*12A |
2*8.3A |
2*3.7A |
Output Data(AC) | |||
Single-Phase Grid Type |
120V & 230V |
||
Smart Microinverter Rated Output Power |
590W |
||
Maximum Output Power |
600W |
||
Nominal Output Current |
@120VAC : 5A / @230VAC : 2.6A |
||
Nominal Output Voltage |
120VAC / 230VAC |
||
Default Output Voltage Range |
@120VAC : 80V-160V / @230VAC : 180V-280V |
||
Nominal Output Frequency |
50Hz / 60Hz |
||
Default Output Frequency Range |
@50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz |
||
Pure Sine Wave inverter Power Factor |
>0.99 |
||
Total Harmonic Distortion |
THD <5% |
||
Maximum Units per Branch |
@120VAC : 4 units / @230VAC : 8 units |
||
Efficiency | |||
PV Solar Micro Inverter Peak Efficiency |
95% |
||
CEC Weighted Efficiency |
@120VAC : 92.5% / @230VAC : 93.5% |
||
Nominal MPPT Efficiency |
99.9% |
||
Night Power Consumption |
<700mW |
||
Mechanical Data | |||
Operating Ambient Temperature Range |
-40°C to +65°C |
||
Storage Temperature Range |
-40°C to +85°C |
||
Solar PV inverter Dimensions (W x H x D) |
185mm x 180mm x 38.5mm (not include connectors and cable) |
||
Weight |
1.5kg |
||
Max Current of AC Bus Cable |
20A |
||
Waterproof Grade |
IP65 |
||
Micro solar Smart Inverter Cooling Mode |
Natural Convection - No Fans |
||
OtherFeatures | |||
Communication(Inverter to DataBox) |
2.4G Wireless |
||
Transformer Design |
High Frequency Transformers, Galvanically Isolated |
||
Integrated Ground |
Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
||
Protection Functions |
Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc. |
||
Product Series |
SG700 Series |
||
Model |
SG700MD |
SG700HD |
SG700TD |
(Regular) |
(Custom-made) |
(Custom-made) |
|
Input Data(DC,PV) | |||
Number of Input MC4 Connector |
2 set |
2 set |
2 set |
MPPT Voltage Range |
24V-40V |
36V-60V |
80V-115V |
Operation Voltage Range |
18V-50V |
30V-70V |
70V-120V |
Maximum Input Voltage |
50V |
70V |
120V |
Startup Voltage |
18V |
30V |
70V |
Maximum Input Power |
2*350W |
2*350W |
2*350W |
Maximum Input Current |
2*14A |
2*9.7A |
2*4.3A |
Output Data(AC) | |||
Single-Phase Grid Type |
120V & 230V |
||
Rated Output Power |
650W |
||
Maximum Output Power |
700W |
||
Nominal Output Current |
@120VAC : 5.4A / @230VAC : 2.8A |
||
Nominal Output Voltage |
120VAC / 230VAC |
||
Default Output Voltage Range |
@120VAC : 80V-160V / @230VAC : 180V-280V |
||
Nominal Output Frequency |
50Hz / 60Hz |
||
Default Output Frequency Range |
@50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz |
||
Power Factor |
>0.99 |
||
Total Harmonic Distortion |
THD <5% |
||
Maximum Units per Branch |
@120VAC : 4 units / @230VAC : 7 units |
||
Efficiency | |||
Peak Efficiency |
95% |
||
CEC Weighted Efficiency |
@120VAC : 92.5% / @230VAC : 93.5% |
||
Nominal MPPT Efficiency |
99.90% |
||
Night Power Consumption |
<700mW |
||
Mechanical Data | |||
Operating Ambient Temperature Range |
-40°C to +65°C |
||
Storage Temperature Range |
-40°C to +85°C |
||
Dimensions (W x H x D) |
185mm x 180mm x 38.5mm (not include connectors and cable) |
||
Weight |
1.5kg |
||
Max Current of AC Bus Cable |
20A |
||
Waterproof Grade |
IP65 |
||
Cooling Mode |
Natural Convection - No Fans |
||
Other Features | |||
Communication(Inverter to DataBox) |
2.4G Wireless |
||
Transformer Design |
High Frequency Transformers, Galvanically Isolated |
||
Integrated Ground |
Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
||
Protection Functions |
Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc. |
||

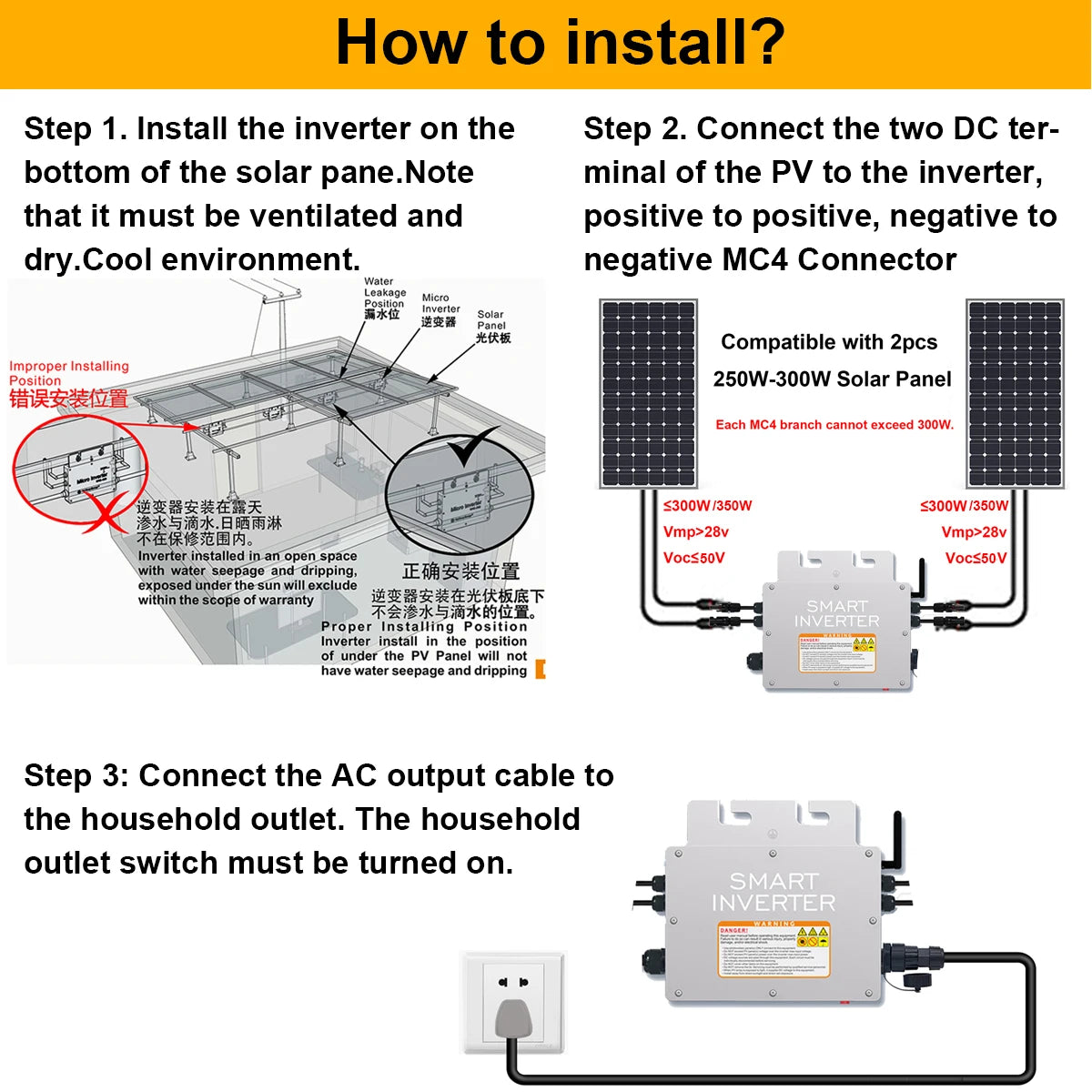

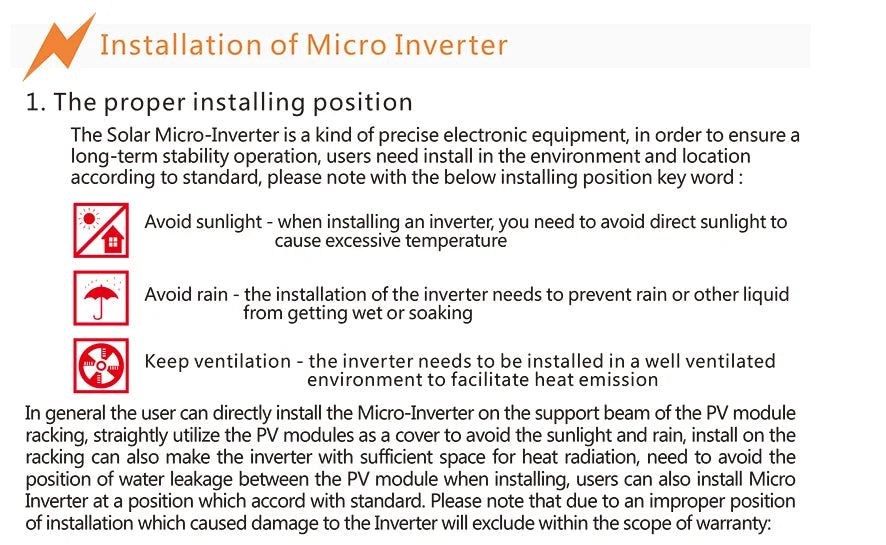

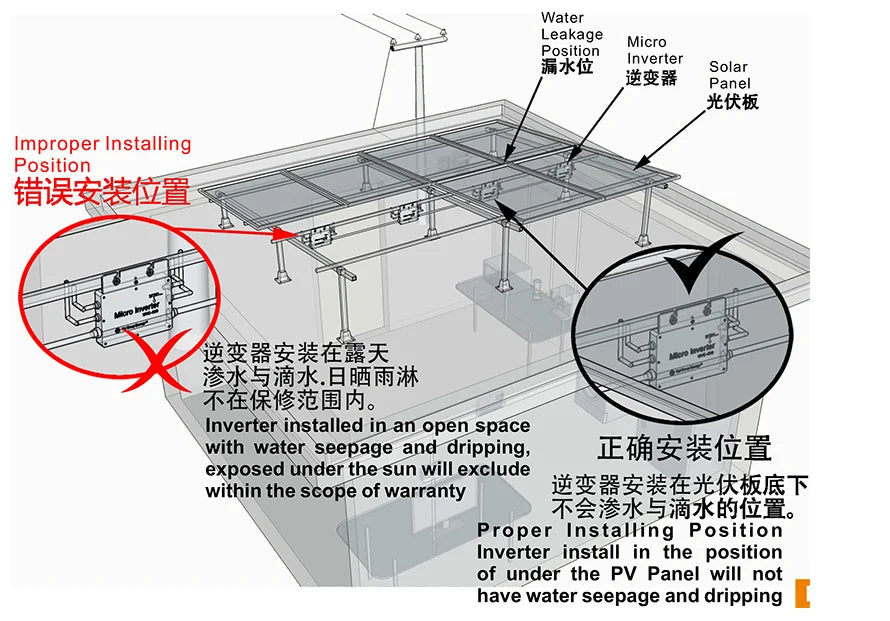

Correct installation location

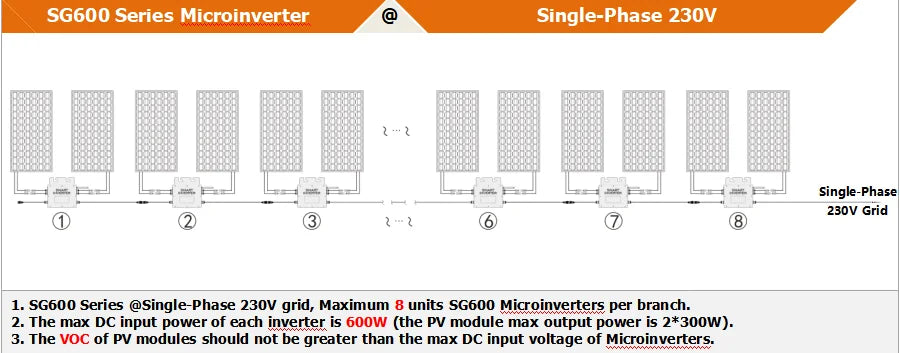

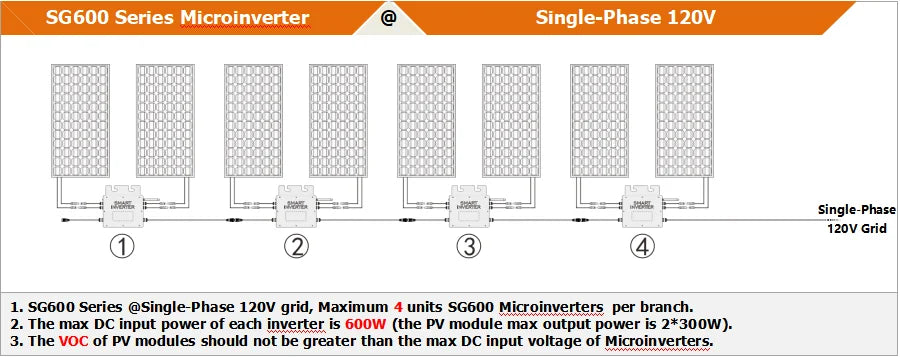

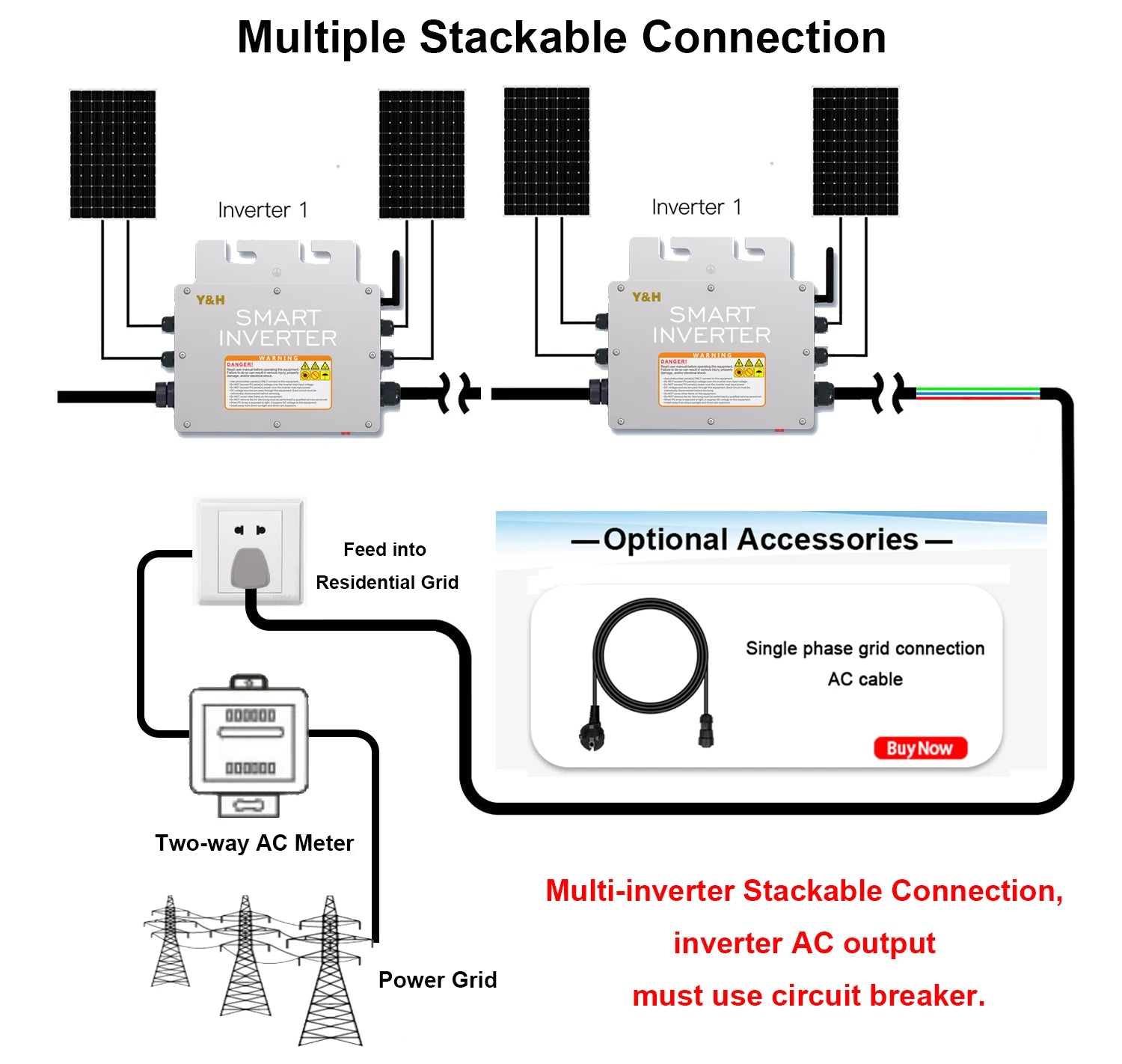

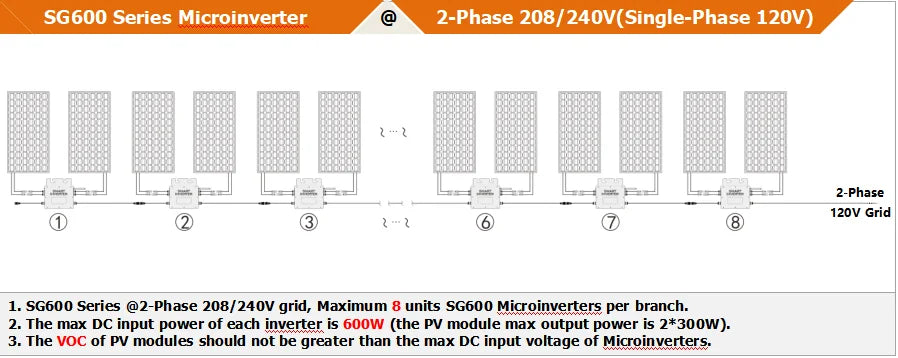

Installation Schematic For SG600

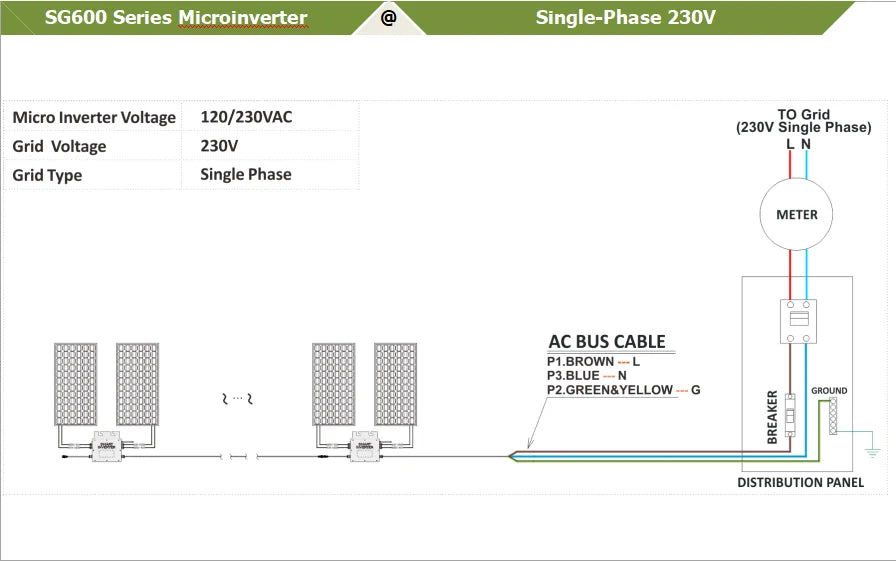

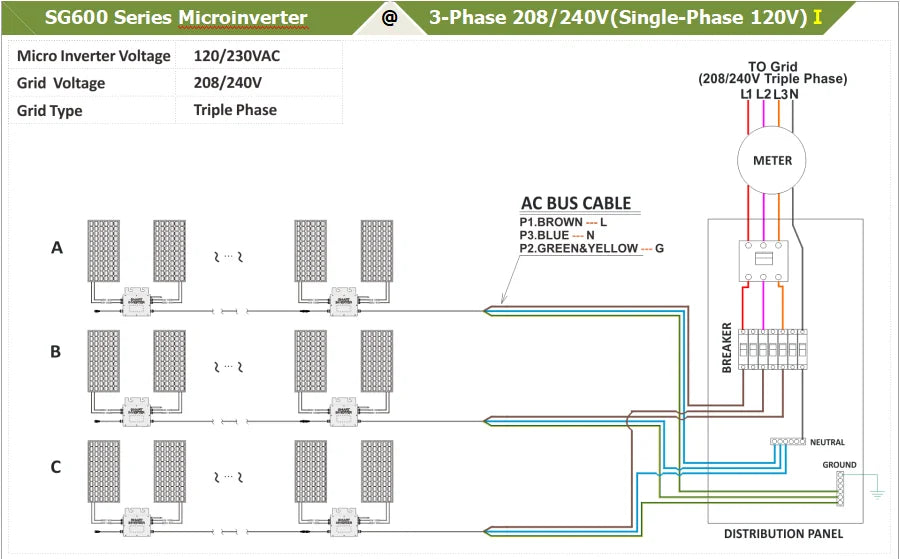

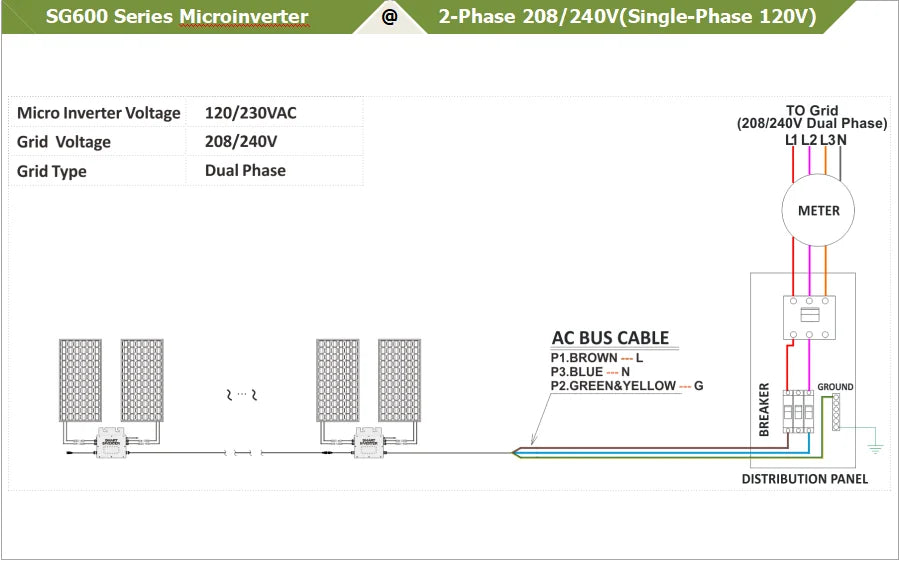

Wiring Schematic For SG600

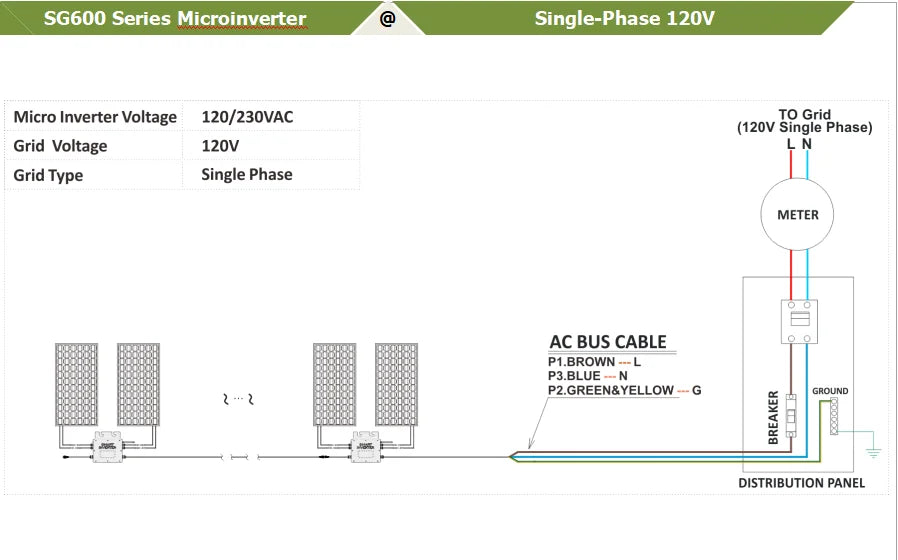

SG600 Series Microinverter: A single-phase, 120/230VAC grid-connected micro inverter suitable for residential applications. It features a 120V output and supports single-phase grids with 120V voltage. The inverter has a compact design and comes with an AC bus cable.

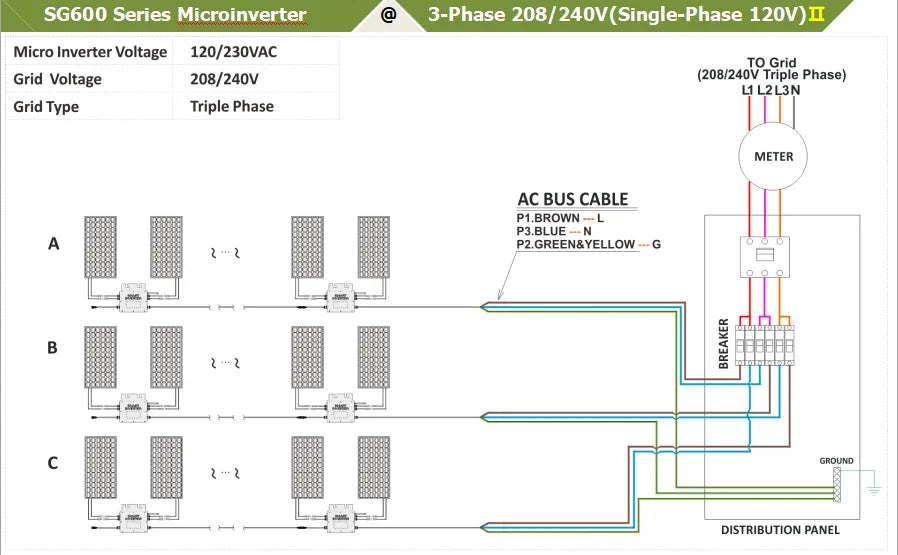

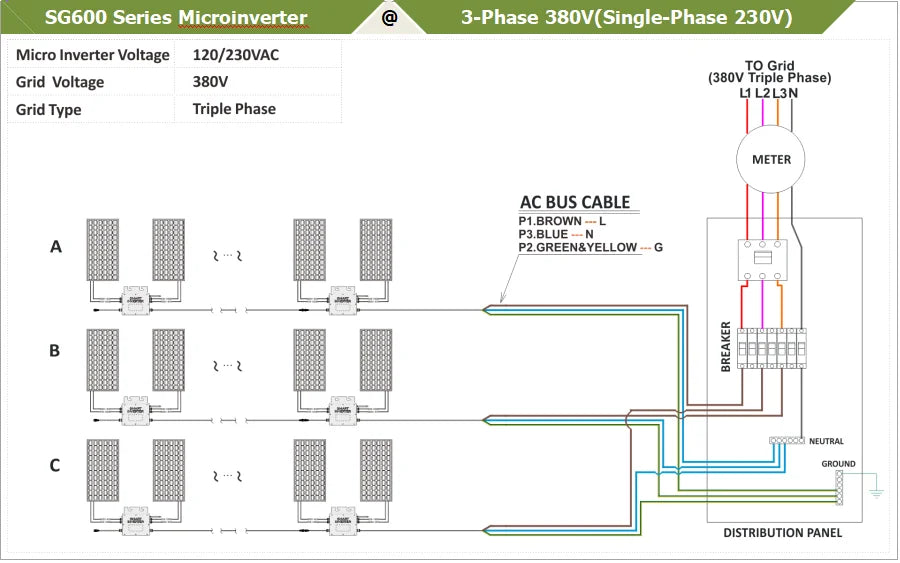

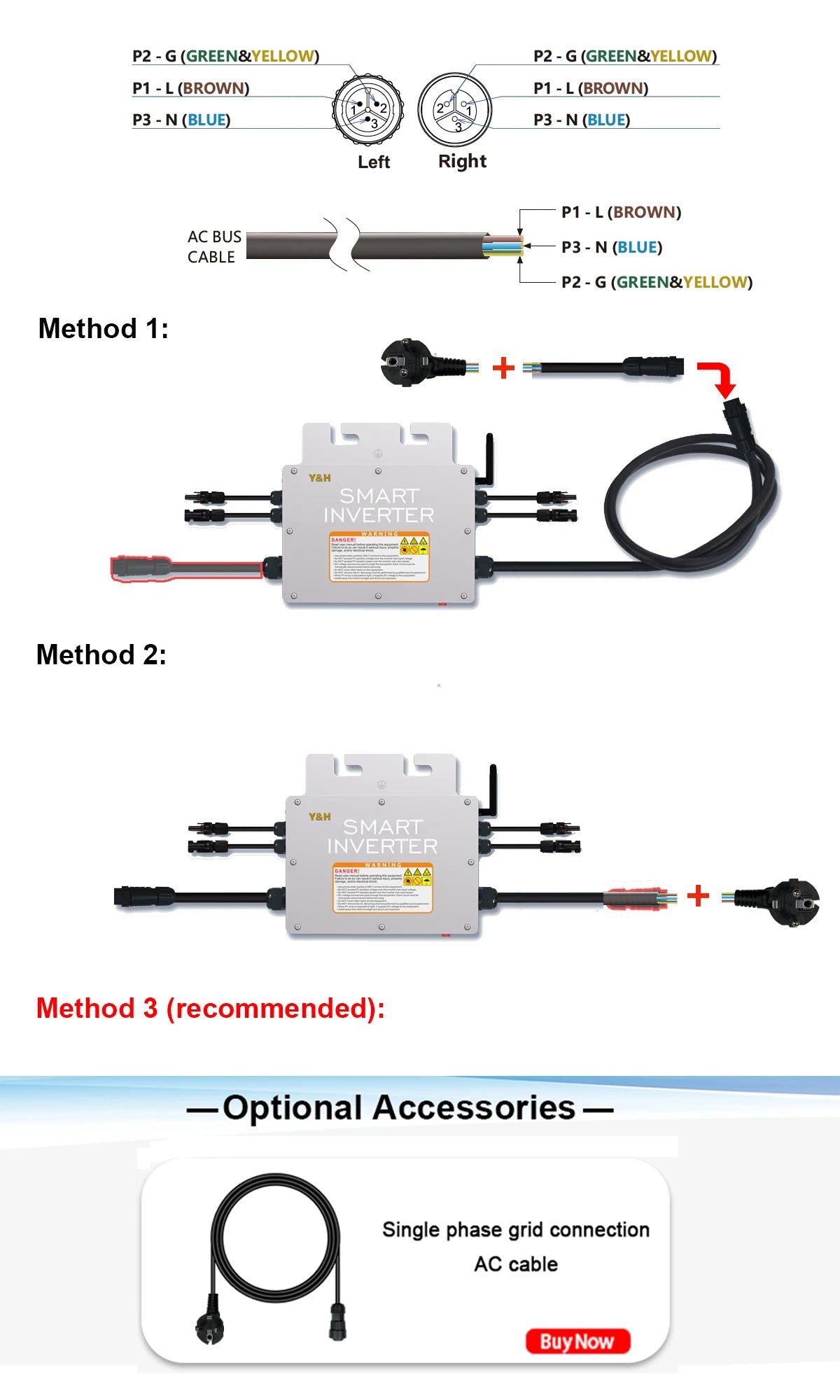

The SG600 Series Microinverter features a single-phase output of 120V or 230V AC, compatible with grid voltage of 208/240V triple phase. It has a metering system with AC bus cable and three-color-coded connectors (P1: brown, P2: green/yellow, P3: blue) for neutral grounding and distribution panel connections.
