60A 80A 100A MUST MPPT Solar Charge Controller 12V 24V 36V 48V Auto Recognize Battery Chargre Regulator

60A 80A 100A MUST MPPT Solar Charge Controller 12V 24V 36V 48V Auto Recognize Battery Chargre Regulator

Regular price $172.96 USD
Regular price Sale price $172.96 USD
Sale Sold out
Shipping calculated at checkout.
Current

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Type 3: Charge Controller

Type 2: Solar Controller

Type 1: MPPT Controller

Radiating Mode: Fan cooling

Origin: Mainland China

Nominal Battery System Voltage: 12V 24V 36V 48V

Name: MPPT Solar Charge Controller

Mximum Battery Current: 60A 80A 100A

Model Number: PC1800F

Maximum Solar Input Voltage: 145V

Maximum Current: 100A

Is Smart Device: YES

Certification: CE,FCC,RoHS

Brand Name: must energy

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Product Info

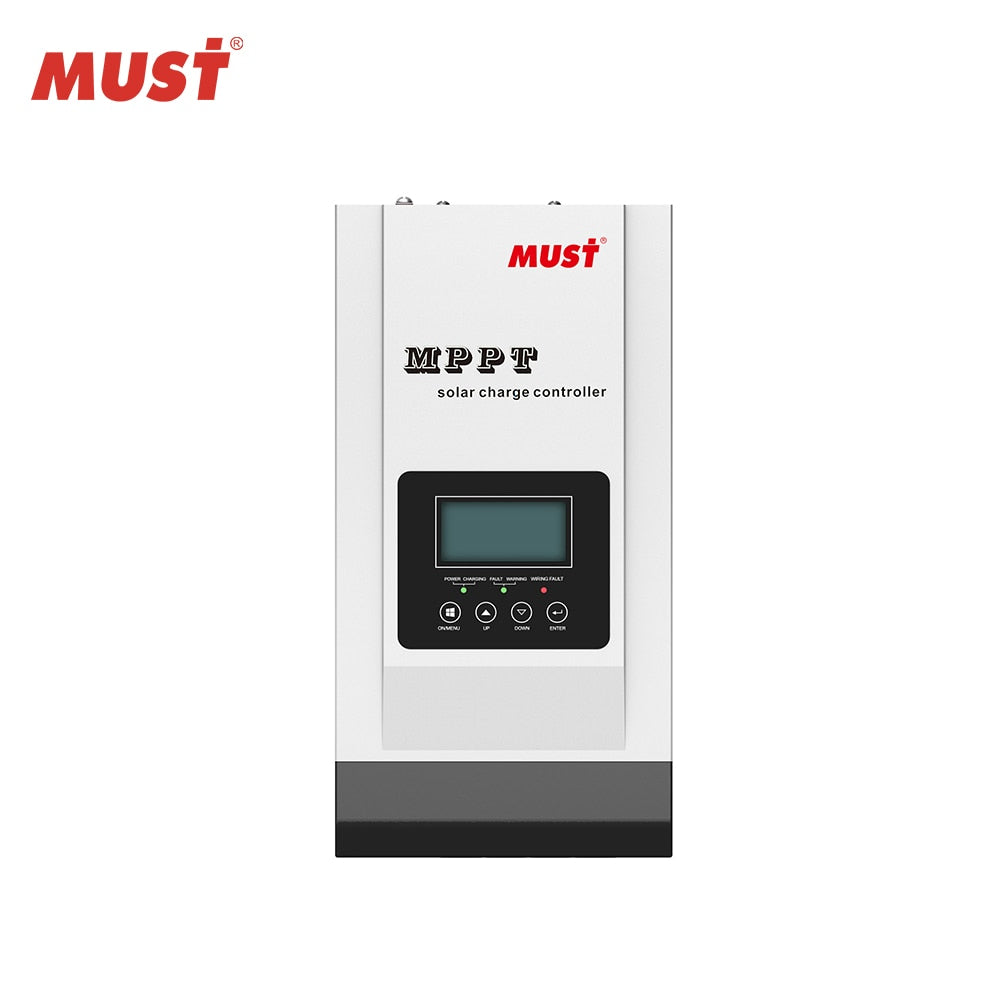

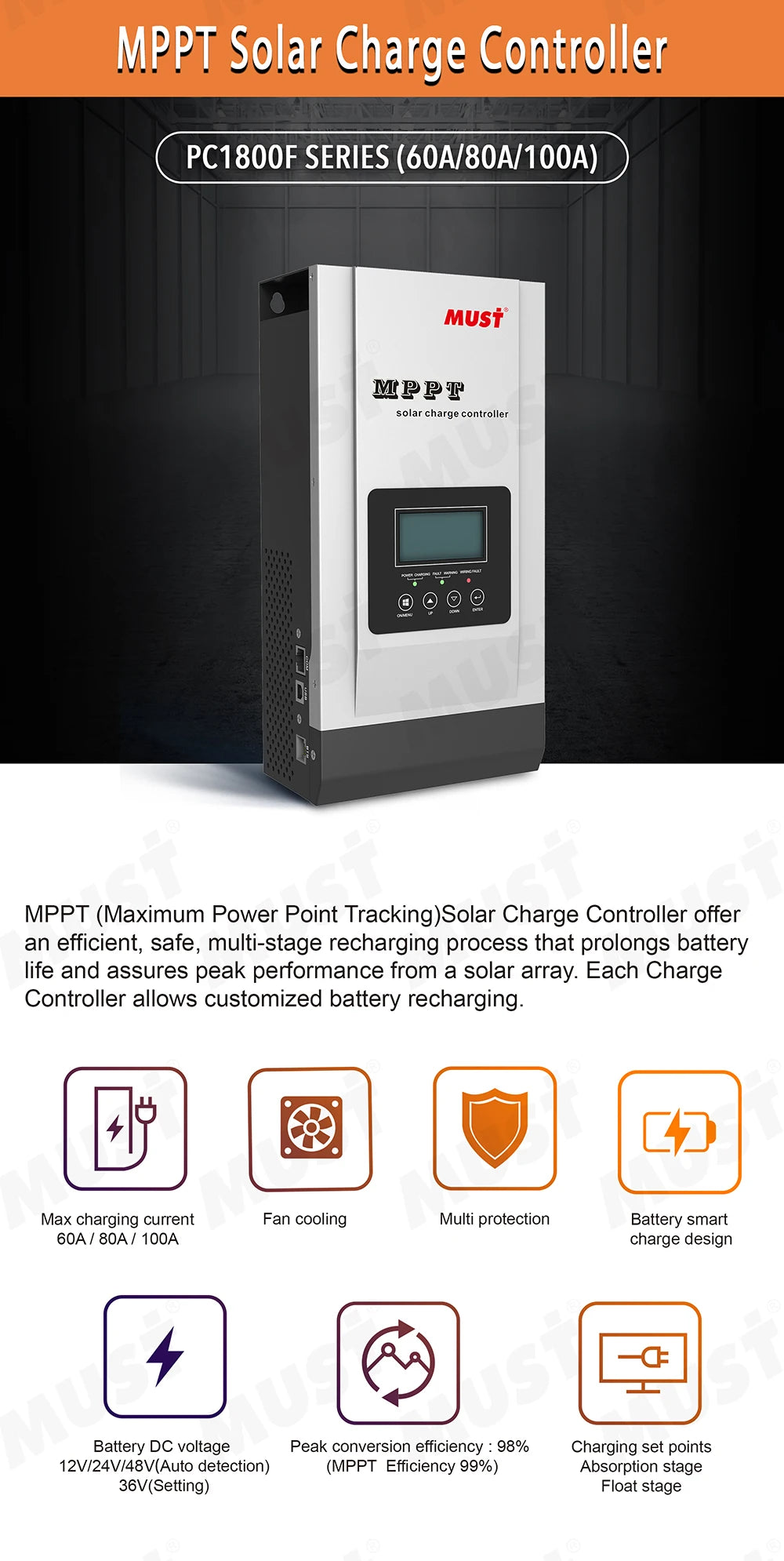

MUST MPPT Solar Charge Controller 60A 80A 100A Battery Charger Regulator

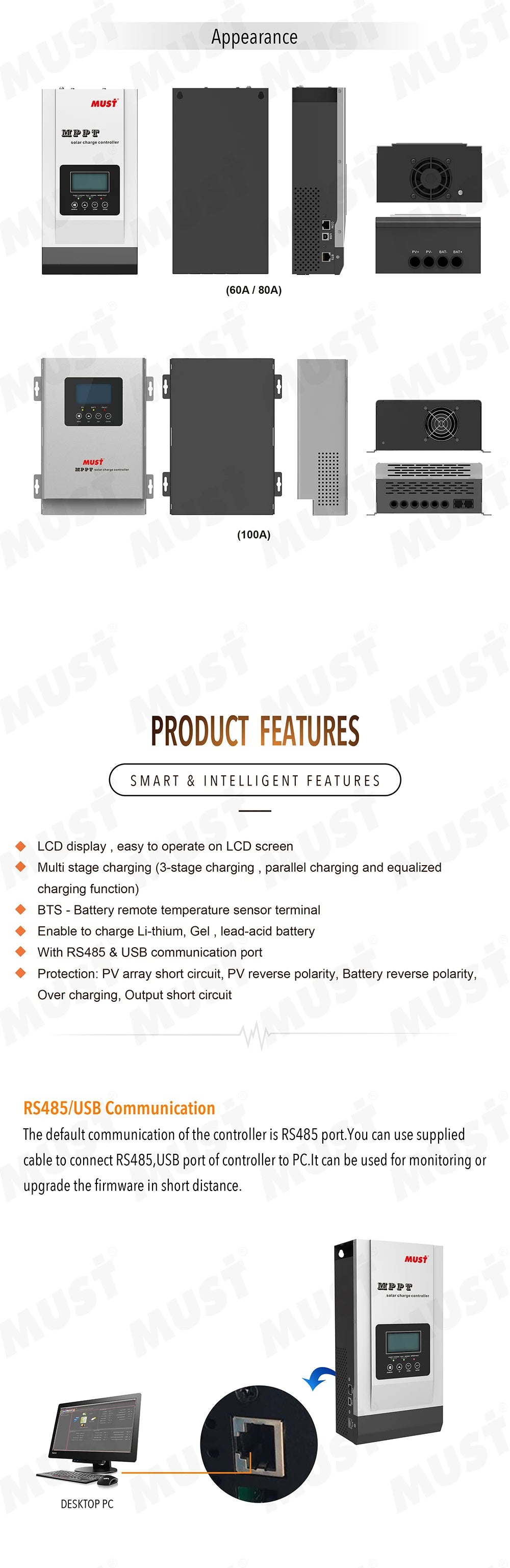

Feature:
1.LCD display , easy to operate on LCD screen

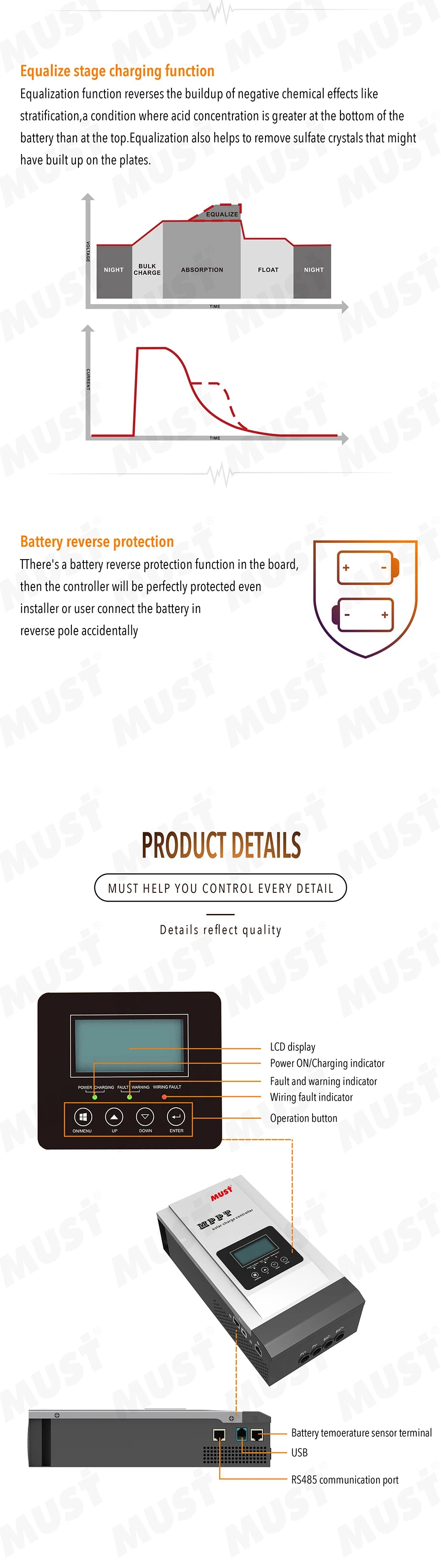

2.Multi stage charging (3-stage charging , parallel charging and equalized charging function)

3.BTS – Battery remote temperature sensor terminal

4.Enable to charge Li-thium, Gel , lead-acid battery

5.With RS485 & USB communication port

6.Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit


MODEL

PC18-6015F

PC18-8015F

PC18-10015F

Nominal Battery System Voltage

12V / 24V / 48VDC (Auto detection); 36V (Setting)

CONTROLLER INPUT

Battery Voltage

12V

24V

36V

48V

Maximum Solar Input Voltage

100V

145V

PV Array MPPT Voltage Range

15~95V

30~130V

45~130V

60~130V

Maximum Input Power

12 Volt-940W

12 Volt-1250W

12 Volt-1560W

24 Volt-1880W

24 Volt-2500W

24 Volt-3120W

36 Volt-2820W

36 Volt-3750W

36 Volt-4680W

48 Volt-3760W

48 Volt-5000W

48 Volt-6250W

BATTERY

Charging Set Points

Absorption Stage

Float Stage

Flooded Battery

14.2V / 28.4V / 42.6V / 56.8V

13.7V / 27.4V / 41.1V / 54.8V

AGM (Default)

14.4V / 28.8V / 43.2V / 57.6V

13.7V / 27.4V / 41.1V / 54.8V

Over-charging Voltage

15.5V / 30.0V / 45.0V / 60.0V

Over-chargingComeback Voltage

14.5V / 29.5V / 44.5V / 59.0V

Battery Defect Voltage

10.0V / 17.0V / 25.5V / 34.0V

Temperature Compensation Conefficient

-5mv /℃/cell (25℃vef)

Peak Conversion Efficiency

98% (MPPT Efficiency 99%)

Mximum Battery Current

60Amps

80Amps

100Amps

Max Charging Current

60amps continuous @ 40℃ambient

80amps continuous @ 40℃ambient

100amps continuous @ 40℃ambient

GENERAL SPECIFICATION

Radiating Mode

Fan cooling

DISPLAY & PROTECTION

Protections

Solar high voltage disconnect Solar high voltage reconnect Battery high voltage disconnect Battery high voltage reconnect High temperature disconnect High temperature reconnect

MECHANICAL SPECIFICATIONS

Mounting

Wall mount

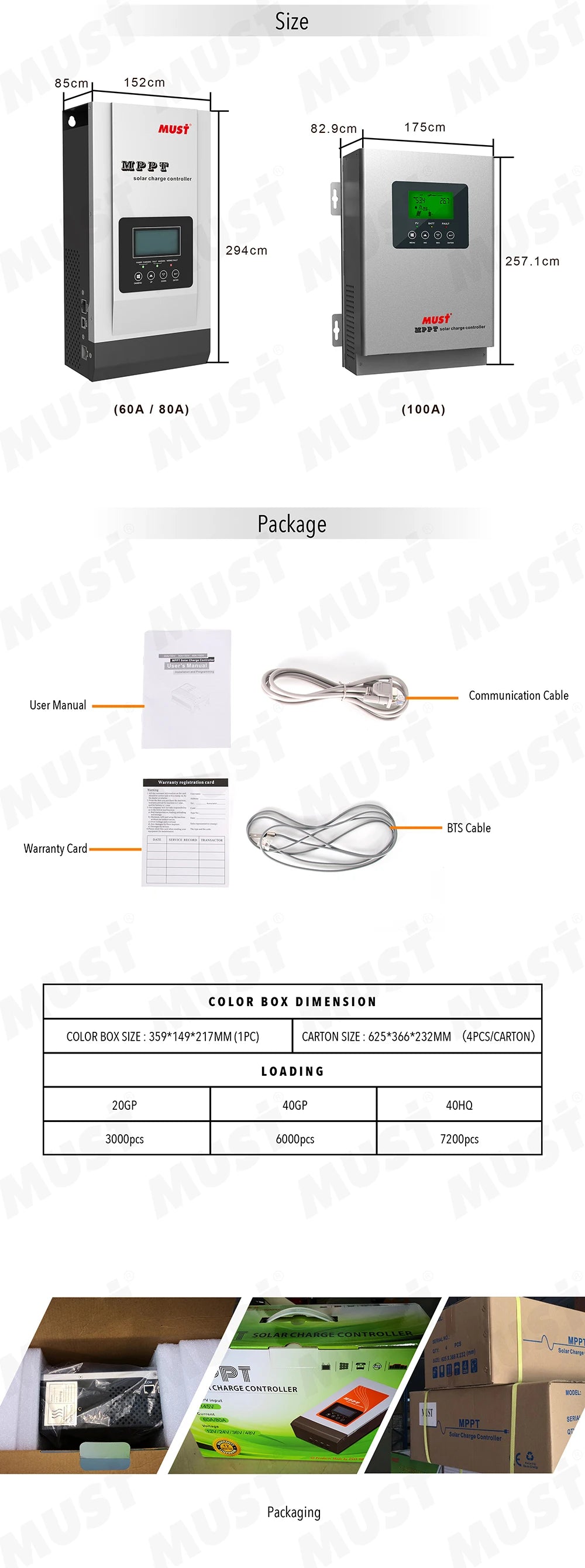

Machine Dimension (W*H*D)(mm)

152*85*294(per pcs)

G.W (kg)

3kg/pcs

Package Dimension (W*H*D)(mm)

625*366*232(4pcs / Carton)

Gross Weight (kg)

14kg

OTHER

Environmental Rating

Indoor

Operation Temperature Range

-10~55℃

Ambient Humidity

0~90% relative humidity (non-condensing)

Altiude

≤3000m

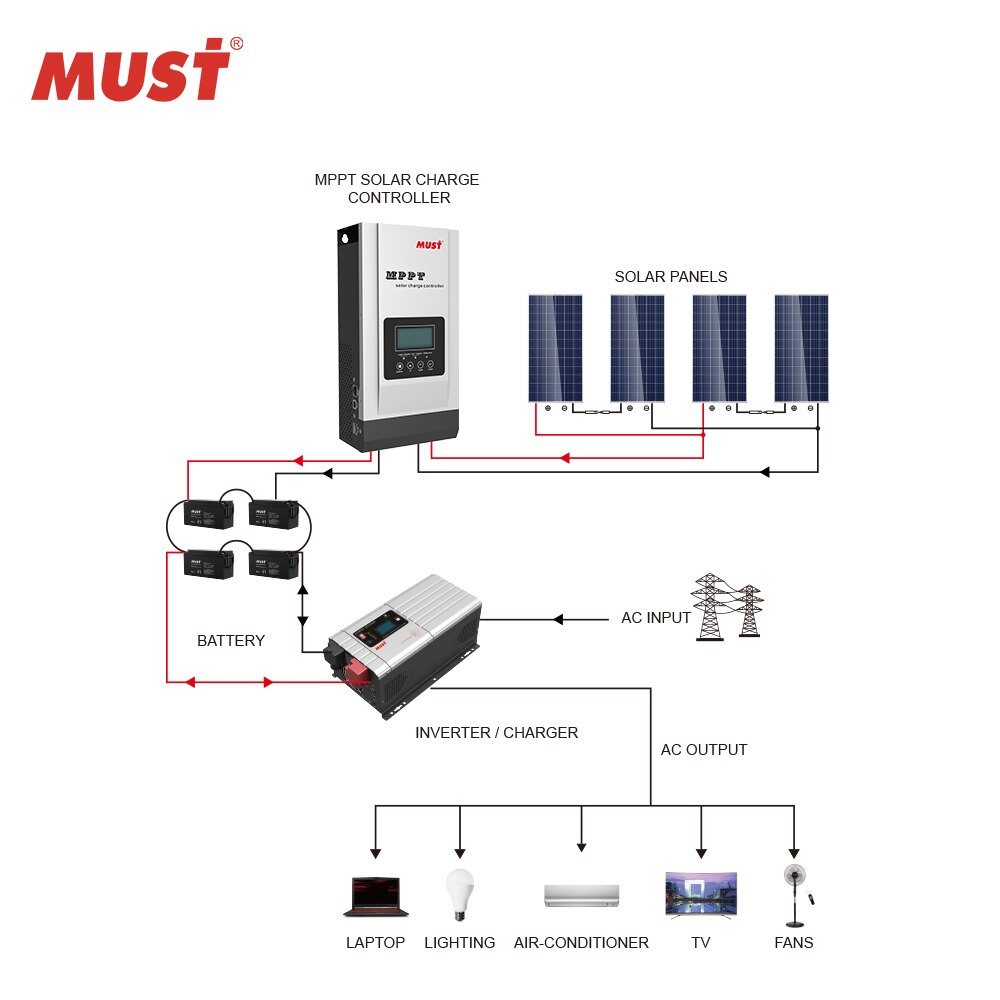

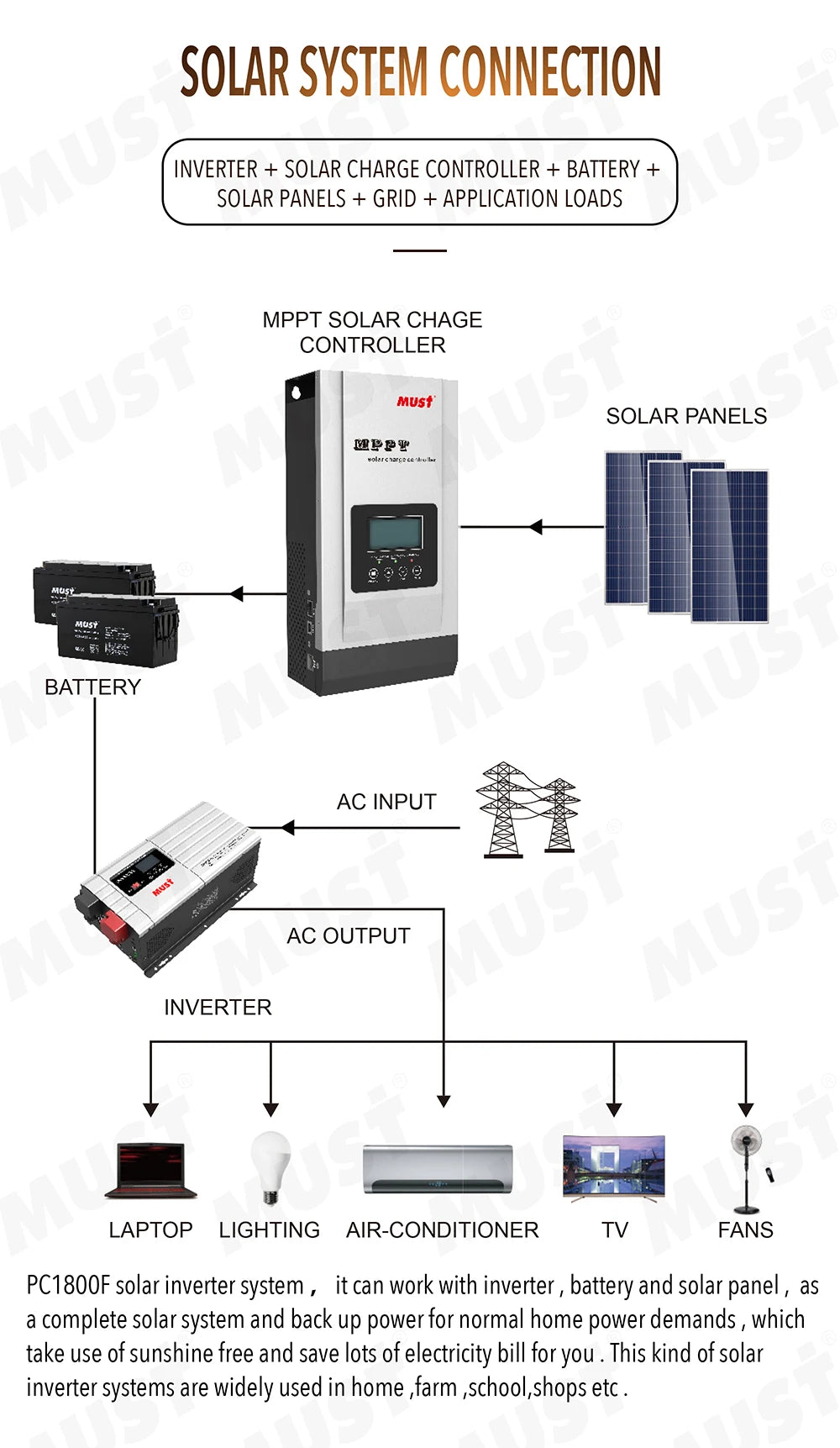

60A 80A 100A MUST MPPT Solar Charge Controller, MUST MPPT Solar Charge Controller 12V 2460A 80A 100A MUST MPPT Solar Charge Controller, MUST MPPT Solar Charge Controller 12V 2460A 80A 100A MUST MPPT Solar Charge Controller, MUST MPPT Solar Charge Controller 12V 2460A 80A 100A MUST MPPT Solar Charge Controller, Complete solar system with MPPT charge controller, inverter, battery, and panels for off-grid power and energy harvesting.60A 80A 100A MUST MPPT Solar Charge Controller, Must MPPT solar charge controller with multiple protections and high efficiency technology for charging batteries.60A 80A 100A MUST MPPT Solar Charge Controller, MUST MPPT Solar Charge Controller 12V 24FAQ
