7200W 8200W 10200W Off Grid Solar Inverter Hybrid MPPT 160A 180A 230V Pure Sine Wave Hybrid Inverter DC 48V for Battery Charger

Features:

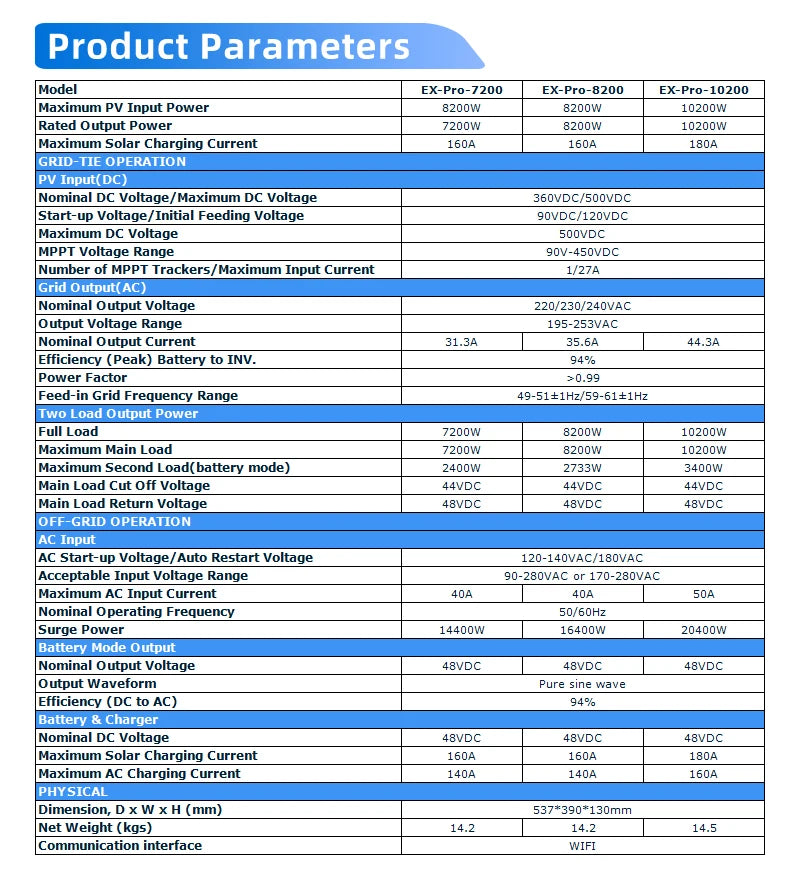

Rated Power:7.2KW/8.2KW/10.2KW

MPPT voltage range:90-450V

Maximum solar charging current: 160A/180A(10.2KW)

Maximum AC charging current:140A/160A(10.2KW)

Connectable battery type: Lead-acid/Lithium iron phosphate(LiFePO4）/colloid/lithium battery

Waveform:Pure Sine Wave

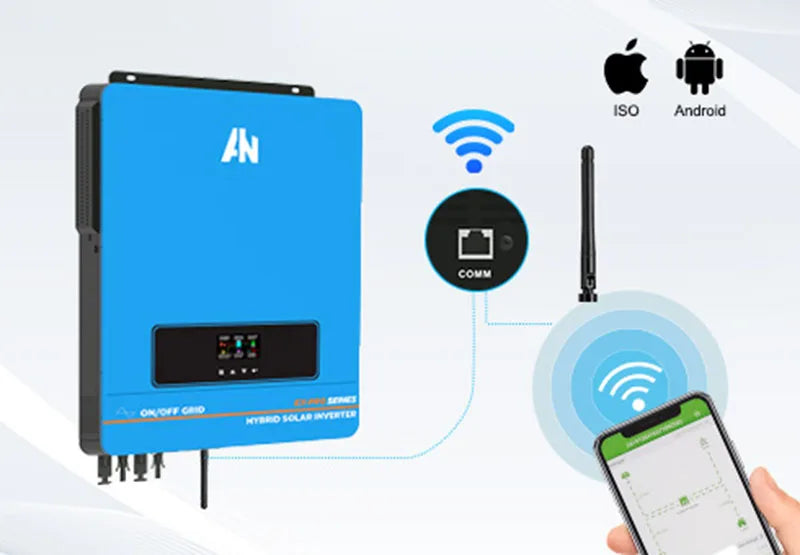

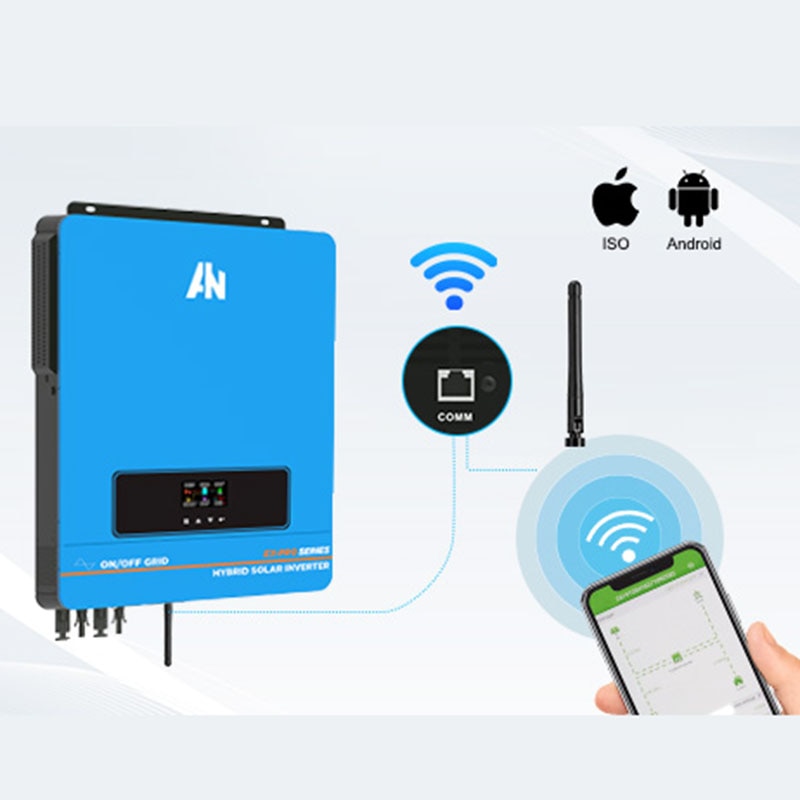

Communication Interface:RS232/Wifi

Nominal operating frequency:50/60Hz

FAQ：

Q:Whether it can be connected to the grid？

A:PV gives priority to power supply to the load, and extra to charge the battery, and more can be integrated into the grid (need to be based on local government policies)

Q: Is this a on grid-tied inverter? Can it be output to utility?

A: YES. It is a hybrid inverter that can be both off-grid and on-grid connected

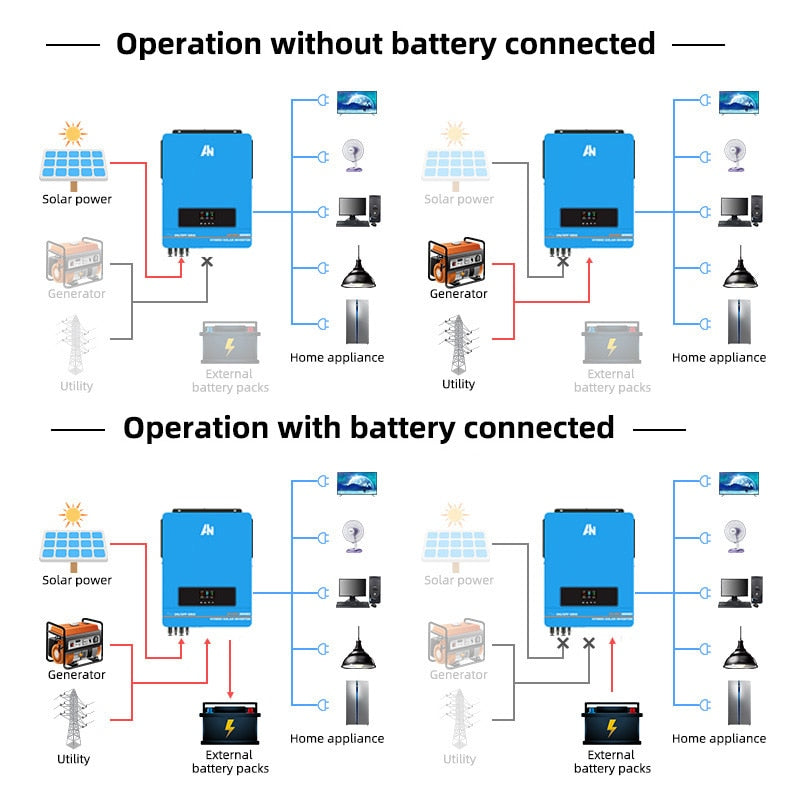

Q: Is it possible to use PV, battery, grid supply at the same time?

A: YES. The default PV priority mode, when the PV input is insufficient, the battery and utility will be used.

Q: Can inverters be connected in series or parallel?

A: NO.

Q: Can the utility be used to power the inverter when there is no sun?

A: YES.

Q: How to choose the power of the inverter according to the household appliances?

A: If household appliances contain inductive load appliances, such as refrigerators, washing machines, air conditioners, etc., the power of the inverter is at least three times the total power of the inductive load appliances, otherwise the appliances may not be able to start.

Q: How many solar panels need to be connected?

A: In order to start the inverter normally, the voltage of the solar panel is recommended to be 300V-400V, The maximum does not exceed 500V.

Inverter Use Notice
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.

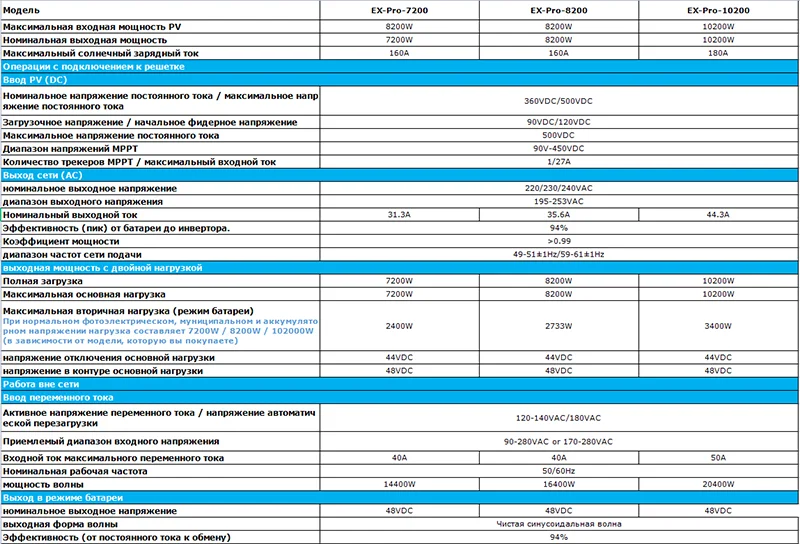

Parameter table in Russian:

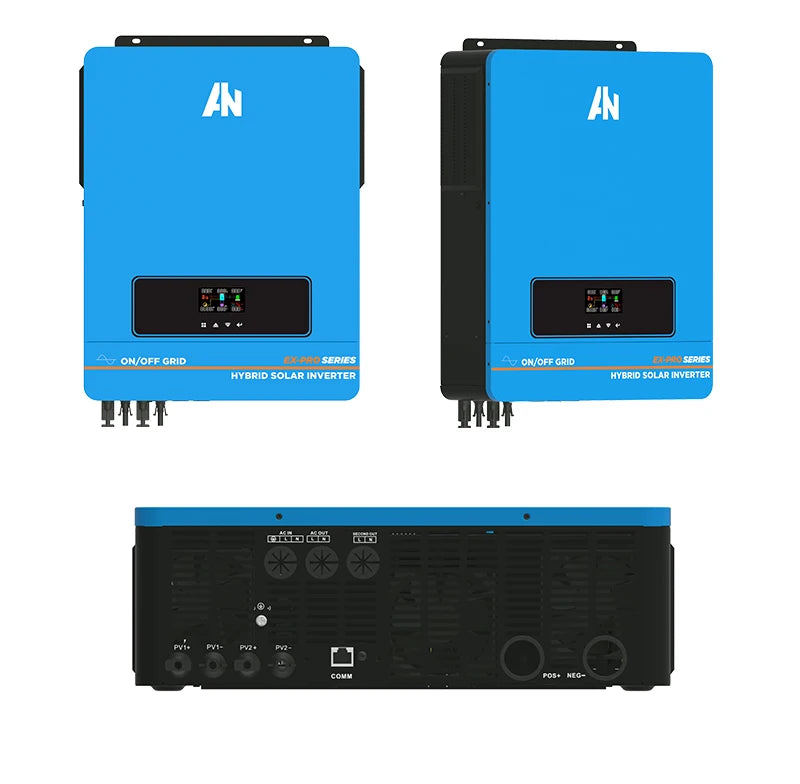

Victron's pure sine wave inverter hybrid MPPT charges batteries for off-grid systems or grid-tied applications. This 48V DC product features 160A, 180A, or 230V outputs and supports on-grid or off-grid solar power systems. With a compact design (537x390mm) and robust build quality, this inverter is ideal for residential and commercial installations.

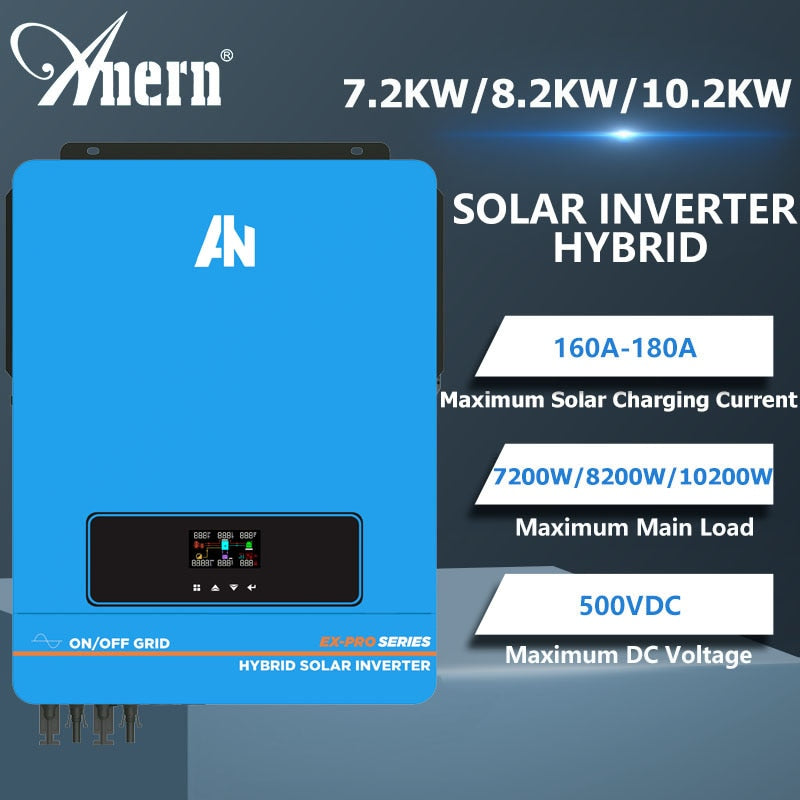

Puresine Series Hybrid Solar Inverter: A 7200W, 8200W or 10200W MPPT solar power inverter that converts DC to AC for pure sine wave output, suitable for on-grid and off-grid applications, battery charging, and more.

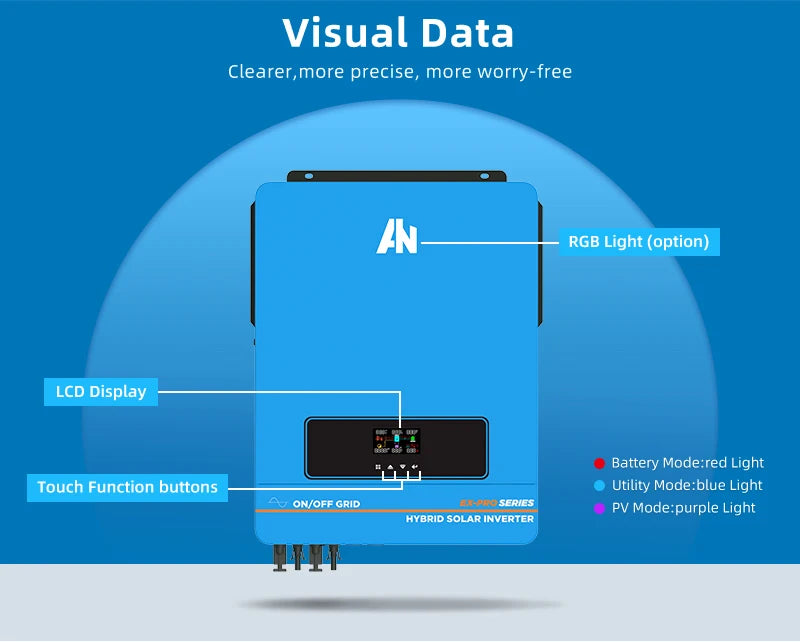

Clear and precise display with color-coded modes: battery mode (red), utility mode (blue), and solar inverter mode (purple). Optional HN_RGB light for enhanced visibility. User-friendly touch function buttons provide worry-free operation.

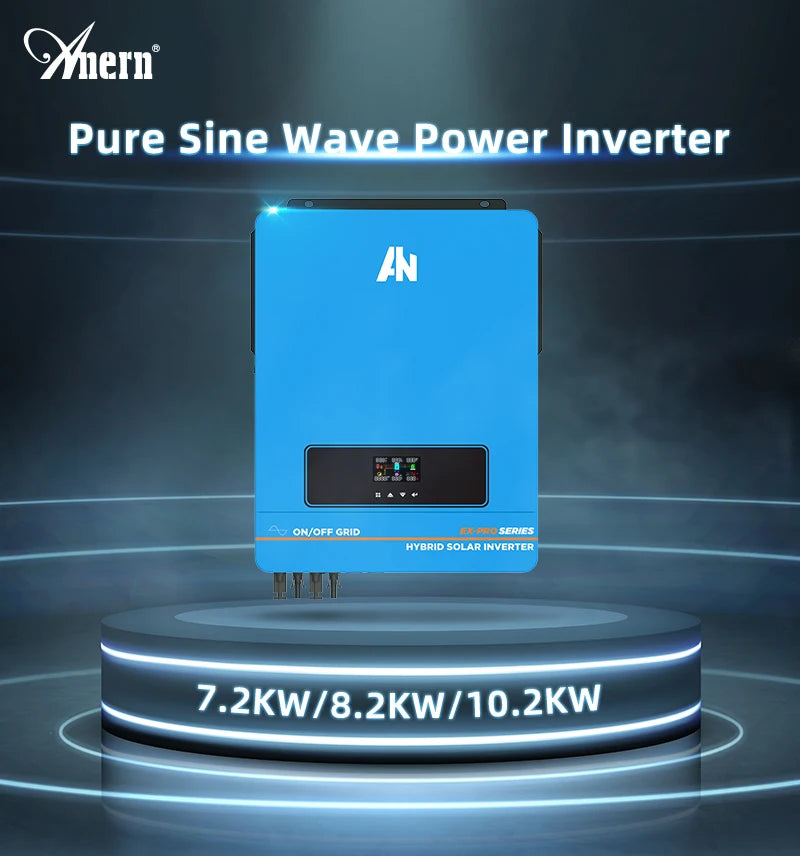

Pure Sine Wave DC Inverter for off-grid solar power systems, compatible with 48V battery chargers, available in three models: 7200W, 8200W, and 10200W.

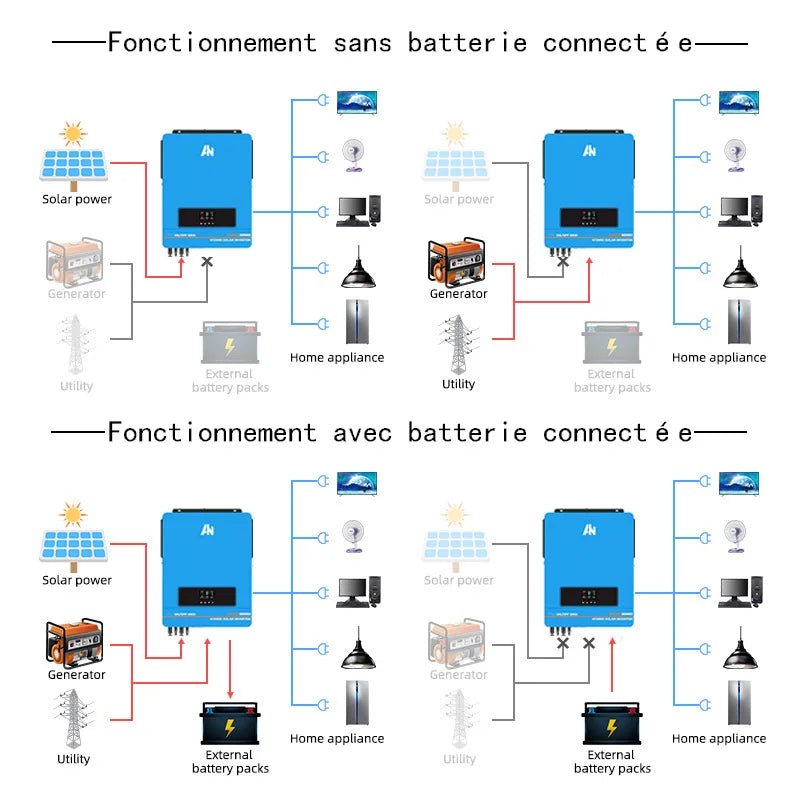

This solar inverter hybrid supports both on-grid and off-grid applications. It can charge batteries using DC 48V input from solar panels or external utility power. With a pure sine wave output, it's suitable for charging home appliances.

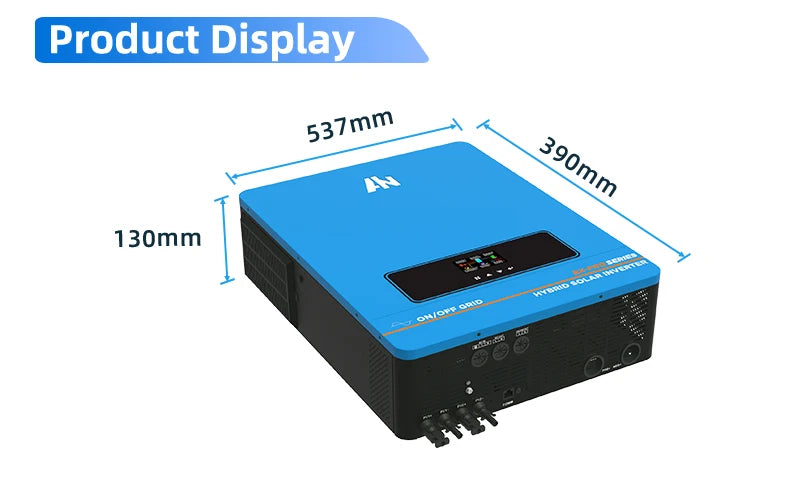

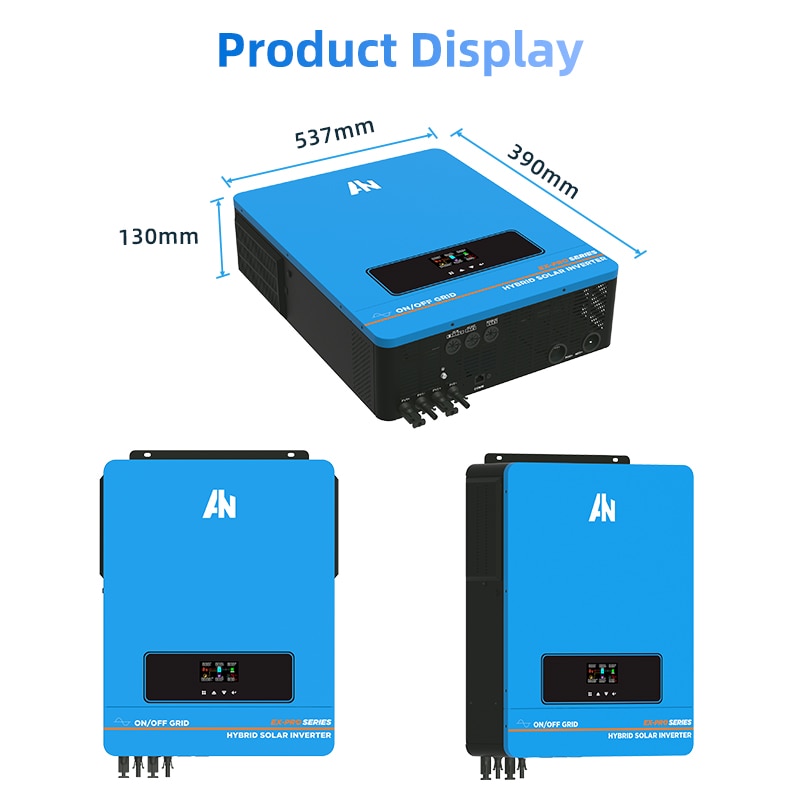

Product display dimensions: 13cm x 53.7cm x 39cm (L x W x H).

Introducing the On/Off Grid Series Hybrid Solar Inverter, featuring a maximum power point tracking (MPPT) function and pure sine wave DC output for charging batteries.

Certificate of Conformity: EMA TEKD certified product meets international standards for safety and performance. This certificate verifies that our solar inverter hybrid MPPT system, designed for on- and off-grid applications, produces pure sine wave DC power from 48V to 230V with maximum power point tracking (MPPT) capabilities of 160A, 180A, or 230A. This product is suitable for battery charging and other renewable energy systems.

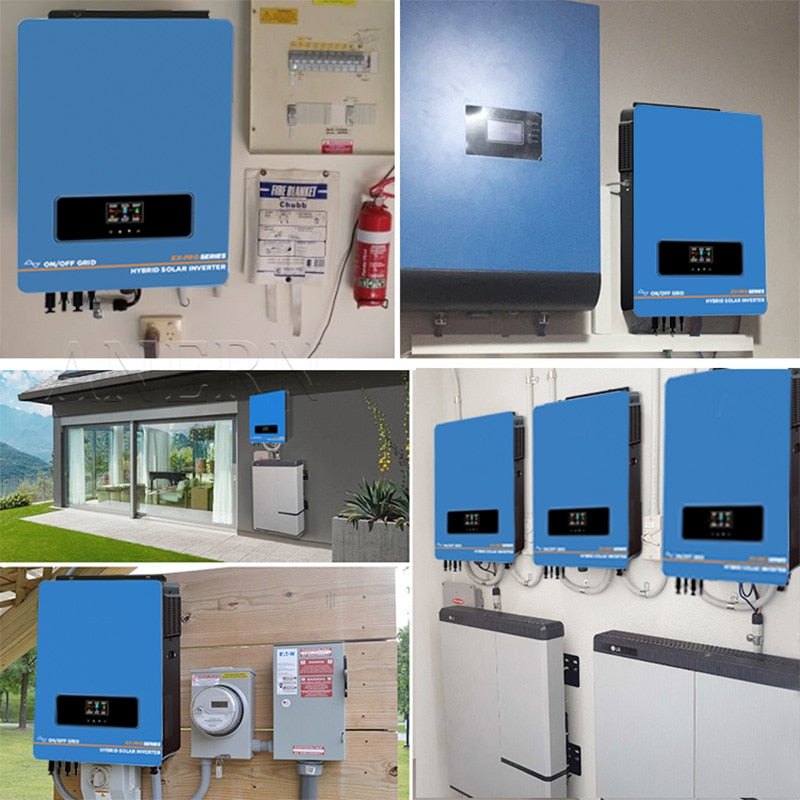

Suitable for yacht, base stations, RVs, or homes - a versatile solar inverter for various applications.
