800W Grid Tie Micro Inverter MPPT IP67 Built-in WiFi for 20-60VDC Solar Panel and 80-260VAC Grid,With Free EU Plug,Ship From EU

800W Grid Tie Micro Inverter MPPT IP67 Built-in WiFi for 20-60VDC Solar Panel and 80-260VAC Grid,With Free EU Plug,Ship From EU

Regular price $170.18 USD
Regular price Sale price $170.18 USD
Sale Sold out
Shipping calculated at checkout.
Color
Input Voltage
Output Voltage|Ships From

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Weight: 2.5KG

Waterproof Rating: IP67

Static MPPT: 0.999

Size: 30X25X8CM

Recommended Input Power: 210~400W(2 PCS)

Power factor: >99%

Output Type: single

Output Power: 801 - 1000KW

Output Frequency: 50/60HZ

Origin: Mainland China

Operating Voltage: 20-60VDC

Model Number: 800W

Max output: 0.95

Max Input Voltage: 60V DC

Max Input Current: 2*13A

MPPT Voltage: 25-55VDC

Is Smart Device: YES

Dimensions: 30X25X8CM

Certification: CE,FCC,RoHS

Certificate: CE,FCC,ROHS

CEC Weighted: @127V:92.5%

Brand Name: MARS ROCK

Ambient temperature: - 40℃ to +65℃


Related Products

800W Grid Tie Micro Inverter


GridDescription:

When the inverter converts direct current into alternating current, it will generate heat. This heat is added to the ambient temperature of the inverter housing, and the inverter conducts heat through fans and/or radiators. The heat rises above the specific level that the material in the inverter begins to affect. The insulation will become fragile, the solder will expand and crack, and the metal parts in the capacitor will fatigue.The upgraded 600W/700W/800W/1400W/1500W miniature inverter is made of aluminum alloy shell, which can dissipate heat on all sides and achieve the best heat dissipation effect. The drive is also designed to allow the panel to be exposed to as much air as possible for physical cooling by rapid airflow.

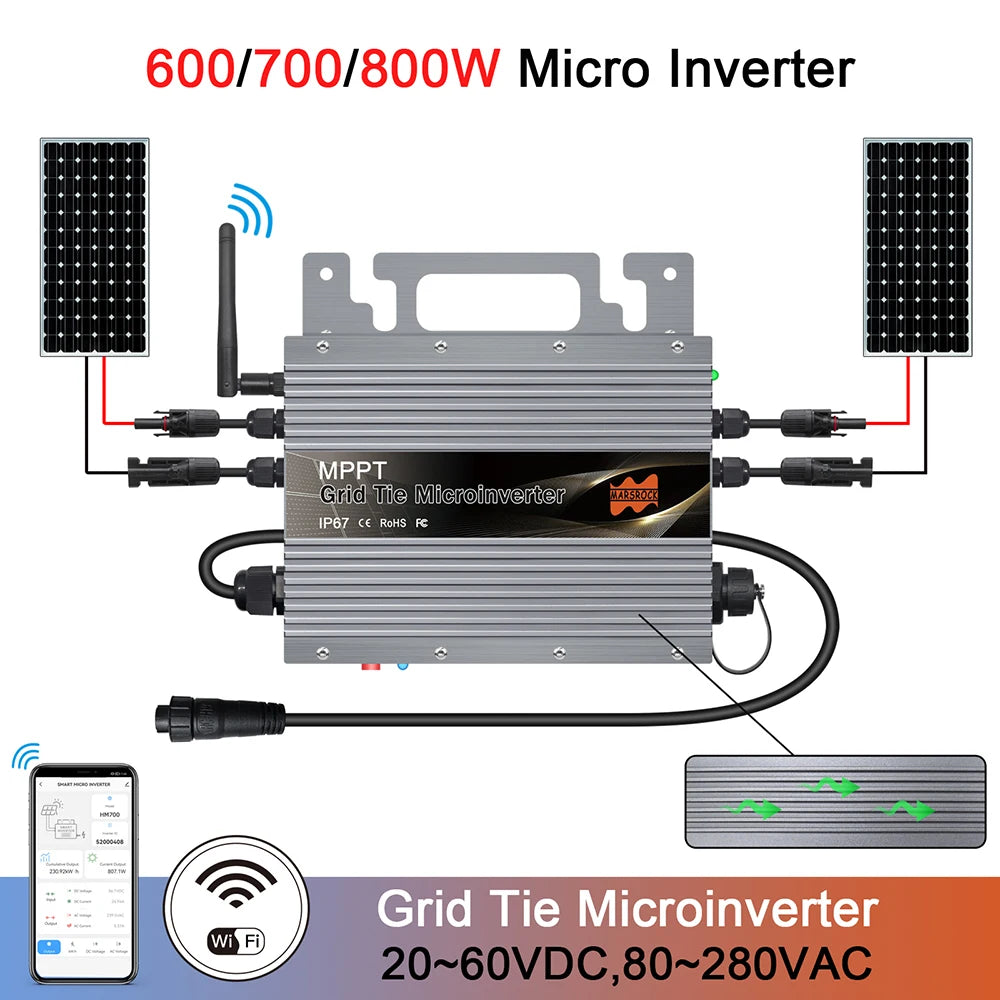

800W Grid Tie Micro Inverter, High-efficiency micro inverter for grid-tied solar systems, featuring MPPT charging and WiFi monitoring.

MKH 800W grid-tie micro inverter features MPPT technology for efficient solar panel charging. Suitable for 20-60V DC input and 80-260V AC output to connect with EU grid. Built-in WiFi for remote monitoring.


Smart WiFi Module:

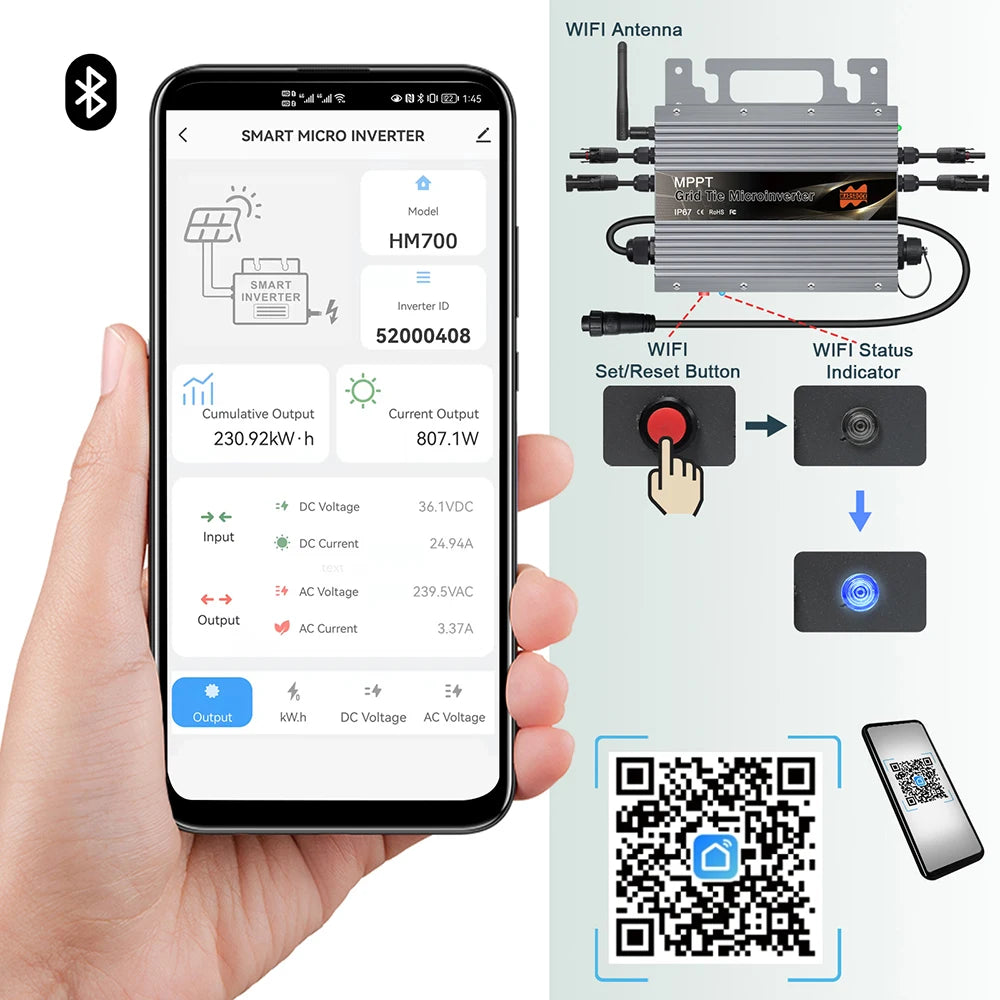

800W Grid Tie Micro Inverter, Smart Micro Inverter with WiFi for efficient solar energy conversion, monitoring, and grid tie operation.

This inverter has a new smart WiFi module, no need to order a data box, directly download the APP software, scan the code to log in, and easily use the WiFi module to check the power generation data

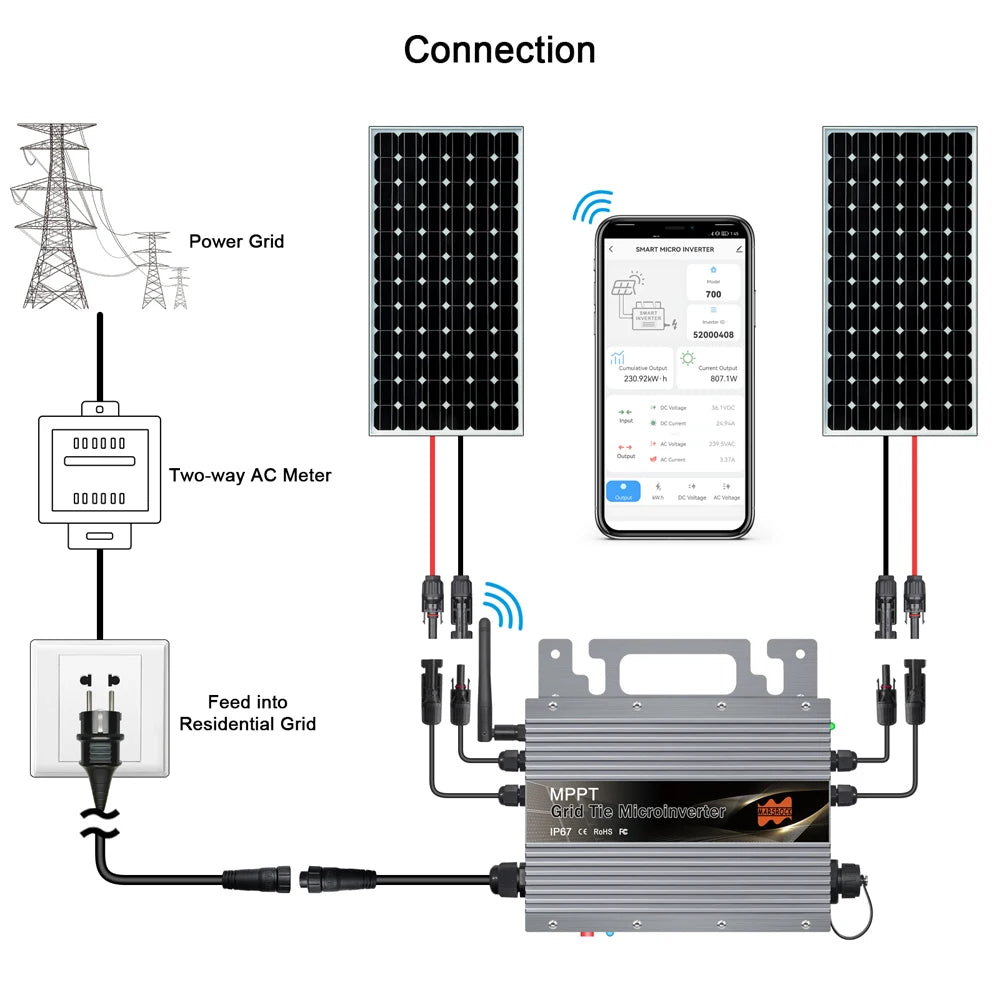

800W Grid Tie Micro Inverter, Micro inverter with WiFi for solar panels, suitable for grid tie connections.

800W grid tie micro inverter with built-in WiFi, suitable for solar panels with 20-60VDC output and 80-260VAC grid voltage. Features MPPT (Maximum Power Point Tracking) technology and IP67 waterproof rating. Ideal for residential grid connection, comes with a free EU plug, shipped from the EU.

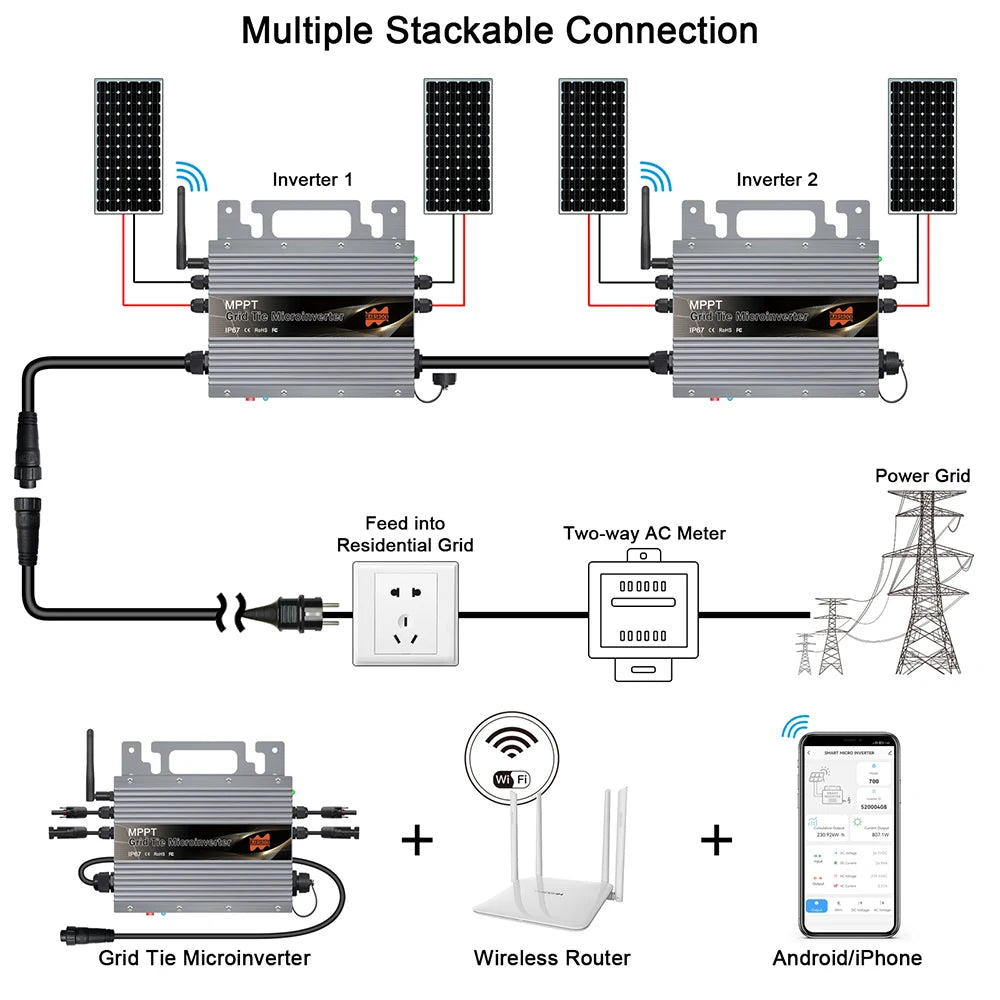

800W Grid Tie Micro Inverter, Compact micro inverter with WiFi for monitoring solar power feed into the grid.

Introducing our 800W grid-tie micro inverter with built-in WiFi. Suitable for solar panels (20-60VDC) and grid voltage (80-260VAC), this compact device features multiple stackable connections, MPPT technology, and a wireless router compatible with Android and iPhone devices. Monitor your power feed into the grid with our AC meter, ideal for residential installations.

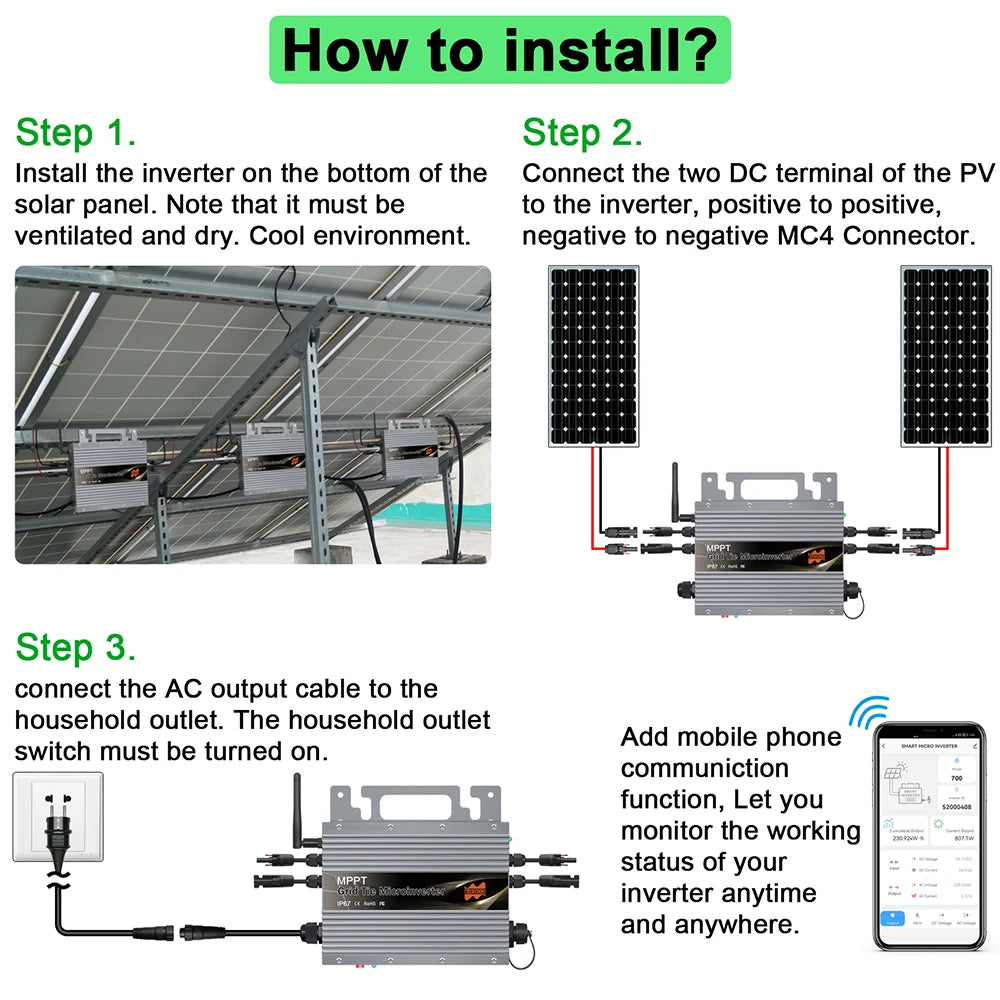

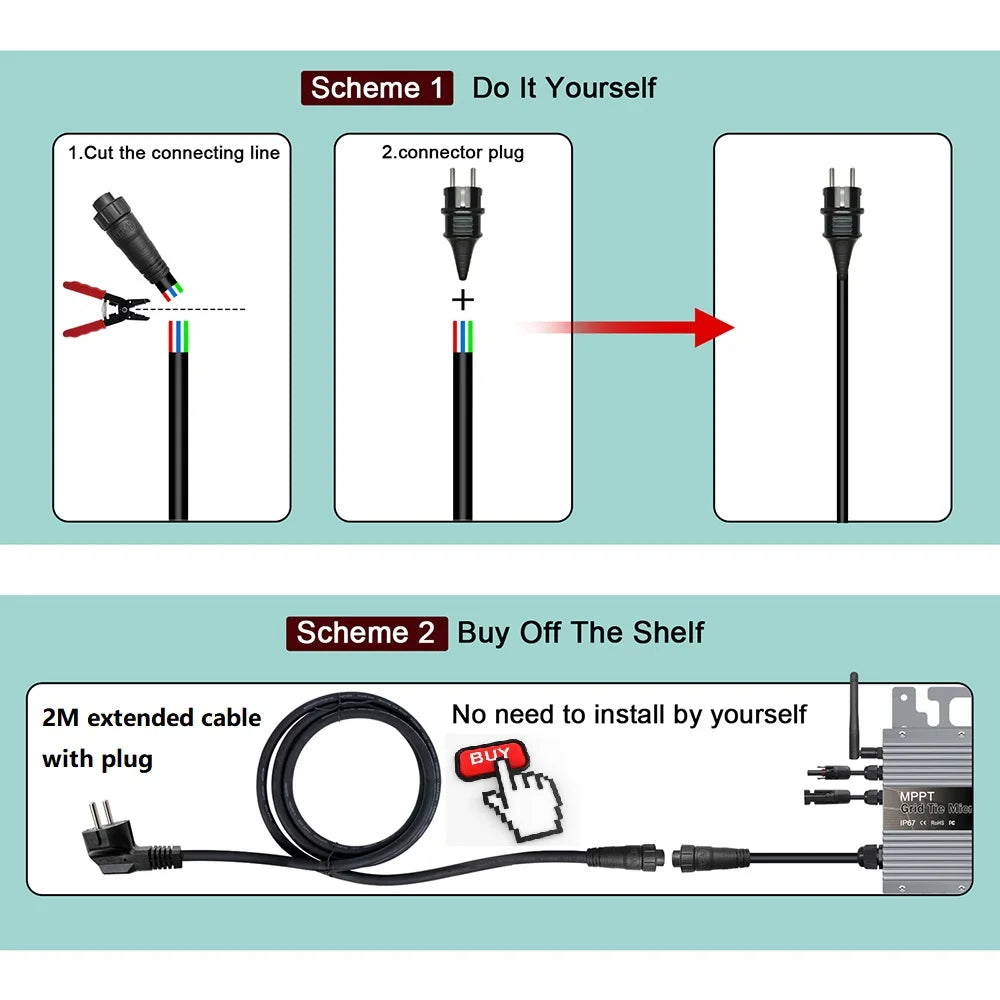

800W Grid Tie Micro Inverter, Installation options: DIY or buy an off-the-shelf solution with extended cable.

Two installation options: DIY (cut the connecting line or use a connector plug) or buy an off-the-shelf solution with an 2-meter extended cable, no self-installation required.

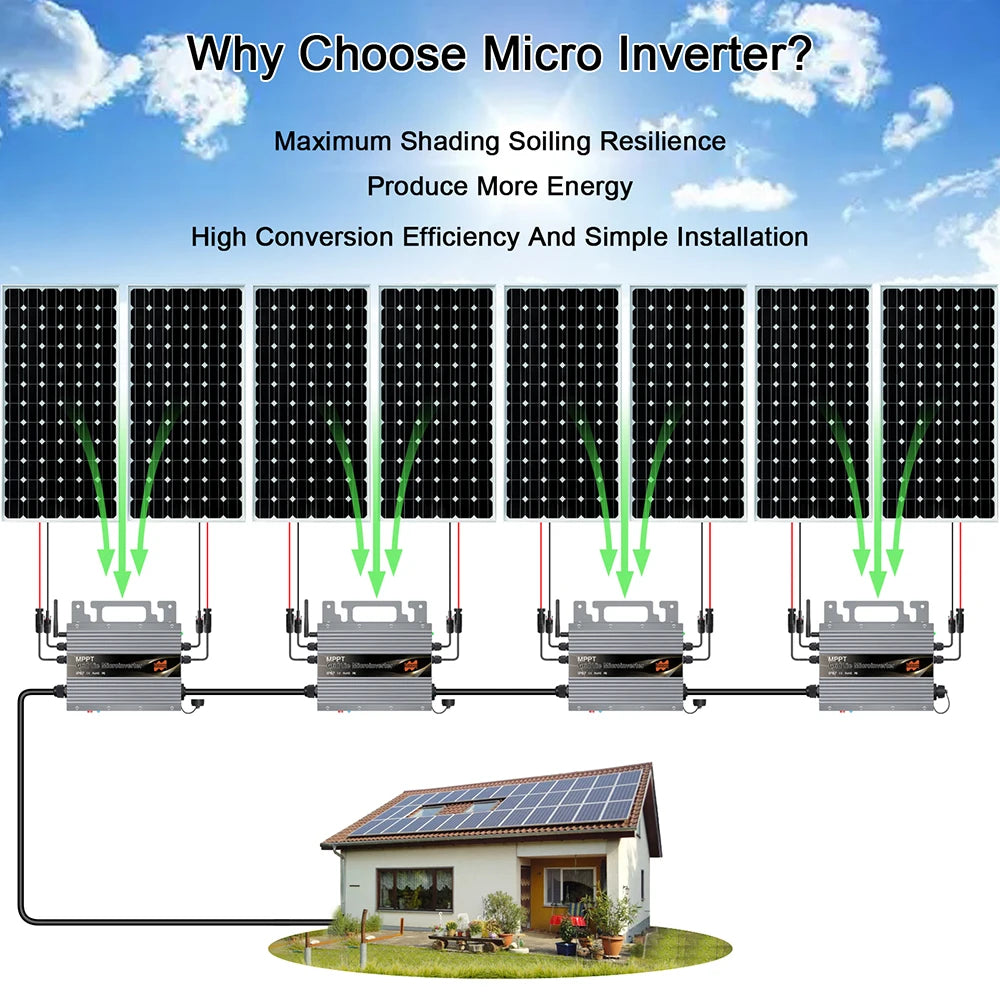

800W Grid Tie Micro Inverter, The inverter's internal temperature exceeds its operating range, affecting performance.800W Grid Tie Micro Inverter800W Grid Tie Micro Inverter, Micro inverters optimize energy output with shading and soiling resistance, high efficiency, and simple installation.

Choose micro inverters for maximum energy yield, robust shading and soiling resilience, high conversion efficiency, and easy installation.


Product application map:

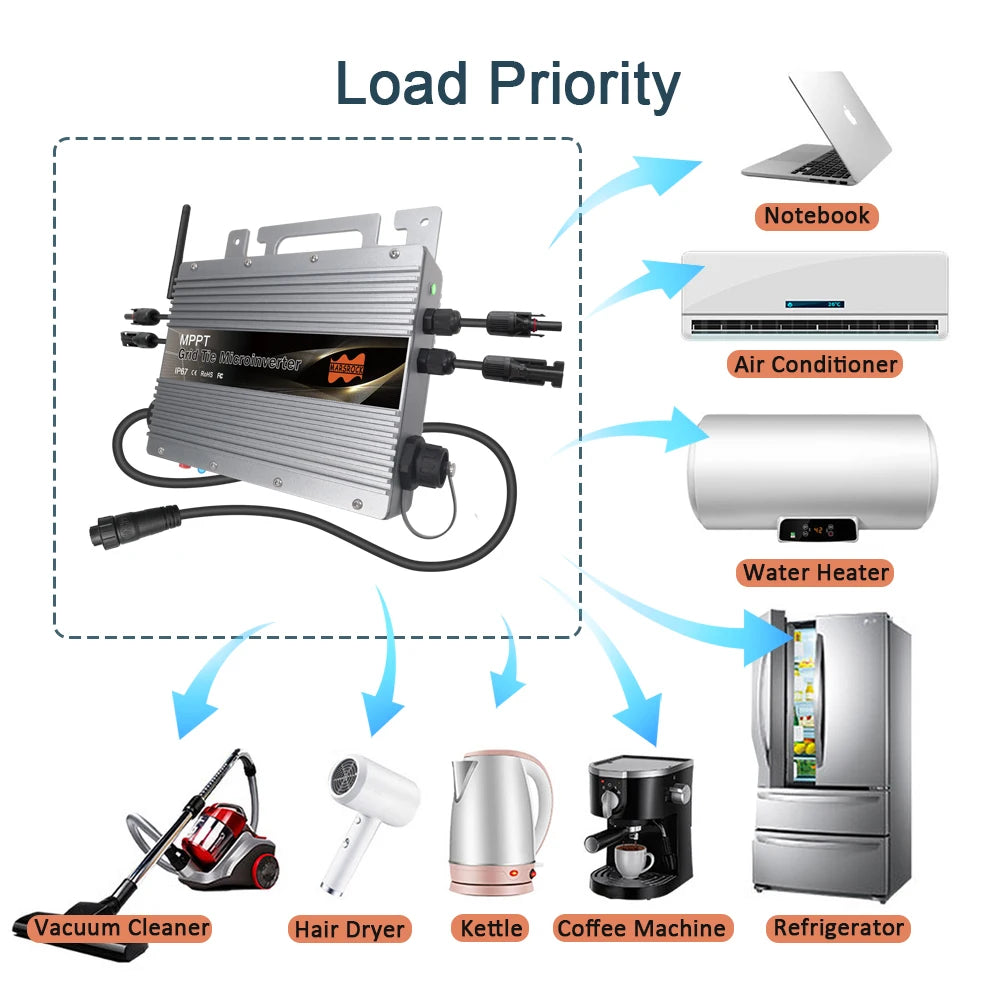

800W Grid Tie Micro Inverter, Charging station suitable for laptops and various appliances.

Suitable for charging notebooks, and also compatible with appliances like air conditioners, water heaters, vacuum cleaners, hair dryers, kettles, coffee machines, refrigerators, and others.

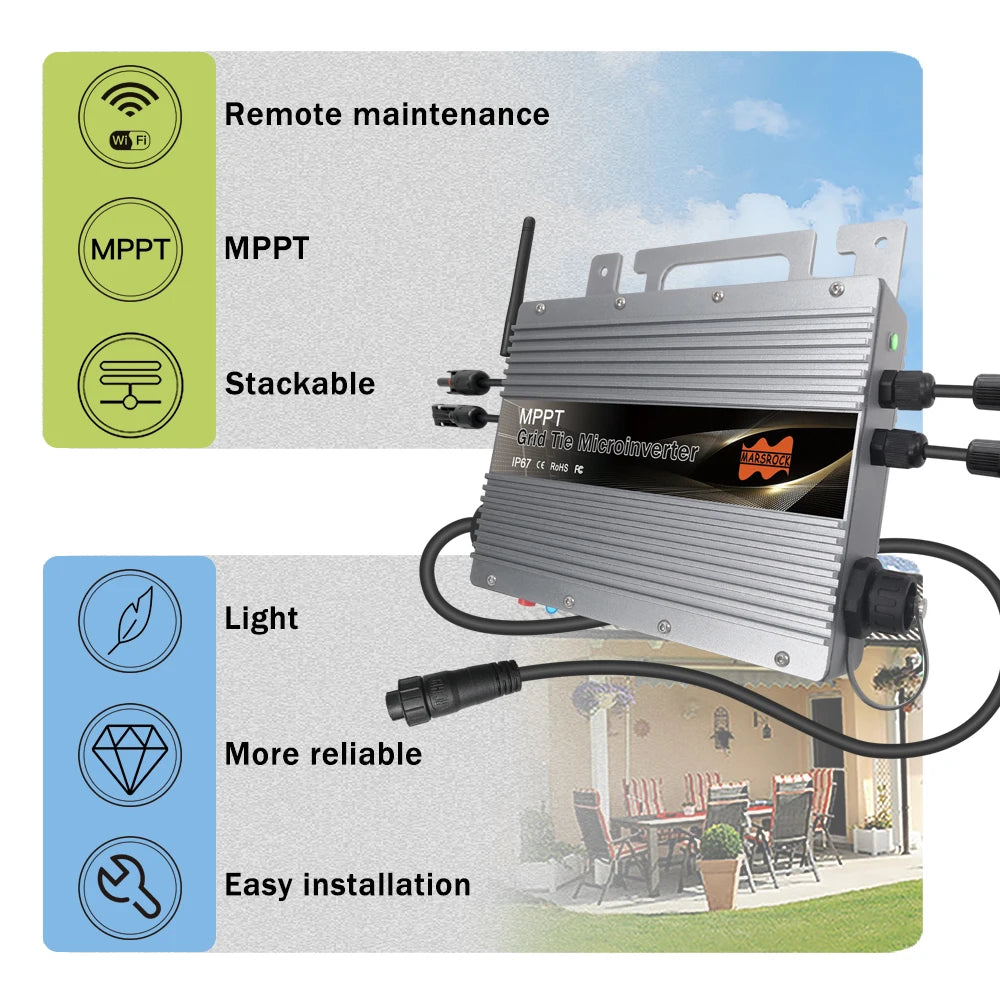

800W Grid Tie Micro Inverter, Micro inverter with remote monitoring, advanced tracking, and easy install features.

Micro inverter with remote monitoring, MPPT technology, and stackable design for easy installation. Durable IP67 waterproof rating and built-in WiFi for seamless connection.

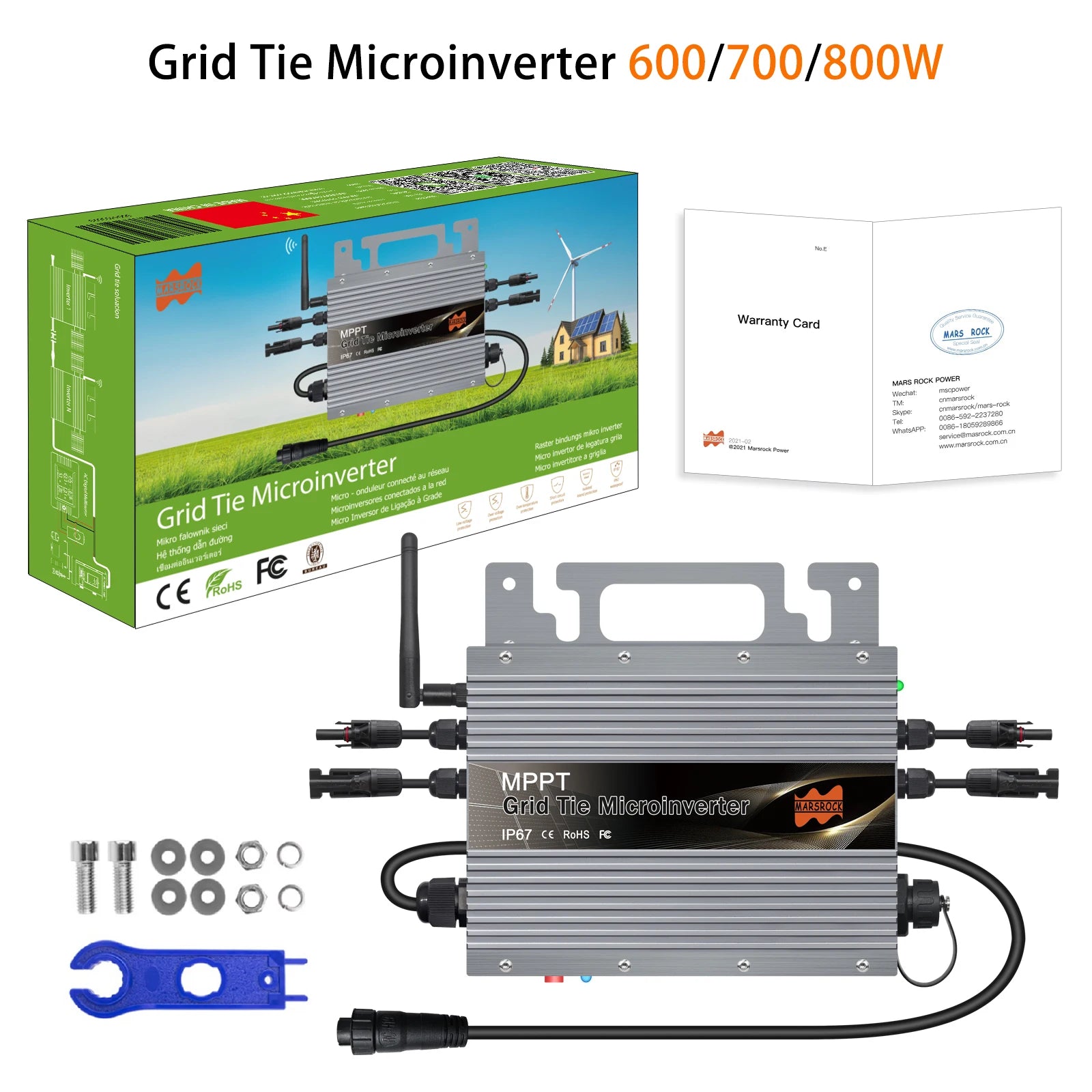

800W Grid Tie Micro Inverter, Grid Tie Micro Inverter for solar panels, 20-60VDC output, WiFi connectivity, and EU shipping.

Introducing our 800W Grid Tie Micro Inverter MPPT IP67, designed for solar panels with 20-60VDC output. This device features built-in WiFi connectivity and is compatible with grid voltages ranging from 80-260VAC. The micro inverter comes with a free EU plug and ships from the EU. Enjoy worry-free operation with our comprehensive warranty package.



Details Images:

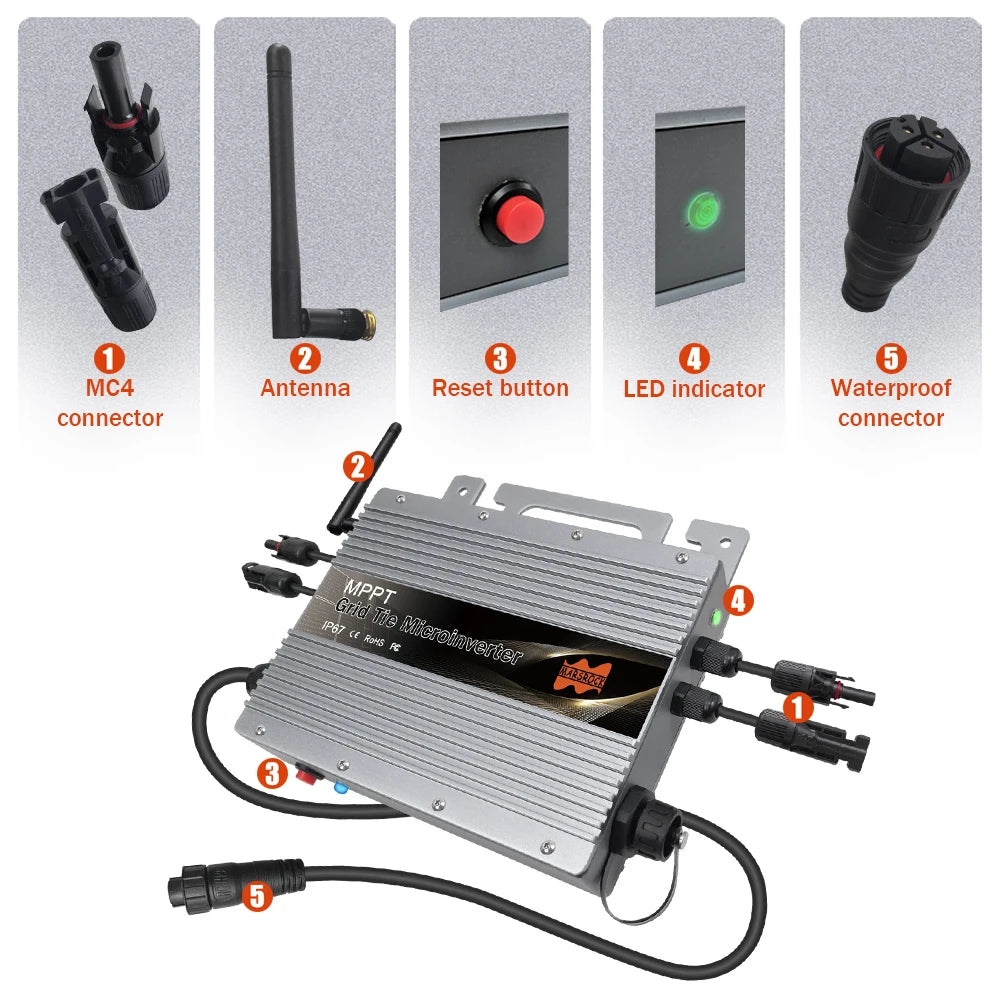

800W Grid Tie Micro Inverter, MC4 antenna, reset button, LEDs, waterproof connectors, and WiFi-enabled MPPT grid tie inverter.

Features include MC4 antenna, reset button, LED indicators, waterproof connectors (IP67) and a built-in MPPT grid tie micro inverter with WiFi connectivity.

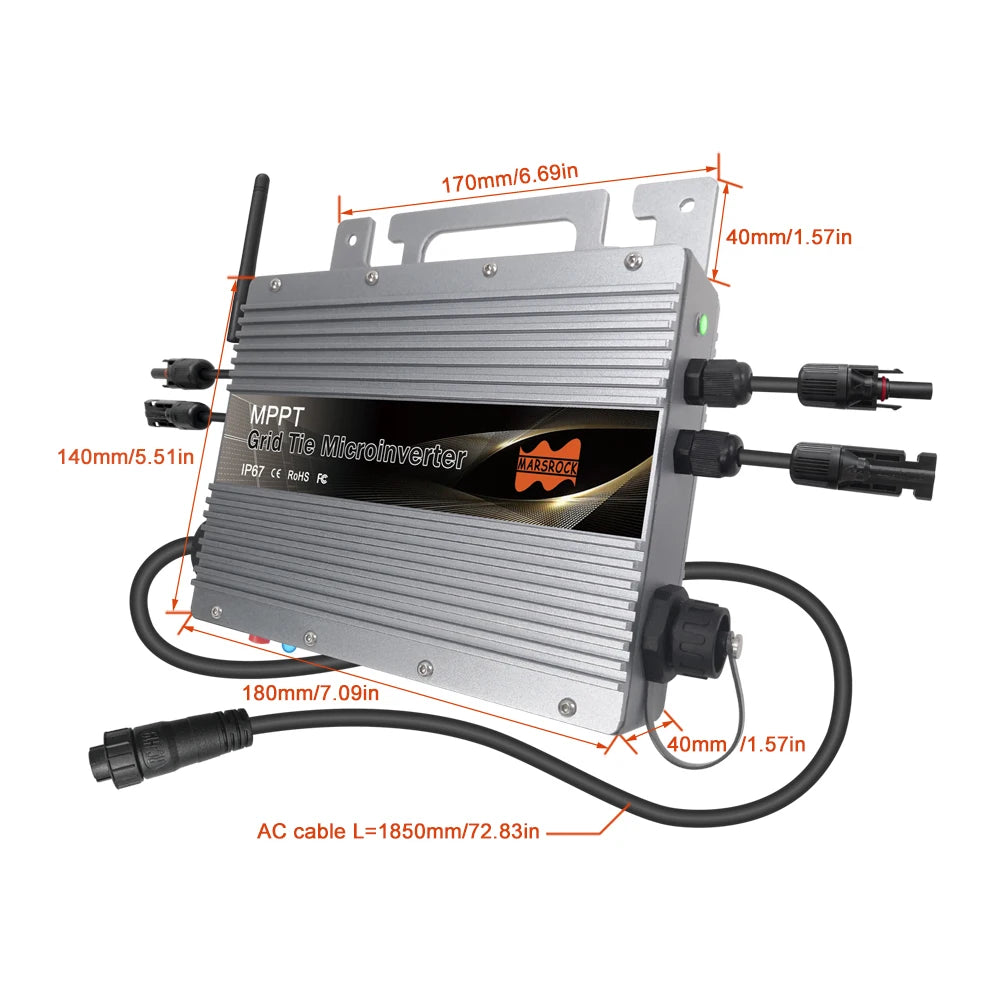

800W Grid Tie Micro Inverter, Compact micro inverter with WiFi, suitable for solar panels and grid tie apps.

Compact micro inverter with built-in WiFi, suitable for solar panels (20-60VDC) and grid tie applications (80-260VAC). Features IP67 waterproof rating and measures 69mm x 40mm x 140mm. Includes 1850mm AC cable and EU plug.


Product Features:

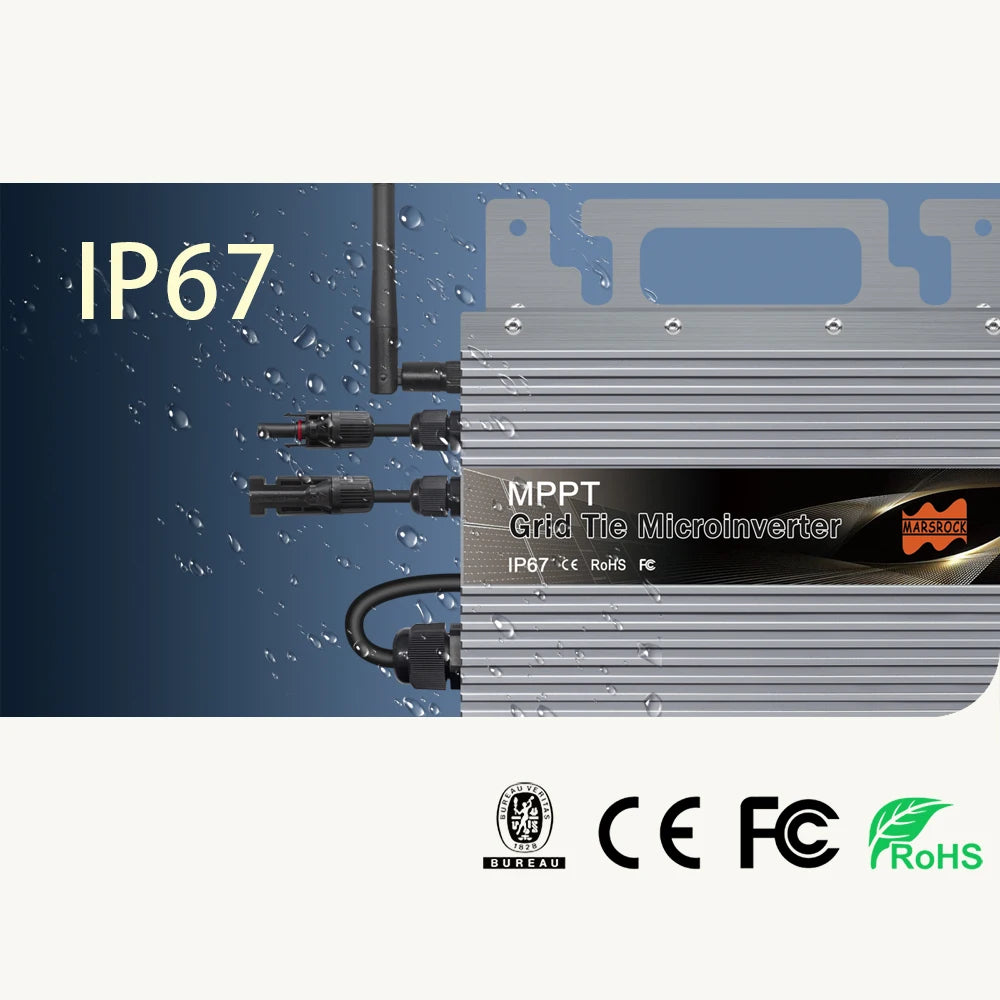

800W Grid Tie Micro Inverter, Waterproof solar micro inverter with WiFi, suitable for 20-60VDC panels and 80-260VAC grid connections.

Waterproof (IP67) grid-tie micro inverter with built-in WiFi, suitable for 20-60VDC solar panels and 80-260VAC grid connections. RoHs compliant.

800W Grid Tie Micro Inverter,

Product Parameters:

Model

600W

700W

800W

Input Data

Recommended Input Power(STC)

210~300W(2 PCS)

210~350W(2 PCS)

210~400W(2 PCS)

Max Input Voltage

60V DC

MPPT Voltage

25~55V DC

Operating Voltage

20~60V DC

Max Input Current

2*13A

Output Data

Max Output

600W

600W

700W

700W

800W

800W

Rated voltage

@127V

@230V

@127V

@230V

@127V

@230V

AC workable scope

80~160V

184~265V

80~160V

184~265V

80~160V

184~265V

Rated output current

4.72A

2.6A

5.5A

3A

6.3A

3.5A

Max units per branch

4PCS

8PCS

4PCS

7PCS

4PCS

6PCS

Rrequency

Auto switch 50/60Hz(45%55/55~65Hz)



Output Efficiency

Static MPPT

0.999

Power factor

>99%

Max output

0.95

CEC Weighted

@127V:92.5%

Self consumption

50mW

THD

<5%

Exterior

Ambient temperature

- 40to +65

DimensionsW×H×D

18X18X45mm

Weight

1.75 KGS

AC Cable withstand max current

40A

Waterproof Rating

IP65

Cooling

Natural cooling

Feature

Compatibility

Compatible with 60~72 cell PV modules

Isolation

High frequency transformer isolation

Power transmission

Reverse transfer, load priority

Protection

Islanding,Over-temperature,Over / low AC & AC voltage

Communication

2.4G wireless(Inverter to DataBox)

Grid Connection Standard

EN50549-1, VDE0126-1-1, VDE4105, ABNT NBR16149, ABNT NBR16150, ABNT NBR62116, RD1699, UNE206006 IN, UNE206007-1 IN, IEEE1547

Safety EMC/Standard

UL1741, IEC62109-1/-2, IEC61000-6-3, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3

800W Grid Tie Micro Inverter, 800W Grid Tie Micro Inverter, 800W Grid Tie Micro Inverter,

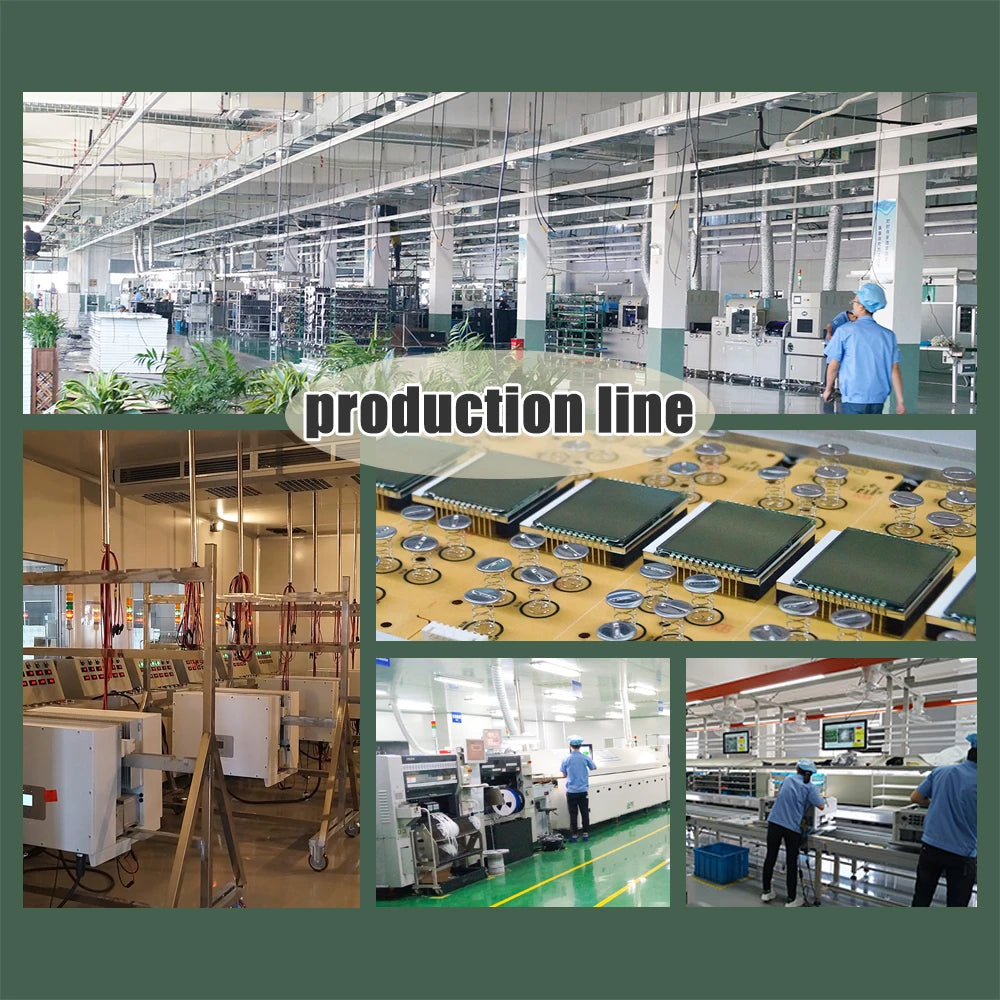

Product connection and production workshop:

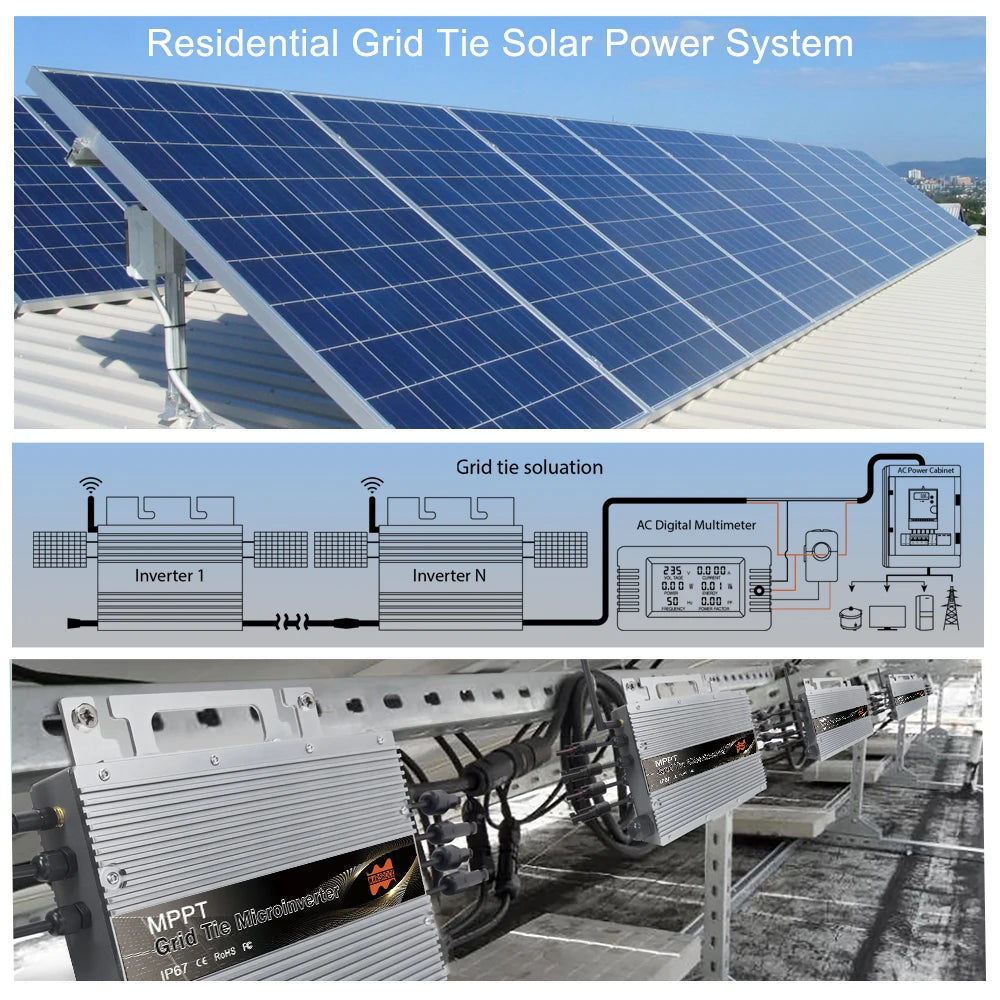

800W Grid Tie Micro Inverter, Grid-tied micro inverter with WiFi connectivity for solar panels (20-60VDC)

800W grid-tied micro inverter with built-in WiFi for solar panels (20-60VDC) and grid connectivity (80-260VAC).

800W Grid Tie Micro Inverter,


Shipping methods:

800W Grid Tie Micro Inverter, Ships from EU with FedEx, Sagawa or other carriers. Tracking number provided.

Ships from EU with FedEx, Sagawa or other carriers. Tracking number provided.
