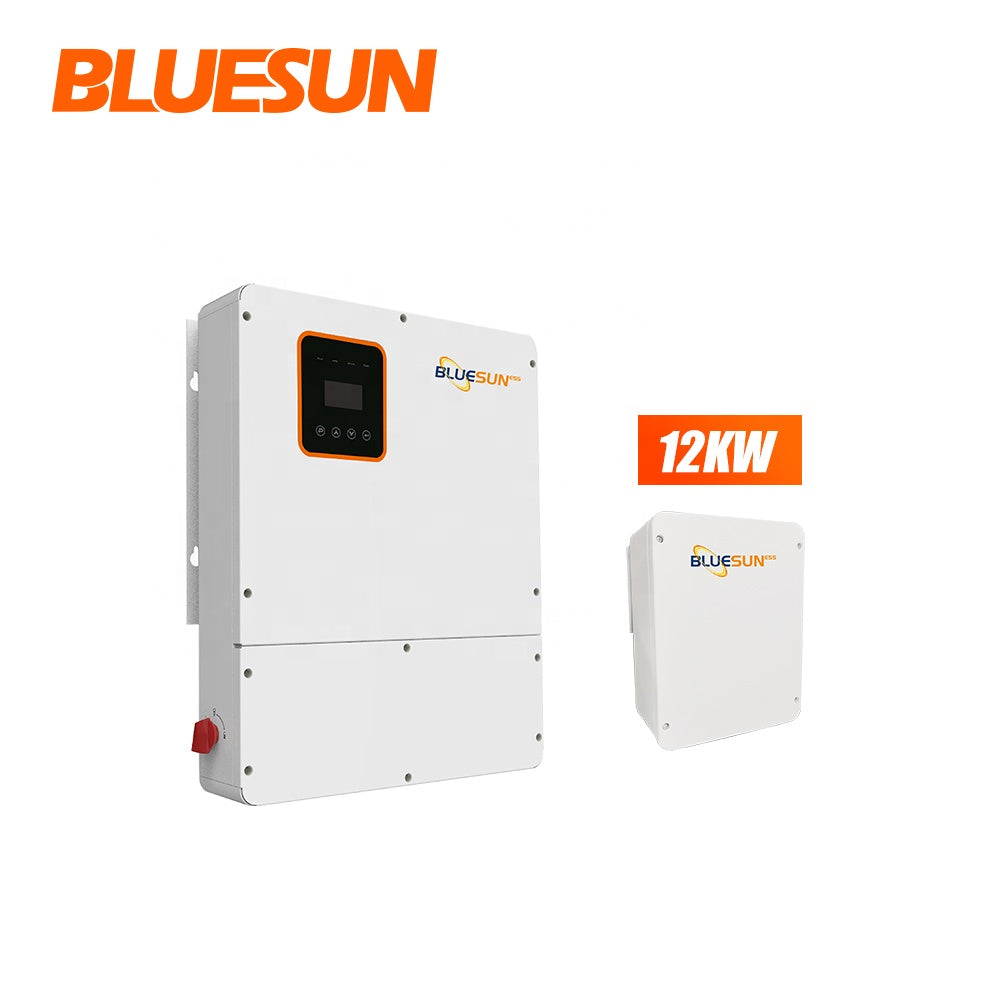

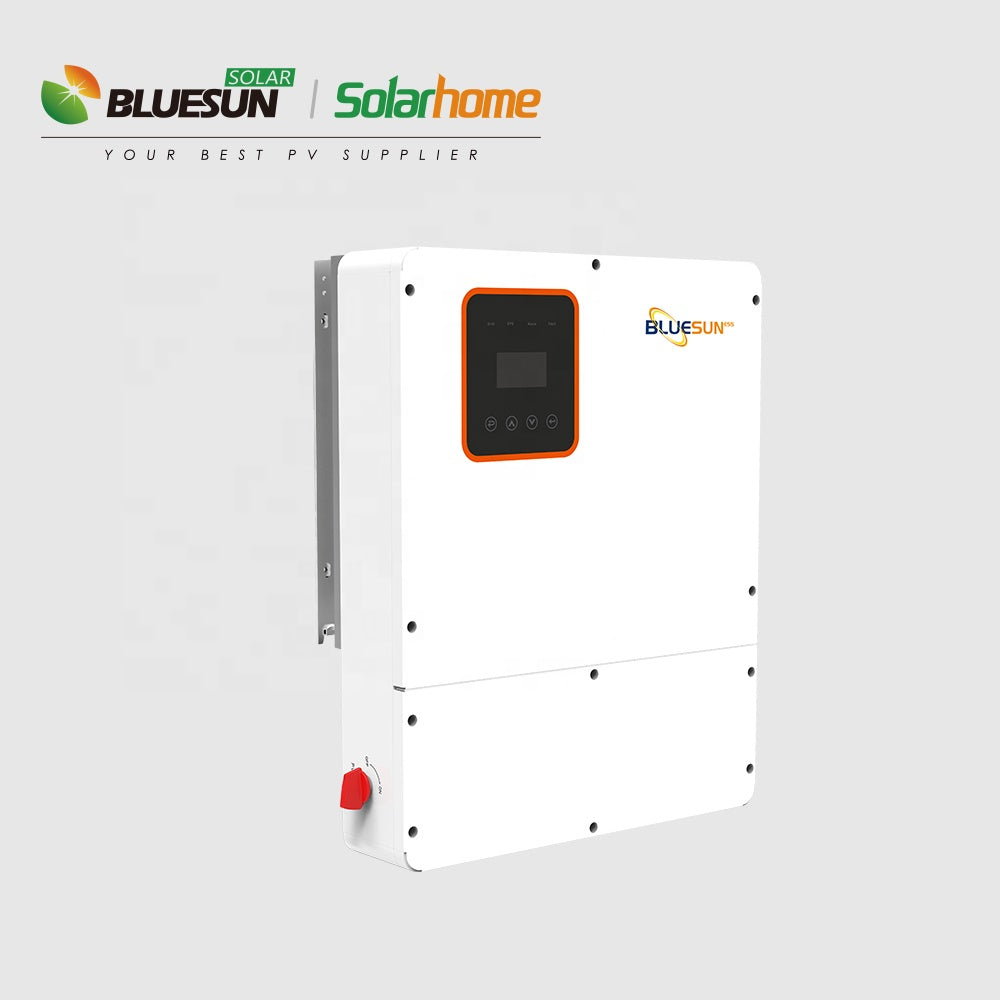

Bluesun 12kw Hybrid Solar Inverter - High Voltage Solar Invert with Battery for Home and Commercial | Best Solar
Bluesun 12kw Hybrid Solar Inverter - High Voltage Solar Invert with Battery for Home and Commercial | Best Solar
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
- Bluesun 12kw Hybrid Solar Inverter Parameters
- Brand Name: Bluesun
- Model Number: BSE12KH1NA
- Input Voltage: 125-500v
- Output Voltage: 220V/230V /240V
- Output Current: 12A
- Output Frequency: 50/60Hz
- Output Type: Triple
- Size: 530x 660 x 200mm
- Type: DC/AC Inverters
- Inverter Efficiency: 98.2%
- Certificate: CE TUV
- Warranty: 5 Years
- Weight: 30kg
- Application: Solar Power System Home
- Waveform: Puer Sine Wave Inverter
- Color: White
- Rated power: 12kw
- Battery Voltage: 85-400v
- Transfer Time: 10ms
- Feature: Hybrid Solar Inverter Charger
- Output Power: 12kw
- Operation phase: 110-120/220-240 split phase
- MPPT: 4
Product Description

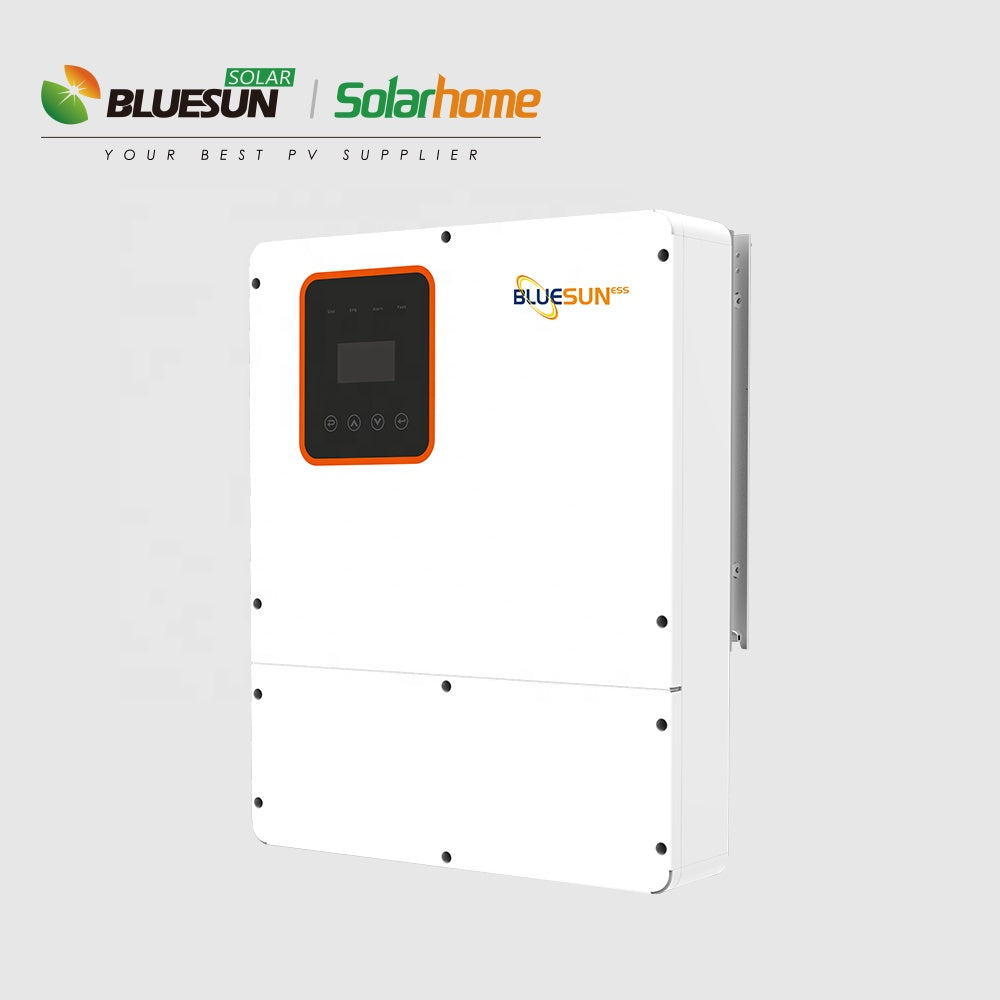

Bluesun's Hybrid Inverter features flexible, reliable, and advanced technology for efficient power conversion.

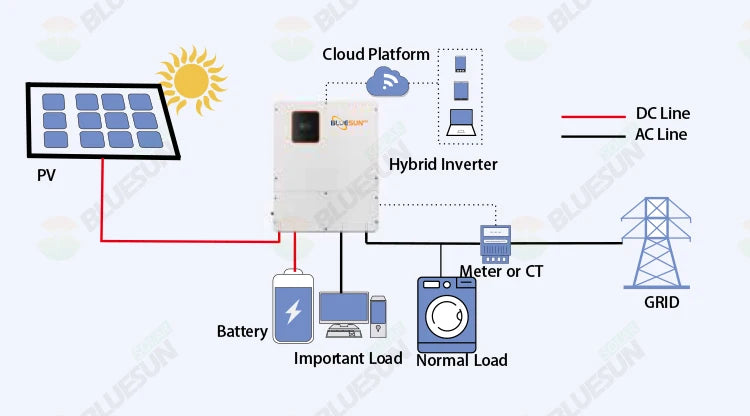

Hybrid inverter with meter and load monitoring features for cloud platform, grid connection, and battery integration.
|
Model
|
BSE-7.6KH1NA
|
BSE-12KH1NA
|
|
PV input
|
||
|
PV input power
|
10KW
|
14.82KW
|
|
MPPT number
|
4
|
|
|
PV voltage range
|
150 - 500V
|
|
|
Max PV input voltage
|
500V
|
|
|
Each MPPT input current
|
13A
|
14A
|
|
AC output(on grid)
|
||
|
Rated AC output
|
120/240V 7.6KVA
|
120/240V 11.4KVA
|
|
AC output voltage
|
110-120/220-240V split phase, 1Ø, 230 1 phase
|
|
|
AC output frequency
|
50/60Hz（45 to 54.9Hz / 55 to 65Hz）
|
|
|
Max output current
|
32A
|
47.5A
|
|
AC reverse charging
|
Yes
|
|
|
Power factor
|
0.8leading…0.8lagging
|
|
|
THDI
|
< 2%
|
|
|
Backup AC output
|
||
|
Rated Backup output power
|
7.6KVA
|
11.4KVA
|
|
Max backup output power
|
9.5kVA 60S/
|
14.25kVA 60S/
|
|
11.4KVA 1S
|
17.1KVA 1S
|
|
|
Backup AC output voltage
|
110-120/220-240 split phase, 1Ø, 230 1 phase
|
|
|
AC Frequncy
|
50/60Hz
|
|
|
Output THDI
|
< 2%
|
|
|
Battery
|
||
|
Max charge&discharge current
|
80 A / 80 A
|
79A/79A
|
|
Battery voltage range
|
96V~336V
|
150V~336V
|
|
Battery capacity range
|
6.6 to 66 kWh
|
|
|
Battery type
|
Lithium/Lead-acid
|
|
|
Communication
|
CAN,RS485
|
|
|
Efficiency
|
||
|
Max efficiency
|
≥ 98.2%
|
|
|
CEC efficiency
|
≥ 97.2%
|
|
|
Protection
|
||
|
Complete Protection
|
Ground protection;AFCI protection;islanding protection;DC disconnect detection;Battery Reverse protection;Bat- tery charge and
|
|
|
discharge protection;insulation testing;GFCI;DC&AC anti-thunder;Overvoltage and under-volt- age protections;AC&DC over-current
|
||
|
protection;AC short-circuit current protection;overheating protection
|
||
|
General Data
|
||
|
AC and backup output conduit size
|
25.4mm
|
|
|
PV input conduit size
|
25.4mm
|
|
|
Battery input conduit size
|
34.5mm
|
|
|
Operation Temperature range
|
-25 ~ +60°C
|
|
|
environment humidity
|
0-95%
|
|
|
Altitude
|
0~4000M（Derating when over 2000m）
|
|
|
IP Grade
|
IP65
|
|
|
Weight
|
30kg
|
|
|
Dimension (W x H x D)
|
530x 660 x 200mm
|
|
|
Cooling
|
Natural cooling
|
|
|
Noise emission(dB)
|
<25dB
|
<29dB
|
|
Display
|
LCD
|
|
|
Communication
|
Modbus, RS485，WIFI,4G
|
|
|
Self-consumption at night
|
< 2.5 W (with battery enabling < 5 W)
|
|
|
No transformer
|
YES
|
|
|
EMC
|
FCC Part 15 ClassB
|
|
|
More details please send inquiry below to us
|
||

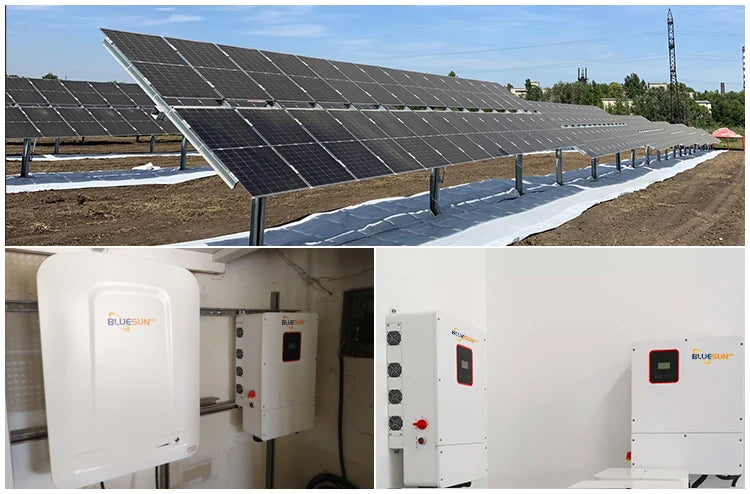

Suitable for home and commercial use, this hybrid solar inverter provides reliable power supply.
Bluesun's high-voltage solar inverter was showcased at various international exhibitions, including Intersolar Munich, Germany; Solar Power International in Salt Lake City, USA; PV EXPO THE GREEN EXPO in Osaka, Japan; and euehx See1ET JMP ON-GRID PRoxgTS in Mexico. Bluesun Solar System is a leading brand in the solar industry, with international partnerships and recognition.
