Bluesun 480w Solar Panel Parameters
- Brand Name: Bluesun
- Model Number: BSM480PM5-78SA
- Cell size: 182mmx182mm
- Type: Bifacial, Double-glass, All Black
- Panel Dimensions: 1899*1096*30mm
- Panel Efficiency: 21.3%
- Certificate: ISO/IEC/UL, IEC 61215 / IEC 61730 / CE
- Warranty: 25 years
- Frame: Anodized aluminium alloy
- Front cover: 3.2mm (0.13inches) AR Coating Tempered Glass
- Junction Box: Ip68 Rated/Passed the TUV certificate
- Connector: T01/LJQ-3-CSY
- Backing Color: Black
- OEM Order: Acceptable
- Solar panel: Mono Solar Panel
- Maximun System Voltage: 1500V DC(IEC)
- Operating Temperature: -40°C~ +85°C
- Weight: 27kg
Products Description
Bluesun 480W Solar Panel: 96-cell, 48V, 480W module with full black shingling, 30-year linear performance warranty, and 23.1% efficiency per 21mm cell.

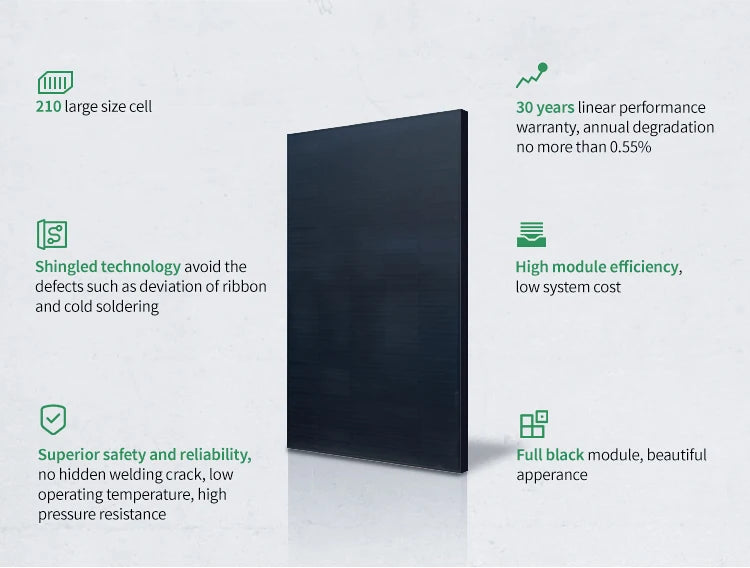

Featuring 210 large cells, this solar panel boasts a 30-year linear performance warranty with an annual degradation rate of 0.55%. Shingled technology ensures high module efficiency and reliability, while full-black design eliminates web cracks for a sleek appearance.
SPECIFICATIONS
|
|||||
Module Type
|
BSM470PM5-78SA
|
BSM475PM5-78SA
|
BSM470PM5-78SA
|
BSM485PM5-78SA
|
BSM490PM5-78SA
|
|
STC
|
STC
|
STC
|
STC
|
STC
|
Maximum Power (Pmax/W)
|
470
|
475
|
480
|
485
|
490
|
Operating Voltage (Vmp/V)
|
36.90
|
37.00
|
37.10
|
37.20
|
37.30
|
Operating Current (Imp/A)
|
12.74
|
12.84
|
12.95
|
13.05
|
13.15
|
Open-Circuit Voltage (Voc/V)
|
44.30
|
44.40
|
44.50
|
44.60
|
44.70
|
Short-Circuit Current (Isc/A)
|
13.56
|
13.67
|
13.78
|
13.89
|
13.99
|
Module Efficiency (%)
|
22.60
|
22.80
|
23.10
|
23.30
|
23.50
|
STC: Irradiance 1000W/㎡ , Cell Temperature 25°C, Air Mass AM1.5
|
|||||
