Bluesun 48V/100Ah Solar Battery Parameters
- Brand Name: Bluesun
- Model Number: BSM5120
- Battery Type: Lithium Ion, LiFePO4
- Sealed Type: LPF
- Size: 532*206*216mm
- Voltage: 48v
- Life Span: 10~15years
- Business type: Manufacturer
- Long Life: Low Self-discharge
- Warranty: 5 years
- Certificate: ISO9001,14001, CE
Product Description

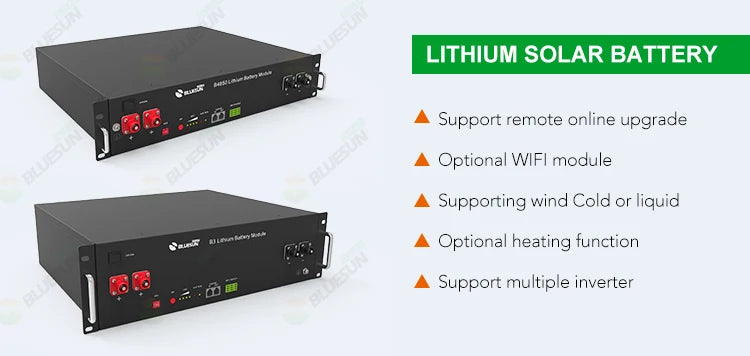

Bluesun's 48V/100Ah Lithium Solar Battery supports remote online upgrades, features an optional WiFi module, and offers wind, cold, or liquid temperature ranges with optional heating. It also accommodates multiple inverters.
|
Module Name
|
B48100
|
|
Cell Technology
|
Li-ion(LFP)
|
|
Battery Module Capacity (kWh)
|
4.8
|
|
Battery Module Voltage (Vdc)
|
48
|
|
Battery Module Capacity (Ah)
|
100
|
|
Battery Module Cell Quantity (pcs)
|
60
|
|
Battery Cell Capacity (Wh)
|
80
|
|
Battery Cell Voltage (Vdc)
|
3.2
|
|
Battery Cell Capacity (AH)
|
25
|
|
Battery Module Cell Quantity in Series (pcs)
|
15
|
|
Battery Module Charge Voltage (Vdc)
|
54.75
|
|
Battery Charge/Discharge Current (A)
|
50 (recommended)
|
|
75 (max)
|
|
|
100 (peak 15S)
|
|
|
Dimension(W*D*H, mm)
|
481*405*178mm
|
|
Communication
|
CAN/RS485
|
|
Pollution Degree (PD)
|
II
|
|
IP Grade
|
IP20
|
|
Weight(kg)
|
42.5
|
|
Working temperature
|
Charging 0°C~+55°C
|
|
Discharging -20°C~+55°C
|
|
|
Humidity
|
5%~85% RH (No condensation, system work well.)
|
|
Storage temperature
|
-10°C~+35°C
|
|

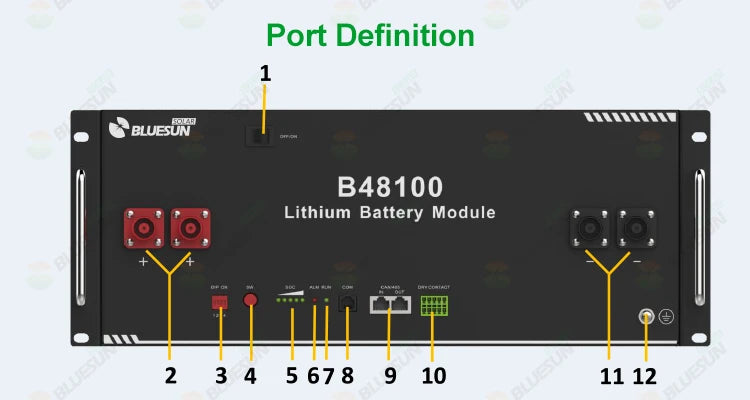

Item
|
Name
|
Definition
|
|
1
|
Power switch
|
OFF/ON, must be in the "ON" state when in use
|
|
2
|
Positive socket
|
Battery output positive or parallel positive line
|
|
3
|
ADD
|
DIP switch
|
|
4
|
SW (battery wake/sleep switch)
|
When the "OFF/ON" switch button is in the ON state, press and hold this button for 3 seconds to put the battery into the power-on
or off state. |
|
5
|
soc
|
The number of green lights shows the remaining power. Table 2-3 for details.
|
|
6
|
ALM
|
Red light flashing when an alarm occurs, red light always on during protection status. After the condition of trigger protection
is relieved, it can be automatically closed. |
|
7
|
RUN
|
Green light flashing during standby and charging mode. Green light always on when discharging.
|
|
8
|
COM
|
Communication cascade port, support RS232
|
|
9
|
CAN/485
|
Communication cascade port, support CAN/ RS485 communication (factory default CAN communication)
|
|
10
|
DRY CONTACT
|
/
|
|
11
|
Negative socket
|
Battery output negative or parallel negative line
|
|
12
|
Grounding
|
Shell ground connection
|

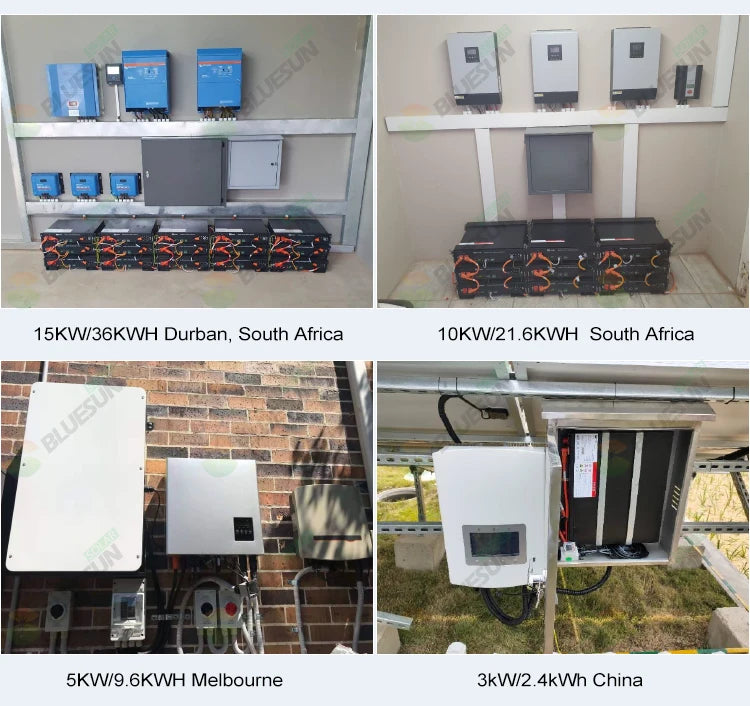

Product tested in various locations: Durban (15kW/36kWh), South Africa; Melbourne (9.6kWh); and China, with total capacity: 21.6kWh.

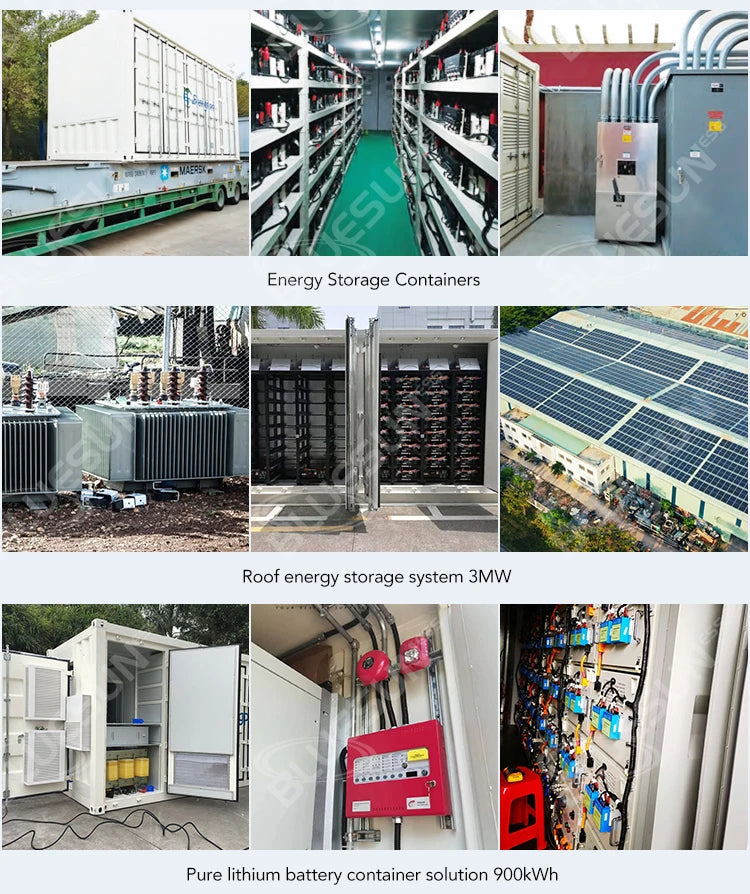

Bluesun's 48V/100Ah Solar Battery offers a reliable lifepo4 lithium storage solution for roof-mounted energy storage systems, up to 90KWh capacity.
Bluesun's 48V/100Ah Solar Battery was showcased at several prominent international solar exhibitions, including Intersolar in Munich, Germany; Solar Power International in Salt Lake City, USA; PV EXPO in Osaka, Japan; and THE GREEN EXPO in Mexico. These events allowed Bluesun to demonstrate its innovative lithium battery technology and promote its solar energy solutions.
