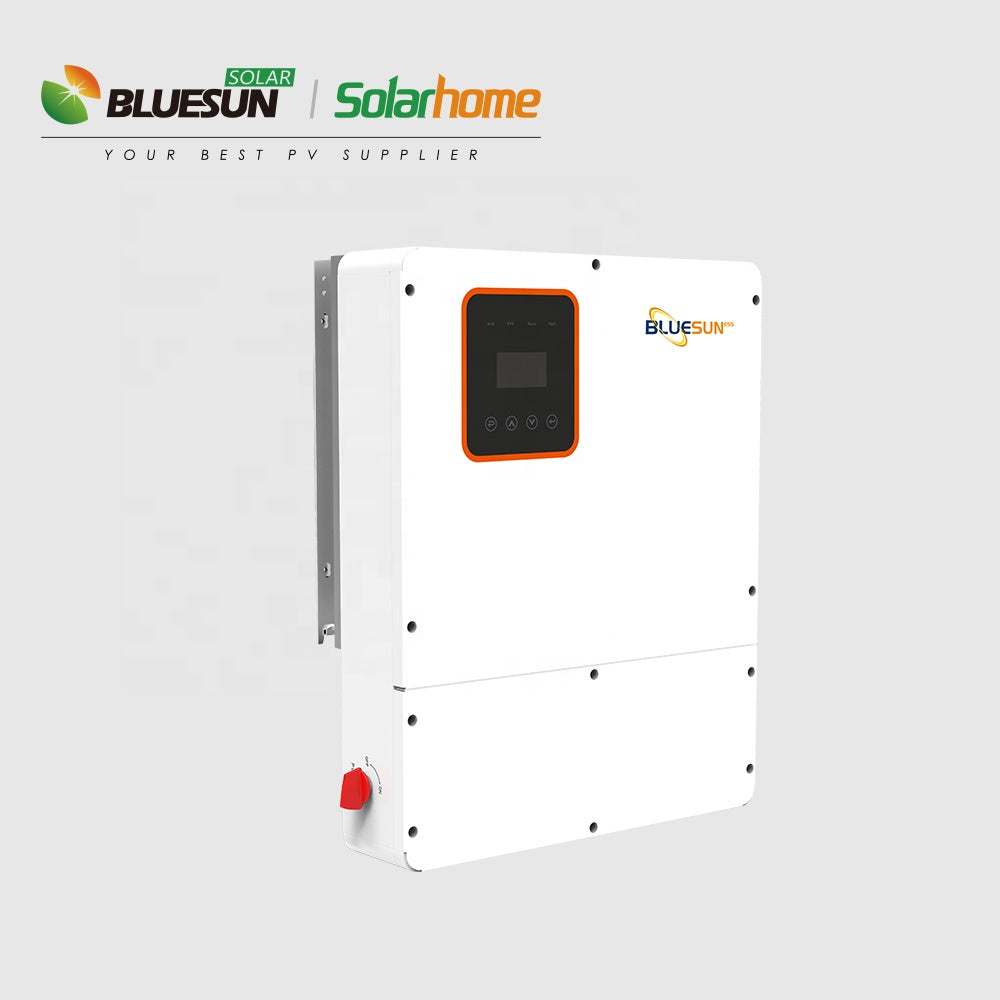

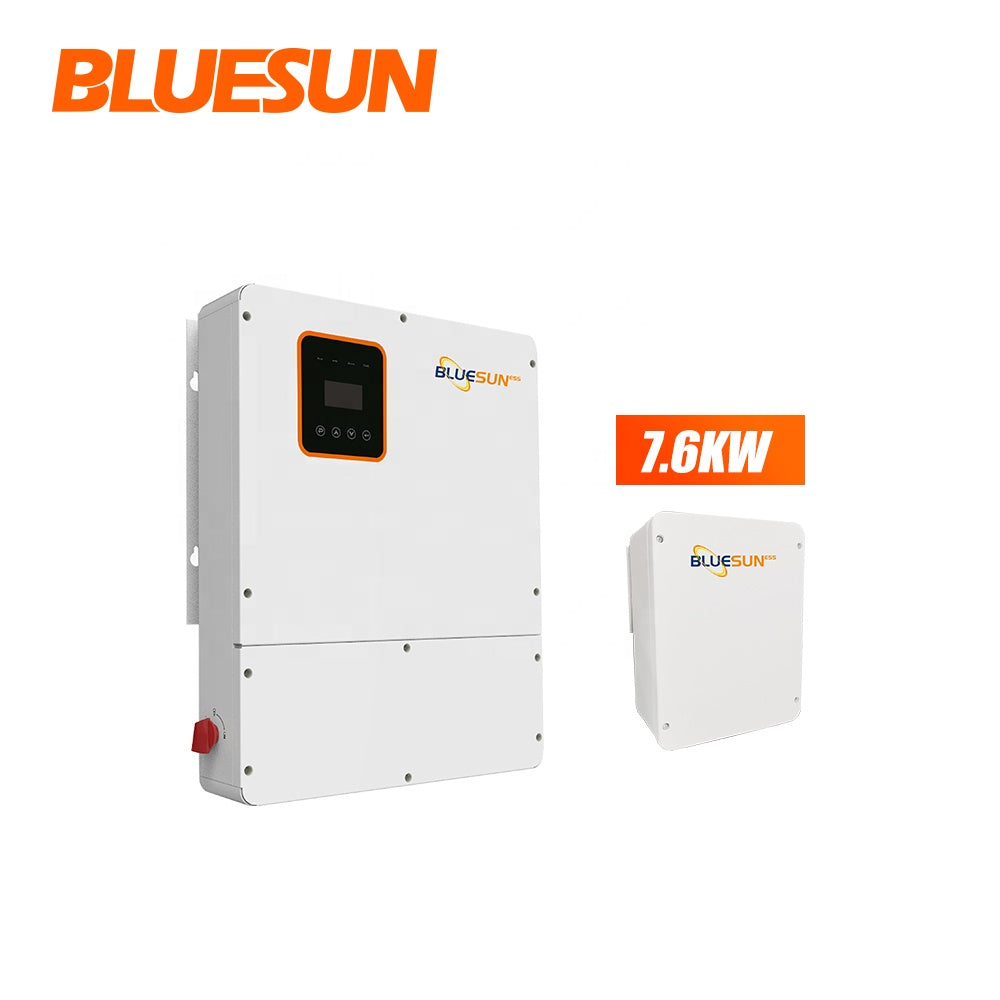

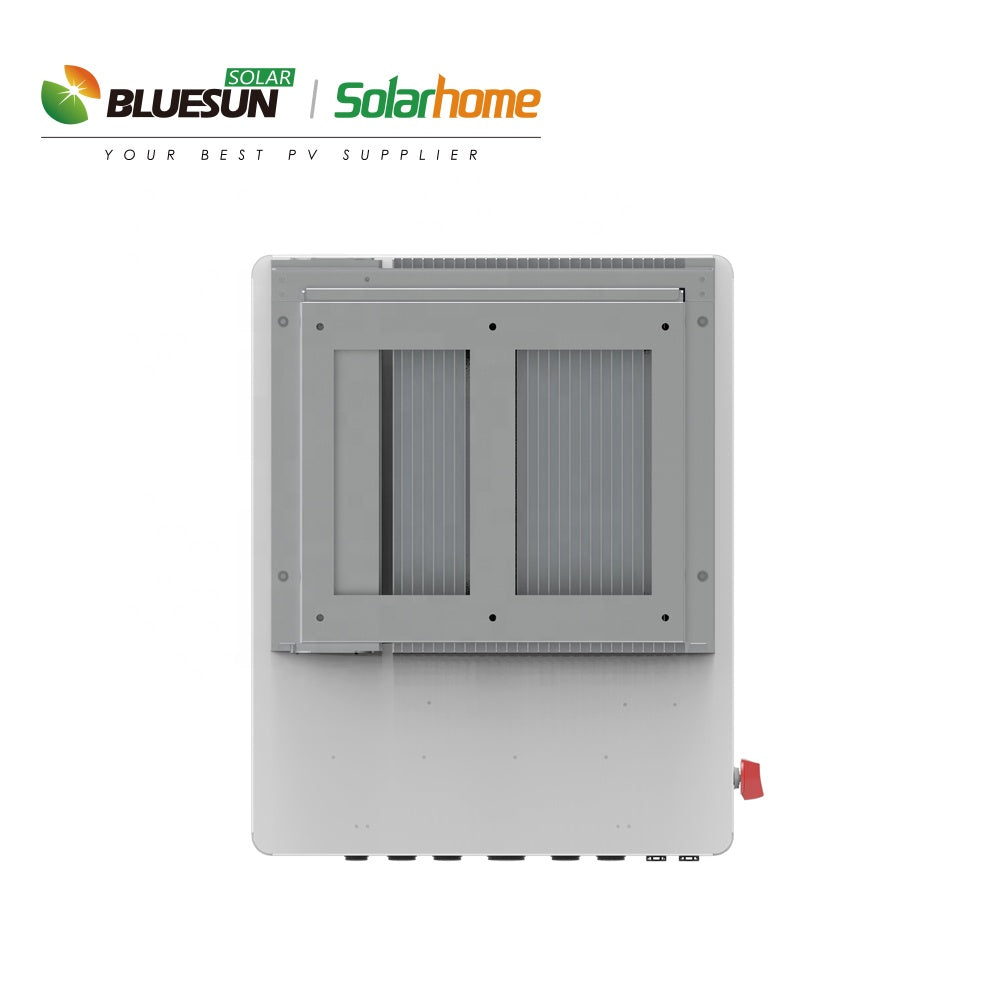

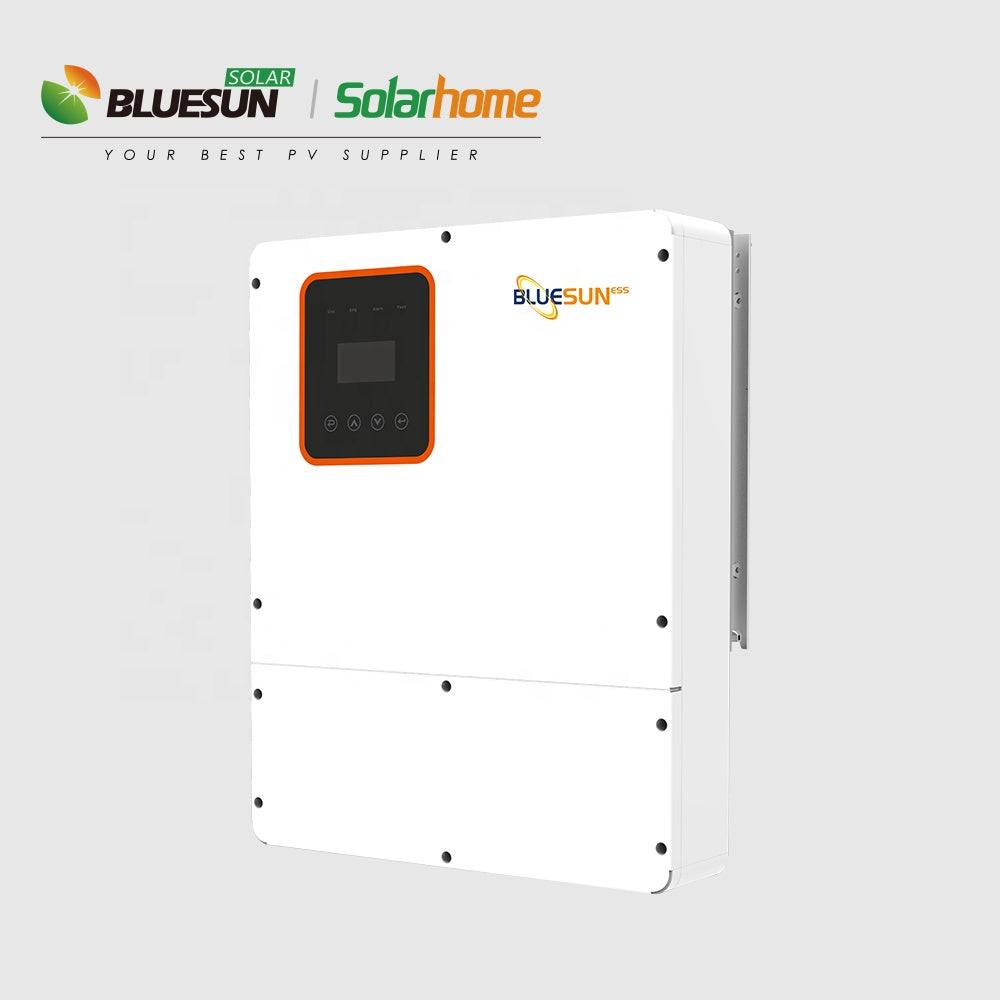

Bluesun 7.6KW Hybrid Solar Inverter - High Voltage Solar Invert with Battery for Home Commercial | Best Solar

Bluesun 7.6KW Hybrid Solar Inverter - High Voltage Solar Invert with Battery for Home Commercial | Best Solar

Regular price $2,039.00 USD
Regular price Sale price $2,039.00 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ



Bluesun 7.6KW Hybrid Solar Inverter Parameters

Brand Name: Bluesun
Model Number: BSE7K6H1NA
Input Voltage: 125-500v
Output Voltage: 220V/230V /240V
Output Current: 12A
Output Frequency: 50/60Hz
Output Type: Triple
Size: 25.4mm
Type: DC/AC Inverters
Inverter Efficiency: 99.5%
Certificate: CE TUV
Warranty: 5 Years
Weight: 30kg
Application: Solar Power System Home
Waveform: Puer Sine Wave Inverter
Color: White
Rated power: 7.6kw
Battery Voltage: 85-400v
Transfer Time: 10ms
Feature: Hybrid Solar Inverter Charger
Output Power: 7.6kw
Operation phase: Three
MPPT: 4



Product Description

Bluesun 7.6KW Hybrid Solar Inverter, Reliable, advanced, and flexible hybrid inverter for efficient solar power conversion, meeting KL standards.

Bluesun Hybrid Inverter: Reliable, Advanced, and Flexible, meeting KL Standards for efficient solar power conversion.

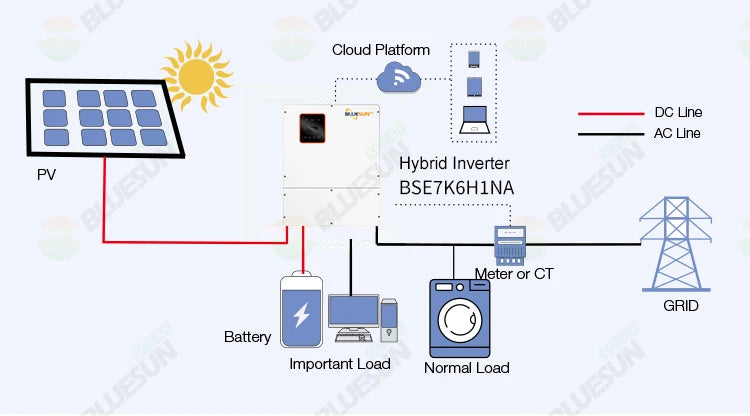

Bluesun 7.6KW Hybrid Solar Inverter, Hybrid inverter for efficient energy storage and consumption with advanced monitoring capabilities.

This hybrid inverter features a high-voltage DC input, grid-tied AC output, and integrated battery management system with monitoring capabilities for efficient energy storage and consumption.

Technical Specifications
Model
BSE-7.6KH1NA
BSE-12KH1NA
PV input
PV input power
10KW
14.82KW
MPPT number
4
PV voltage range
150 - 500V
Max PV input voltage
500V
Each MPPT input current
13A
14A
AC output(on grid)
Rated AC output
120/240V 7.6KVA
120/240V 11.4KVA
AC output voltage
110-120/220-240V split phase, 1Ø, 230 1 phase
AC output frequency
50/60Hz(45 to 54.9Hz / 55 to 65Hz)
Max output current
32A
47.5A
AC reverse charging
Yes
Power factor
0.8leading…0.8lagging
THDI
< 2%
Backup AC output
Rated Backup output power
7.6KVA
11.4KVA
Max backup output power
9.5kVA 60S/
14.25kVA 60S/
11.4KVA 1S
17.1KVA 1S
Backup AC output voltage
110-120/220-240 split phase, 1Ø, 230 1 phase
AC Frequncy
50/60Hz
Output THDI
< 2%
Battery
Max charge&discharge current
80 A / 80 A
79A/79A
Battery voltage range
96V~336V
150V~336V
Battery capacity range
6.6 to 66 kWh
Battery type
Lithium/Lead-acid
Communication
CAN,RS485
Efficiency
Max efficiency
≥ 98.2%
CEC efficiency
≥ 97.2%
Protection
Complete Protection
Ground protection;AFCI protection;islanding protection;DC disconnect detection;Battery Reverse protection;Bat- tery charge and
discharge protection;insulation testing;GFCI;DC&AC anti-thunder;Overvoltage and under-volt- age protections;AC&DC over-current
protection;AC short-circuit current protection;overheating protection
General Data
AC and backup output conduit size
25.4mm
PV input conduit size
25.4mm
Battery input conduit size
34.5mm
Operation Temperature range
-25 ~ +60°C
environment humidity
0-95%
Altitude
0~4000M(Derating when over 2000m)
IP Grade
IP65
Weight
30kg
Dimension (W x H x D)
530x 660 x 200mm
Cooling
Natural cooling
Noise emission(dB)
<25dB
<29dB
Display
LCD
Communication
Modbus, RS485,WIFI,4G
Self-consumption at night
< 2.5 W (with battery enabling < 5 W)
No transformer
YES
EMC
FCC Part 15 ClassB
More details please send inquiry below to us
Applications
Bluesun 7.6KW Hybrid Solar Inverter, Reliable power source for villas, farms, fields, and households in remote areas.

Suitable for villa, farm, or field applications, providing reliable power supply for nomadic areas and household usage.

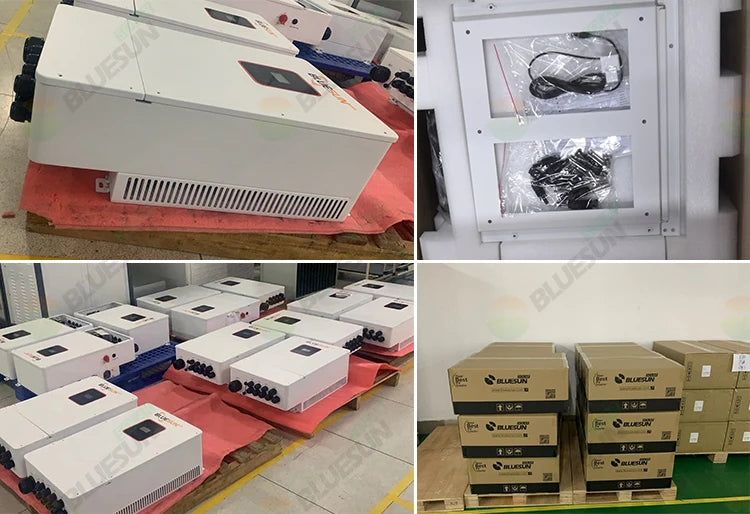

Product Packaging
Bluesun 7.6KW Hybrid Solar Inverter,

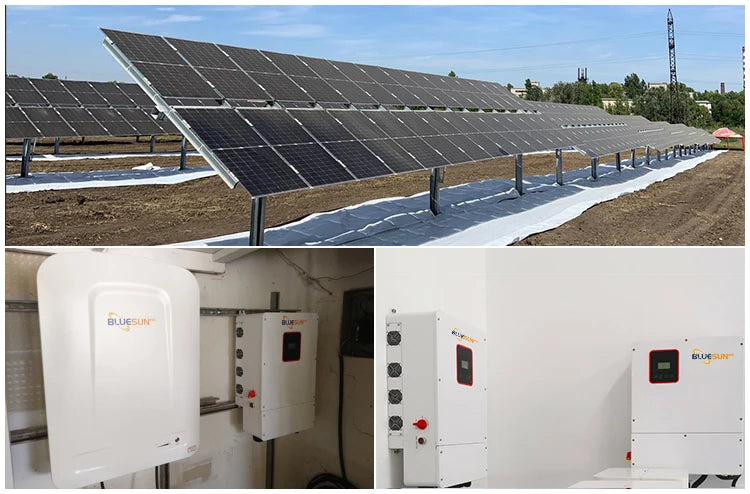

Bluesun Projects
Bluesun 7.6KW Hybrid Solar Inverter,
