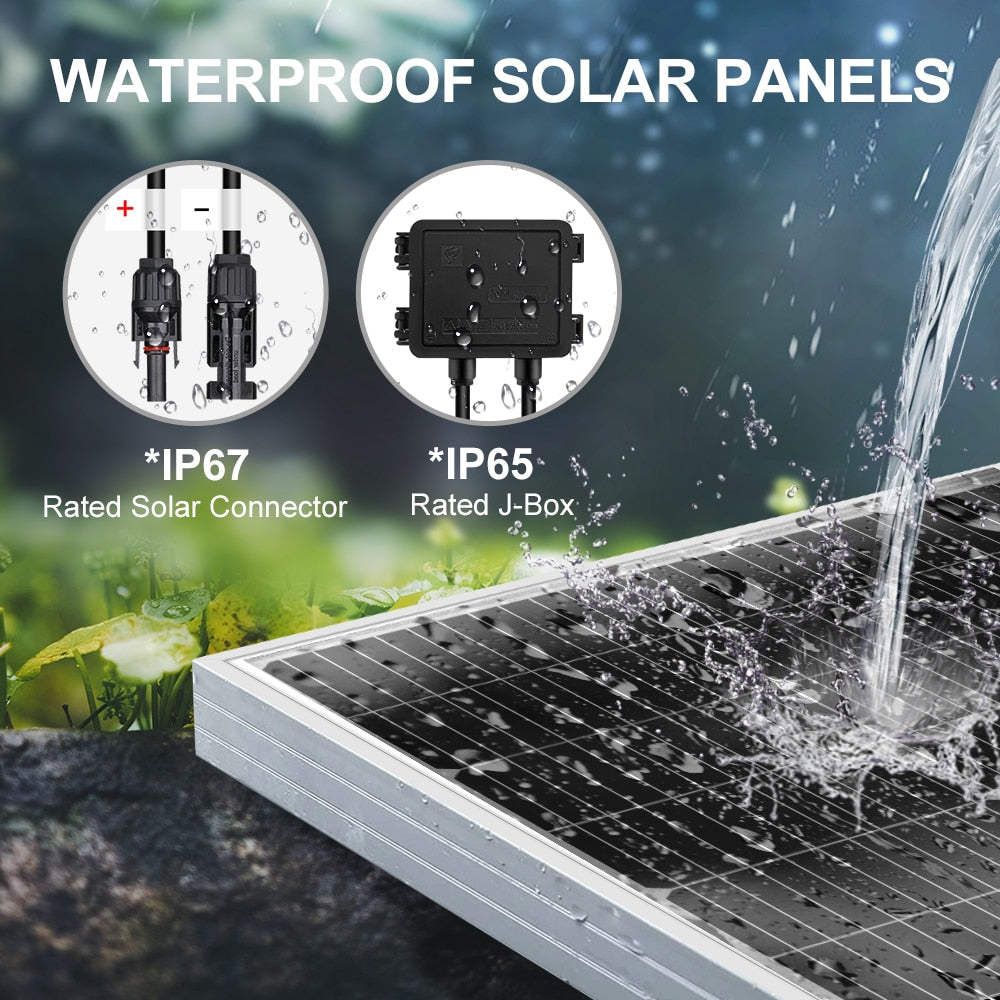

  • *IP67 *IP65 Rated Solar Connector Rated J-Box
  • IP67 8 Mounting Hole Rated watreproof junction box Cable
  • UPGRADED VERSION OR STYLE 2 STY
  • Dokio 18V 100W Rigid Solar Panel China 18V Monocrystalline Silicon Waterproof Solar Panel Charge 12V #DSP-100M

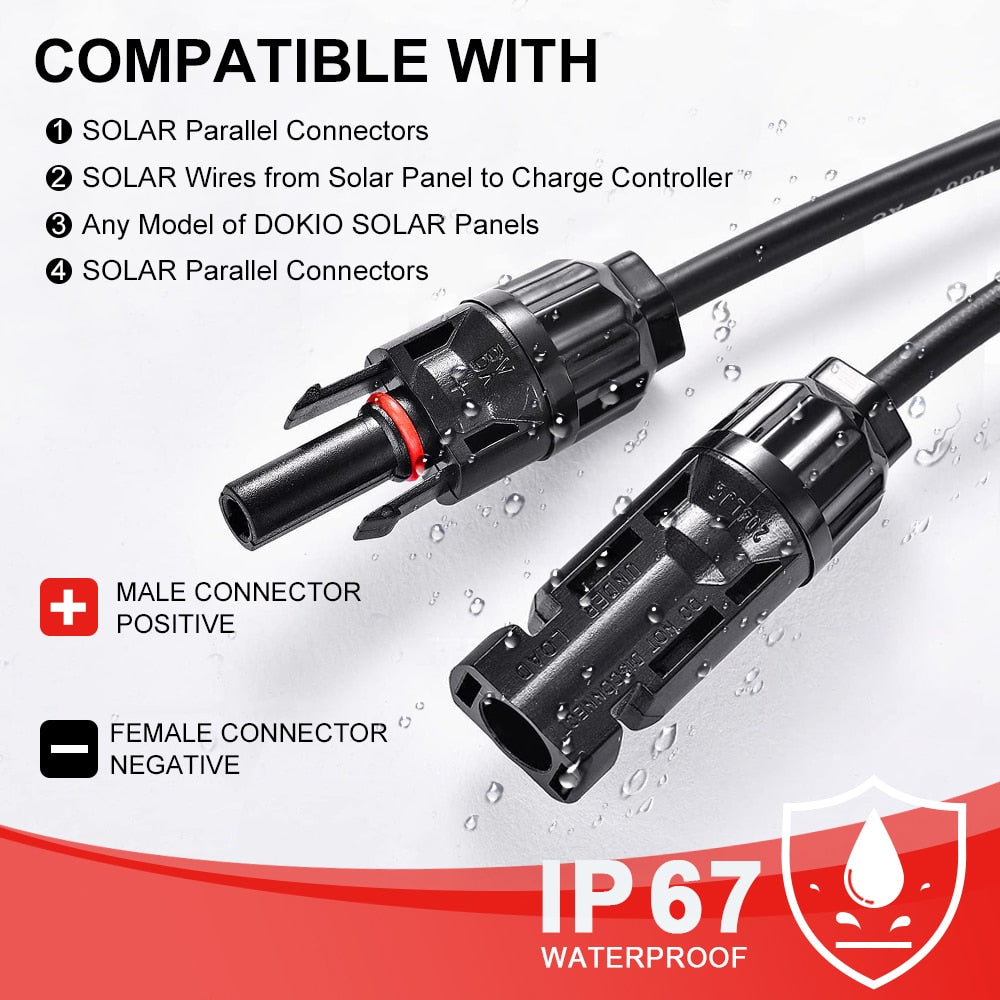

  • MALE CONNECTOR POSITIVE FEMALE CON
1 7

BestSolarPanel

Dokio 18V 100W Rigid Solar Panel China 18V Monocrystalline Silicon Waterproof Solar Panel Charge 12V #DSP-100M

Dokio 18V 100W Rigid Solar Panel China 18V Monocrystalline Silicon Waterproof Solar Panel Charge 12V #DSP-100M

$308.92 USD
$308.92 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping：Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Type: Solar Panel

Size: 97*56.5*2.5CM

Short-Circuit Current (Isc): 5.81A

Origin: Mainland China

Open-Circuit Voltage (Voc): 22.5V

Number of Panels: 1

Number of Cells: 30

Nominal Operating Cell Temp (NOCT): -45 to 80℃

Net Weight: 7.8kg

Model Number: DSP-100M

Maximum System Voltage: DC1000V

Maximum Series Fuse: 15A

Maximum Power Voltage(Vmp): 18.00V

Maximum Power Current (Imp): 5.56A

Max. Power: 100W±3%

Material: Monocrystalline Silicon

Foldable Solar Panel: No

Flexible Solar Panel: No

Factory Outlet: Yes

Certification: CE

Brand Name: DOKIO


Dear friend,

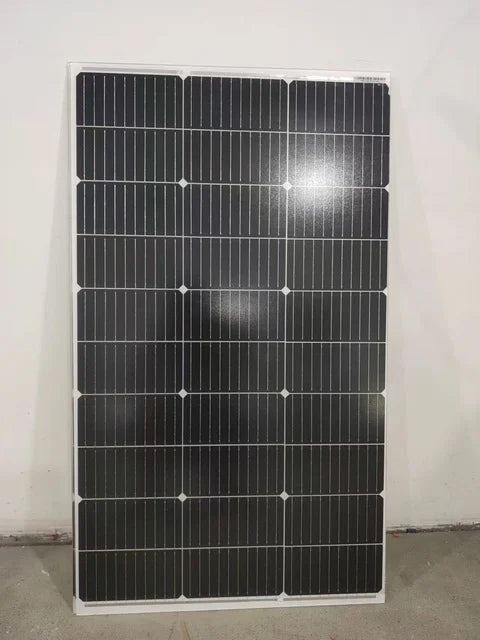

In order to upgrade the product, we have replaced the raw material, and the size of the product will change.

You may have received a new size solar panel.

This is our newest model. There is no problem with the quality.

At present, 150W rigid solar panels are available in the German warehouse, you can contact the customer service of the store to get the link.

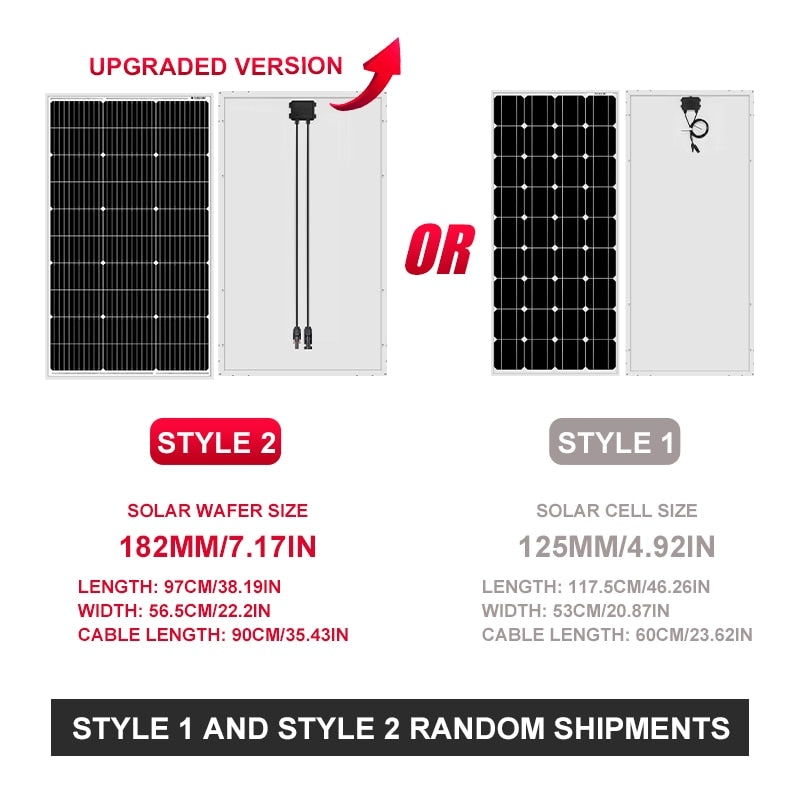

To all customers: For orders shipped from Russian warehouses and European warehouses, the product is a new upgraded version with upgraded materials. Dimensions will change and the cables behind the solar panels will be extended to 90cm


Upgrade DSP-100M


Dokio 18V 100W Rigid Solar Panel, 18V monocrystalline silicon solar panel with high efficiency, durability and compact size.Dokio 18V 100W Rigid Solar Panel, Water-resistant solar panel with aluminum frame, MC4 connectors, and long cable length.Dokio 18V 100W Rigid Solar Panel, 150W rigid solar panels available in German warehouse; contact customer service for link.
Advantages of Dokio Tempered solar panels:
Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.
The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.
With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment.
Product description:
The surface is tempered glass, waterproof, snowproof, resistant to small hail.
Diodes are pre-installed in junction box and a pair of 24-inches cables with MC4 connectors comes with the panel automatically
The back has 4 drill hole that can be quickly installed.

Model:DSP-100M
Material:Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):5.81A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Dimension:970*565*25mm
Package Weight:7kg
Package Dimension:100*580*55mm
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

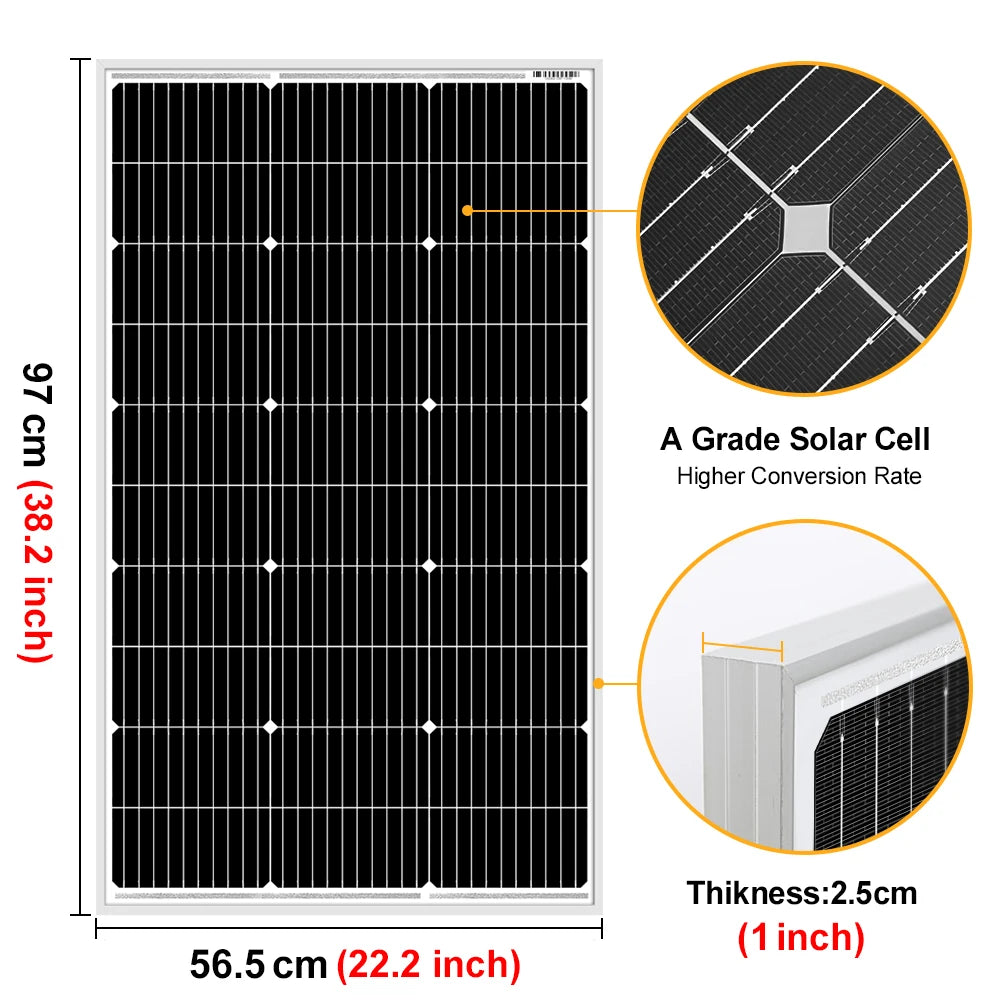

Dokio 18V 100W Rigid Solar Panel, Solar Panel Specifications: DSP-100M, 97x56.5x2.5cm, 22.5V, 5.81A, 7.8kg.Dokio 18V 100W Rigid Solar Panel, Waterproof design ensures efficient conversion with features including high efficiency and durable construction.

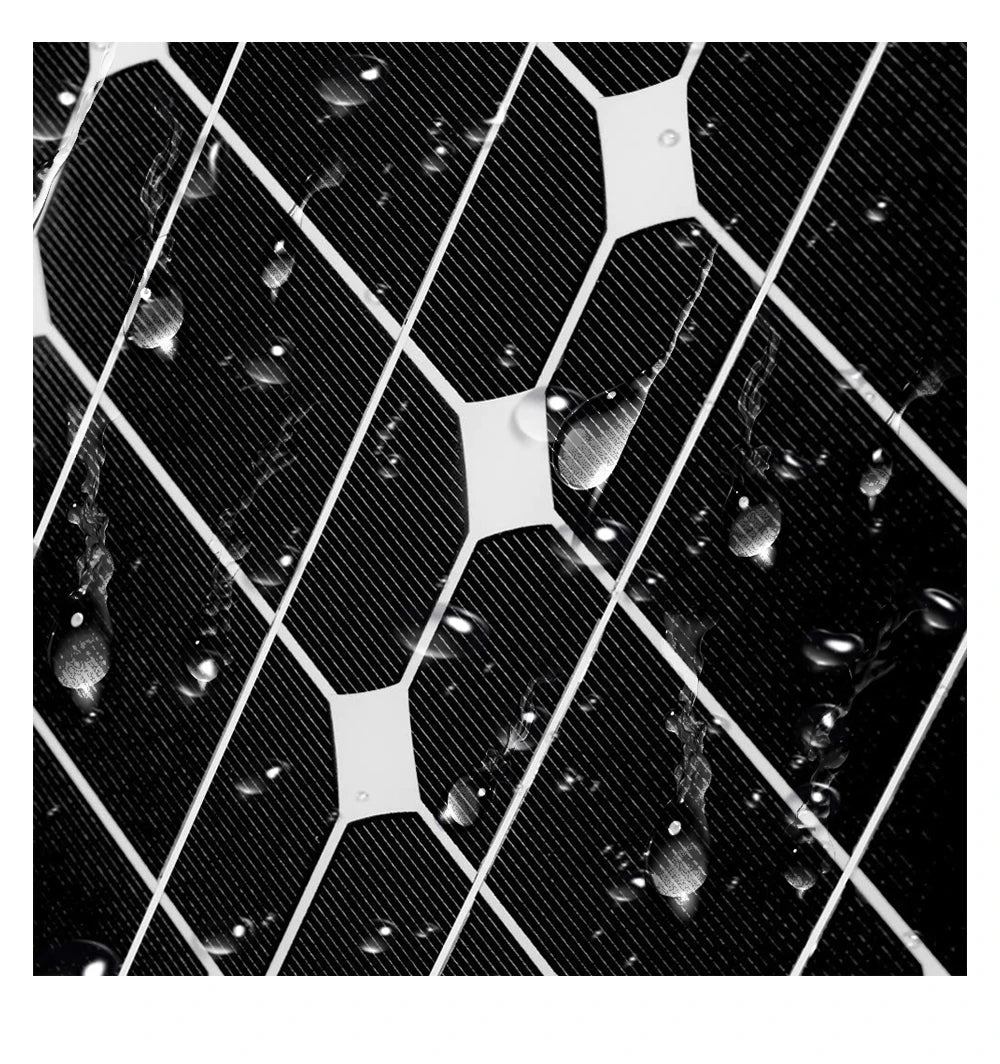

Waterproof design ensures efficient conversion with features including high efficiency and durable construction.

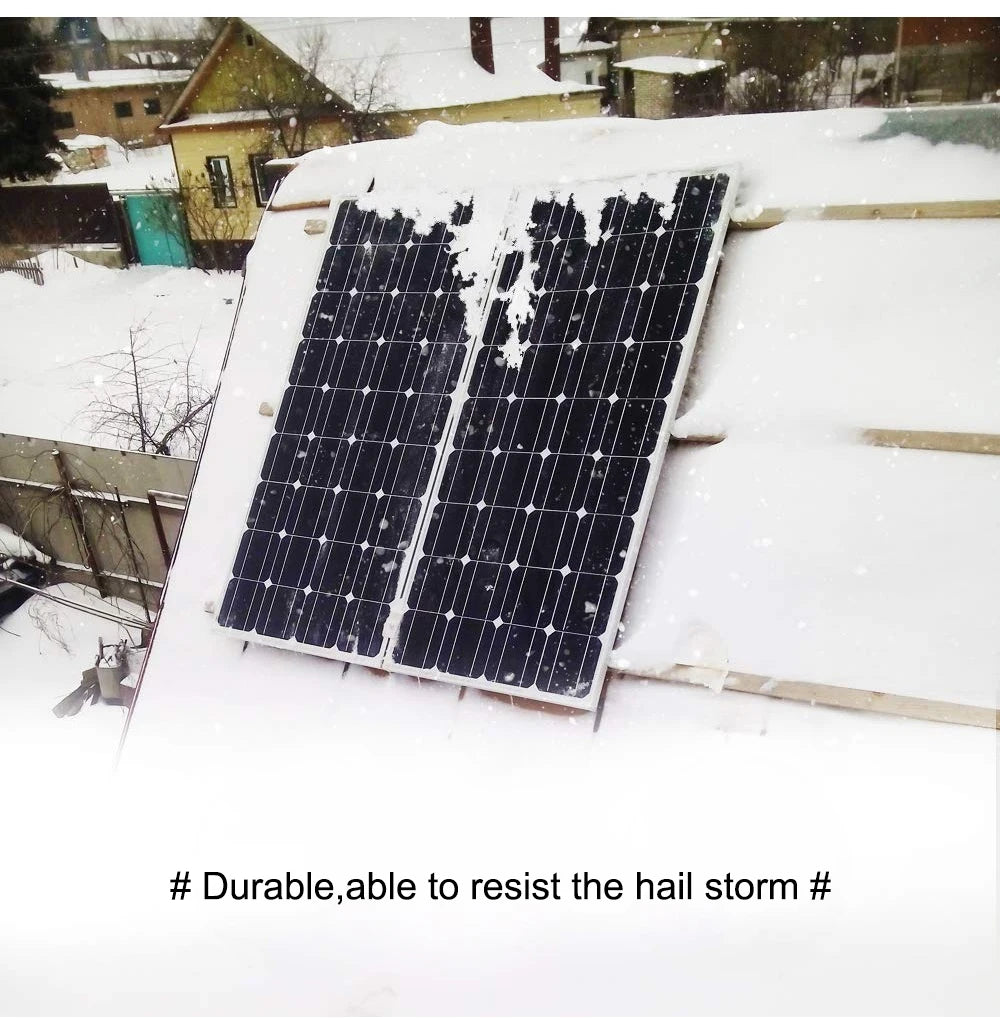

Dokio 18V 100W Rigid Solar Panel, Highly durable, resistant to hail and weather conditions.

Highly durable, resistant to hail and weather conditions.

Dokio 18V 100W Rigid Solar Panel, NOCT specifications for a device with dimensions, weight, voltage, and current ratings.Dokio 18V 100W Rigid Solar Panel, Water pump generator suitable for homes, RVs, boats, and grasslands.

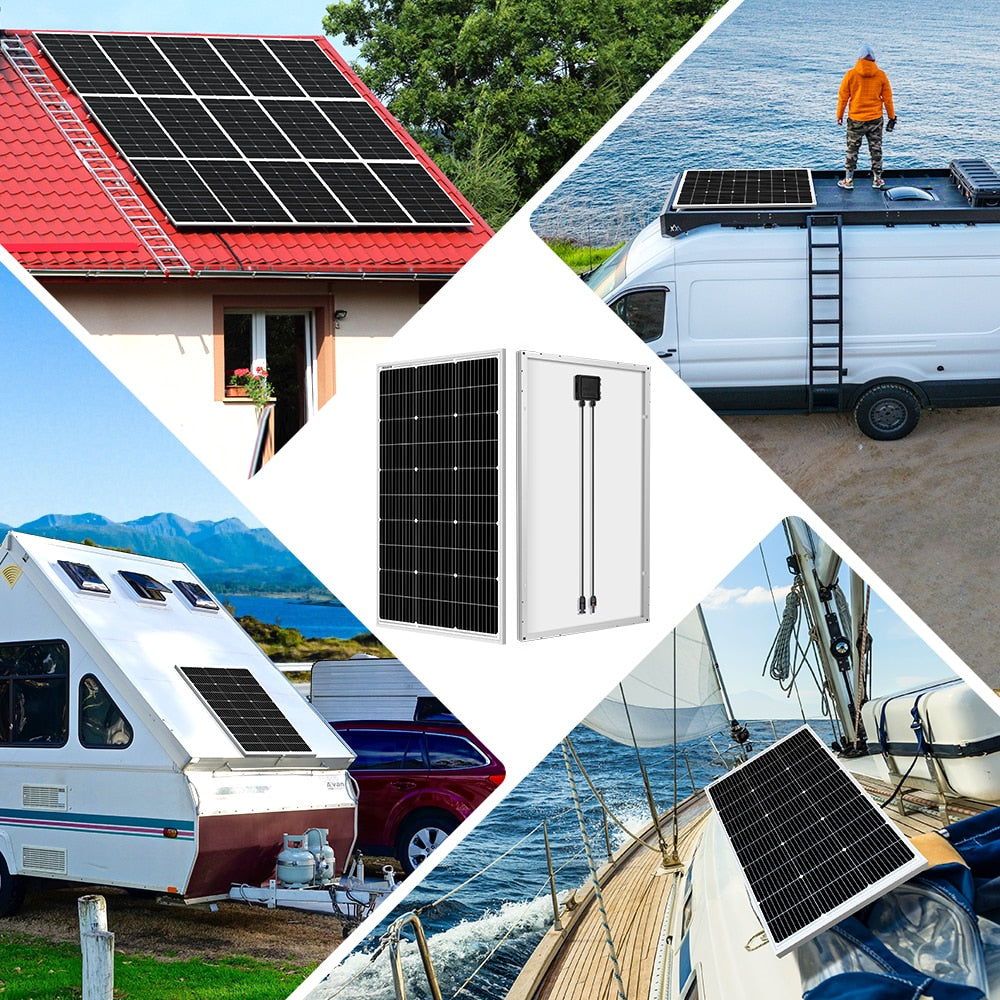

Suitable for various applications including homes, RVs, boats, and grasslands to power water pumps.

Dokio 18V 100W Rigid Solar Panel, Dokio 18V solar panel charges 12V devices with 100W monocrystalline silicon power, waterproof design.
Dokio 18V 100W Rigid Solar Panel, Thin and long high-efficiency solar panel, perfect for large-scale power generation.

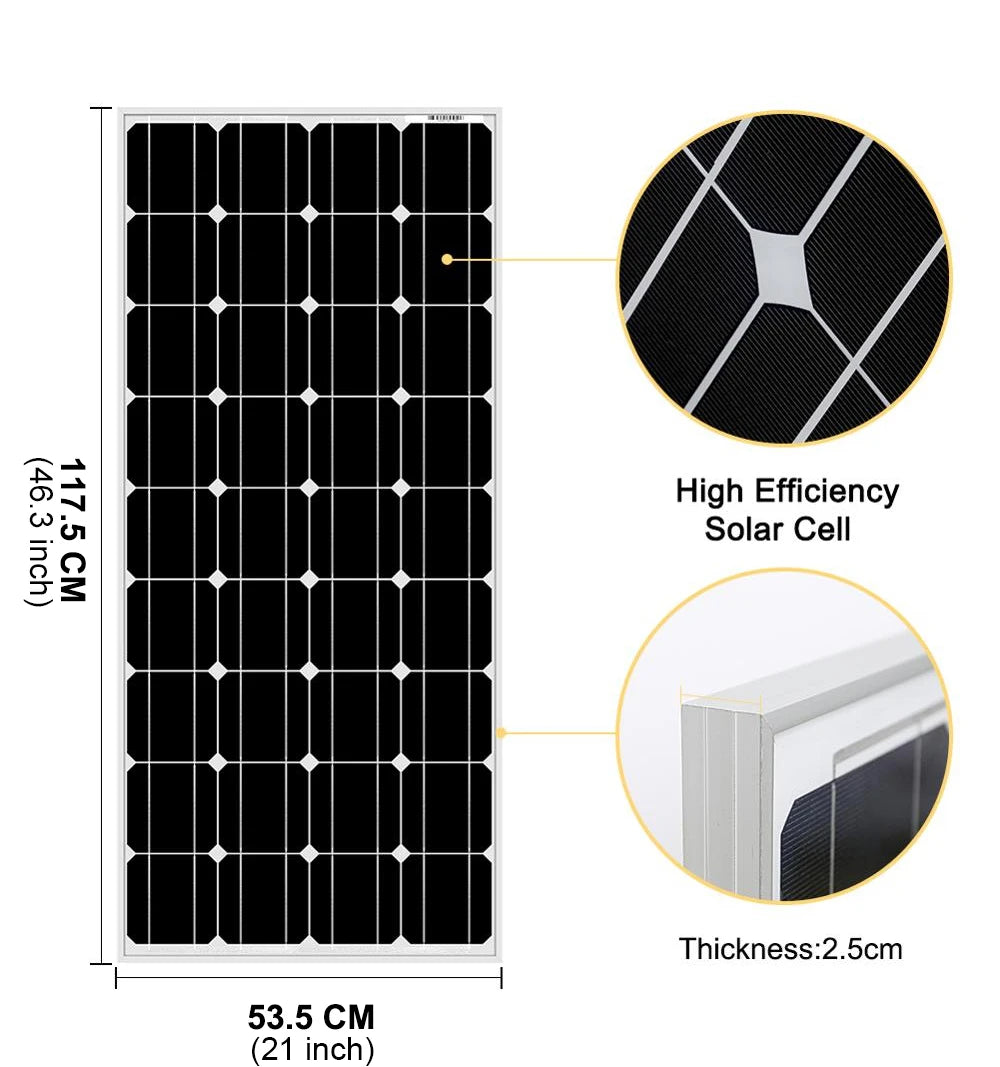

High-efficiency solar cell with 2mm thickness, measures 53.5cm (21 inches) in length.

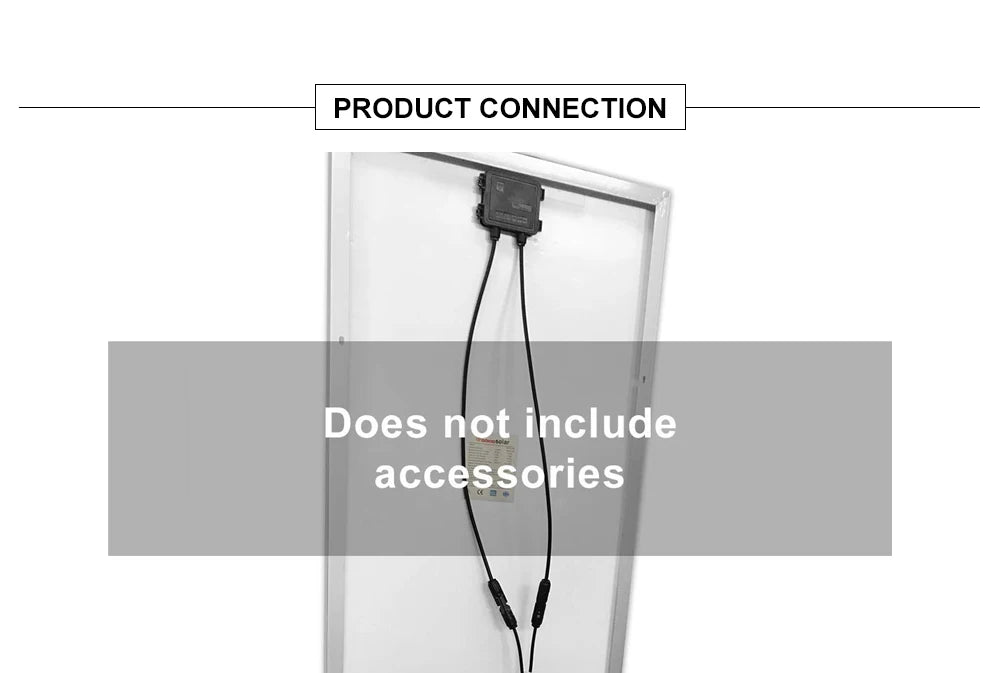

Dokio 18V 100W Rigid Solar Panel, China-made Dokio 18V monocrystalline solar panel, waterproof and suitable for charging 12V devices.Dokio 18V 100W Rigid Solar Panel, Product connection only. Accessories not included.Dokio 18V 100W Rigid Solar Panel, Rugged solar panel for charging 12V devices, made with monocrystalline silicon and waterproof design.Dokio 18V 100W Rigid Solar Panel, Waterproof solar panel with 60cm cable and MC4 connectors, featuring corrosion-resistant frame and mounting holes.

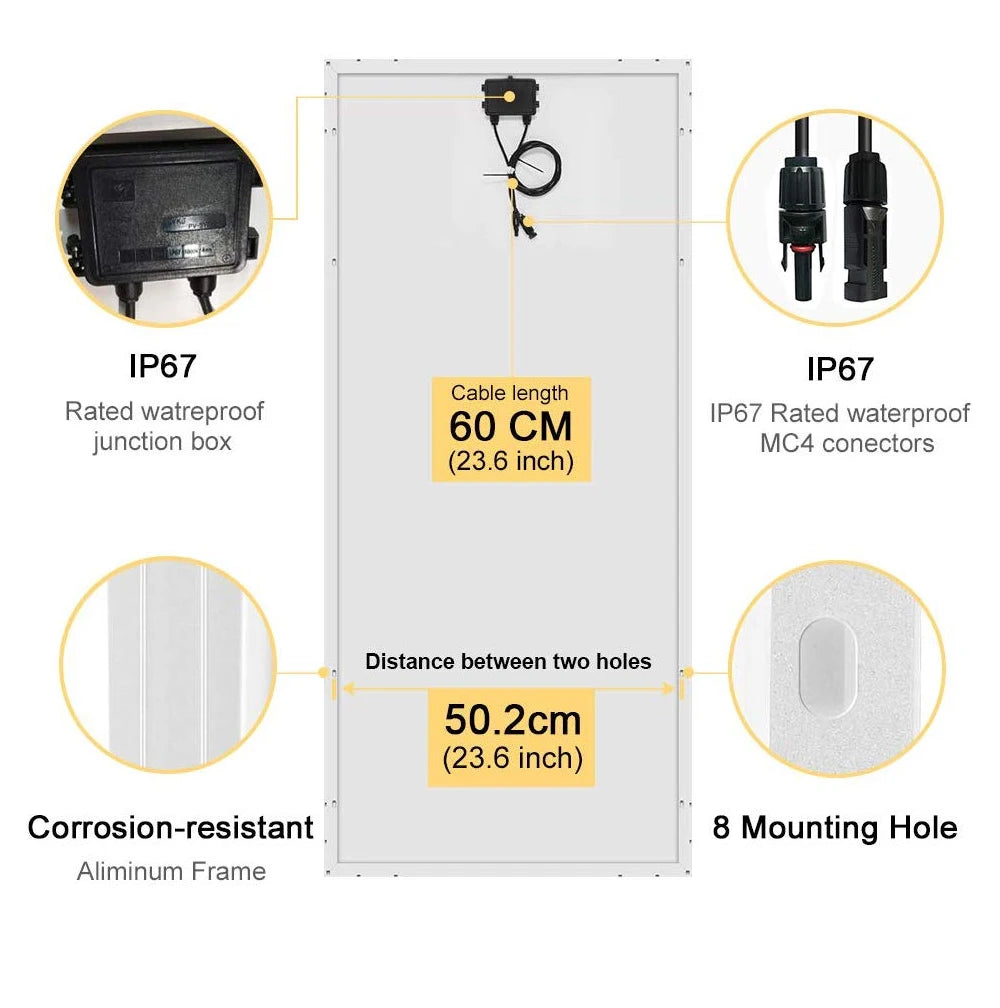

This solar panel features IP67 waterproof rating, with a 60cm cable length and MC4 connectors. It also includes corrosion-resistant aluminum framing, with 8 mounting holes. The distance between two holes is 50.2cm (23.6 inches).

Dokio 18V 100W Rigid Solar Panel, Durable solar panel with corrosion-resistant frame, tempered glass, and efficient cells for reliable energy generation.

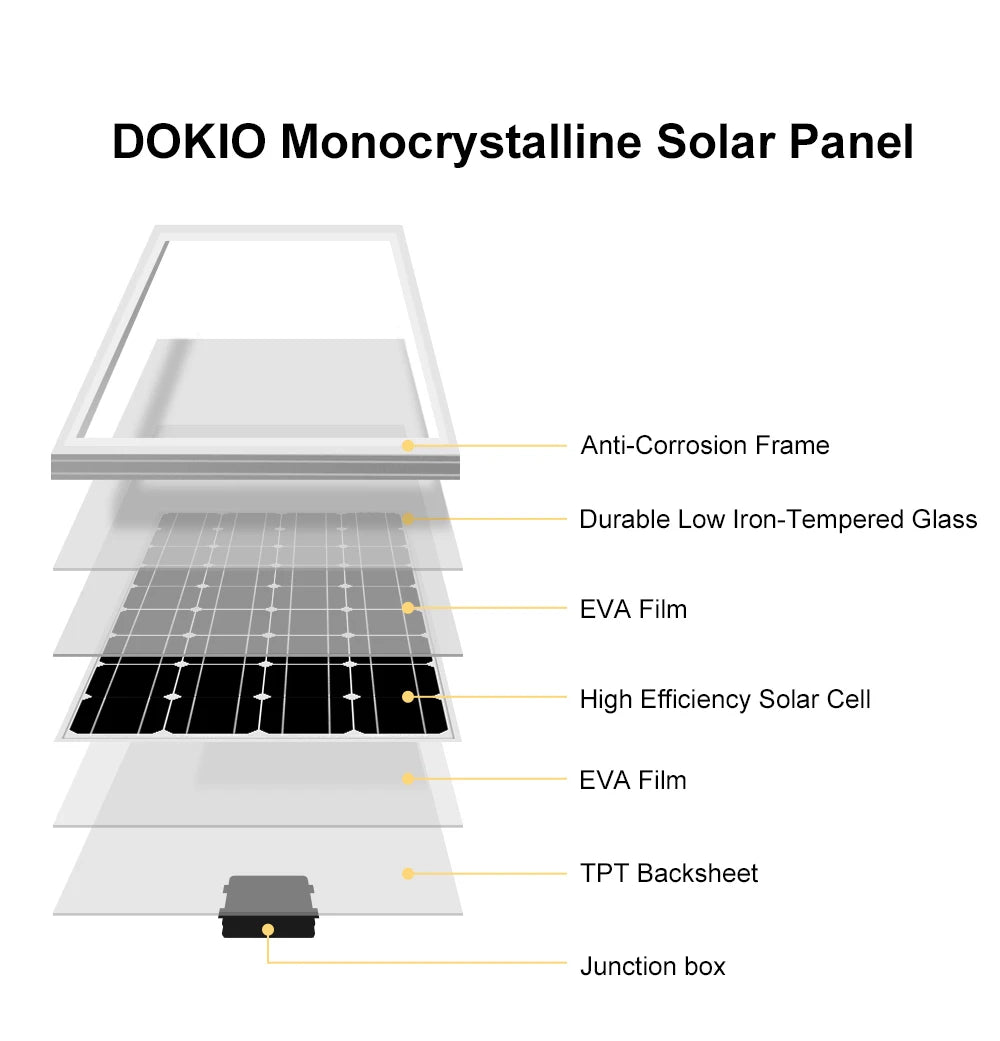

Dokio's 18V monocrystalline solar panel features an anti-corrosion frame, durable low iron-tempered glass, and high-efficiency cells with EVA film and TPT backsheet for reliable energy generation.

Dokio 18V 100W Rigid Solar Panel, German warehouse offers 150W rigid solar panels; contact customer service for link.Dokio 18V 100W Rigid Solar Panel, Solar panel charges 12V devices with monocrystalline silicon and waterproof design.

Dokio 18V 100W Rigid Solar Panel, Monocrystalline Silicon, Waterproof, Charges 12V. Automatic Power Off Function.

Dokio 18V 100W Rigid Solar Panel, NOCT specifications: voltage, fuse, dimensions, weight, and connections for a device.Dokio 18V 100W Rigid Solar Panel, Tempered glass surface is waterproof and resistant to snow, hail, and other harsh conditions.Dokio 18V 100W Rigid Solar Panel, Customized solar panel specifications, DSP-100M, 97x56.5x2.5CM.Dokio 18V 100W Rigid Solar Panel, Dokio 18V solar panel charges 12V devices with 100W monocrystalline silicon technology.
Dokio 18V 100W Rigid Solar Panel, Waterproof, 18V solar panel charges 12V devices using monocrystalline silicon.

Dokio Technology Co., Ltd. presents an 18V rigid solar panel with monocrystalline silicon and waterproof design, charging 12V devices.
