Dokio 18V 80W 100W 200W Portable Foldable Solar Panel With 12V Controller Flexible Solar Panel For House Camping Travel
Dokio 18V 80W 100W 200W Portable Foldable Solar Panel With 12V Controller Flexible Solar Panel For House Camping Travel
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Type: Solar Panel
Size: 40x22x0.24(in)/100x54x0.6(cm)
Short-Circuit Current (Isc): 4.69A
Package Weight: 3.1kg
Origin: Mainland China
Open-Circuit Voltage (Voc): 22.50V
Number of Panels: 1
Number of Cells: 36
Nominal Operating Cell Temp.(NOCT): -45 to 80℃
Net Weight: 2.4kg
Model Number: FFSP-80W
Maximum System Voltage: DC1000V
Maximum Power(Pmax): 80W±3%
Maximum Power Voltage(Vmp): 18.00V
Maximum Power Current (Imp): 4.44A
Max. Power: 80W±3%
Material: Monocrystalline Silicon
Foldable Solar Panel: Yes

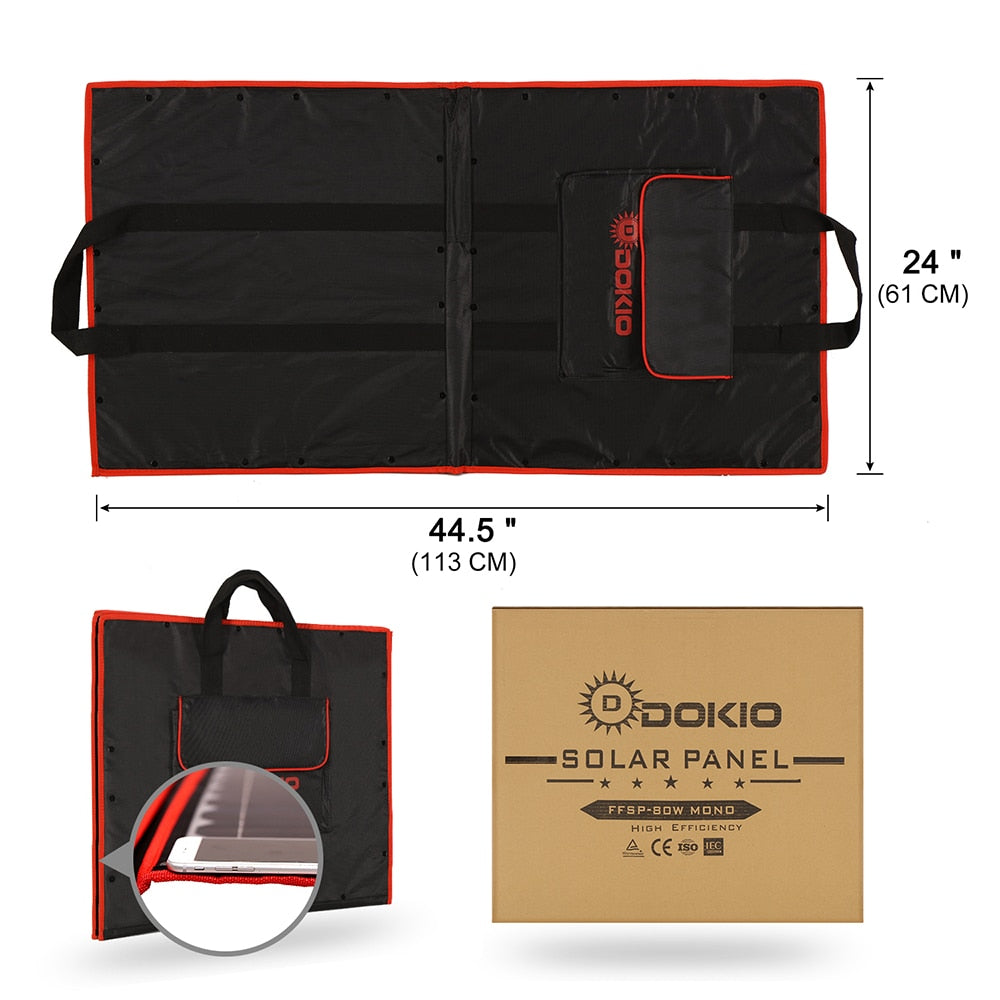

Foldable Dimension: 22x20x0.47(in)/54x50x1.2(cm)
Flexible Solar Panel: Yes
Expansion Dimension: 40x22x0.24(in)/100x54x0.6(cm)
Certification: CE
Brand Name: DOKIO
Model:FFSP-80M
Material:Monocrystalline silicon
Maximum Power(Pmax): 80W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):4.44A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):4.69A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V

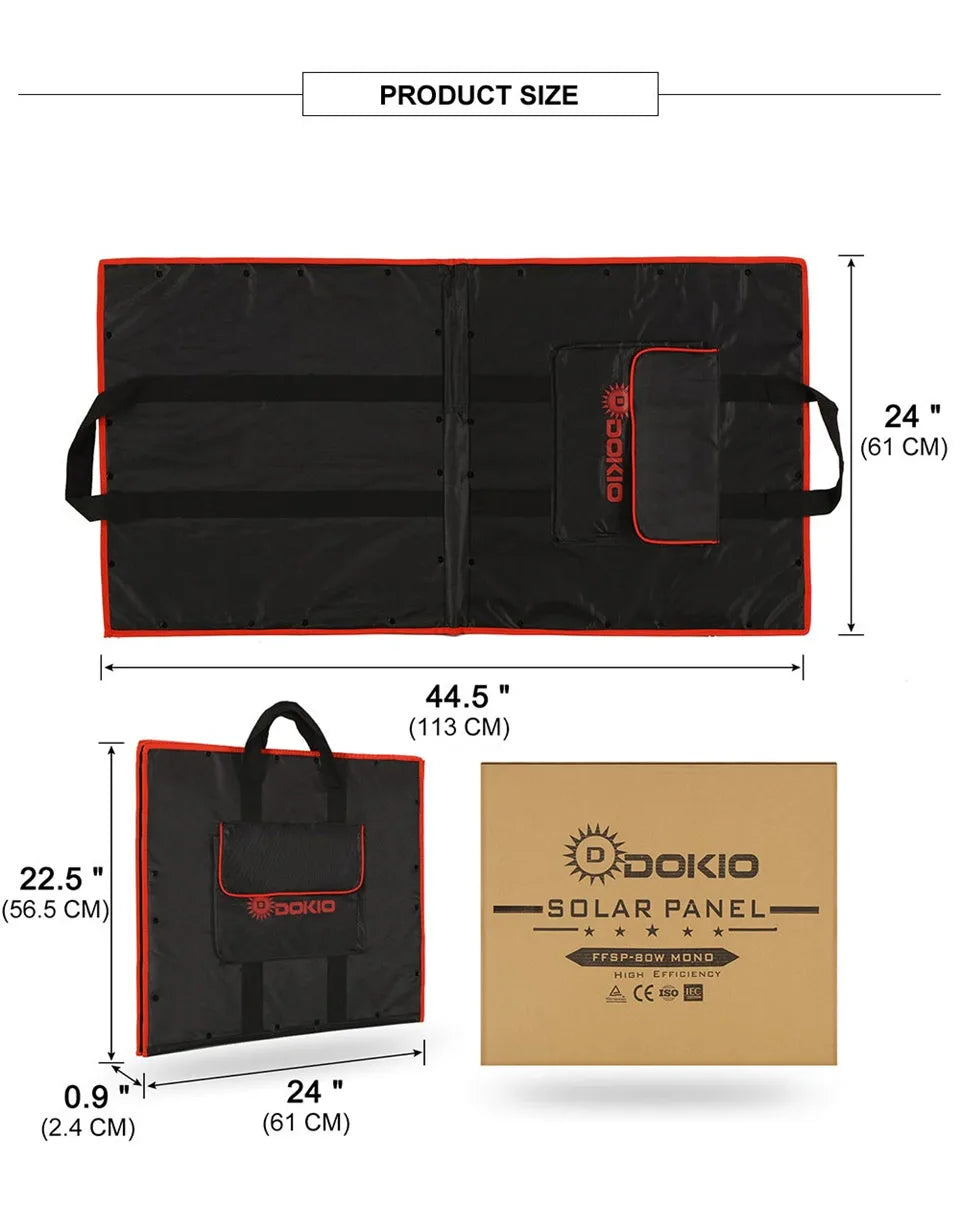

Foldable Dimension:22x20x0.47(in)/54x50x1.2(cm)
Expansion Dimension:40x22x0.24(in)/100x54x0.6(cm)
Net Weight:2.4kg
Package Weight:3.1kg
Package Size:63x61x6cm

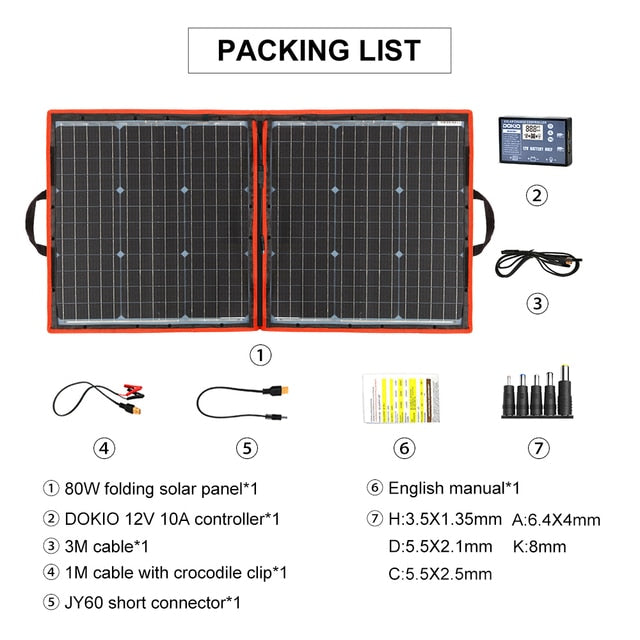

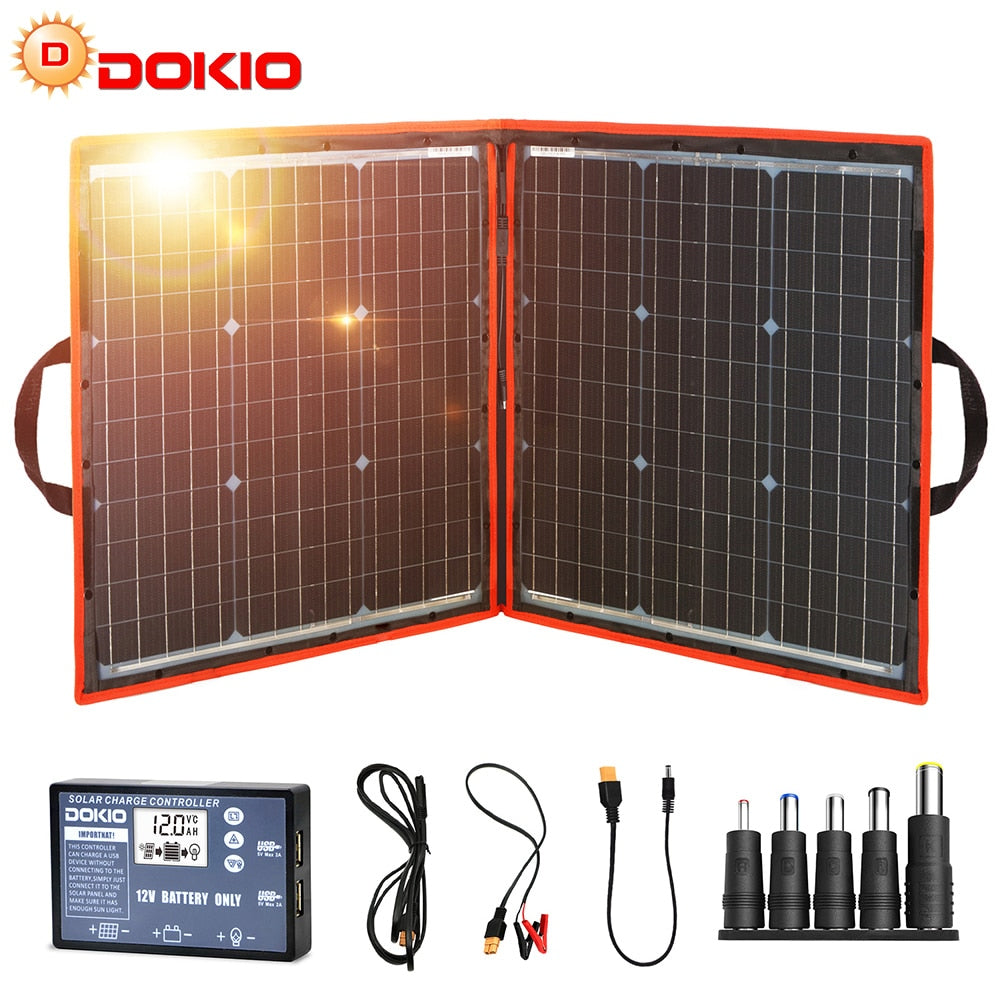

Package List:
1*80W Flexible Foldble Solar Panel
1*3M wire
1*10A 12Vcontroller
1*DC cable and connector
1*English User Manual
Model:FFSP-110M
Material:Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):6.1A
Open-Circuit Voltage (Voc):22.5V
Short-Circuit Current (Isc):6.35A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:28x20.5x0.47(in)/70x50x1.2(cm)
Expansion Dimension:40x28x0.24(in)/100x70x0.6(cm)
Net Weight: 2.7 kg
Package Weight:3.6kg
Package Size:75x58x7cm

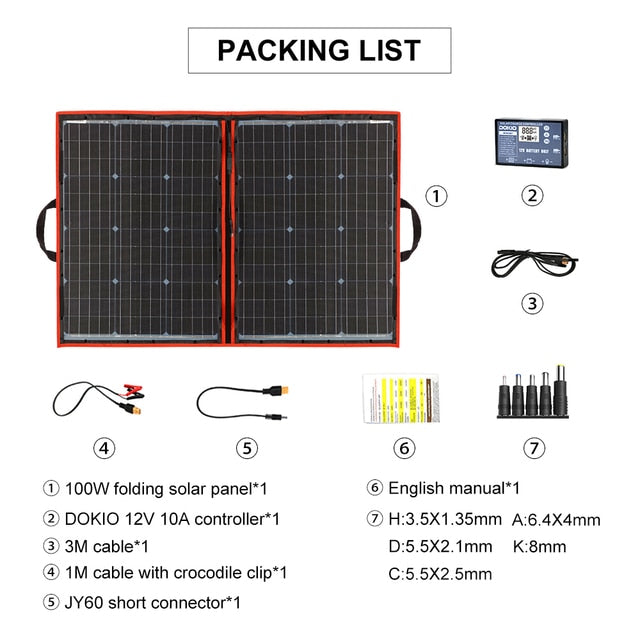

Package List:
1*100W Flexible Foldble Solar Panel (50W*2)
1*3M wire,1*10A 12Vcontroller,1*English User Manual
Model:FFSP-160M
Material:Monocrystalline silicon
Maximum Power(Pmax): 160W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):8.89A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):9.14A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:22x20.67x0.94(in)/56x52.5x2.4(cm)
Expansion Dimension:82.7x22x0.24(in)/210x56x0.6(cm)
Net Weight:4.5kg
Package Weight:5.4kg
Package Size:68x56x6cm
Model:FFSP-220M
Material:Monocrystalline silicon
Maximum Power(Pmax): 200W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):11.12A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):11.36A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:28x21x0.9(in)/70x50x2.4(cm)
Expansion Dimension:85x28x0.24(in)/216x72x0.6(cm)
Net Weight:5.3kg
Package Weight:6.3kg
Package Size:80x60x7cm

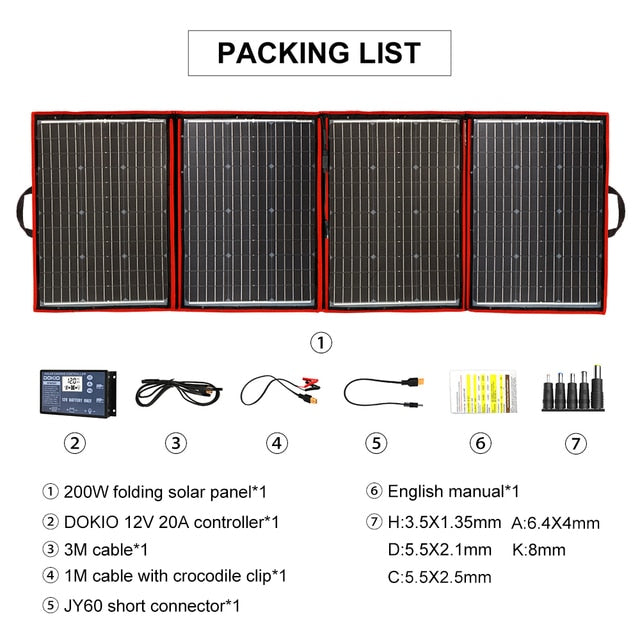

Package List:
1*200W Flexible Foldble Solar Panel
1*3M wire,1*20A 12Vcontroller,
A total of 4M long cable. With alligator clips.
1*English User Manual
Cable thickness: 2x1.5 mm²
Model:FFSP-320M
Material:Monocrystalline silicon
Maximum Power(Pmax): 300W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):16.67A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):16.92A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:39.37x19.69x0.94(in)/100x50x2.4(cm)
Expansion Dimension:78.74x39.37x0.24(in)/200x100x0.6(cm)
Net Weight:7.1kg
Package Weight:8.2kg
Package Size:108x57x7cm

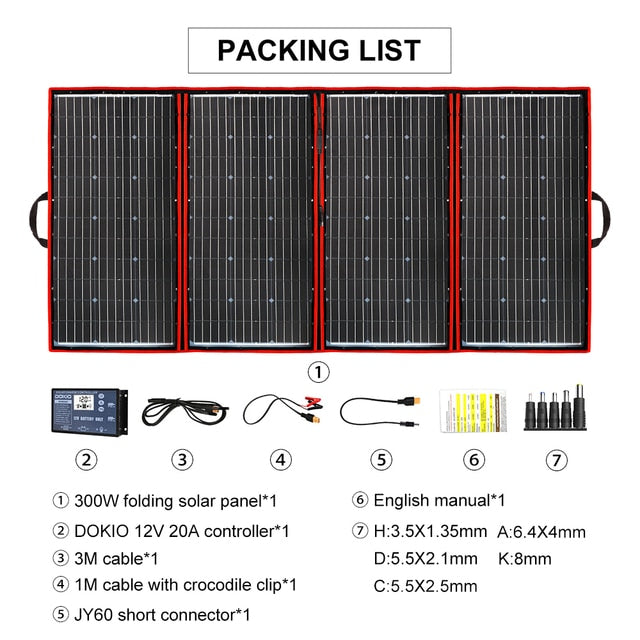

Package List:
1*300W Flexible Foldble Solar Panel
A total of 4M long cable. With alligator clips.
1*20A 12Vcontroller
1*English User Manual
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

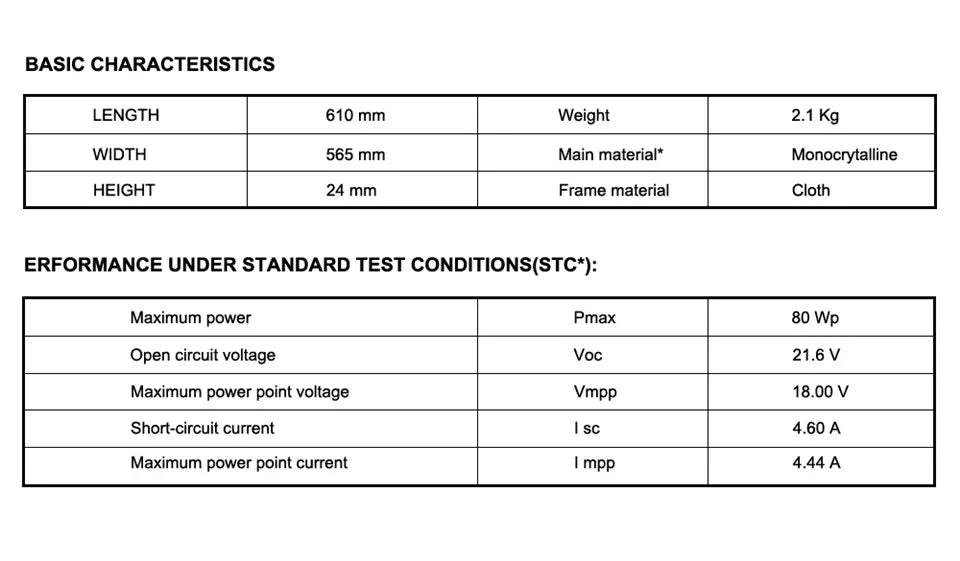

Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
Controller support lead-acid,lithium ions and LiFePO4 battries.
Cable thickness: 2x1.0 mm²
A total of 4M long cable. With alligator clips.
Dokio's Flexible Foldable Solar Panel (FFSP-80M) features 18V, 100W/200W power output and a 12V controller. Ideal for camping, travel, or residential use.

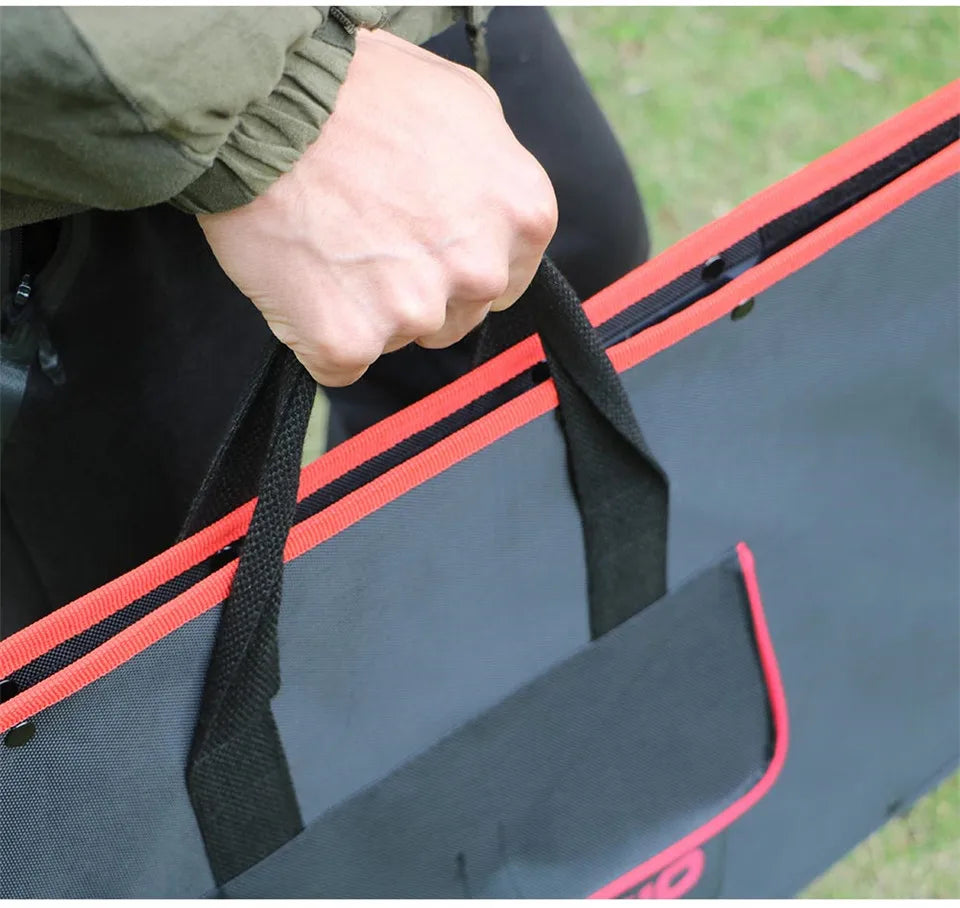

Portable, foldable, and lightweight design with efficient conversion for easy carrying on-the-go.

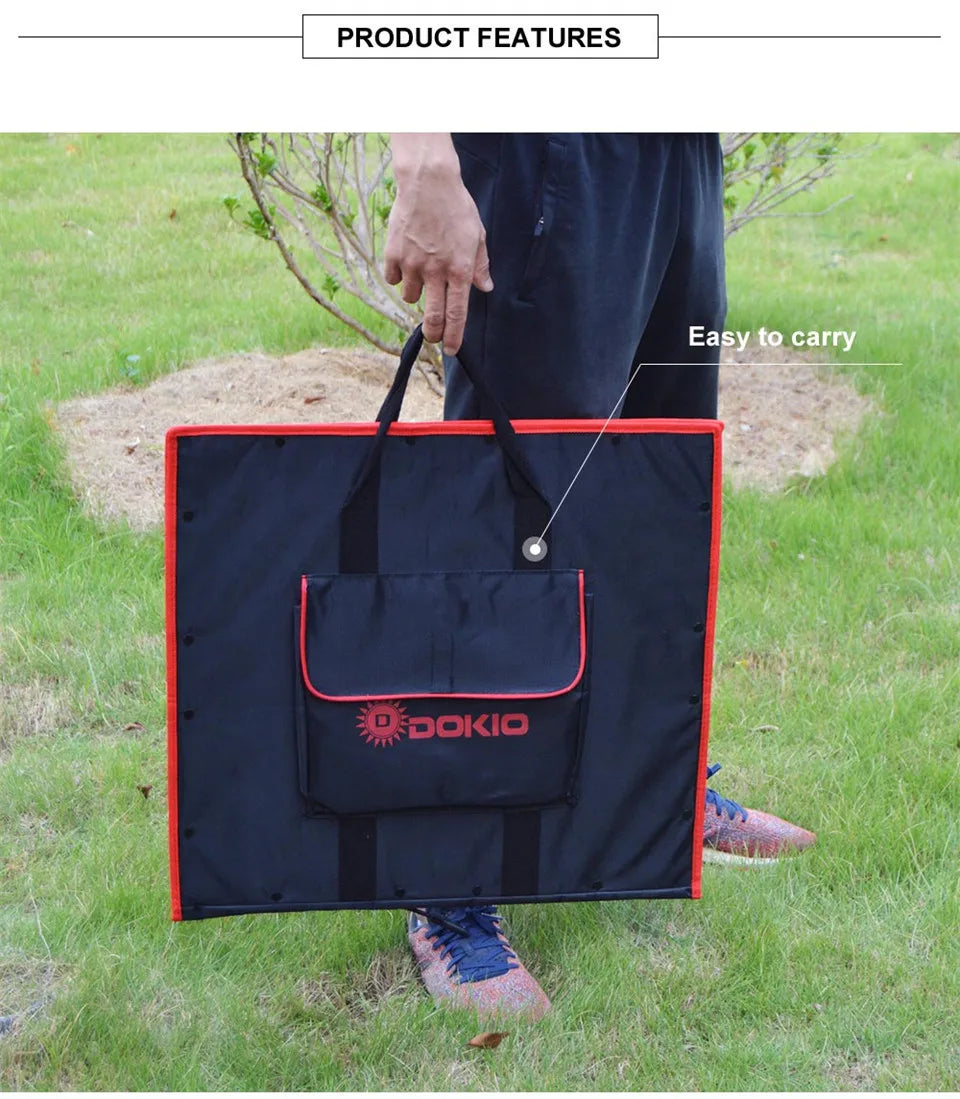

Portable and easy to carry, this Dokio solar panel features a compact design for on-the-go use.
Versatile for camping, RVs, boats, outdoor use at home or travel

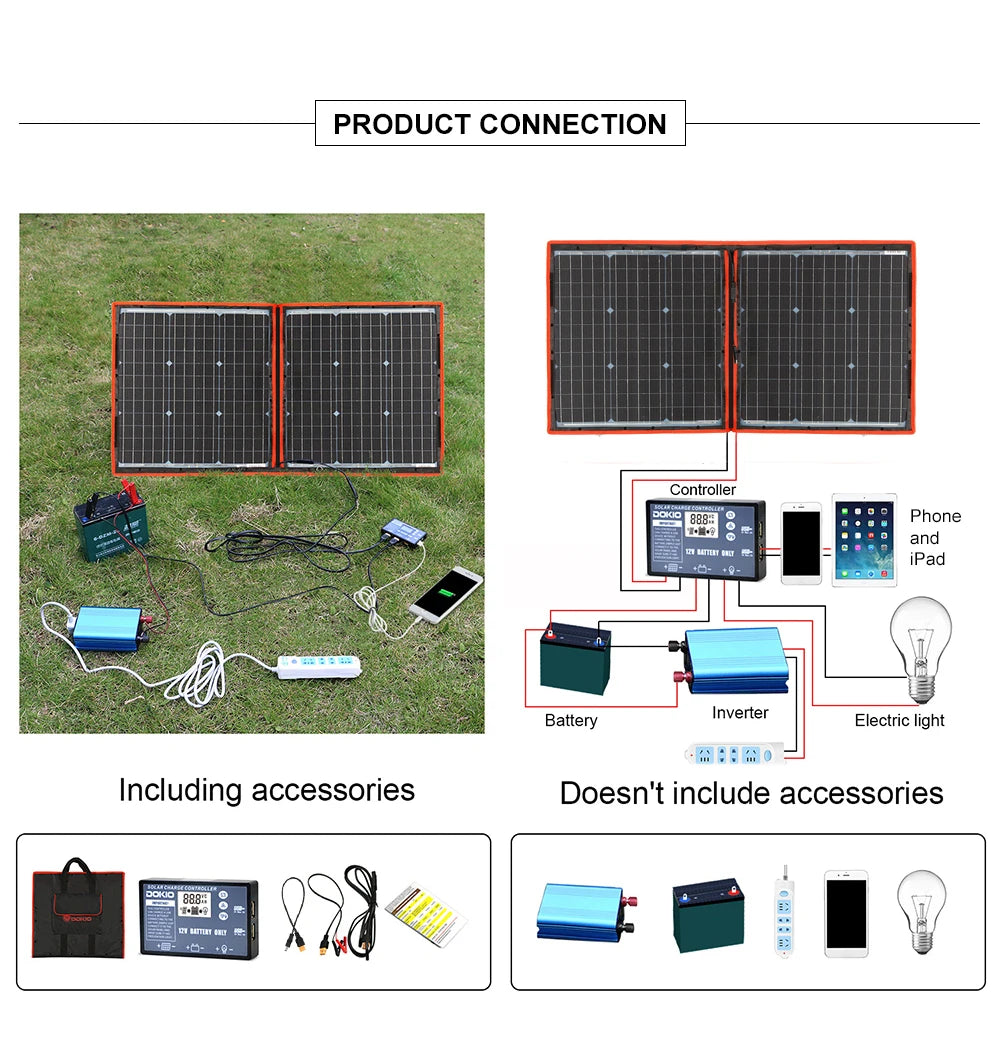

Product includes 18V, 80W-200W portable foldable solar panel with 12V controller, compatible with devices like iPhone and iPad via inverter. Accessories not included.
This portable solar panel kit comes with an 18V controller, suitable for charging devices like smartphones (iPhone) and tablets (iPad). It includes accessories but not the battery. Compatible with inverters for electric light use.

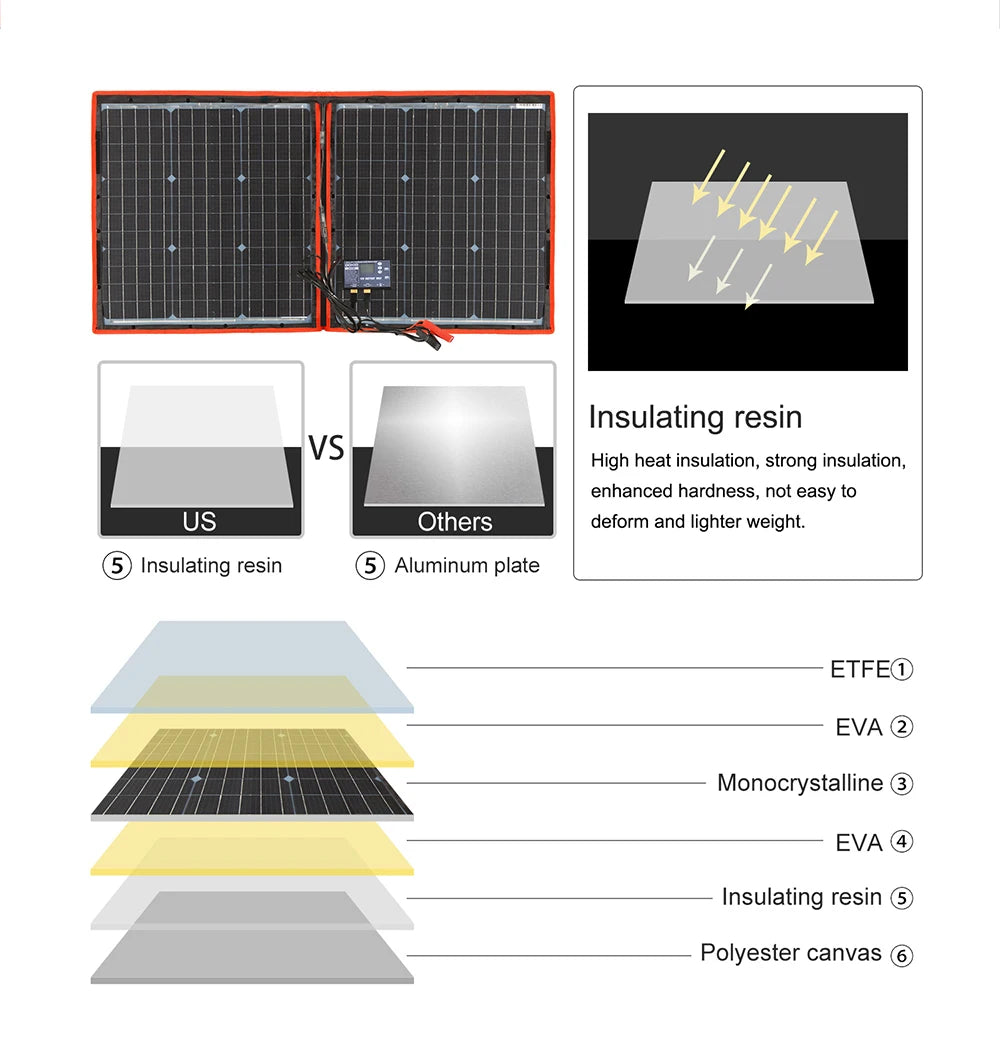

Features high-heat insulation, strong durability, and resistance to deformation. The lightweight design combines insulating resin with aluminum and EVA materials for enhanced protection and portability.

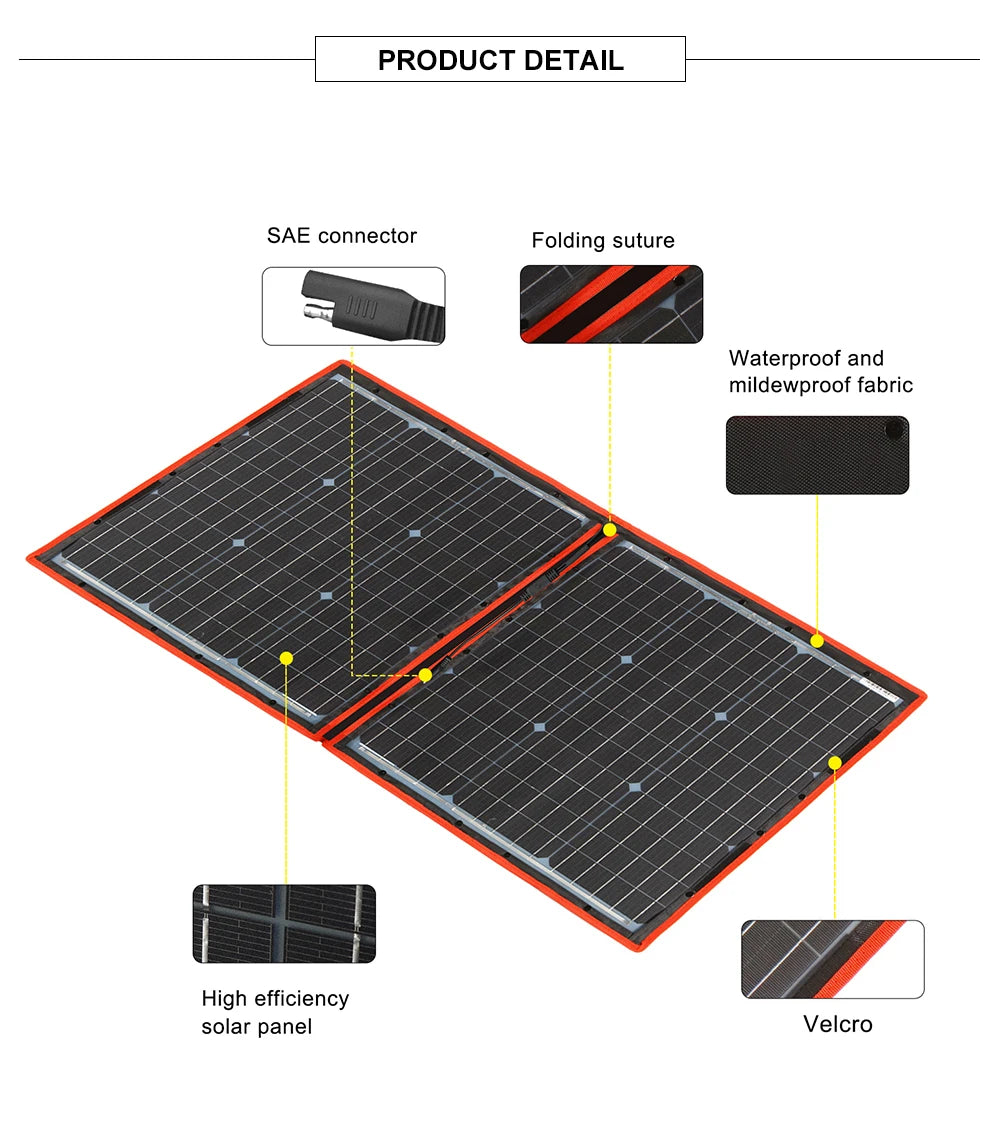

Portable Solar Panel with SAE Connector, Folding Design, Waterproof & Mildewproof Fabric, High Efficiency, Velcro Closure

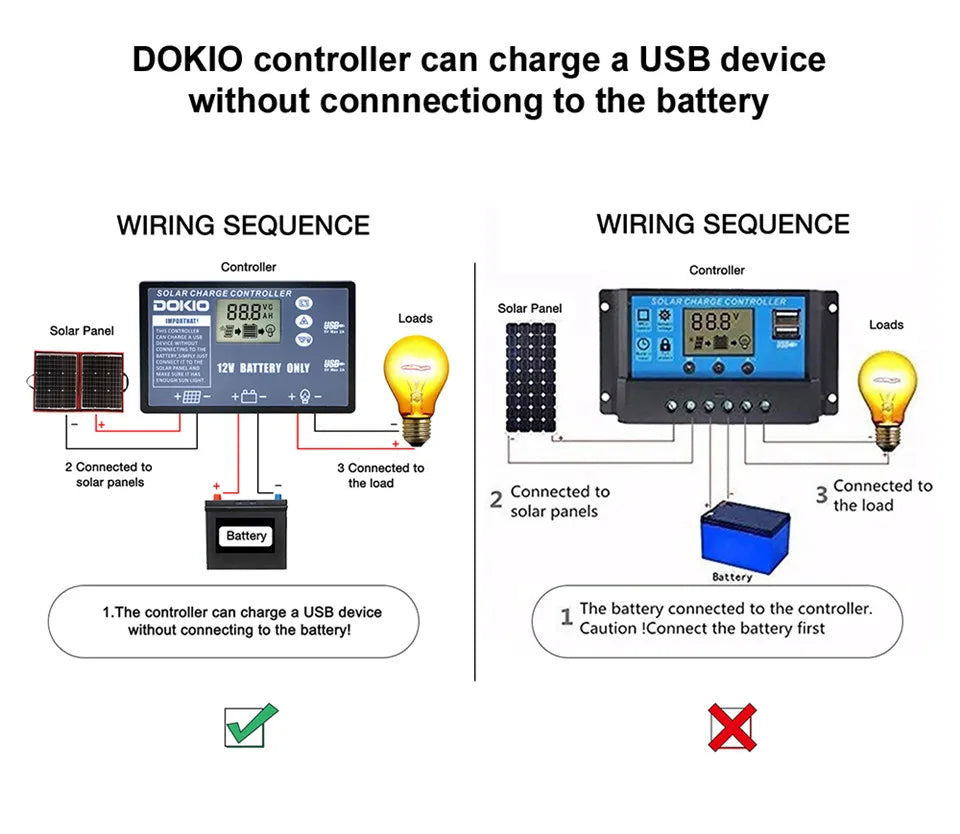

The DOKIO solar panel's built-in controller allows you to charge your USB devices directly, without needing to connect them to the battery. To use, simply connect the solar panels to the controller, then plug in your device. Note: Please ensure the first battery is fully charged before connecting any loads.
