Dual USB 5V Output LCD Dispaly PWM Battery Charger 12V/24V 10A 20A 30A Solar Controller

Dual USB 5V Output LCD Dispaly PWM Battery Charger 12V/24V 10A 20A 30A Solar Controller

Regular price $11.60 USD
Regular price Sale price $11.60 USD
Sale Sold out
Shipping calculated at checkout.
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Work Time (h): 24H

Voltage: 12V/24V Automatic recognition

USB: 2 USB

Type: PWM

Product name: Solar Controller

Origin: Mainland China

Model Number: PWM-E

Maximum Current: 10A 20A 30A

Max PV Power: 30A

Functions: time & light control

Full Protection: YES

Feature: Quick start instructions




Energy Efficient Solar Charger for Your Home or Office - CuTON

Energy Efficient Solar Charger for Your Home or Office - CuTON












Dual USB 5V Output LCD Dispaly PWM Battery Charger 12V/24V 10A 20A 30A Solar Controller


Warmly Tips:


*The reverse order applies when deinstalling!

*An improper sequence order can damage the controller!

*All red color voltage X2 ,while using 24V system.

*This solar controller is not waterproof ,please install it indoor or out of the rain


Features:


1. Upgraded version of solar panel controller: Compatible with 12V 24V system. This solar charge controller helps you automatically manage the work of the solar panels and batteries in your solar system using a built-in industrial microcontroller. No need to reset when the battery runs out, because it remembers various parameters set by the user. You can also charge your phone, tablet, PC with dual USB outputs up to 5V/2.5A.


2. Safe to use: Equipped with overcurrent protection, short circuit protection, reverse connection protection, low voltage, overcharge protection, with full 3-stage PWM charging management. This 30A solar charge controller will help you safely increase system efficiency and extend battery life.


3. LCD Display: The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business.


4. Multiple electrical protections: Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.


5. Good heat dissipation: Double MOSFET reverse current protection, low heat generation, all electronic components will heat up during the working process, it is best to shade them for better heat dissipation, and avoid direct sunlight or humid places.


Descriptions:


The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business. Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.


MODEL

PWM-E-10A

PWM-E-20A

PWM-E-30A

PWM-E-40A

PWM-E-50A

PWM-E-60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

48V(for 24V battery) 24V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

188*90*47mm

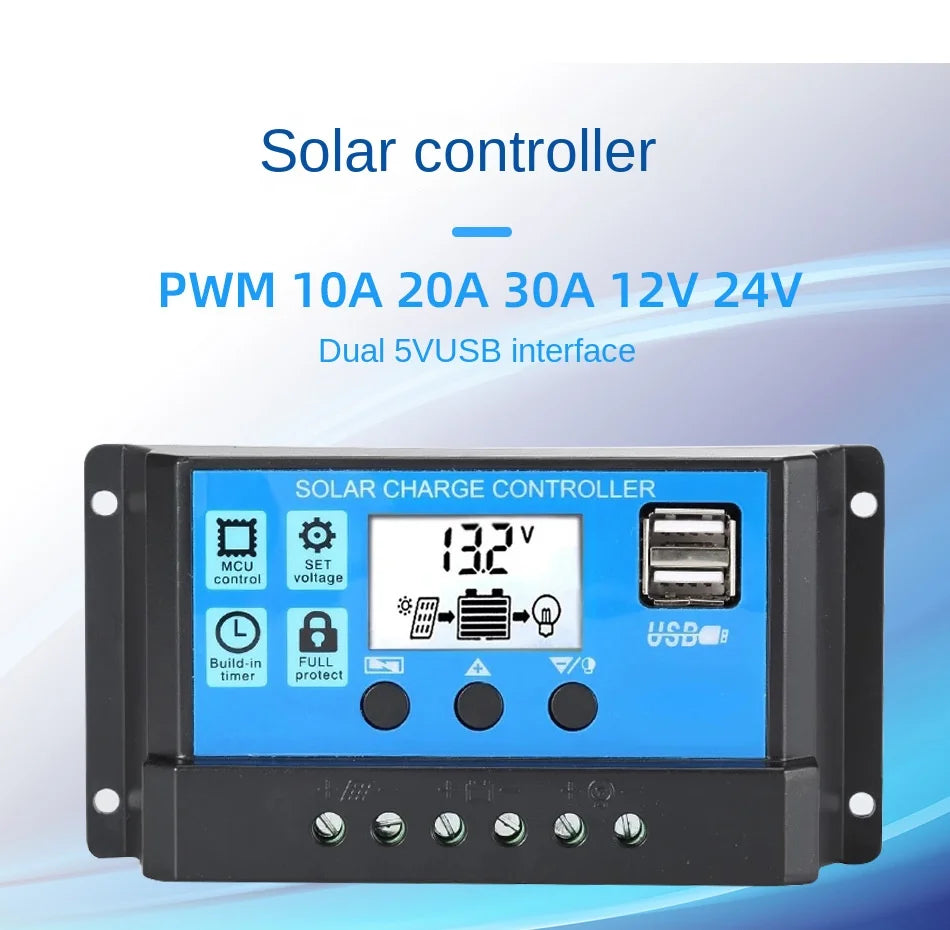

Solar charger controller with dual USB ports and adjustable charge rates for 12V or 24V batteries.

Dual USB 5V output solar controller with PWM and MCUs, supports 10A/20A/30A charging for 12V or 24V batteries, featuring dual USB interfaces and built-in full-charge protection.



Advanced safety features: short-circuit, overcurrent, open- circuit, and voltage surge protections ensure equipment safety.

Features multiple protections: short-circuit, overcurrent, open-circuit, and voltage surge. In case of short-circuit, the fuse blows, breaking down the voltage. Overcurrent is detected by a transistor, automatically turning off the equipment to prevent damage. The controller also provides overcharge protection, preventing excessive discharge. Additionally, it features reverse connection protection, utilizing unidirectional conductivity to ensure safe operation.

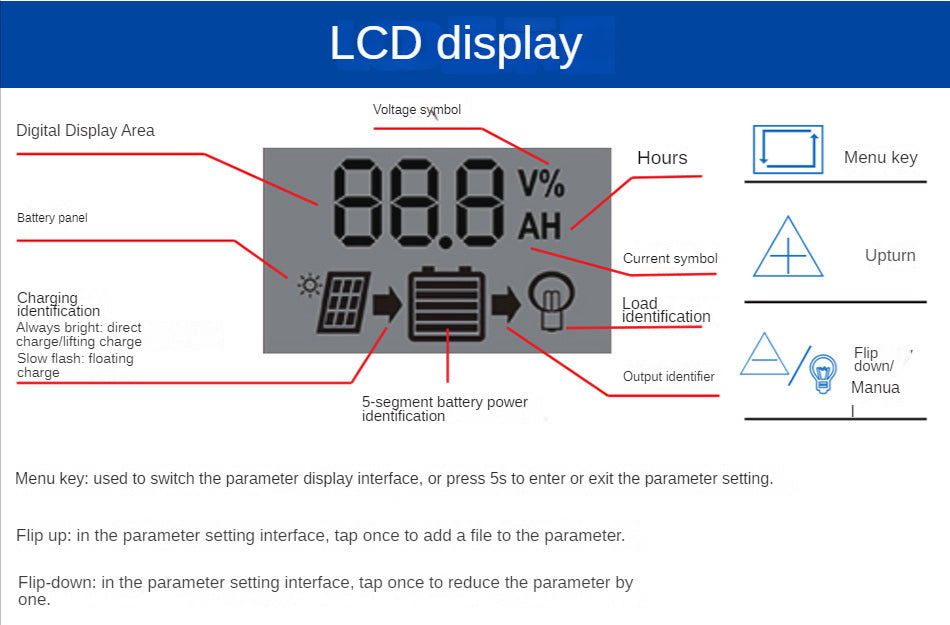

Digital charger with LCD display, menu key, and voltage/current settings.

Dual USB charger with LCD display features voltage digital display and current symbol. The menu key allows switching between display interfaces or entering/exiting settings. In settings mode, pressing the menu key up adds 1 file unit to the parameter, while pressing it down reduces the value by 1. Parameters include voltage (5V), current (10A/20A/30A), and solar charge control (12V/24V). The display also shows battery capacity in Ah and remaining power percentage. Always bright: direct charging; slow flash: floating charge; flip up/down to cycle through settings.



Smart dual USB charger with LCD display, solar input, and adjustable charging rates.

Dual USB charger with LCD display shows battery charge status, solar panel input, and load output. Features include menu navigation, 2x USB ports, and adjustable charging rates up to 30A.

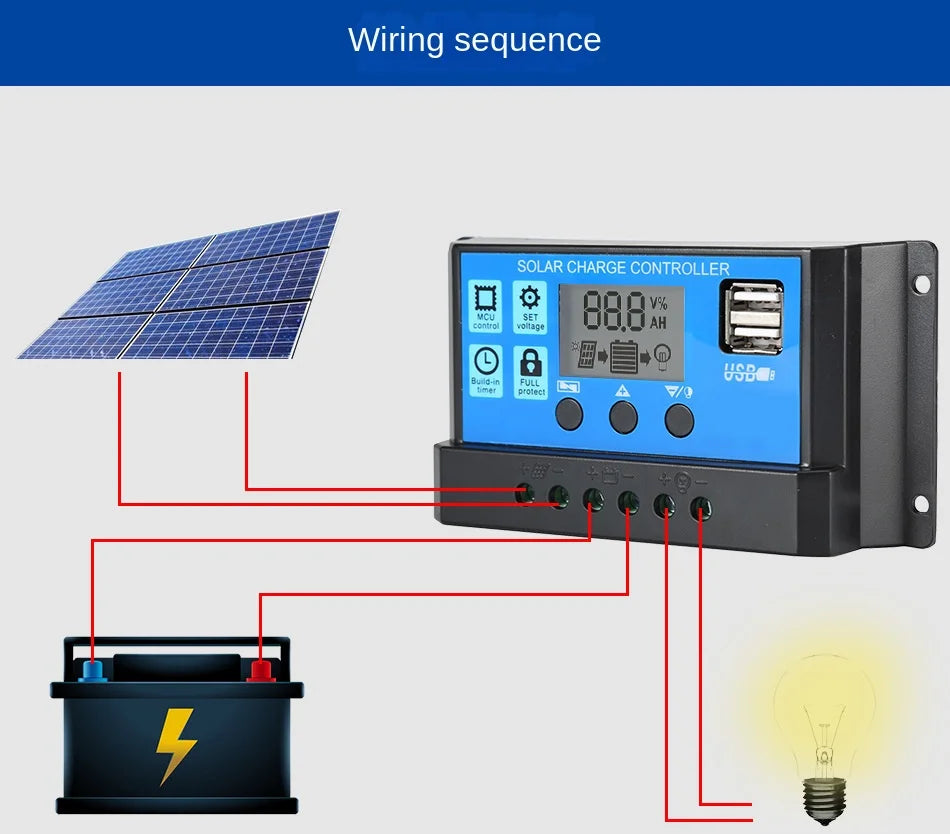

Wiring sequence for solar charge controller with 40.2Ah Li-ion battery, USB output, and adjustable charging currents.

Solar Charge Controller wiring sequence for 40.2Ah Li-ion battery pack, USB output 5V, PWM control, and 10A/20A/30A charging capabilities.

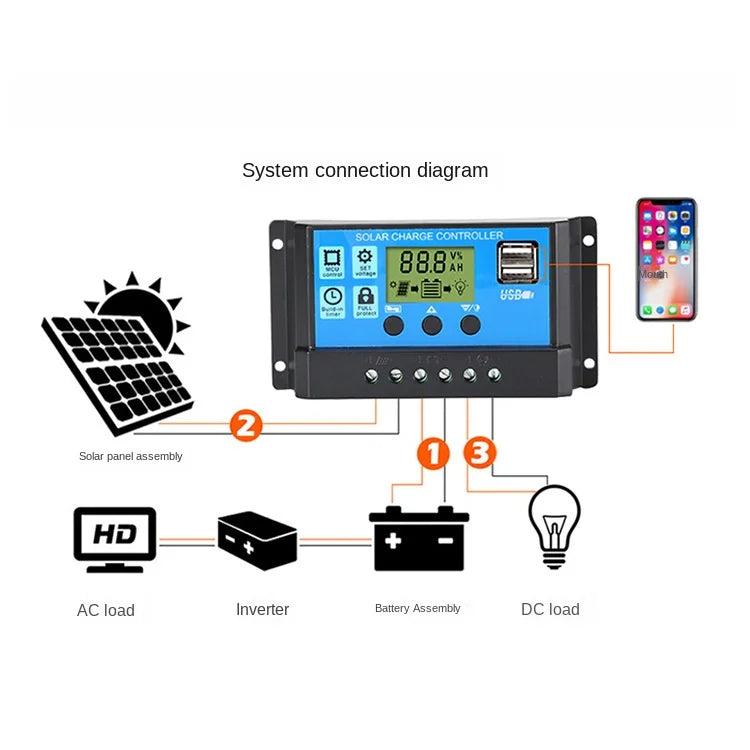

Connects solar panels, USB devices, batteries, AC loads, inverters, and DC loads.

System Connection Diagram: Solar Charger Controller connects solar panels, USB devices, and batteries; also supports AC loads, inverters, and DC loads.





Solar charge controller with integrated protection, MCU control, and USB input for efficient charging.

Solar Charge Controller with built-in full protection, featuring MCU control and USB input for easy charging. Displays product information and has multiple settings for 10A, 20A, or 30A solar panel charging.



Solar-powered charger with LCD display and dual USB ports for multiple battery types.

Dual USB 5V Output LCD Display PWM Battery Charger with Solar Controller. This product features a dual USB charging port, 12V/24V 10A/20A/30A solar controller, and an LCD display for monitoring battery performance. It's perfect for charging various batteries, including those used in solar-powered systems.
