BestSolarPanel

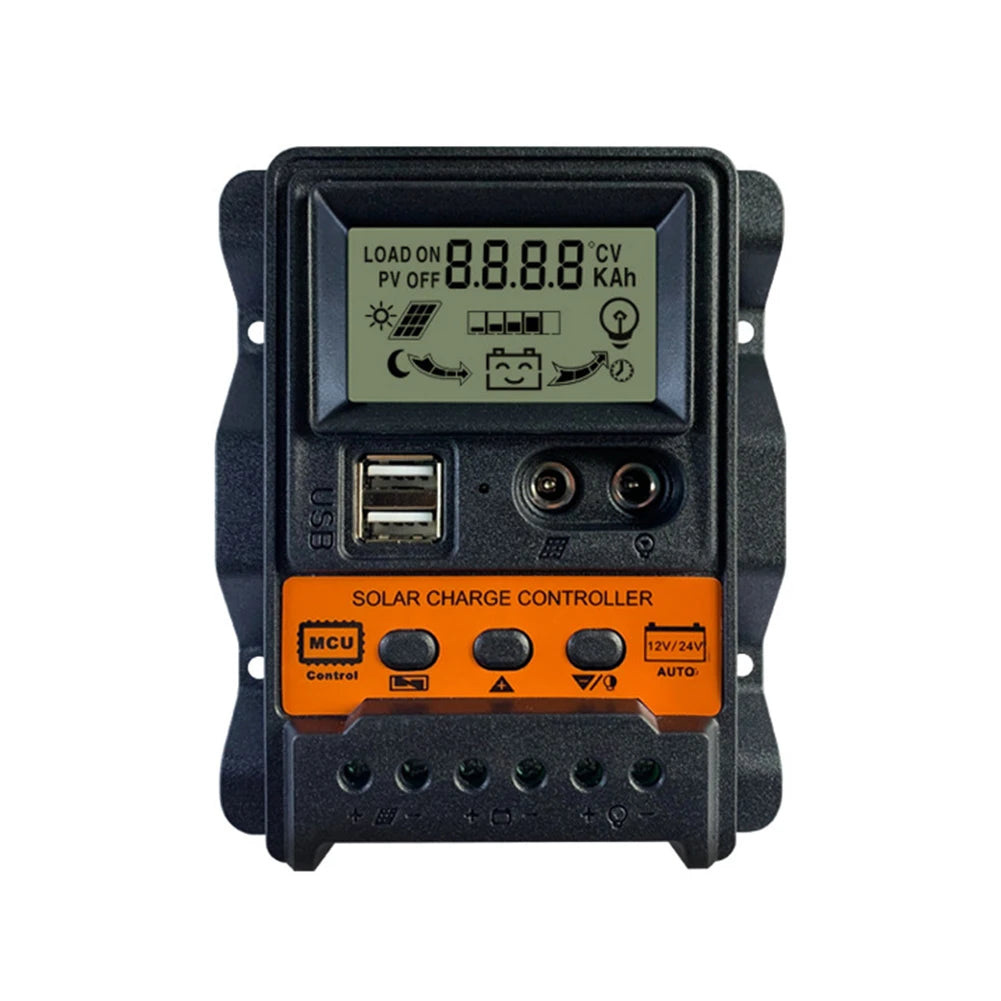

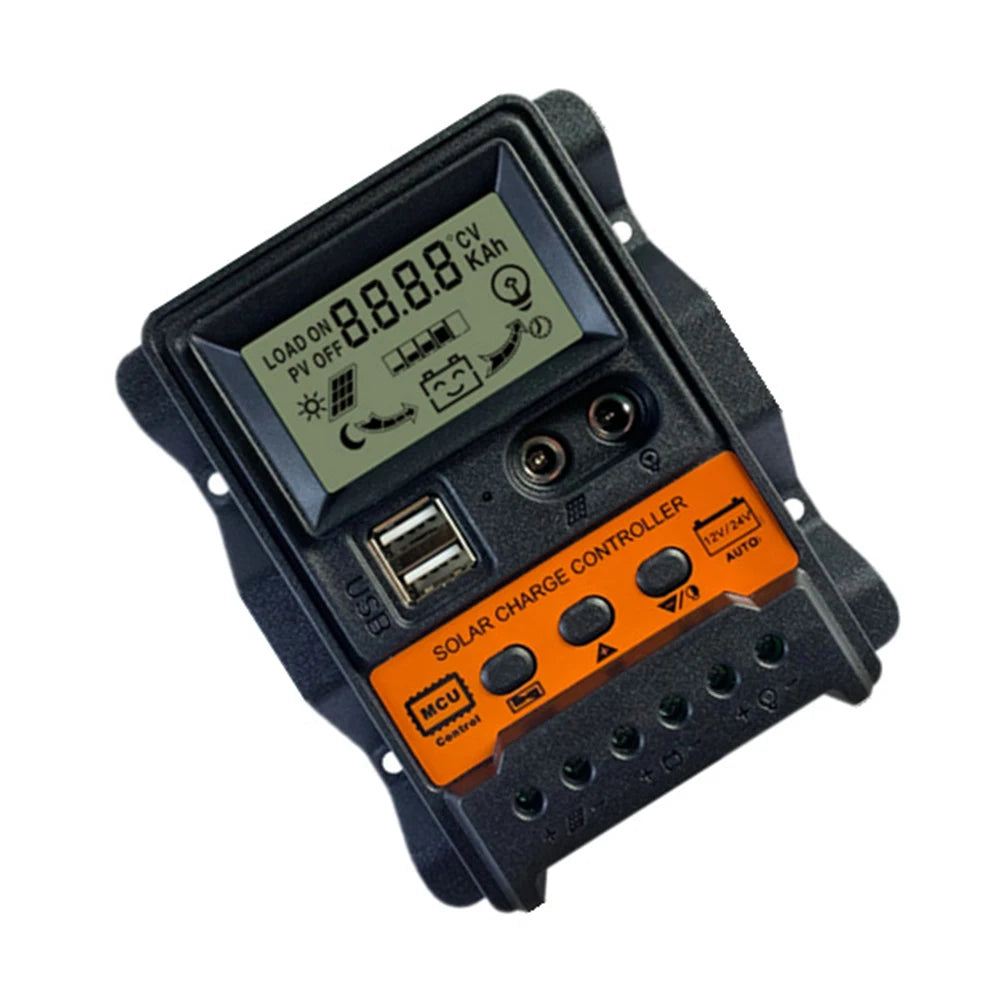

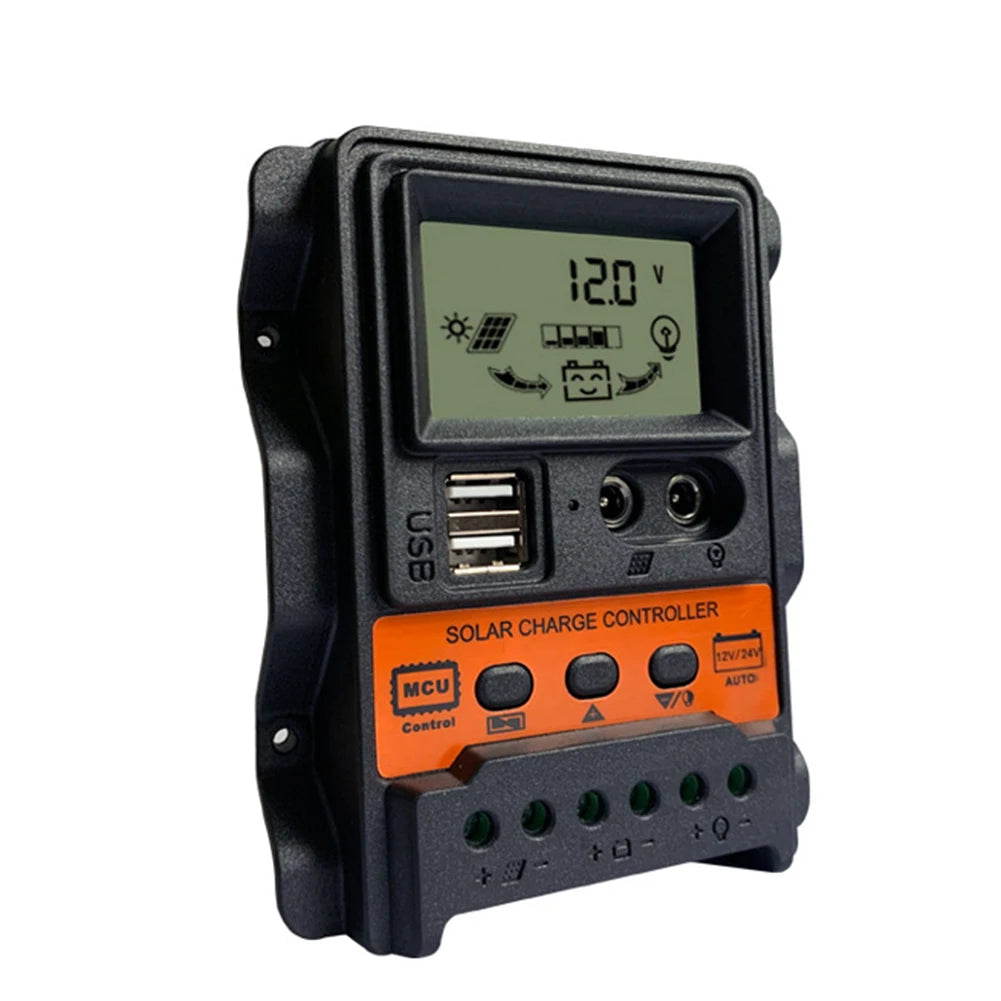

Dual USB LCD Solar Charge Controller 12/24V Solar Panel Charger Regulator Solar Cell Panel Solar Energy Charge Controller Parts

Dual USB LCD Solar Charge Controller 12/24V Solar Panel Charger Regulator Solar Cell Panel Solar Energy Charge Controller Parts

Regular price $16.30 USD
Regular price Sale price $16.30 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

Origin: Mainland China

Model Number: Solar Controller

Application: Charger Controller,Solar System Controller


Dual USB LCD Solar Charge Controller, Easy home support for your solar panel charging needs - best prices and dropshipping options available!

Easy home support for your solar panel charging needs - best prices and dropshipping options available!

Dual USB LCD Solar Charge Controller, Solar charger controller with dual USB ports for charging devices from 12V/24V solar panels.

Dual USB LCD solar charge controller for 12V or 24V solar panels, regulates energy and charges devices via two USB ports.


Dual USB LCD Display Solar Charge Controller 12V 24V Solar Panel Battery Controller Charger Regulator with Power-off Memory Function
Feature:
1. Adopt industrial-grade main control chip.
2. Large-screen LCD display; display of charging and discharging current; query of accumulated power generation and discharge; temperature display; light control + delay control; adjustable charging and discharging parameters; with functions such as power-off memory.
3. Dual USB output, maximum current up to 2.5A, support for iPhone charging.
4. Complete 3-stage charging management
5. Built-in over-current, short-circuit protection, open-circuit protection, reverse connection protection, all of which are self-healing and do not damage the controller.
6. Anti-backflow circuit, ultra-low heat generation

Specification:
Material: ABS + PC
System voltage: 12V24V automatic adaptation
Rated charging current (optional): 10A/20A/30A
Maximum photovoltaic voltage: 23V for 12V battery; 46V for 24V battery
Boost charging voltage: 14.4V
Floating voltage: 13.7V (default value, adjustable)
Discharge cut-off voltage: 10.7V (default value, adjustable)
Discharge recovery voltage: 126V (default value, adjustable)
Charging recovery voltage: 13V
Light-controlled turn-on threshold Photovoltaic panel: 8V (light-controlled turn-on has a delay)
USB output: 2 USB outputs, 5V/2.5A (maximum)
Standby current: <10mA
Working temperature: -35 - +60℃
Size: 125x112x34mm/4.92x4.41x1.34in

Recommendations for safe use:
1. This controller automatically recognizes 12V24V. When installing for the first time, please make sure that the battery has enough voltage so that the controller can recognize the correct battery type.
2. Install the controller as close to the battery as possible to avoid voltage drop caused by excessively long wires and affect normal voltage judgment.
3. This controller is only suitable for all kinds of lead-acid batteries (including openings, seals, gels, etc.).
4. This controller can only use photovoltaic panels as the charging source. Do not use DC or other power sources as the charging source.
5. The controller will heat up when it is running, please pay attention to install the controller on a flat, well-ventilated surface.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3cm measuring deviation due to manual measurement.

Dual USB LCD Solar Charge Controller, Automatically recognizes 12V and 24V power levels.
1 X Solar Controller

Dual USB LCD Solar Charge Controller, Stage 1: Detect, Stage 2: Charge, Stage 3: Maintain

Dual USB LCD Solar Charge Controller, 8V Solar Charge Controller with MCU control for efficient solar panel charging and regulation.

8V Solar Charge Controller with MCU control for efficient solar panel charging and regulation.

Dual USB LCD Solar Charge Controller, Solar charge controller with auto-control and MCU for 12V or 24V panels, outputs dual USB ports.

Dual USB Solar Charge Controller for 12V or 24V solar panels, featuring automatic control and MCUs. Output: dual USB ports. Suitable for charging batteries and devices.

Dual USB LCD Solar Charge Controller, Controller regulates and charges 12/24V solar panels with precision.

Dual USB LCD Solar Charge Controller for 12/24V solar panels, regulating and charging solar energy with precision.

Dual USB LCD Solar Charge Controller, Dual USB LCD solar charger controller displays currents and regulates solar charging.

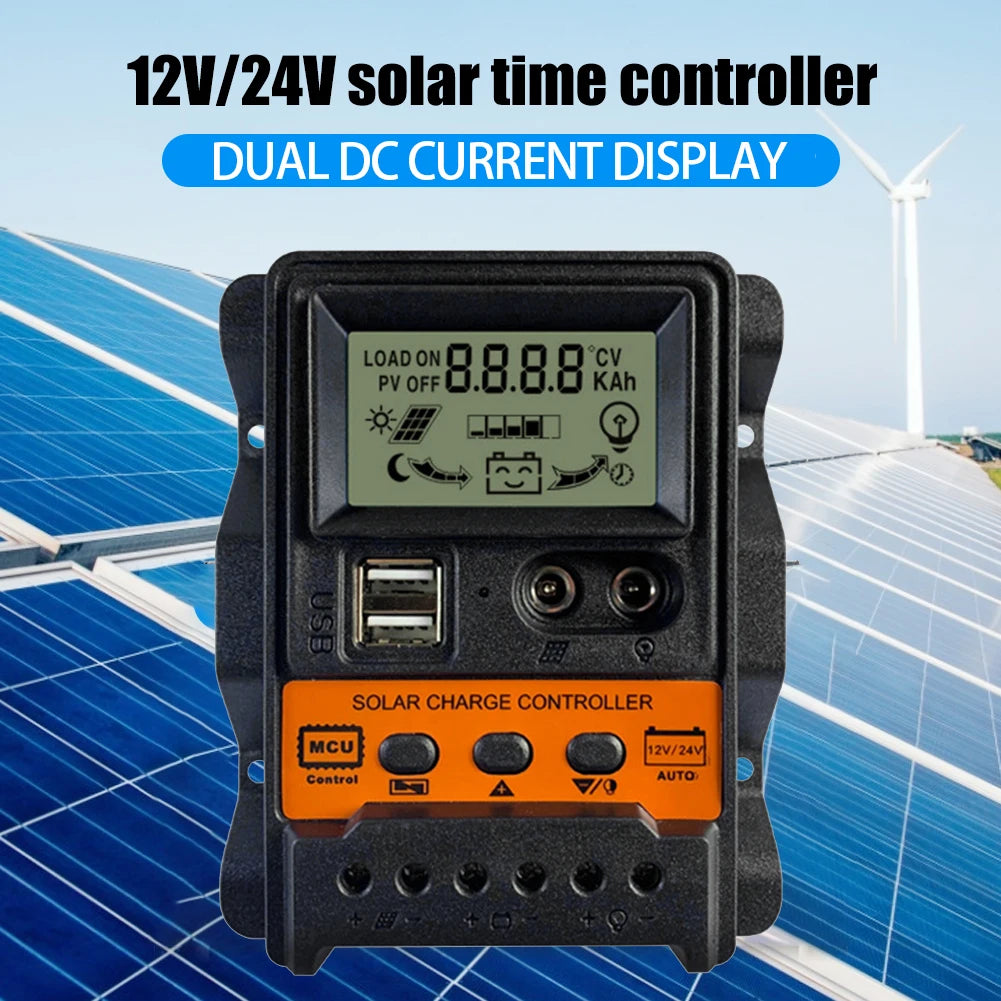

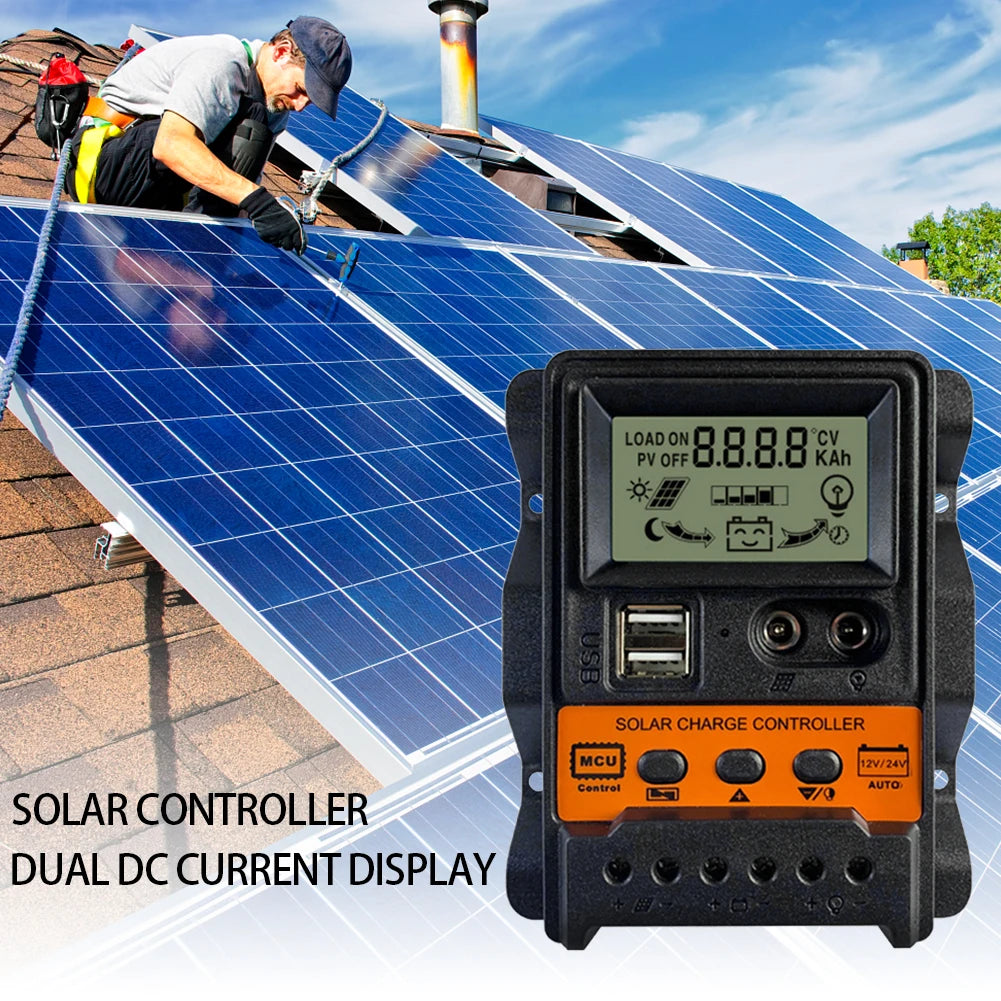

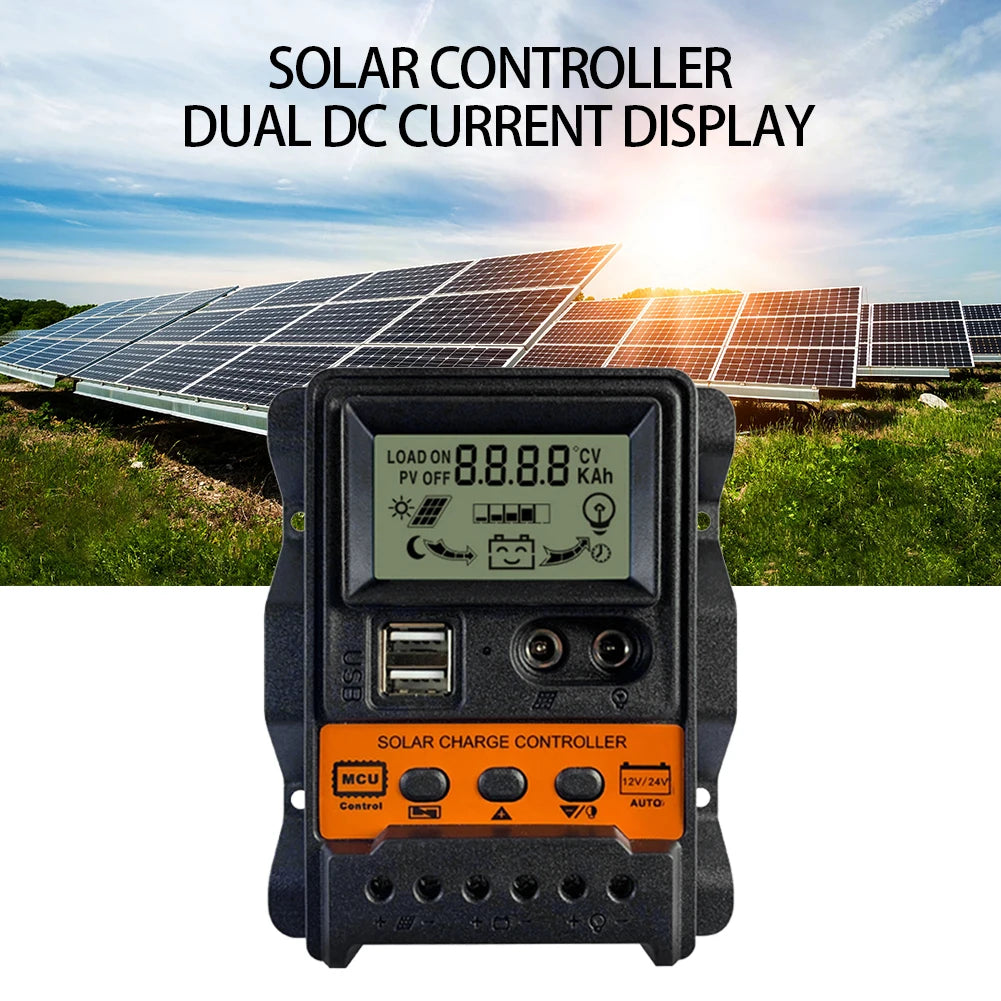

Dual USB LCD Solar Charge Controller: Display dual DC currents, monitor load, and regulate solar charging with CV/PV mode (12V/24V).

Dual USB LCD Solar Charge Controller, Solar charge controller for 12V or 24V systems with dual DC current display and load control features.

Dual USB LCD Solar Charge Controller for 12V or 24V systems displays dual DC current and features load control, CV/CC mode, and PV off. MCU-controlled with a voltage range of 12V to 24V.

Dual USB LCD Solar Charge Controller, Solar charge controller with auto-control, dual USB ports, and high-capacity loading for efficient energy harvesting.

Dual USB LCD Solar Charge Controller: A 12V/24V solar panel charger with automatic control, featuring dual DC current display and 570-hour load capacity. MCU controlled for efficient energy harvesting.

Dual USB LCD Solar Charge Controller, Solar charge controller with MCU and MPPT tech for efficient energy harvesting and charging.

80A max current, 12V/24V output, solar charge controller with MCU and MPPT technology for efficient energy harvesting and charging.

Dual USB LCD Solar Charge Controller, Solar charge controller for 12V/24V solar panels with auto-control and monitoring.

Dual USB LCD solar charge controller for 12V or 24V solar panels, featuring auto-control and monitoring functions.

Dual USB LCD Solar Charge Controller, Efficient charging and battery protection system with auto-regulation for solar panels.

830 Solar Charge Controller with Auto-Regulation for efficient charging and protection of solar panels and batteries.

Dual USB LCD Solar Charge Controller, Allow 1-3cm measurement variation due to manual measurement.

Dual USB LCD Solar Charge Controller, Solar-powered dual USB charger for 12/24V panels, monitors energy output and charges devices.

Dual USB LCD solar charge controller for 12/24V solar panels, charges devices while monitoring energy output.
