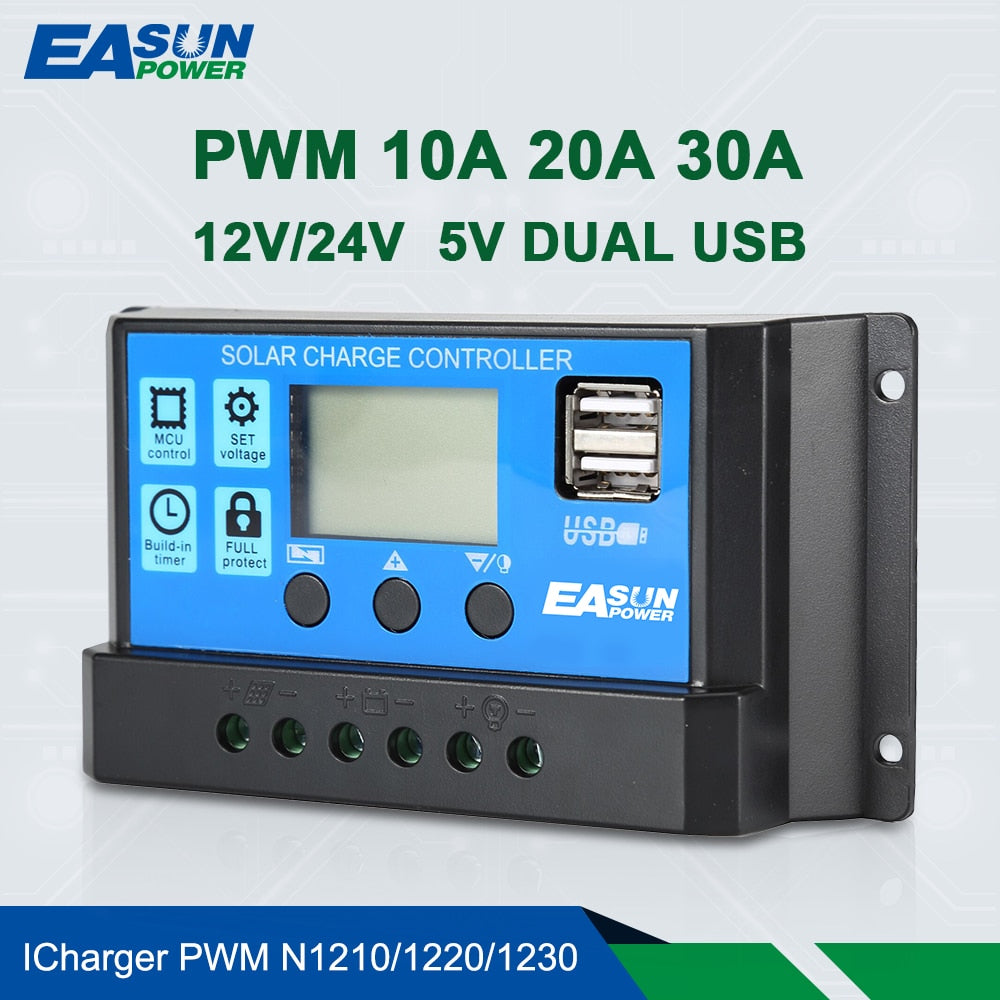

EASUN POWER Solar Controller 12V/24V 60A 50A 40A 30A 20A 10A Solar Regulator PWM Battery Charger LCD Display Dual USB 5V Output

EASUN POWER Solar Controller 12V/24V 60A 50A 40A 30A 20A 10A Solar Regulator PWM Battery Charger LCD Display Dual USB 5V Output

Regular price $14.52 USD
Regular price Sale price $14.52 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

USB output: Dual 5V

Self-consume: Less than 10mA

Origin: Mainland China

Model Number: ICharger PWM N1210/1220/1230

Maximum Current: 60A/50A/40A/30A/20A/10A

Max Solar input: 50V(24V battery) 25V(12V battery)

Low voltage reconnect voltage: 12.6V(defaul,adjustable)

Low voltage disconnect voltage: 10.7V(defaul,adjustable)

Float charge: 13.7V(defaul,adjustable)

Charging current: 60A/50A/40A/30A 20A 10A

Brand Name: EASUN POWER

Application: Charger Controller,Voltage Controller,Solar System Controller,Lighting Controller

Application: Charger Controller,Solar System Controller,Solar Regulator,

24V 12V Auto Solar Panel Battery Charge Controller 30A 20A 10A PWM LCD Display Solar Collector Regulator with Dual USB Output

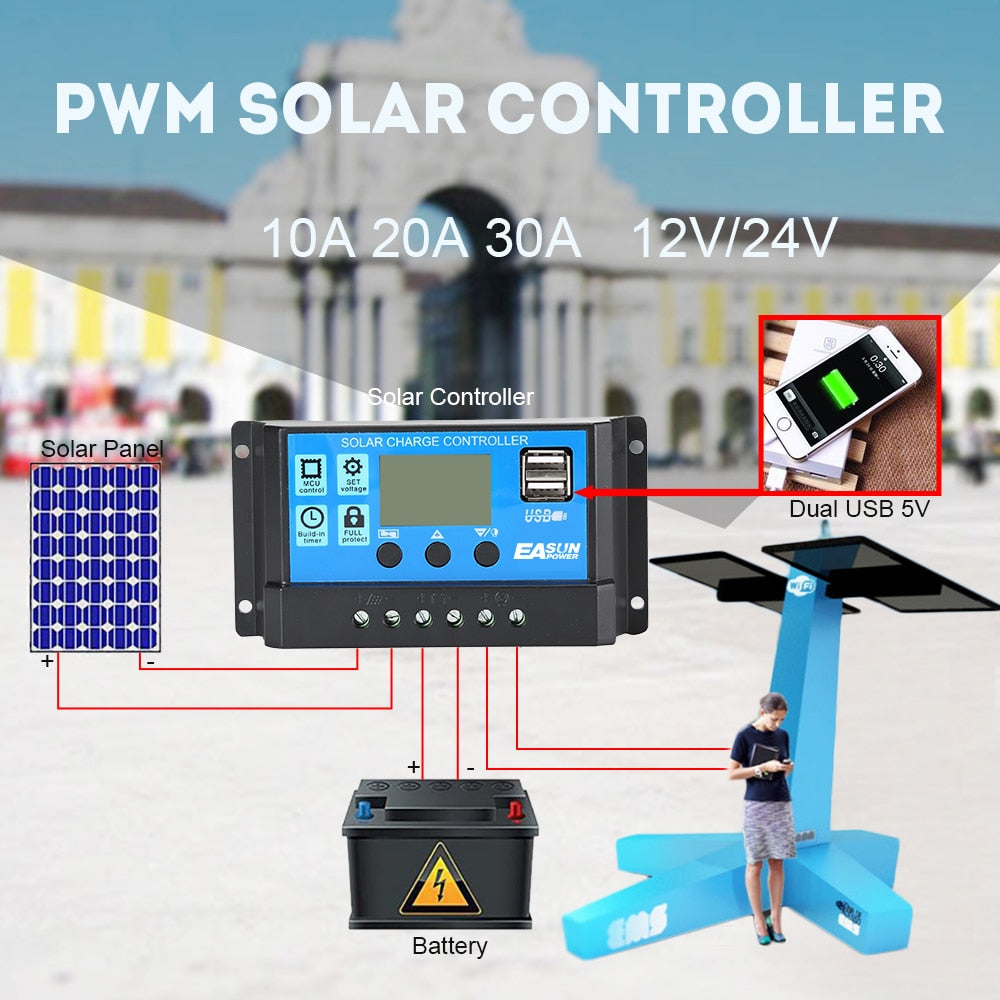

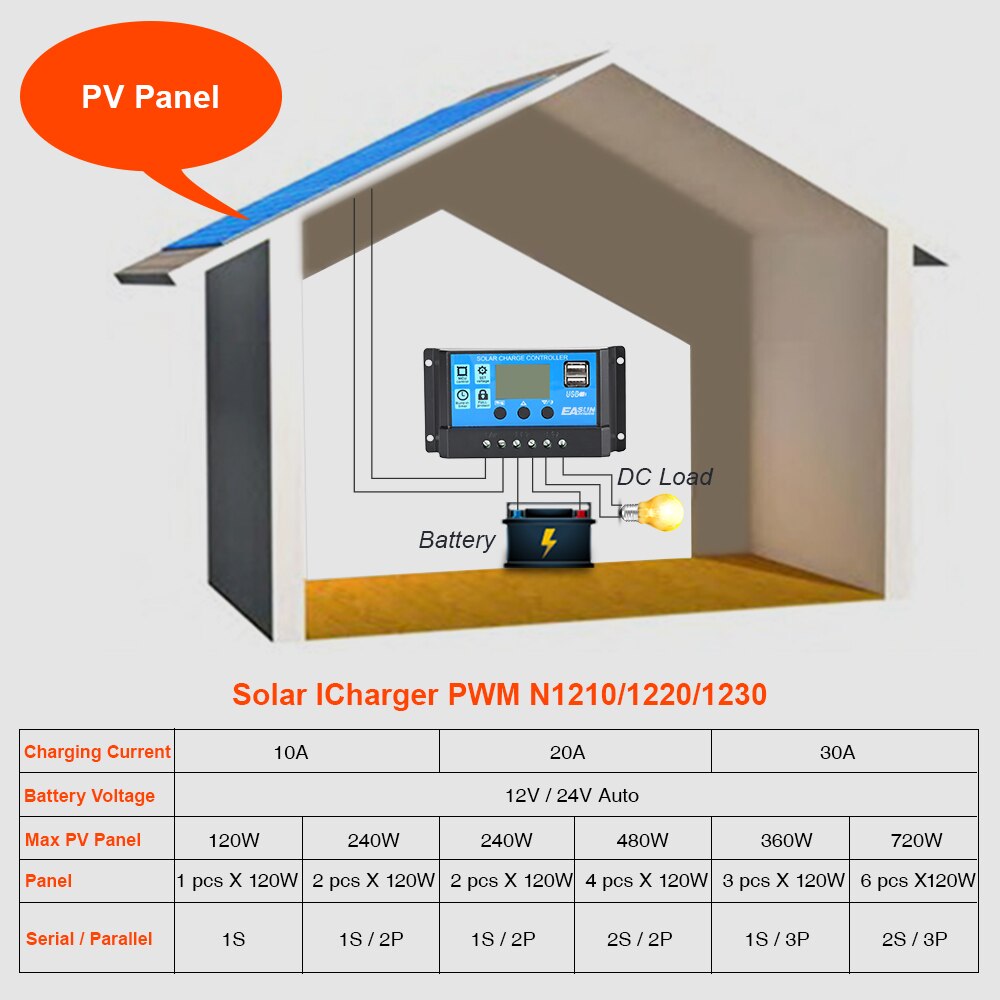

SYSTEM CONNECTION
1. Connect the battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the charge regulator-plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically

There are optional 10A 20A 30A model

10A:

if your battery is 12V ,the max solar panel input is 25V  120W

if your battery is 24V ,the max solar panel input is 50V  240W

20A:

If your battery is 12V, the max solar panel input is 25V   240W

if your battery is 24V, the max solar panel input is 50V   480W

30A

if your battery is 12V ,the max solar panel input is 25V   360W

if your battery is 24V ,the max solar panel input is 50V   720W

Features:

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

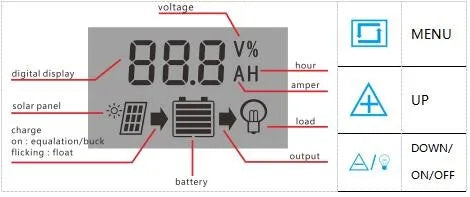

Display:

Easun Power Solar Controller with LCD display and adjustable settings.

MENU:switch between different display,or to enter/exit setting by long press.

UP:   press to increase value.

DOWN:presss to decrease value.

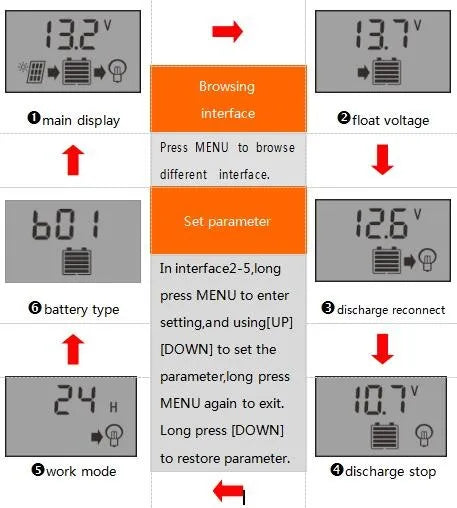

Setting:

EASUN POWER Solar Controller with LCD display and dual USB ports for solar charging system management.

1.press the [Down] button to ON/OFF load manully at main display.

2.the work mode is working as below:
[24H]      load output 24hours
[1-23H]    load on after sunset and closed after setting hours
[0H]       Dusk to dawn

MODEL

ICharger PWM 10A

ICharger PWM 20A

ICharger PWM 30A

ICharger PWM 40A

ICharger PWM 50A

ICharger PWM 60A

Battery Voltage

12V 24V Auto

Charging Current

10A

20A

30A

40A

50A

60A

Discharging Current

10A

10A

10A

20A

30A

30A

Max Solar input

50V(for 24V battery) 25V(for 12V battery)

Equalization

14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Float charge

13.7V(defaul,adjustable)

Discharge stop

10.7V(defaul,adjustable)

Discharge reconnect

12.6V(defaul,adjustable)

Charge reconnect

13V

Voltage of open light

    Solar Panel 8V(Light lights delay)

Voltage of close light

Solar Panel 8V(Light off delay)

USB output

5V/3A

Self-consume

<10mA

Operating temperature

-35°C~+60°C

Size

133.5*70*35mm

133.5*70*35mm

*all red color voltage X2 ,while using 24V system.

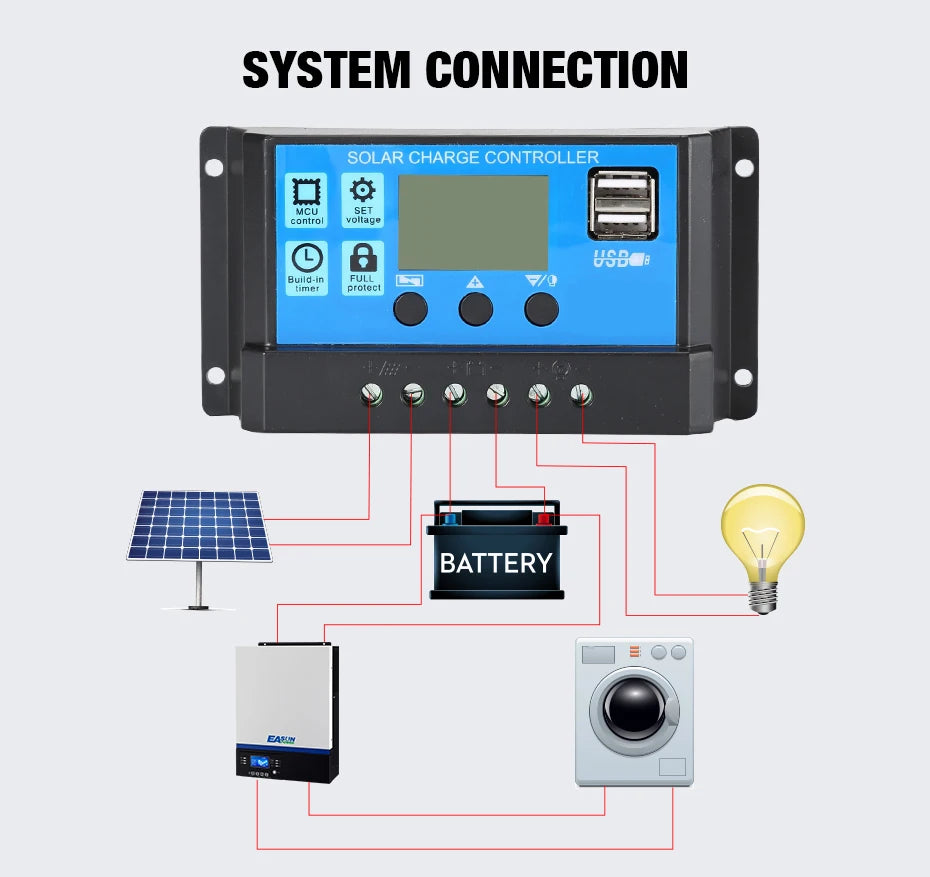

Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!

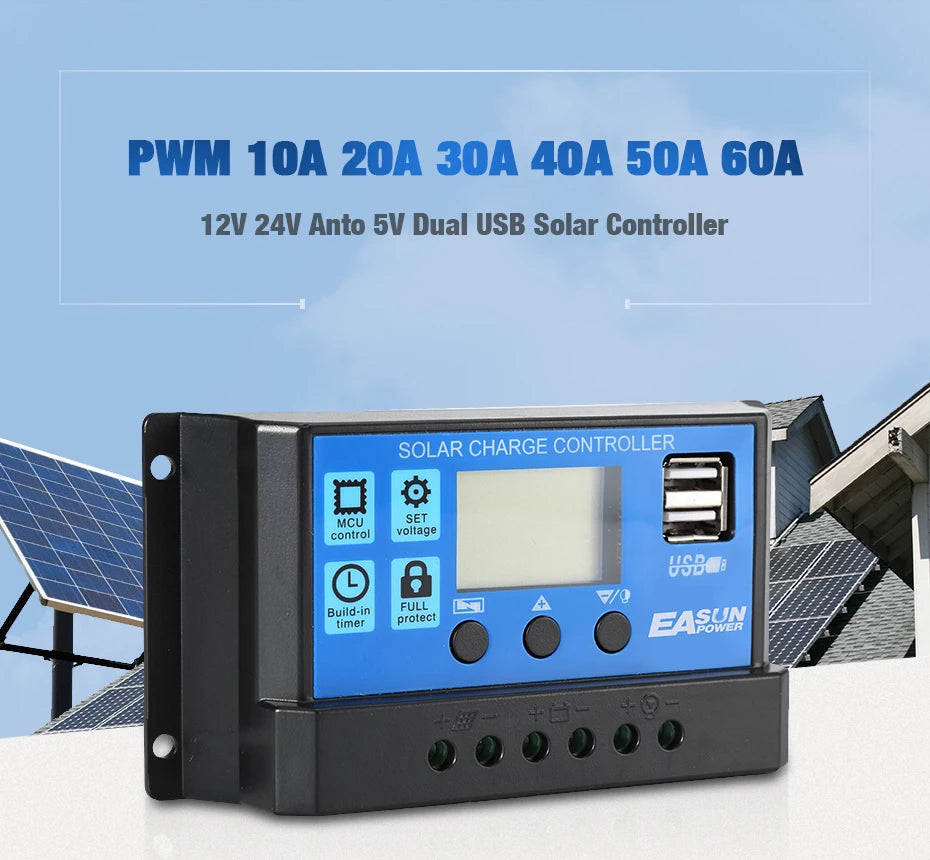

EASUN POWER Solar Controller, Solar controller regulating 12V/24V power up to 60A with LCD display and USB outputs.

Easun Power's solar controller regulates 12V/24V power up to 60A, with PWM technology and LCD display. Features include dual 5V USB outputs, built-in protection, and MCU control. Perfect for solar charge controllers and battery charging systems.

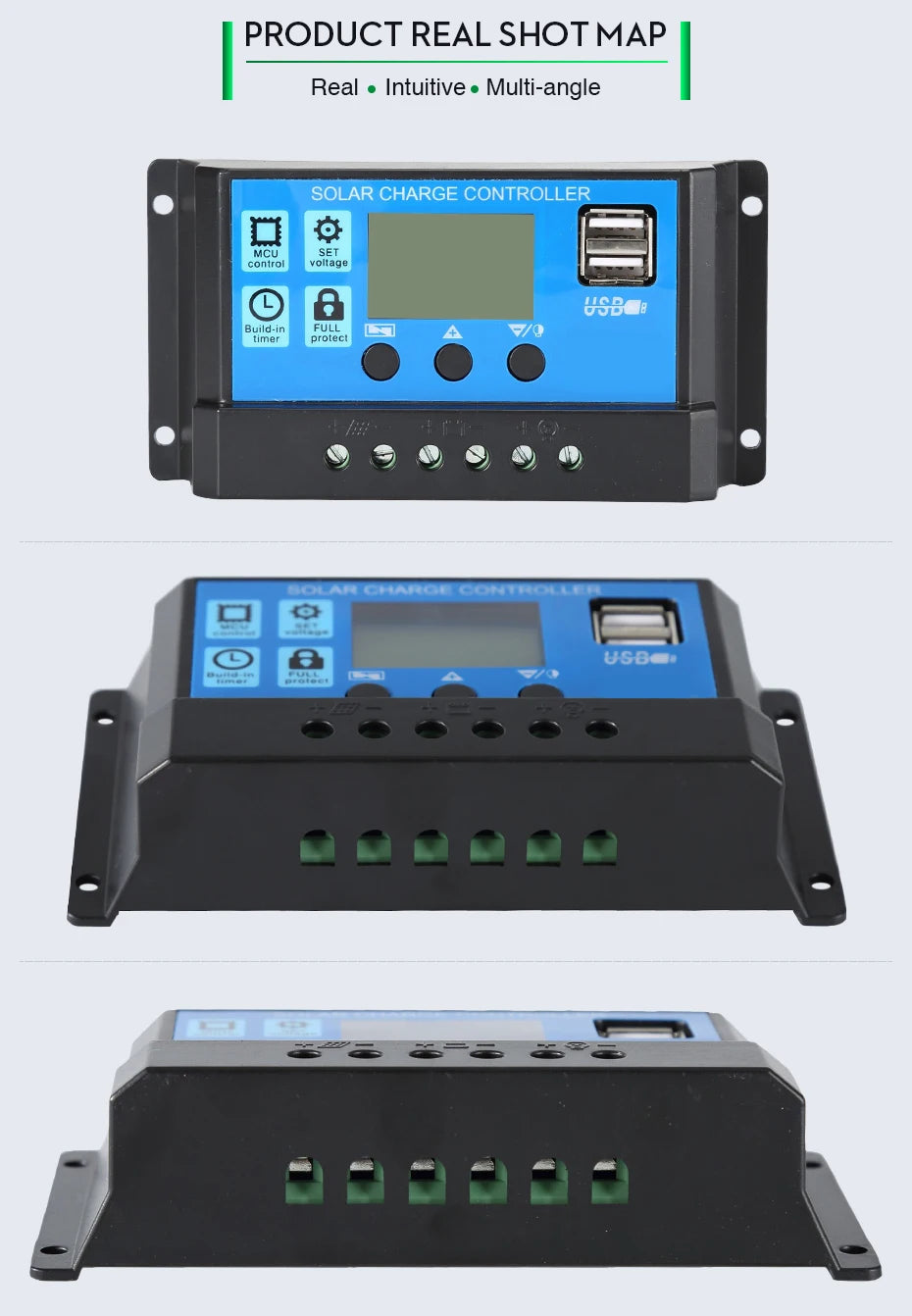

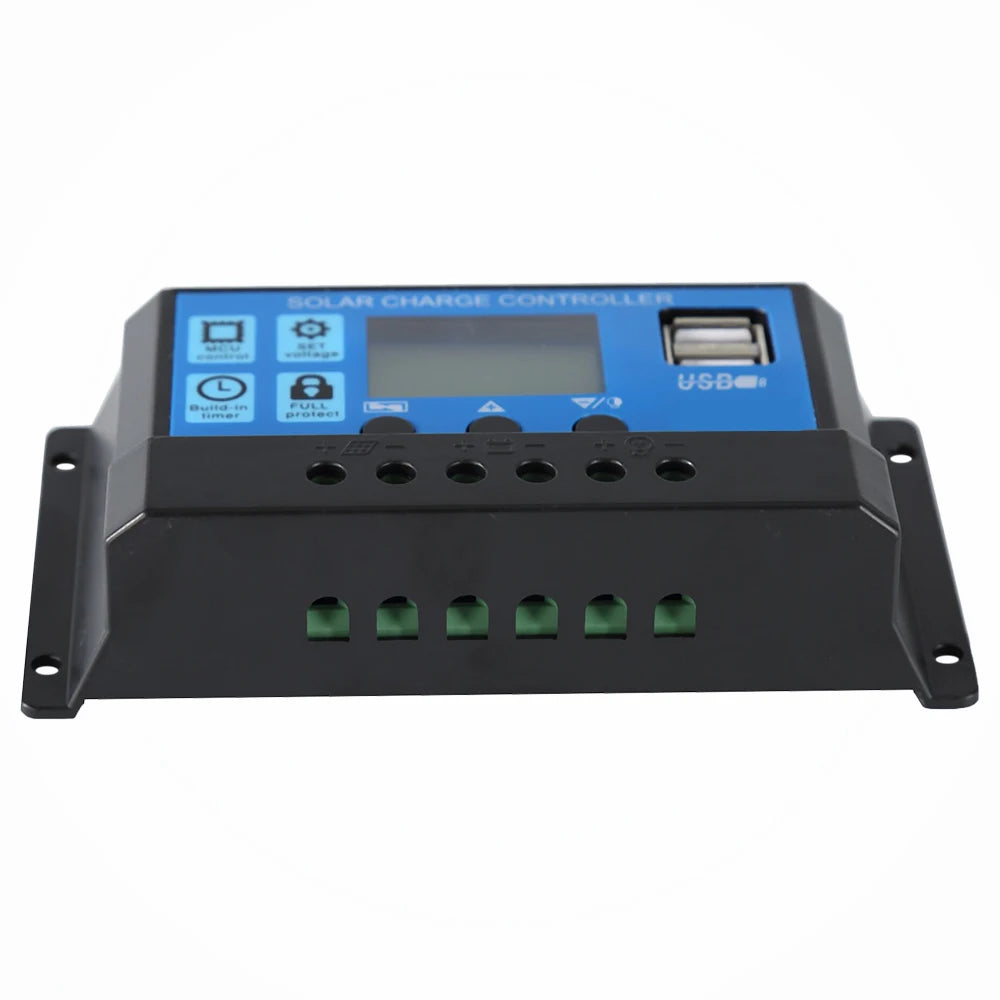

EASUN POWER Solar Controller, Improper sequence order can damage controller.EASUN POWER Solar Controller, Solar controller with real-time monitoring, multiple angles, and full protection features, including overcharge/undervoltage protection and an LCD display.

Easun Power Solar Controller: A real-time, multi-angle solar charge controller with built-in MCU, full protection (overcharge/undervoltage), and LCD display for intuitive monitoring.

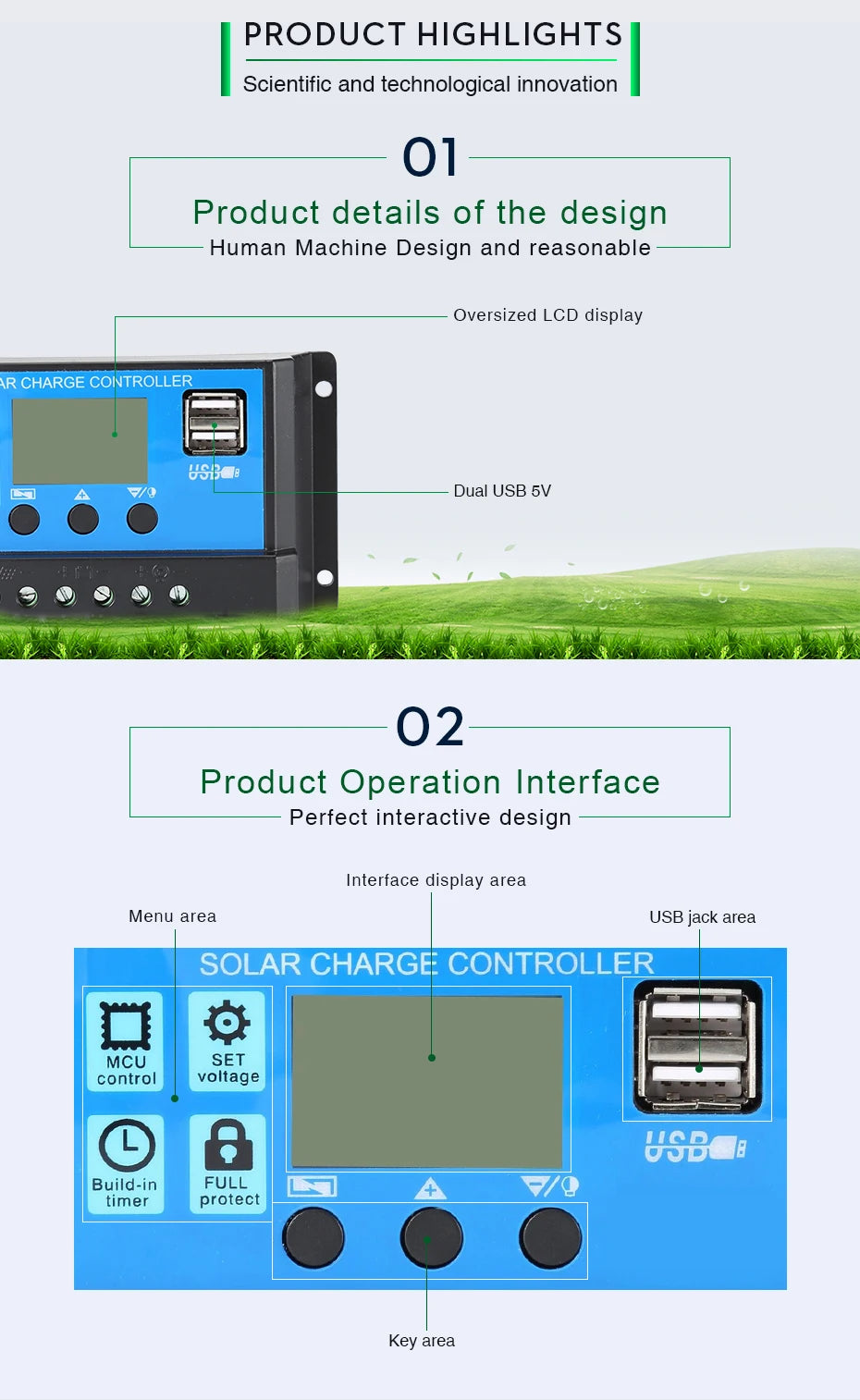

EASUN POWER Solar Controller, Innovative solar controller with large LCD display, dual USB ports, and built-in timer/voltage controls for safe charging.

EASUN POWER Solar Controller Highlights: * Innovative design with oversized LCD display and intuitive interface * Perfectly interactive menu system for easy operation * Dual USB ports with 5V output for charging devices * Built-in timer and voltage control features for safe and efficient solar charging

EASUN POWER Solar Controller, Microcontroller-controlled solar charge controller for 8S8818 modules, suitable for full bridge rectifiers and battery charging.

Solar charge controller with MCU control and voltage regulation, compatible with 8S8818 modules, suitable for full bridge rectifier and battery charging applications.

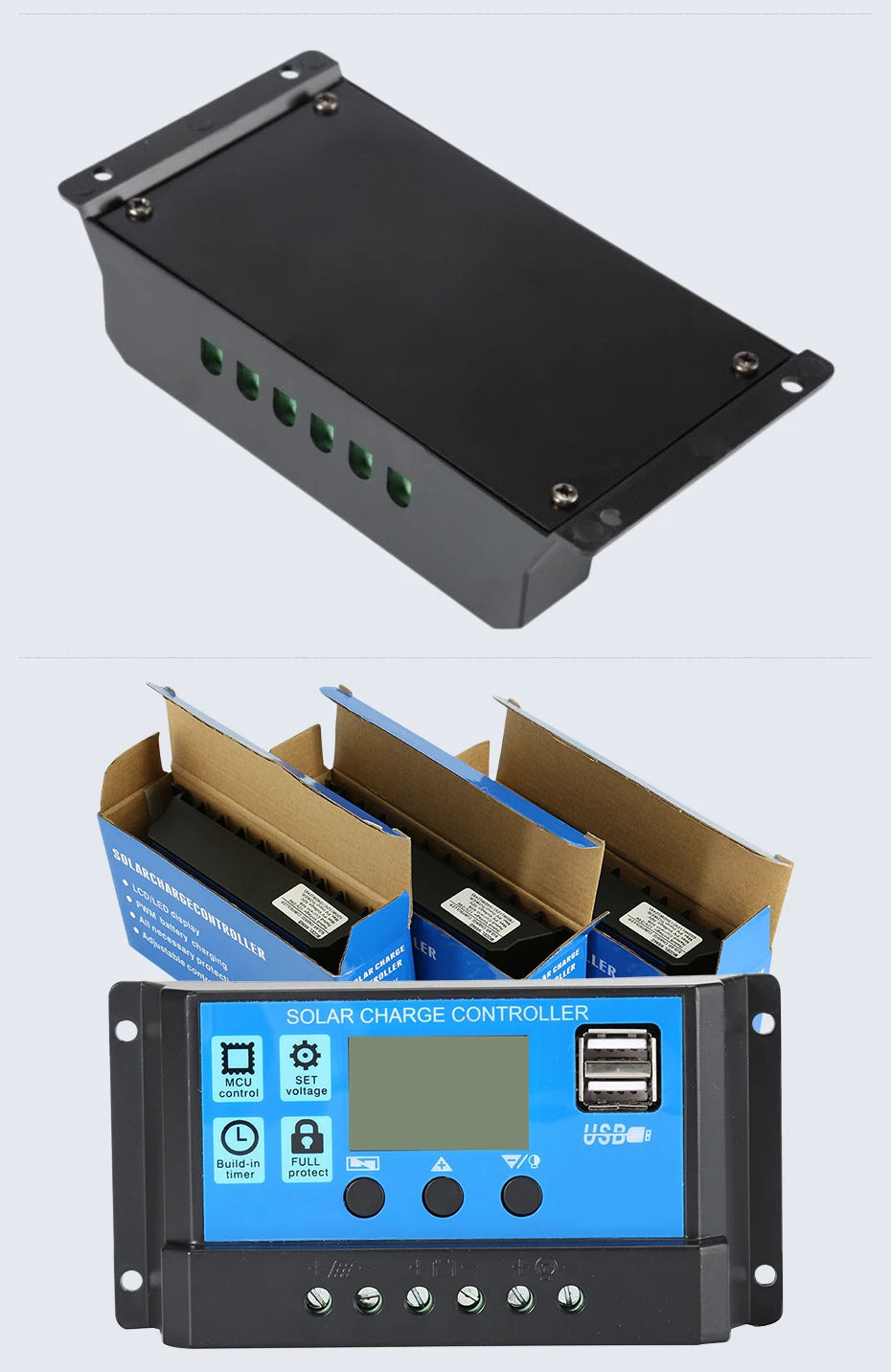

EASUN POWER Solar Controller, Solar power controller with LCD display, dual USB ports, and timer, protects batteries from overcharging/discharging/reverse polarity.

Easun Power Solar Controller regulates solar power, charges batteries, and features LCD display, dual USB ports (5V), and built-in timer with full protection against overcharge, over-discharge, and reverse polarity. Maximum current: 60A/50A/40A/30A/20A/10A.

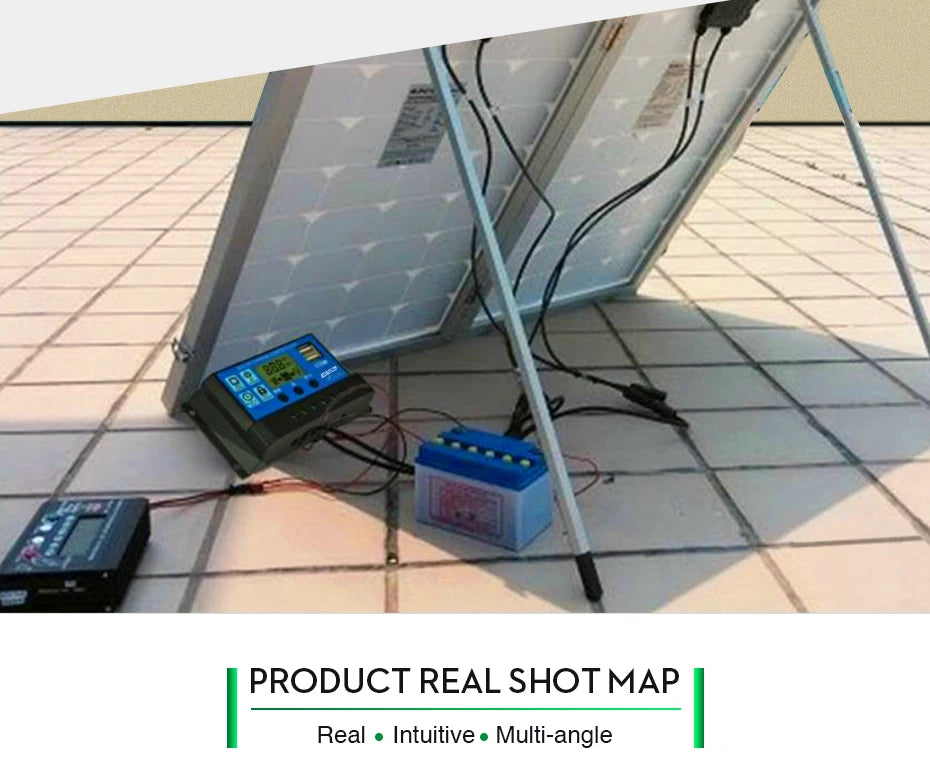

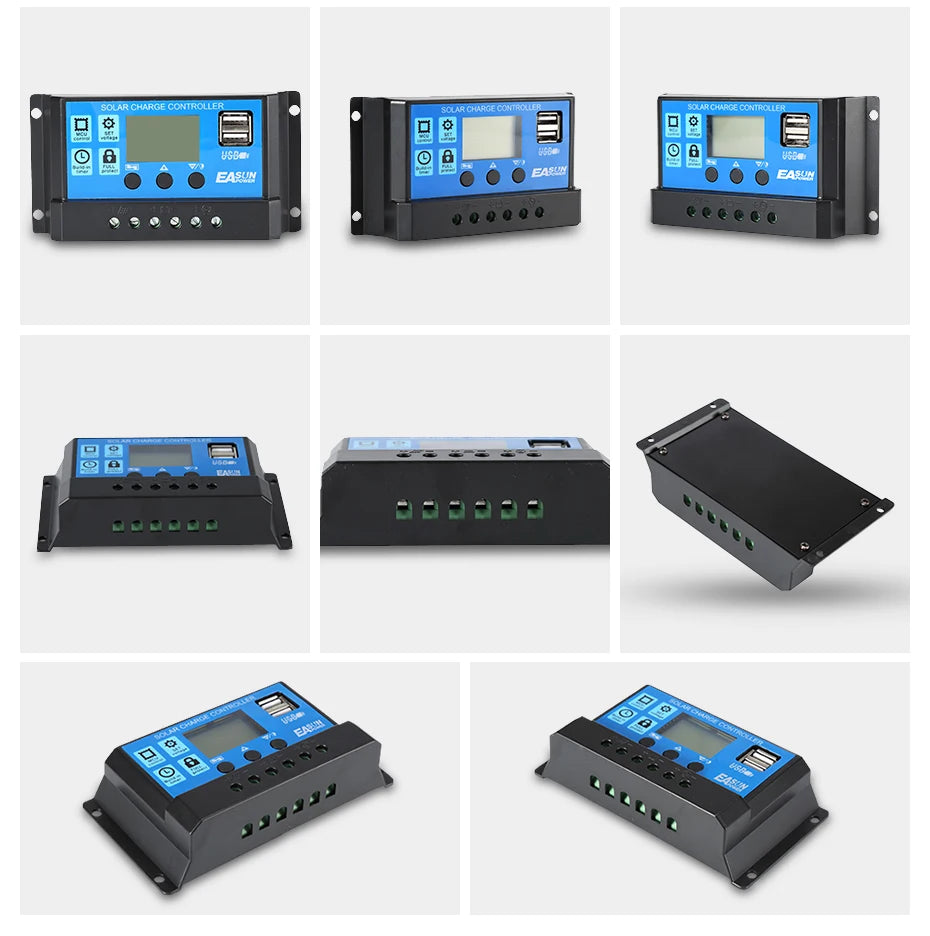

EASUN POWER Solar Controller, Product shot map: Real-time, intuitive multi-angle view for easy visualization.EASUN POWER Solar Controller, Solar controller with PWM charging, LCD display, and USB ports for safe and efficient solar panel power management.

WARRANTY/QUALITY:

  • CE certified.

  • 100% QC before shipment.

  • Standard 1 year product warranty

  • Warranty will cover only items that are deemed to fail under normal usage. Accidental damage due to environmental causes or incorrect usage and installation will not be covered in warranty (but still serviceable

  • Contact us directly for warranty issue.
