EPEVER MPPT Solar Charge Controller Tracer AN BN Series Remote Meter Auto Real-Time Display System Voltage 10A~40A 12V/24Vdc
EPEVER MPPT Solar Charge Controller Tracer AN BN Series Remote Meter Auto Real-Time Display System Voltage 10A~40A 12V/24Vdc
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Self-consumption: Backlight and acoustic alarm on<65mA Backlight on<23mA
Origin: Mainland China
Model Number: MT50
Model: MT50
Meter cable: Standard 2m, max .50m
Maximum Current: 15mA
Is_customized: Yes
Is Smart Device: YES

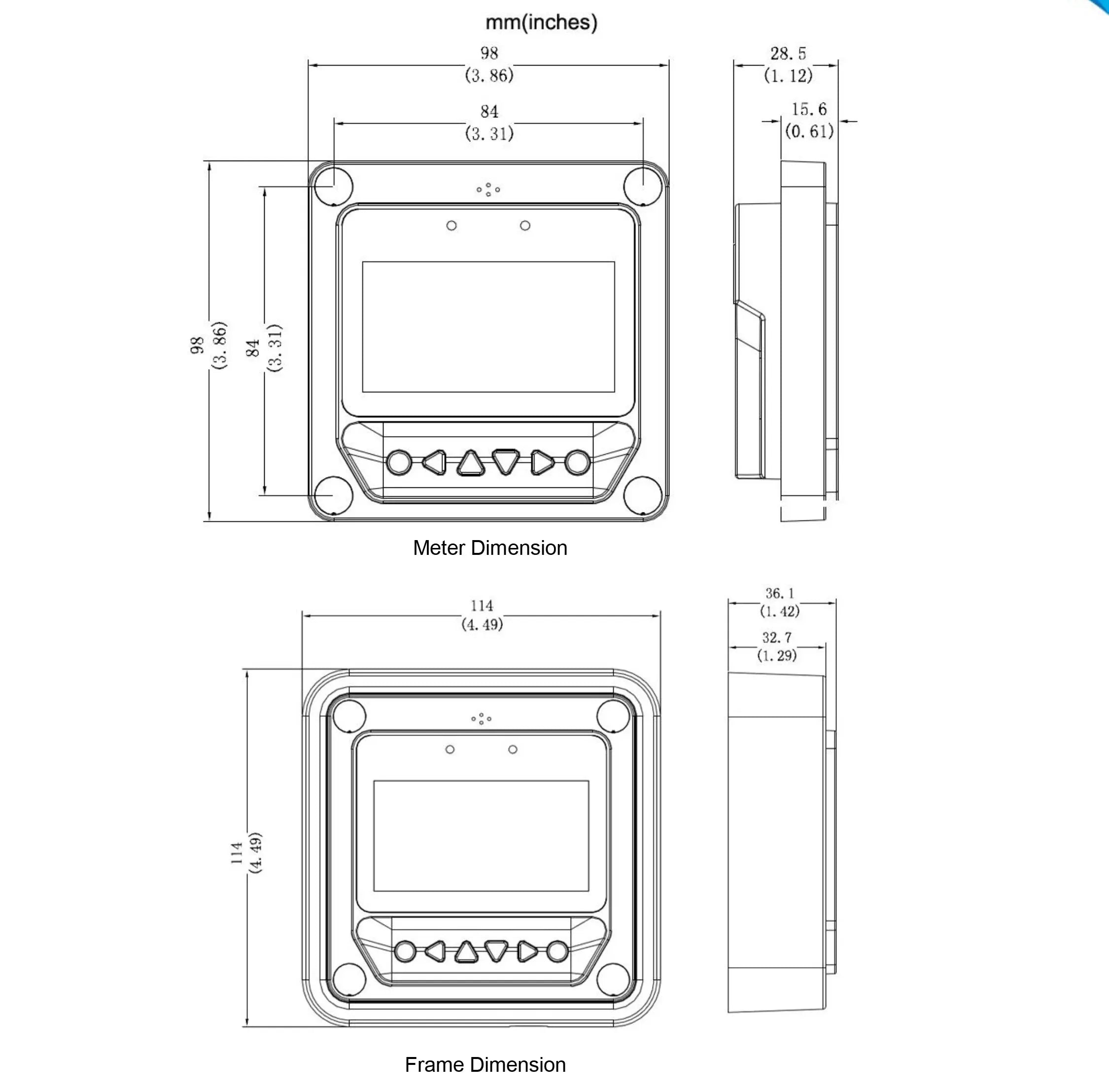

Frame dimensions: 114*114 mm / 4.49*4.49 in
Faceplate dimensions: 98*98 mm / 3.86*3.86 in
Connector type: RJ45
Certification: CE,FCC,RoHS
Brand Name: EPever
Application: Charger Controller,Solar System Controller,Lighting Controller,Thermal Controller
Application: Remote meter

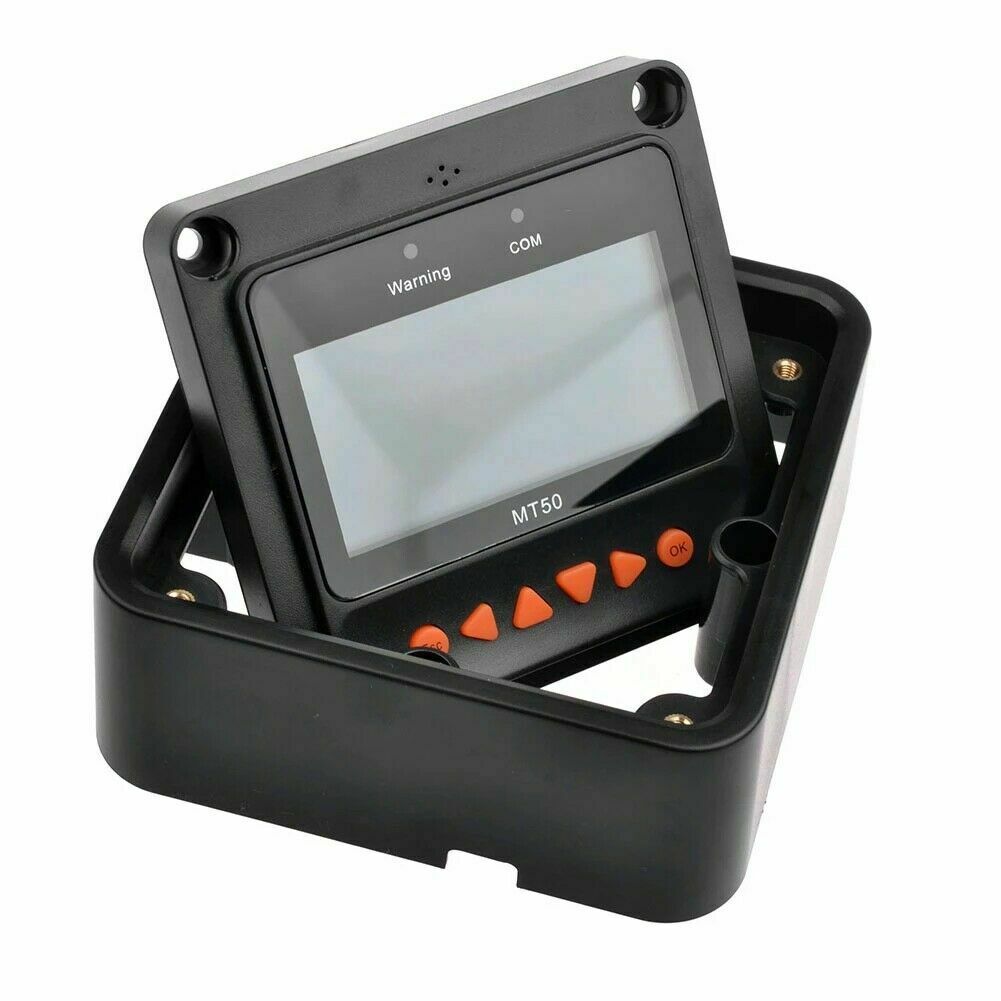

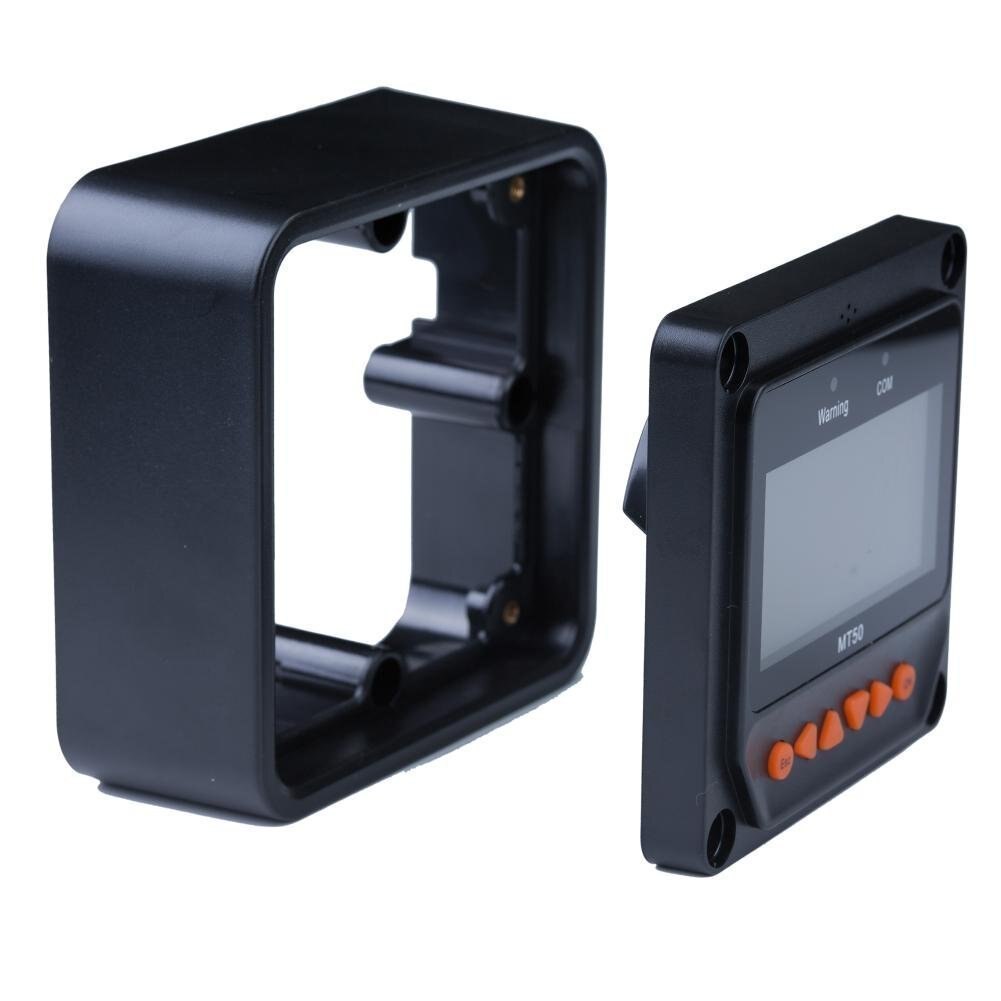

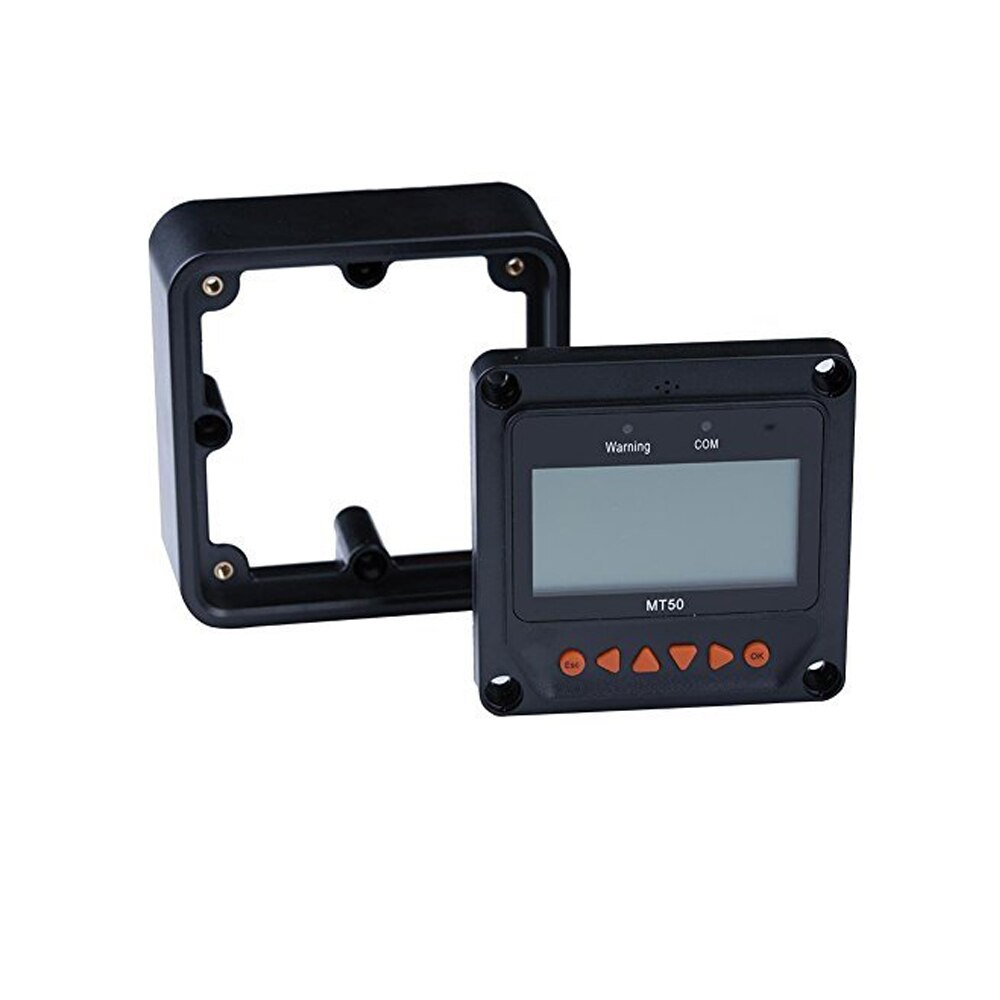

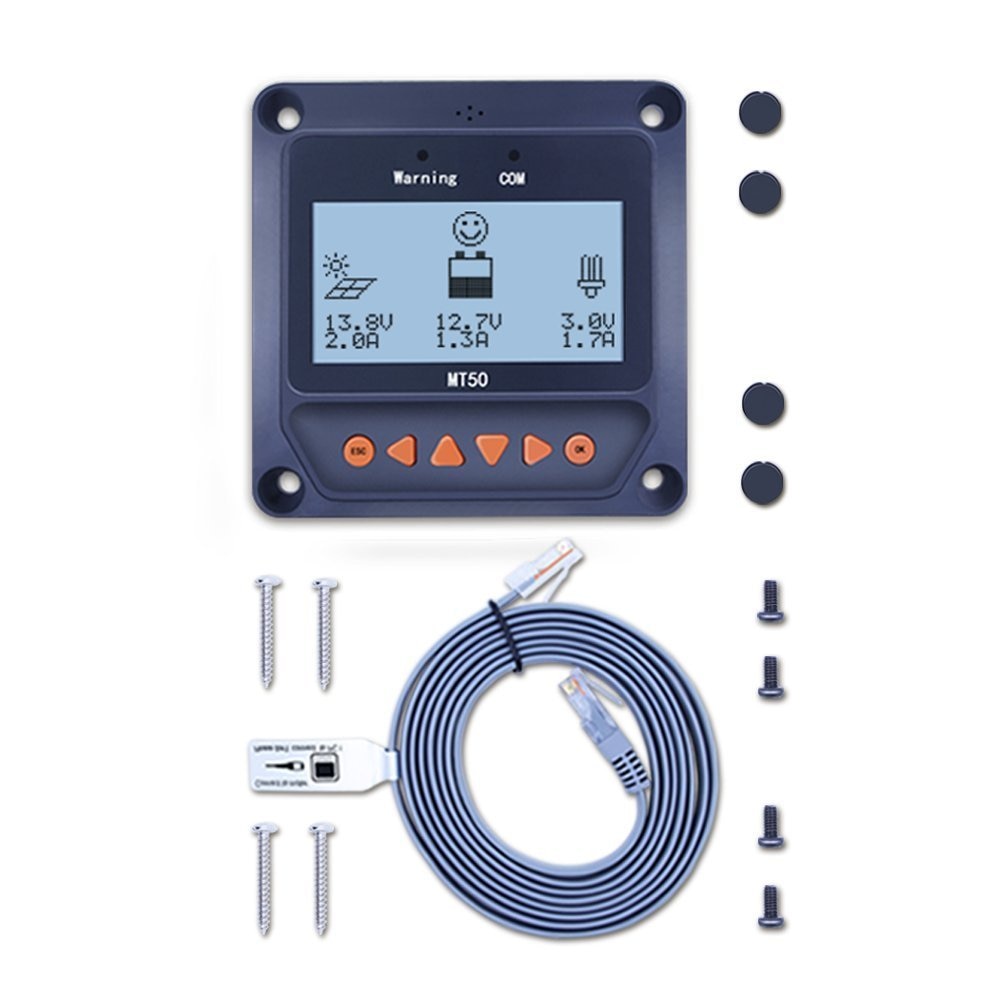

EPEVER MT50
Remote Meter for Tracer AN BN TRIRON XTRA VS-AU Series
MPPT PWM Solar Charge Controller Real-Time Display
>>Overview
The new-generation remote display unit MT50 is an associated display device which supports both the latest communication protocol and the voltage technology standard of solar controllers.
>>Function

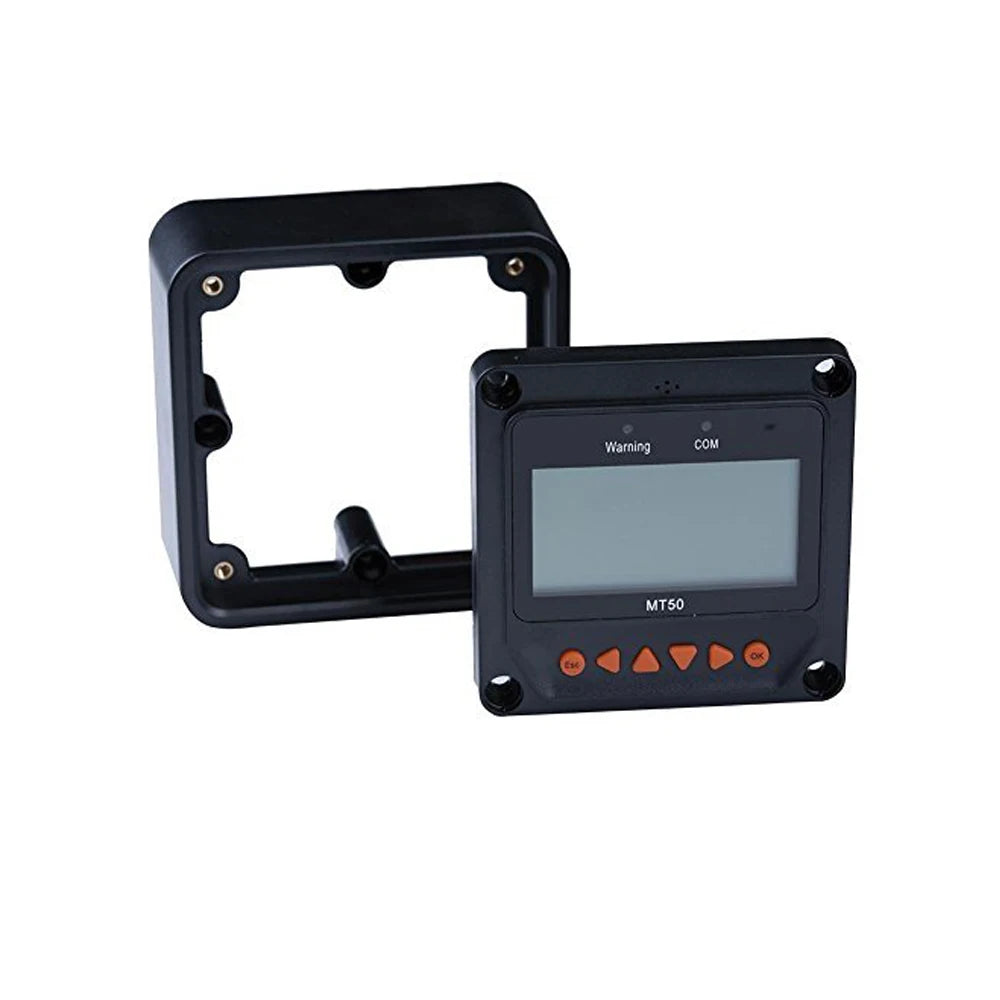

Tracking Speed and tracking efficiency.
-
See exactly and multiple sockets.
-
Reliable automatic limit function of max PV input power, ensure no load.
-
12/24VDC automatically identifies system voltage.
-
Multiple Load Control Modes: Manual mode, lights on/off, light on + Timer and test mode.
-
With RS485 communication bus interface and Modbus communication protocol, there are different communication meet in different situations.
More powerful function Via MT50
Diversified load control modes: manual, light ON/OFF, Light ON+ Timer, Time Control
Battery type selection: Gel, sealed, flooded, and USER type
Real-time monitor
Energy display function
>>Specifications
Self-consumption |
Backlight and acoustic alarm ON<65mA Backlight ON<23mA Backlight OFF<15mA |
Faceplate dimensions |
98×98 mm |
Frame dimensions |
114×114 mm |
Connector type |
RJ45 |
Meter cable |
Standard 2m, Max 50 m |
Meter weight |
Simple package: 0.23 Kg Standard package:0.32 Kg |
Ambient temperature |
-20℃~+70℃ |

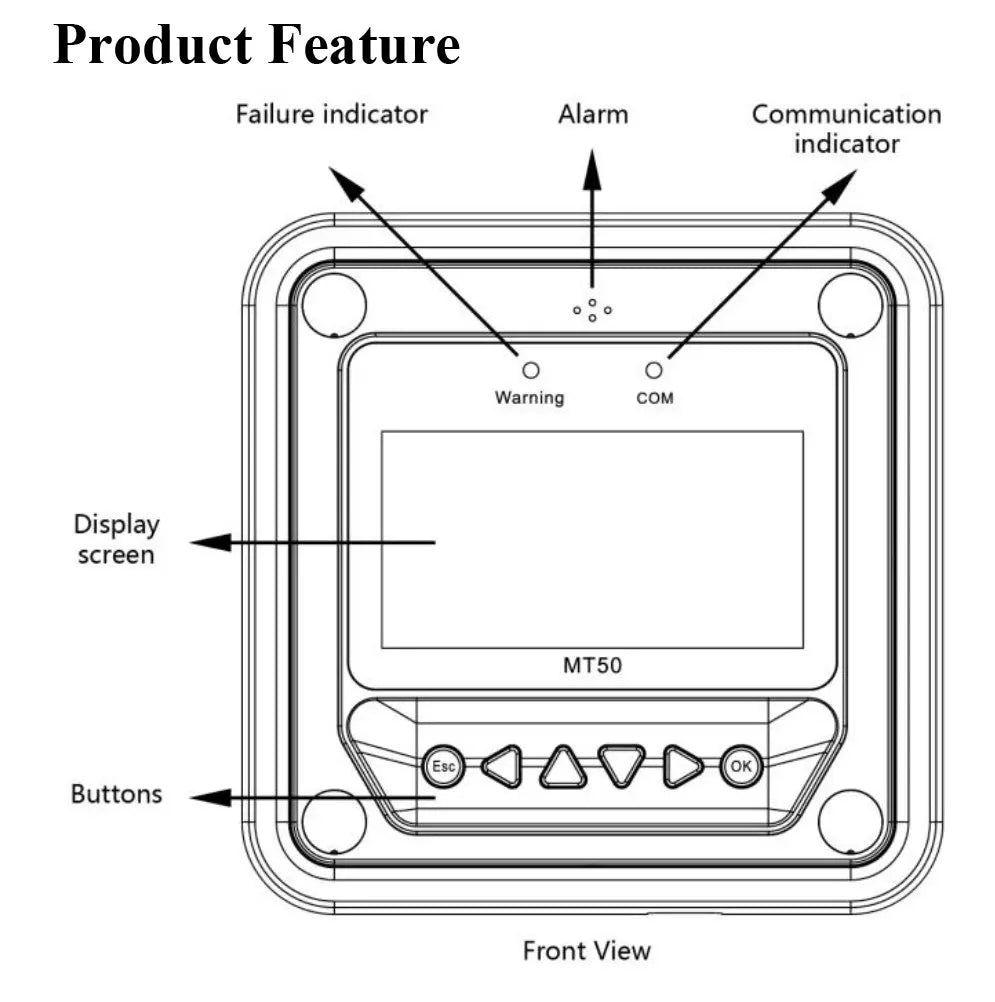

EPEVER MPPT Solar Charge Controller features include failure indicators, alarms, communication alerts, and warning displays on a clear screen with 10 buttons for easy control.

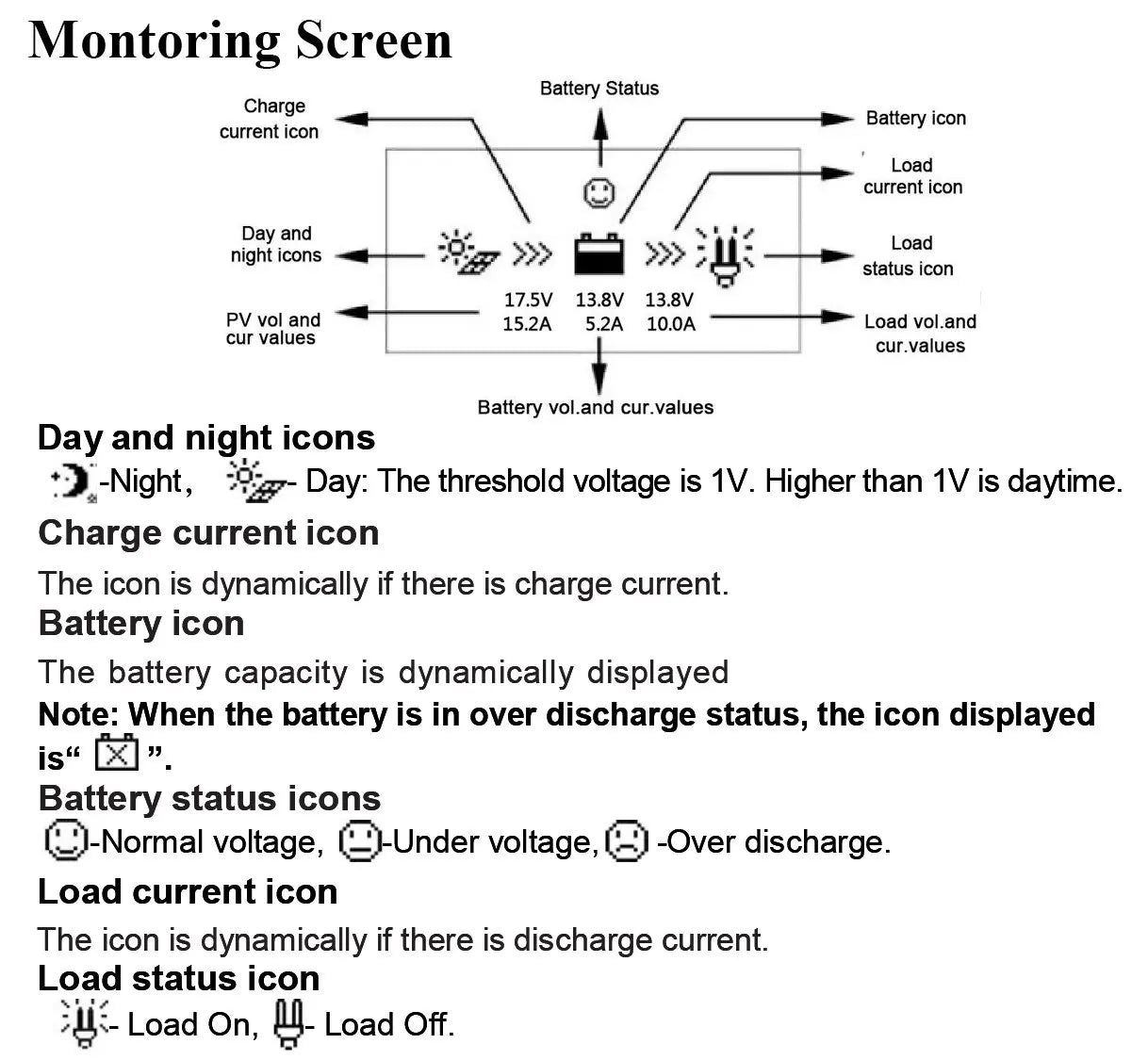

The remote meter display system shows real-time information, including battery status (icon displayed dynamically), charge and load currents (icons updated accordingly), daytime/night icons, and battery voltage/current values. The threshold for over discharge is 1V, above which it's considered daytime. A dynamic icon indicates charge current when present. Battery capacity is also displayed in real-time.
>>Product show

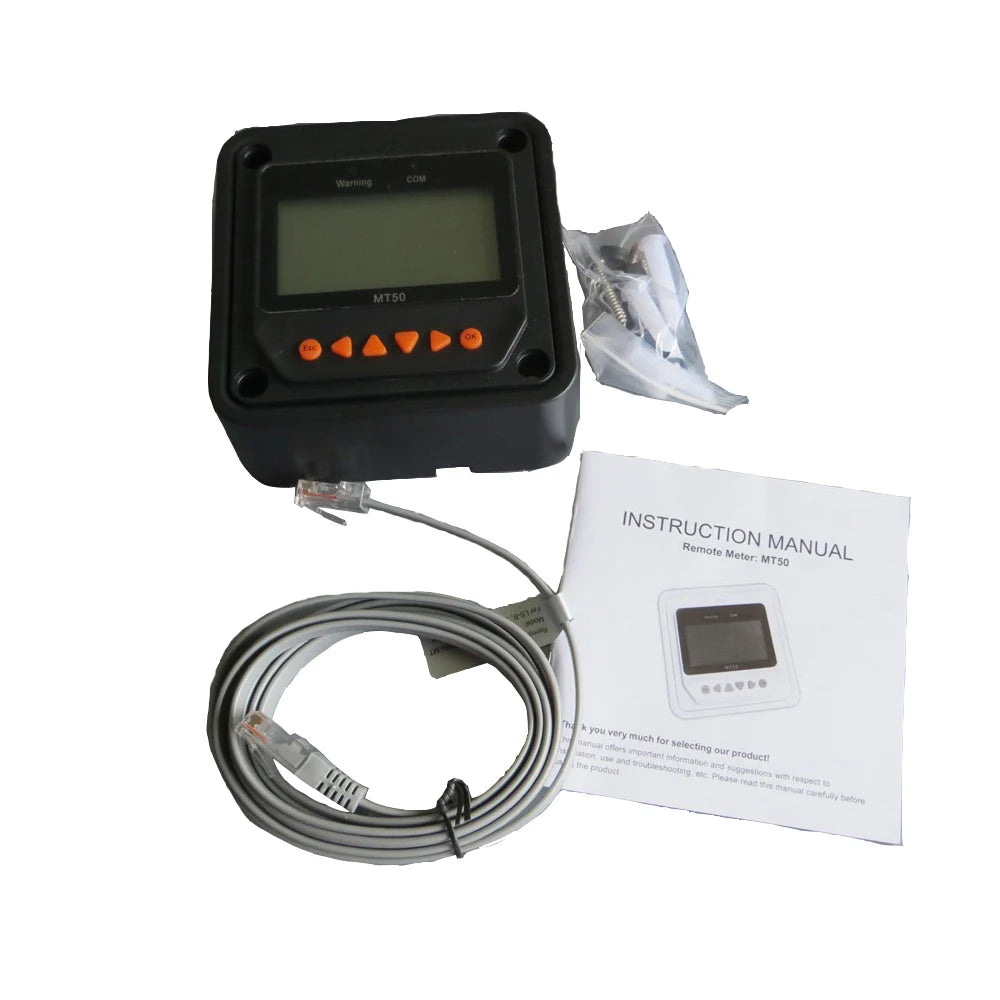

EPEVER MPPT Solar Charge Controller Instruction Manual: This remote meter system allows real-time monitoring of voltage, current, and temperature. Compatible with 10A-40A and 12V/24Vdc systems.

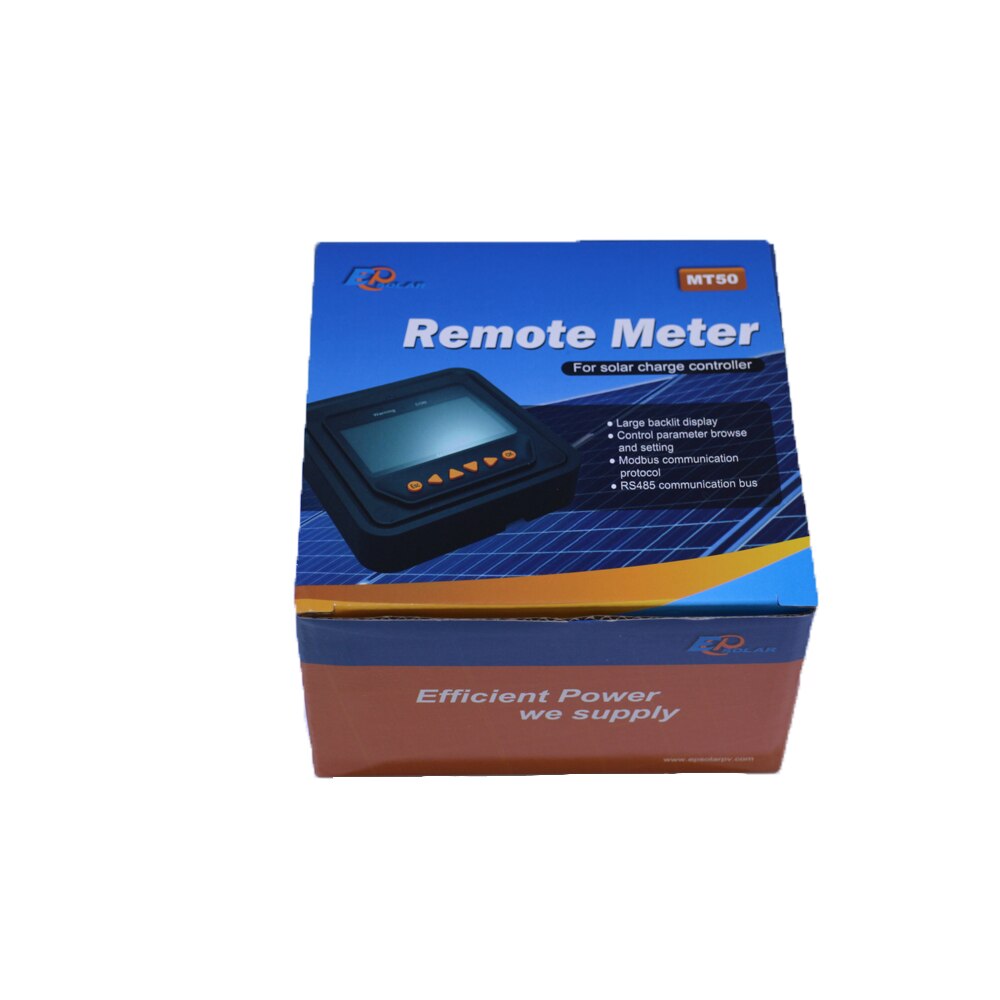

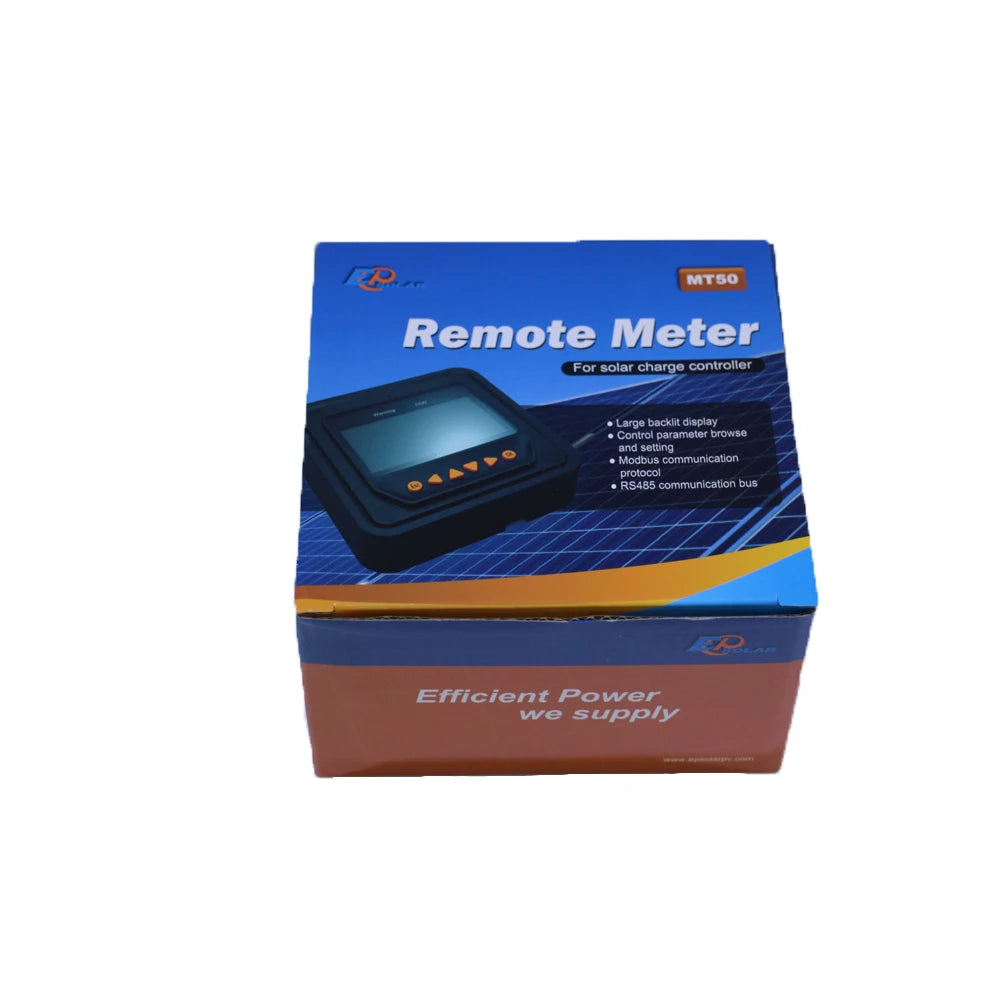

Remote meter for solar charge controllers features a large, backlit display. Browse and set parameters using the intuitive interface. Supports Modbus communication protocol via RS-485 bus.

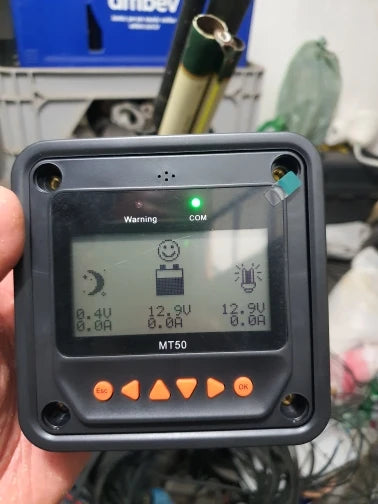

Alert: Battery voltage 13.84V. (Note: This alert message may be displayed on the remote meter of the EPEVER MPPT solar charge controller.)
