EPever MPPT Solar Charger Controller 40A 30A 20A 10A LCD 12V24V Auto High Efficiency Regulador for Lead Acid Lithium Batteries

EPever MPPT Solar Charger Controller 40A 30A 20A 10A LCD 12V24V Auto High Efficiency Regulador for Lead Acid Lithium Batteries

Regular price $56.89 USD
Regular price Sale price $56.89 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Current
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Type: MPPT Solar Controller

System nominal voltage: 12V 24V

Rated discharge current: 40A 30A 20A 10A

Rated charge current: 40A 30A 20A 10A

RS485 interface: 5VDC/100mA

Origin: Mainland China

Model Number: Tracer-AN Series (10-40A)

Maximum Current: 40A 30A 20A 10A

Maximum Current: 40A 30A 20A 10A

Max. PV open circuit voltage: 100V (1206AN and 2206AN is 60V)

MPP voltage range: (Battery voltage) +2V~72V

LCD: Backlight

Item: Solar Charge System

Grounding: Common negative

Certification: CE

Brand Name: EPever

Battery voltage range: 8~32V

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

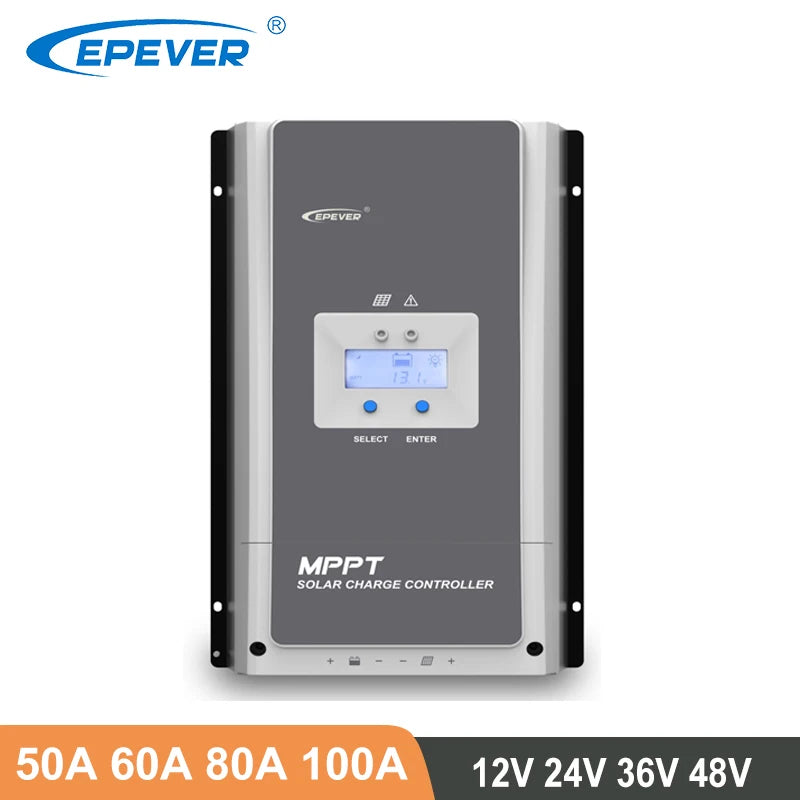

EPever MPPT Solar Charger Controller, Solar charger controller for 12V, 24V, and 48V batteries with adjustable current up to 100A.

EPEVER AEPEVE-D Selectable MPPT Solar Charger Controller for 12V, 24V, and 48V batteries with adjustable currents up to 100A.


EPever MPPT Solar Charger Controller 40A 30A 20A 10A LCD 12V24V Auto High Efficiency Regulador for Lead Acid Lithium Batteries


Overview

The Tracer AN series. Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducingcharging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.


Features

1.Advanced MPPT technology, with efficiency no less than 99.5%

2.Ultra-fast tracking speed and guaranteed tracking efficiency

3.Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time

4.Wide MPP operating voltage range

5.High quality components, perfecting system performance, with maximum conversion efficiency of 98%

6.Accurate recognition and tracking of multiple-peaks maximum power point

7.International famous brands of ST and IR's components of high quality and low failure rate are used, which can ensure the product’s service life

8.Charging power and current limitation function

9.Compatible with lead-acid and lithium-ion batteries

10.Battery temperature compensation function

11.Real-time energy statistics function

12.Overheating power reduction function

13.Multiple load work modes

14.The communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.

15.With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.

16.Monitor and set the parameters via mobile phone APP or PC software

17.Full-load operation without any drop in capacity within the range of working environment temperature

18.Extensive electronic protection

19.We support Drop Shipping

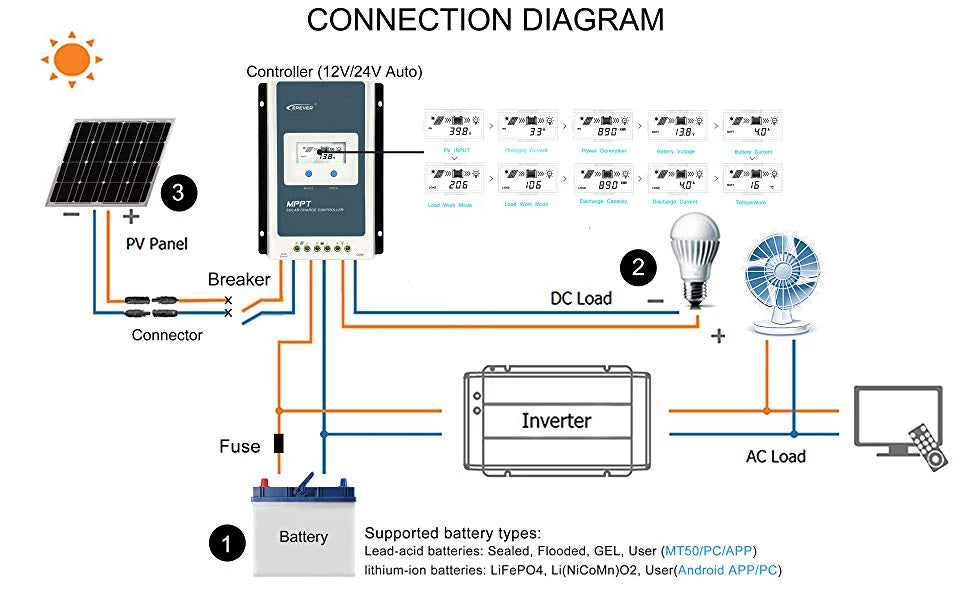

EPever MPPT Solar Charger Controller supports various battery types and features LCD display & multi-protection mechanisms.

EPever MPPT Solar Charger Controller supports 12V/24V auto operation and is compatible with various battery types, including lead-acid (sealed, flooded, GEL), lithium-ion (LiFePO4, Li(NiCoMn)O2), and lithium batteries. The controller features a LCD display and has multiple protection mechanisms, such as overcharge, over-discharge, and short-circuit protection.


Specification

Model

Tracer1206AN/1210AN

Tracer2206AN/2210AN

Tracer3210AN

Tracer4210AN

System nominal voltage

12/24VDC Auto

Rated charge current

10A

20A

30A

40A

Rated discharge current

10A

20A

30A

40A

Battery voltage range

8~32V

Battery Type

Lead-acid(Seal,Flood,Gel)and Lithium-ion batteries

Max. PV open circuit voltage

100V(Tracer1210AN;Tracer2210AN;Tracer3210AN;Tracer4210AN) ,60V(Tracer1206AN;Tracer2206AN)

MPP voltage range

(Battery voltage +2V)~72V

Max. PV input power

130W/12V

260W/12V

390W/12V

520W/12V

260W/24V

520W/24V

780W/24V

1040W/24V

Self-consumption

≤12mA

Discharge circuit voltage drop

≤0.23V

Temperature compensate

-3mV/°C/2V (Default)

Grounding

Common negative

RS485 interface

5VDC/100mA

LCD backlight time

60S (Default)

Electrical Parameters

Working environment temperature

-25°C~+50°C

Storage temperature range

-20°C~+70°C

Relative humidity

≤95%, N.C

Mechanical Parameters

Dimension

172x139 x 44mm

220x154x 52mm

228x164x55mm

252x180x63mm

Mounting dimension

130x130mm

170x145mm

170x164mm

210x171mm

Mounting hole size

Φ5mm

Terminal

12AWG(4mm2)

6AWG(16mm2 )

6AWG(16mm2)

6AWG(16mm2)

Recommended cable

12AWG(4mm2)

10AWG(6mm2)

8AWG(10mm2)

6AWG(16mm2)

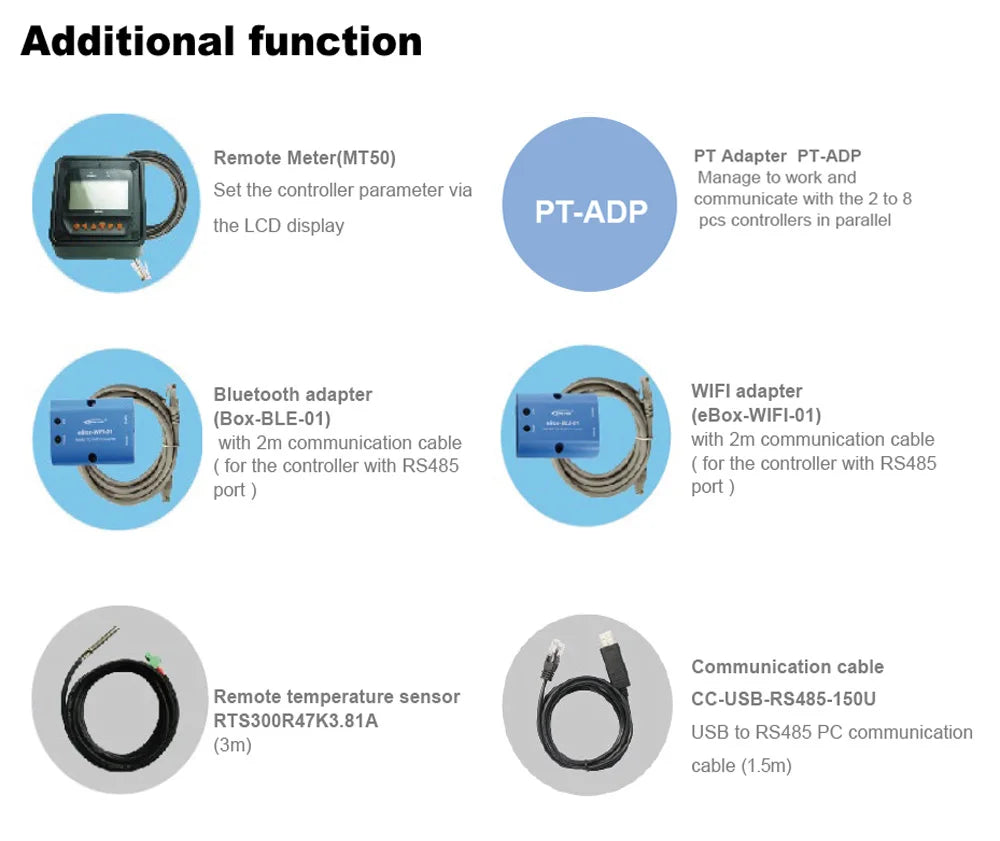

EPever MPPT Solar Charger Controller, Controller has Bluetooth/Wi-Fi connectivity and RS485 port for remote metering and PC communication.

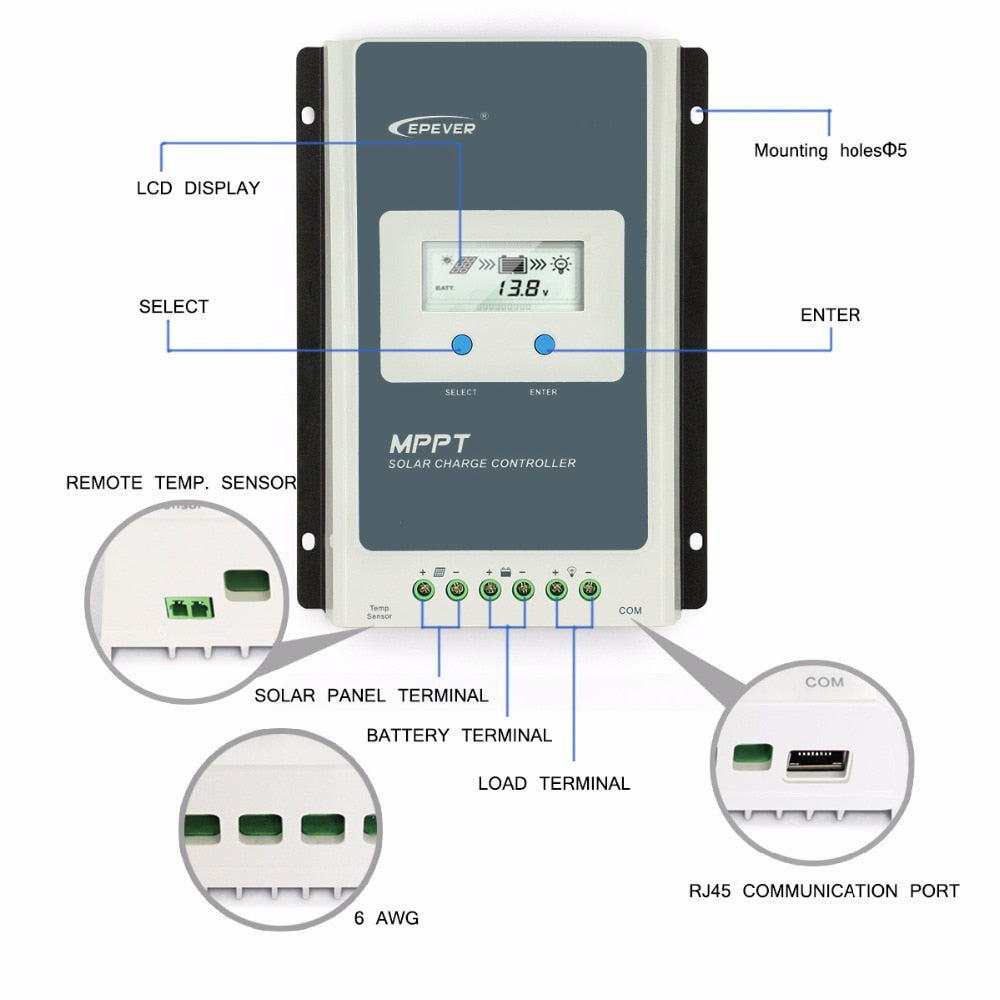

Item Picture

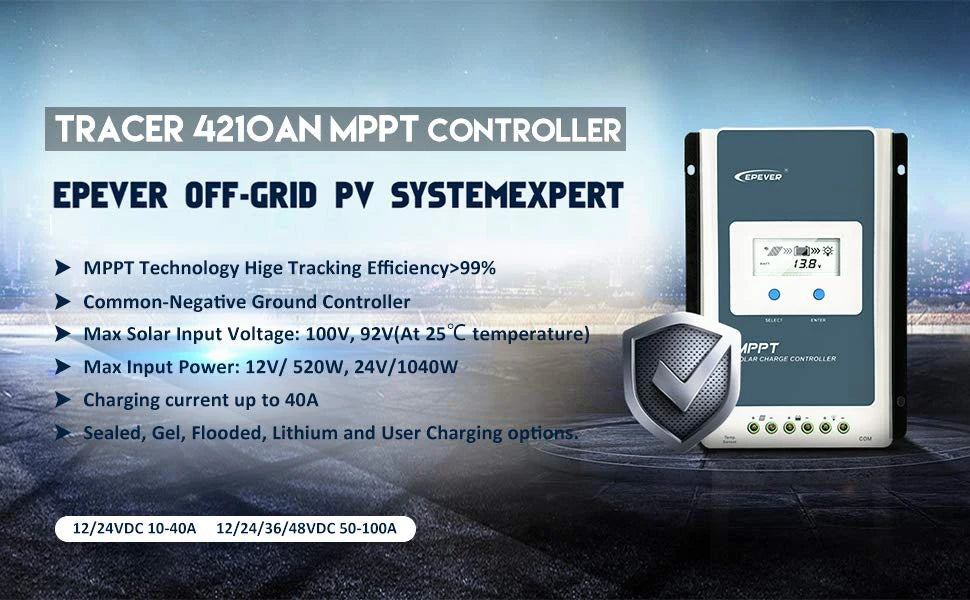

EPever MPPT Solar Charger Controller, EPEVER's MPPT Solar Charger Controller tracks energy with 99% efficiency, handling up to 40A and multiple voltage options.

EPEVER's MPPT Solar Charger Controller offers high-efficiency tracking at 99% efficiency. It features a common-negative ground design and can handle up to 40A of charging current for sealed, gel, flooded, or lithium batteries. The controller supports multiple voltage options: 12V/10-40A, 24V/20-40A, or 36-48VDC/50-100A. With a max input power of 520W at 12V and 1040W at 24V, this MPPT charger is suitable for various off-grid PV systems.

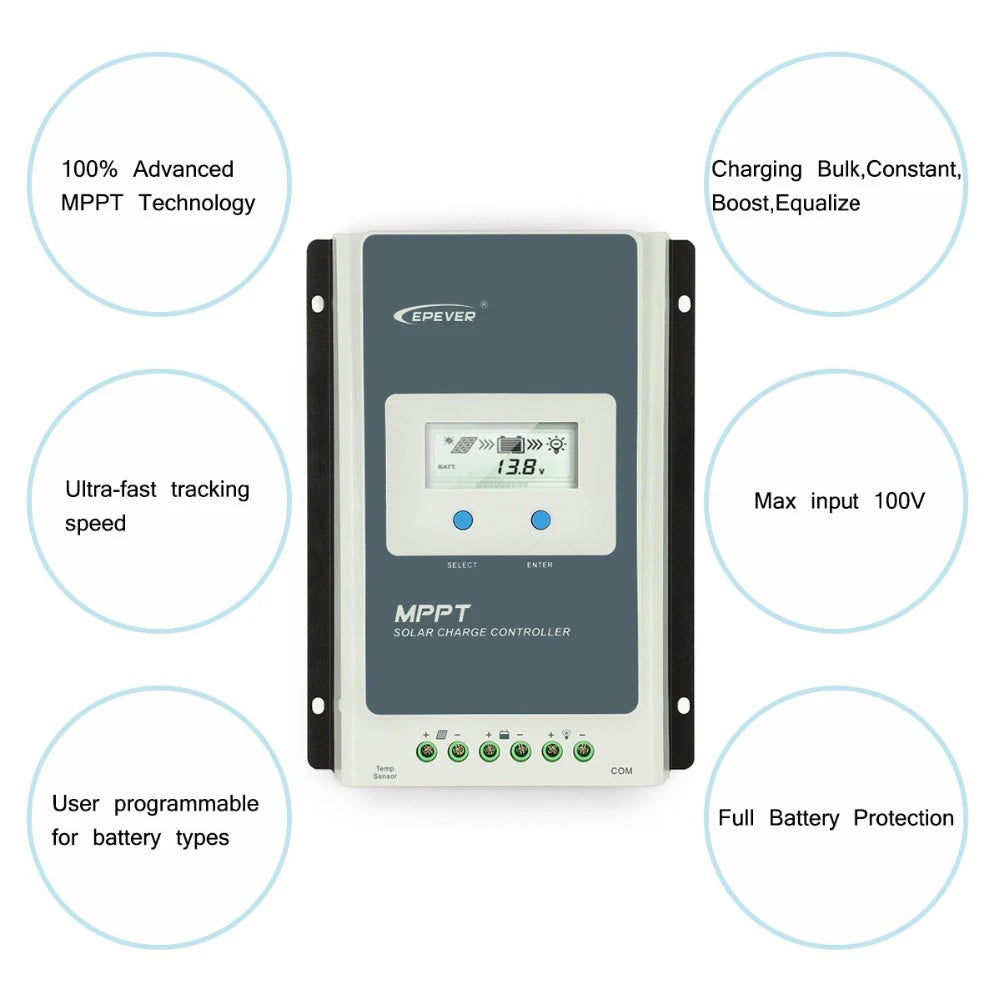

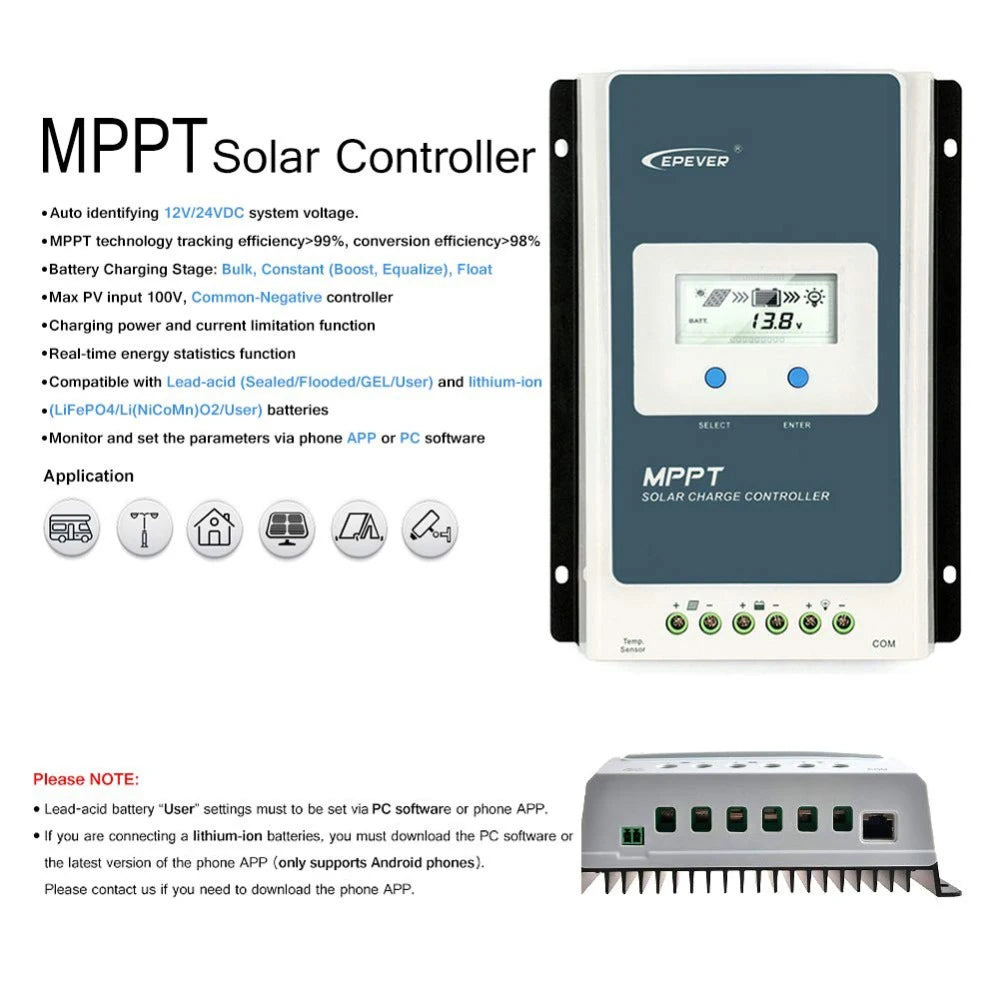

EPever MPPT Solar Charger Controller, Solar charger controller for lead-acid and lithium batteries, with 4 output options (40A, 30A, 20A, 10A) and LCD display.EPever MPPT Solar Charger Controller, Advanced solar charger controller with efficient MPPT tech and battery protection features.

EPever's advanced solar charger controller features 100% efficient bulk, constant, and maximum power point tracking (MPPT) technology. It includes 8-stage equalization, ultra-fast input voltage tracking, and programmable full battery protection for various battery types.

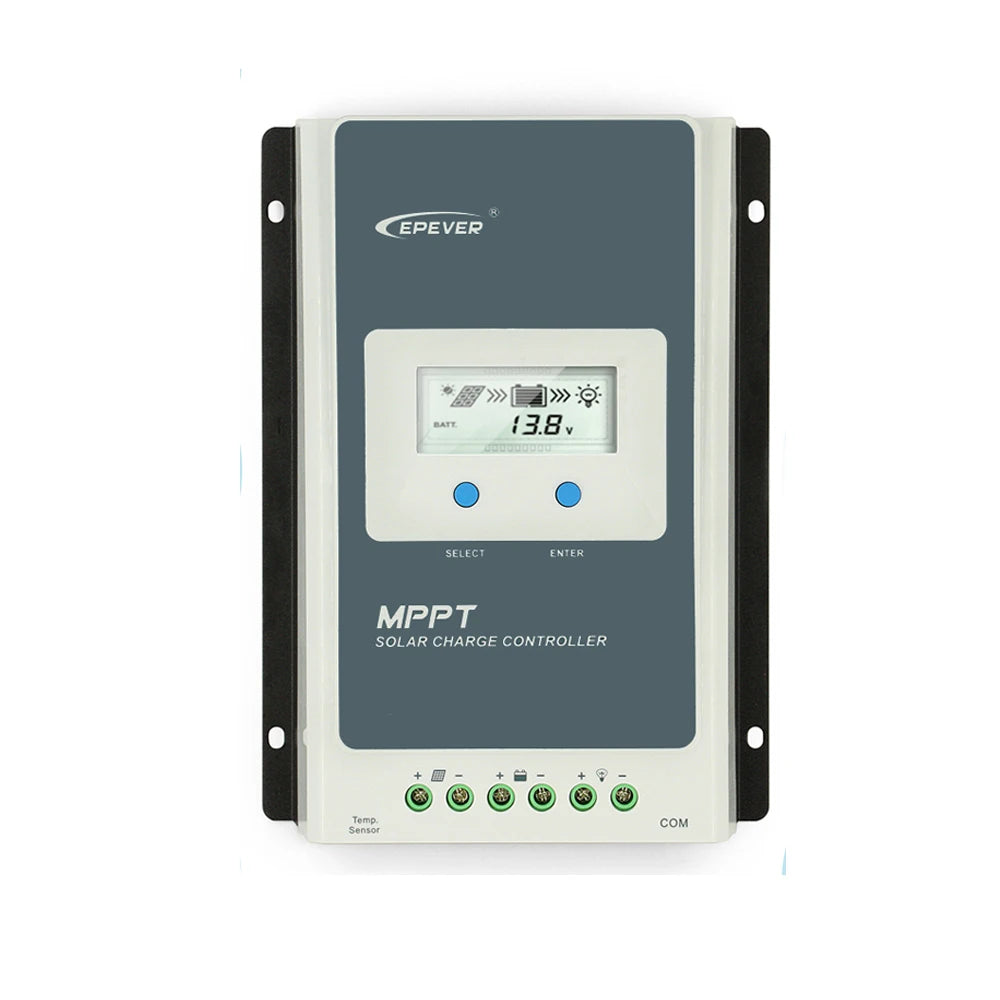

EPever MPPT Solar Charger Controller, High-efficiency solar charge controller for lead-acid and lithium batteries with temp sensing and LCD display.

Epever MPPT solar charge controller with high-efficiency regulation for lead-acid and lithium batteries, featuring temperature sensing and LCD display.

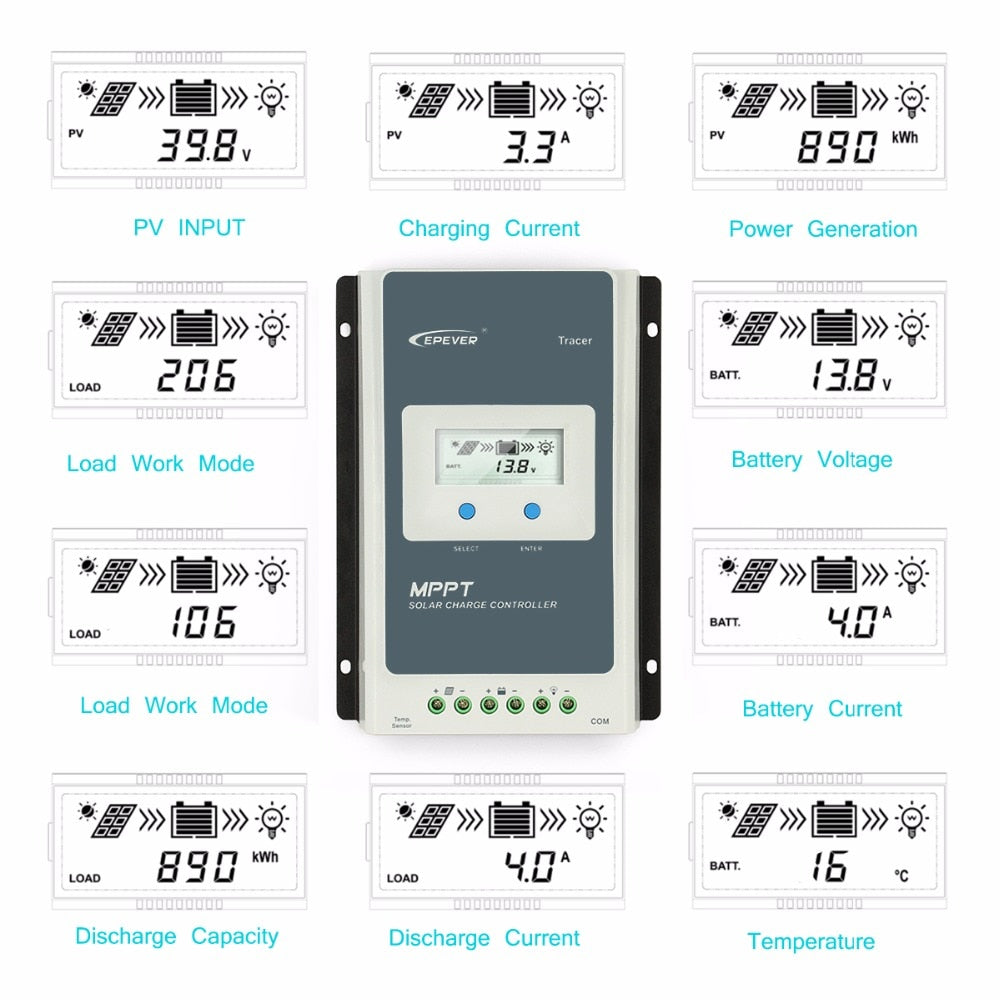

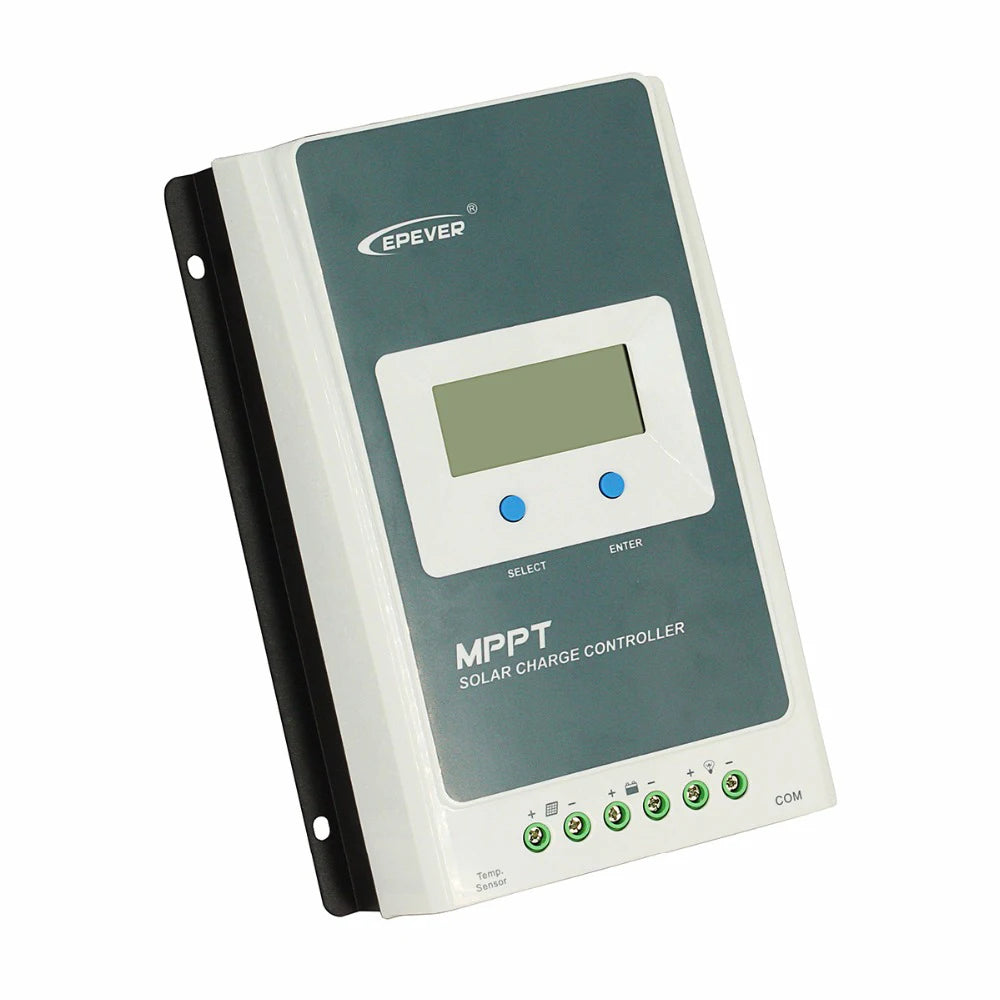

EPever MPPT Solar Charger Controller, Charge lead-acid and lithium batteries efficiently with this controller's multiple output options and LCD display.

EPever's MPPT Solar Charger Controller charges lead-acid and lithium batteries efficiently, featuring 40A/30A/20A/10A outputs and an LCD display for monitoring.

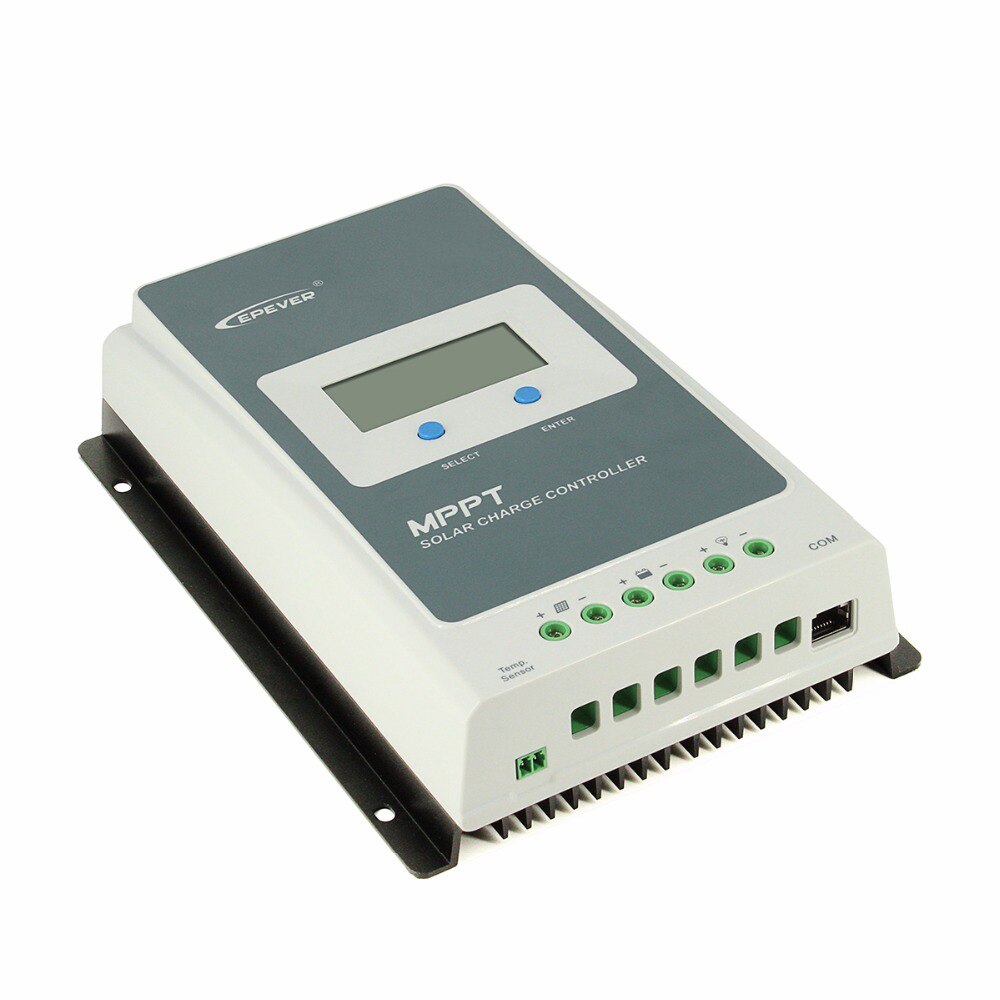

EPever MPPT Solar Charger Controller, MPPT Solar Charger Controller for lead-acid or lithium batteries

MPPT Solar Charger Controller for lead-acid or lithium batteries

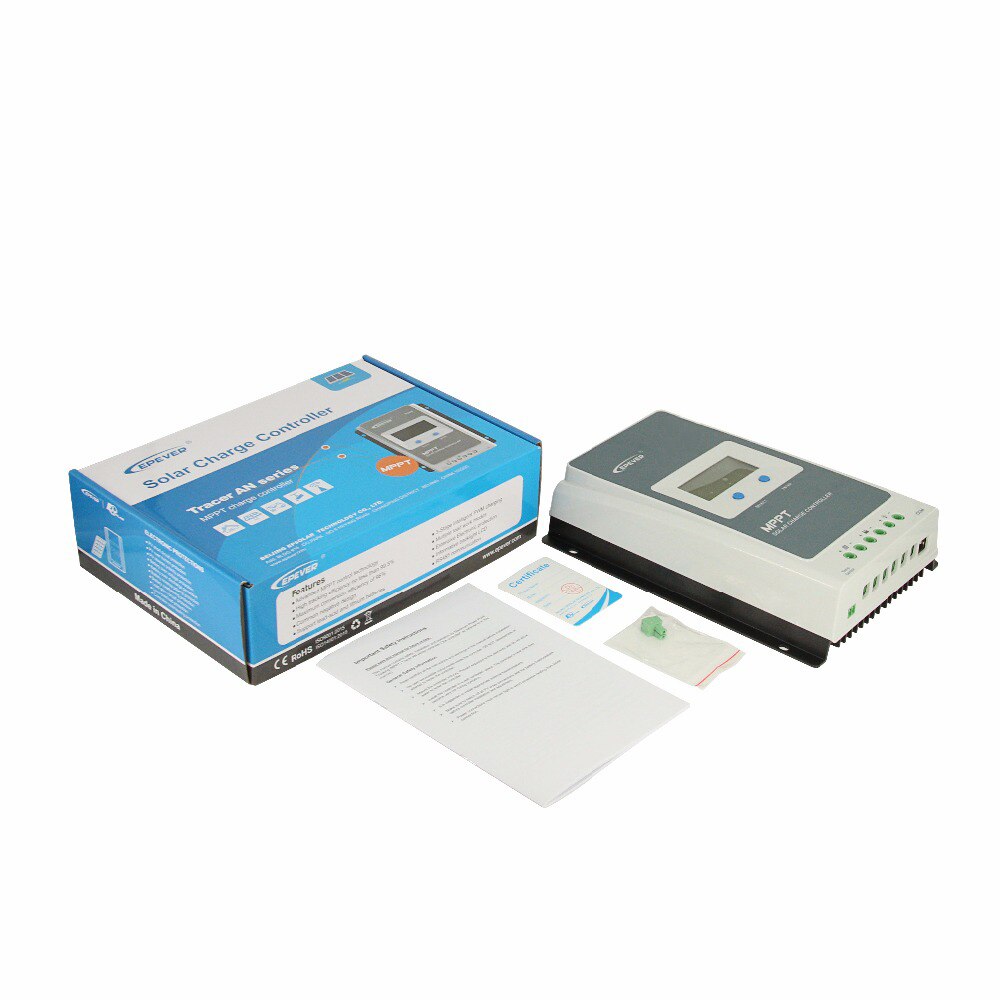

EPever MPPT Solar Charger Controller, Solar charge controller for lead-acid or lithium batteries, monitoring and regulating energy flow up to 40 amps.

Charge controller regulates solar energy for lead-acid or lithium batteries up to 40A with LCD display.
