SPECIFICATIONS

is_customized: Yes

customized: Yes

Origin: Mainland China

Origin: Mainland China

Model Number: CPLS-(10A~60A)

Maximum Current: 10A/20A/30A/40A/50A/60A

Maximum Current: 10A/20A/30A/40A/50A/60A

Max solar panel input: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Equalization: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)

Certification: CE

Certification: CE

Battery Voltage: 12V 24V Auto

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Application: Solar Working Station,Lighting Controller,Solar System Controller,Voltage Controller,Charger Controller

Free Shipping PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Three types of batteries can be charged

SmallSolarSystem's new controller charges three battery types: lead-acid, lithium-ion, and lithium-iron-phosphate.

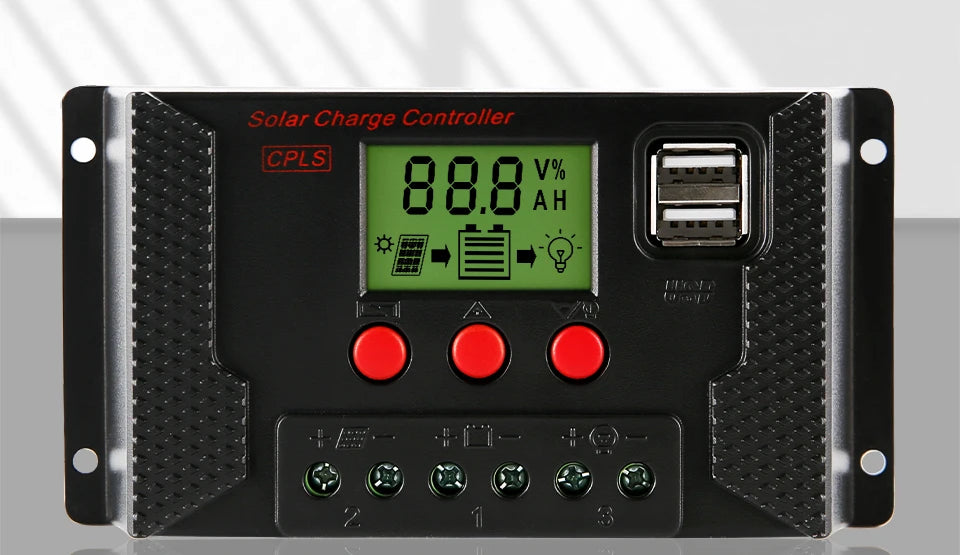

Solar charge controller for CPL batteries, 12V or 24V, with high efficiency (88.8%) and capacity up to 88.8 Ah.

Suitable for solar power generation systems, smart homes, and other applications such as chargers, ventilation systems, light boxes, billboards, and warning lights.

Compact design fits batteries up to 5 inches (13 cm) long, making it suitable for various applications.

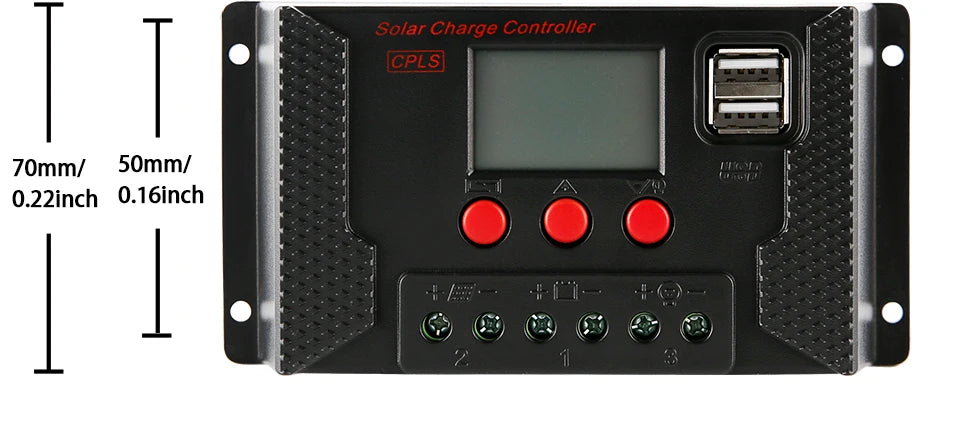

Compact Solar Charge Controller with 70mm, 50mm, or 0.22 inch / 0.16 inch compact design.

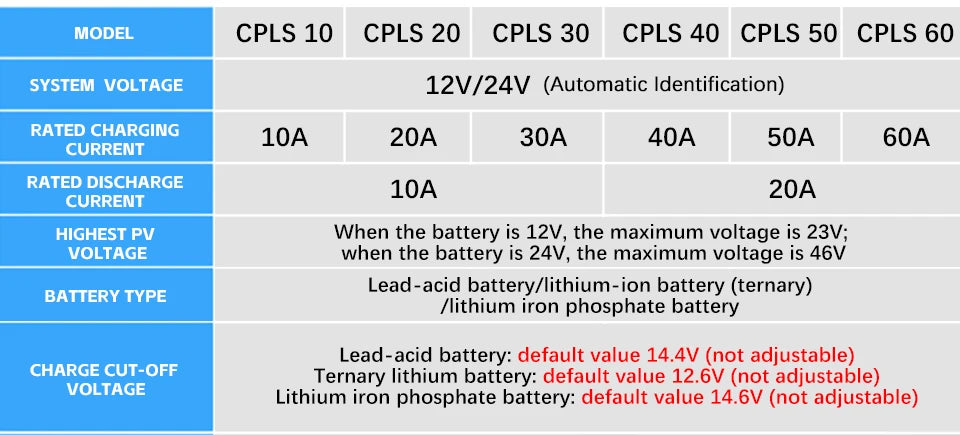

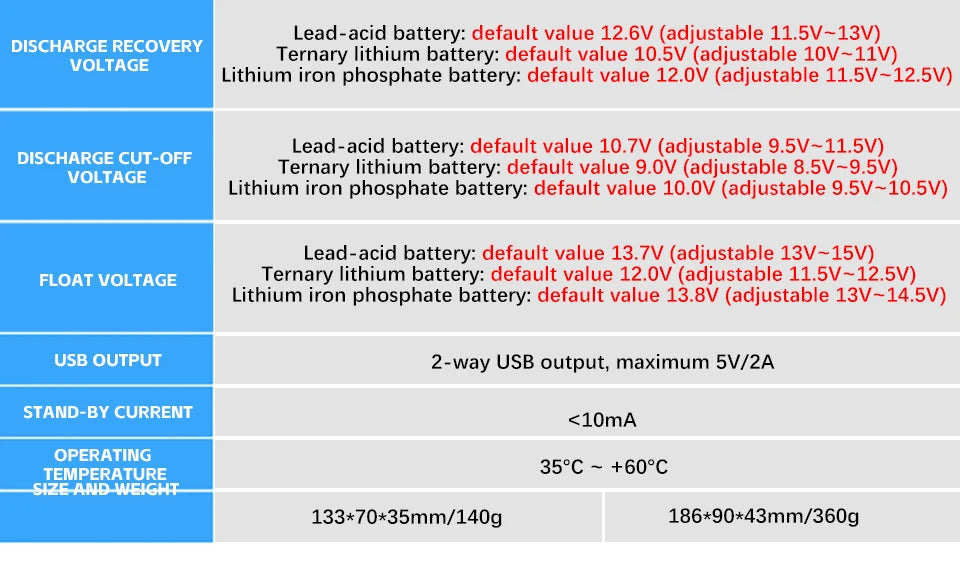

CPLS Series Solar Charge and Discharge Controller: Automatic voltage detection (12V/24V); supports three types of batteries (lead-acid, lithium-ion, lithium iron phosphate). Rated charging current: 10A, 20A, 30A, 40A, 50A, 60A. Rated discharge current: 10A, 20A. Maximum PV voltage: up to 23V for 12V batteries and 46V for 24V batteries.

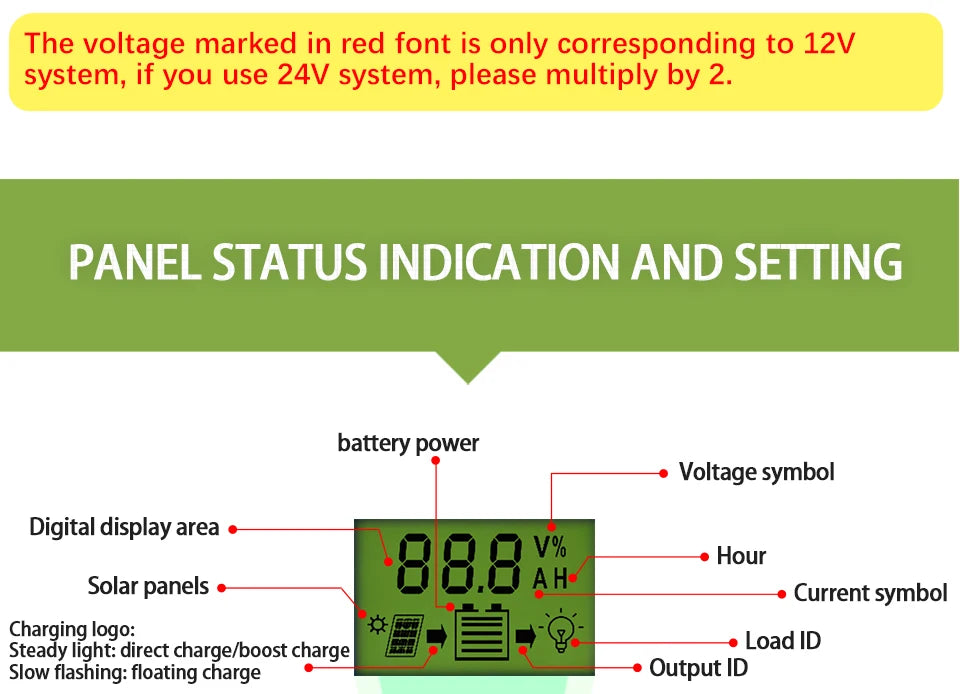

Note that the voltage marked in red font refers specifically to 12V systems. For 24V systems, please multiply by two. The panel status indication and setting features include battery power, voltage symbol, digital display area, and more.

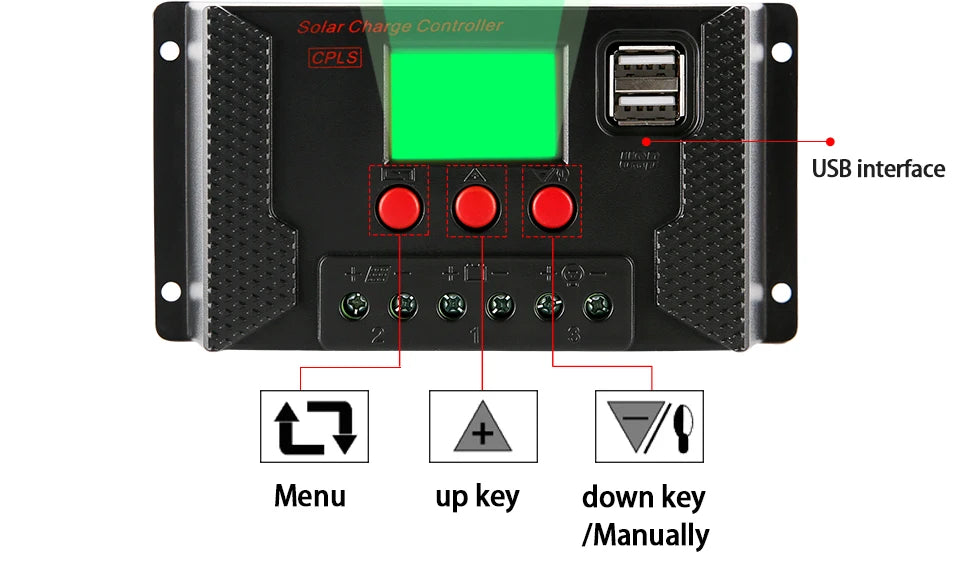

Features USB interface with menu navigation via up/down buttons or manual key input for easy control.

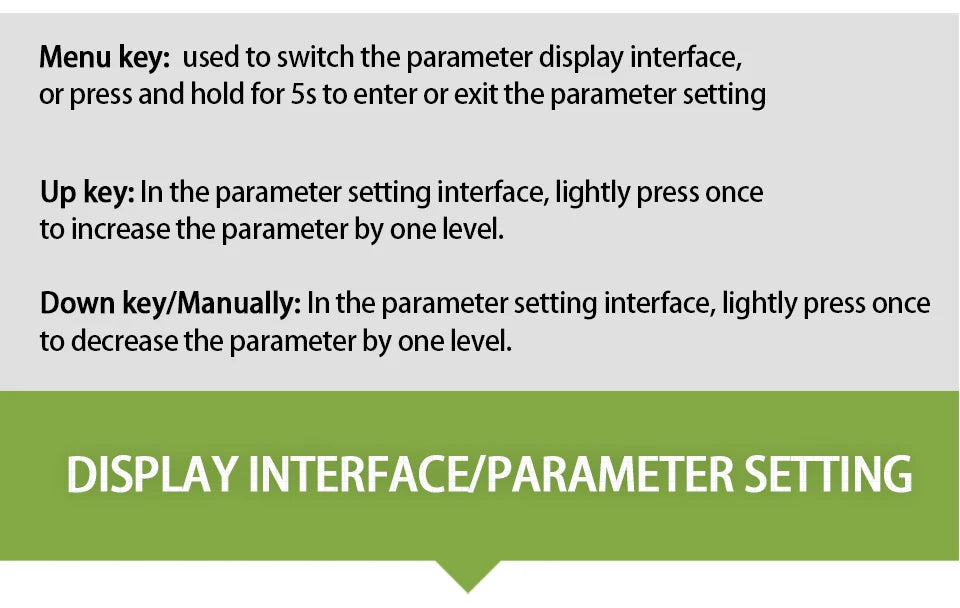

Use the menu button to switch between display and parameter settings. Press and hold for 5 seconds to enter or exit the parameters. The 'Up' key increases the value, while the 'Down' key decreases it. A brief press toggles between display modes.

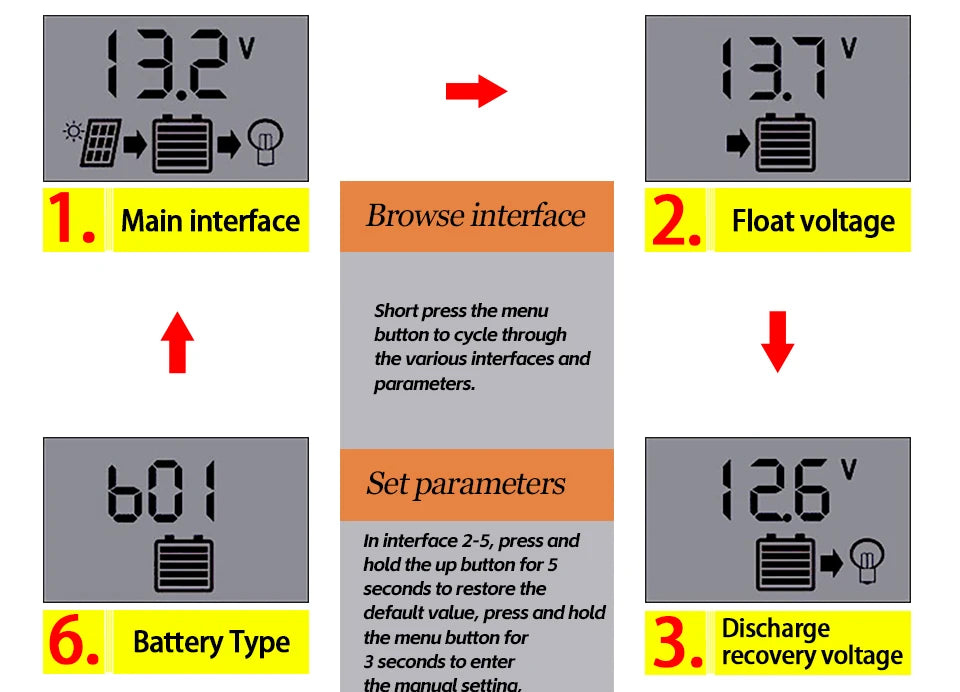

Access the main interface by pressing the menu button. Navigate through interfaces 2-5 using the up button, holding it for 5 seconds to reset default values or 3 seconds to restore manual settings.

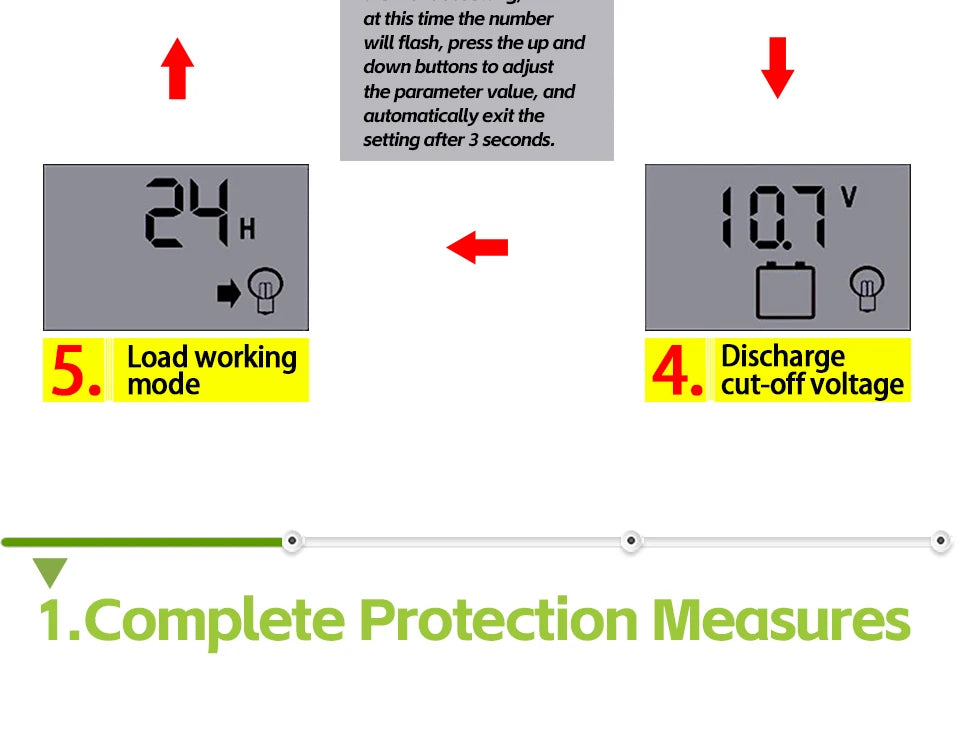

Adjust the parameters by pressing the Up/Down buttons. The setting automatically exits after 3 seconds. It features a 24-hour load, 4 discharge modes, and a 1V cut-off voltage, with complete protection measures in place.

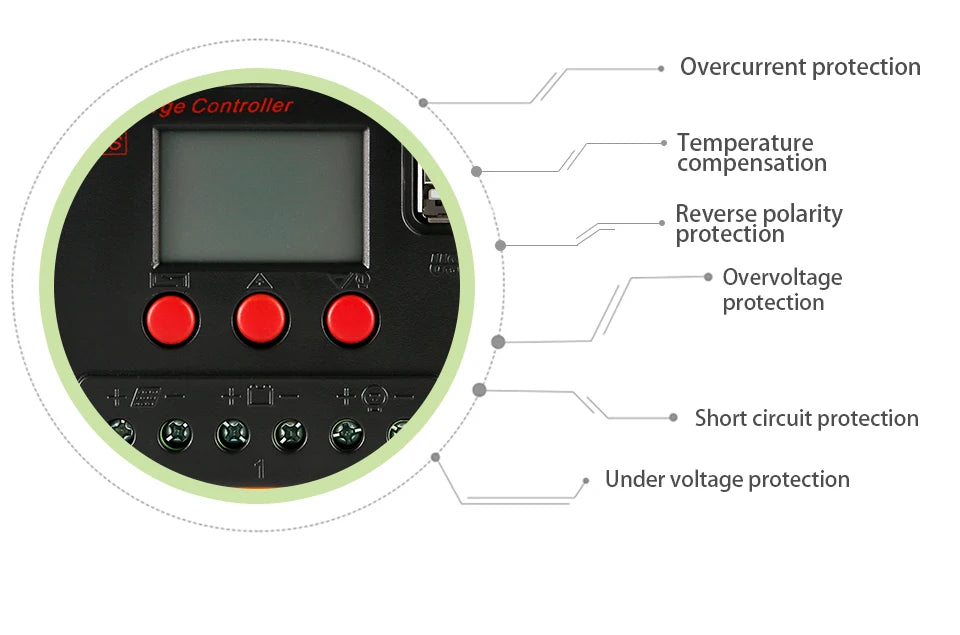

This PWM controller offers overcurrent protection, temperature compensation, and protections against reverse polarity, overvoltage, short circuits, and under-voltage conditions.

Equipped with an SOC intelligent master chip, this controller features built-in protections and an LCD display, plus dual USB ports for convenient use.

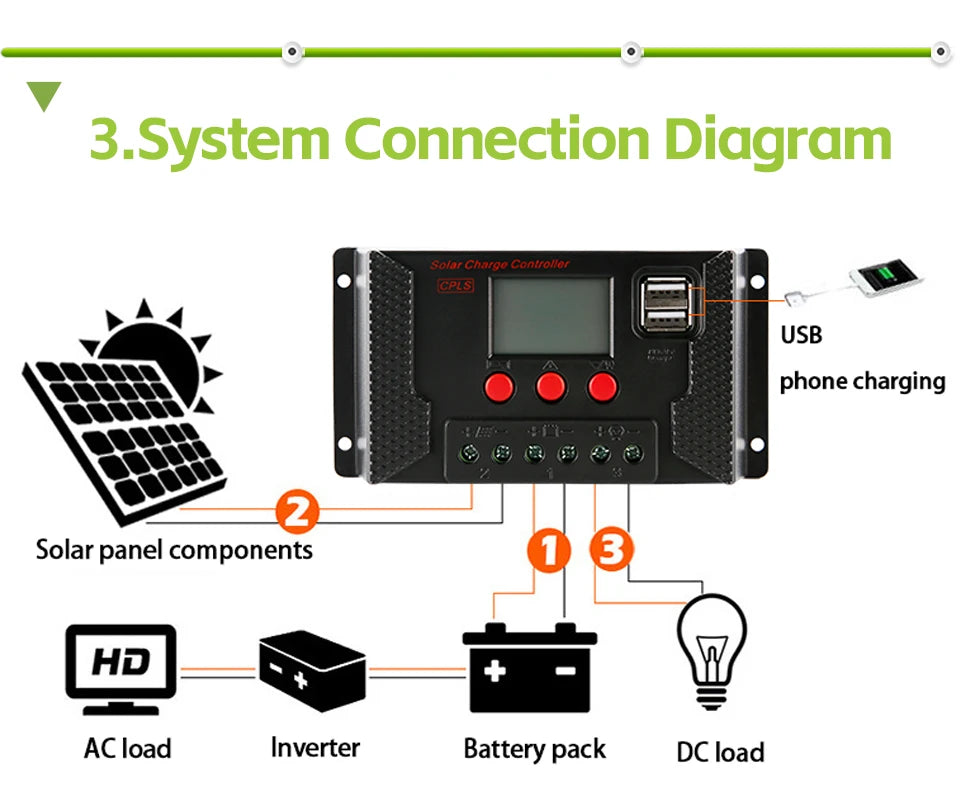

Connect solar panels, charge controller, battery pack, inverter, and AC/DC loads via system diagram, with USB port for phone charging.

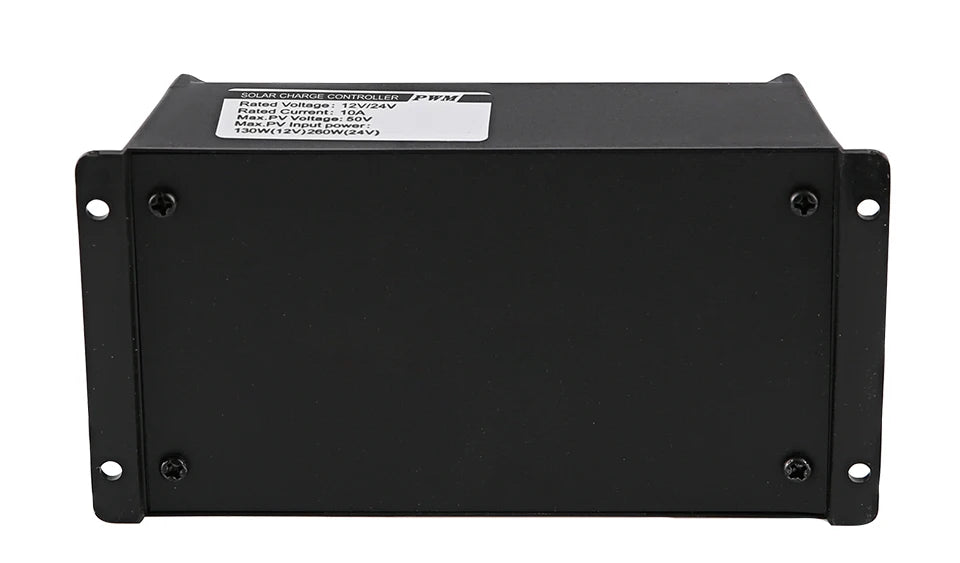

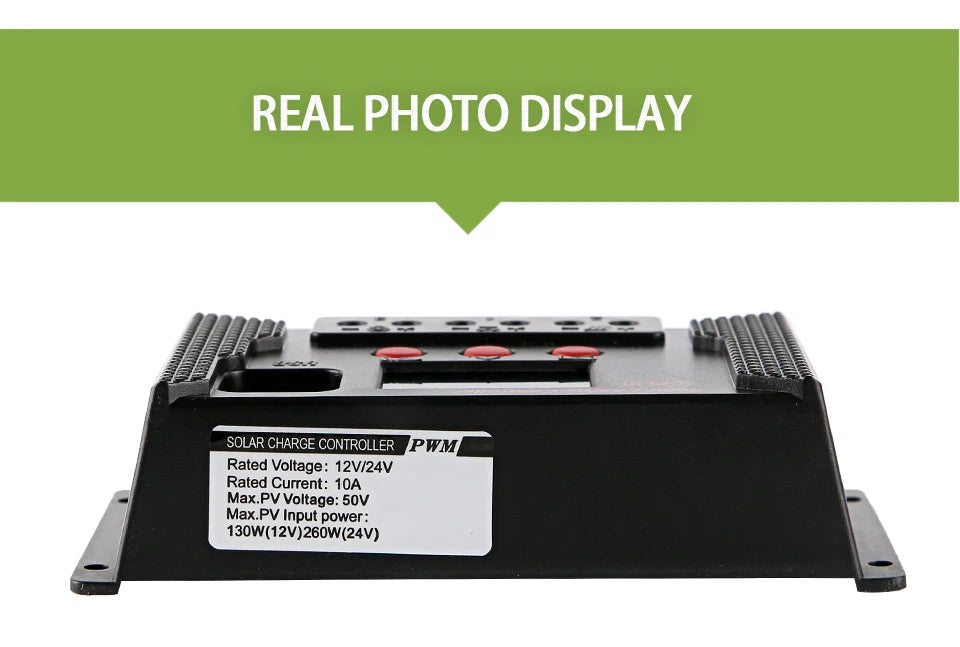

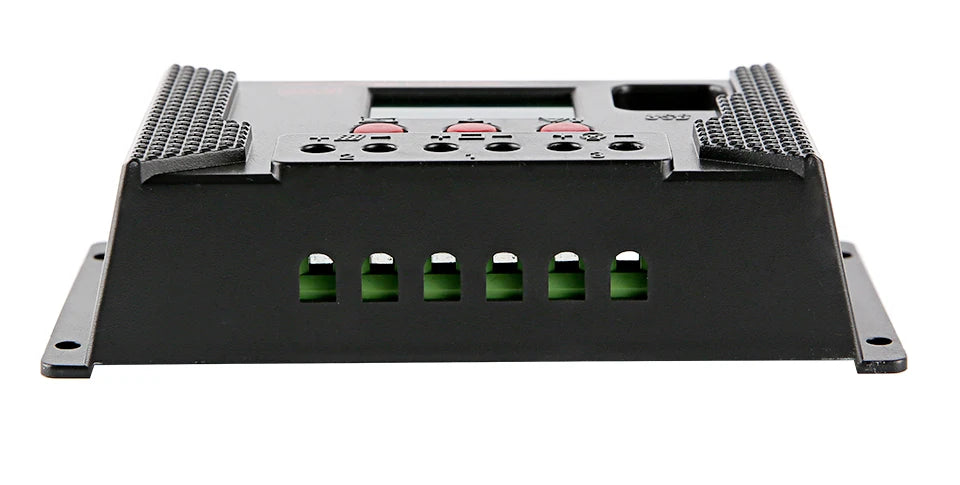

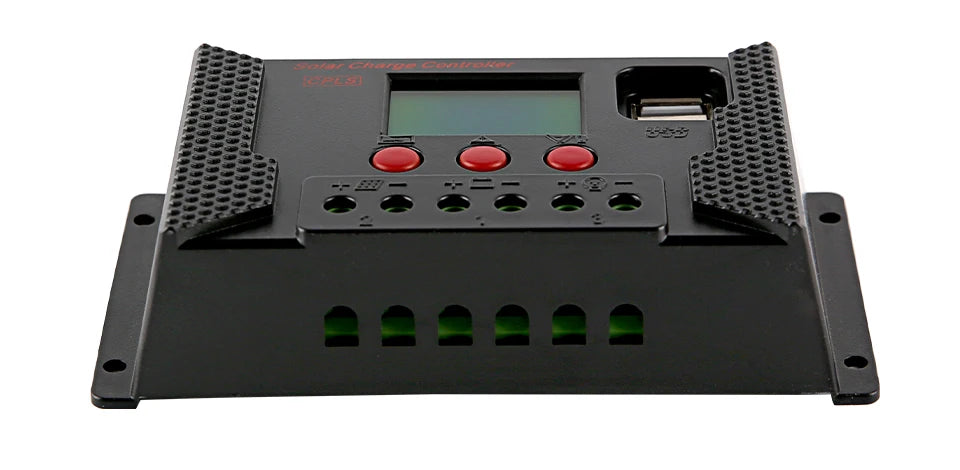

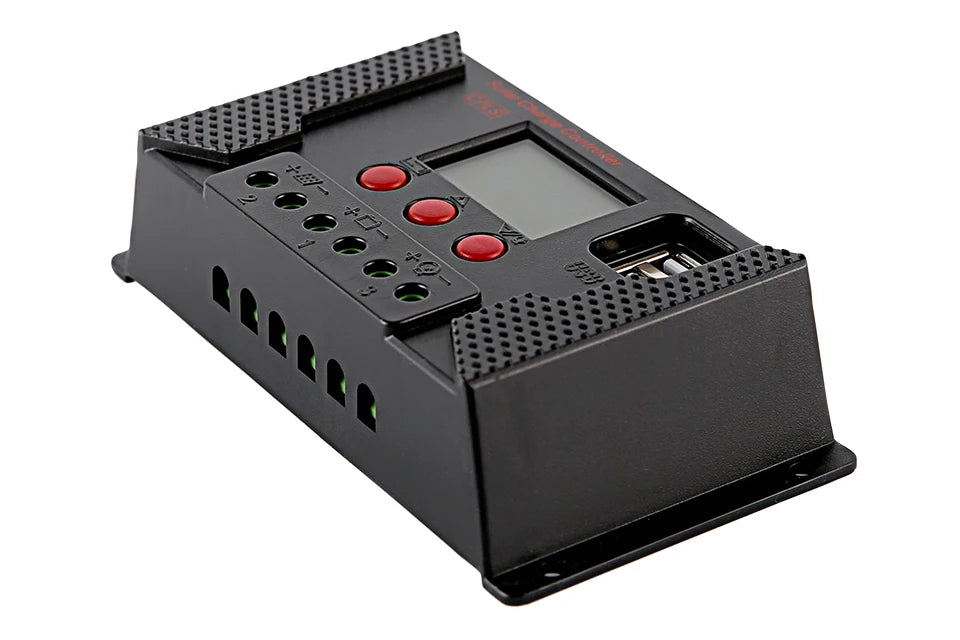

Real photo display. Solar charge controller with PWM technology, rated for 12V/24V systems, 10A current capacity, and maximum PV input power of 130W (12V) or 260W (24V).

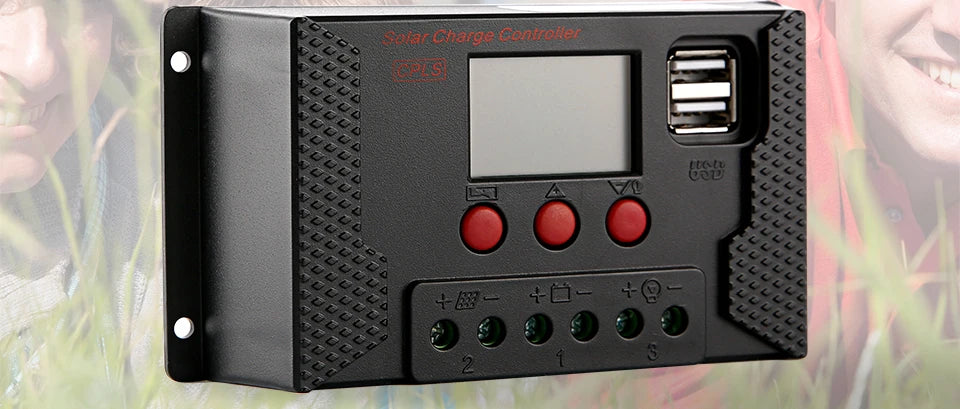

Premium Quality PWM Solar Charge and Discharge Controller for 12V, 24V Batteries with Free Shipping

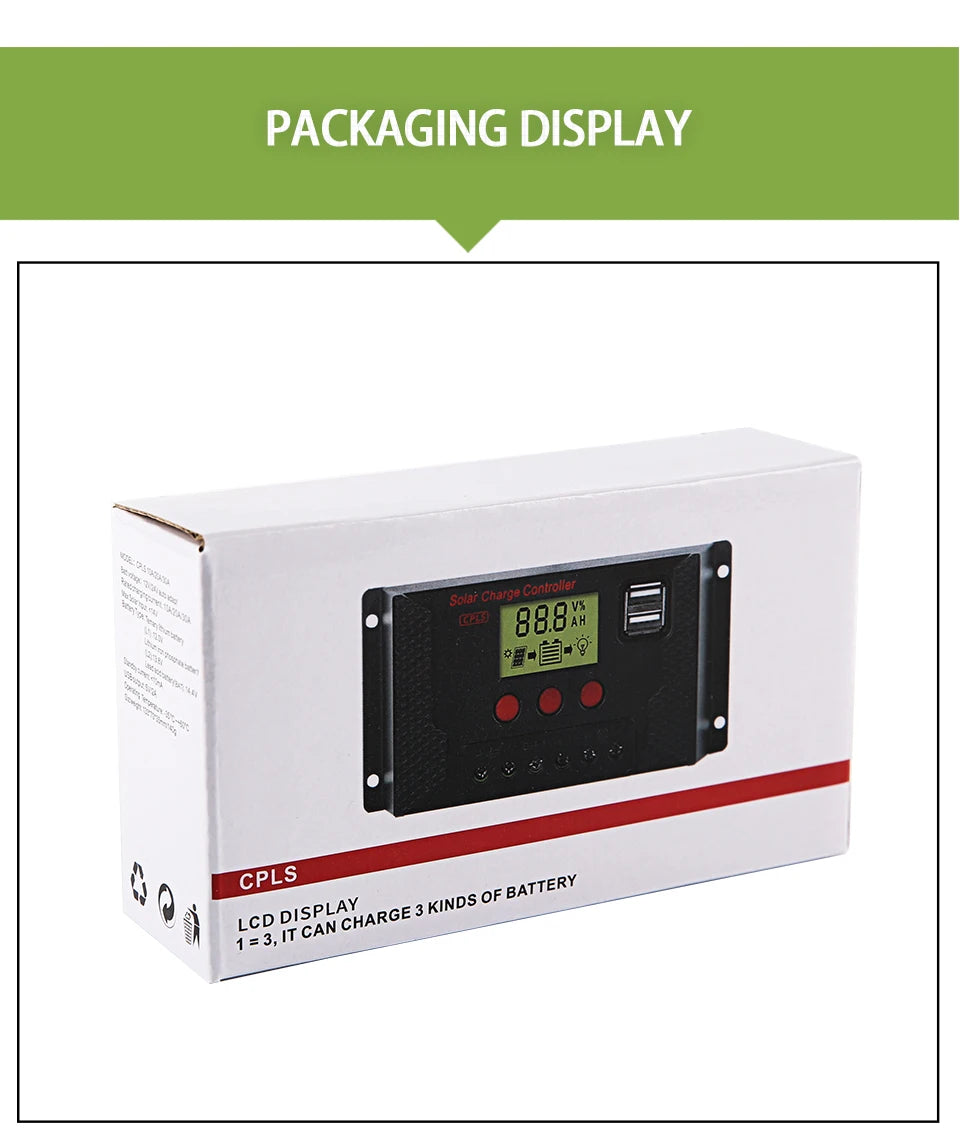

Solar Charge Controller: Displays 4 battery types (10A, 20A, 30A, and 40A) with LCD display and free shipping.
