PowMr 60A MPPT Solar Charge Controller Quick Info

Brand: PowMr

Lithium Battery Activation: No Lithium Batteries Activation

Battery Voltage: 12V, 24V, 36V, 48V

Battery Type: Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM

Batteries Charging Current: 60 Amps

Ground Type: Netagive Ground

Solar Panel Max Input Power: 3000W-5000W

Solar Panel Max Input Voltage: 150V

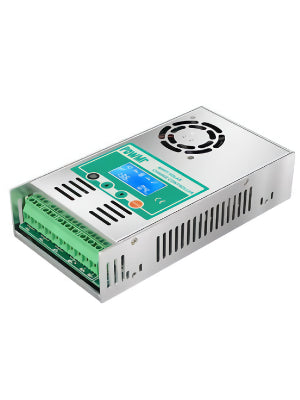

PowMr 60A MPPT Solar Charge Controller 12V 24V 36V 48V Auto Solar Regulator with LCD Display MPPT-60A

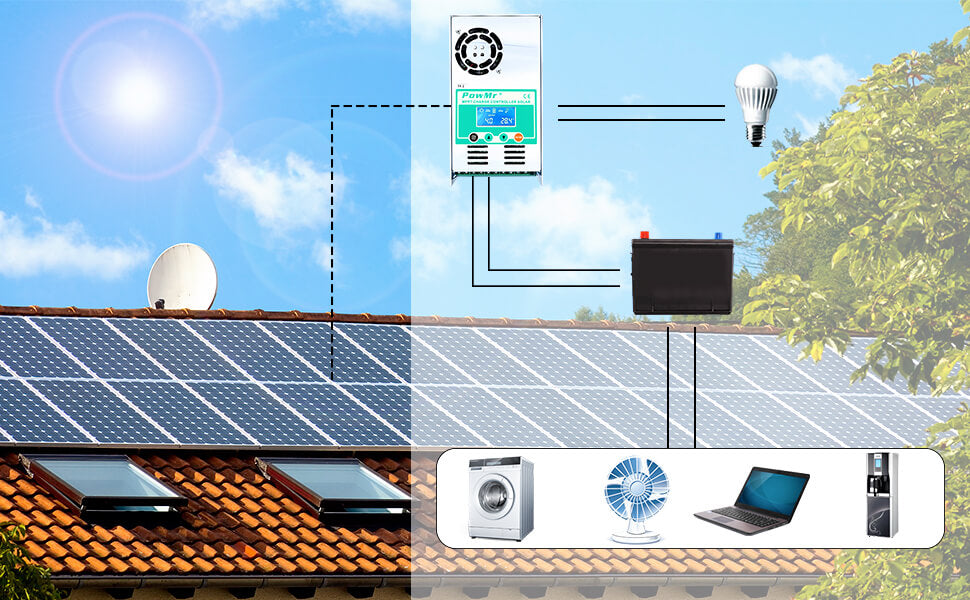

Welcome to buy 60 amp MPPT Solar Charge Controller. A 60 amp controller from PowMr can handle 12 & 24 volts. The 60A mppt solar charge controller from PowMr will allow you to charge 12 and 24-volt battery banks at 60 amps per hour. The 60amp mppt solar charge controller sold by the company is the best price out there, shipped factory direct yo. A typical solar panel pulls solar energy into the panel and sends charging current through the 60A charge controller, which then outputs 12 or 24 volts of charging current.

• Brand: PowMr
• Product Name: HHJ-60A 48v solar charge controller
• 100% mppt solar charge controllers Intelligent, Max efficiency ≥98.1%, PV utilization ≥99%
• Built-in DSP controller with high-performance automatic battery voltage detection 12V/24V/36V/48V
• Battery options: Lithium, Lifepo4, Li(NiCoMn)O2), Vented, Flooded, Sealed, Gel, NiCd battery.
• Dynamic large icon display PV and Battery status, working mode: Night mode, no charging, MPPT mode, Absorption mode, Floating mode, and troubleshooting prompts.
• TROUBLESHOOTING function and LCD display can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters.
• Blacklight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature
• User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording.
• Intelligence Fan-on temperature >45℃ and off < 40℃, Porous heat dissipation.and fan use BEARING technologies increase life UP TO 5000hrs in normal use.
• Large four big buttons, easy to use, more conveniently.

HHJ-60A solar charge regulator Warming tips: Make sure the Voc of PV meets the requirement right. VOC is 1.5 times Battery voltage will be the best efficiency.

60amp mppt solar charge controller Feature:

• Charging 3-stage: constant current(mppt charger), constant voltage(Absorption Voltage), floating charge Selectable battery type Vented / Sealed / Gel / NiCd / Lithium battery (default is Sealed) (defined voltage for other battery by user)
• Soft start time ≤1S, Dynamic response and recovery time 100us
• Max efficiency ≥98.1%, PV utilization ≥99%
• In order to reduce the cost of electricity caused by high current, PV and battery each have two terminals
• MULTIPLE ELECTRONIC PROTECTIONS
• Short-circuting
• Reverse-current
• Overcharging protection
• Overload protection
• Over-discharging protection
• Reverse polarity protection

Tips:

1. Always connect the battery first!!! Make sure enough batteries’ voltage lets the controller recognize the right system voltage.
2. DO NOT connect any Inverter/ wind/ Alternator or Charger into the charge controller! connect the Inverter directly to the battery
3. Ensures solar input voltage higher than 3V or more than batteries’ voltage and total input power in the range. if the input power is too low for max input power, it may appear to have been discontinued., the charging current almost is zero when the controller is floating charge.
4. Parameter Setting Rules：Floating voltage > Low voltage reconnect > Low voltage discharge.
5. The solar charge controller will stop output when the battery is under 10.7V. The LCD will be blank when the battery is under 8V and it will re-output when the battery is up to 12.6V (adjustable).
6. Install the Charger controller to the battery as close as possible. Tighten the wire.
7. When the controller makes a buzzing sound It's working hard to dissipate heat for your controller. Rest your heart, it will be stopped when the temperature returns to normal.
8. Remove all the debris around the controller ( leaving a space of approx. 5.91in ).

60amp mppt solar charge controller Input specification:

12V system: DC20V~DC80V
24V system: DC37V~DC105V
36V system: DC50V~DC160V
48V system: DC72V~DC160V

The maximum PV input voltage (Voc): DC190V
(The controller can’t work at this voltage of long duration that will break the controller. Please refer to the Input voltage from PV.)

The maximum PV input power
(The total power rated of PV can’t be over this watt that will break the controller.)
12V system (720W) ;
24V system (1440W) ;
36V system (2100W);
48V system (2800W) 60 amp mppt charge controller ;

Output specification

Overcharging protection voltage:
12V system (15V);
24V system (30V);
36V system (45V);
48V system (60V);

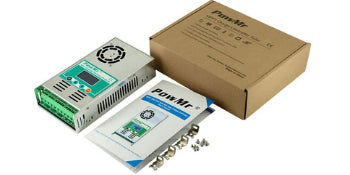

Package including:

1*60amp MPPT Solar Charge Controller
1*English Manual

PowMr 60A MPPT Solar Charge Controller DataSheet

 More Descriptions

Note Air circuit breaker and wires requirement copper wires: 9AWG / air circuit: 100A Notes: The output terminal is for lamp only (12V system less 60W, 24V/36V/48V system less 100W ), and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.	Package 1*60a MPPT solar charge controller 1*User manuel 4* Mountings

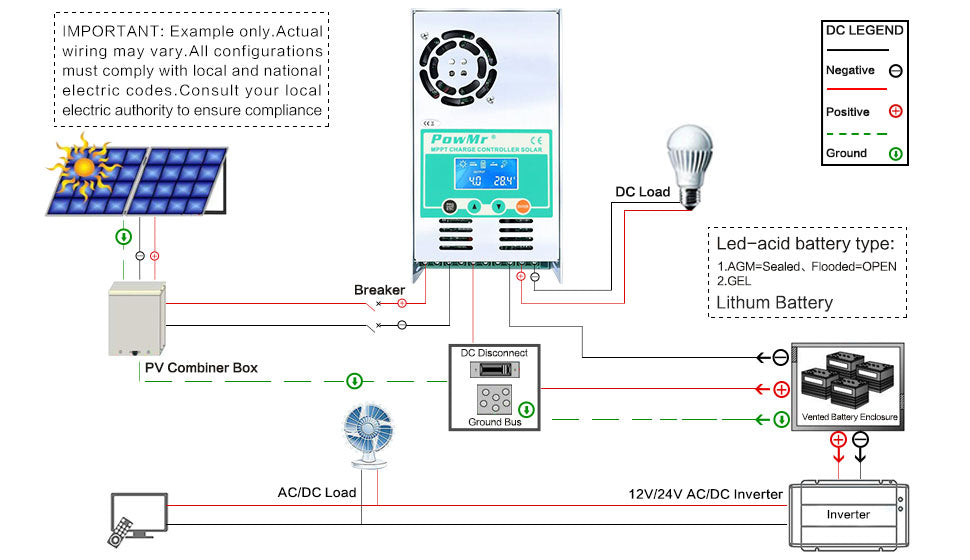

Connection

Note

1.The maximum PV input voltage (Voc): DC160V (The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV ).

2.The output terminal is for lamp only (12V system less 60W, 24V/36V/48V system less 100W ), and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

3.Always connect battery first!!! Make sure enough batteries’ voltage let controller recognize the right system voltage. The disassembly sequence is contrary to the wiring order.

4.DO NOT connect any Inverter/ wind/ Alternator or Charger to controller, please connect the Inverter to battery side.

5.Ensures solar input voltage higher 3V or more than batteries’ voltage and total input power donot exceed the max. , the charging current almost be zero when controller is floating charge.

Powmr MPPT User Manual 0620 (HHJ-60A_0620-2.pdf, 532 Kb) [Download]
