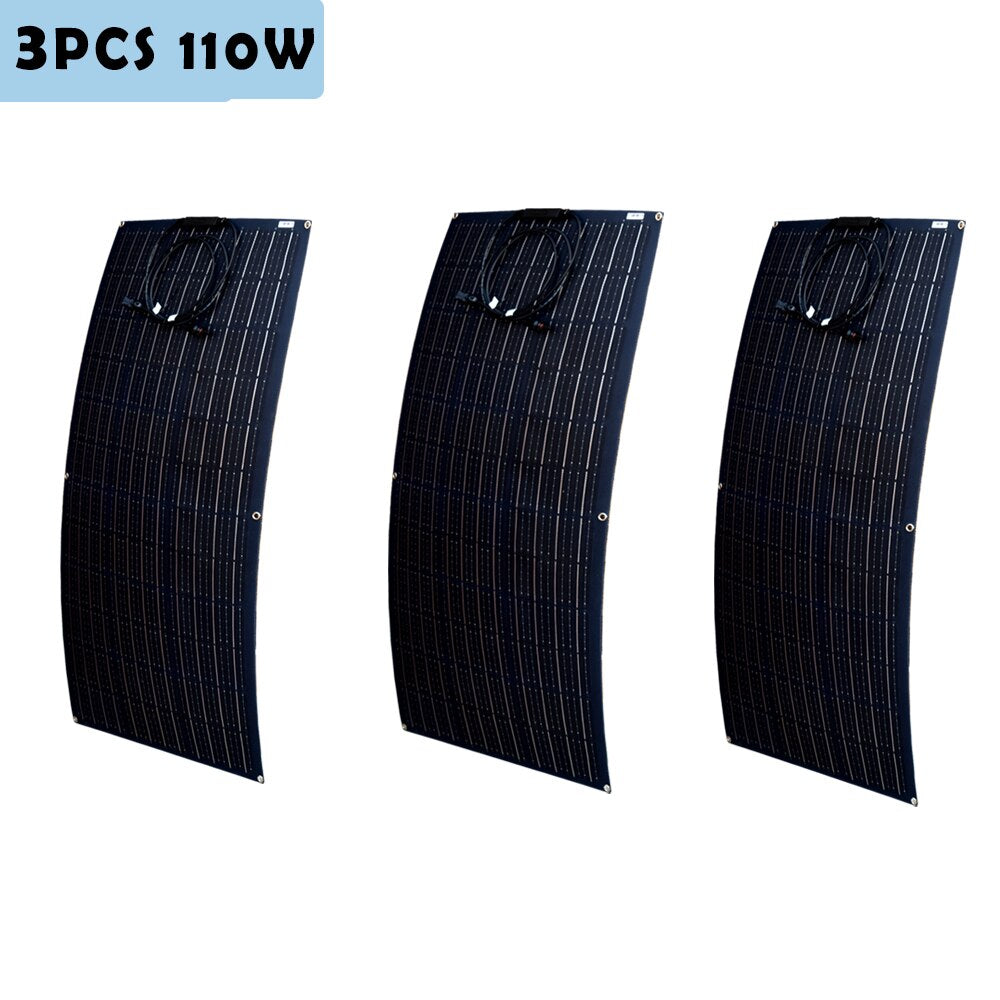

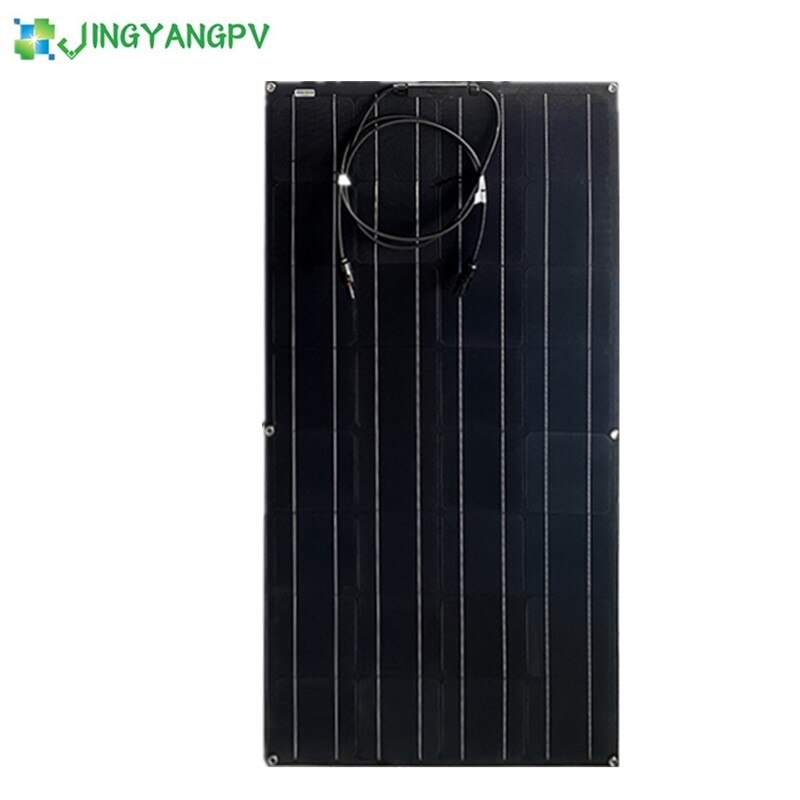

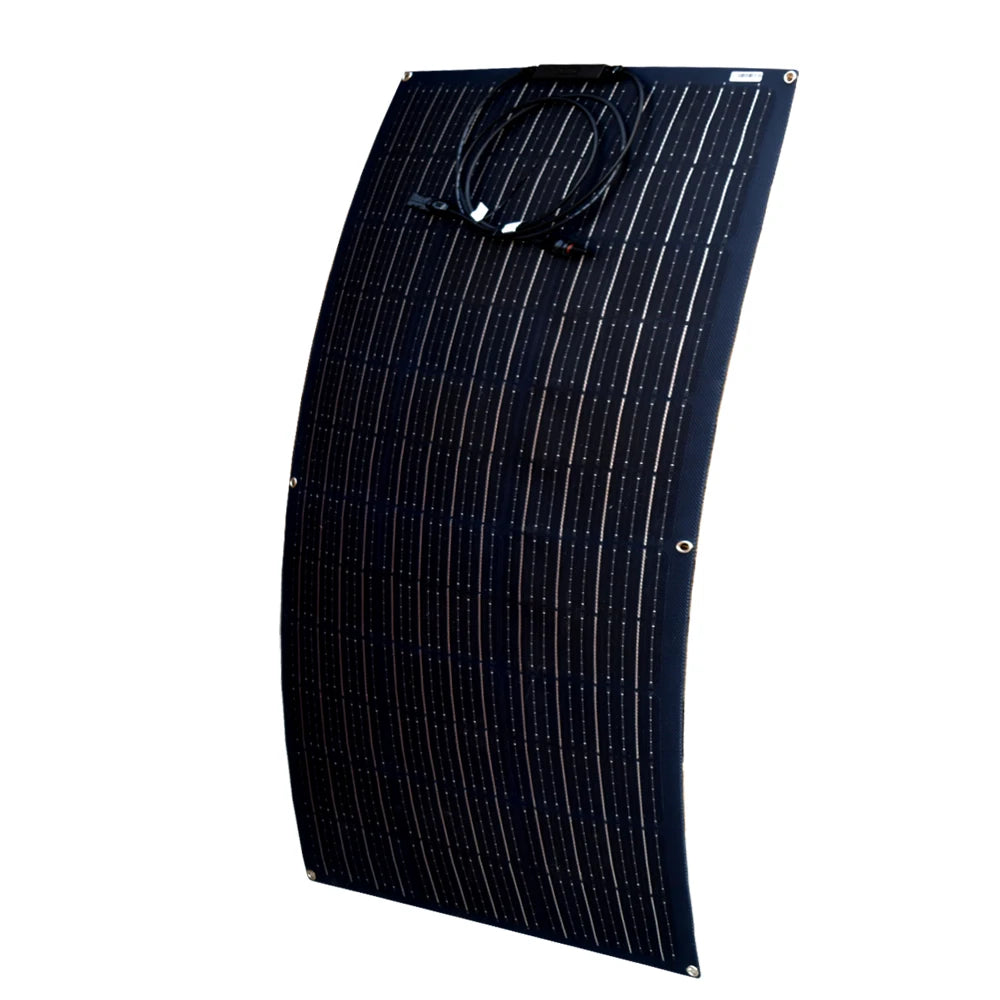

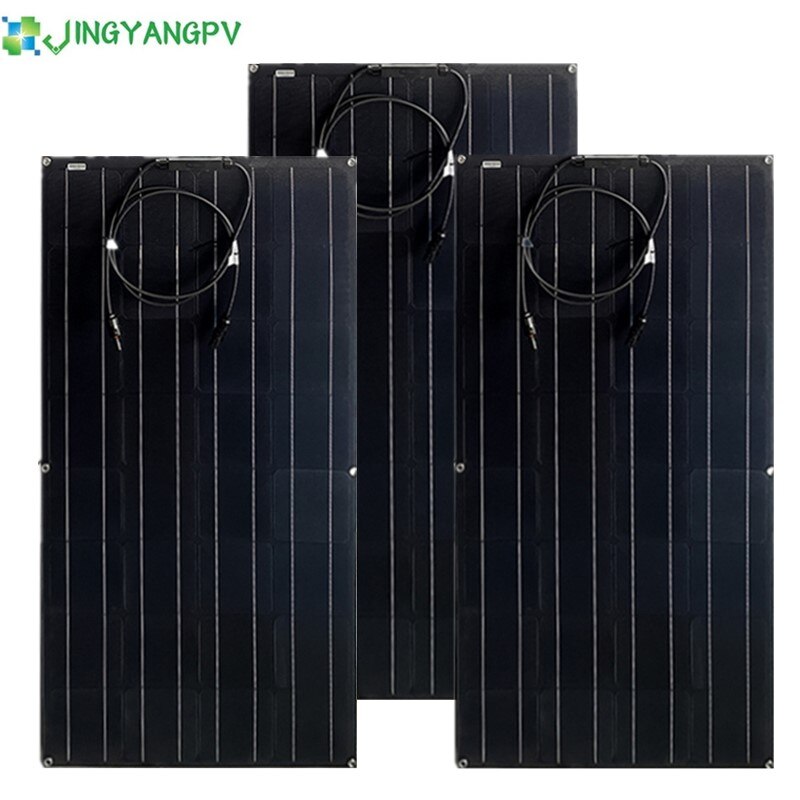

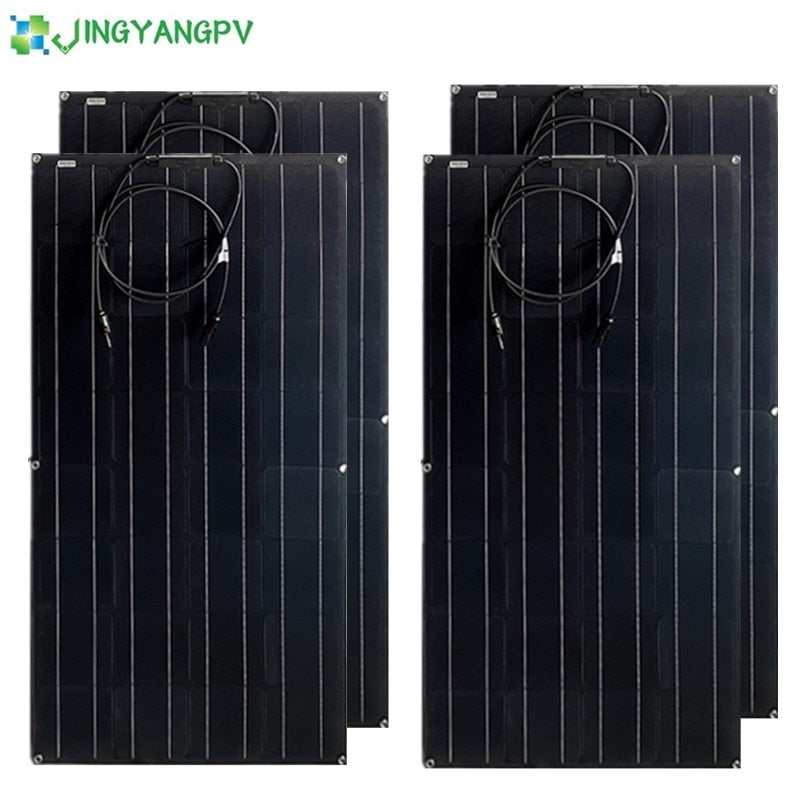

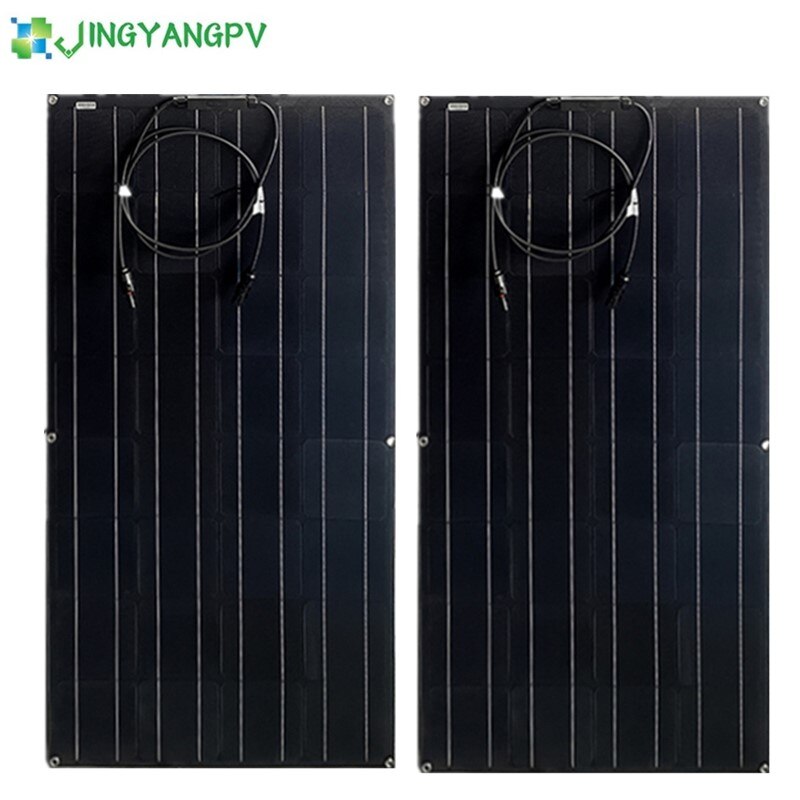

JINGYANG long lasting Semi Flexible solar panel 100W 200W 300W 400W Waterproof Panel Solar Monocrystalline Solar Cell RV Boat
JINGYANG long lasting Semi Flexible solar panel 100W 200W 300W 400W Waterproof Panel Solar Monocrystalline Solar Cell RV Boat
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
flexible solar panel: solar panel 100W
Type: Solar Panel
Size: 1050mm*540mm*2.5mm
Origin: Mainland China
Number of Panels: 1
Number of Cells: 32
Nominal Capacity: 100w
Module Efficien: 21.8%
Model Number: etfe 32-100
Max. Power: 105
Material: Monocrystalline Silicon
Foldable Solar Panel: No

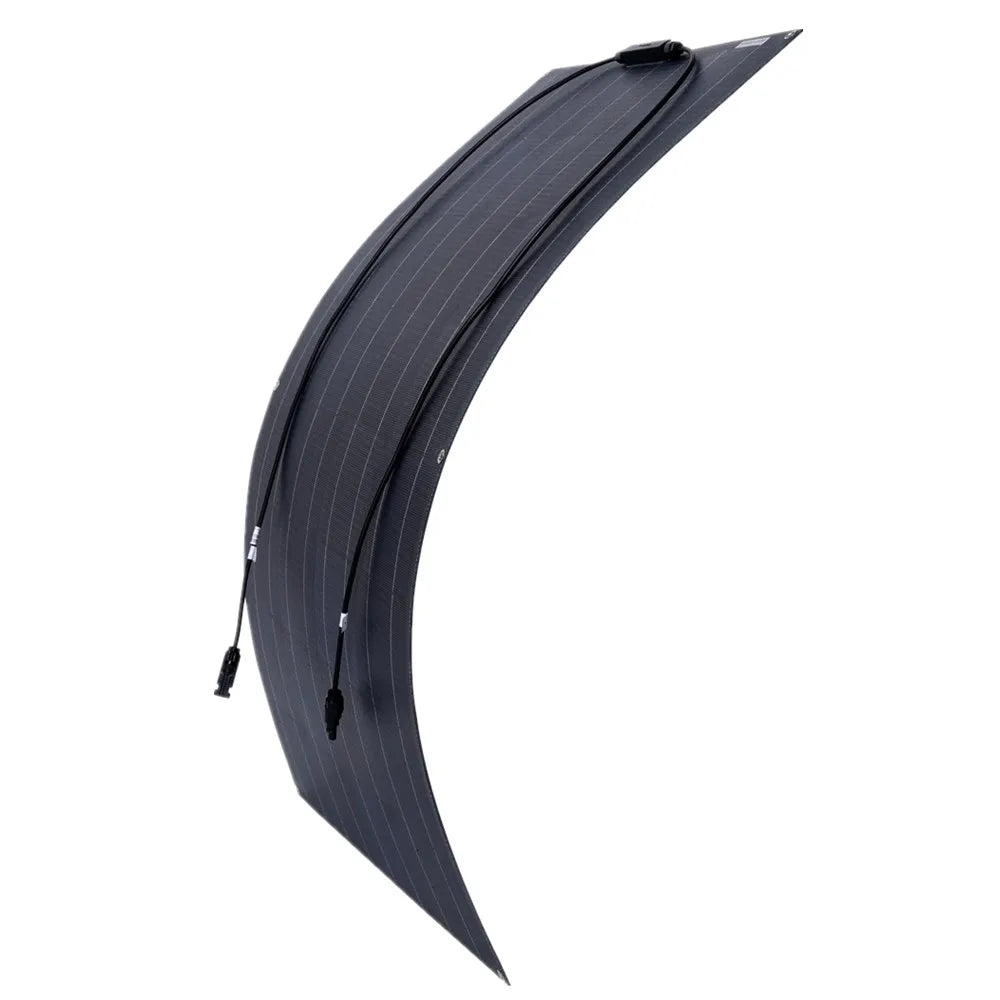

Flexible Solar Panel: Yes
ETFE SOLAR PANEL 100W: 12V 18V PV PANEL
Certification: CE
Brand Name: JINGYANGPV
Advantages of JINGYANG ETFE Solar Panels:
Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.
Japan ETFE Film Coating is corrosion resistant, Bear Higher Temperature; Higher Efficiency and is suitable for both indoor and outdoor use.
With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
Product description:
The surface is Total Japan ETFE Film Coating, waterproof, snowproof, resistant to small hail.
By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM

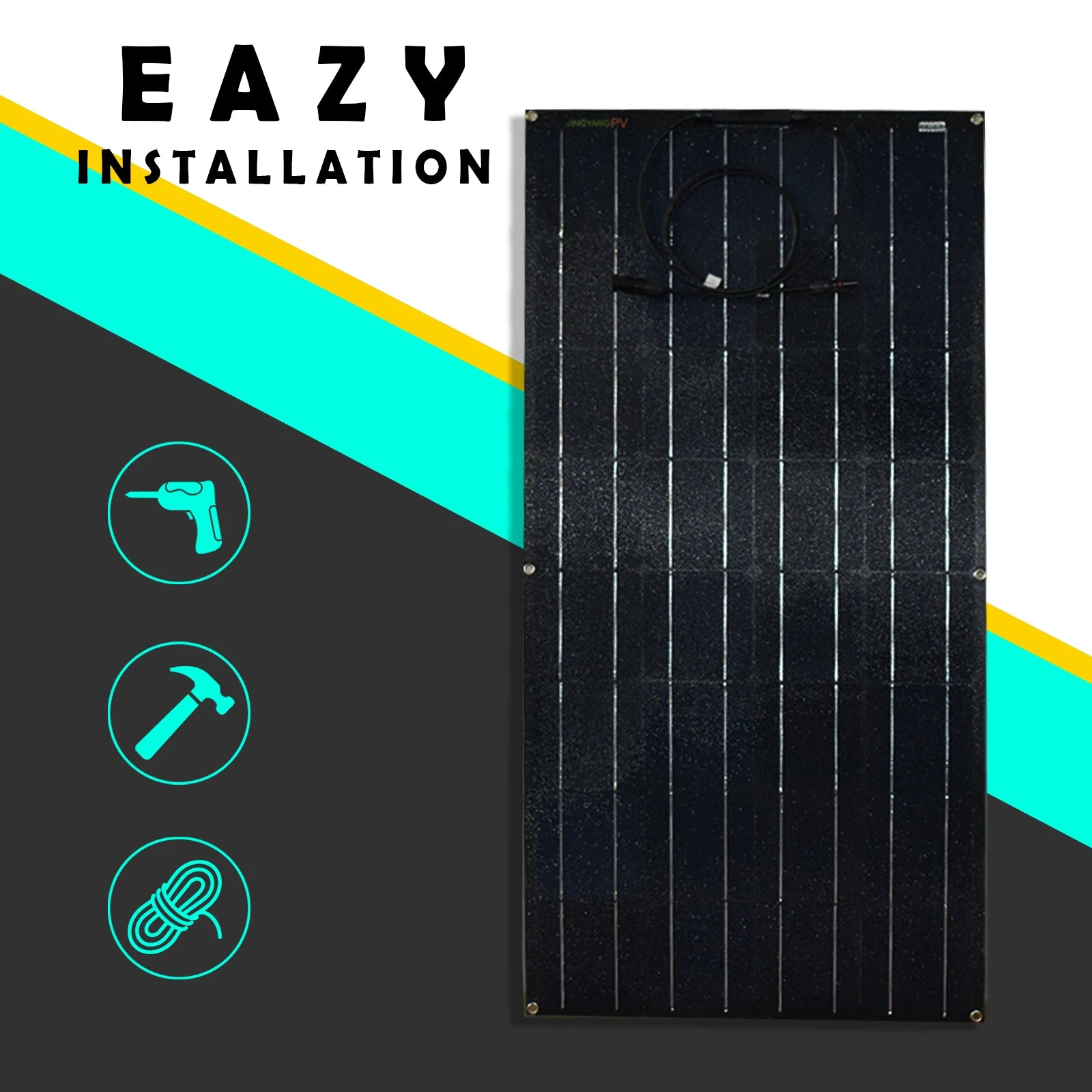

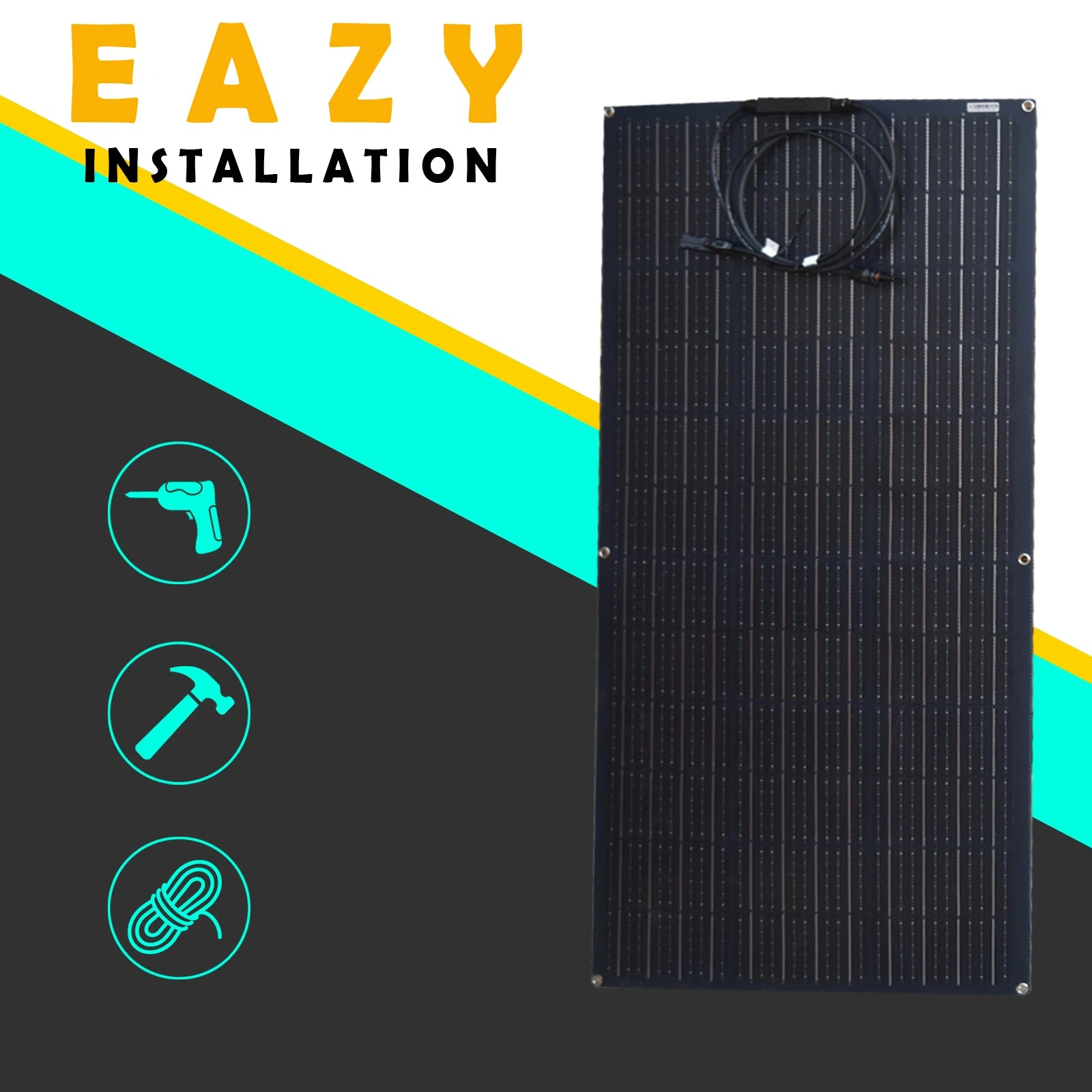

The back has 6 drill holes that can be quickly installed.

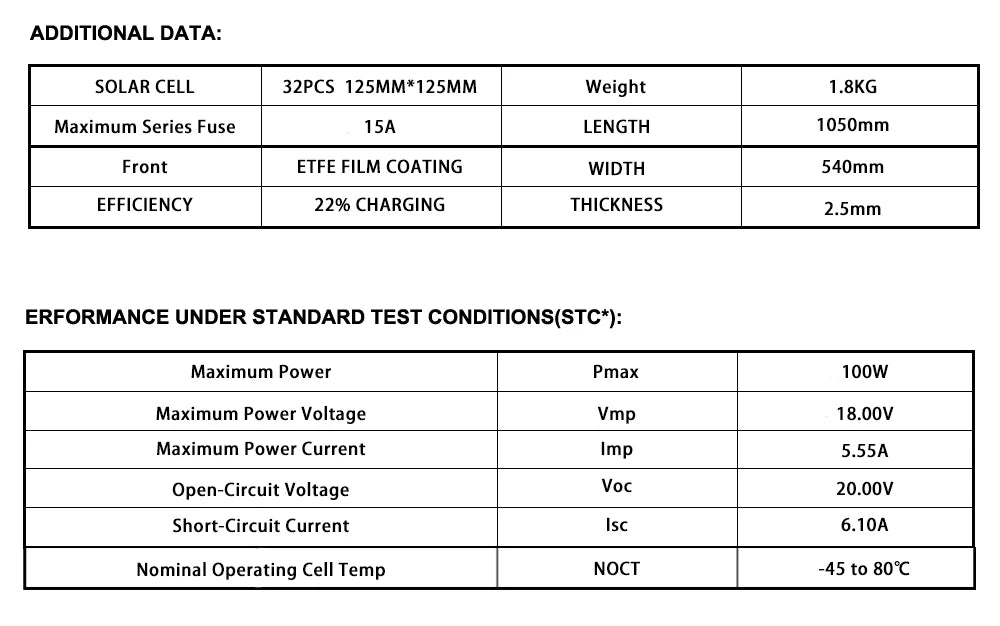

Model: ETFE 32-100
Material: Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.55A
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Dimension:1050MM(L)*540MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.26inch(W)*0.09inch(H)
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

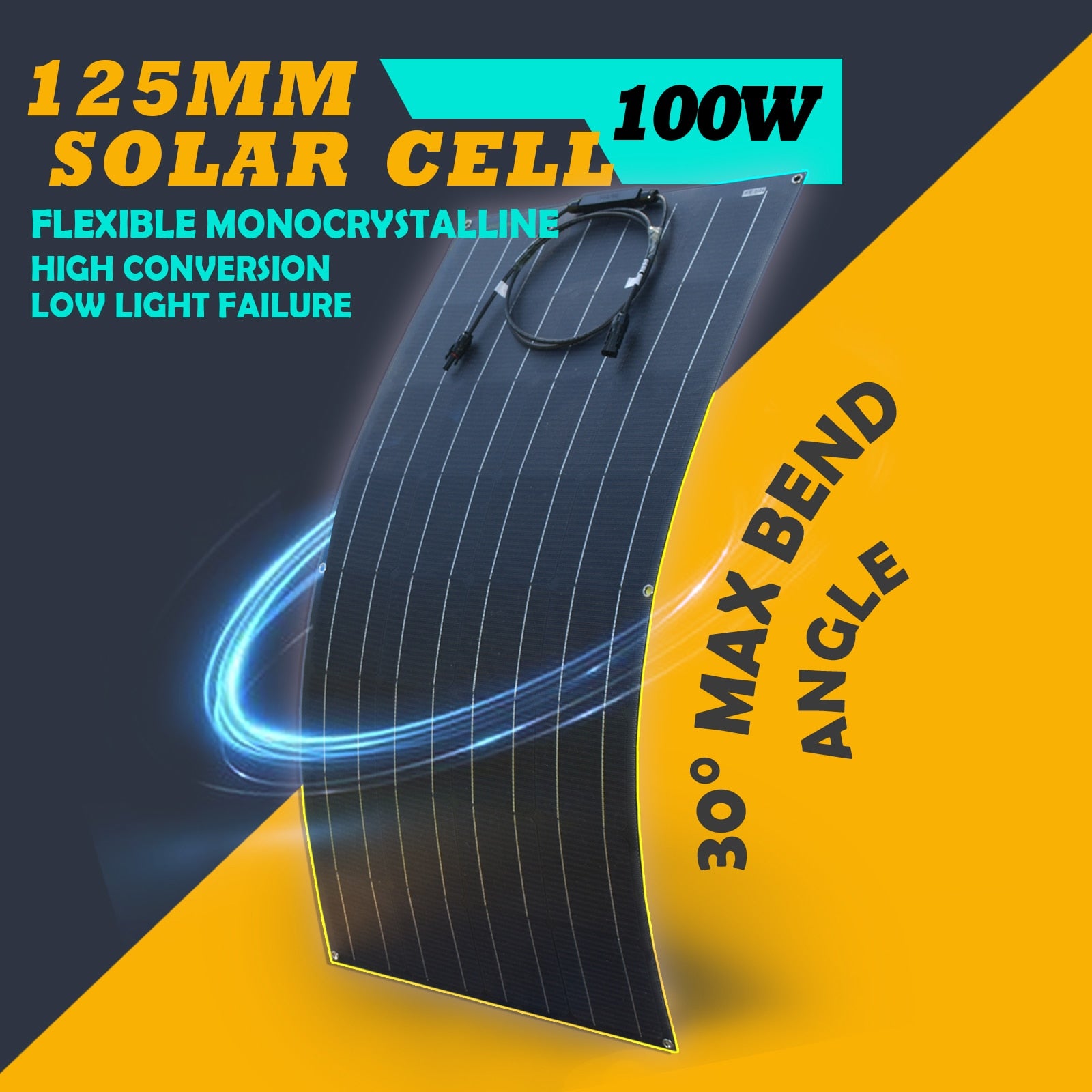

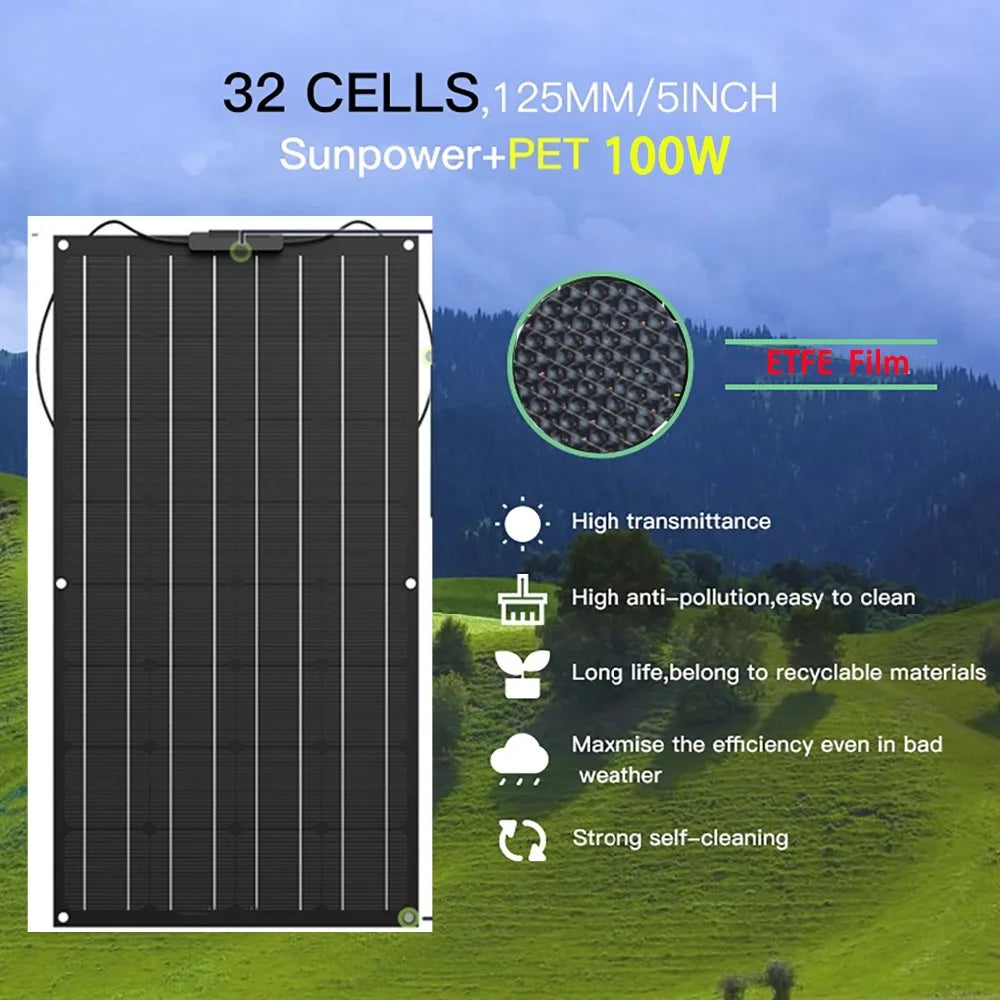

32-cell solar panel with 125mm pitch and SunPower+PET film. Features high transmittance, anti-pollution coating, easy cleaning, and long lifespan. Recyclable materials ensure maximum efficiency even in poor weather conditions.

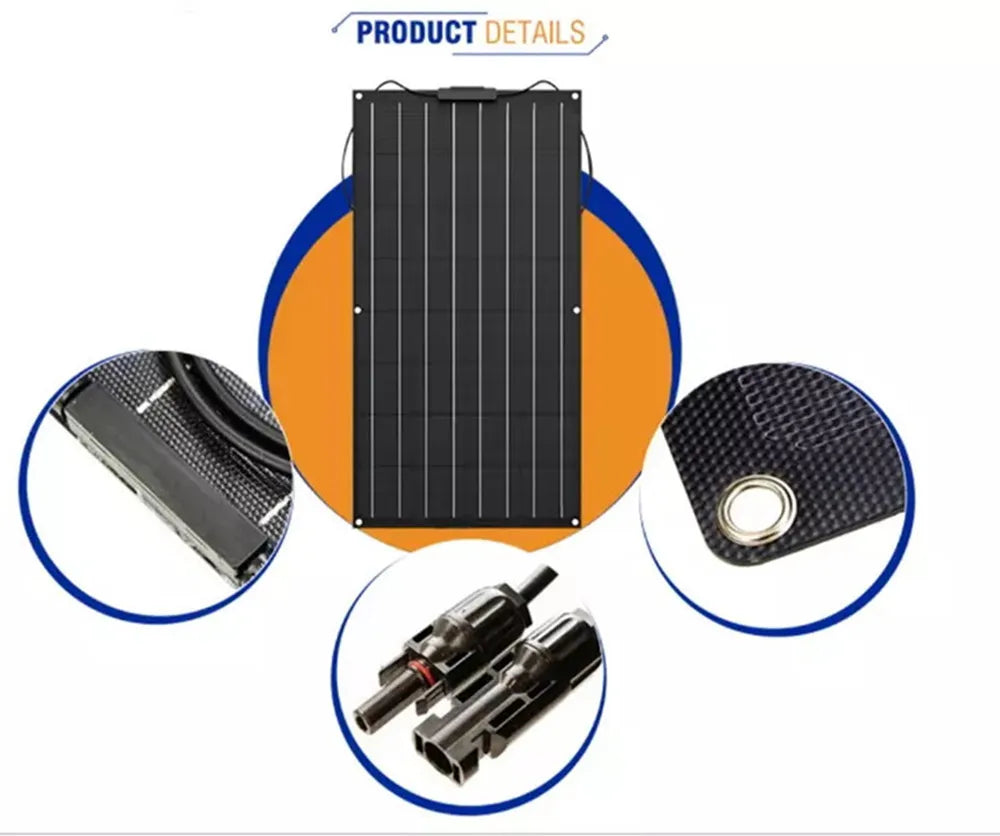

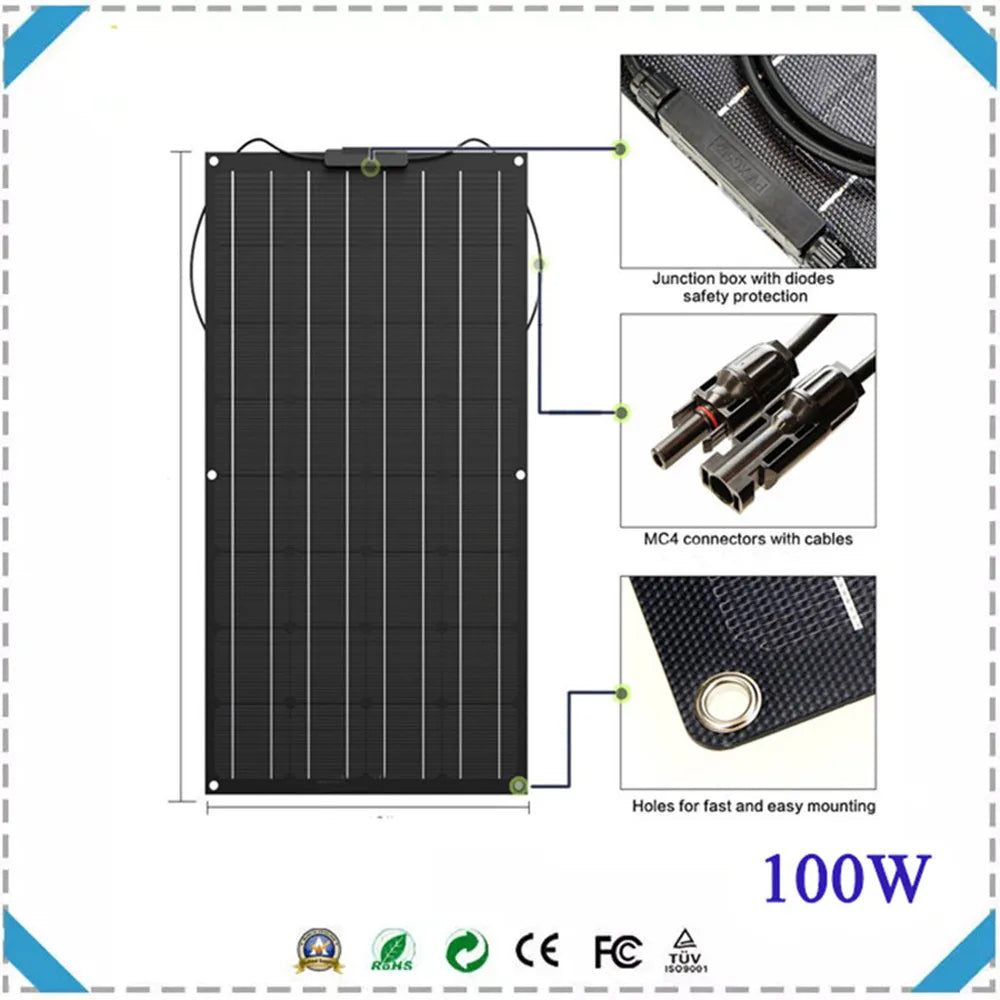

Equipped with a junction box featuring diode safety protection, MC4 connectors, and cable connections for easy installation and secure mounting.

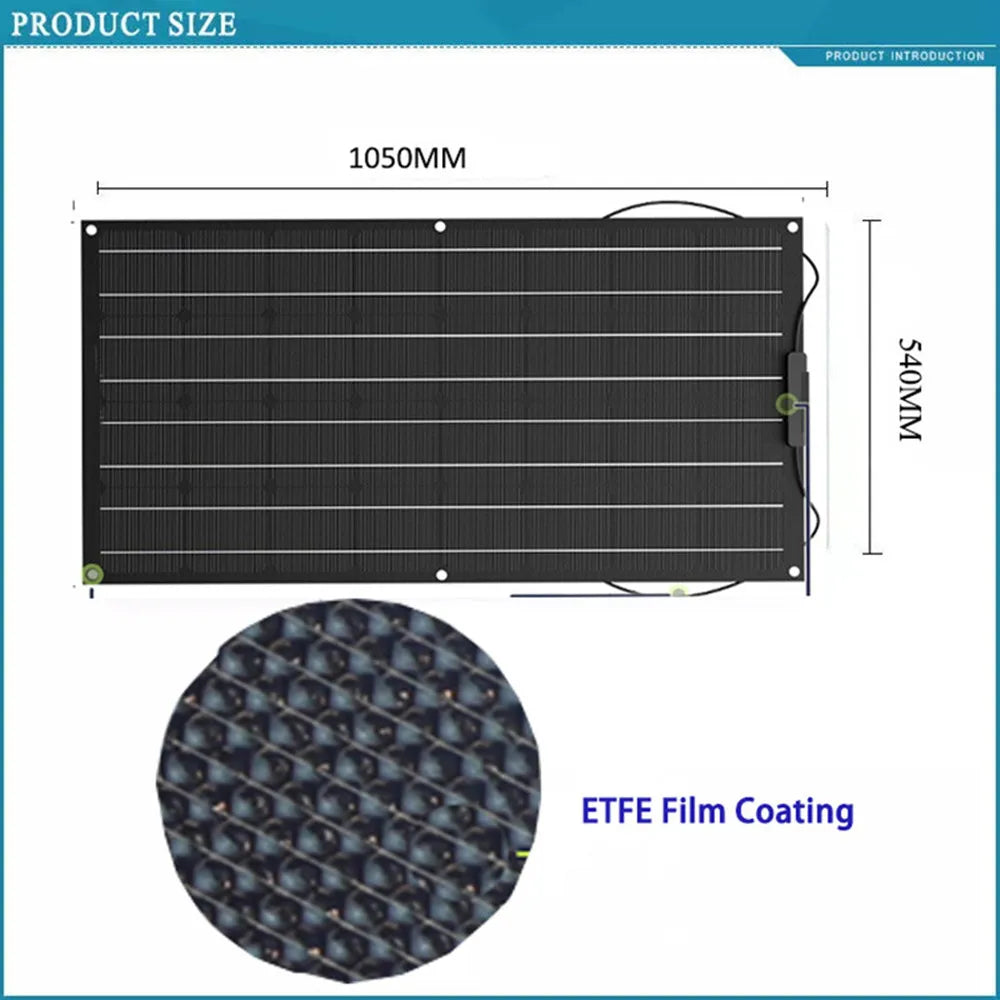

Product size: 1050mm, featuring an ETFE film coating for added protection and durability.

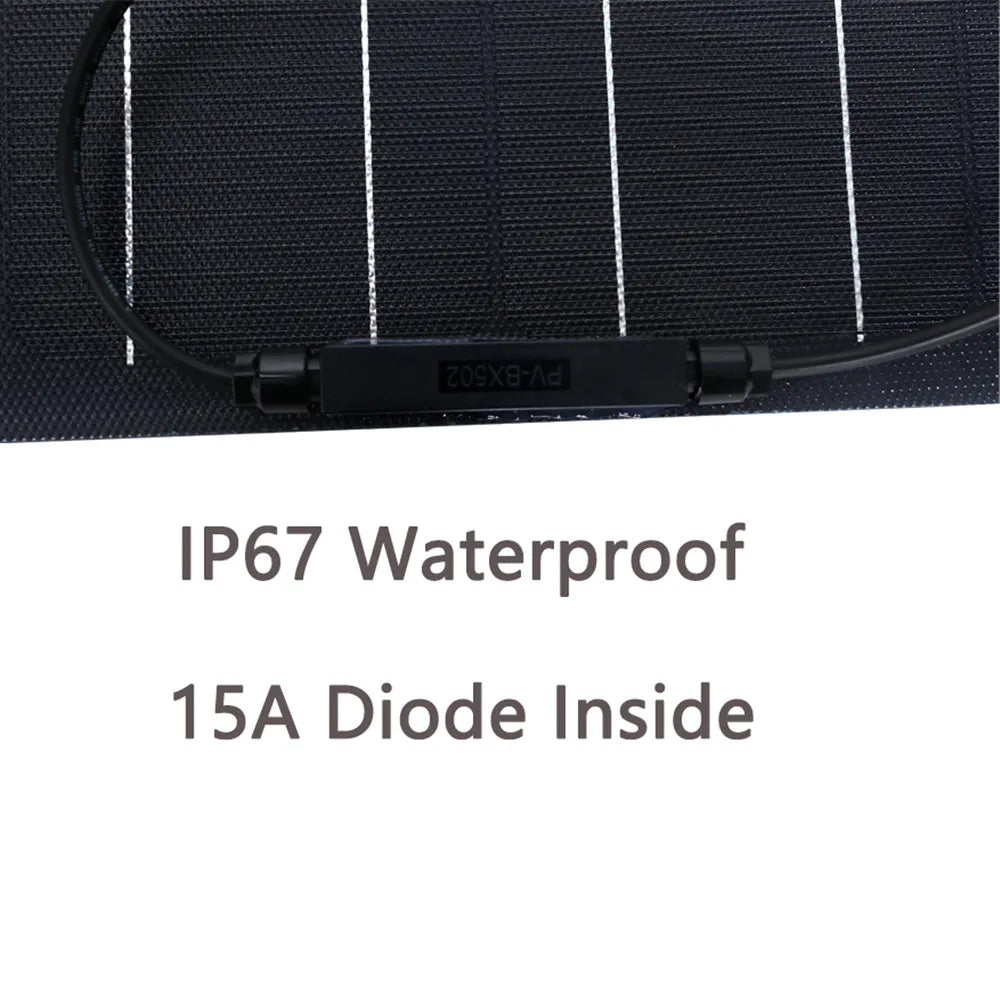

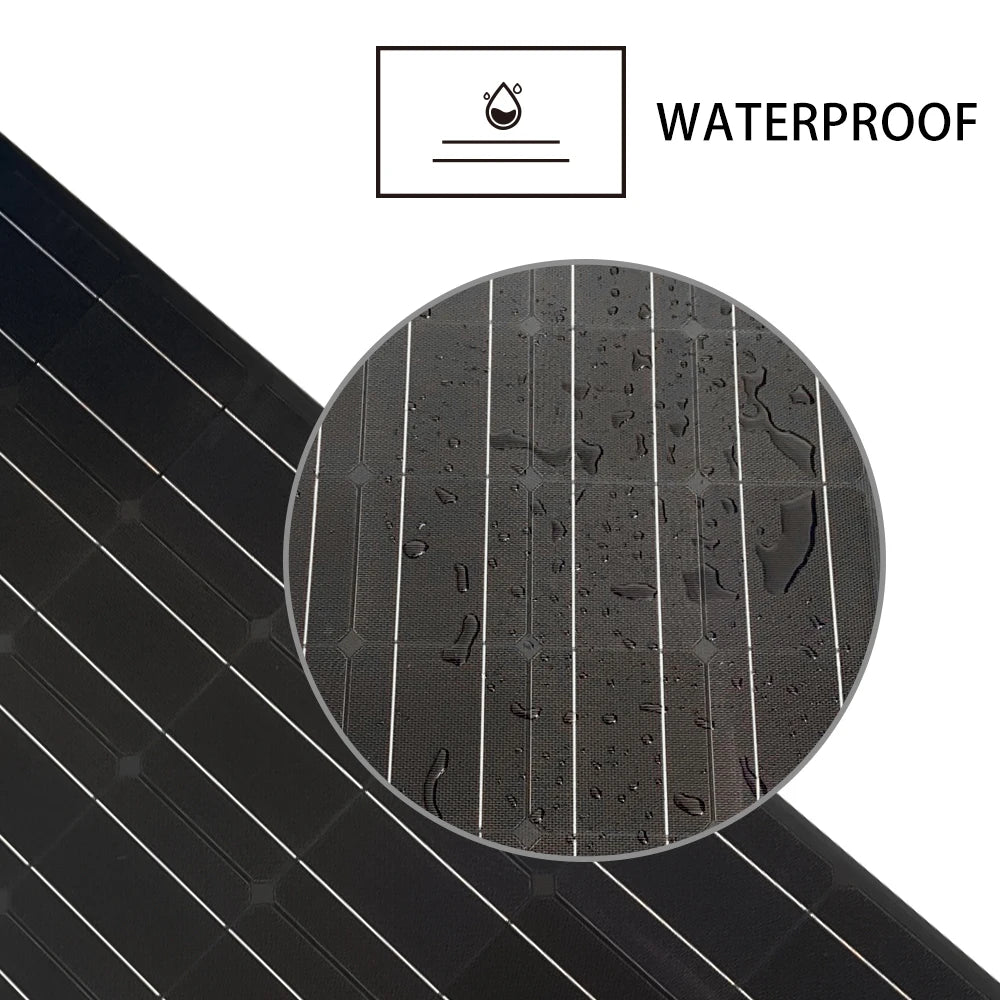

Waterproof IP67 rating with 15A diode inside for safe and reliable performance.

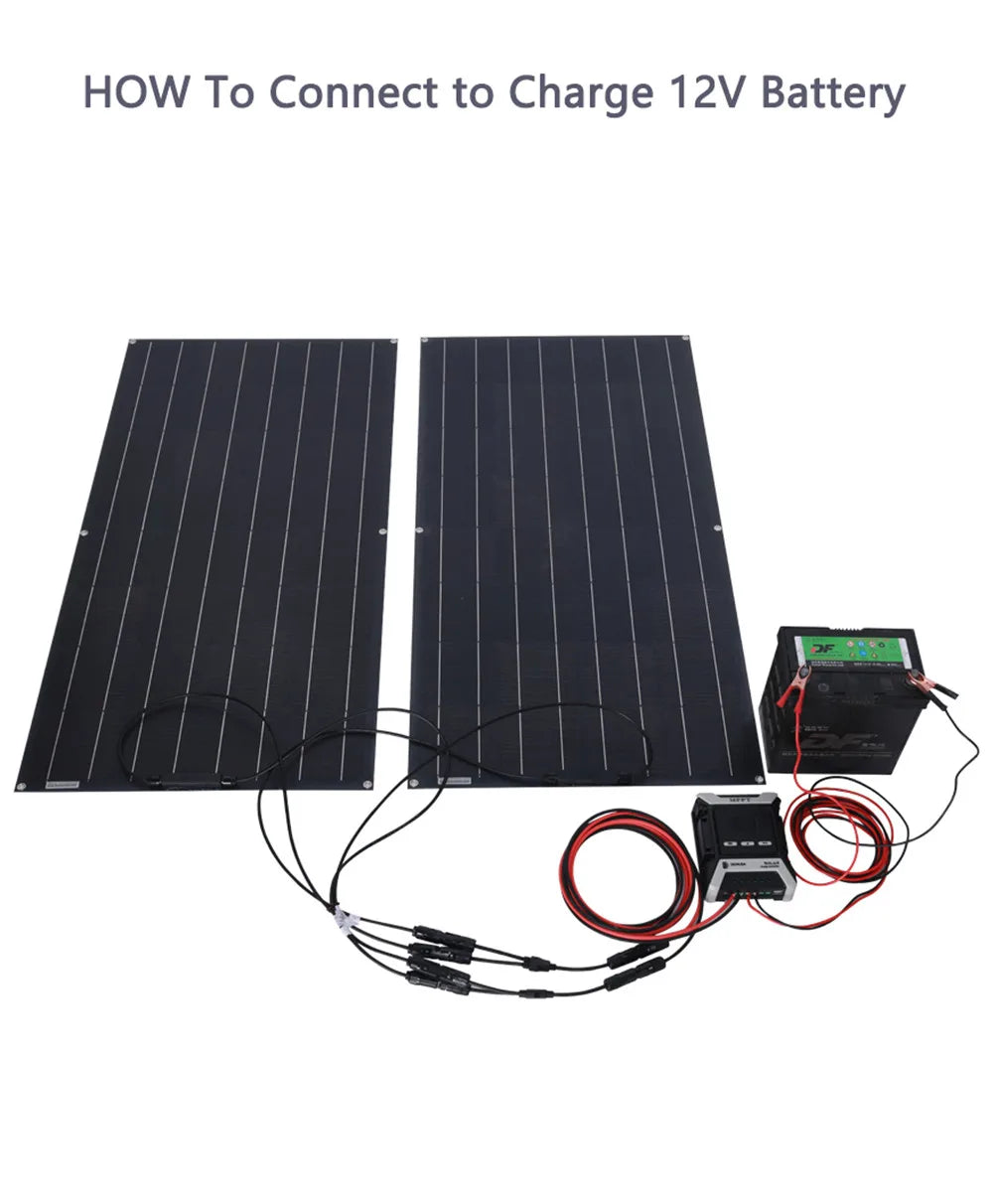

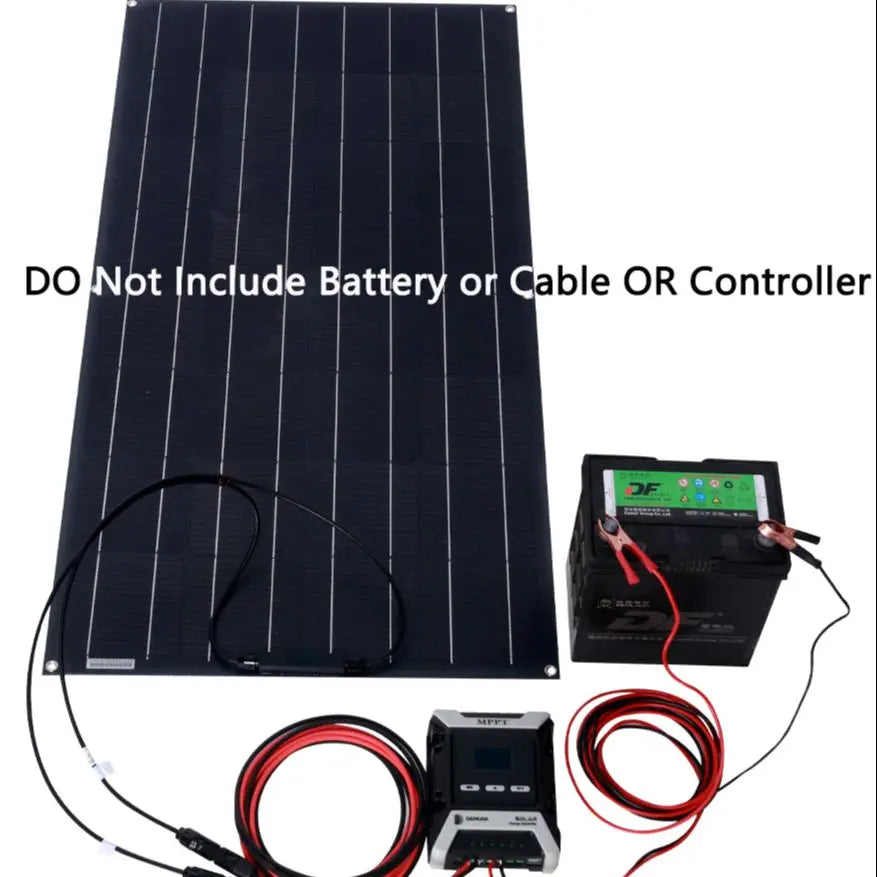

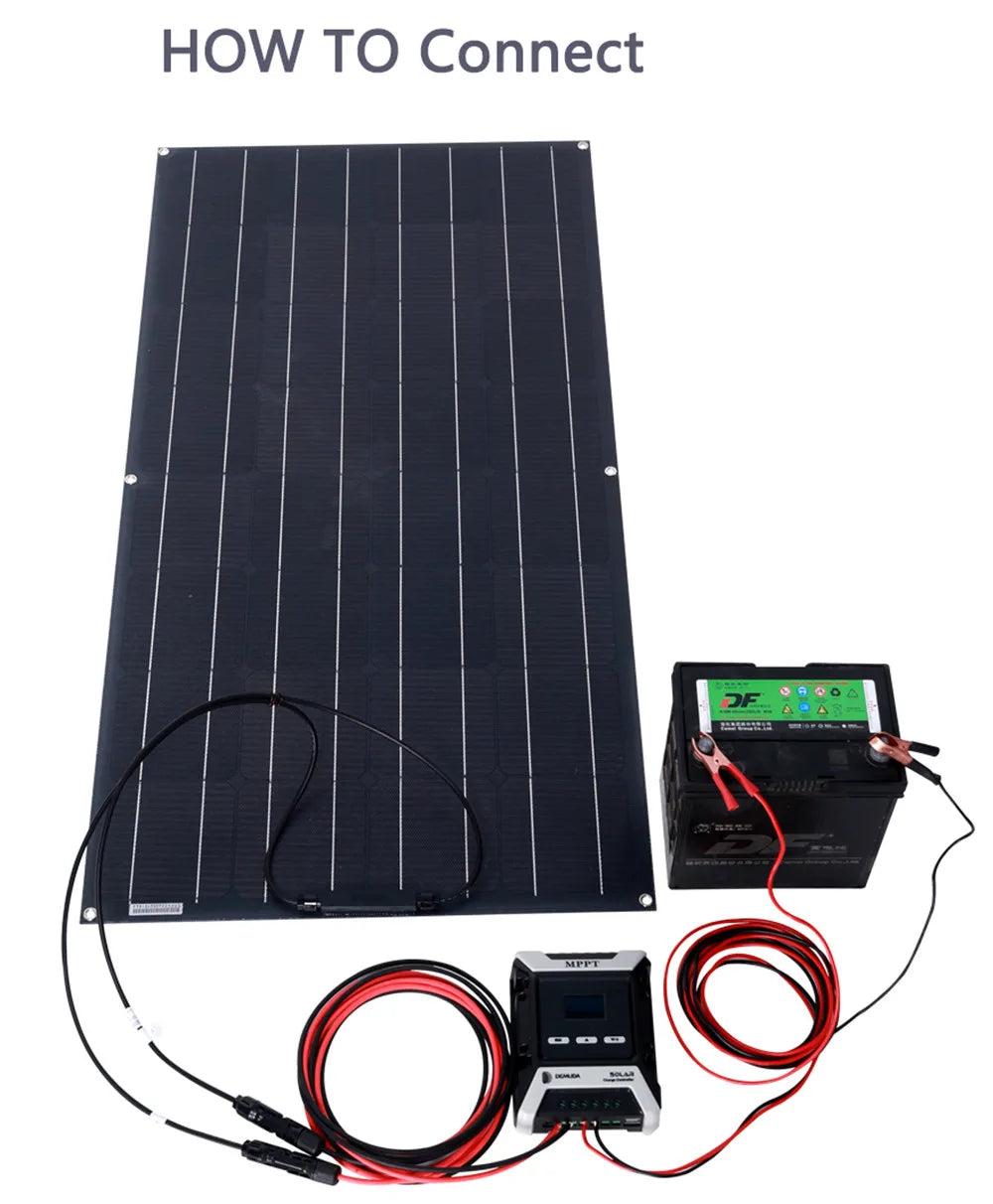

Connect to charge your 12V battery using this solar panel's DC output.

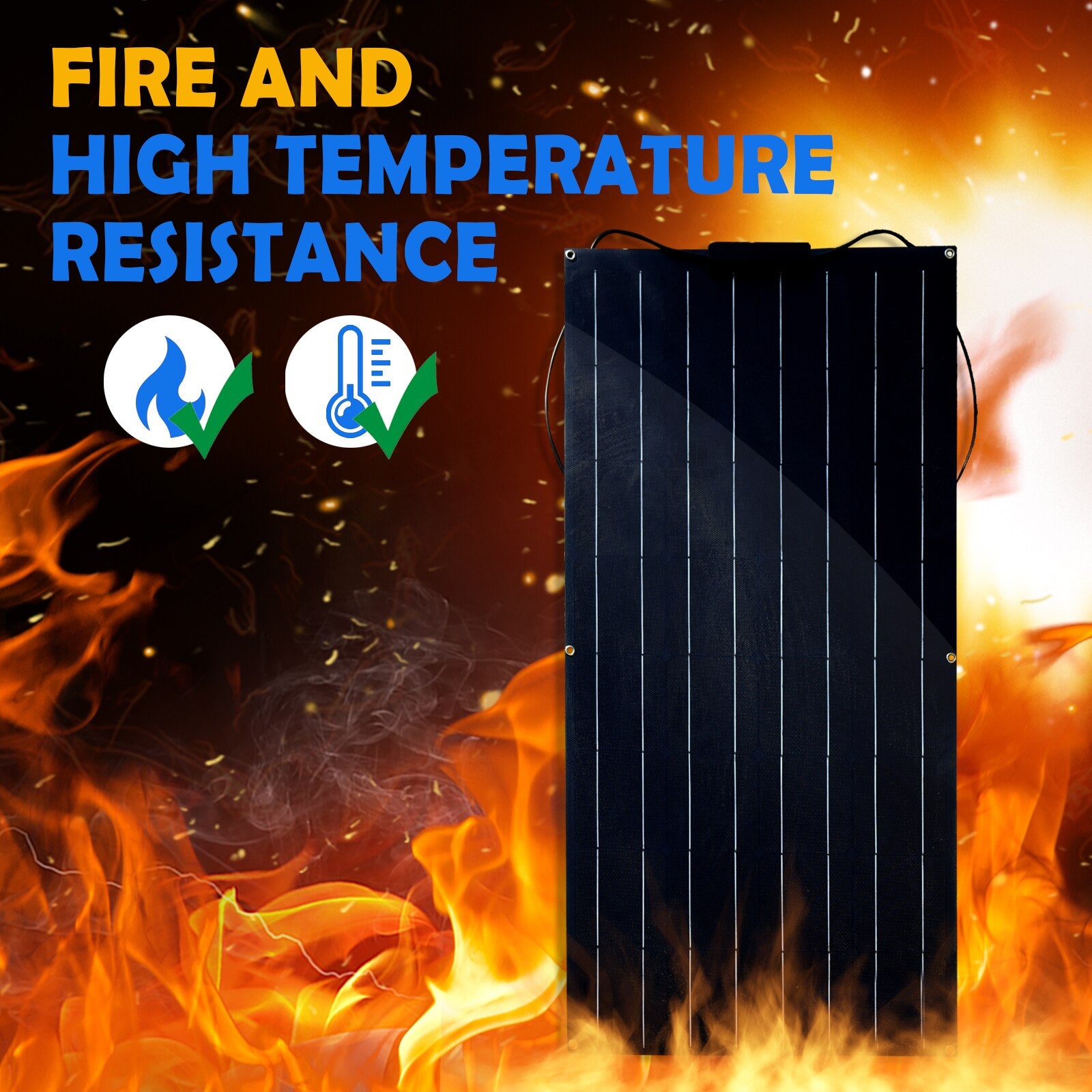

Fire-resistant and high-temperature tolerant for safe operation.

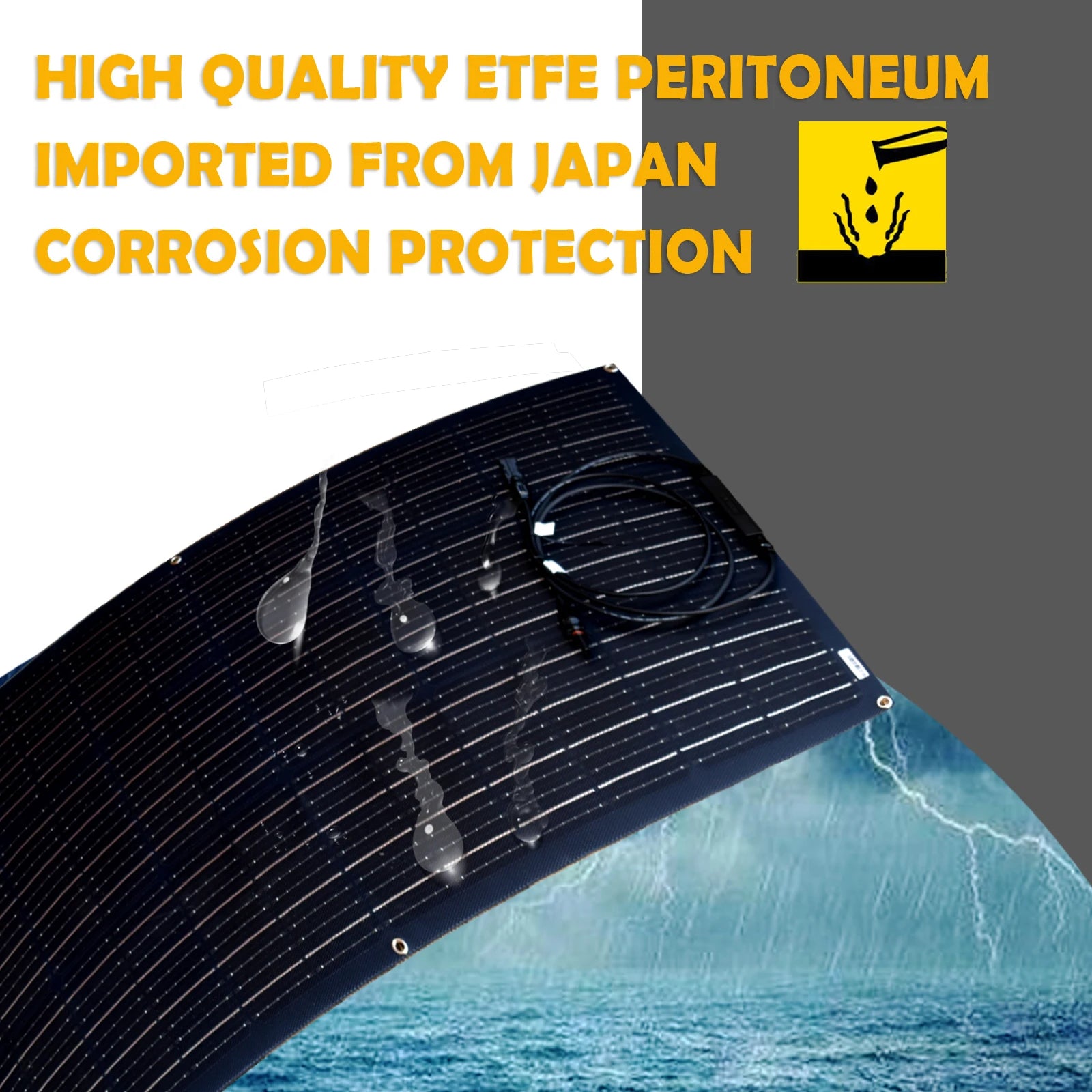

High-quality ETEF film imported from Japan provides corrosion protection.

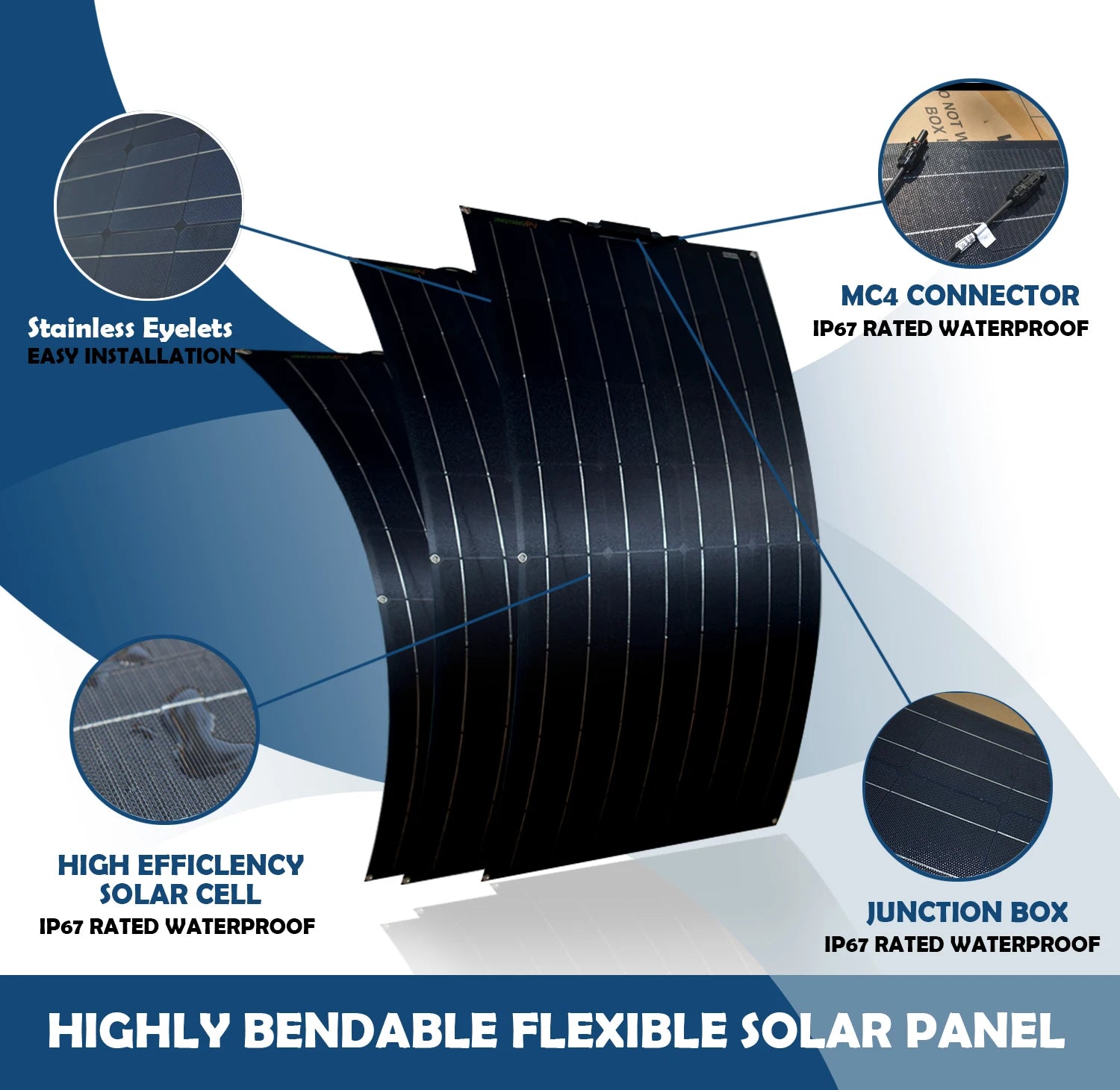

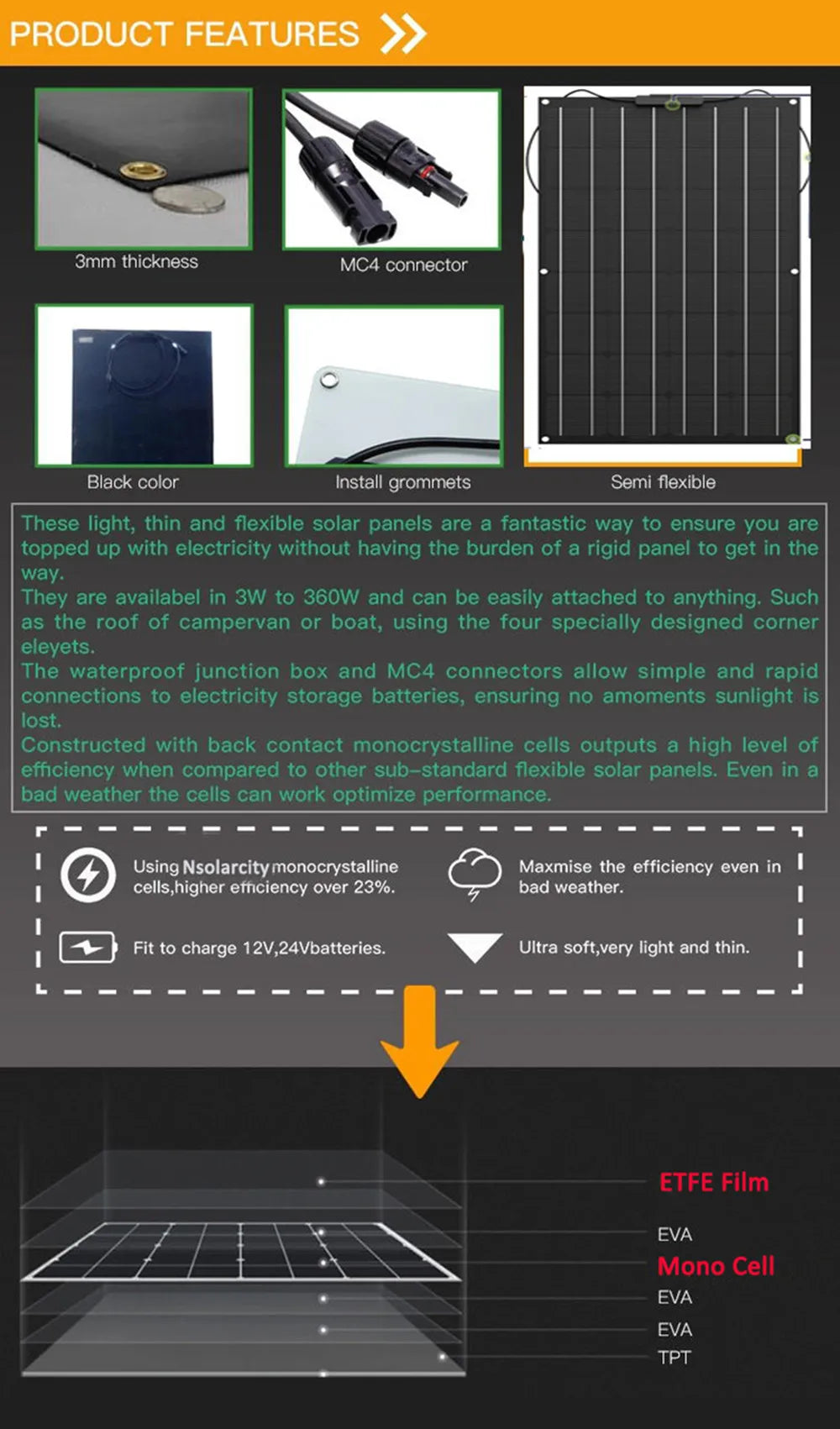

This product features an MC4 connector with stainless eyelets, an IP6z rated waterproof junction box, and highly bendable flexible solar panels for easy installation. The solar cell offers high efficiency and IP6z rated waterproofing.
Unique dot pattern allows for efficient sunlight capture, refracting and utilizing light from various angles to boost solar conversion rates.

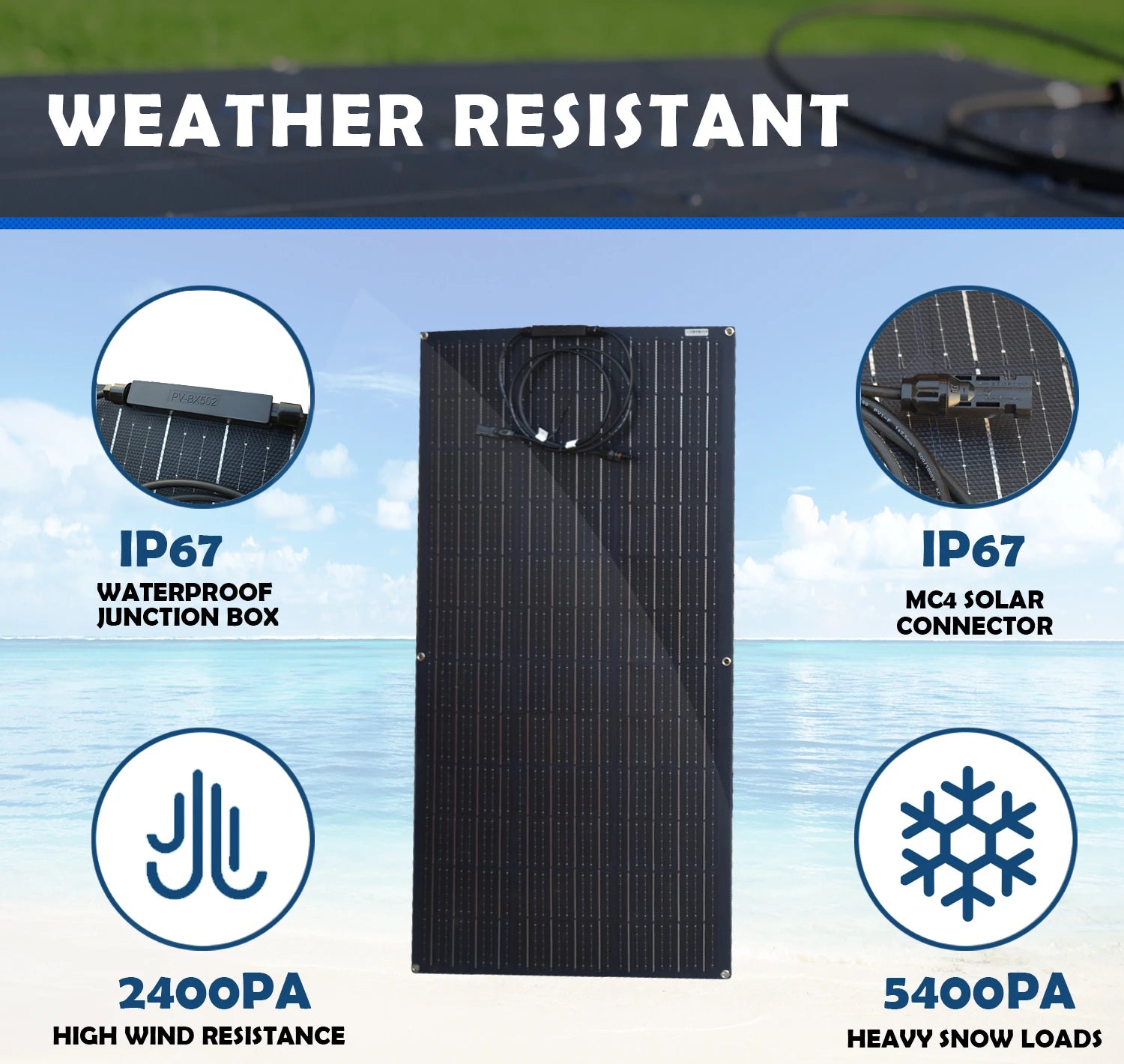

This solar panel features IP68 waterproofing, MC4 connectors, and weather resistance. It withstands high winds and heavy snow loads, making it suitable for outdoor use in RVs and boats.

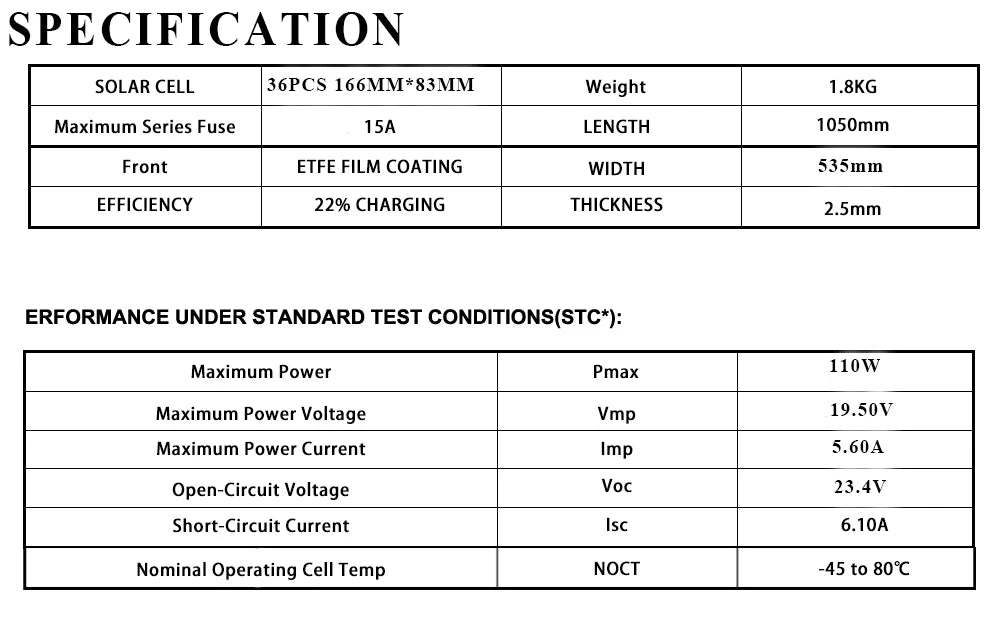

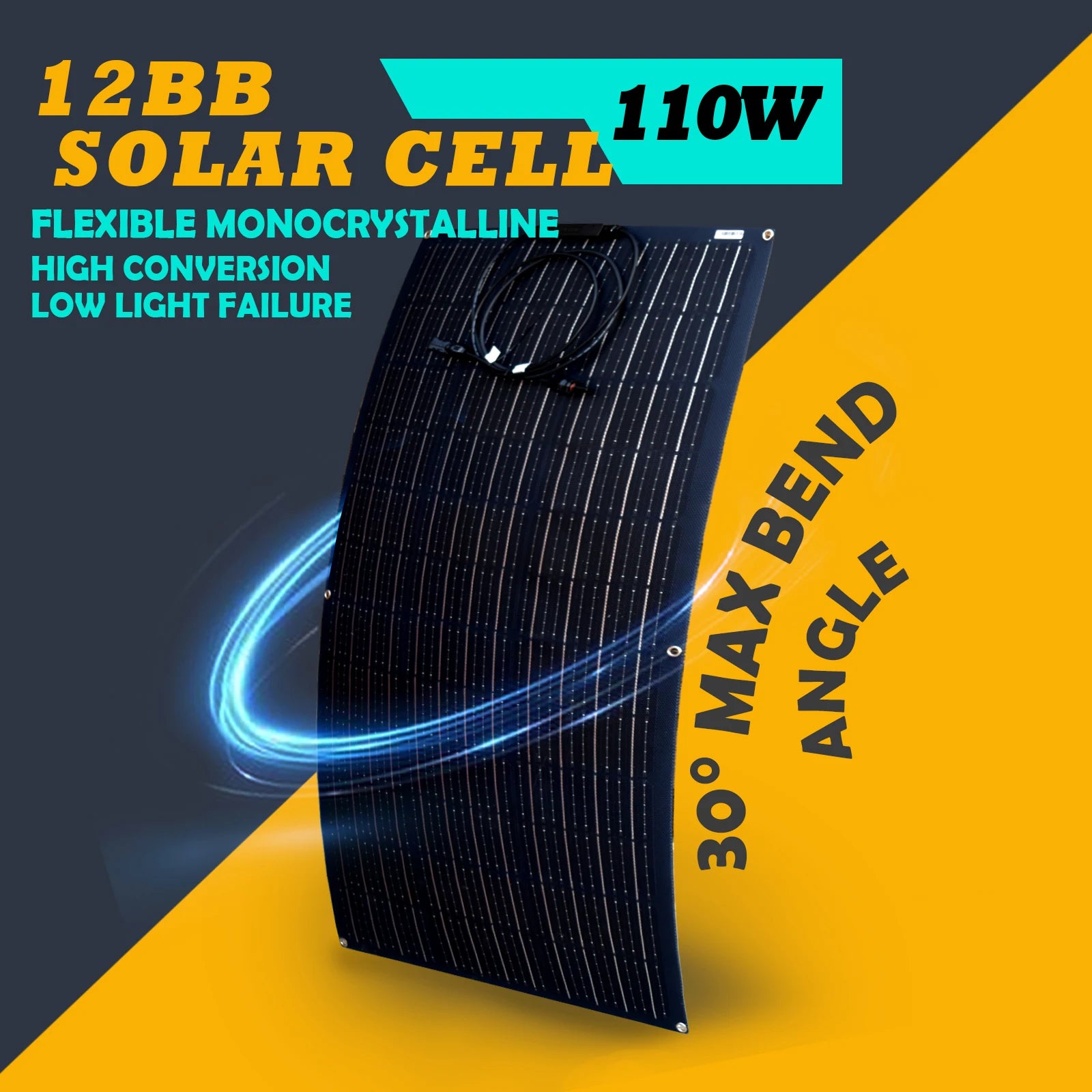

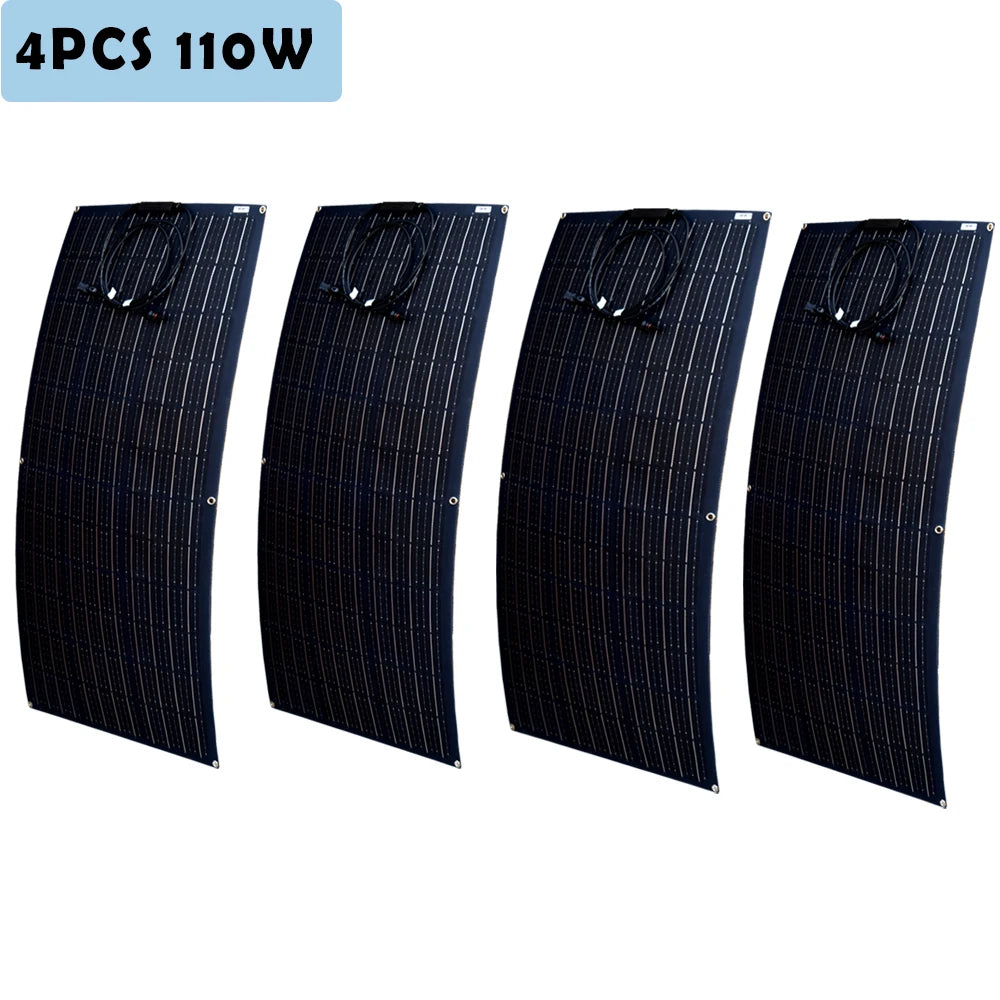

ETFE Solar Panel 110WModel: ETFE 32-110
Material: Monocrystalline silicon
Maximum Power(Pmax):110W±3%
Maximum Power Voltage(Vmp):19.50V
Maximum Power Current (Imp):5.60A
Open-Circuit Voltage (Voc): 23.4V
Short-Circuit Current (Isc):6.10A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Solar Cell: 36pcs 166mm*83mm; 12BB Solar Cell
Dimension:1050MM(L)*535MM(W)*2.5mm(H) Equal To 41.33Inch(L)*21.06inch(W)*0.09inch(H)
Package Weight:1.95kg
Package Dimension:1080MM*570MM*40MM
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。
** JINGYANG long lasting Semi Flexible solar panel 100W 200W 300W 400W Waterproof Panel Solar Monocrystalline Solar Cell RV Boat.

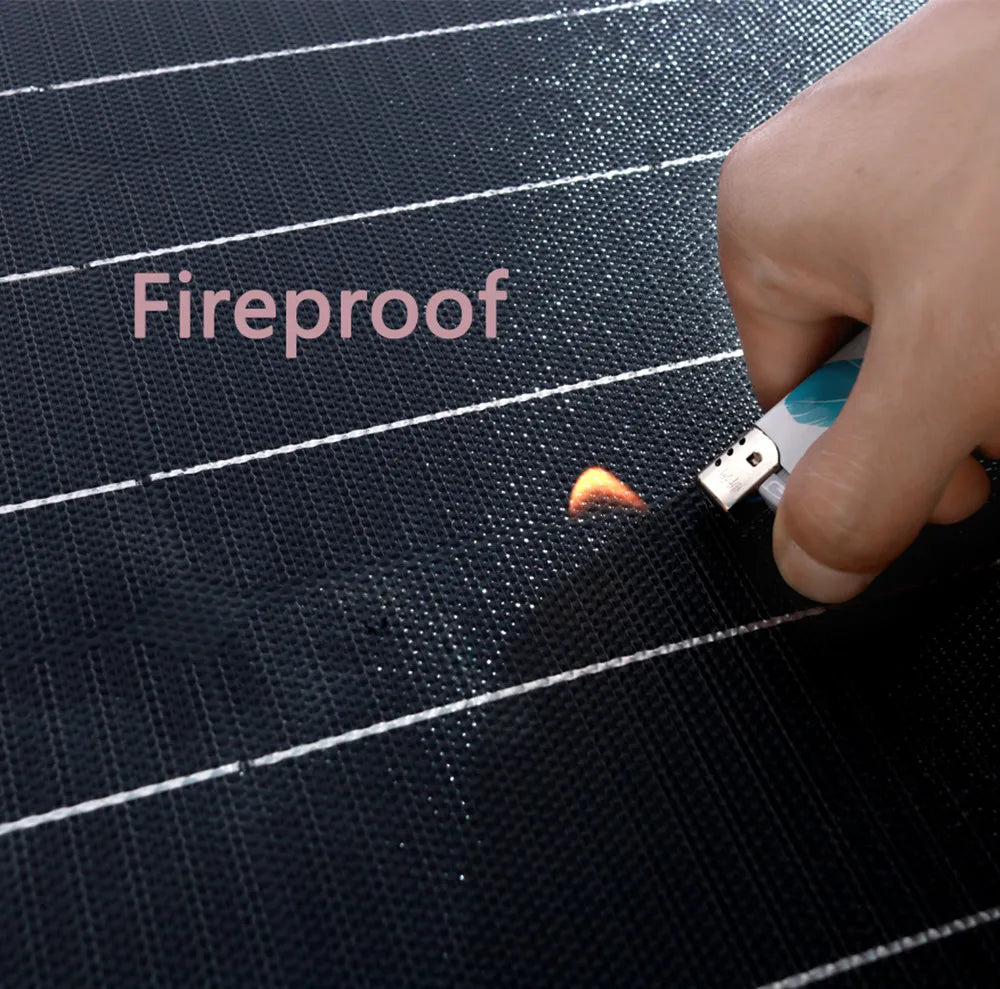

Fire-resistant and high-temperature tolerant design ensures reliable performance in harsh environments.
High-quality ETFE material imported from Japan provides corrosion protection for our solar panels, ensuring durability and reliability.

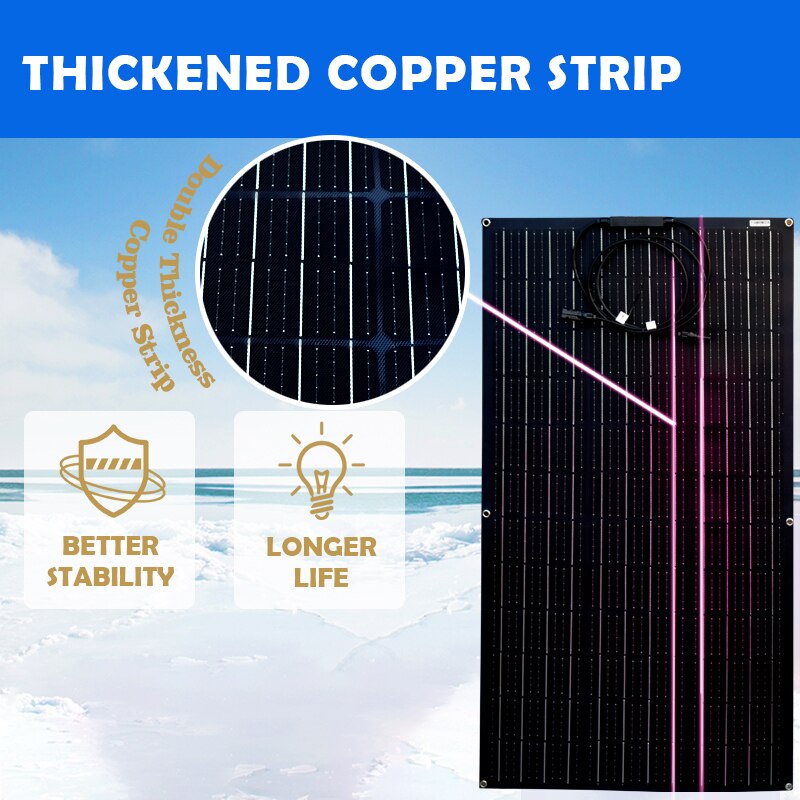

Thickened copper strip enhances stability and lifespan for long-lasting performance.

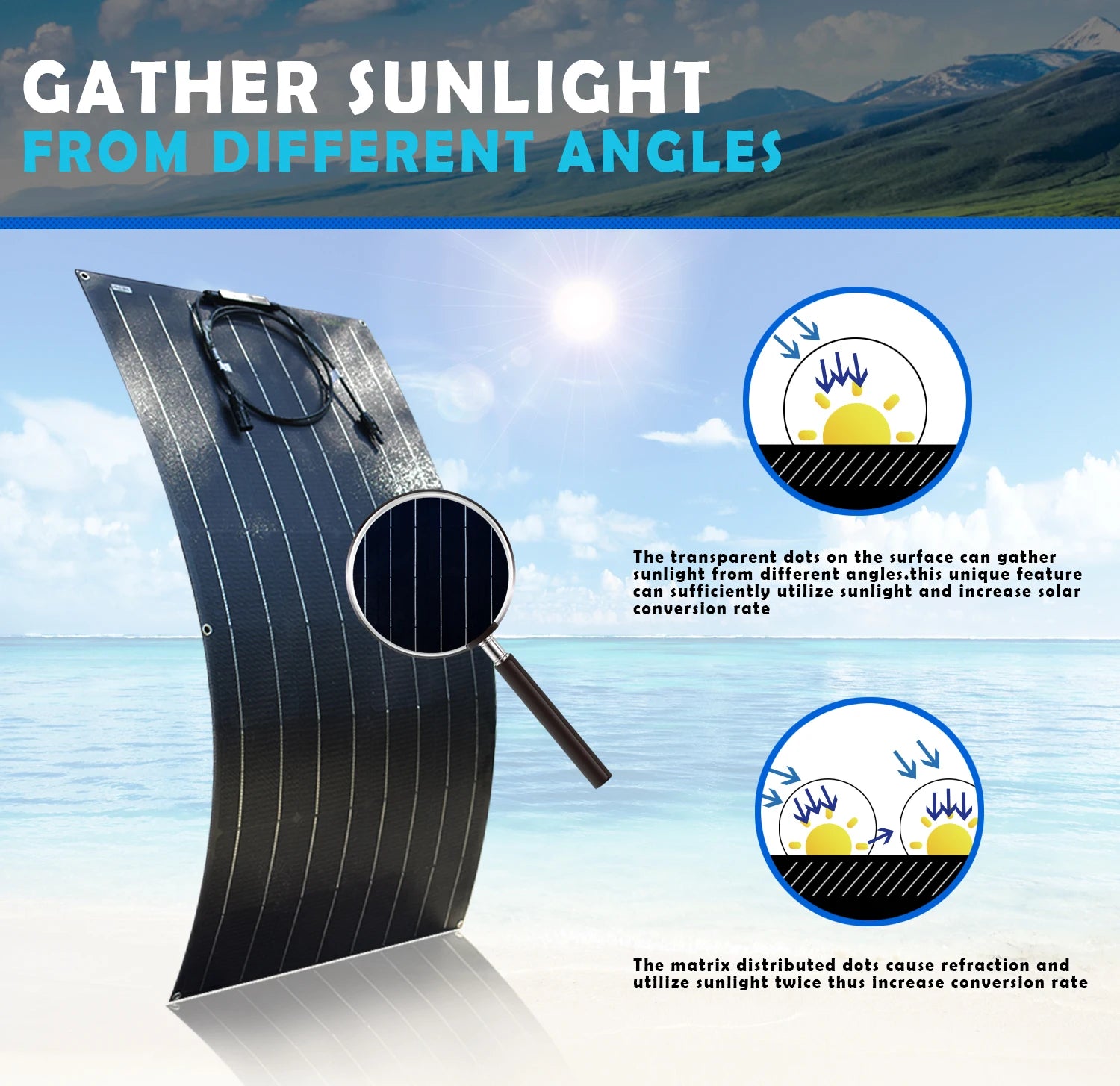

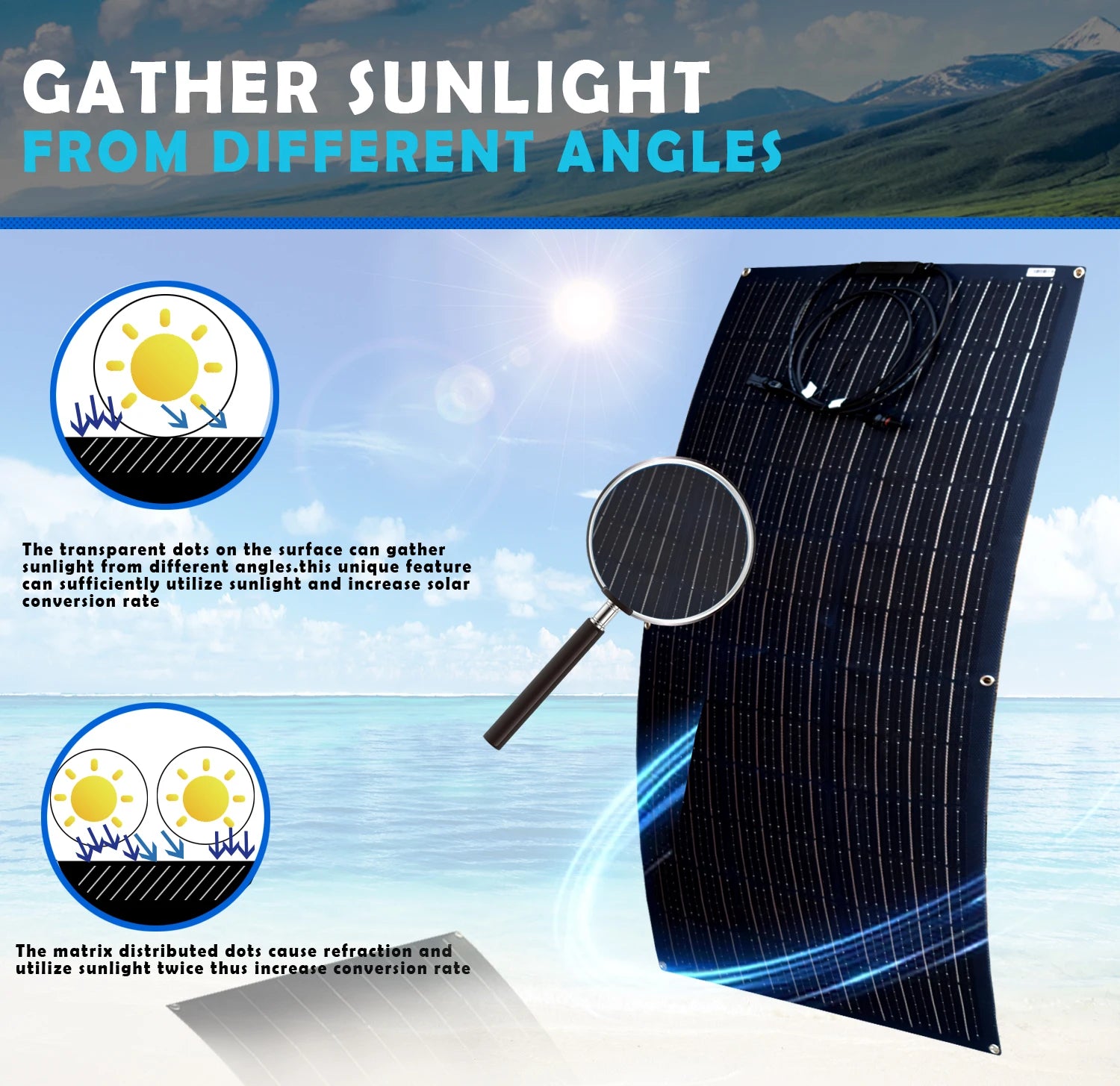

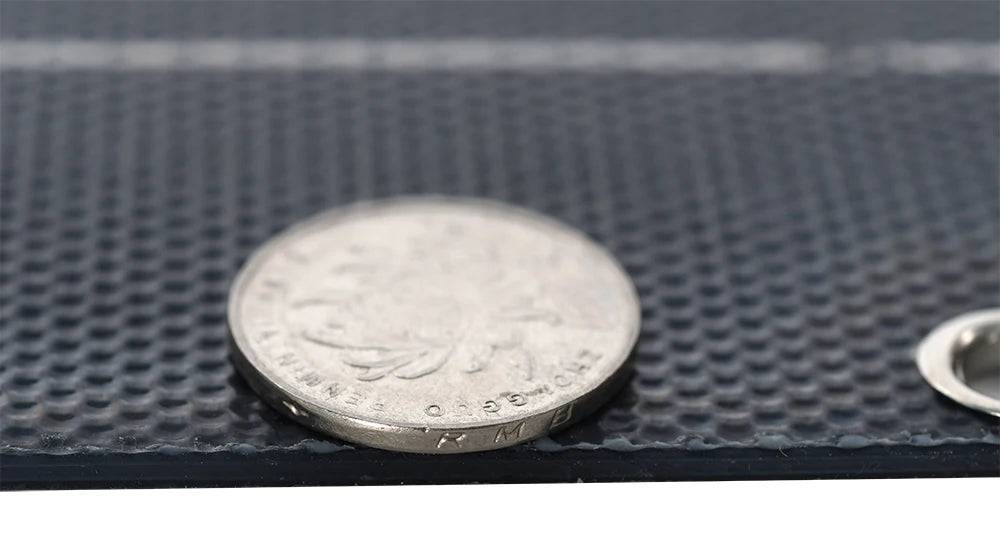

Unique transparent dot patterns on the surface allow for optimal sunlight gathering from various angles, increasing solar conversion rates through refraction and double utilization.
Enjoy reliable performance with our weather-resistant solar panel, featuring IP68 waterproofing, MC4 connectors, and high wind resistance. Ideal for RVs, boats, or areas exposed to heavy snow loads.

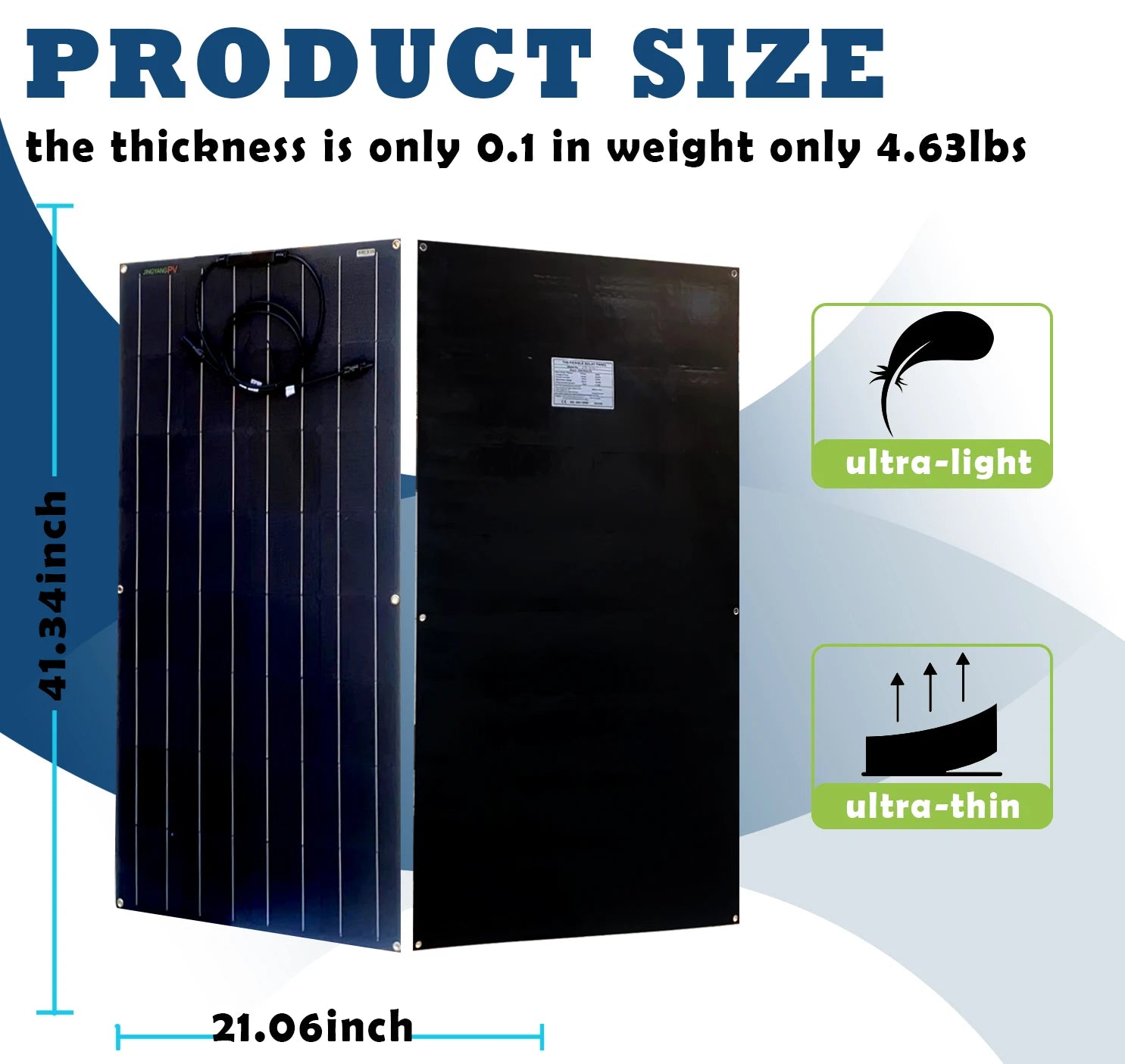

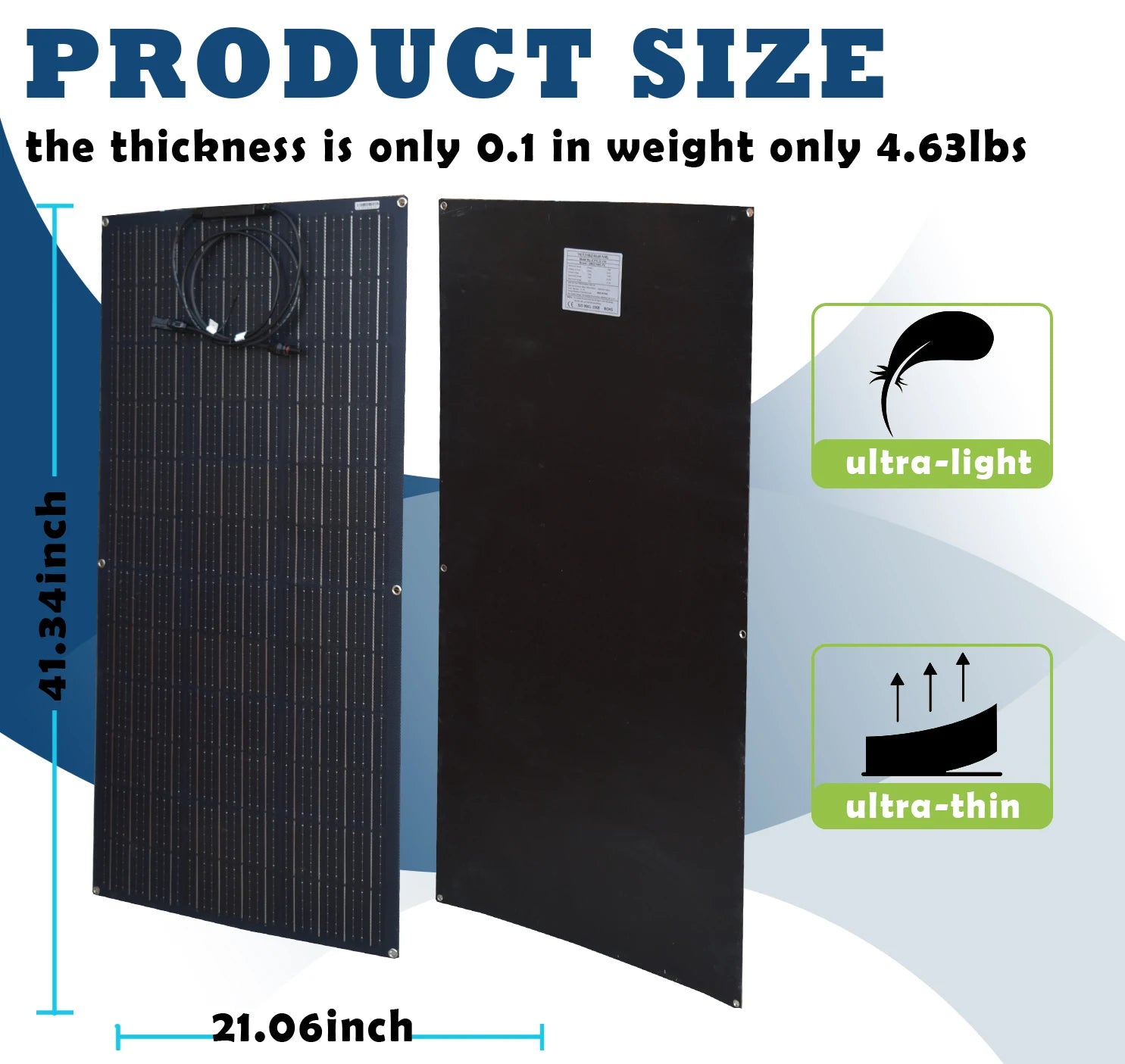

Measuring 21.06 inches long, this solar panel weighs only 4.63 lbs and boasts an ultra-thin thickness of 0.1 in.

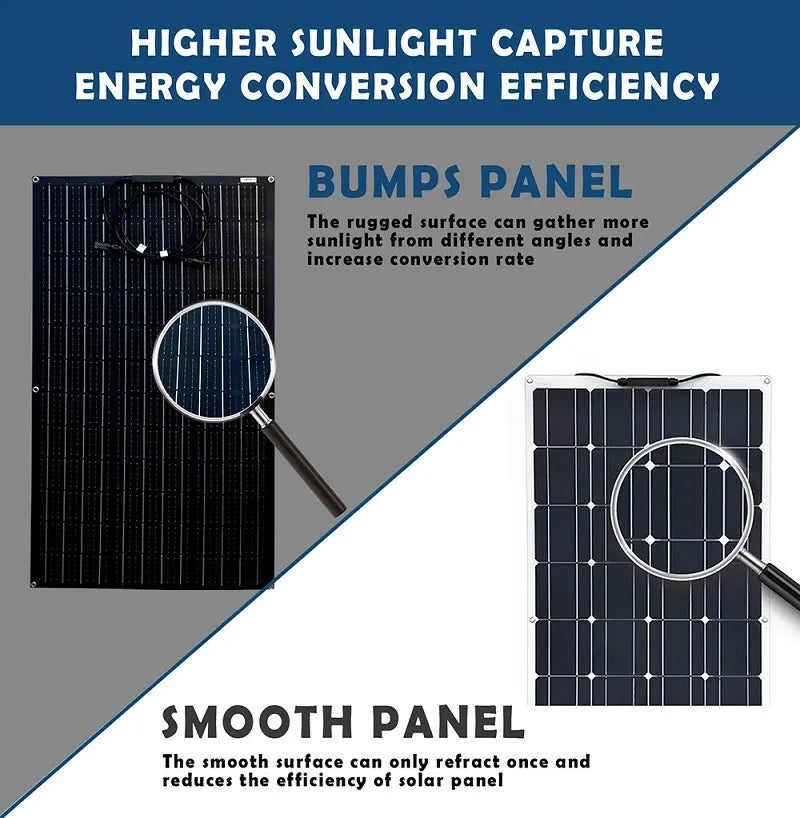

JINGYANG's semi-flexible solar panels effectively capture sunlight from various angles, boosting energy conversion efficiency. A rugged surface allows for better light absorption, increasing the conversion rate. In contrast, smooth surfaces can only refract light once, reducing overall panel efficiency.

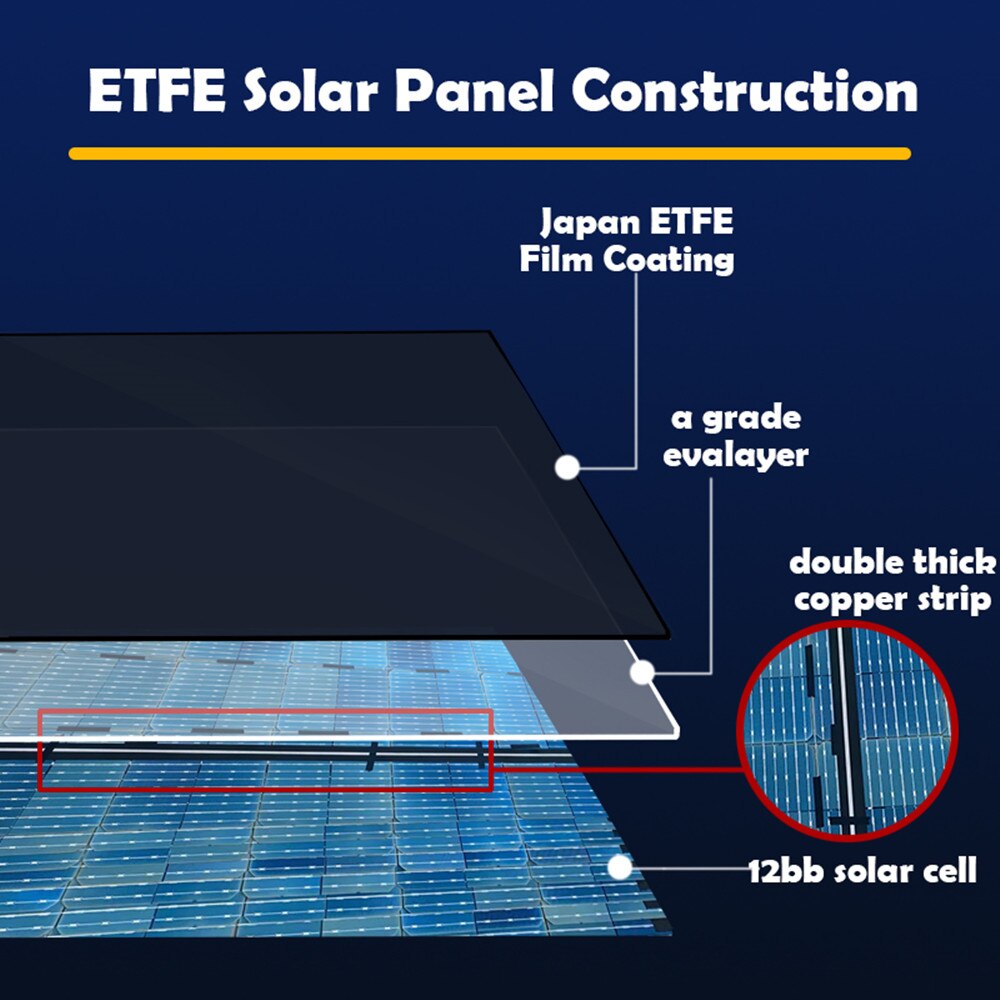

Made with ETFE film coating, Japan-grade materials, and double-thick copper strips, this solar panel features 12 busbars for efficient energy generation.

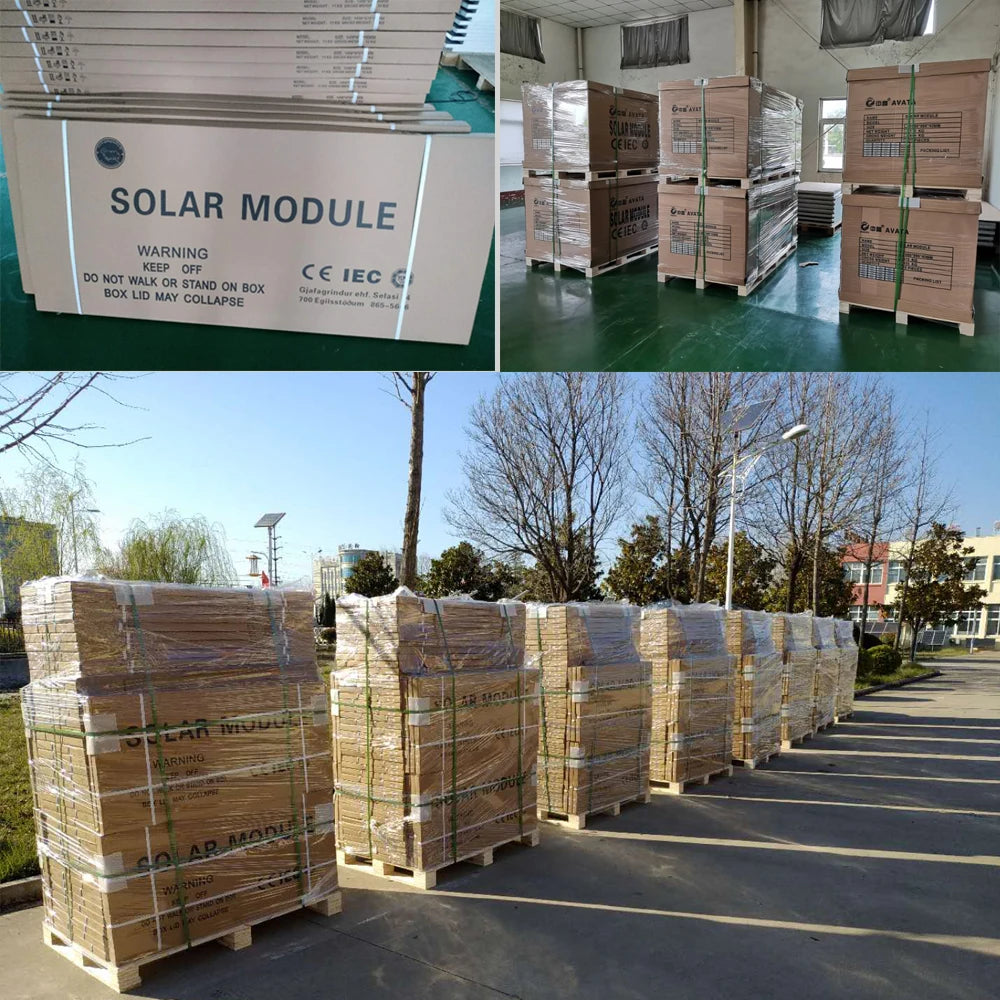

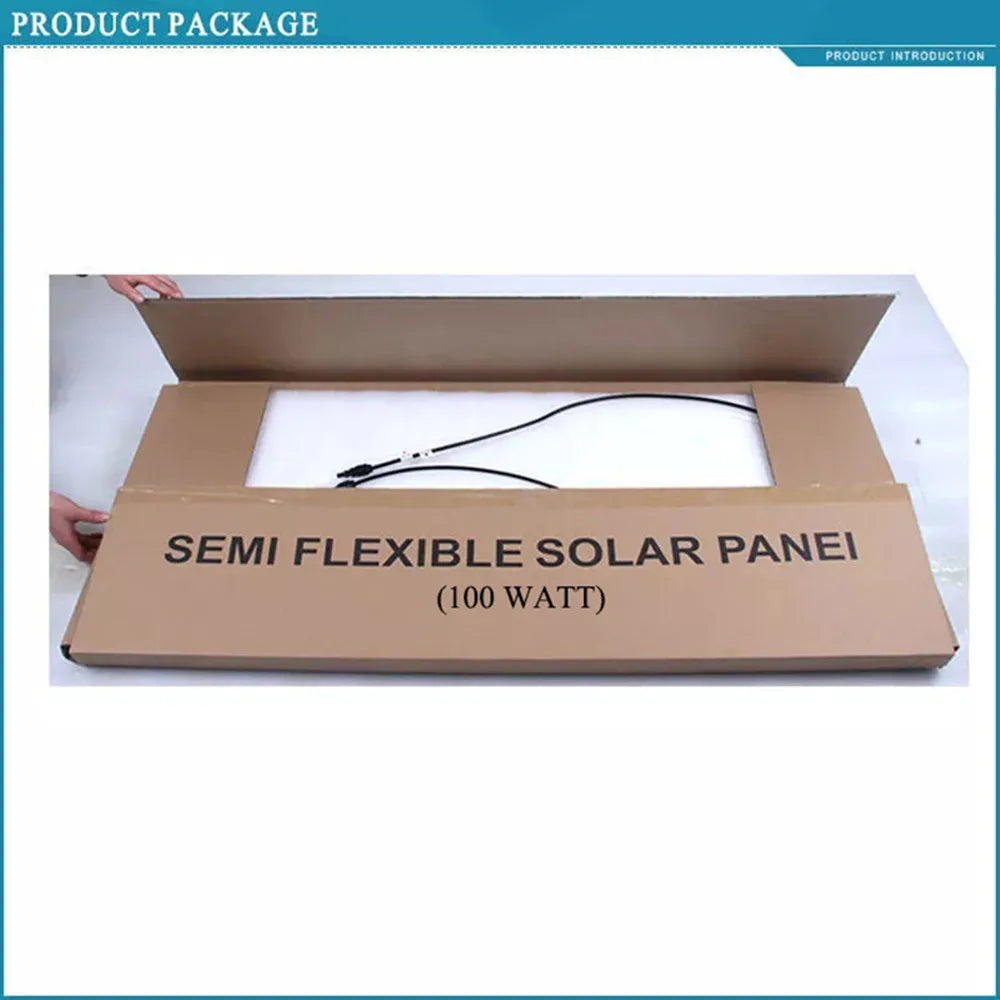

Package and delivery:
Company Information

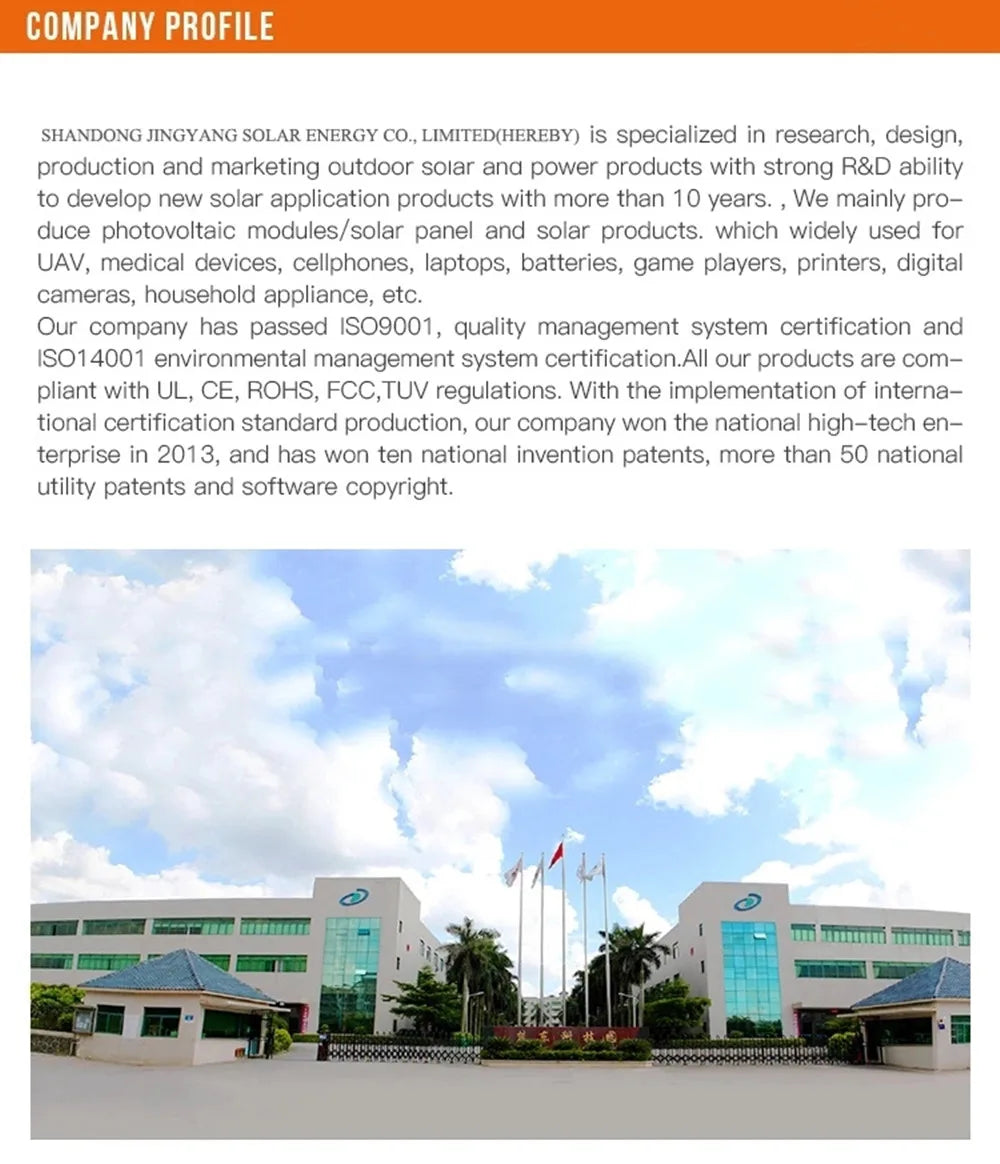

Shandong Jingyang Solar Energy Co., Ltd. specializes in designing, producing, and marketing outdoor solar and power products with over 10 years of R&D experience. We focus on photovoltaic modules/solar panels and related products for various applications like UAVs, medical devices, and household appliances. Our company has obtained ISO9001 quality management and ISO14001 environmental certifications, as well as UL, CE, ROHS, FCC, and TUV compliance. With international certification standards, we were recognized as a national high-tech enterprise in 2013 and have won numerous patents and software copyrights.

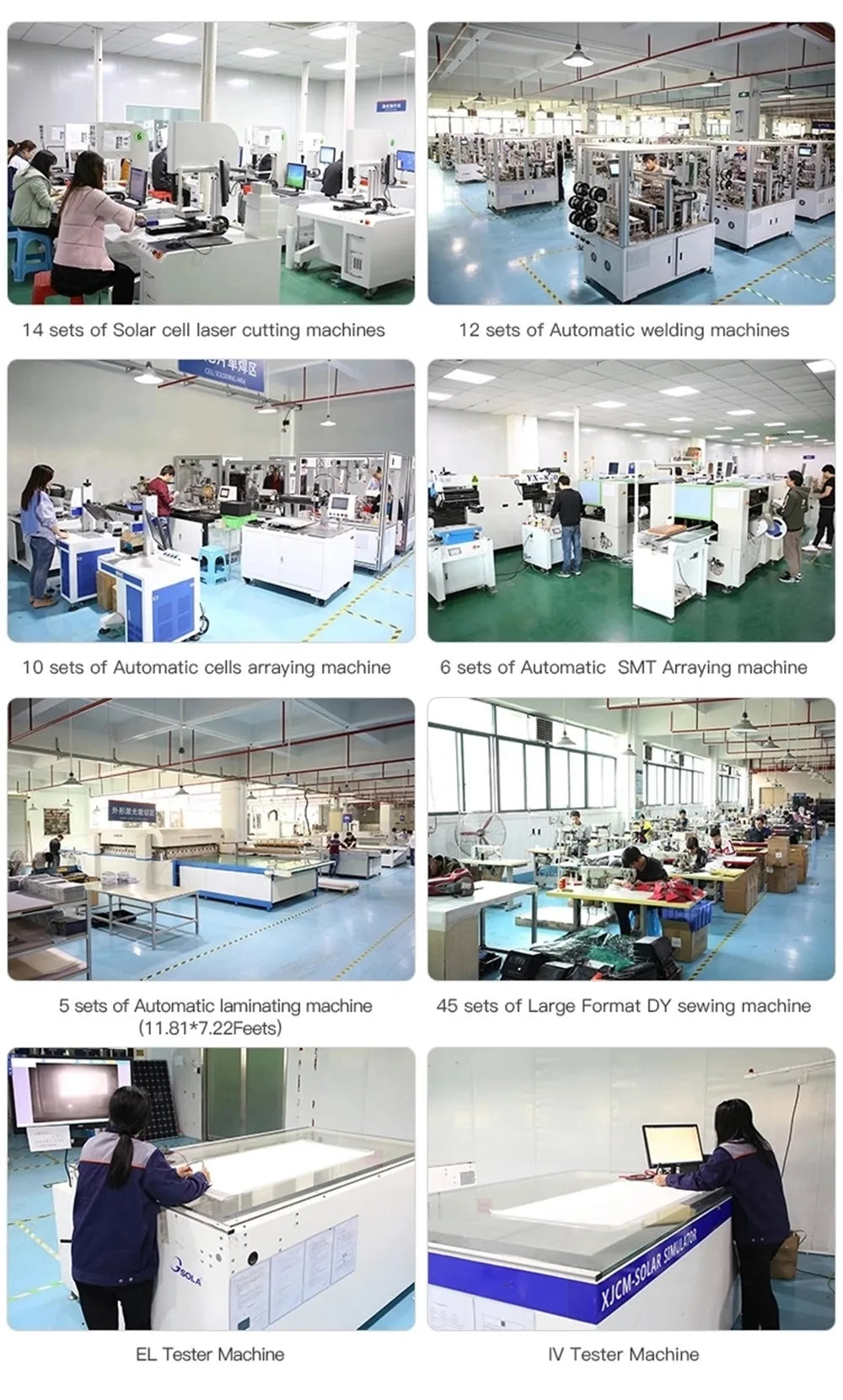

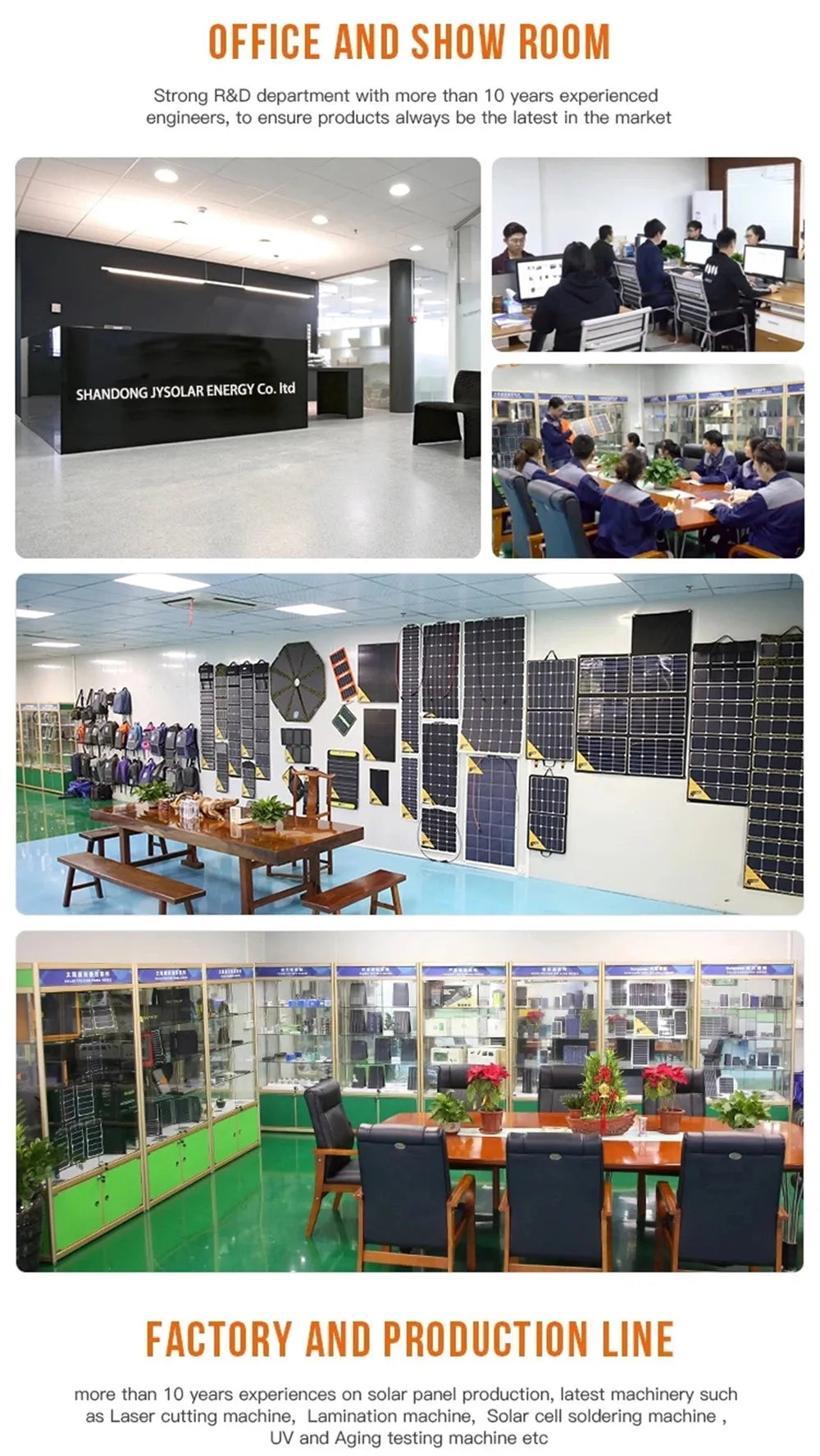

Shandong Jysolar Energy Co., Ltd. boasts a strong R&D department with over 10 years of experience, ensuring our products stay cutting-edge. Our factory has over 10 years of solar panel production expertise, utilizing state-of-the-art machinery like laser cutters and UV testers to guarantee high-quality results.

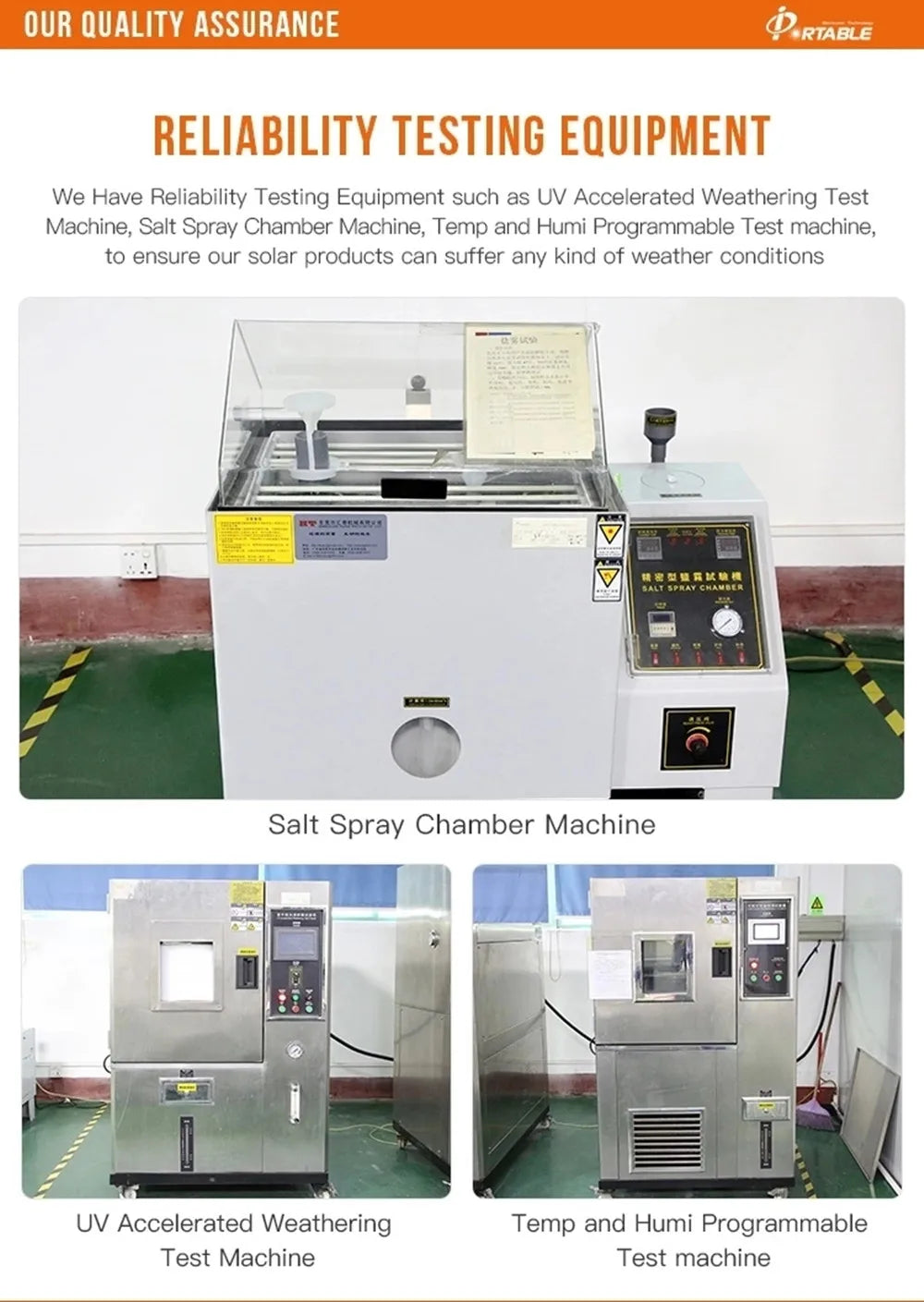

Ensuring top-quality reliability, we utilize advanced testing equipment, including UV accelerated weathering machines, salt spray chambers, and temperature/humidity programmable testers. This rigorous testing process guarantees our solar products can withstand any environmental condition, from extreme temperatures to humidity and UV exposure.

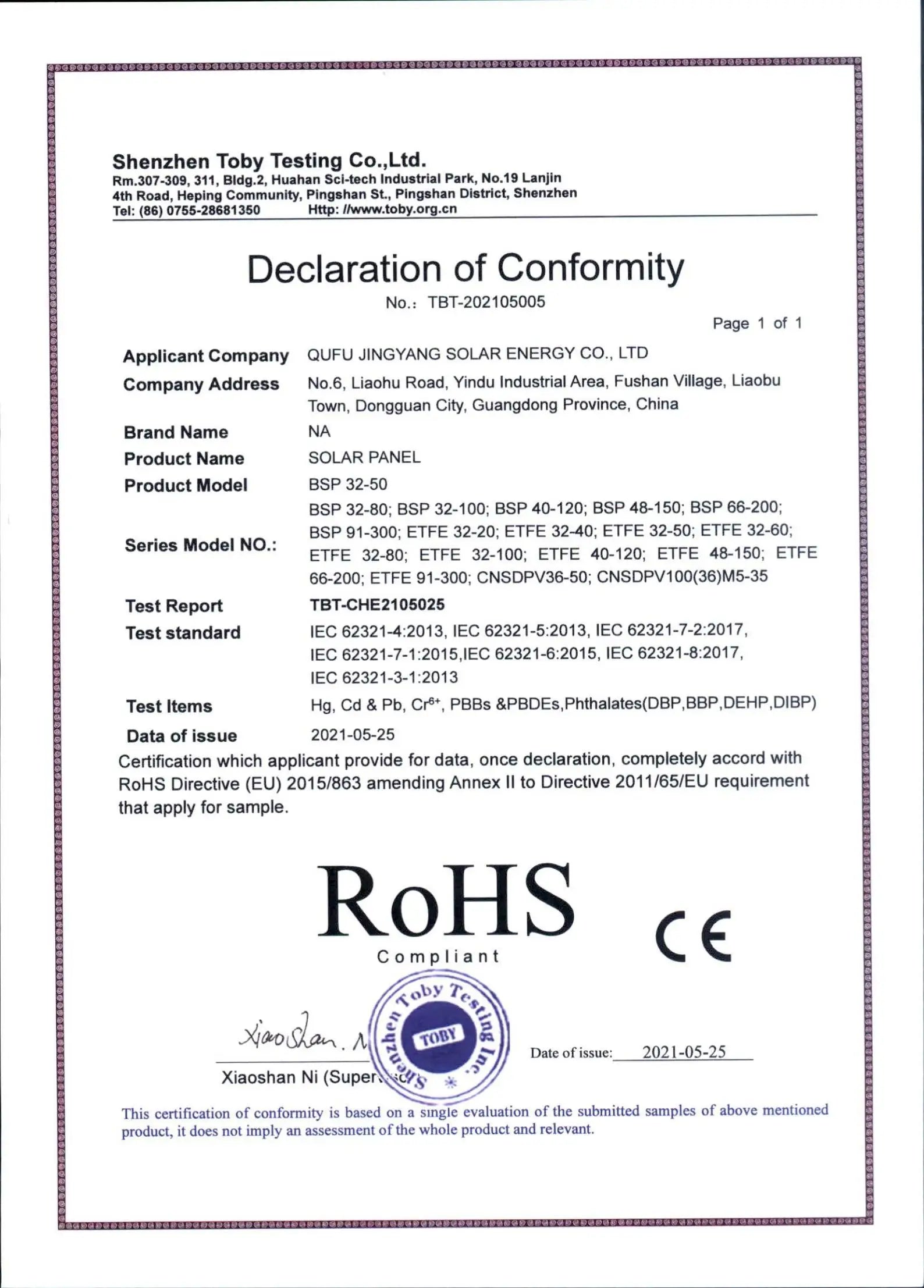

We hold various certifications, including patents, CE/RoHS/FCC, ISO 9001/14001, and EC Declaration of Conformity. Our solar panel products meet high standards for quality and safety.
