PowMr 100A MPPT Solar Charge Controller Quick Info

Brand: PowMr

Model No.: K100 Pro

Lithium Battery Activation: No Lithium Batteries Activation

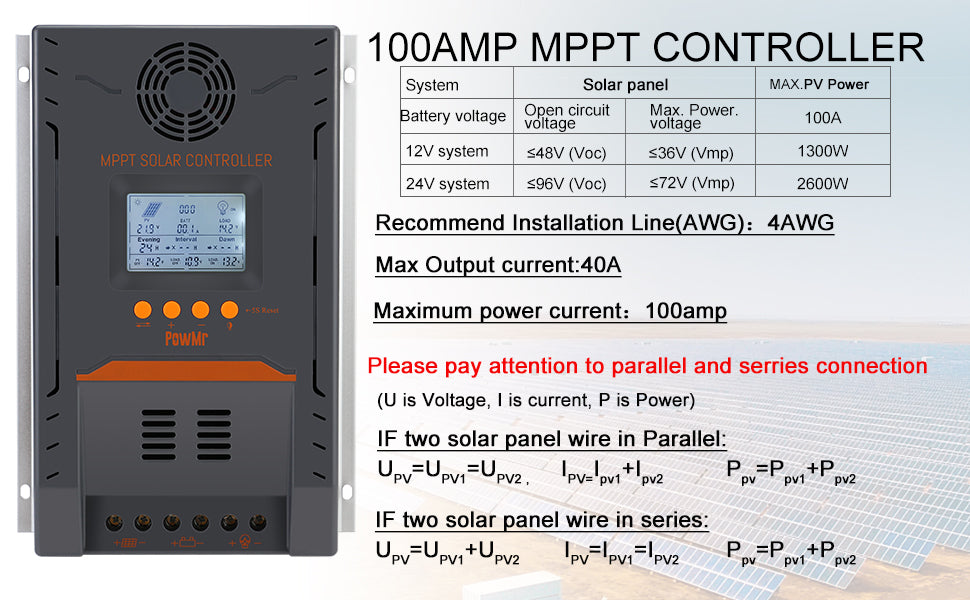

Battery Voltage: 12V, 24V

Battery Type: Flooded Batteries, Gel Batteries, Lead-acid Batteries, AGM

Batteries Charging Current: 100 Amps

Ground Type: Positive Ground

Solar Panel Max Input Power: 1040W-2500W

Solar Panel Max Input Voltage: 96V

PowMr 100A 12V/24VDC Auto MPPT Solar Charge Controller LCD Display With 0 Layer Principle Operating Model

Overview

MPPT solar charge controller are based on an advanced maximum power point tracking (MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 98%.

Features

• Brand: PowMr
• Product Model: K100 Pro
• All the Various Real-time data showed on one display, Convenient user to check( 0 Layer Principle Operating Model )
• Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.
• High-quality components, perfecting system performance, with a maximum conversion efficiency of 98%.
• Ultra-fast tracking speed and guaranteed tracking efficiency.
• 12/24VDC automatically identifies system voltage.
• LCD panel display design, dynamically displaying tool‟s operating data and working condition.

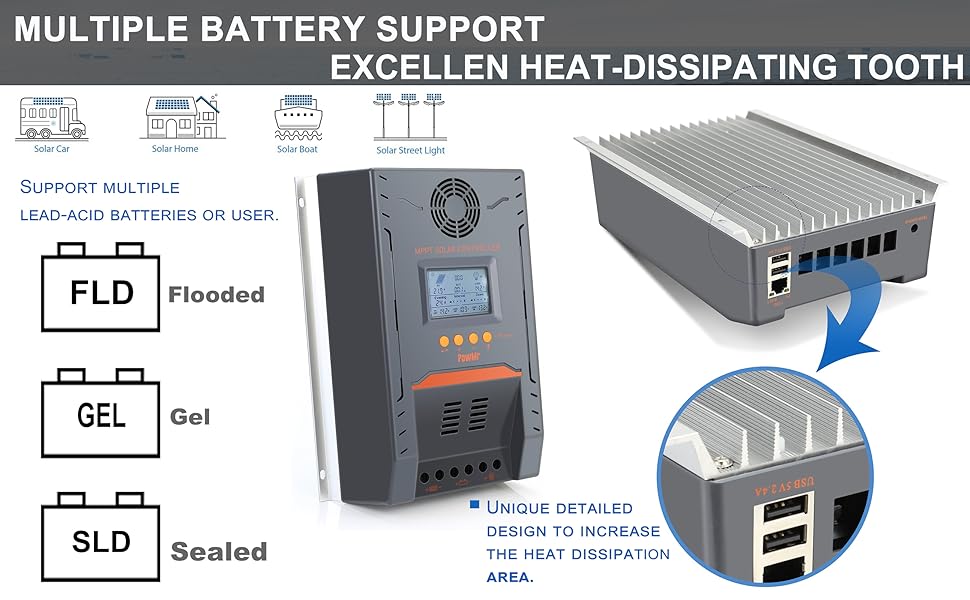

• Support 3 charging lead-acid battery options: Sealed, Gel, Flooded.
• Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs the service life of the batteries.
• Battery temperature compensation function.
• Multiple load work modes
• Application Scenario: Household system, monitoring system, base station, street lighting system, small power stations, etc.
• This solar charge controller with three a time function.

A: time (night working) B: period (pause) C: time slot (dawn working)

Installation Instructions

Installing wires, first loosen the screw counterclockwise

• Prepare complete installation tools, materials, and cable. Please match suitable cable.
• ensure that the current density is <4A/mm² This will help reduce the line pressure drop. Check the installation site meets the relevant safety requirements, avoid damp, dusty, flammable, explosive, and corrosive gases
• Install the controller fixed to the vertical plane, see Section V mounting aperture and hole spacing. In order to ensure good controller cooling conditions, the controller on the bottom of each reserved 10cm space

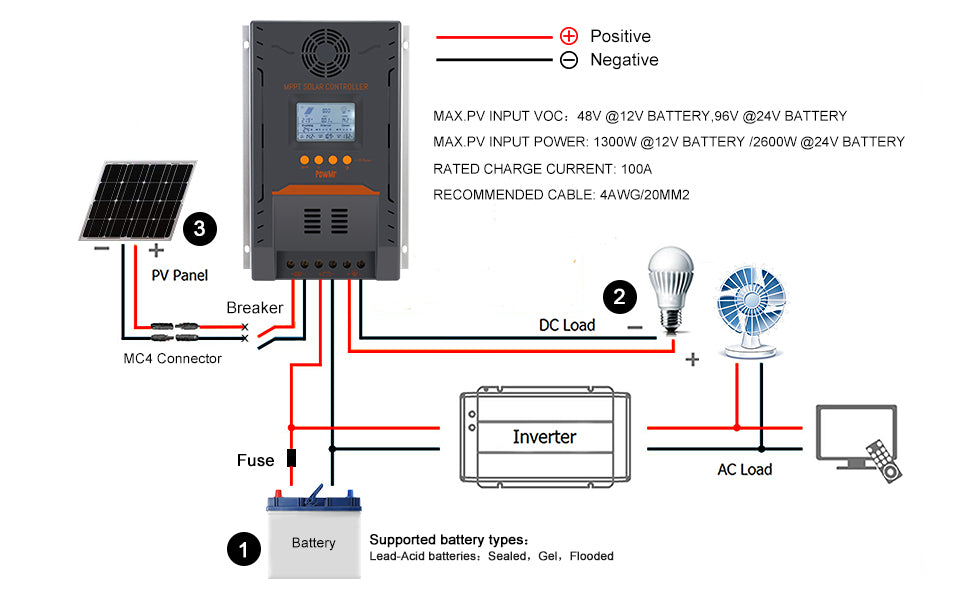

• As shown on the right wiring sequence: load, battery, solar. The battery plate is connected to the controller to be taken to ensure that the load, battery. The polarity of the solar cell panel and controller.
• Warning: to prevent accidents (high pressure or high temperature), nonprofessionals can not engage in loading and unloading operations.
• Be very careful when installing the batteries, especially flooded lead-acid batteries. Please wear eye protection, and have fresh water available to wash and clean any contact with battery acid.
• Keep the battery away from any metal objects, which may cause a short circuit of the battery.
• The controller requires at least 150mm to 300mm of clearance above and below for proper air flow, ventilation heat dissipation fan is highly recommended if mounted in a sealed enclosure.

Content Included

• 1X MPPT Solar Charge Controller
• 1X English User Manual

Wiring tips

• Always connect the battery first!!! Make sure the battery has enough voltage when first wiring this can let the controller recognize the right system voltage.
• DO NOT connect any Inverter / Alternator or Charger into the charge controller! The inverter needs a wire to the battery side.
• Ensures solar input voltage higher 3V or more than batteries’ voltage and total input power in the range. the charging current almost is zero when the controller is floating charge.
• Install the controller fixed to the vertical plane, the controller on the bottom of each reserved 10cm space, In order to ensure good controller cooling conditions.

PowMr 100A MPPT Solar Charge Controller DataSheet

K60 K80 K100 Datasheet

  User Manual (K100-PRO-manual.pdf, 431 Kb) [Download]
