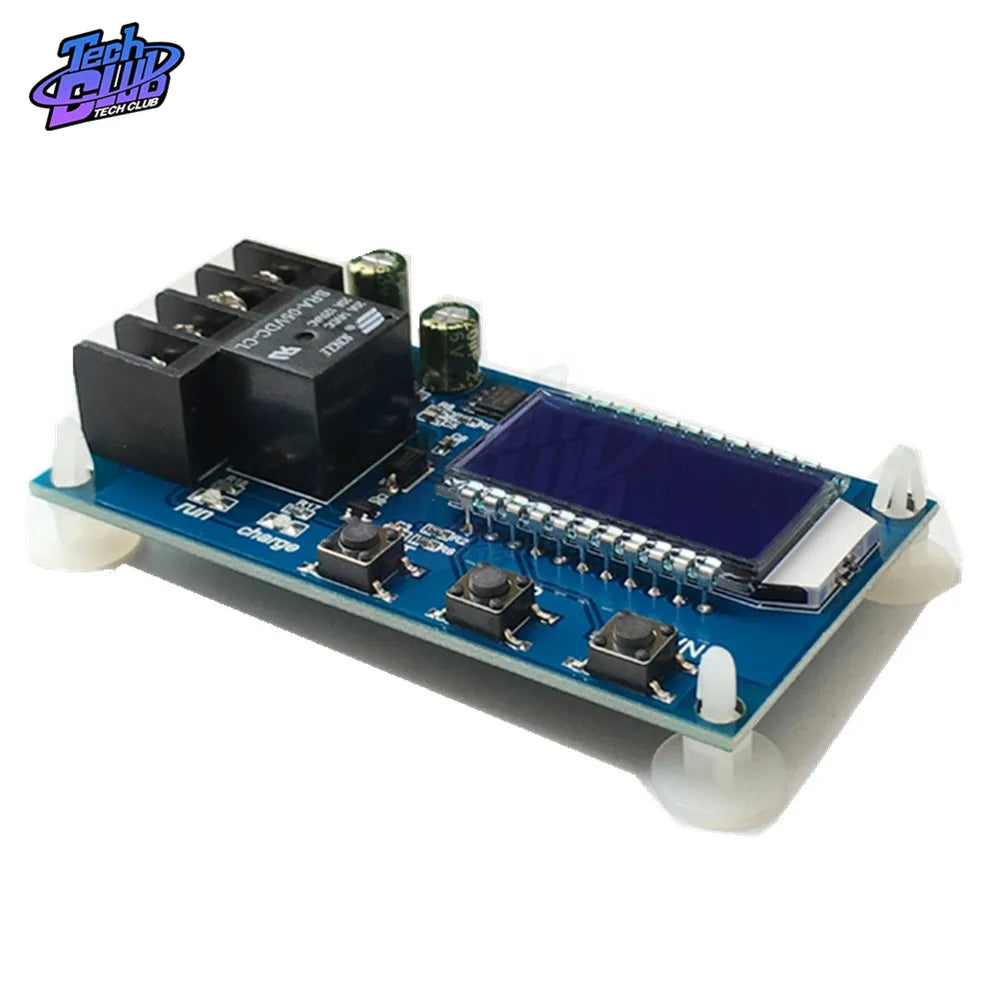

LCD Display 12V 24V Lead-acid Lithium Battery Control Module Solar Battery Automatic Charging Control Protection Dropship

LCD Display 12V 24V Lead-acid Lithium Battery Control Module Solar Battery Automatic Charging Control Protection Dropship

Regular price $6.10 USD
Regular price Sale price $6.10 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Type: Lead-acid Lithium Battery Control

Origin: Mainland China

Model Number: Control Module

Maximum Current: 10/30A

Key Word -1: Solar Controller

Key Word: Battery Control

Dropship: Support

Condition: New

Brand Name: Aideepen

Application: Charger Controller

LCD Display 12V 24V Lead-acid Lithium Battery Control Module Solar Battery Automatic Charging Control Protection Dropship

Digital Relative Humidity Indicator (RHIOUT) measures humidity levels from 0 to 99.9% within precise temperature range.

** Digital Humidity Controller (RHIOUT) for measuring relative humidity (0-99.9%) with a precise temperature range.


Reduce charging current to avoid overcharge and promote safe recharging.

1. Support Lead-acid battery and Acting Battery,voltage range:6V~60V;

2. Can display voltage,percent of battery,charging time at the same time through LCD;

3.  The function is very powerful,realizes the automatic charge control,

the control charge time, also may set up and uploads the corresponding parameter through the serial port;


Function description

1. Automatic Charge control function:

By
setting the volt-HI:‘UP’ volt-LI:‘dn’;When the battery voltage is below
the volt-LI:’dn’,the relay leads,the charger begins to charge the
battery;when the battery voltage is up to volt-HI:’UP’,the relay is
diconnected and the automatic charge is completed once;

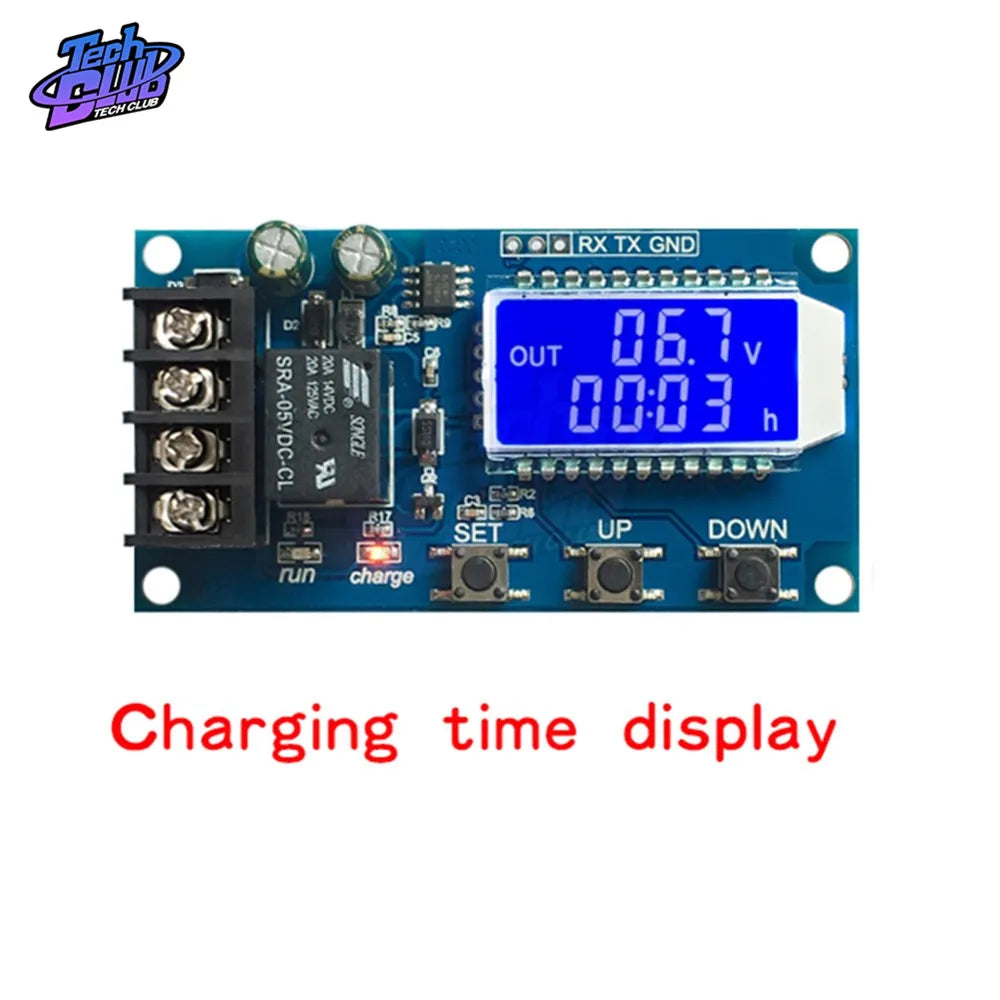

2. Charge Time Control Function:

   How to turn on the time control function?

After
entering the parameter set, set the parameter op is non-zero, then turn
on the time control function, op default parameter is:--:--h, the
default does not turn on time control function;

After the opening Time control function (OP is non-zero), when the battery voltage is the lower volt-LI’dn’, the charger began to charge the battery, the system began to clock; During the timing, the battery voltage ≥ volt-HI’UP’, relay disconnect; If the OP time is up, the battery voltage is still the lower volt-LI’dn’, the relay keeps the conduction, automatically closes the charge time control function, and flashes the H:ER to remind the user, the time parameter setting is unreasonable; Press any key to stop flashing;

Note: Time format: 00:59 (00 for hours, 59 for minutes) The maximum time is 99:59, which is 100 hours.

3. Serial data upload and parameter setting function:

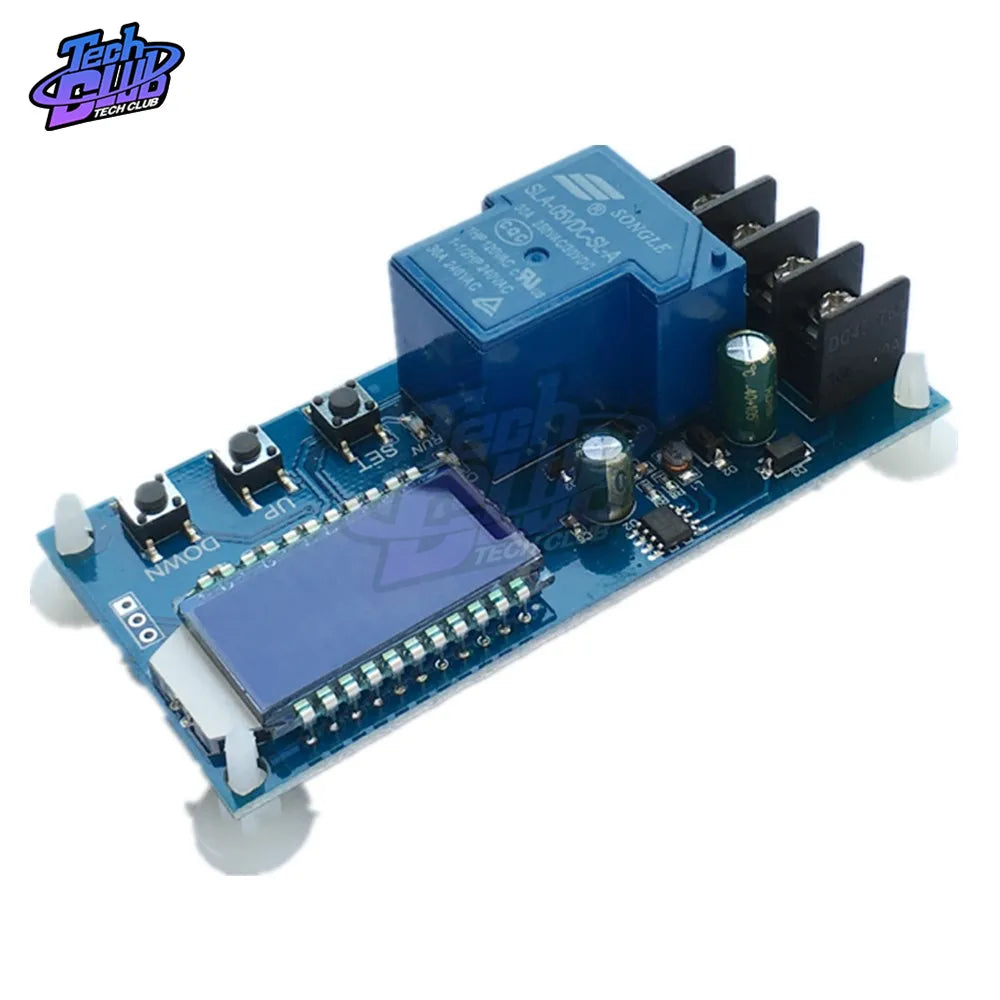

The system supports UART data upload and parameter setting

UART:115200,8,1

Cmd

Func

on

Relays enable to open

off

Relays disable to open

start

Start data upload

stop

Stop data upload

read

Read the param setting

dw10.0

Set volt-LI:’dn’

up20.0

Set volt-HI:’UP’

xx:xx

Set the charge time OP

00:00 stop charge time

Data Upload message Format:

Battery voltage + battery percent + charge time + charge status 12.0V,020%,00:10,OP


Parameter Setting

a) Press and hold the SET key to enter the setting interface;

b) Switch the parameters you want to set by short press SET;

c) After the selection of parameters, can be set by the UP/DOWN key to support the short press, long press (fast increase or decrease); To set other parameters, repeat step b, c);

d) After all parameters are set, long press set key to exit and save;

The Key Function Description:

In the Run interface (main interface):

Short press SET button to display the current set of parameters; Short press UP button, toggle display charge percentage and charging time;

Short Press DOWN button, select Turn on/off relay enabling, if the relay can be closed, will show ' off ' as a reminder;

Long press UP button, switch low power state

on:No operation in 10 minutes turn off backlight

OFF: Backlight is always bright

Long press SET button,enter the parameter settings.


Calculation of voltage percentage:

voltage percentage = battery voltage/(volt-HI – volt-LI)

Additional Features

a) Charging
time recording function: not open charging time control, the product
will record a full time, when the entry time display interface, flashing
display charging time, and then exit time display interface or next
charge to open (relay conduction) when empty;

b) Automatic parameter detection: When the parameters are set, exit, if volt-LI dn≥ volt-HI UP, the system will flash display "ERR" as a reminder;

c) Battery
Access detection: This product attached to the battery, if not

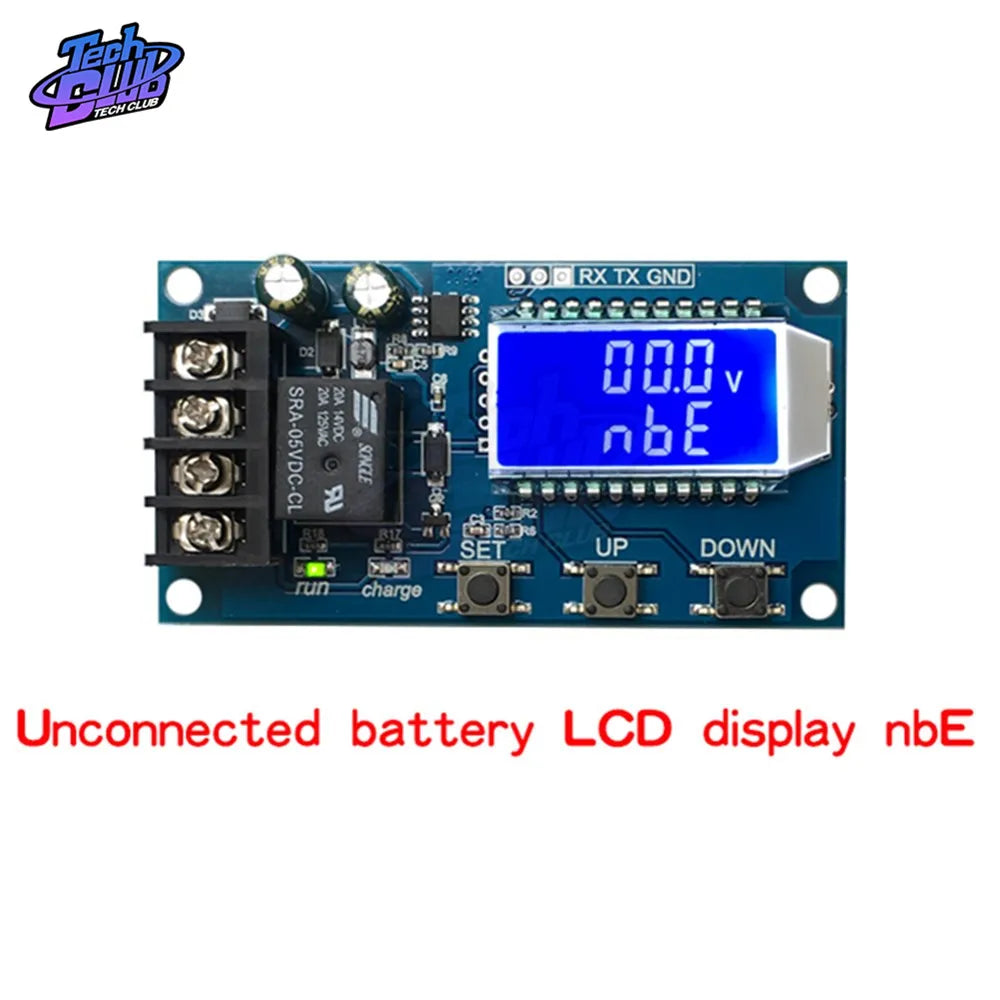

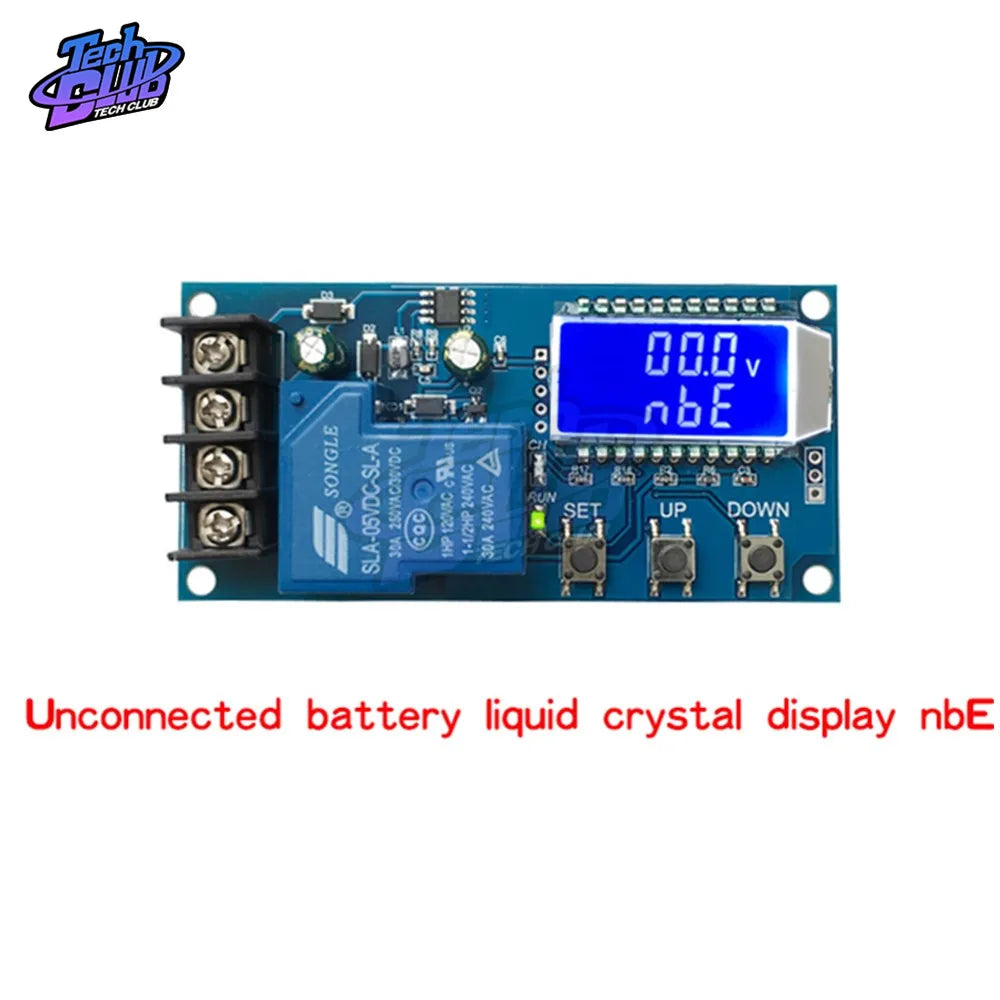

connected to the battery, the system will be shown in the downlink "NbE" as a reminder

Analysis of common failures

Q: How much is suitable for V level use? How much v voltage does this module fit?

A:
This section is suitable for the minimum 6V, the highest 60V voltage
range, the maximum expenditure level 48V, because 48V battery full of
electricity in 60V, and then a high fever, if your battery is higher
than 48V, please select other section.


Q: The power of the subsequent electrical appliances snapped! LED flashing?

A:
This is because your charging current is too large or the battery
capacity is too small to cause a power to immediately reach the voltage
limit, relay disconnect, disconnect, the voltage and quickly down to the
lower voltage, and began to recharge, cycle, at this time you want to
reduce the charging current only line, Usually the charging current is
the battery capacity of the very 1 to 1.5, such as 20AH battery charging
current generally around 2-3a! Note that a large current charge will
cause the battery fever accelerated aging, drum kits and even
explosions!


Q: What control mode? Can I cycle the charge automatically? Can I use the side charge? Can I limit the flow?

A:
This is voltage control, For example, set the voltage limit of 12.0V,
voltage up to 14.5V, voltage charge to 14.5V this value on the power
off, voltage down to the 12.0V relay closed and start charging, can be
filled with side, voltage control mode only to turn off and open, can
not limit the flow, charging current completely depends on your charger!


Q: Input 12V can or not charge 24V battery, or enter 48V can give 12V battery charge?

A:This
is a simple voltage controller, only play the role of switch, can not
swing to the battery charge, so you want to give what battery charge to
be ready what kind of charger! It's necessary!

Package Include:
1PC x  6-60v Lead-acid Solar Battery Charge Controller Protection Board
Electrical appliances shut down due to loss of power.

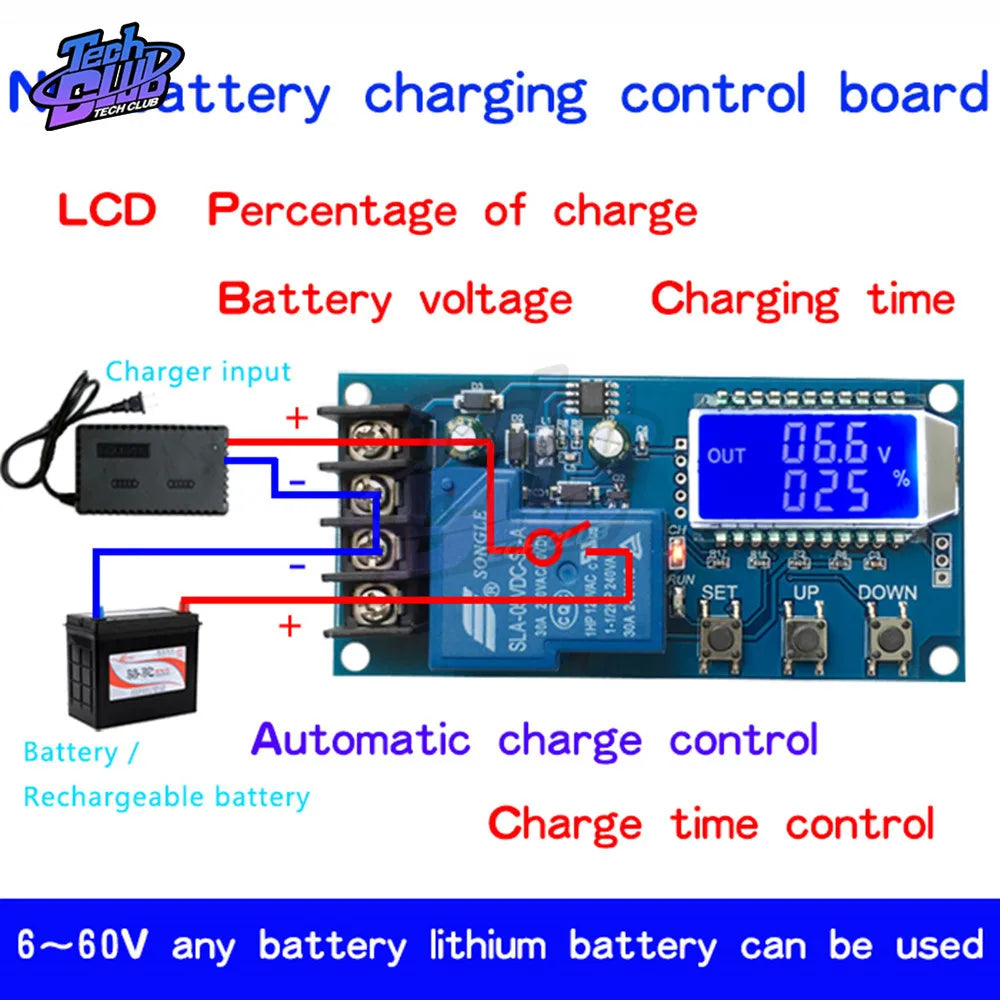

Displays battery charging status, voltage, and time, automatically charges batteries up to 60V.

LCD display shows charging status, voltage, and time. Automatically charges rechargeable batteries (lithium or Ni-Cd/NiMH) up to 60V, with adjustable charge time settings. Input: 6-66V. Output: automatic charge control with LCD percentage display.

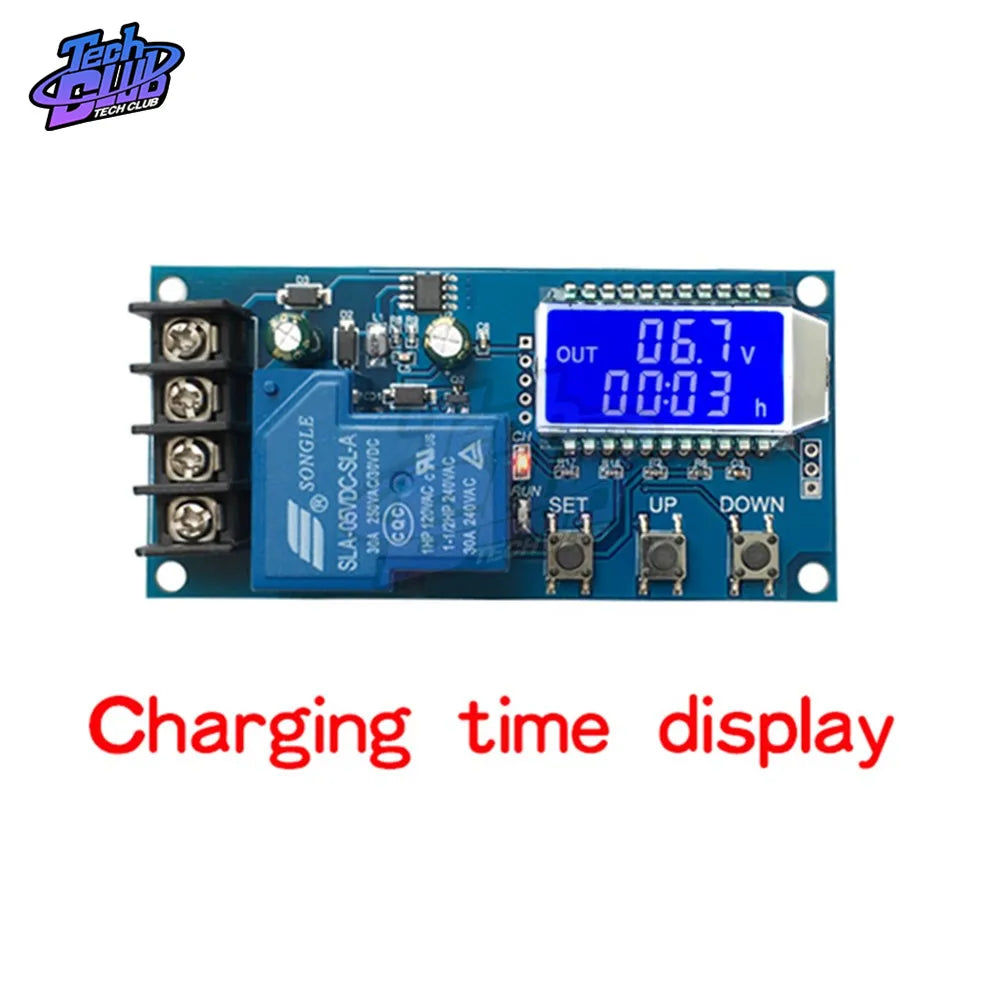

Serial data upload and parameter setting function for UART communication with relay control and configuration options.Automatic charger control: charges when voltage falls below threshold, stops at higher threshold.Battery voltage calculation and recording, with auto detection and error reminders.Automatic battery charging and protection module for LCD displays, suitable for lead-acid and lithium batteries.

LCD Display 12V 24V Lead-acid Lithium Battery Control Module Solar Battery Automatic Charging Control Protection Dropship.

NC Charging Module (XY-LOOA): DC voltage and current controller with ±0.1V accuracy, suitable for various batteries.

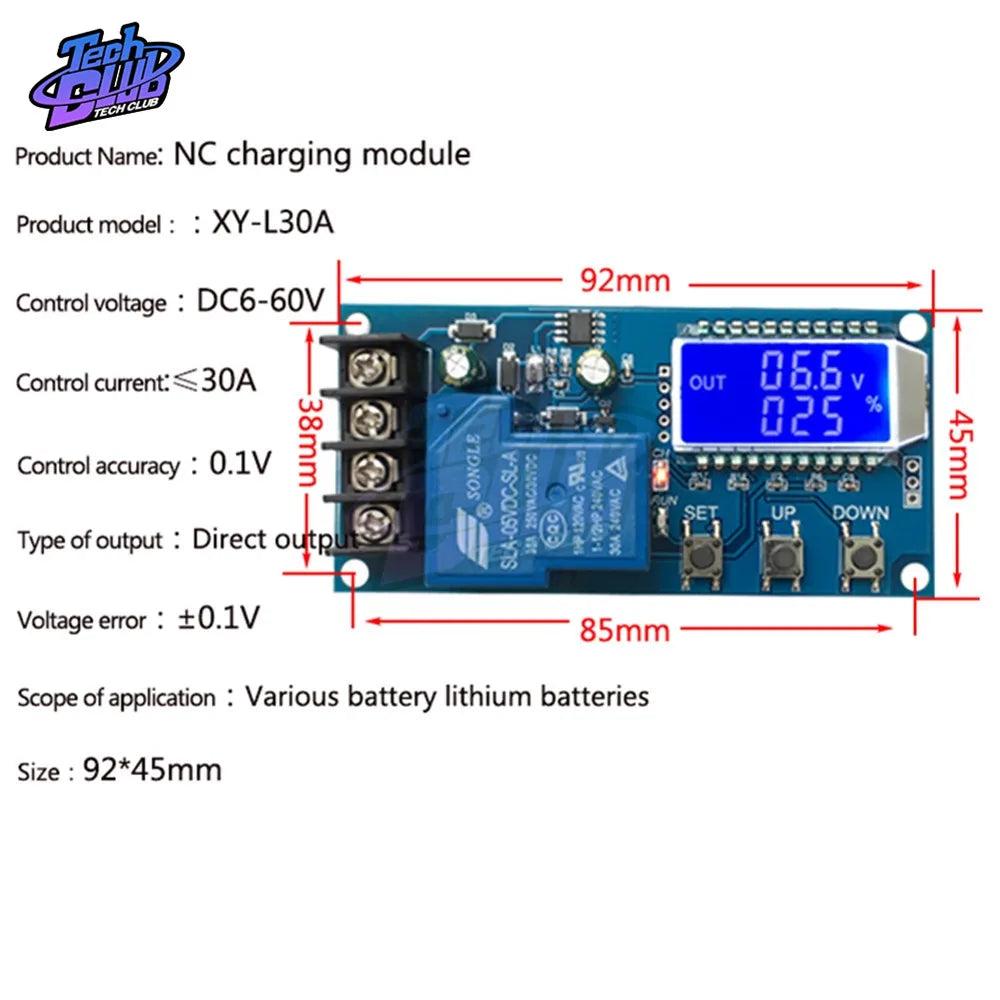

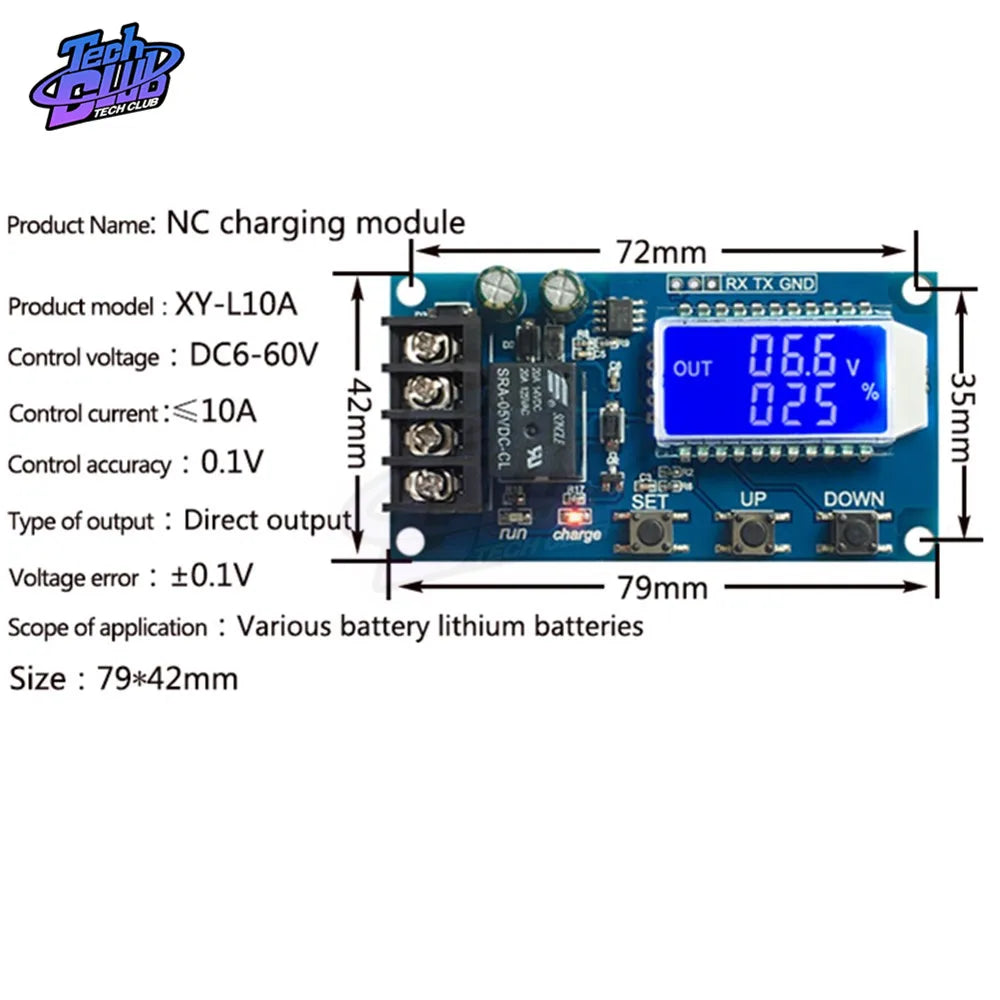

Product Name: NC Charging Module (XY-L3OA). Controls DC voltage (6-60V) and current (<30A) with an output voltage accuracy of ±0.1V. Suitable for various battery types, including lithium batteries. Dimensions: 92x45mm. Ideal for solar panel applications.

Battery charging module displays percentage, time, and voltage, with adjustable settings and charge status indicator.

This module displays charging percentage, charging time, and battery voltage. It features a charger input with adjustable settings for rechargeable batteries. The indicator shows charge status and running time.

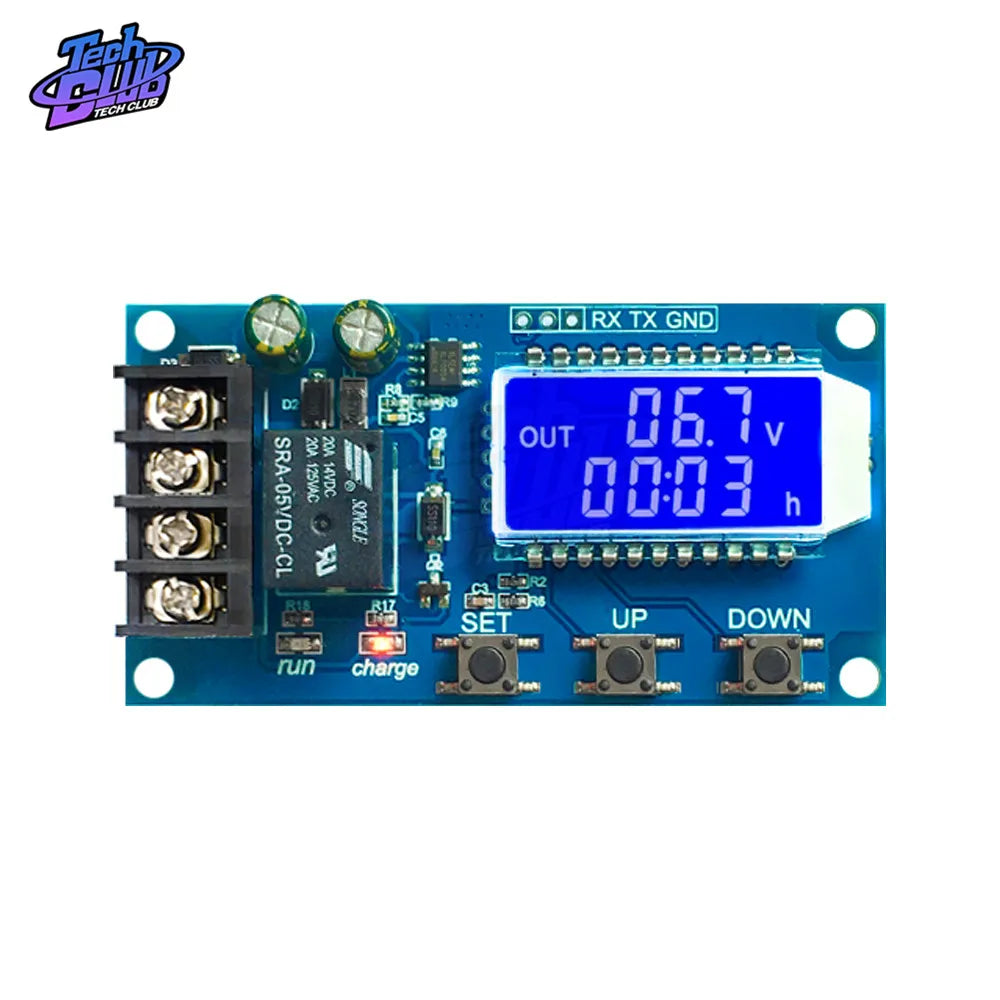

High current charge causes rapid battery degradation, overheating, and potential explosion.Monitor battery charge, voltage, and charging time with this LCD display module.

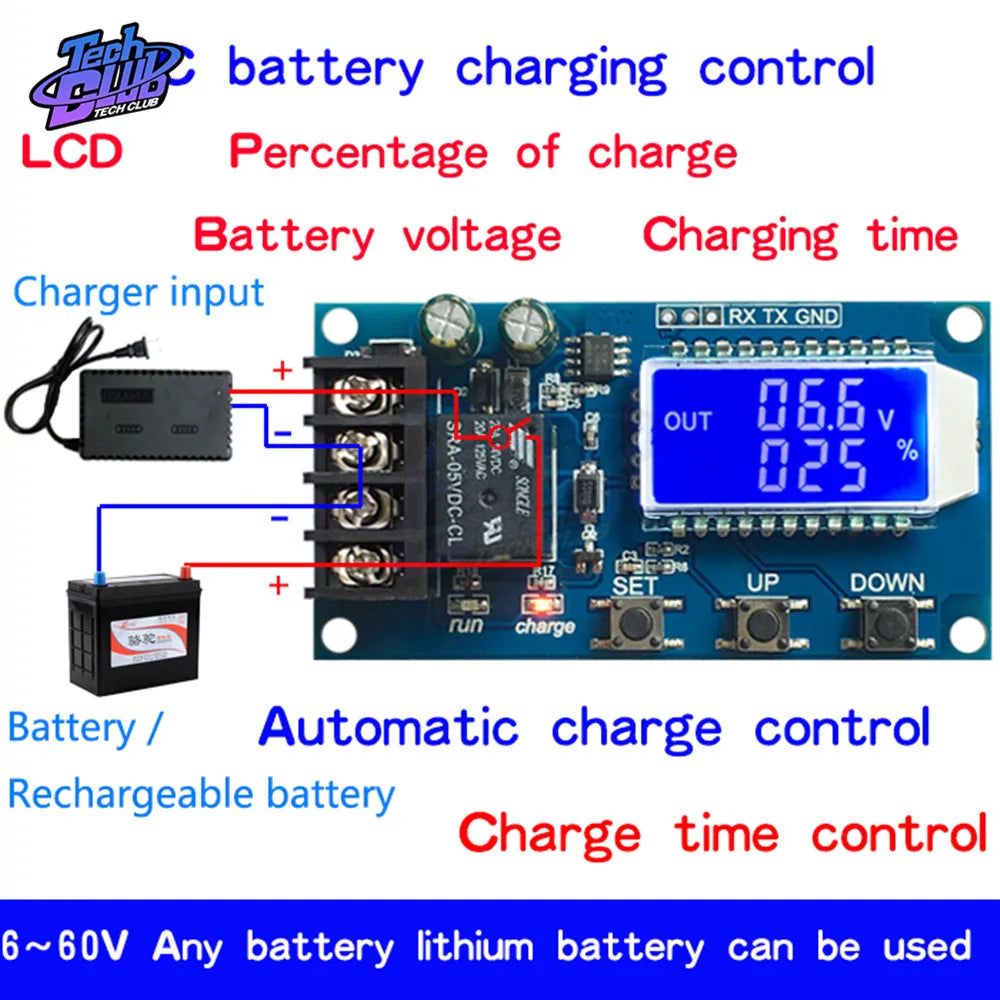

LCD display module for lead-acid and lithium batteries, featuring automatic charging control, percentage charge display, voltage monitoring, and charging time setting (6-60V).

Control module for LCD displays, batteries (lead-acid or lithium), and solar power charging.Automated battery control module for LCD displays, solar power, and lithium batteries.LCD Display 12V 24V Lead-acid Lithium Battery Control Module Solar Battery Automatic Charging Control Protection DropshipLead-acid and lithium battery control module for LCD displays with automatic charging and protection features.Monitor battery charge level, voltage, and charging time with an LCD display module featuring terminals and LED indicators.

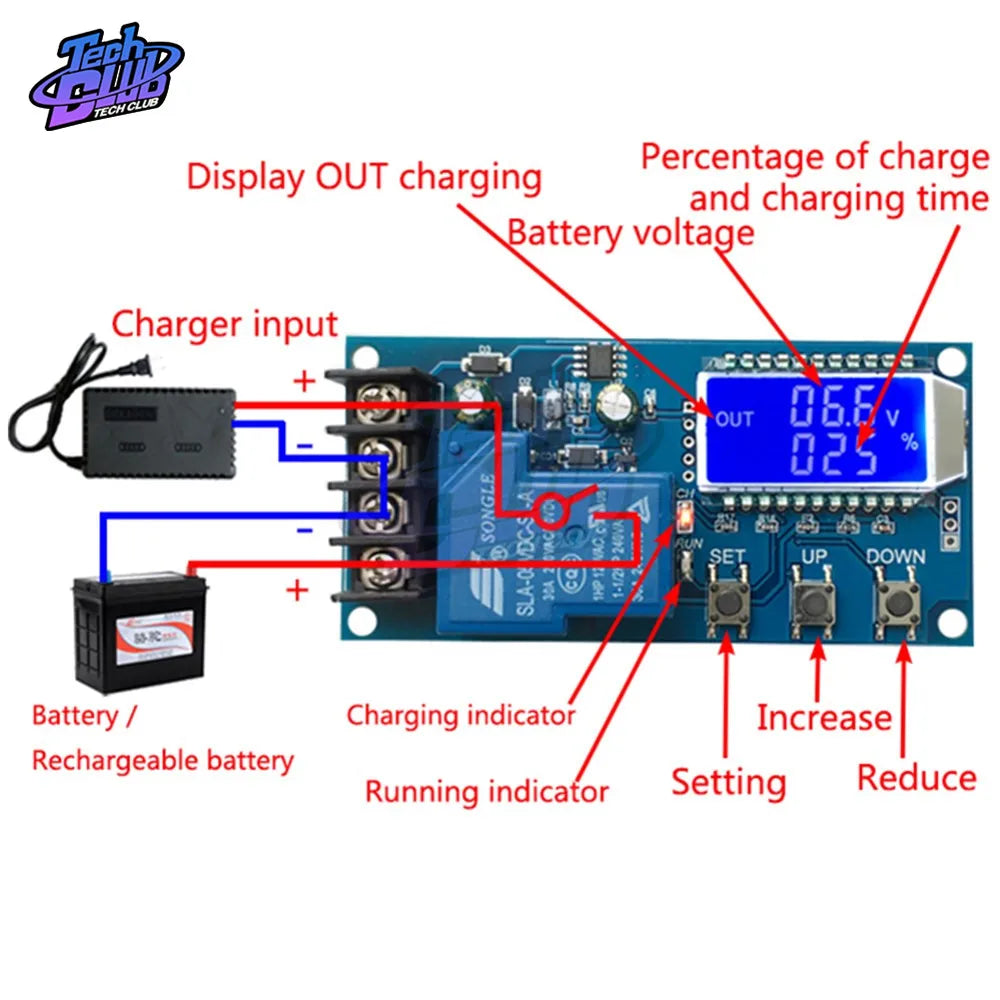

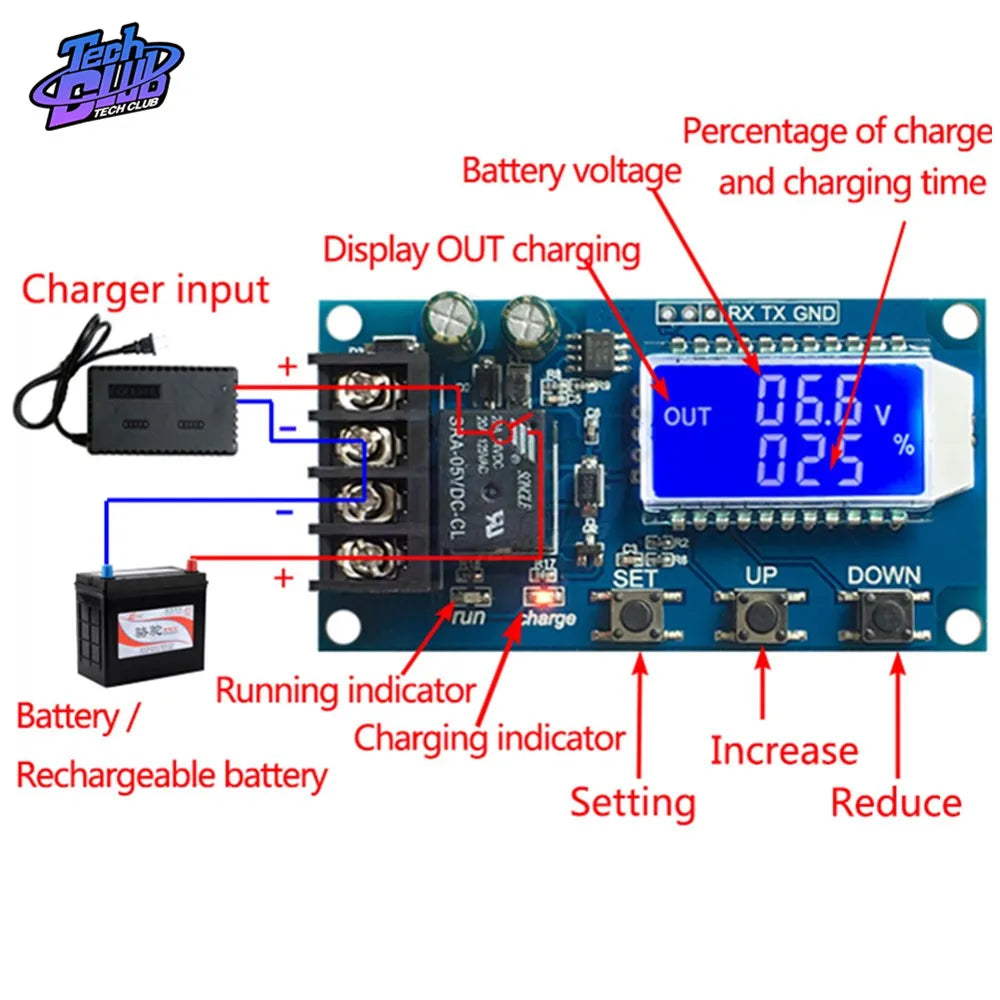

Monitor battery charge percentage, voltage, and charging time with this LCD display module. It features input/output terminals for connecting chargers and solar panels, as well as LED indicators for power status and rechargeability.
