LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller For Solar Home Appliances System Controller OD Series OD2460S

LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller For Solar Home Appliances System Controller OD Series OD2460S

Regular price $72.90 USD
Regular price Sale price $72.90 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Working Temperature: -20℃~+70℃(Full Load)

Warranty: 2 years

Rated Current: 10A/20A/30A/40A/50A/60A

Product Name: LDSOLAR 60a PWM solar charge controller

Origin: Mainland China

Model Number: OD2460S

Maximum Current: 60A

Max. PV open circuit voltage: 55V

MPPT efficiency: 99.5%

Is Smart Device: YES

Enclosure: IP32

Display: LCD Display

Certification: CE,RoHS

Battery type: Lead-acid/Gel/Lithium Batteries

Application: Thermal Controller,Charger Controller,Water Heater Controller,Wind Controller,Lighting Controller,Solar System Controller,Solar Working Station

LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller For Solar Home Appliances System Controller OD Series OD2460S


Ocean Dream Series

Ocean Dream Series (OD in short) is our newest designed PWM solar controller. Its specialty lies in the inner 32 bits CPU, Which
enables the controllers to work faster and more stable. It built 4 USB ports and a screwdriver inside. Beside, Our unique black &
Red big terminals design facilitate your connection in a real application. The white frosted plastic shell is very natural no matter
where it is placed in your home or RV.
Features:
32bits CPU, sampling precision is higher, operation speed is faster
12V/24VDC 12V/24V/48VDC Automatic Identification System Voltage
3 stages PWM charging: Bulk, Boost, Float
Sealed, Gel, Flooded, LiFePO4, Li(NiCoMn)O2 battery selection procedure
Humanized LCD displaying, dynamic display operation data and working state.
Built-in operation log, account system working state
Multi load control mode: Normal mode
Temperature Compensation Function and Controller Over TemperatureProtection Function
Fullest digital protection functions:Overcharging,Over-discharging, Overload,Short Circuit,Reverse
Connection,Controller Over-Temperature and so on.
colorful connector distinguish plus and minus poles.
5V 2.4A USB output (10A 20A 5V 1.5A and 30A 40A 50A 60A 5V 2.4A)

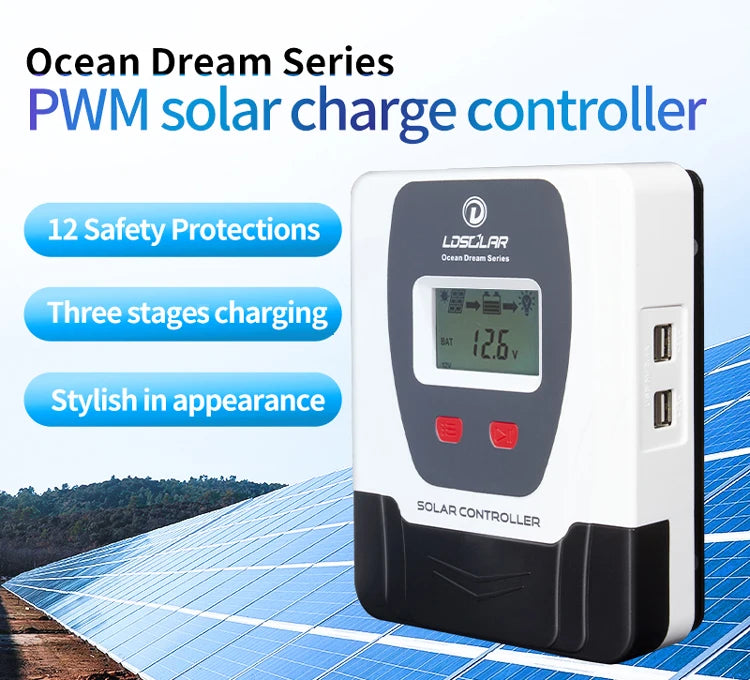

LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller, Reliable solar charge controller with 12 safety protections and three-stage charging.

Ocean Dream Series PWM Solar Charge Controller offers 12 safety protections and three-stage charging. Stylish design and reliable performance ensure efficient energy harvesting.

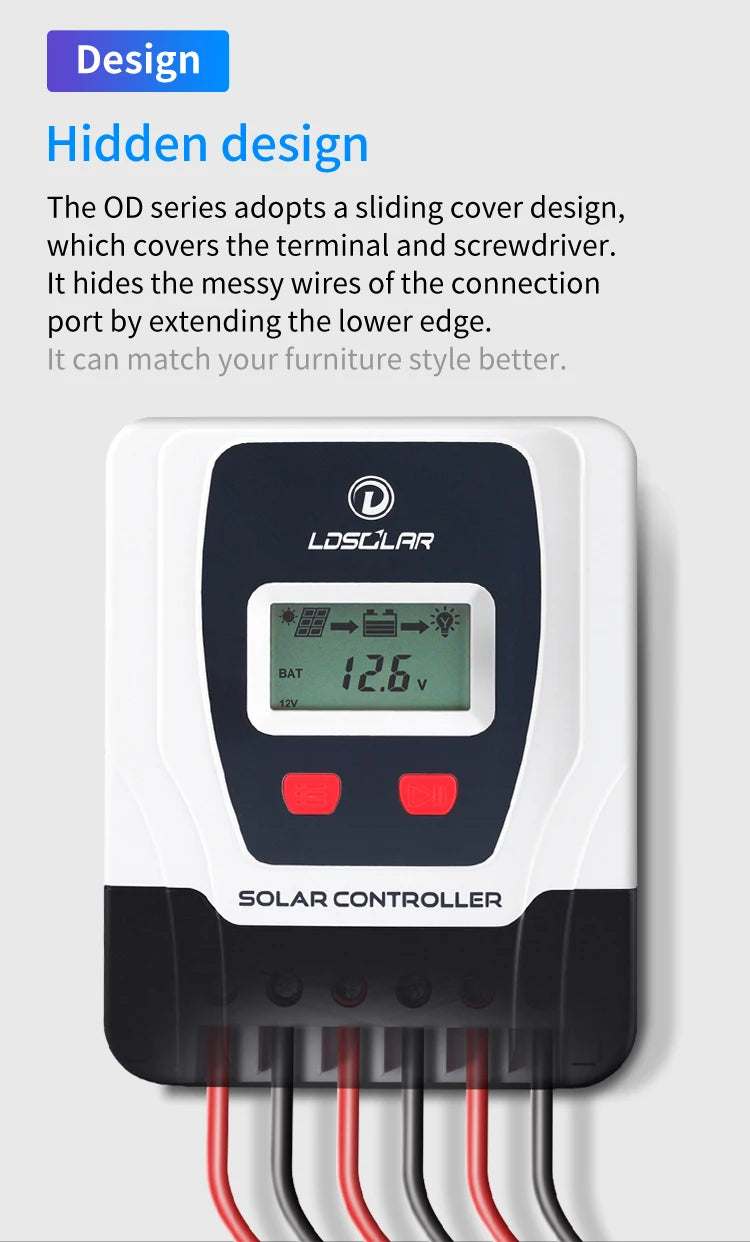

LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller, OD series features sleek design with sliding cover to conceal wires, ensuring compatibility with any furniture style.

The OD series features a sleek design with a sliding cover that conceals terminal and screwdriver connections, hiding messy wires for a clean appearance. This design ensures compatibility with various furniture styles, creating a seamless integration.

LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller, Convenient built-in screwdriver always available, eliminating need to search for separate tool.

Built-in screwdriver ensures convenient use: no need to search for one - it's always at hand.

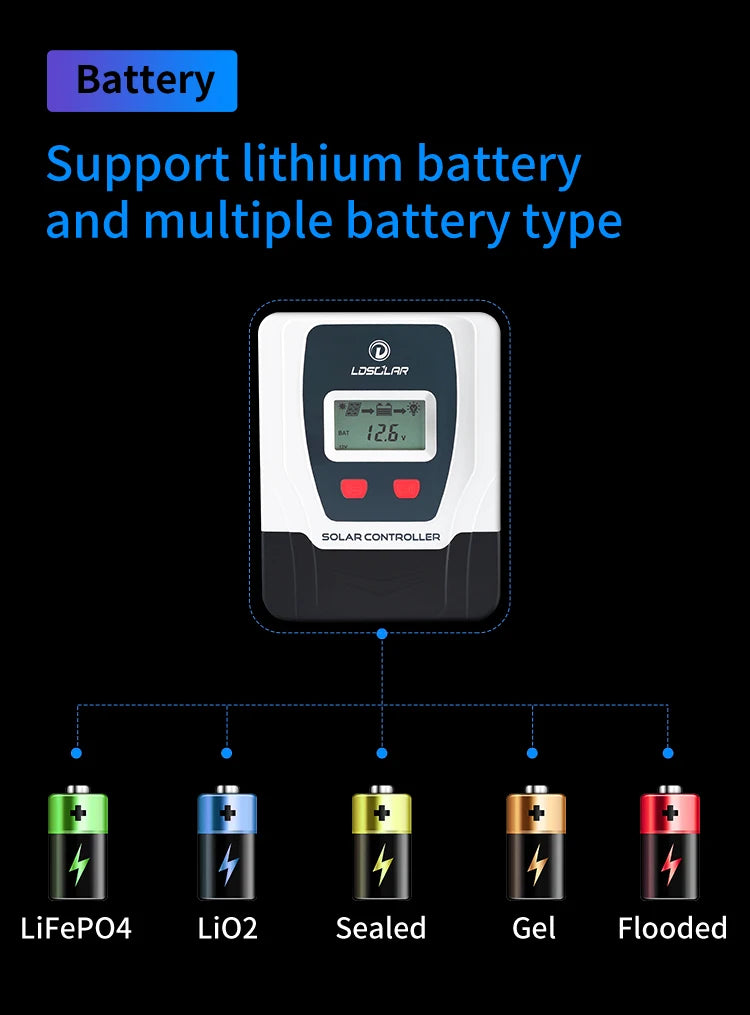

LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller, Battery charger supports various battery types with 0-9.3V voltage range.

Supports various batteries, including lithium-ion, LiFePO4, lithium-ion 2, sealed gel, and flooded types, with a voltage range of 0-9.3V.

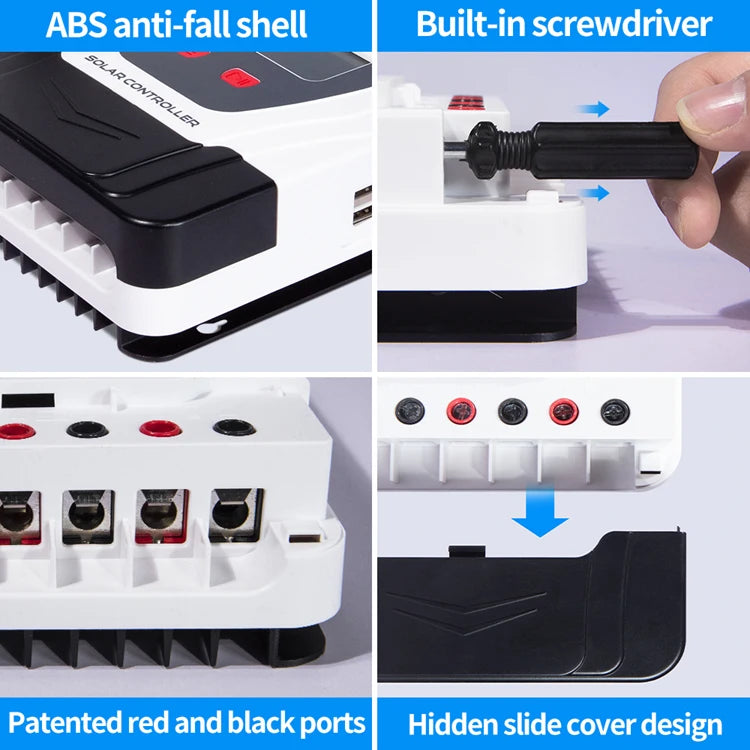

LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller, Game controller with features like ABS shell, built-in screwdriver, and patented port design.

Features ABS anti-fall shell, built-in screwdriver, patented red/black ports, and hidden slide cover design for easy controller usage.

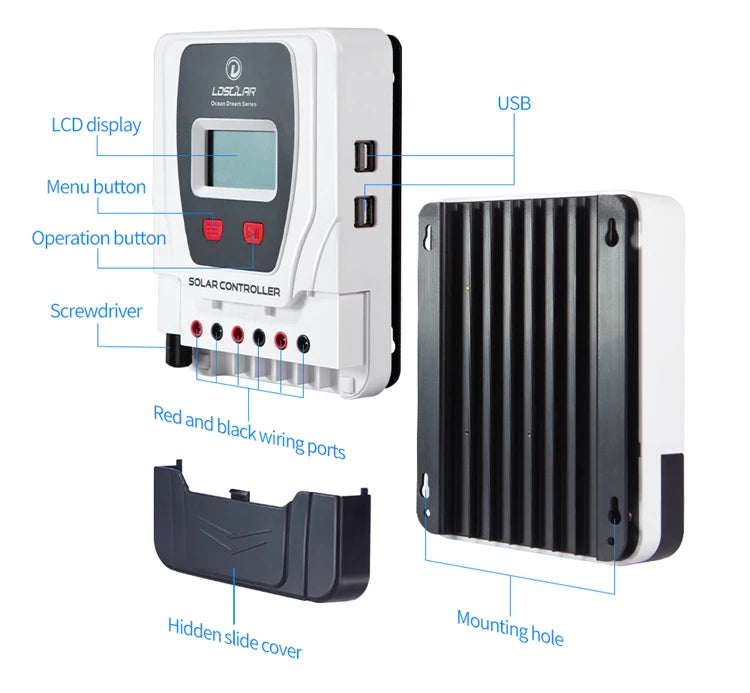

LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller, Solar charge controller with LCD display, buttons, and screwdriver access for easy installation.

The LUSDOR solar charge controller features a USB LCD display, menu and operation buttons, screwdriver access, and ports. The controller has a red and black wiring system with mounting holes for easy installation.

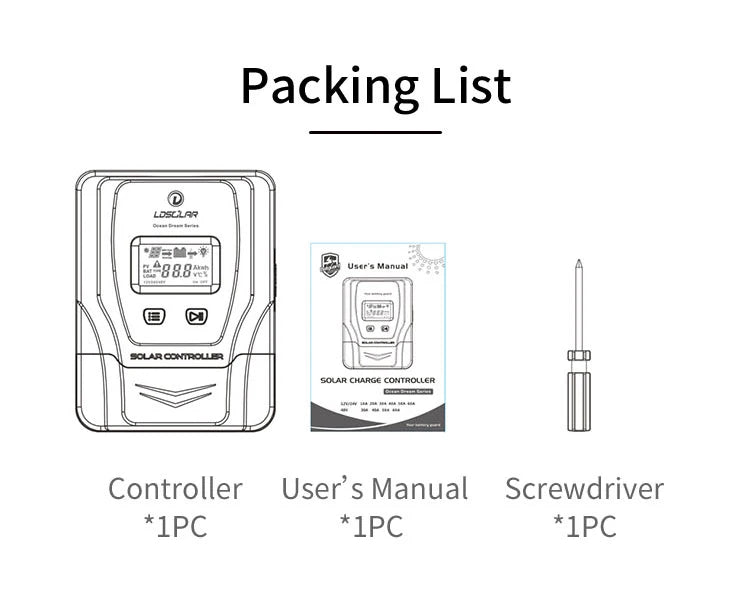

LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller, Packaging includes: user manual, controller, and screwdriver. No additional items are listed.

Packaging includes: user manual, controller, and screwdriver. No additional items are listed.


Model
OD series
Self-consumption
<10mA

Battery type

 Sealed(Default)/Gel/Flood/Lithium





LVD※*
11.0V ADJ 9V...12V ; x2/24V ; x4/48V
LVR※*
12.6V ADJ 11V...13.5V ;x2/24V ; x4/48V
Float Voltage※*
13.8V ADJ 13V... 15V ; x2/24V ; M/48V
Boost Voltage※*
14.4V ADJ 13V...17V ;x2/24 ; x4/48V
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage ※*
16.5V ; x2/24V ; x4/48V
Reverse Connection Protection
yes
Load Over Current Protection
Yes, each 30s auto restart again
Controller Over Temperature
Yes
Charge circuit voltage drop
<=0.25V
Discharge circuit voltage drop
<=0.1V
Temperature Consumption#
For 12Vsystem:-24mV /°C ; x2/24V ; x4/48V
Relative humidity
≤95%, N.C.
WorkingTemperature
-20°C~+55°C℃(Product can work continuously at full load)
LCD temperature range
-20°C~+70°C
Waterproof grade
IP32
Mounting hole size
Φ5mm


LDSOLAR 12V/24Vdc 60A PWM Solar Charge Controller, Reliable solar charge controller with safe electrical connections for real-world use.

Suitable for real-world applications, this solar charge controller provides reliable power supply and risk-free electrical connections.
