LiFePO4 48V 5KW Battery Pack - 51.2V 100AH Lithium Battery 6000+ Cycles Max 32 Parallel RS485 CAN For Solar Off/On Grid Inverter
LiFePO4 48V 5KW Battery Pack - 51.2V 100AH Lithium Battery 6000+ Cycles Max 32 Parallel RS485 CAN For Solar Off/On Grid Inverter
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ

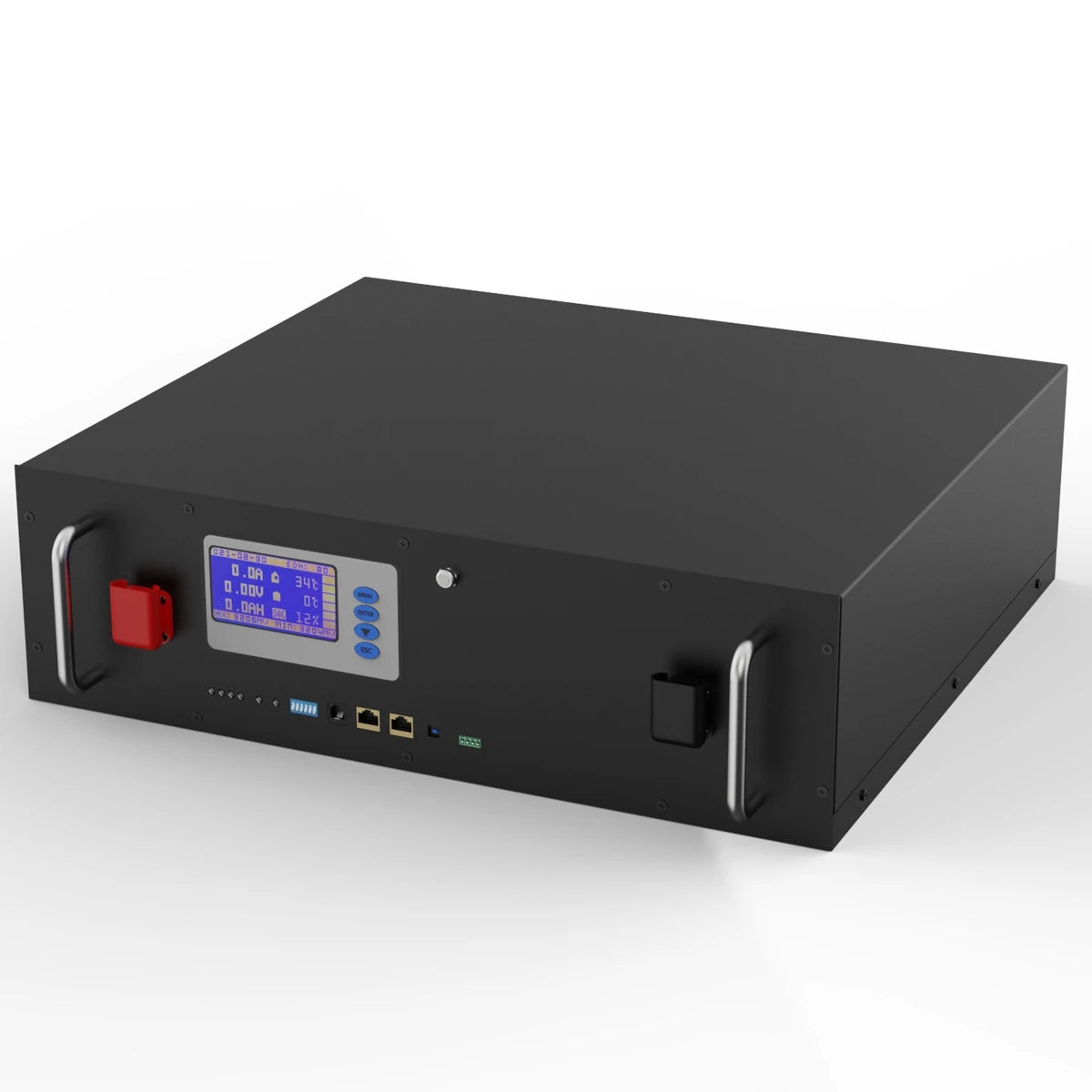

LiFePO4 48V 5KW Battery Pack SPECIFICATIONS
Weight: 49kg
Voltage: 48V
Type: Lifepo4
Size: 480*440*460mm
Parallel: support max 32 parallel
Origin: Mainland China
Nominal Capacity: 100AH
Model Number: 48V 5KW LiFePO4 Battery
Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,WEEE,NONE
Brand Name: CERRNSS
Application: Inverter

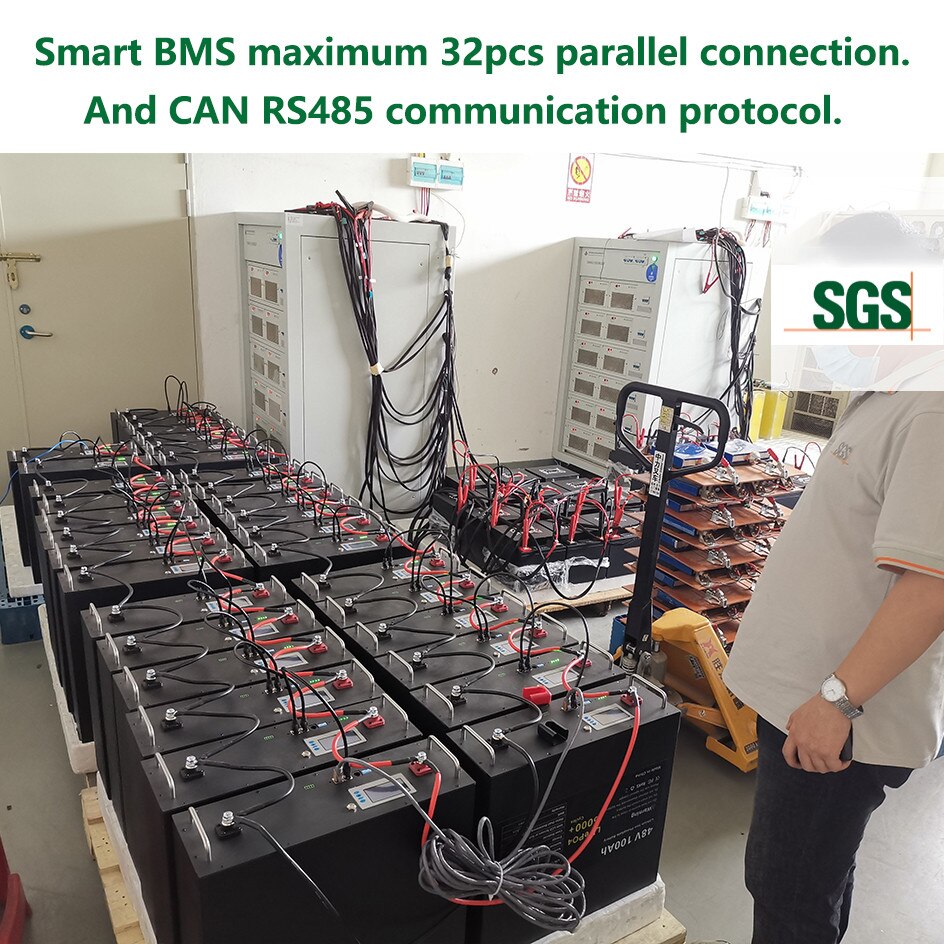

48V 100AH Lifepo4 Battery Support up to 32 parallel
Specifications:
Cycle Life : 6000+ Cycles
Communication Protocol: CAN RS485
Nominal Voltage : 51.2V
Rate Capacity : 100Ah
Energy Power : 5120Wh
Max Charge Voltage : 58.4V
Maximum Charging Current : 100A (1C)
Maximum Dicharge Current : 100A (1C)
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Dimensions(L*W*H) : 480*440*160mm
Studs : M8 Terminal
Weight : 49KG

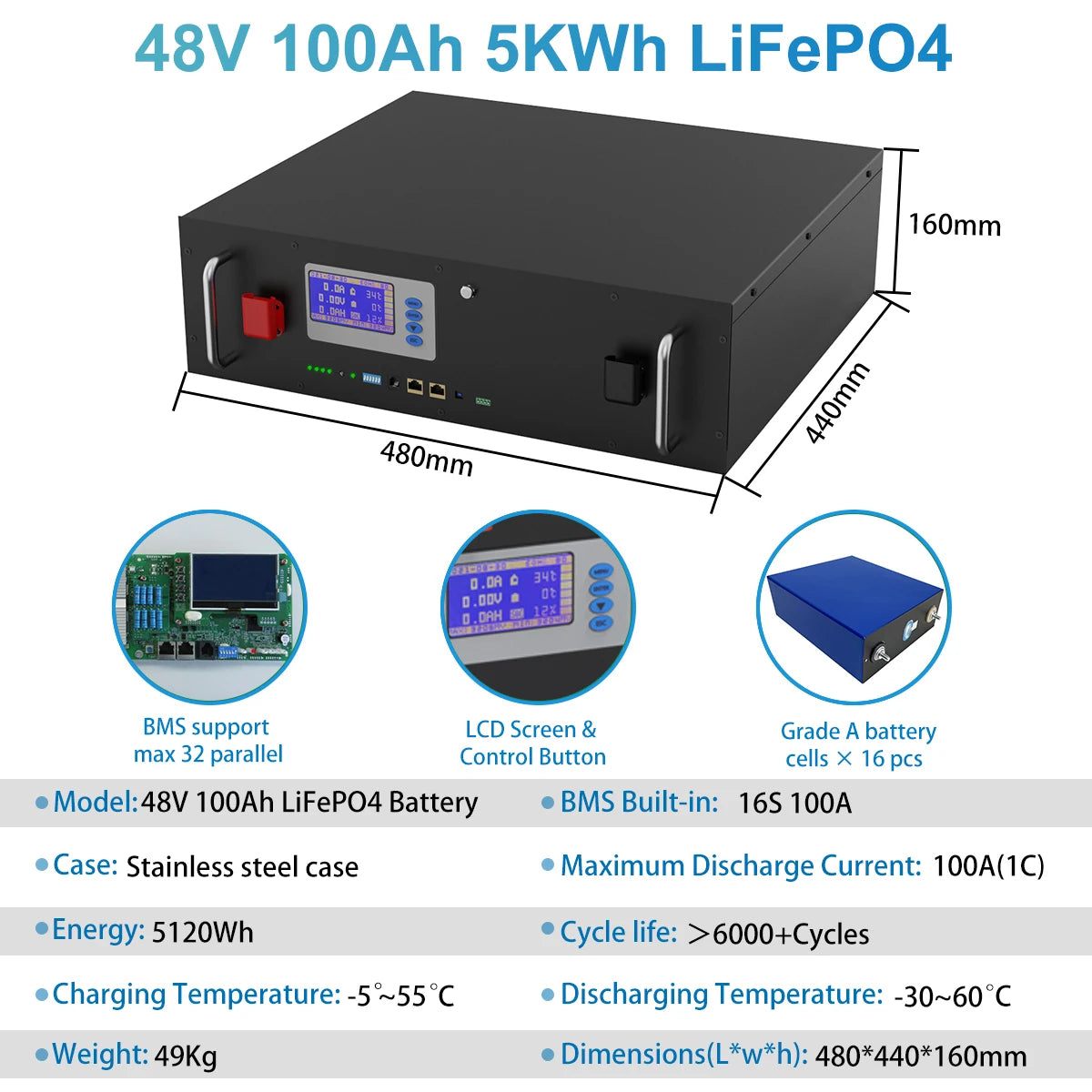

48V, 100Ah LiFePO4 battery pack with built-in BMS (Battery Management System) and LCD screen. Features: maximum 32 parallel connections, Grade A cells, stainless steel case, and a cycle life of over 6000 cycles. Dimensions: 480x440x160mm, weight: approximately 49kg.

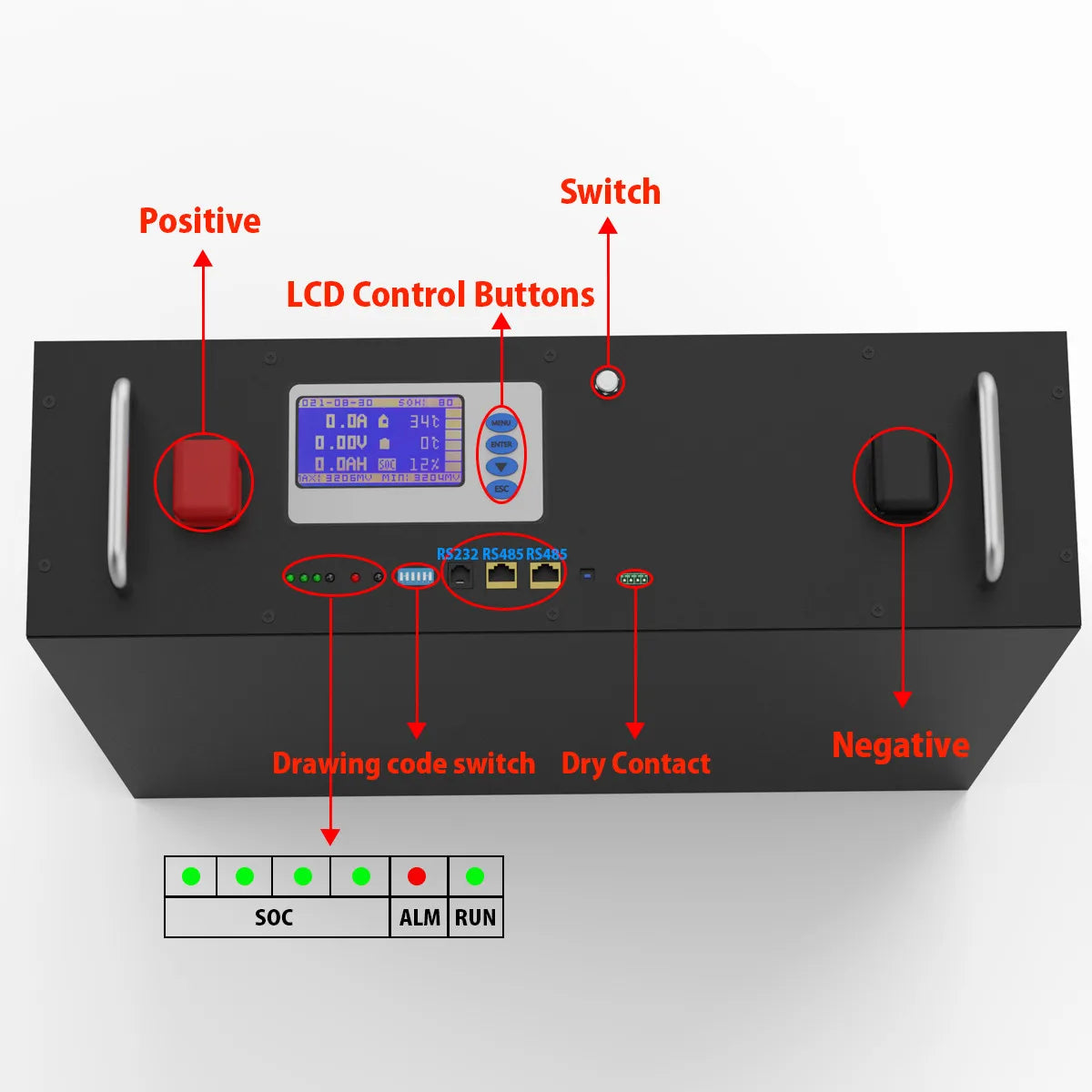

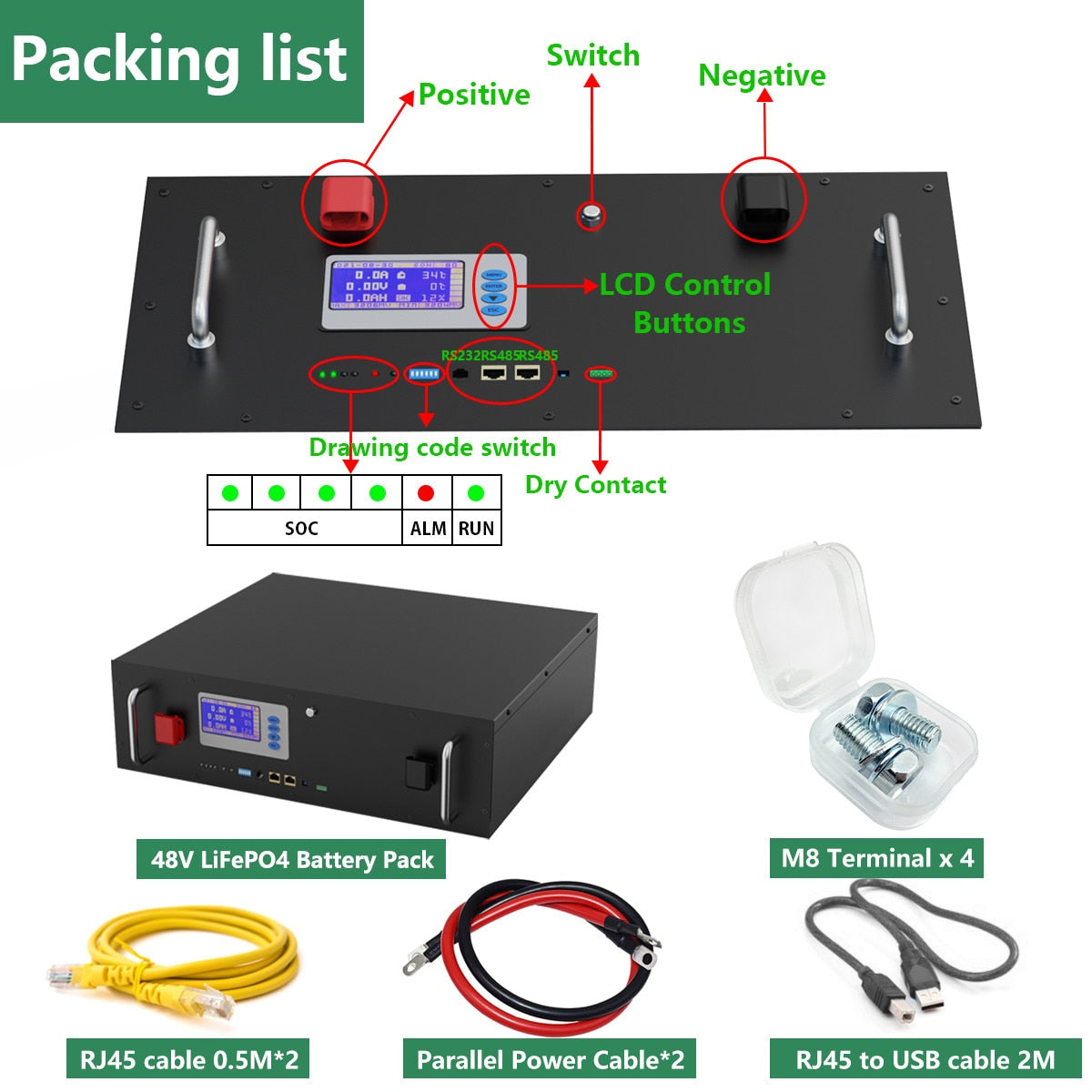

The battery pack features a positive LCD display with control buttons, including P/D8/30, S0K, and SOAH. It also has RS232, RS485, and CAN connectivity options for solar off-grid or grid-tied inverter applications.

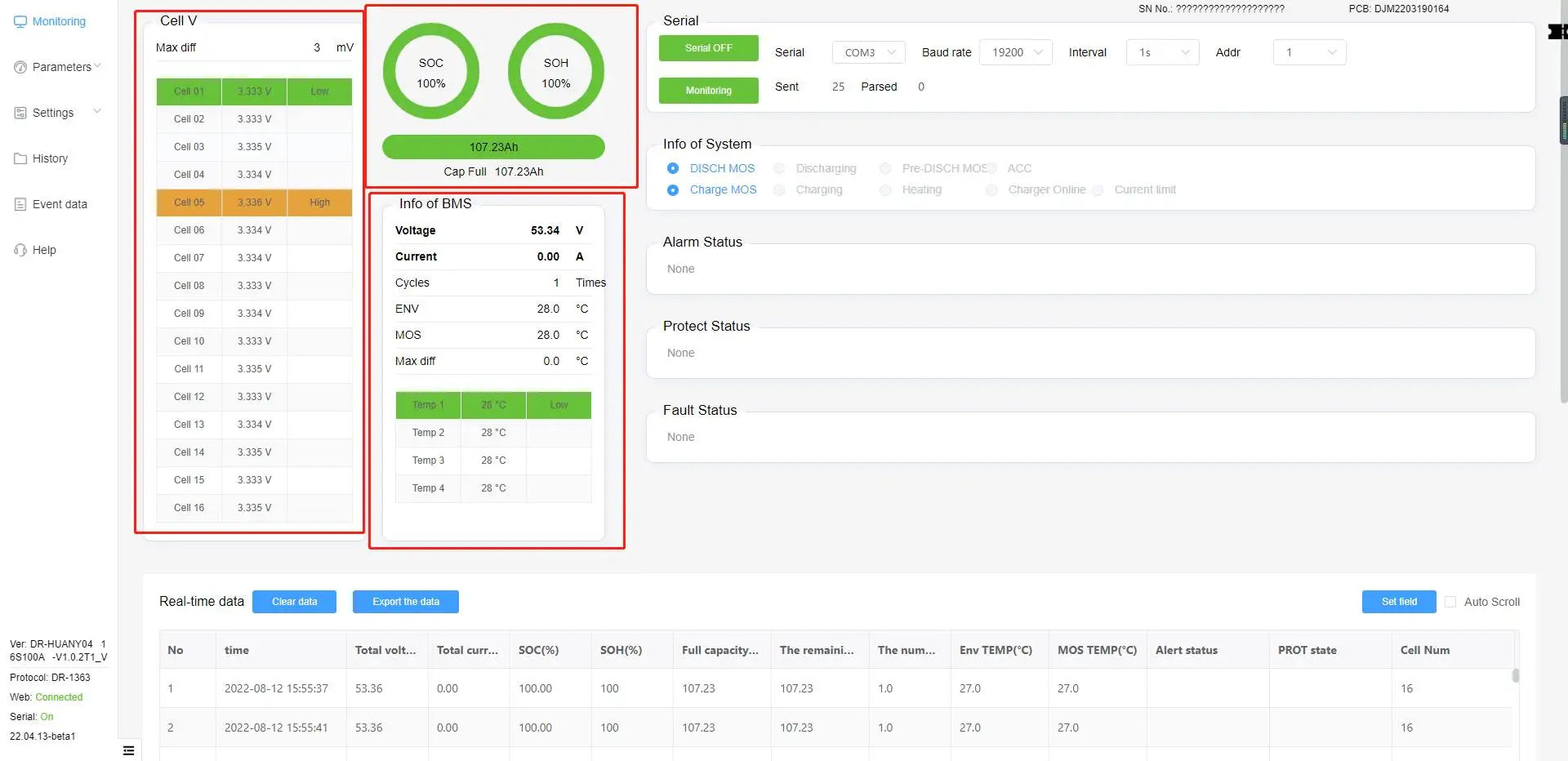

Product Details: LiFePO4 Battery Pack: 48V, 5kW, 51.2V, 100Ah, 6000+ cycles, max 32 parallel connections. Monitoring Cell V Serial Max diff: ±1 mV. Serial COM3 baud rate: 19200. Interval address parameters: SOC, SOH, Gell D. System History: Cell 02-12: voltage and current data. Environmental Temperature: 28°C. Alert Status: None. Protocol: DR-HUANYO4. Version: 2022-08-12 15:55:37.
Unlike other cheap batteries, our LiFePO4 pack offers superior quality with 6,000+ cycles and 100Ah capacity. We provide safe and organized packaging, whereas others may have messy or dangerous designs.

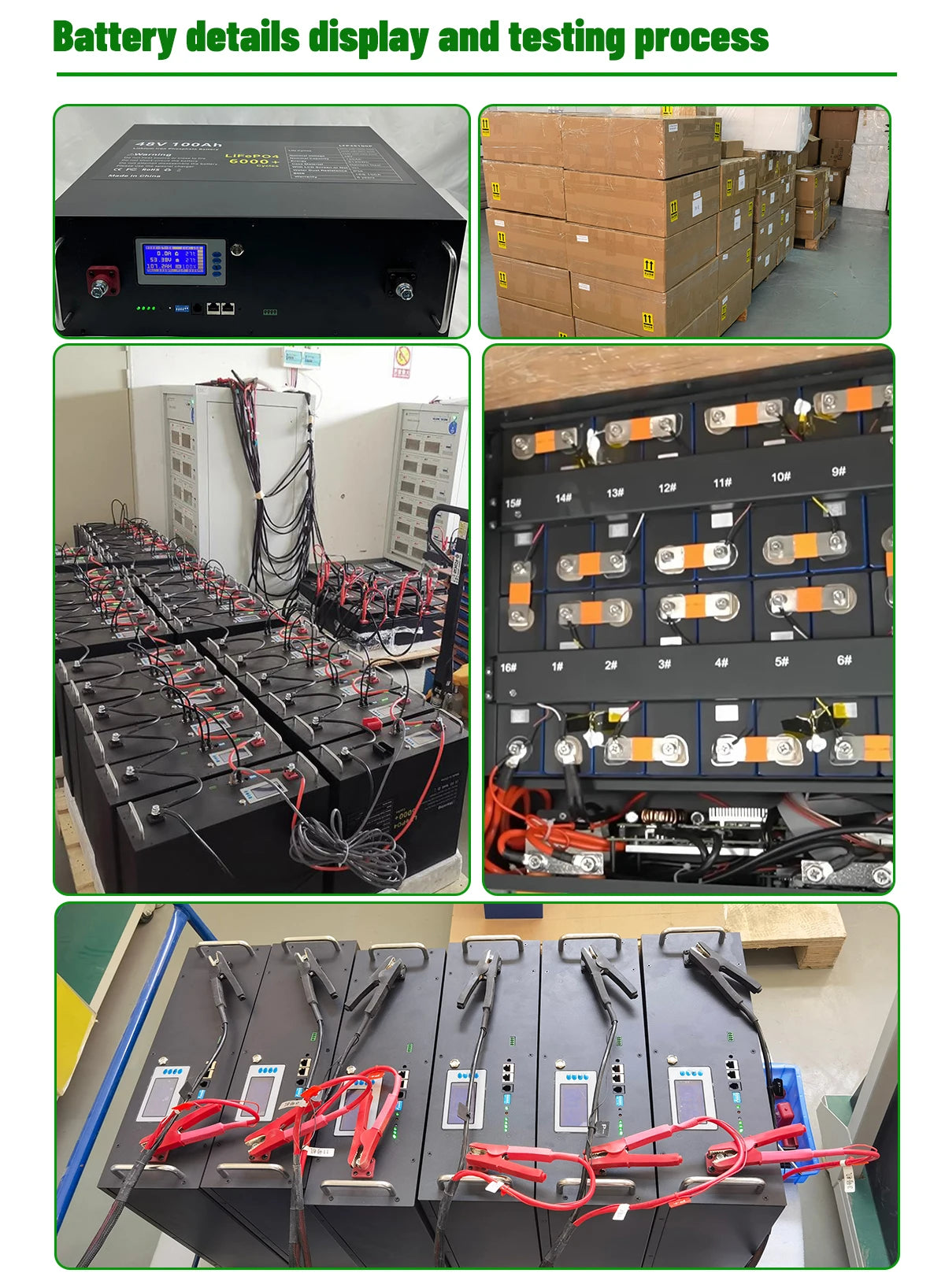

Battery details display: 232.089V (charging), 10% State-of-Charge (SOC); Testing process: 91T10, Cycle count: 1364215, Internal Resistance: 61.

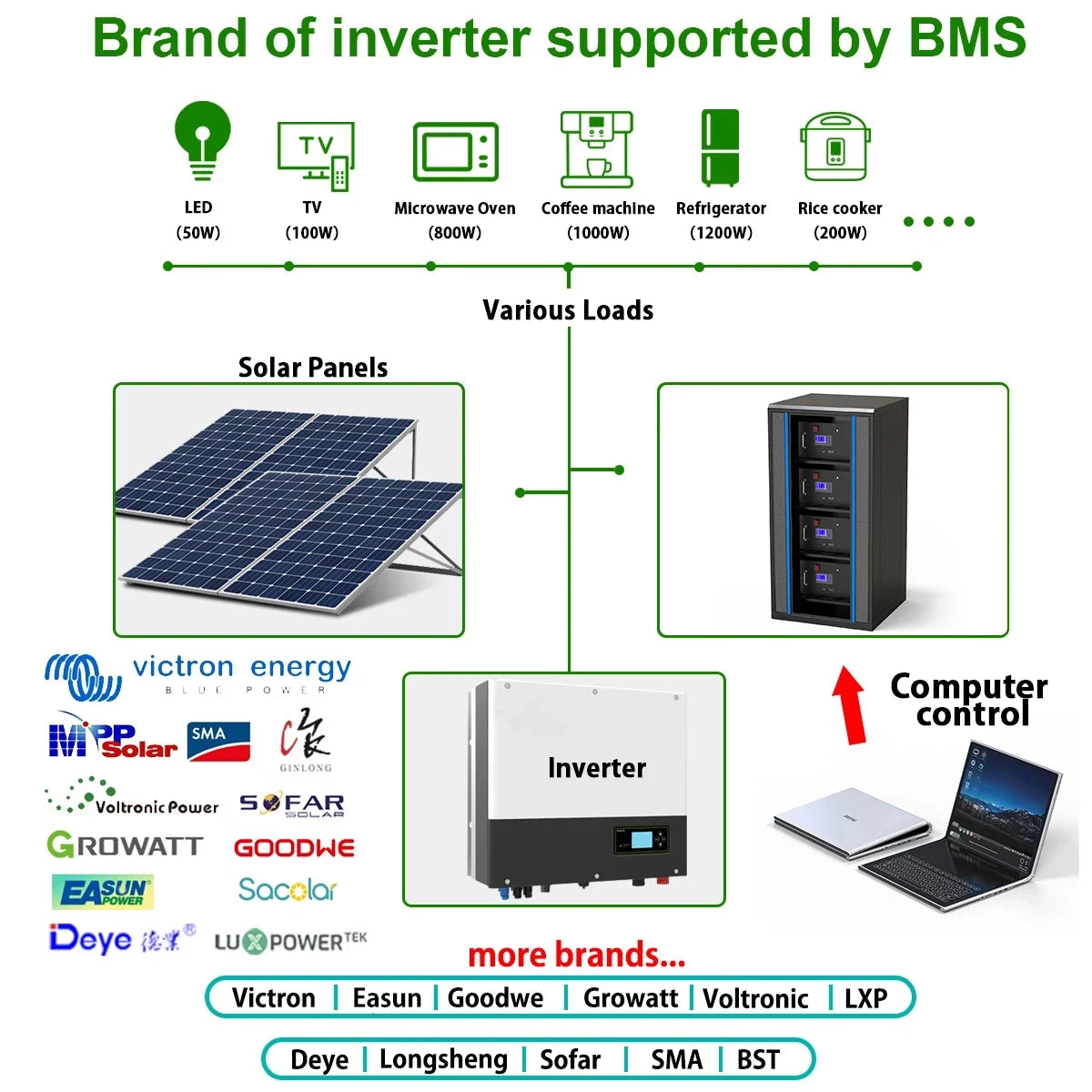

Suitable for base stations, UPS systems, commercial/industrial applications, grid storage, RVs, golf carts, and household energy storage systems.
