PowMr

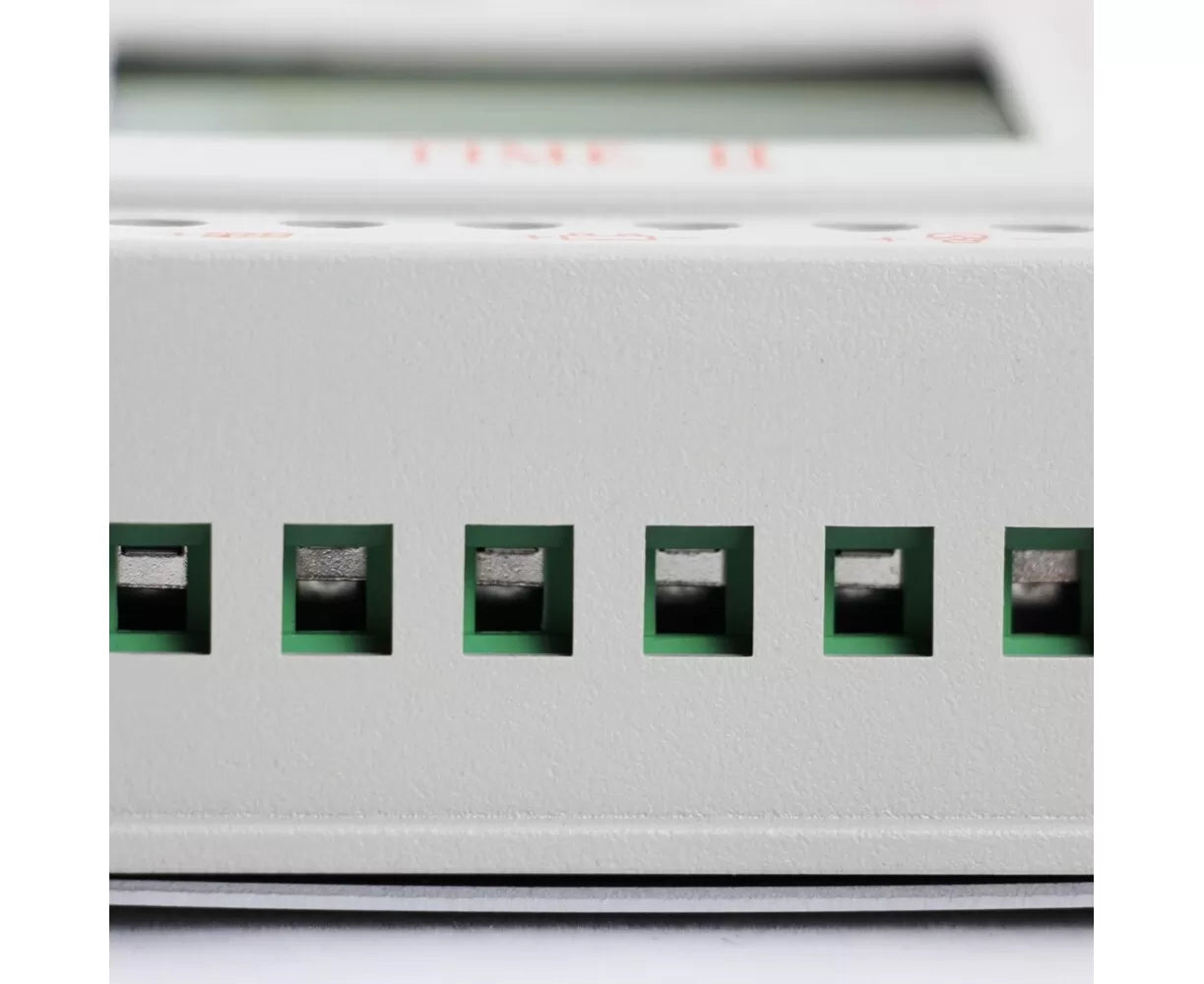

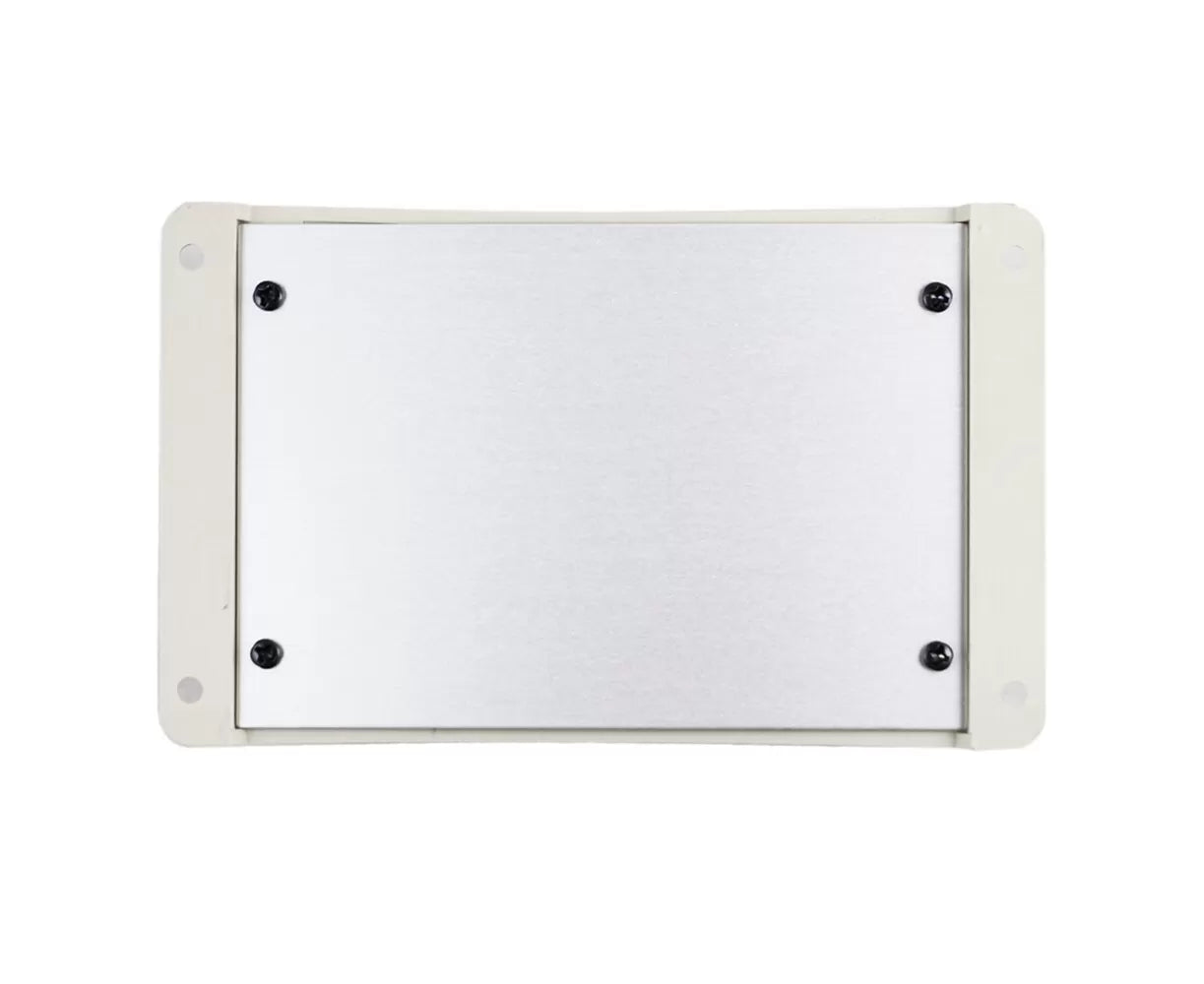

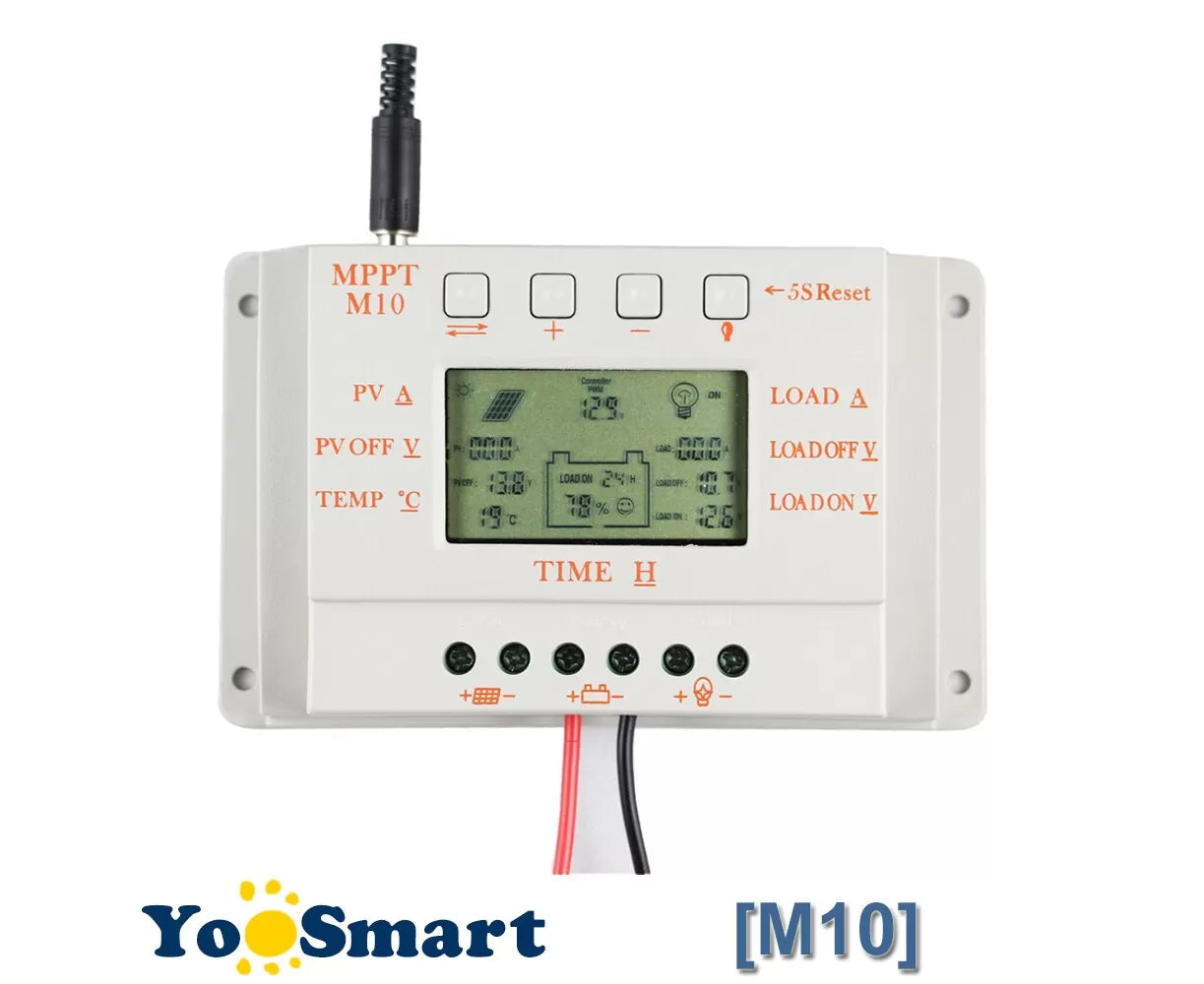

M10 - 10A Mppt Solar Charge Controller 12V 24V Solar Panel Batterie Regler

M10 - 10A Mppt Solar Charge Controller 12V 24V Solar Panel Batterie Regler

Regular price $24.00 USD
Regular price Sale price $24.00 USD
Sale Sold out
Shipping calculated at checkout.

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ



10A Solar MPPT Charge Controller Compatible PWM LCD Display 12V 24V Solar Panel Battery Regulator 250W Light and Timer Control For Home Light System

 This is a compatible MPPT solar charge controller PWM intelligent/high efficiency/energy saving. It not only has an efficient MPPT controller charging function, it automatically tracks the maximum power point, and its charging efficiency is 10%-30% higher than that of ordinary controllers, and it also has standby energy. Energy-saving, more than 30% energy saving than an ordinary controller, standby power consumption is only 10mA-15mA.

Feature:

  • Brand Name: PowMr
  • Model Number: M10
  • is_customized: Yes
  • Application: Solar Charge Controller
  • Application: Solar System Controller
  • Application: Solar Working Station
  • Maximum Current: 10A
  • Current: Solar Controller 10A
  • Float charging voltage(settable): 13.8V/27.6V
  • Model: M10
  • Max PV input: 260W
  • Rated Voltage: 12V 24V auto
  • Application: Solar Regulator

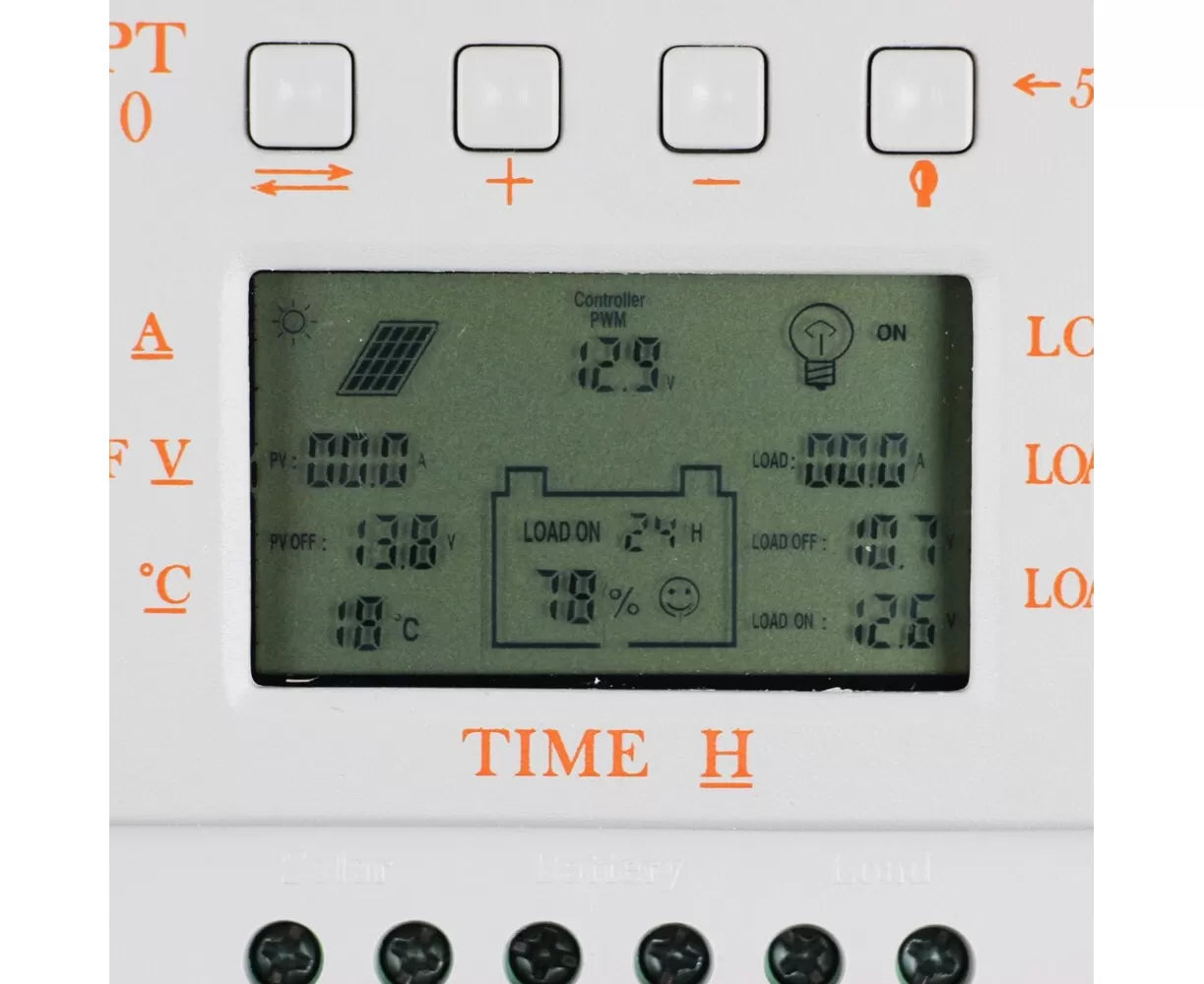

Note: It is high-quality compatible MPPT + PWM Charge and Discharge Solar Controllers, not 100% Ture MPPT LCD screen display

Parameters:

Parameters / Model

M10

M20

M30

M40

Maximum power current

12A

20A

30A

40A

Installation  Lin(mm2)

4mm2

8mm2

10mm2

12mm2

Installation Line(AWG)

10(AWG)

8(AWG)

7(AWG)

6(AWG)

Weight

280g

300g

475g

480

Dimensions

143×89×46(mm)

187*97*61(mm)

System load loss

≤13mA

Loop Buck

≤100mV



Battery float voltage

13.8V(12V system)/27.6V(24V system)

Battery (under voltage) protection

10.6V(12V system)/21.2V(24V system)

Battery (under voltage) recovery voltage

12.6V(12V system)/25.2V(24V system)

Charge mode

MPPT+PWM MODE

Operating Temperature

-10℃~60℃

Storage Temperature

-30℃~70℃

Humidity requirements

≤90%, No condensation

Temperature compensation

-4mV/Cell/℃

Temperature Probe (built components)

NTC 100K  thermostats

The maximum open-circuit voltage of the solar panel

18V-24V(12V system)36V-48V(24V system)

Solar panels maximum open-circuit voltage (V)

≤48V



12V system standard configuration (only applicable to our solar charge controller)

The peak voltage of the solar cell panel(Maximum power voltage (V)))

18V-25V

18V-25V

18V-25V

18V-25V

Peak power of solar cell panel(Maximum power (Wp)

50W-130W

100W-260W

200W-380W

≤500W

Solar Charge Controller Model

M10

M20

M30

M40

Battery standard voltage

12V

12V

12V

12V

Battery capacity configuration

≥100AH

≥200AH

≥300AH

≥400AH

Installation  Lin(mm2)

4mm2

8mm2

10mm2

12mm2

Installation Line(AWG)

10(AWG)

8(AWG)

7(AWG)

6(AWG)

*all red color voltage X2, while using 24V system.

 Package including:

  • 1. 1pc 10a controller M10
  • 2. 1pc User manual (English)
  • 3. 1pc Temp Sensor TS
