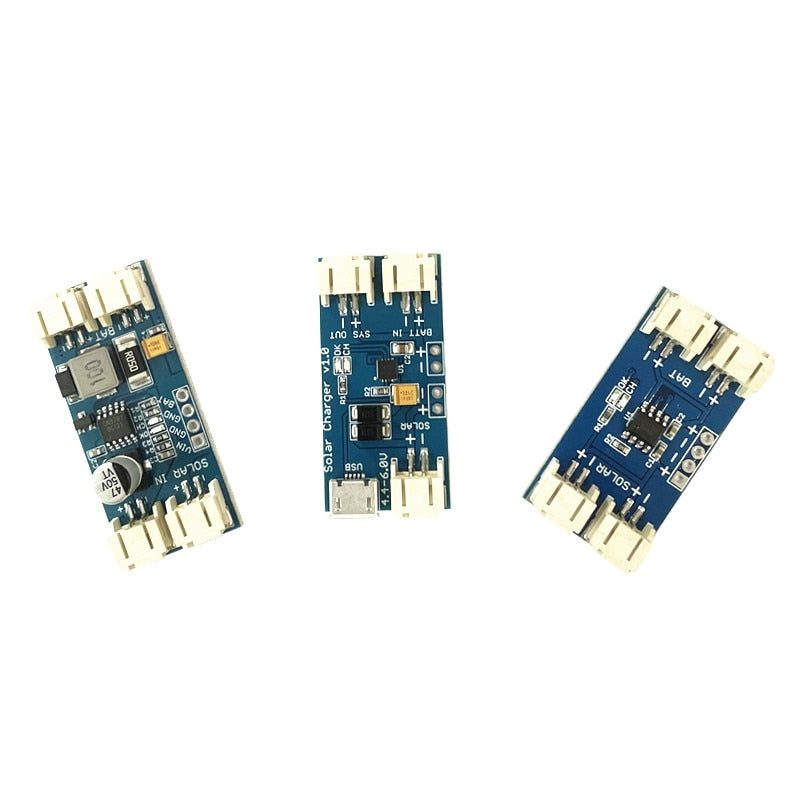

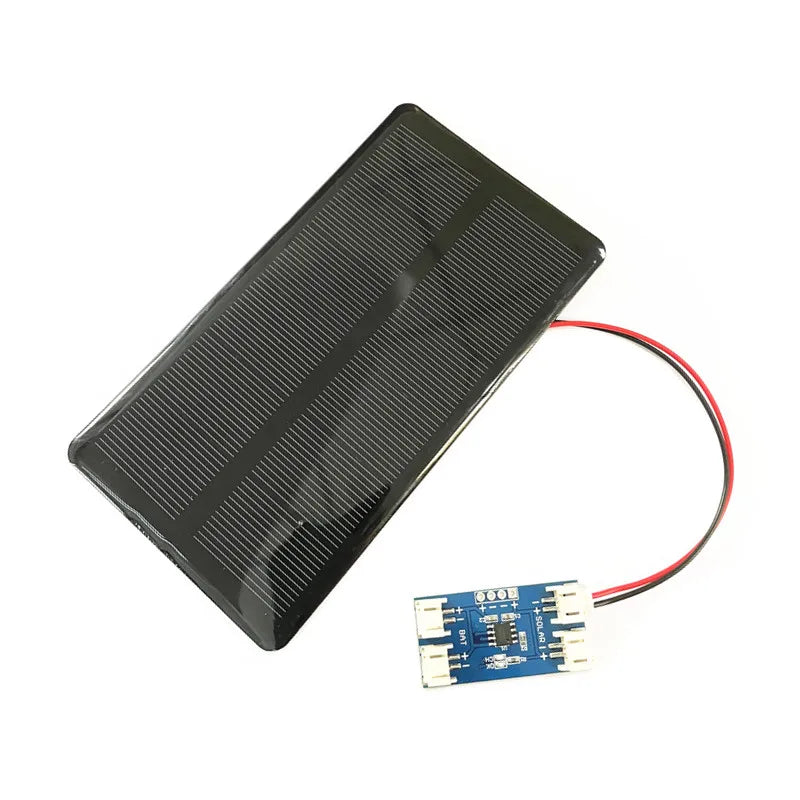

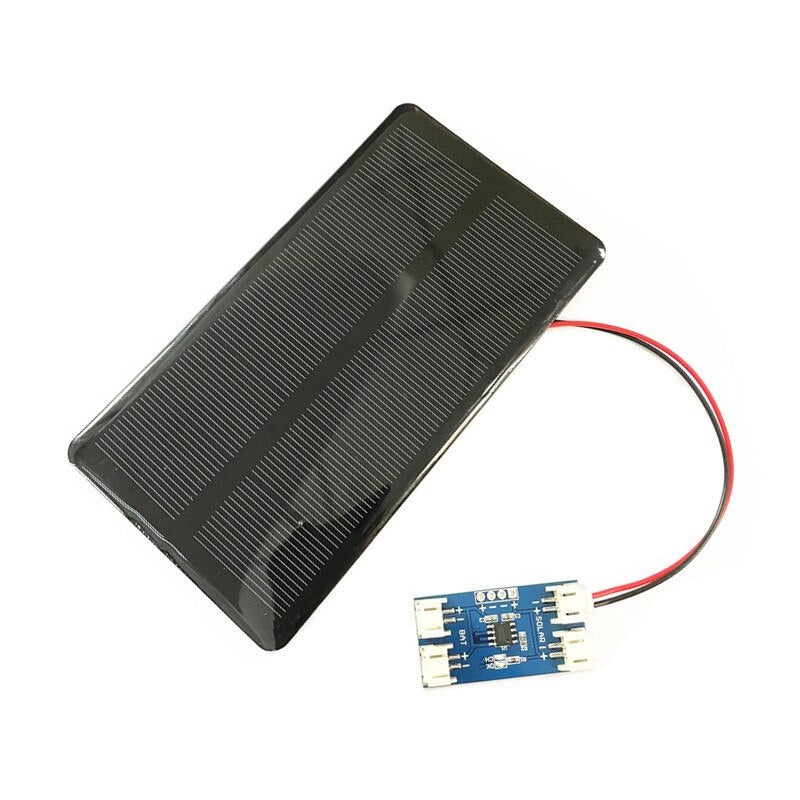

Mini 6V 210mA 1.25W Solar Panel with solar charger CN3065/CN3791/CN3163 MPPT Solar Panel Regulator Controller

Mini 6V 210mA 1.25W Solar Panel with solar charger CN3065/CN3791/CN3163 MPPT Solar Panel Regulator Controller

Regular price $5.06 USD
Regular price Sale price $5.06 USD
Sale Sold out
Shipping calculated at checkout.
Wattage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

Origin: Mainland China

Brand Name: ecoflypower

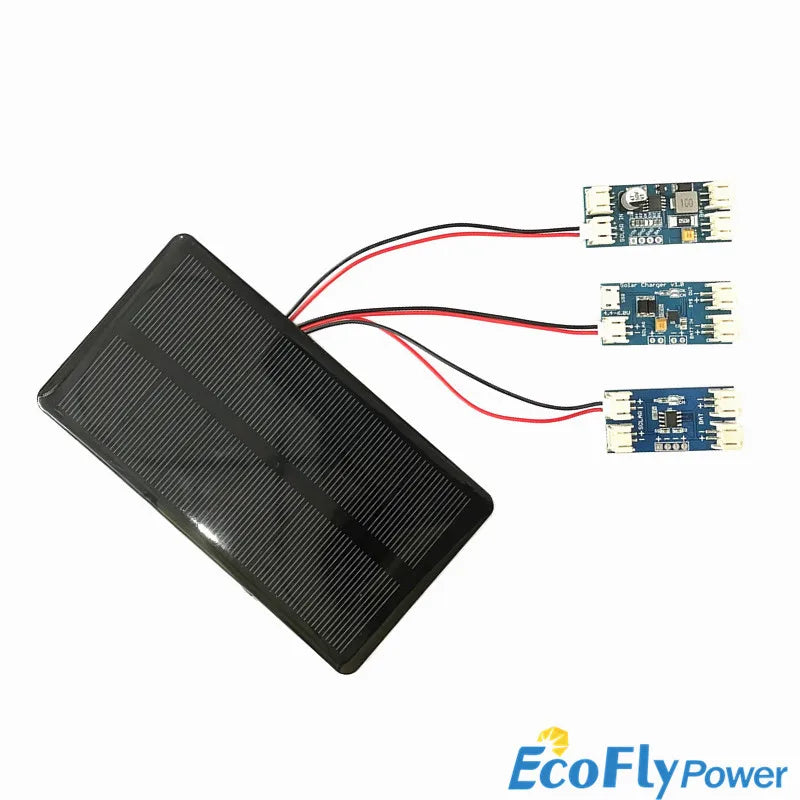

Mini 6V 210mA 1.25W  Solar Panel, Use 9V solar panel with CN3791 MPPT Solar Charger; voltage requirements apply.

Feture:

Voltage:6V

Current: 210MA

Process: Epoxy

Material: high rate solar cell epoxy resin AB glue, PCB or fiberglass backplane

Size: 133*73MM

Package include:

1*Solar panel

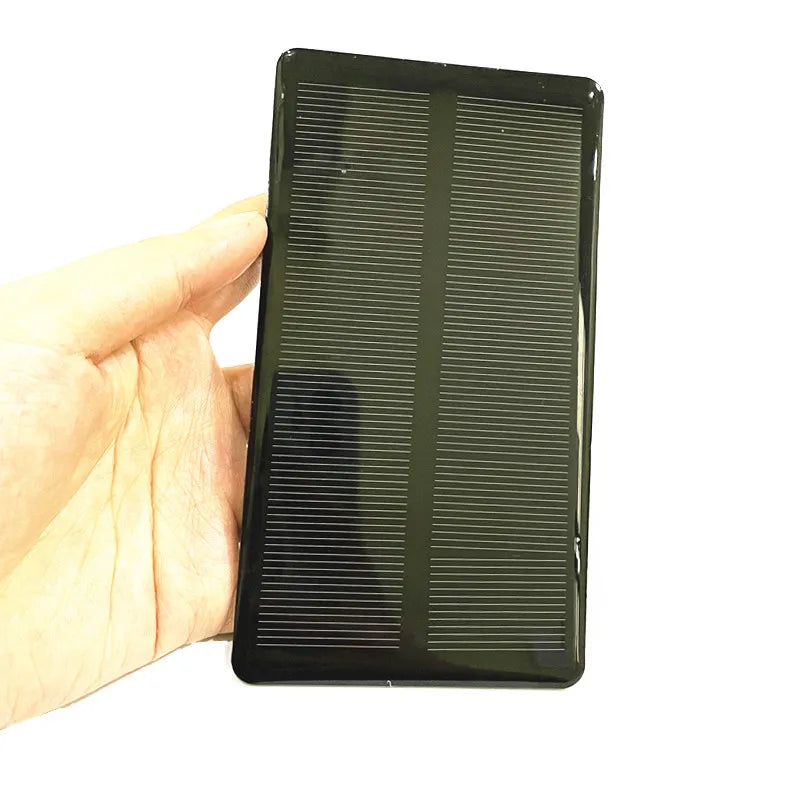

Mini 6V 210mA 1.25W  Solar Panel, Solar charge settings: max 0.99A, 6V recommended input (min 4.4V)

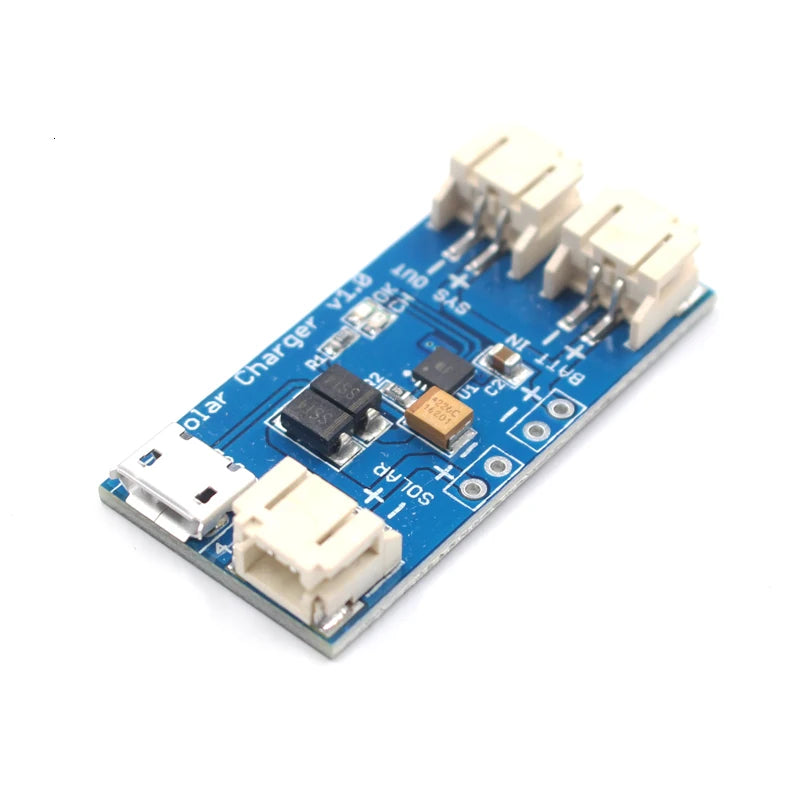

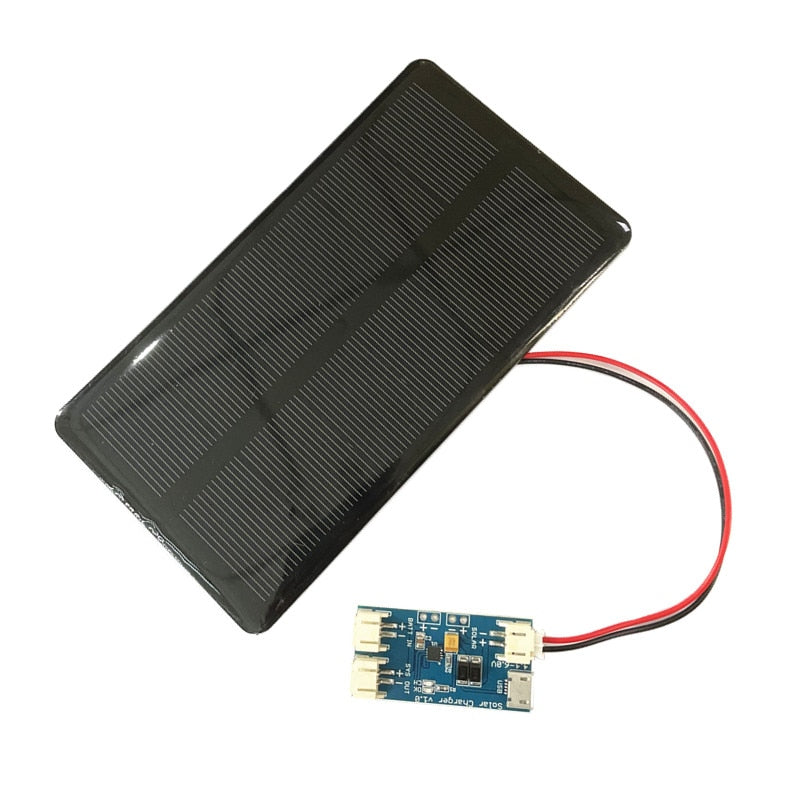

Solar charger CN3065

This is a supper mini Solar Lipo charger based on the CN3065 - a single lithium battery charge management chip.

This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!

The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It’s recommended that batteries not be charged at greater than their capacity rating.

Mini 6V 210mA 1.25W  Solar Panel, Charges single polymer lithium-ion cell.

Features:

Solar panel input: 4.4-6V

Max charge current: 500Ma

Interface: 2-pin JST connectors(or PH2.0)

Short circuit protection

Continuous Charge Current Up to 500mA

Battery status indication ( Red : Charging , Green: Charged )

Micro-USB Connector

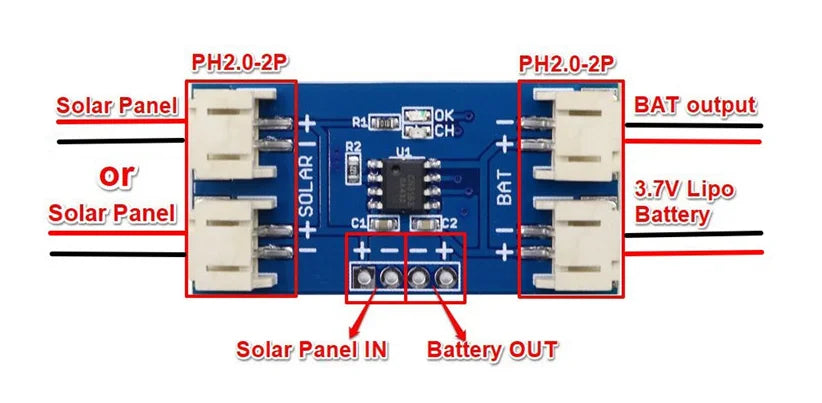

Solar chager CN3163

This is a super mini Solar Lipo charger based on the CN3163 - a single lithium battery charge management chip.

This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!

The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 0.99A with a maximum recommended input of 6V (minimum 4.4V). It’s recommended that batteries not be charged at greater than their capacity rating.

Mini 6V 210mA 1.25W  Solar Panel, Compact solar charger powers small devices or charges 3.7V LiPo batteries with built-in MPPT controller.

Mini solar panel charges 1.25W, 210mA, and 6V with built-in MPPT controller, suitable for powering small devices or charging batteries like 3.7V Lipo.

Features:

Solar panel input: 4.4-6V

Constant voltage charging voltage: 4.2V

Continuous constant current charging current up to 0.99A (1A)

Can be used as a voltage source

C/10 charge end detection

Automatic recharge

Short circuit protection

Internal soft start circuit

Battery status indication ( Red : Charging , Blue: Charged )

Interface: 2-pin JST connectors (or PH2.0)

Dimension: 2cm x 4cm

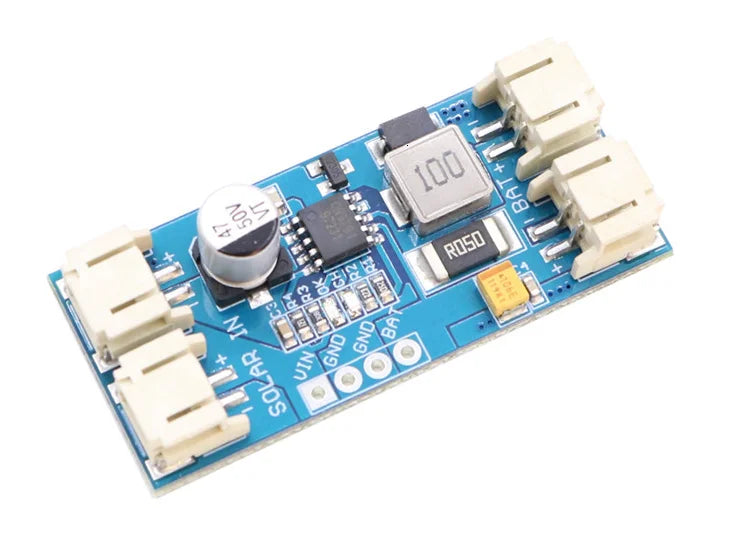

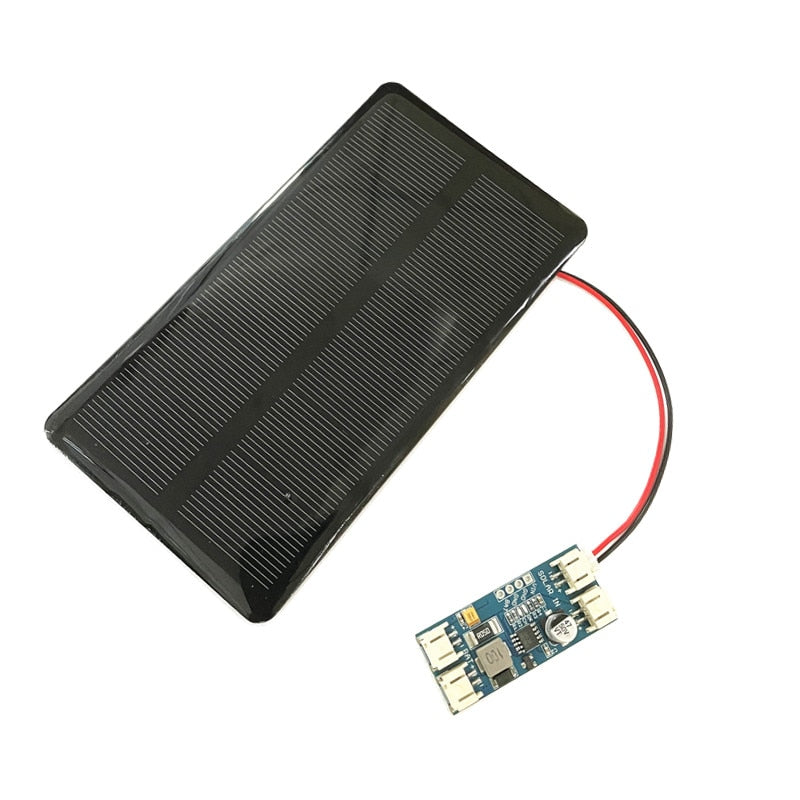

Solar Charger CN379

This is a maximum power point tracking (MPPT) solar charger for single-cell LiPo batteries. This MPPT solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set-up is easy as well, just plug your solar panel into one side of the solar charger and your battery into the other and you are good to start charging! Solar maximum power point tracking (MPPT) is to ensure that the light intensity change, photovoltaic cells output maximum power, to make full use of solar energy. In general, need to use a switch mode DC - DC converter to realize MPPT function, keep the output voltage and charging current product maximize (output). The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. Each Solar Charger comes equipped with a CN3791 power tracking battery charging circuit and pre-installed four 2-pin JST/PH2.0 connectors. Default we have set the holding voltage for MPPT. So we have 3 version for the input voltage 6V/9V/12V(for Solar Panel working voltage 6V/9V/12V), very suitable for the application of the input voltage and battery voltage difference is bigger. Note: If the CN3791 MPPT Solar Charger is 9V version, you must use the Solar panel working Voltage is 9V.

Mini 6V 210mA 1.25W  Solar Panel, Battery charging should not exceed its rated capacity to ensure safe and efficient operation.

Feature:

Input voltage: select the corresponding module according to the nominal voltage of the solar panel (6V)

Output voltage: nominal 3.7V full charge voltage 4.2V lithium battery

Interface: 2-pin JST connectors (or PH2.0)

Solar panel maximum power point tracking

Complete charge management for single-cell lithium batteries

Charging current up to 2A

PWM switching frequency: 300KHz

Charging voltage: 4.2V ± 1%

Trickle charging of deeply discharged batteries

Automatic recharge

Charge status and charge end status indication

Soft start

Battery overvoltage protection

Working environment temperature: -40 ° C to +85 ° C

Size:45X20X9.5mm

1S 18650 Battery Holder

Package Include

Mini 6V 210mA 1.25W  Solar Panel, Equipped with power tracking circuit and pre-installed JST/PH2.0 connectors.Mini 6V 210mA 1.25W  Solar Panel, Use 9V voltage for 9V CN3791 MPPT Solar Charger; note applicable only to this specific model.Mini 6V 210mA 1.25W  Solar Panel, Easy set-up: plug solar panel into one side, battery into other, and charge away!Mini 6V 210mA 1.25W  Solar Panel, Manufactured in an automated production facilityMini 6V 210mA 1.25W  Solar Panel, Three versions for input voltage: 6V, 9V, and 12V, suitable for solar panels with varying working voltages.Mini 6V 210mA 1.25W  Solar Panel, Equipped with CN3791 power tracking circuit and 4 pre-installed JST/PH2.0 connectors.Mini 6V 210mA 1.25W  Solar Panel, Big Shot Seller's Discount Solar Panel Set
