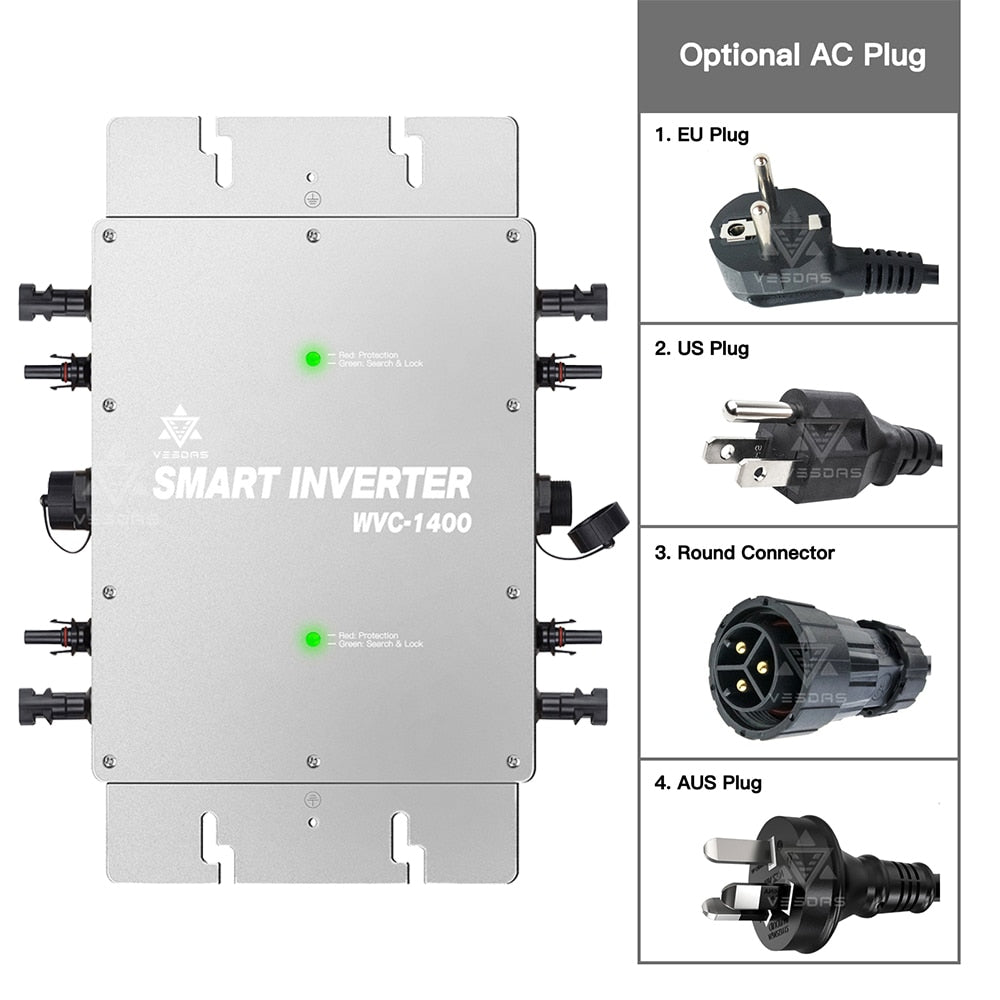

MPPT 1400W Solar Micro Inverter 30V 36V On Grid Tie Inversor Pure Sine Wave Converter With EU Plug 110V 220V AC For 60 72 Cells
MPPT 1400W Solar Micro Inverter 30V 36V On Grid Tie Inversor Pure Sine Wave Converter With EU Plug 110V 220V AC For 60 72 Cells
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 4kg
Suggestion Solar Panel Power: 300W,350W,375W
Static MPPT efficiency: >99.5%

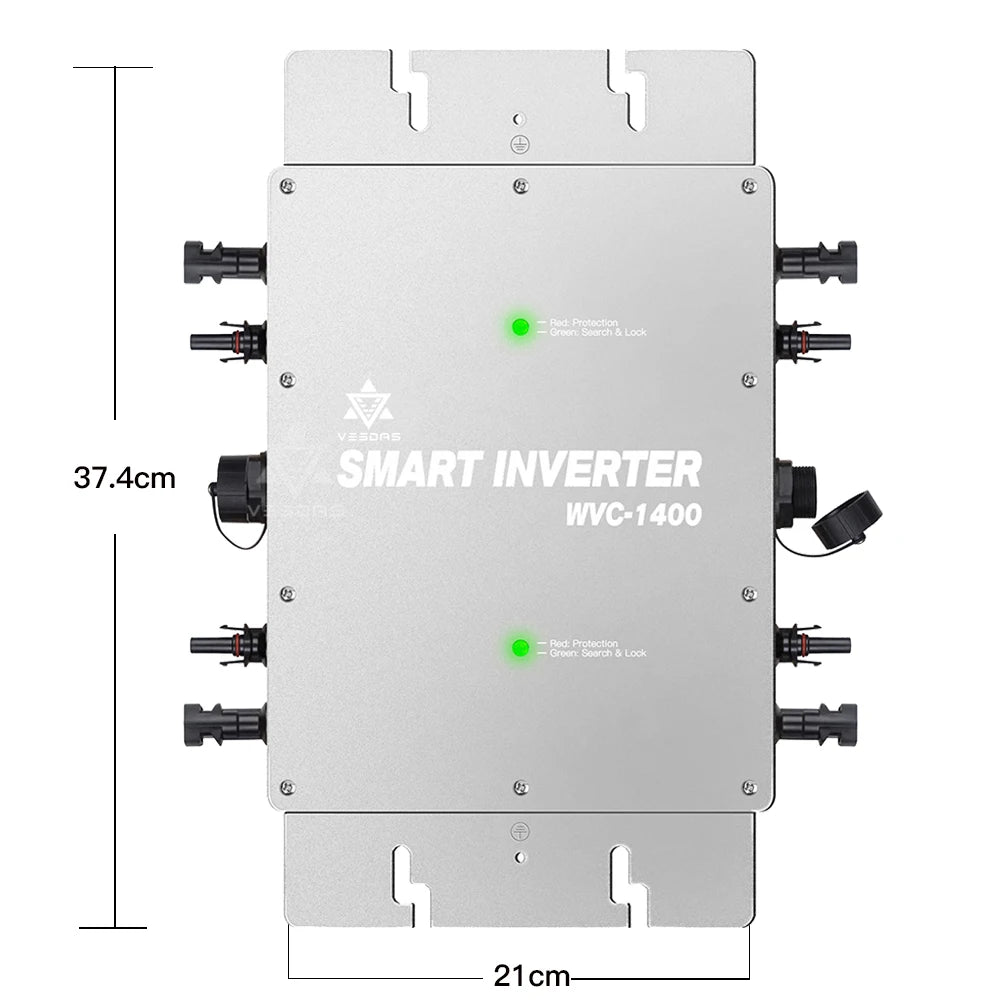

Size: 370mm*300mm*41.6mm
Recommended voltage of PV module: Vmp>34V/ Voc<50V
Recommended input power: 1400w
Power factor: >98%
Peak power tracking voltage: 22-50V
Output Voltage: 80-160VAC or 180-260VAC
Output Type: single
Output Power: >1000KW
Output Frequency: 50Hz/60Hz
Origin: Mainland China
Model Number: 1400W Solar Inverter
Maximum input DC voltage: 50V
Is Smart Device: No
Input Voltage: 22-50VDC
1400W Micro Inverter using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.
22-50VDC input voltage range is suitable for 30V (60 cells) or 36V (72 cells) solar panels
Feature
● High performance maximum power point tracking (MPPT)
●Reverse power transmission
●Input /output is fully isolated to protect the electrical safety
●Multiple parallel stacking
●Digital control system
●Simplify maintenance (user serviceable)
●Operation and maintenance costs low
●Flexible installation
Model |
1400W Solar Inverter |
|
Maximum input power |
4*350Watt |
|
Output voltage mode |
Automatically switch 120/230V according to local grid |
|
Solar panel open circult voltage range |
22-50VOC |
|
Peak power tracking voltage |
22-50V |
|
Min / Max starting voltage |
22-50V |
|
Maximum DC short current |
93A |
|
Maximum input opening current |
63A |
|
Output Data |
@120VAC |
@230VAC |
Peak power output |
1400Watt |
1400Watt |
Rated output power |
1400Watt |
1400Watt |
Rated output current |
11.6A |
6A |
Rated voltage range |
80-160VAC |
180-260VAC |
Rated frequency range |
47-52.5Hz/57-62.5Hz |
47-52.5Hz/57-62.5Hz |
Power factor |
>99% |
>99% |
Maximum units per branch circuit |
3PCS（Single-phase） |
5PCS（Single-phase） |
Output Efficiency |
@120VAC |
@230VAC |
Static MPPT efficiency |
99.50% |
99.50% |
Maximum output efficiency |
97% |
97% |
Night loss consumption |
<1W |
<1W |
THD |
<5% |
<5% |
Exterior & Feature | ||
Operating temperature range |
-40℃ to +60℃ |
|
Dimensions (L x W x H) |
370mm x 300mm x 41.6mm |
|
N.W. |
2.83KG |
|
Waterproof Rating |
IP65 |
|
Cooling |
Self-cooling |
|
Commuvnication mode |
no |
|
Power transmission mode |
Reverse tranfer,load priority |
|
Monitoring system |
PC version is free, Cloud Edition is on demand |
|
Electromagenetic Compatibility |
EN50081. part 1 EN50082 Party 1 |
|
Grid disturbance |
EN61000-3-2 Safety EN62109 |
|
Grid detection |
DIN VDE 1026 UL1741 |
|
Certificate |
CEC, CE National patent technology |
|
Package weight | ||
Specification |
Single(packing) |
Whole(2PCS) |
G.W. |
3.92KG |
16.71KG |
Dimensions (L x W x H) |
430mm x 375mm x 115mm |
430mm x 405mm x 380mm |
High-efficiency conversion with 99% power efficiency, utilizing MPPT technology to minimize waste and maximize solar energy output.

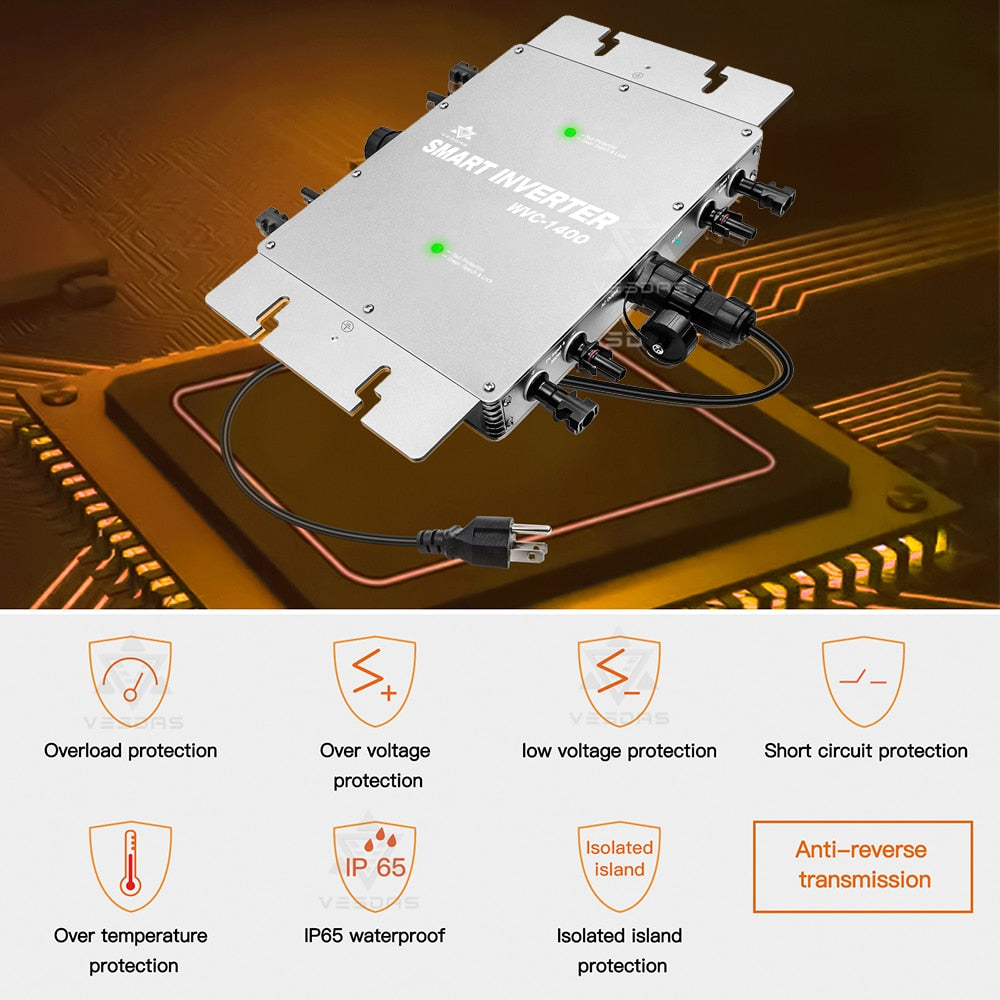

This MPPT solar micro inverter features overload and over/under voltage protection, short circuit protection, IP65 waterproofing, and smart island protection for safe and efficient operation.

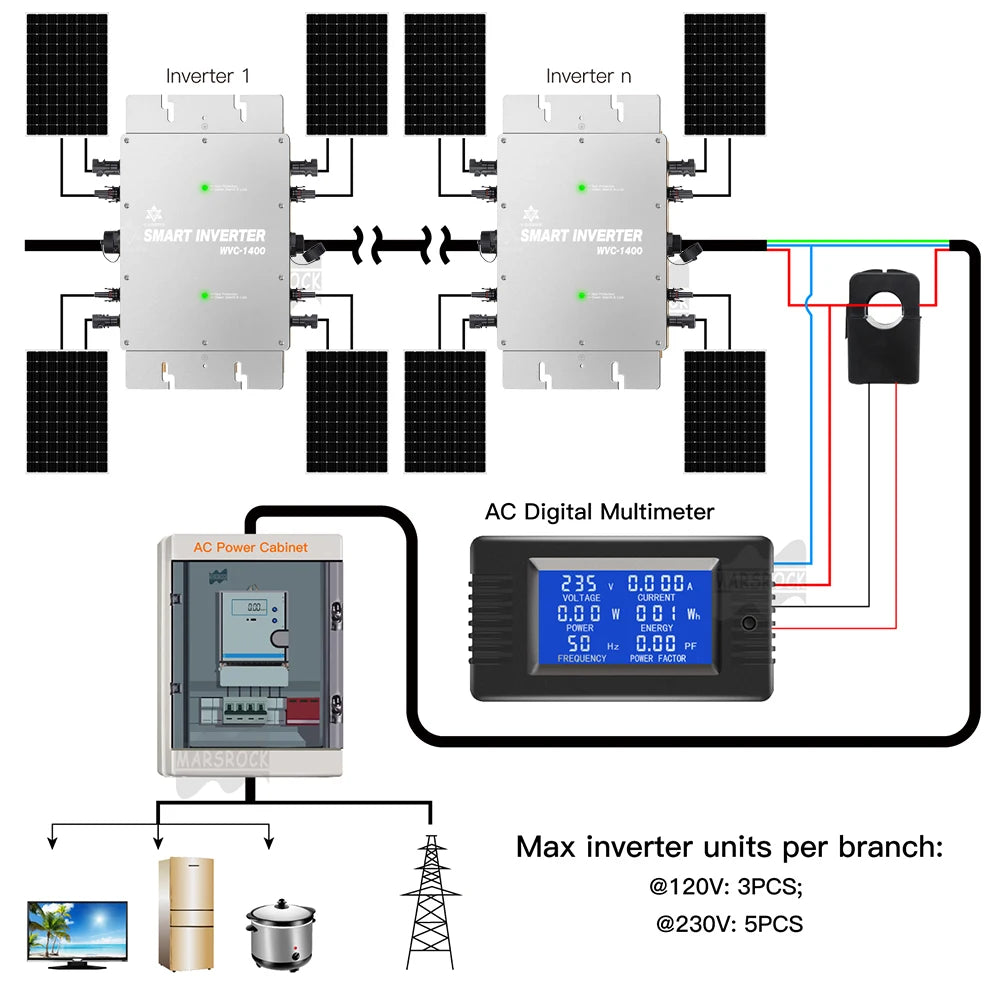

Introducing the MPPT 1400W Solar Micro Inverter, a pure sine wave converter suitable for on-grid tie applications. This inverter features EU plug compatibility and can handle up to 60 or 72 cells. It has an output voltage range of 110-220V AC and is equipped with advanced SMART technology. Maximum inverter units per branch are 3 at 120V or 1 at 230V.

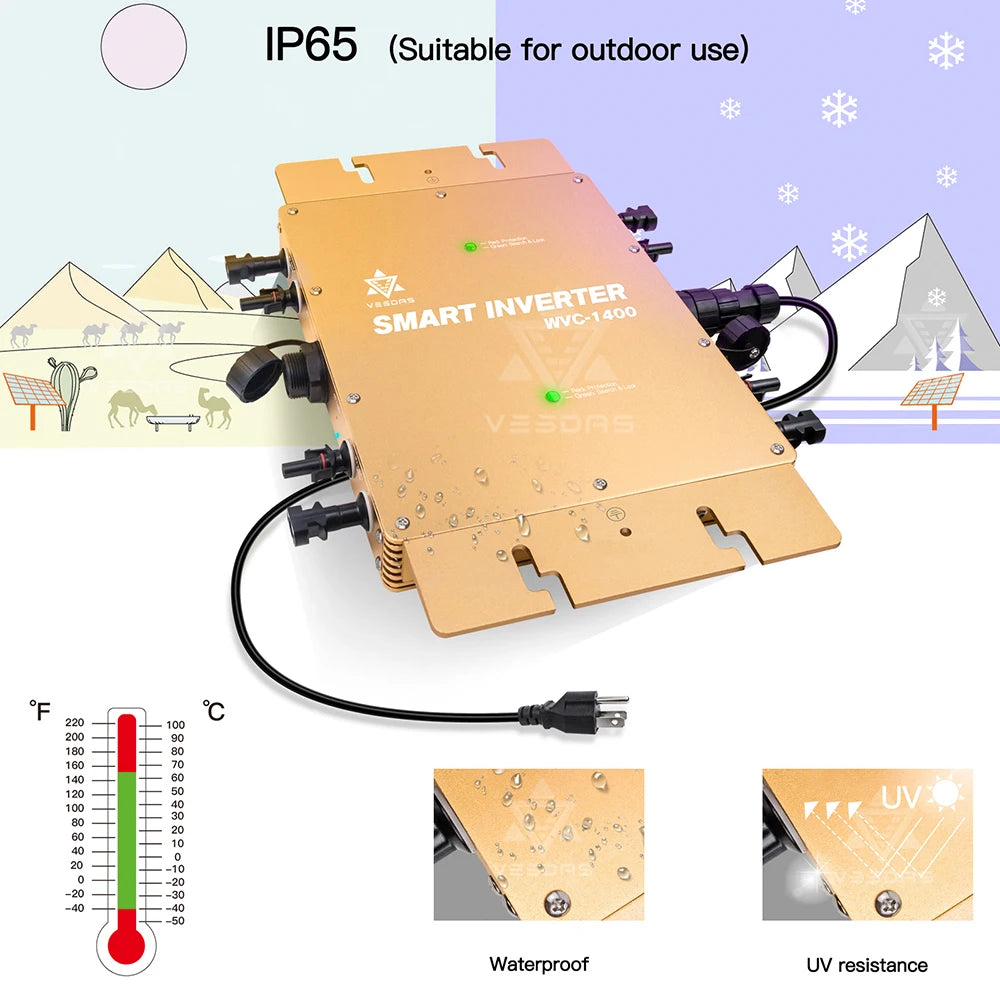

Outdoor-ready IP65 waterproof rating, suitable for -40°C to 220°F temperatures and resistant to ultraviolet (UV) light, ensuring long-term performance.
Smart MPPT inverter with pure sine wave conversion, compatible with EU plug, suitable for 60-72 cell solar panels, providing up to 1400W power output.

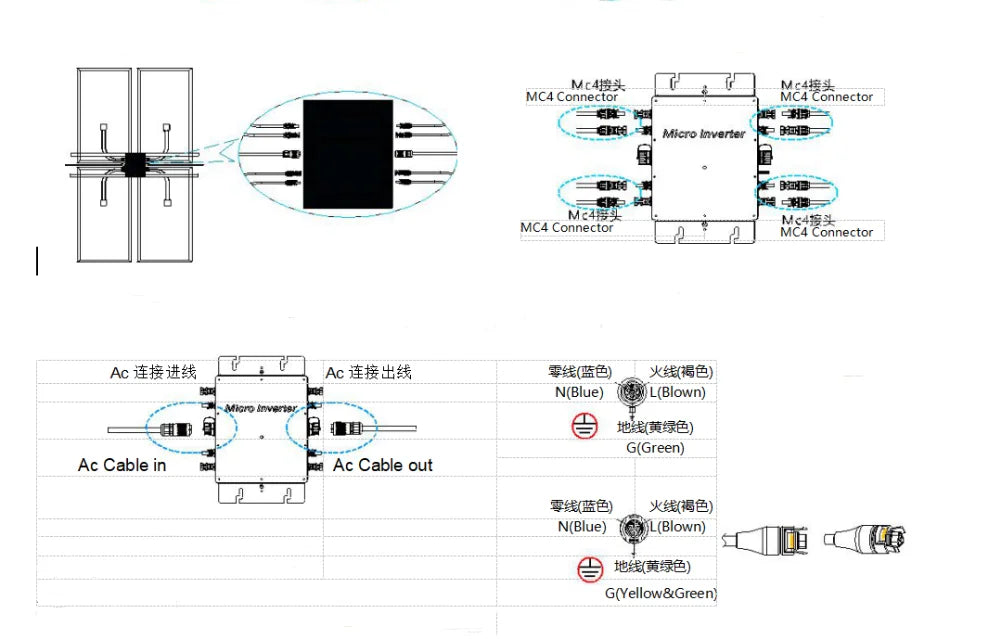

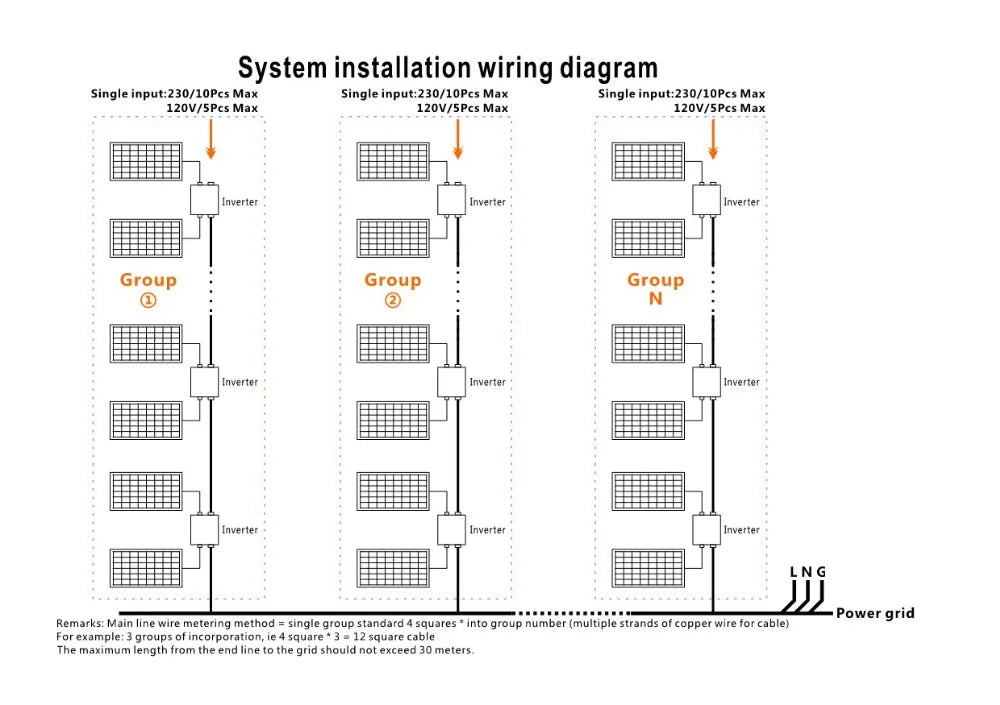

Installation of Micro inverter
Step1:
Installation for fixed the inverter on the PV holder with the screws attached is as following:
Step2:
Connect the two DC terminal of the PV to the inverter,positive to positive, negative to negative. Show below:
Step3:
Open the waterproof cap on AC output side of the micro inverter, then plug to AC power line. Show below
Step4:
Plug the AC output line to main AC cable;
Step5:
Repeat the first step to the third step to complete the installation of micro inverters;
Step6：
Finally, please connect the AC main cable to the utility grid to run renewable energy and saving money

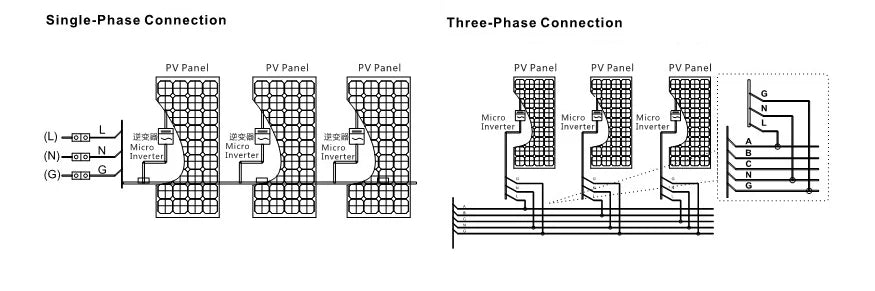

This micro inverter supports single-phase and three-phase connections, suitable for various solar panel configurations. It converts DC power from up to 72 solar cells into pure sine wave AC output with EU plug compatibility for 110V or 220V applications.

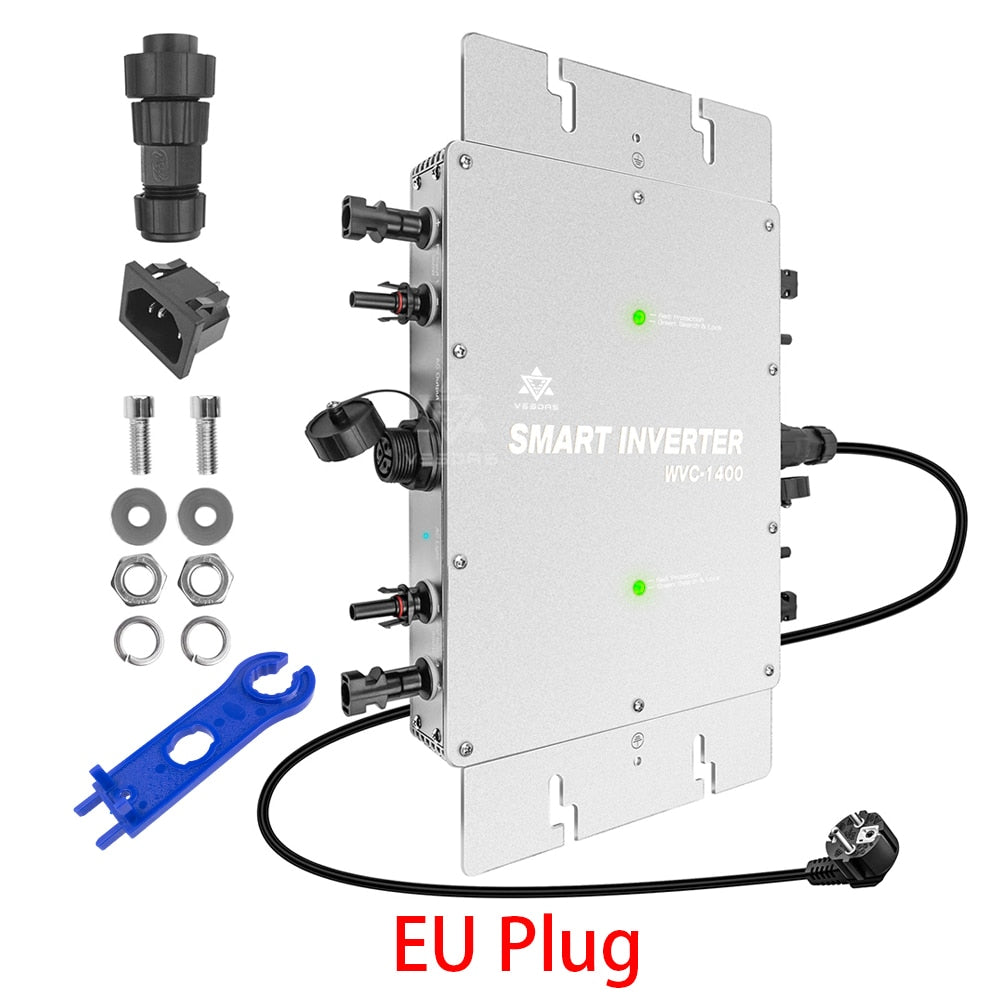

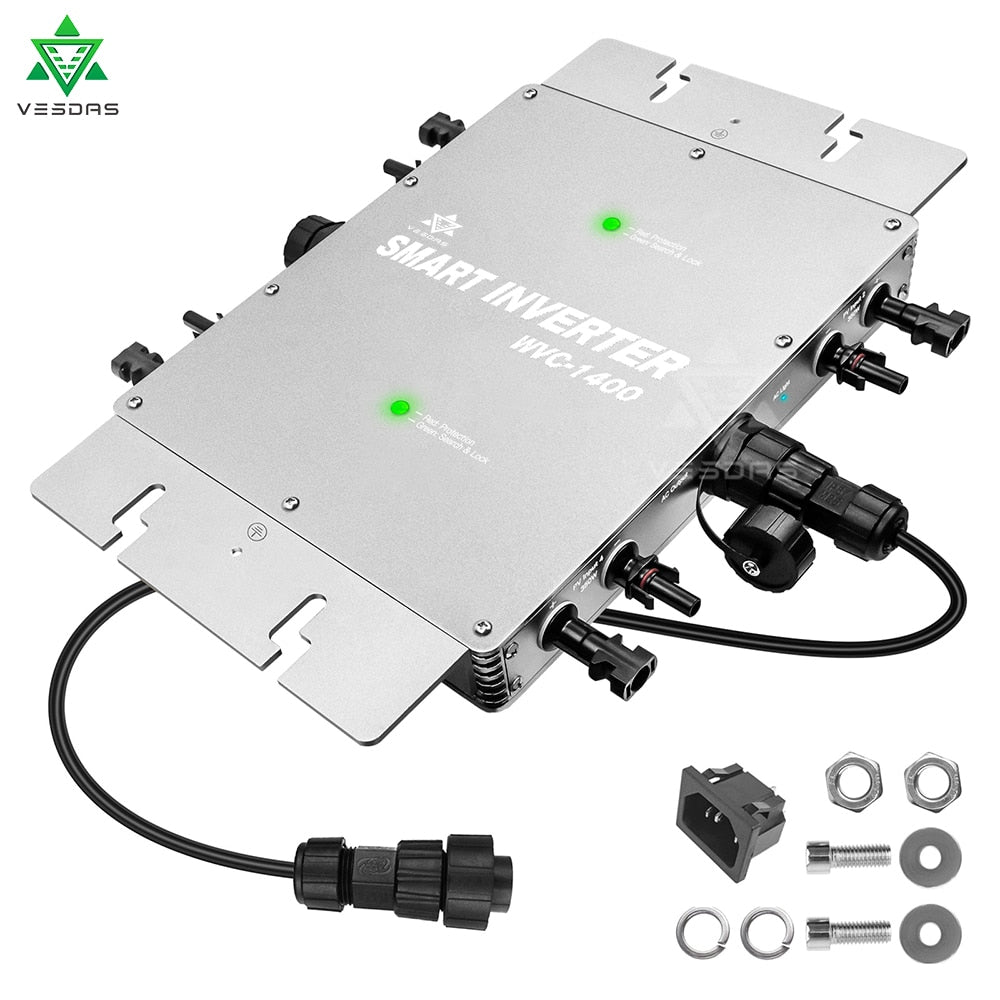

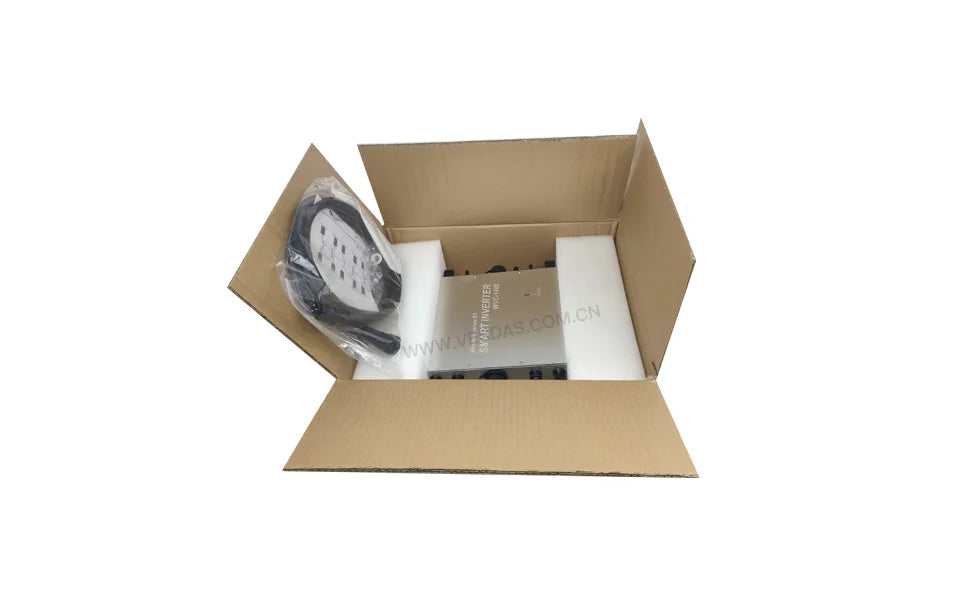

Package Includeing:
1. inverter *1
2. Connector*1( About 2m)
3. User Manual
4. Screws
