SPECIFICATIONS
is_customized: Yes
Weight: 12KG
Type: DC/AC Inverters
Size: 400*540*230mm
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50hz60hz
Origin: Mainland China
Model Number: VM IV 5.6KW
Certification: CE,RoHS
Brand Name: Jesudom
MPPT 5600W Hybrid Solar Inverter 120A 48V Solar Charge Controller Built-in Wi-Fi 230VAC Max.PV Array Power 6000W

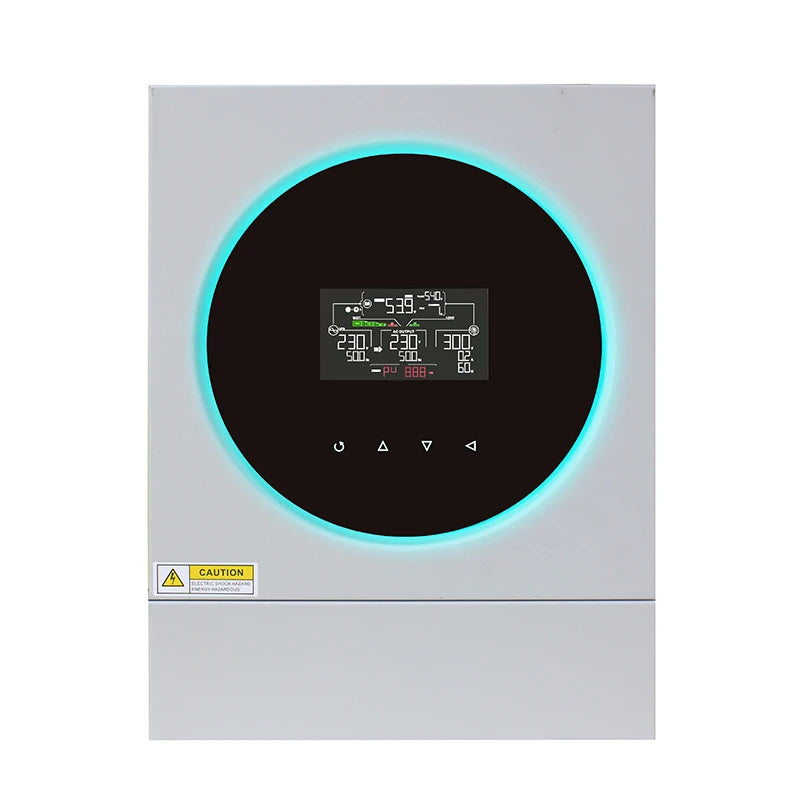

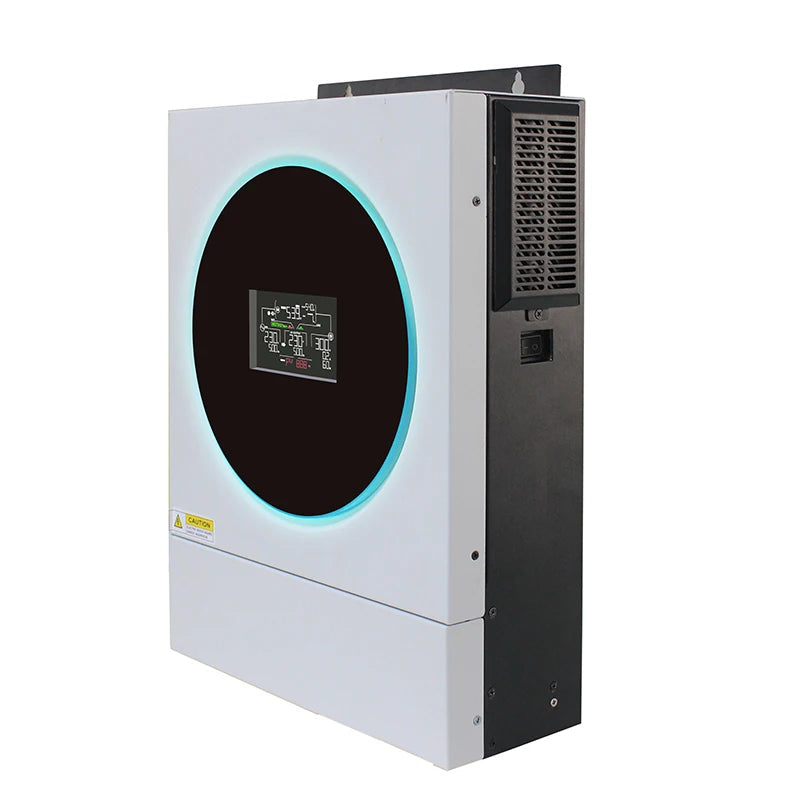

This is a multi-function inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package. The comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC or solar charging priority, and acceptable input voltage based on different applications.
Pure sine wave inverter
Customizable status LED ring with RGB lights
Touchable button with 4.3” colored LCD
Built-in Wi-Fi for mobile monitoring (APP is required)
Supports USB On-the-Go function
Built-in anti-dusk kit

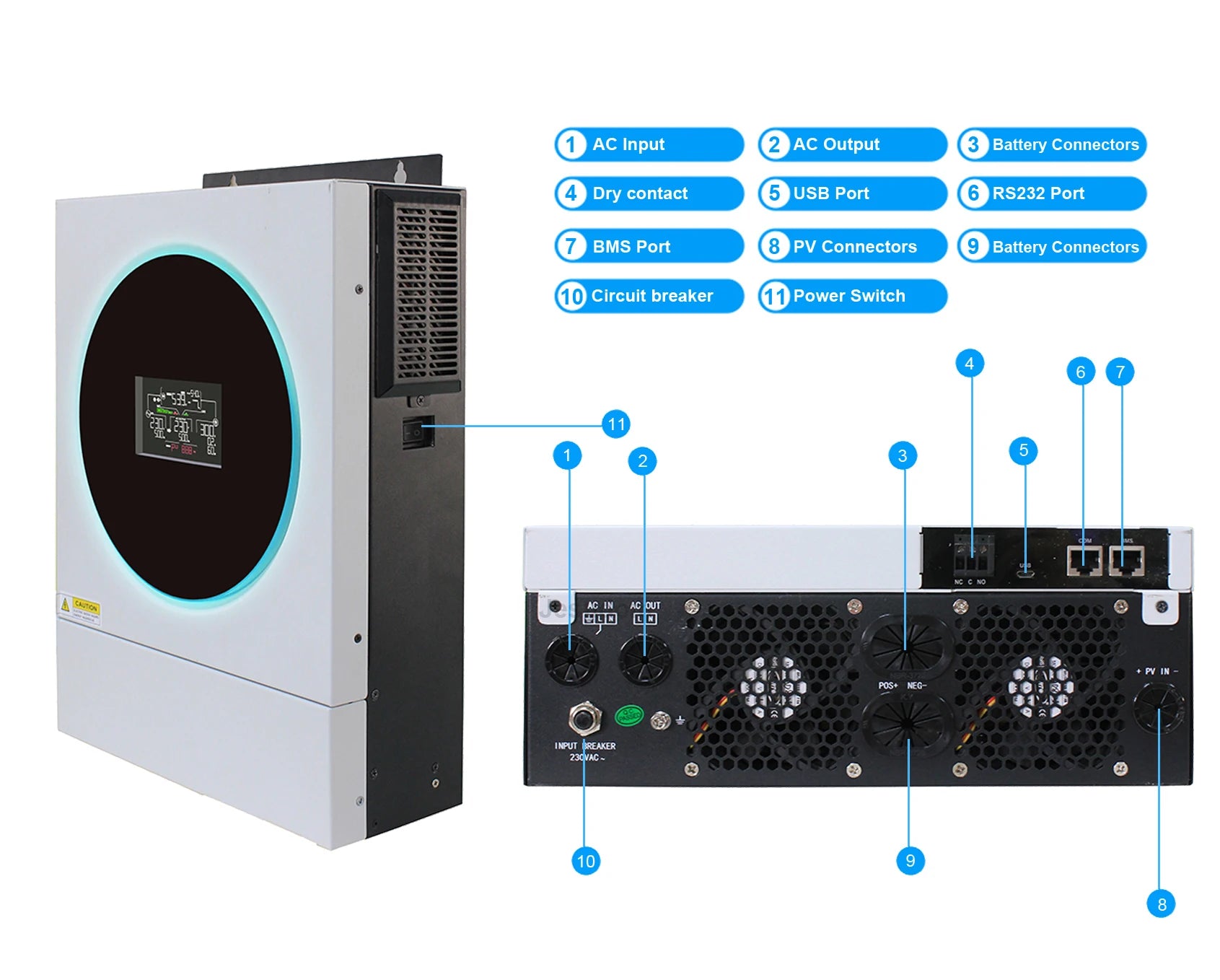

Reserved communication ports for BMS (RS485, CAN-BUS, RS232) Configurable input voltage ranges for home appliances and personal computers via LCD control panel
Configurable output usage timer and prioritization
Configurable charger source priority via LCD control panel
Configurable battery charging current based on applications via LCD control panel
Compatible to utility mains or generator power

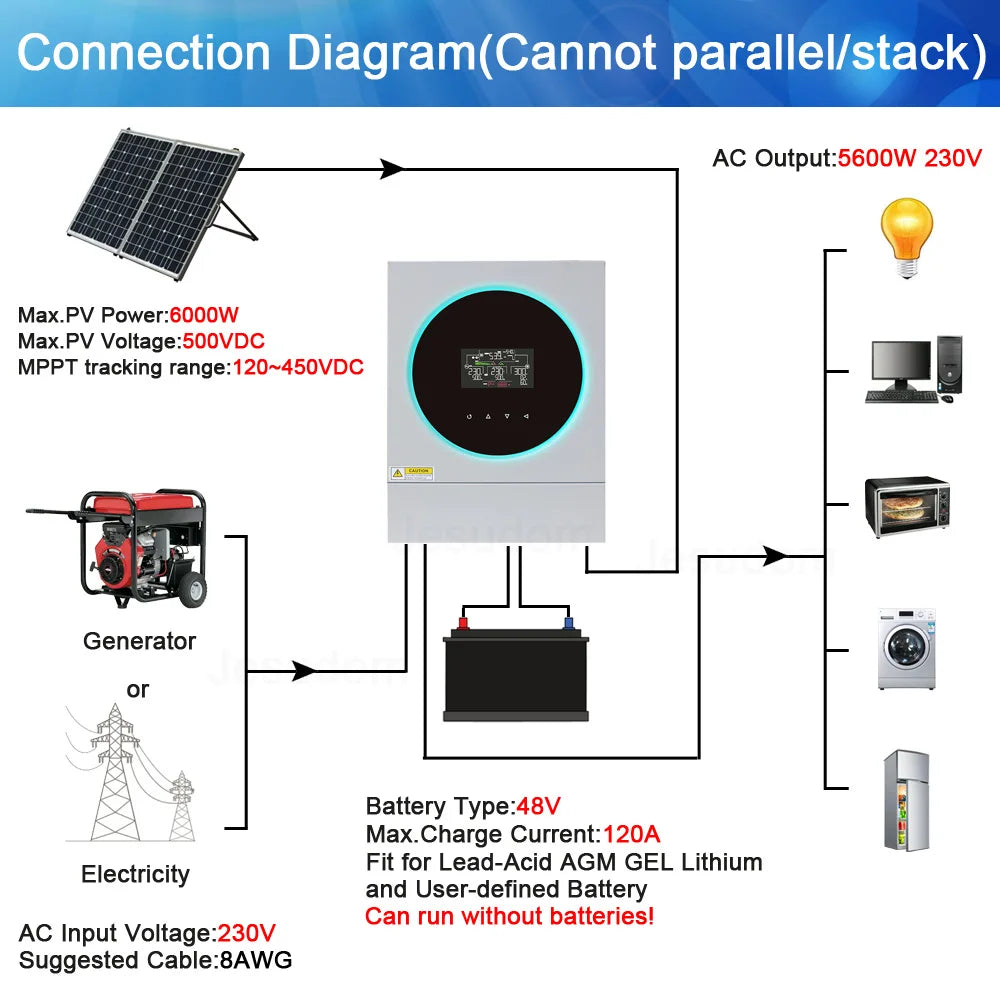

Wide PV input range(120Vdc--500Vdc),150VDC for starting voltage, Nominal PV Voltage 240VDC
Can work with Lithium battery/Lead-acid battery/Gel battery
Working without batteries in sun day
Model |
3.6KW |
5.6KW |
Rated Output Power |
3600VA/3600W |
5600VA/5600W |
Input |
||
Voltage |
230VAC |
|
Selectable Voltage Range |
170～280VAC(For Personal Computers) |
|
90～280VAC(For Home Appliances) | ||
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
Output |
||
Output Voltage Waveform |
Pure Sine Wave |
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
|
Efficiency(Peak)PV to INV |
97% |
|
Efficiency(Peak)Battery to INV |
94% |
|
Transfer Time |
10ms(For Personal Computers);20ms(For Home Appliances) |
|
Battery & AC Charger |
||
Battery Voltage |
24VDC |
48VDC |
Floating Charge Voltage |
27VDC |
54VDC |
Overcharge Protection |
33VDC |
63VDC |
Solar Charger |
||
Maximum PV Array Power |
4000W |
6000W |
Nominal PV Voltage |
240VDC |
360VDC |
MPPT Range @ Operating Voltage |
120～450VDC(150V is the start PV voltage) |
|
Maximum PV Array Open Circuit Voltage |
500VDC |
|
Maximum Charging Current |
120A |
120A |
Maximum Efficiency |
98% |
|
Physical |
||
Dimension,D*W*H(mm) |
119*313.6*422.8 |
|
Net Weight(kgs) |
11 |
12 |
Communication Interface |
USB/RS232/GPRS/WIFI/BMS |
|
Operating Environment |
||
Humidity |
5% to 95% Relative Humidity(Non～condensing) |
|
Operating Temperature |
-10℃～55℃ |
|
Storage Temperature |
-15℃～60℃ |
|

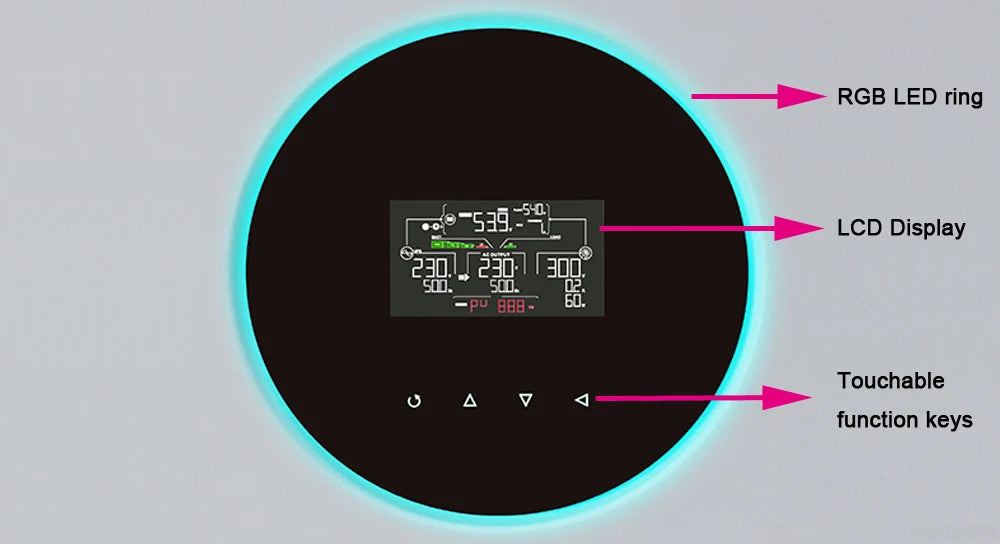

Operation and Display Panel
The operation LCD panel, includes one RGB LED ring, four touchable function keys and a LCD display to indicate the operating status and input/output power information.

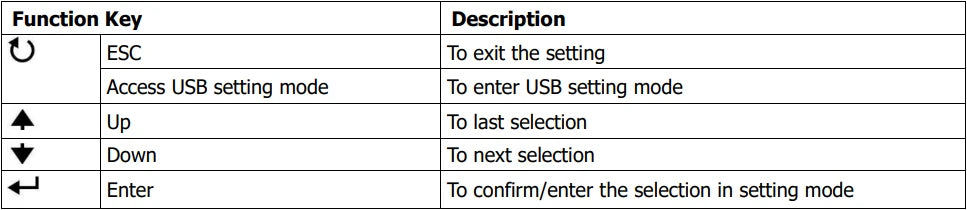

Touchable Function Keys
Key functions: ESC to exit, USB to set mode, up/down arrows for navigation, enter to confirm/exit settings.
System Diagram: With battery connected, solar power and AC power are available. Without battery, solar power is available, but AC power is not. The system can operate with or without a battery, and provides real-time monitoring and data logging.
