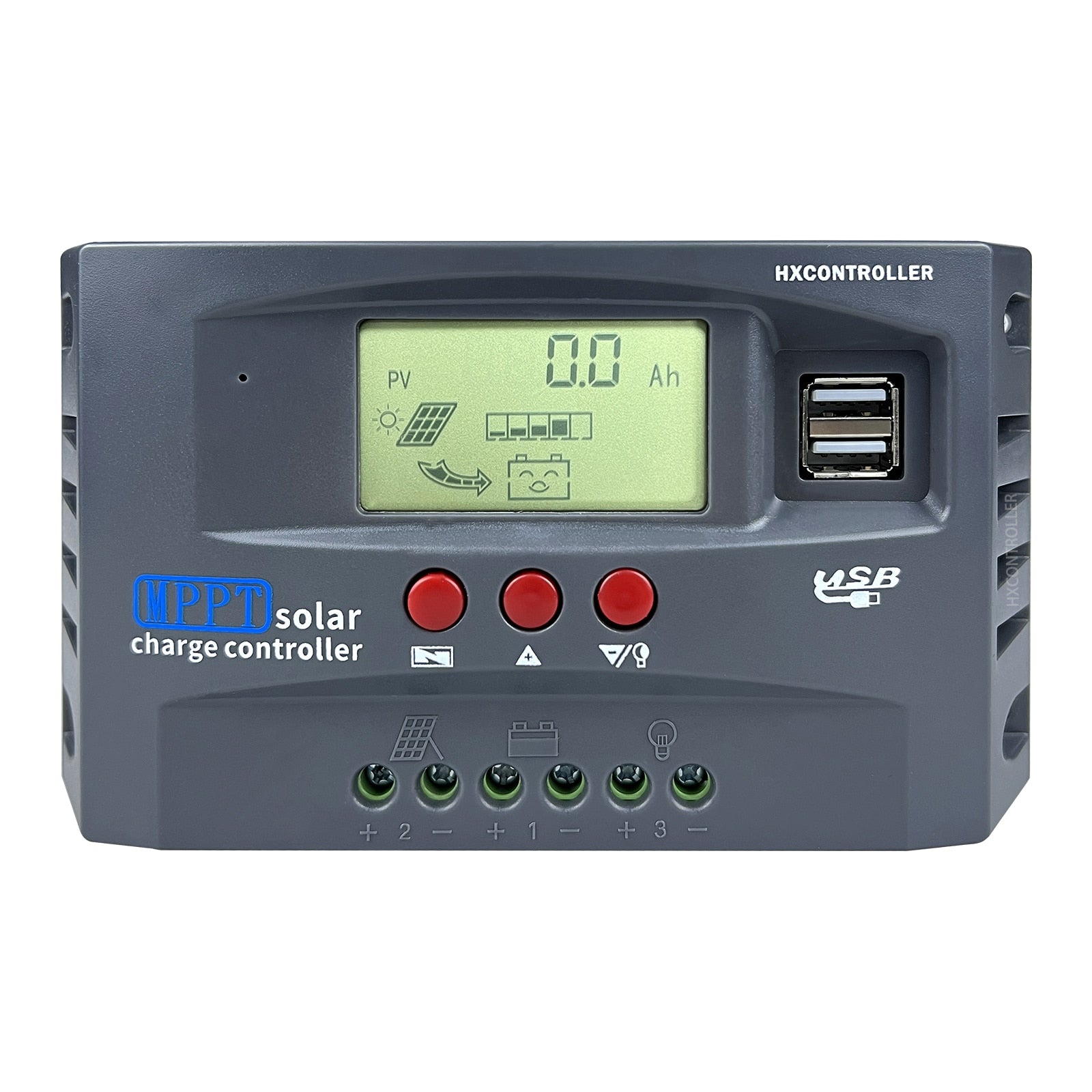

MPPT 720W 480W 360W 240W Solar Charge Controller 10A 20A 30A PWM Solar Panel Regulator For 12V 24V Lifepo4 Lithium GEL Battery

MPPT 720W 480W 360W 240W Solar Charge Controller 10A 20A 30A PWM Solar Panel Regulator For 12V 24V Lifepo4 Lithium GEL Battery

Regular price $18.08 USD
Regular price Sale price $18.08 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color
Rated Voltage

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Origin: Mainland China

Model Number: MPPT 10A 20A 30A Solar Charge Controller

Maximum Current: 30A

Max input voltage: 25V( 12v system), 50V( 24V system)

Is Smart Device: No

Certification: CE

Brand Name: NoEnName_Null

Application: Charger Controller,Voltage Controller,Solar System Controller

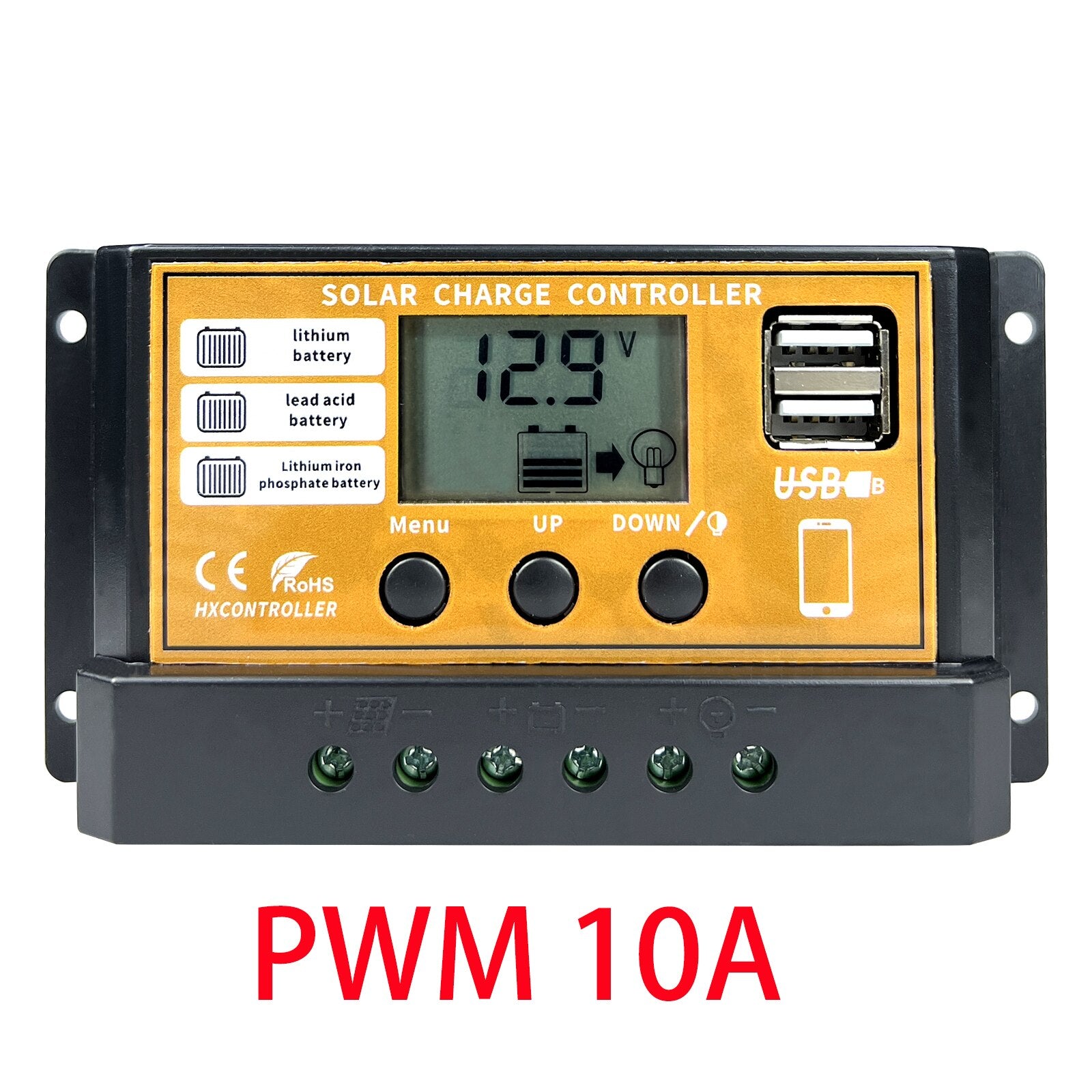

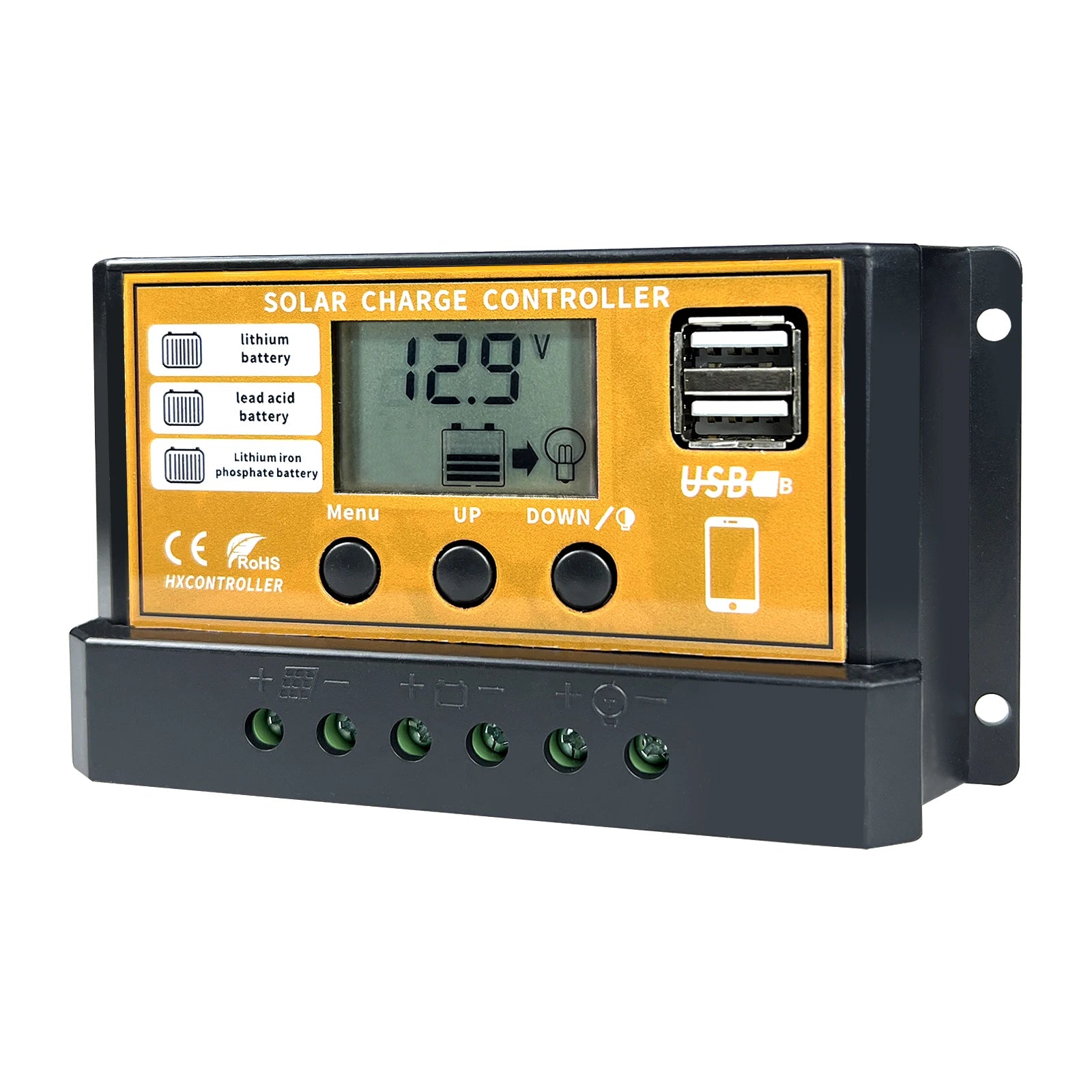

PWM Controller Features ( Organge Color):


1. Upgraded version of solar panel controller: Compatible with 12V 24V system. This solar charge controller helps you automatically manage the work of the solar panels and batteries in your solar system using a built-in industrial microcontroller. No need to reset when the battery runs out, because it remembers various parameters set by the user. You can also charge your phone, tablet, PC with dual USB outputs up to 5V/2.5A.


2. Safe to use: Equipped with overcurrent protection, short circuit protection, reverse connection protection, low voltage, overcharge protection, with full 3-stage PWM charging management. This 30A solar charge controller will help you safely increase system efficiency and extend battery life.


3. LCD Display: The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business.


4. Multiple electrical protections: Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.


5. Good heat dissipation: Double MOSFET reverse current protection, low heat generation, all electronic components will heat up during the working process, it is best to shade them for better heat dissipation, and avoid direct sunlight or humid places.


Introduction of the MPPT( Gray Color):

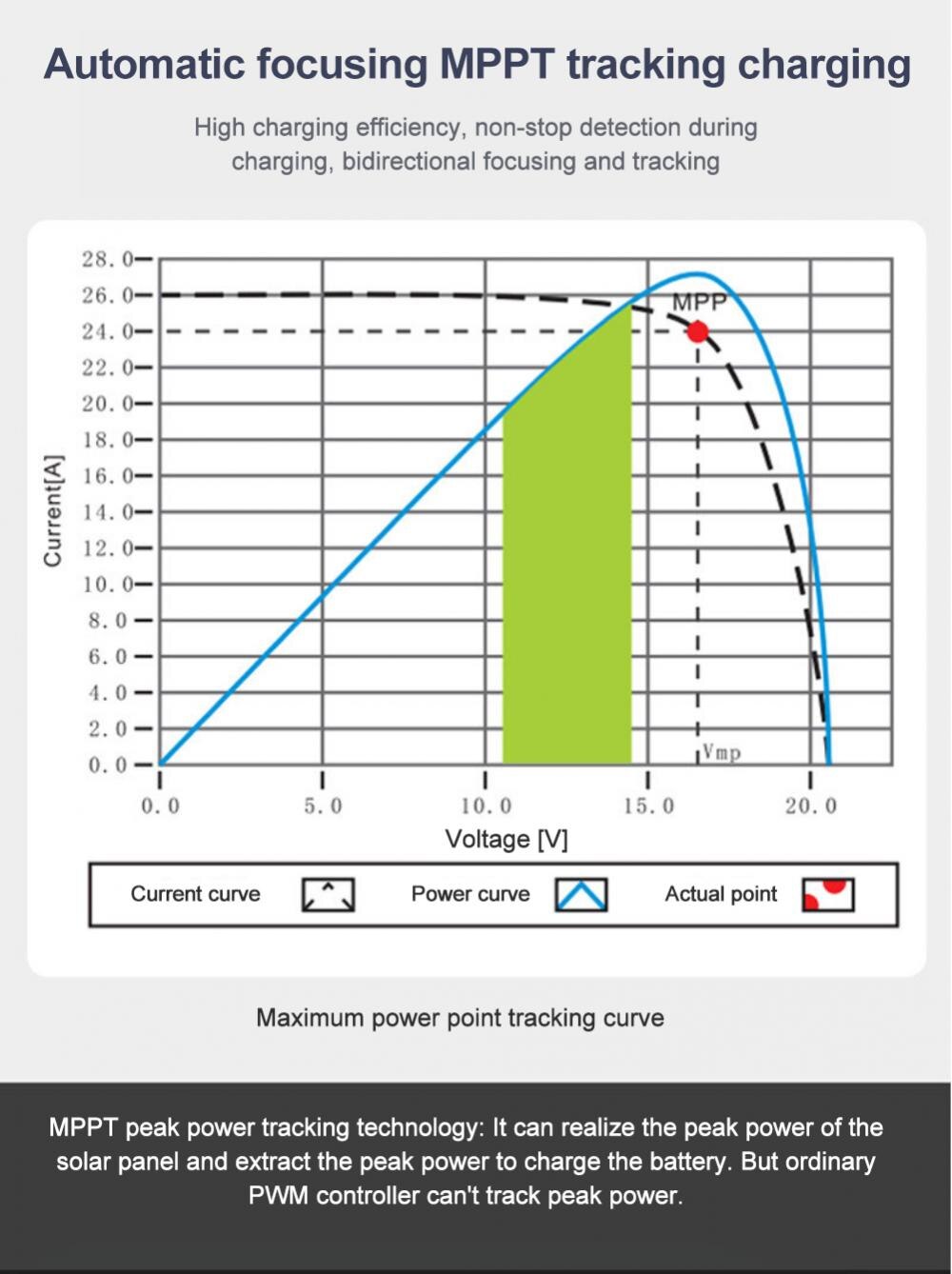

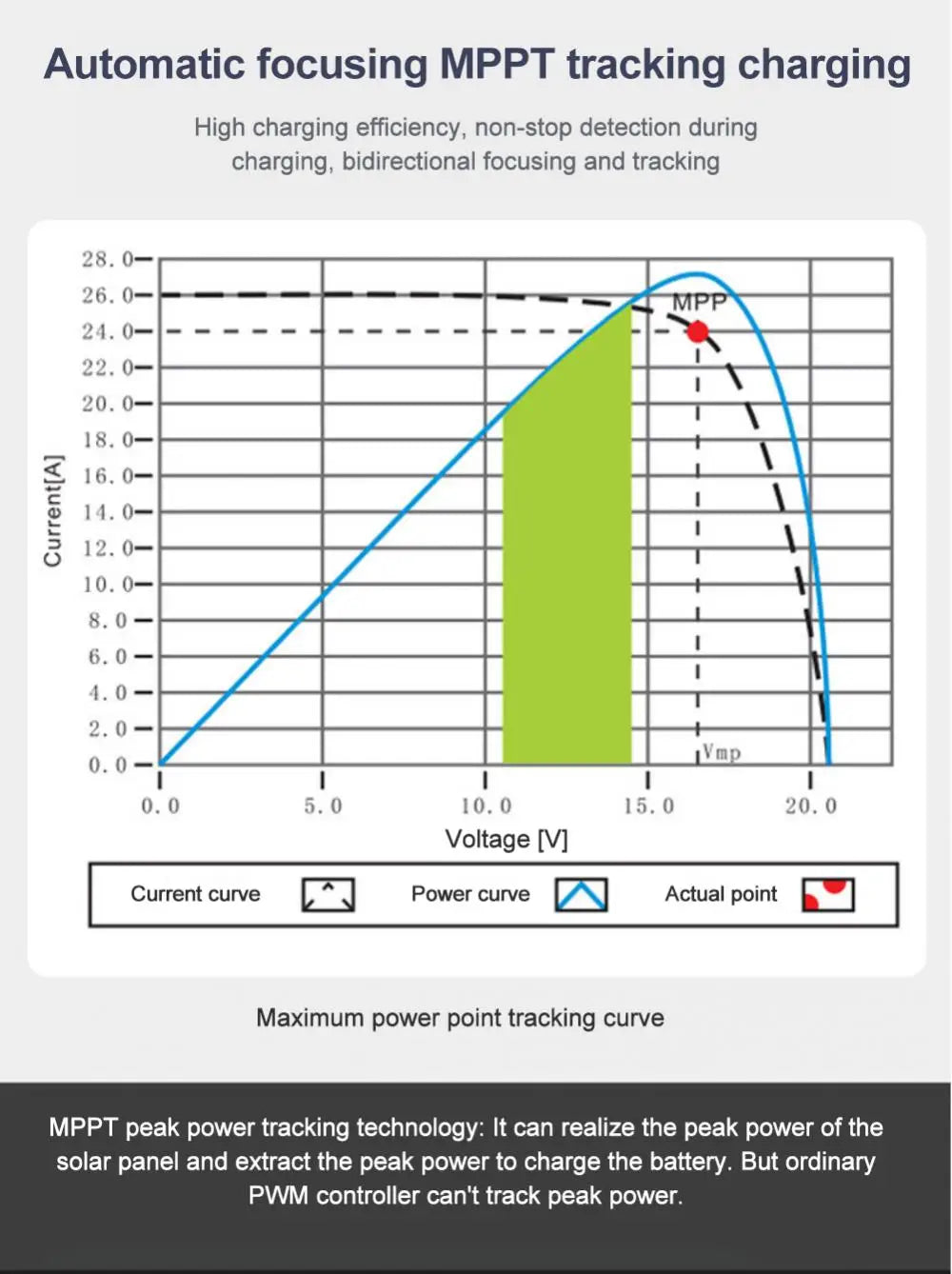

The Maximum Power Point Tracking (MPPT) system is an advanced charging technology that enables solar panels to output more power by adjusting the working state of electrical modules. Due to the non-linearity of a solar array,there is a maximum energy output point (maximum power point) on the curve of the array. Traditional solar charge controllers (switch charging technology and PWM charging technology) cannot charge batteries at this point, thus unable to obtain the maximum energy of solar panels. However, the solar energy charge controller equipped with the MPPT control technology can track the maximum power point of a solar array at any time in order to gain maximum energy for battery charging.Take the 12V system for example. The peak voltage of solar panels (Vpp) is around 17V and battery voltage is about 12V. Generally, when the solar charge controller is charging a battery, the voltage of solar panel is maintained at about 12V, indicating that the maximum power is not used. MPPT solar charge controllers provide a solution to that problem by constantly adjusting the input voltage and current of solar panels, therefore maximizing input power.

Compared with conventional PWM solar charge controllers, MPPT solar charge controllers bring out the maximum power of solar panels and provide greater charging current. Generally speaking, MPPT solar charge controllers can improve energy utilization rate by 15% ~ 20% over PWM solar charge controllers

Descriptions:


The LCD display keeps you informed of status and data. You can also easily switch modes and parameter configurations, and you can use the controller in different places such as home, industry, and business. Built-in over current protection, short circuit protection, reverse polarity protection, open circuit protection, automatic recovery, and no damage to the controller, providing reliable protection for your equipment.


*The reverse order applies when deinstalling!

*An improper sequence order can damage the controller!

*All red color voltage X2 ,while using 24V system.

*This solar controller is not waterproof ,please install it indoor or out of the rain

Specification of PWM Solar Charge Controller


Model

PWM-10A

PWM-20A

PWM-30V

Rated charging current

10A

20A

30A

Rated discharge current

10A

10A

10A

MAX PV Volt

12V system < 25V/24V system < 50V

The USB output

5V2AMAX

Stand-by Current

< 10ma

Dimensions/Weight

133 70*35mm/132g

Work Temperature

0~60C



MPPT Solar Controller Parameter table

Model

MPPT10

MPPT20

MPPT30

System Voltage

12V/24V Automatic adaptation

Rated Charge Current

10A

20A

30A

Rated Discharge Current

10A

Max PV Voltage Input

12V System <25V
24V System <50V

Float Charge Voltage

b1/14.4V,b2/14.2V/b314.6V(Adjust Range:13V-15V)

Low Votage Disconnected Volatge(LVD)

10.7V(Adjust Range:9.5V-11V)

Discharge recovery voltage

12.6V(Adjust Range:11.5V-13V)

Supporting battery type

GEL and Lead Acid battery and lithium battery

Stand-by current

<10mA

USB Port

5V/2A Max

Working Temperature

一36 ~ +60℃

Size/G.W

170*95*40mm/250G


Warmly Tips:

*The reverse order applies when deinstalling!

*An improper sequence order can damage the controller!

*All red color voltage X2 ,while using 24V system.

*This solar controller is not waterproof ,please install it indoor or out of the rain

*This controller can be used in Lead-acid battery(b1), ternary lithium battery(b2), lithium iron phosphate battery(b3). The controller defaults to a lead-acid battery, if you need to use other batteries, please manually modify the battery type.


*Float charge,Discharge stop and Discharge reconnect can be adjusted in random, how can i adjust charging parameter? Please press " menu" button morethan 3 seconds, then parameter can be adjusted, it's easy.


How many pcs solar panel can i connect in total?
10A:

if your battery is 12V ,the max solar panel input is 25V  120W

if your battery is 24V ,the max solar panel input is 50V  240W

20A:

if your battery is 12V, the max solar panel input is 25V   240W

if your battery is 24V, the max solar panel input is 50V   480W

30A

if your battery is 12V ,the max solar panel input is 25V   360W

if your battery is 24V ,the max solar panel input is 50V   720W

MPPT 720W 480W 360W 240W Solar Charge Controller, Maximum number of solar panels to connect depends on your system's capacity and manufacturer's recommendations.

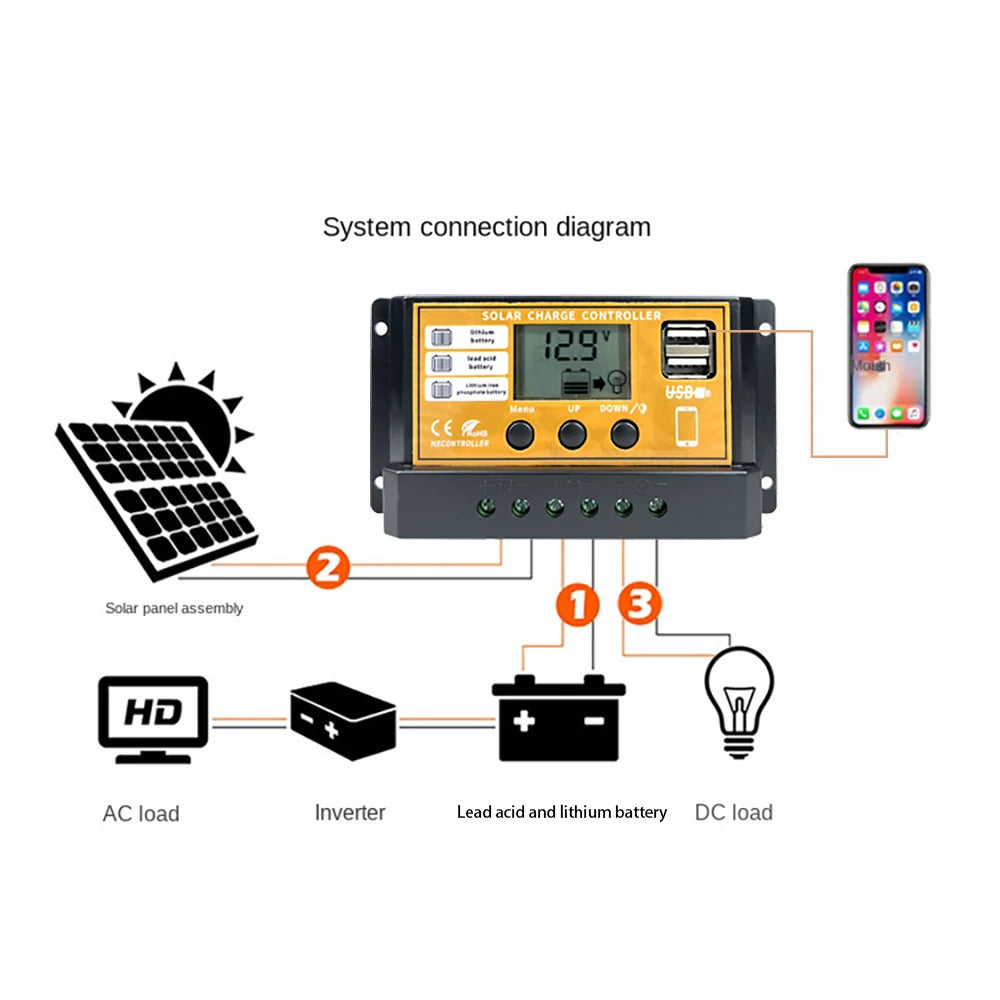

MPPT 720W 480W 360W 240W Solar Charge Controller, Multiprotect MPPT solar charge controller with short circuit, overcurrent, and other protections for safe charging.MPPT 720W 480W 360W 240W Solar Charge Controller, LCD display shows voltage, current, and capacity with easy menu navigation and adjustable settings.MPPT 720W 480W 360W 240W Solar Charge Controller, MPPT solar charge controller diagram: 6 solar panels, AC load, inverter, battery, and DC load.MPPT 720W 480W 360W 240W Solar Charge Controller, Multi-battery charger controller with USB port, menu options, and overcharge protection, compliant with EU RoHS standards.MPPT 720W 480W 360W 240W Solar Charge Controller, Regulates solar power for 12V/24V lithium batteries with PWM technology.MPPT 720W 480W 360W 240W Solar Charge Controller, Adjustable MPPT solar charge controller for lithium batteries with solar panel and USB compatibility.MPPT 720W 480W 360W 240W Solar Charge Controller, Smart solar charge controller with LCD display, compatible with various battery types and featuring adjustable settings.

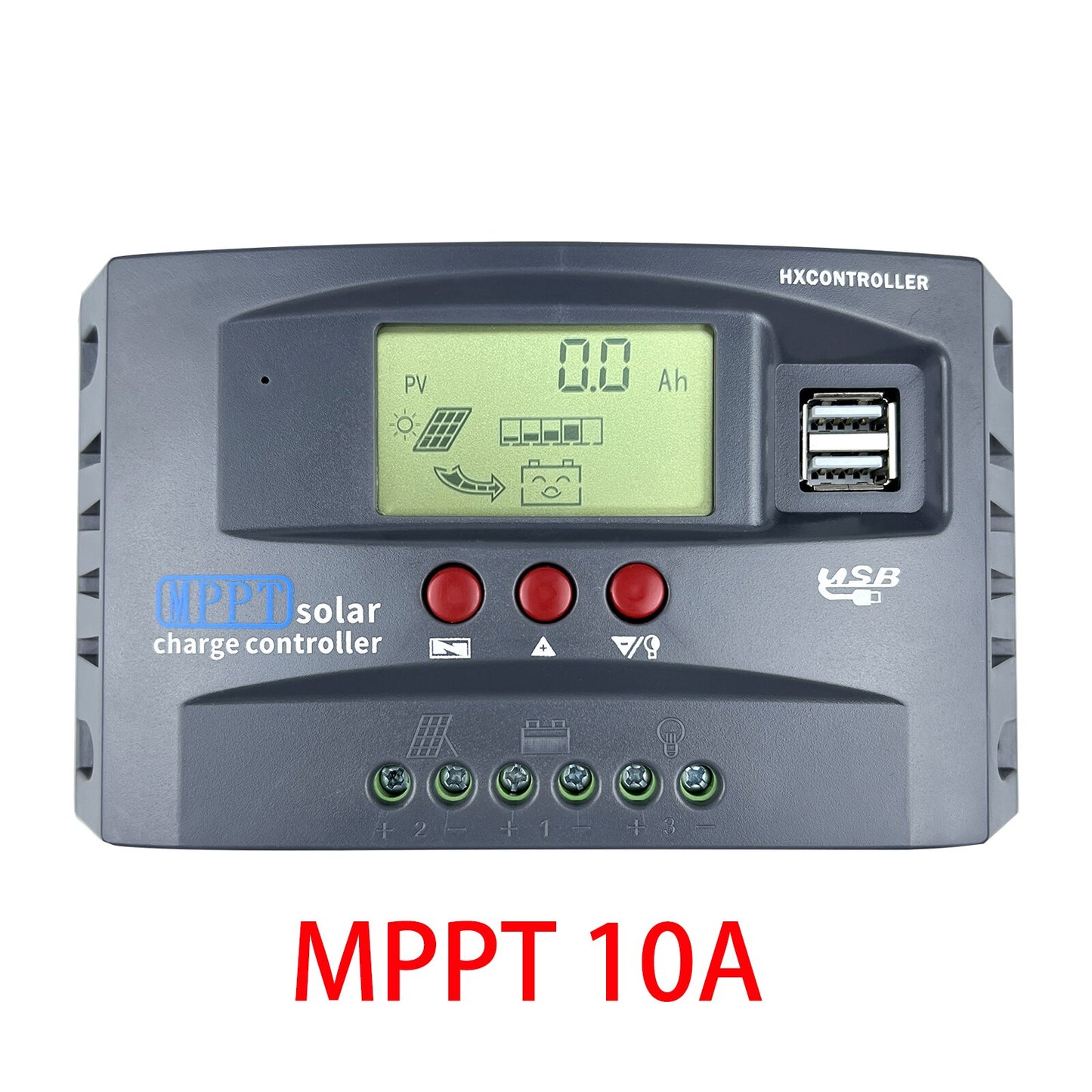

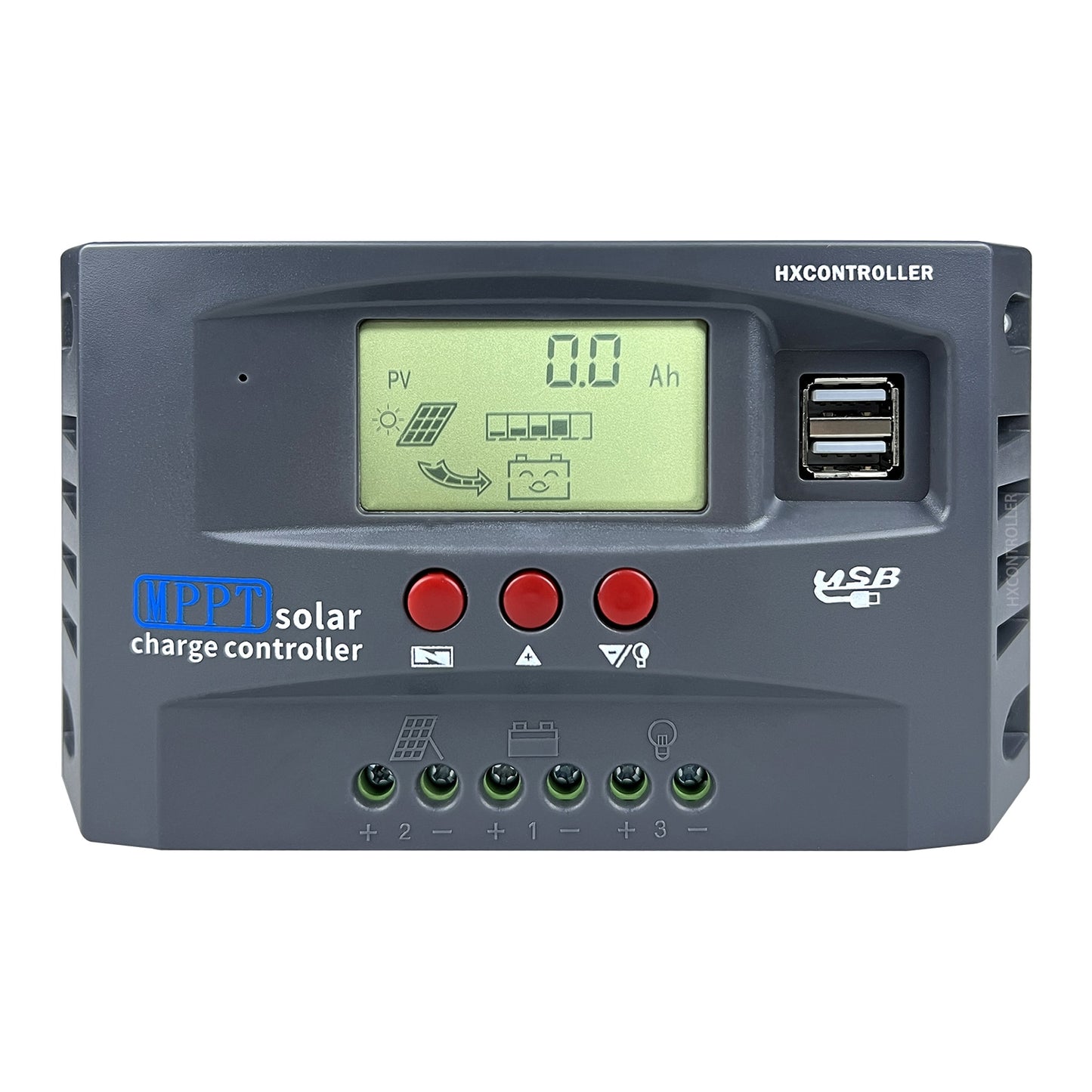

MPPT Solar Charge Controller

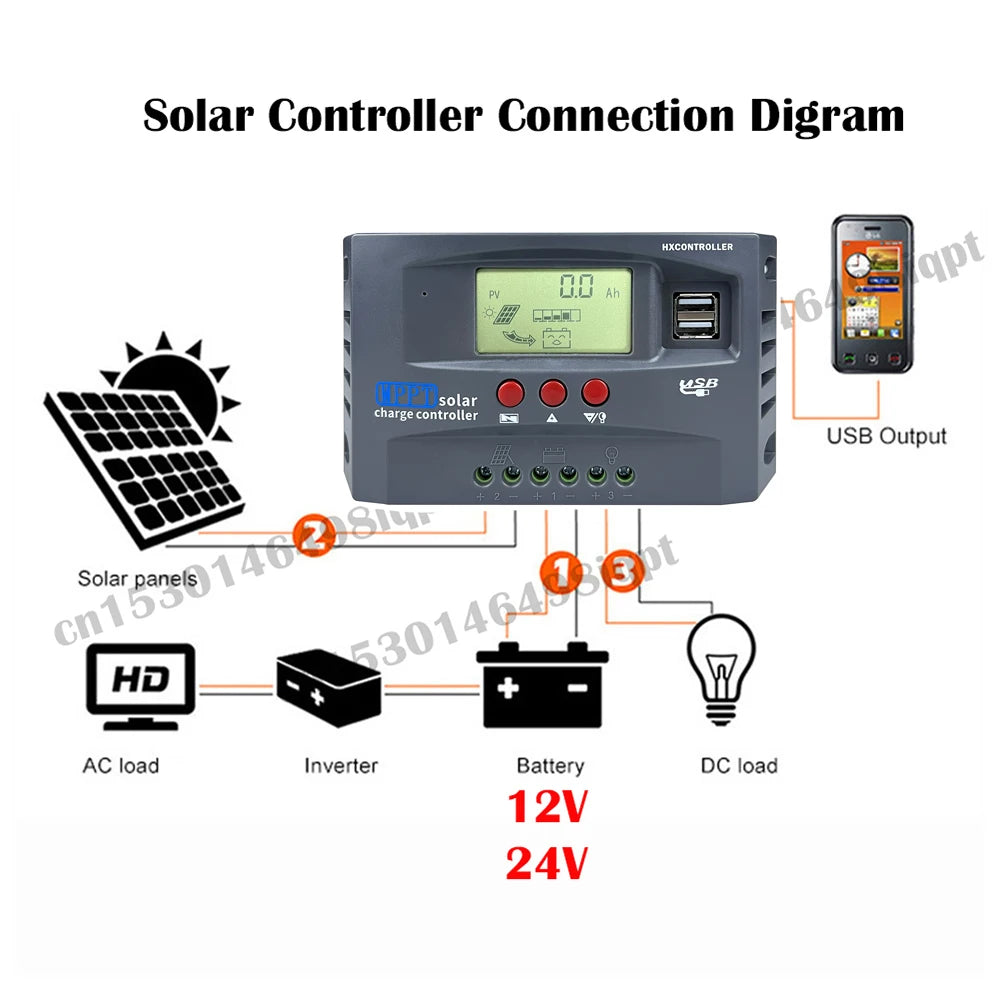

MPPT 720W 480W 360W 240W Solar Charge Controller, Solar charge controller regulates power from 12V or 24V solar panels.

MPPT solar charge controller regulates power from 12V or 24V solar panels, USB output for charging devices, and compatible with batteries like Lifepo4 Lithium GEL. Features include 10A/20A/30A current options.

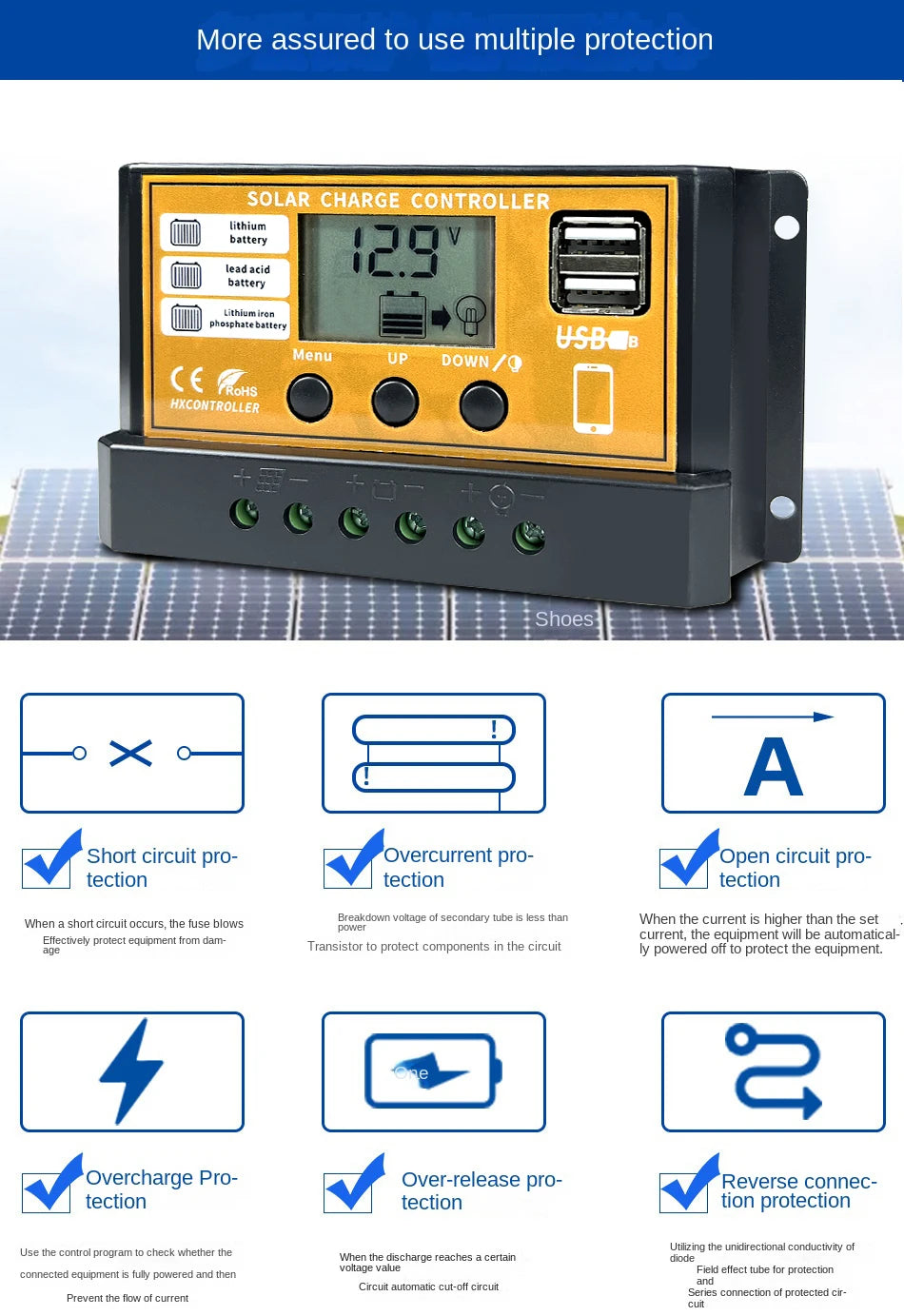

MPPT 720W 480W 360W 240W Solar Charge Controller, Solar charge controller for 12V or 24V lithium batteries with adjustable current up to 30 amps.MPPT 720W 480W 360W 240W Solar Charge Controller, Multi-Protection Functionality: Self-recovering from faults like overheating, overcurrent, and more.

This MPPT solar charge controller features multiple protection functions for safe and secure use. It self-re recovers from faults like overheating, overcurrent, open circuits, reverse connections, and short circuits without damaging the device.

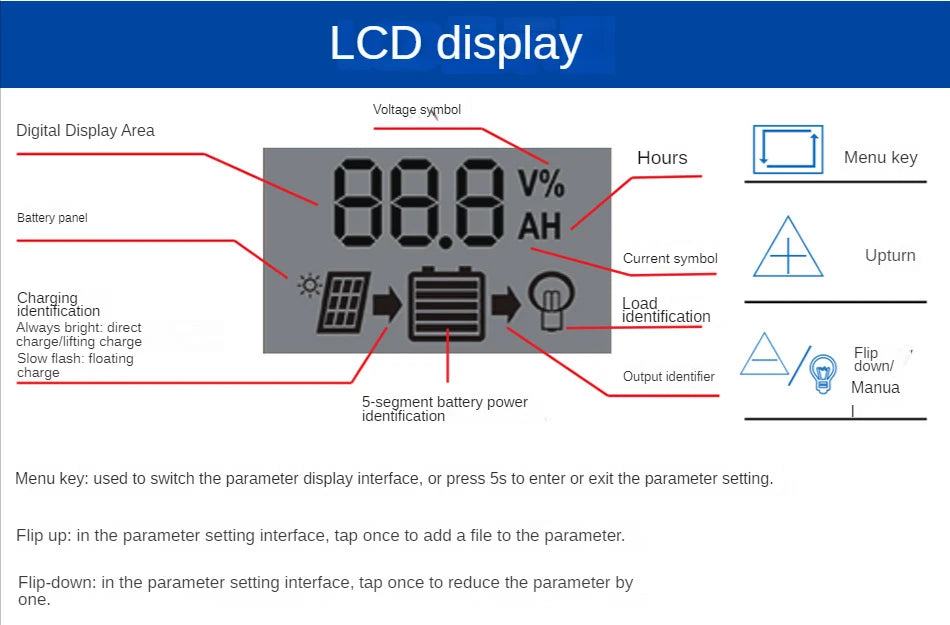

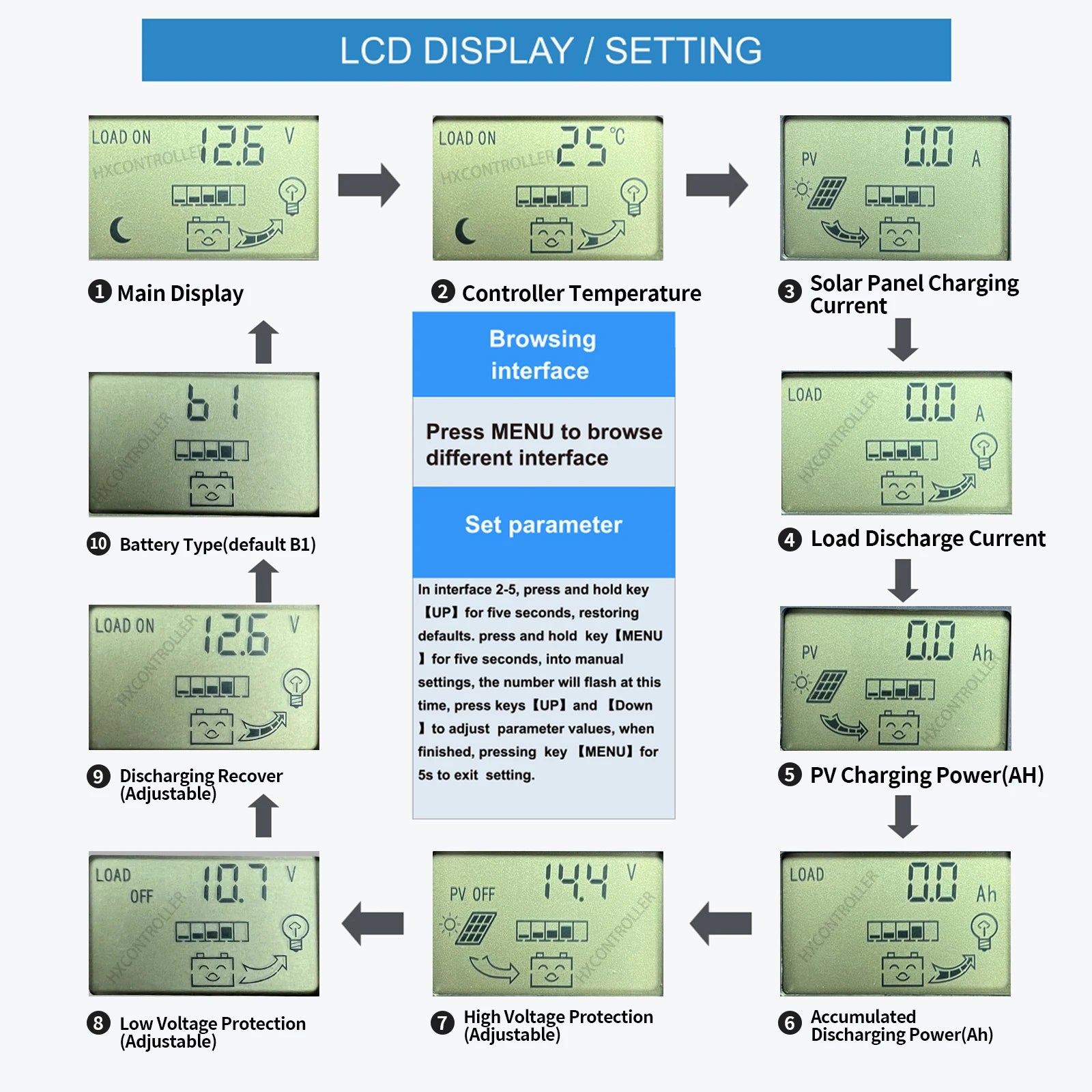

MPPT 720W 480W 360W 240W Solar Charge Controller, LCD display shows settings and PV main display with adjustable settings and manual adjustments.

LCD display shows settings and PV main display. Load on/off can be set. Browse interfaces (0-5) by pressing [UP] for 5 seconds. Default settings are restored after 5 seconds. In interface 2-5, press [MENU] for manual PV Ah setting adjustments. Press [UP]/[DOWN] to adjust values. Finish and exit by pressing [MENU]. Features include temperature monitoring, solar panel charging current display, and load discharge control.

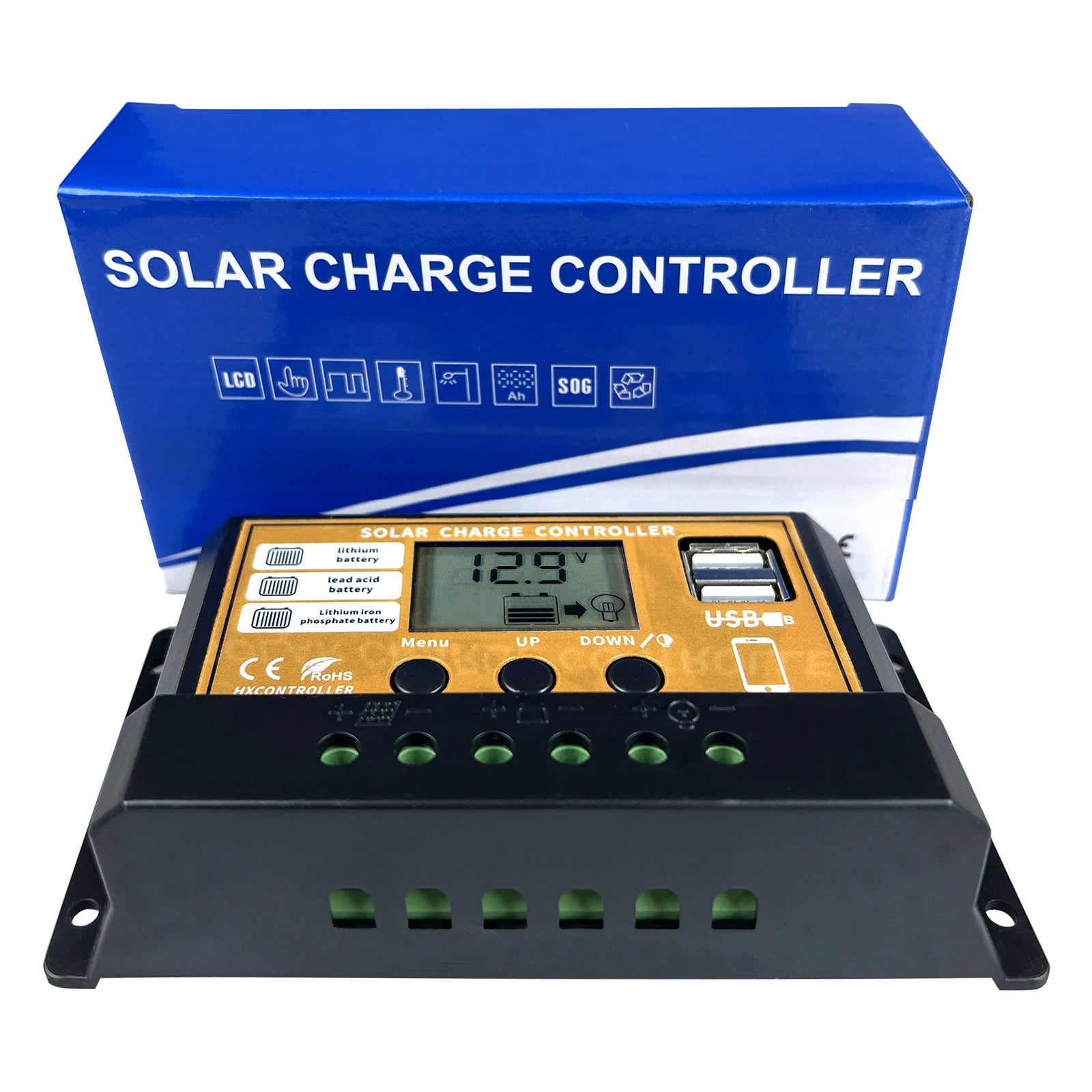

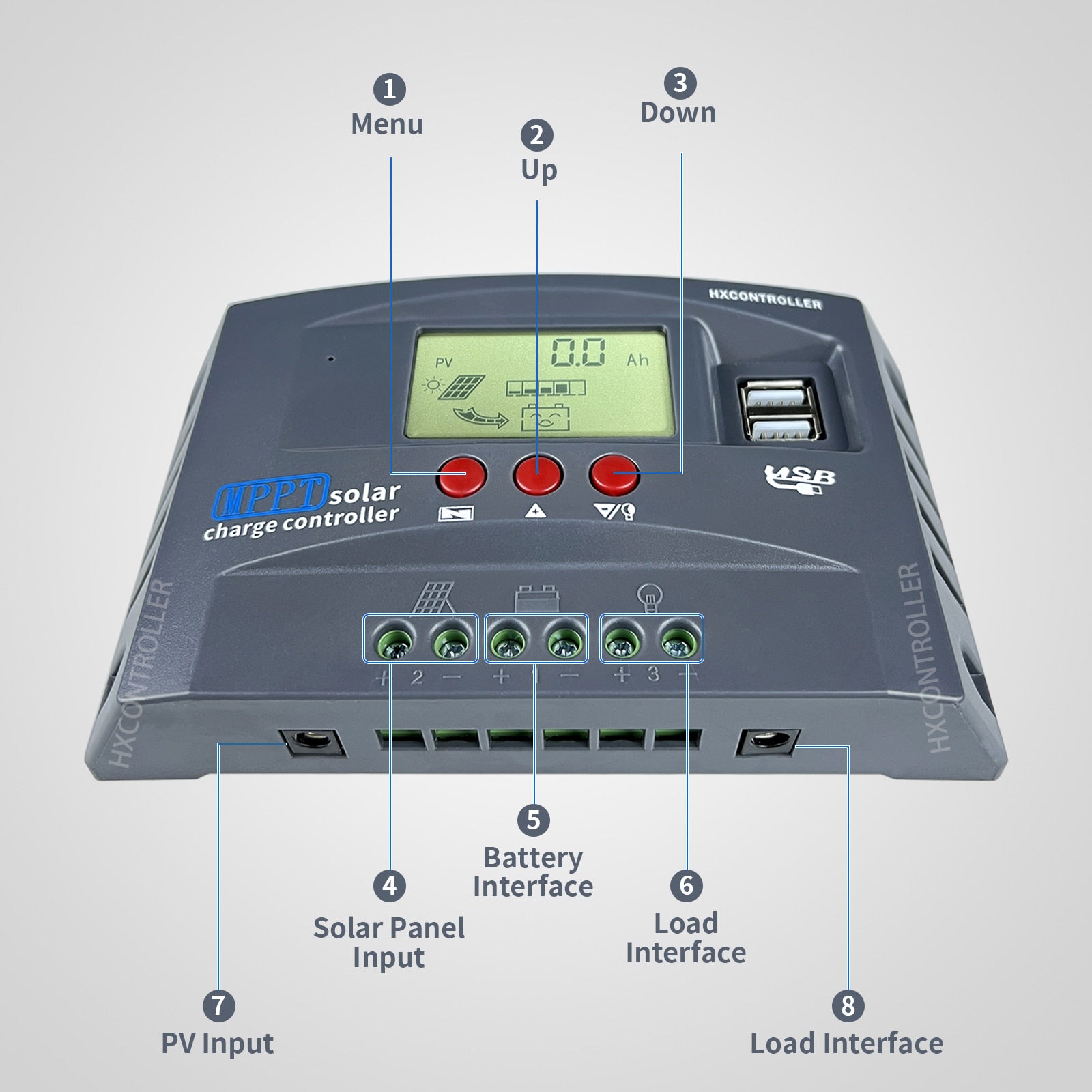

MPPT 720W 480W 360W 240W Solar Charge Controller, Smart solar charge controller with menu, buttons, and display for monitoring solar power and battery levels.

Multi-function MPPT solar charge controller with menu, down, up, and display options for monitoring solar power, battery voltage, and load input/output interfaces.

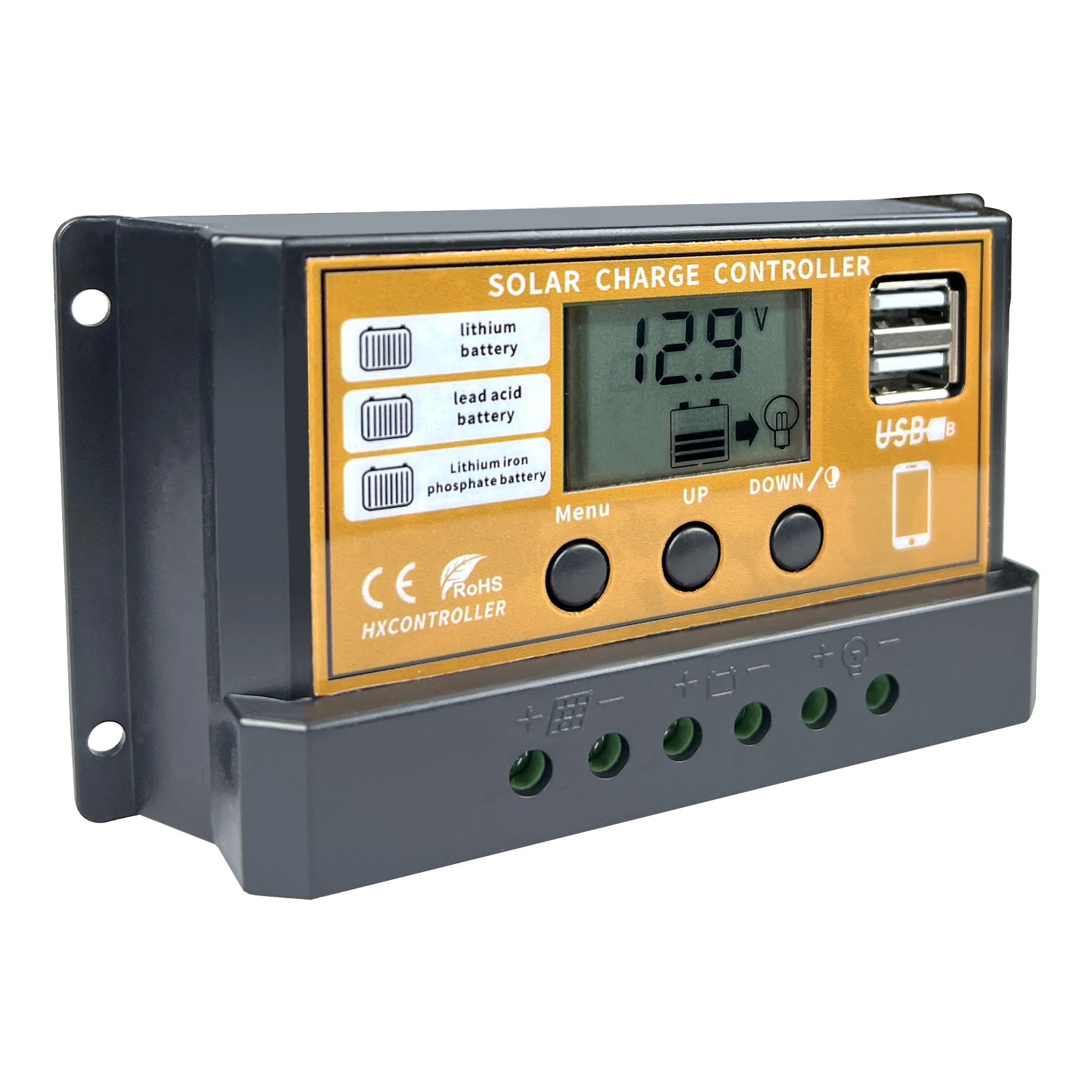

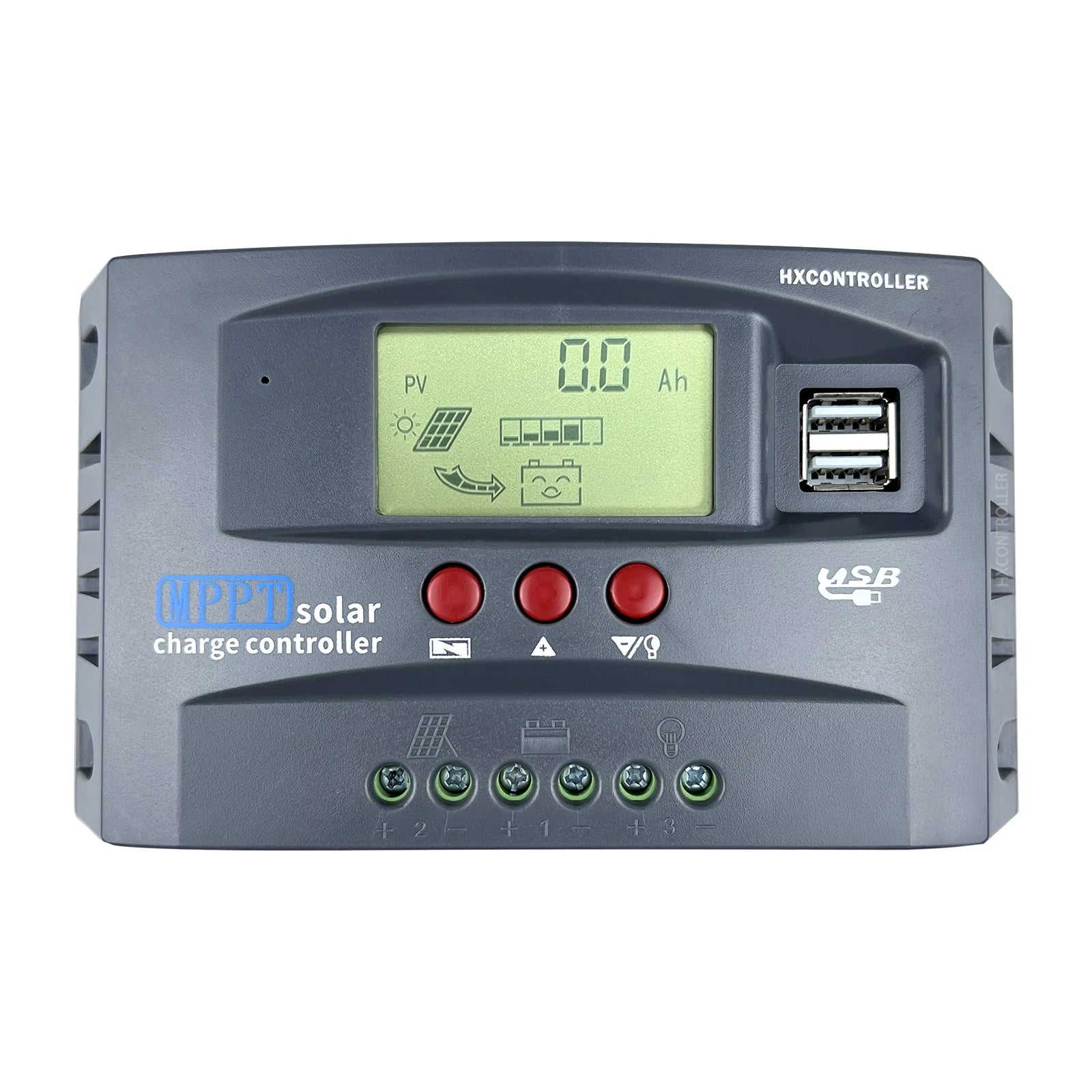

MPPT 720W 480W 360W 240W Solar Charge Controller, Solar charge controller for lithium batteries, regulating 12V/24V power for Lifepo4 and GEL battery use.

MPPT Solar Charge Controller with PWM regulation for 12V/24V Lithium batteries, suitable for Lifepo4 and GEL battery applications.

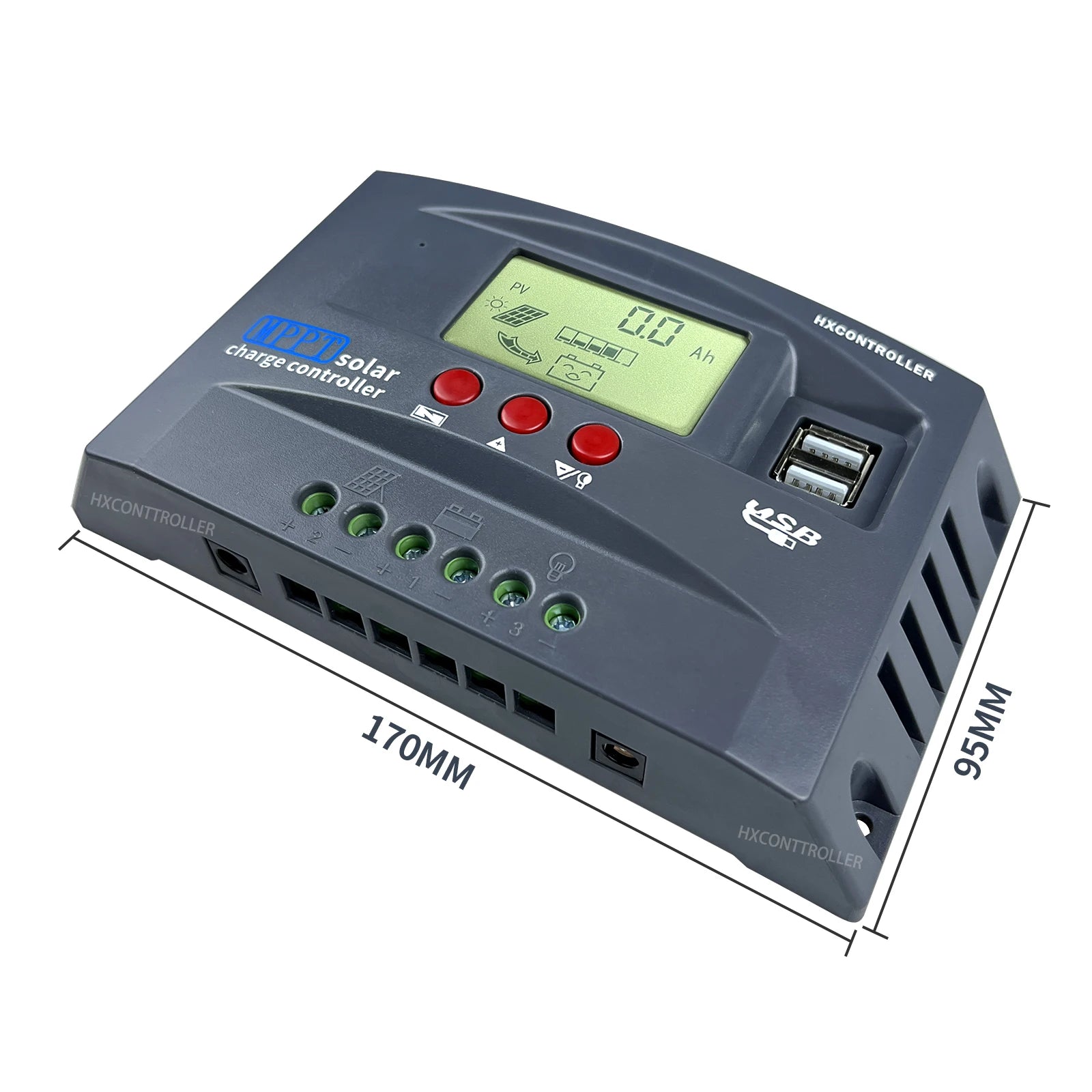

MPPT 720W 480W 360W 240W Solar Charge Controller, Solar charge controller regulates MPPT/PWM solar panels, 38V/8A output, compact 170mm design.

HX-Controller Solar Charge Controller, 38V/8A, 170mm length, designed for MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation) solar panel regulation.
