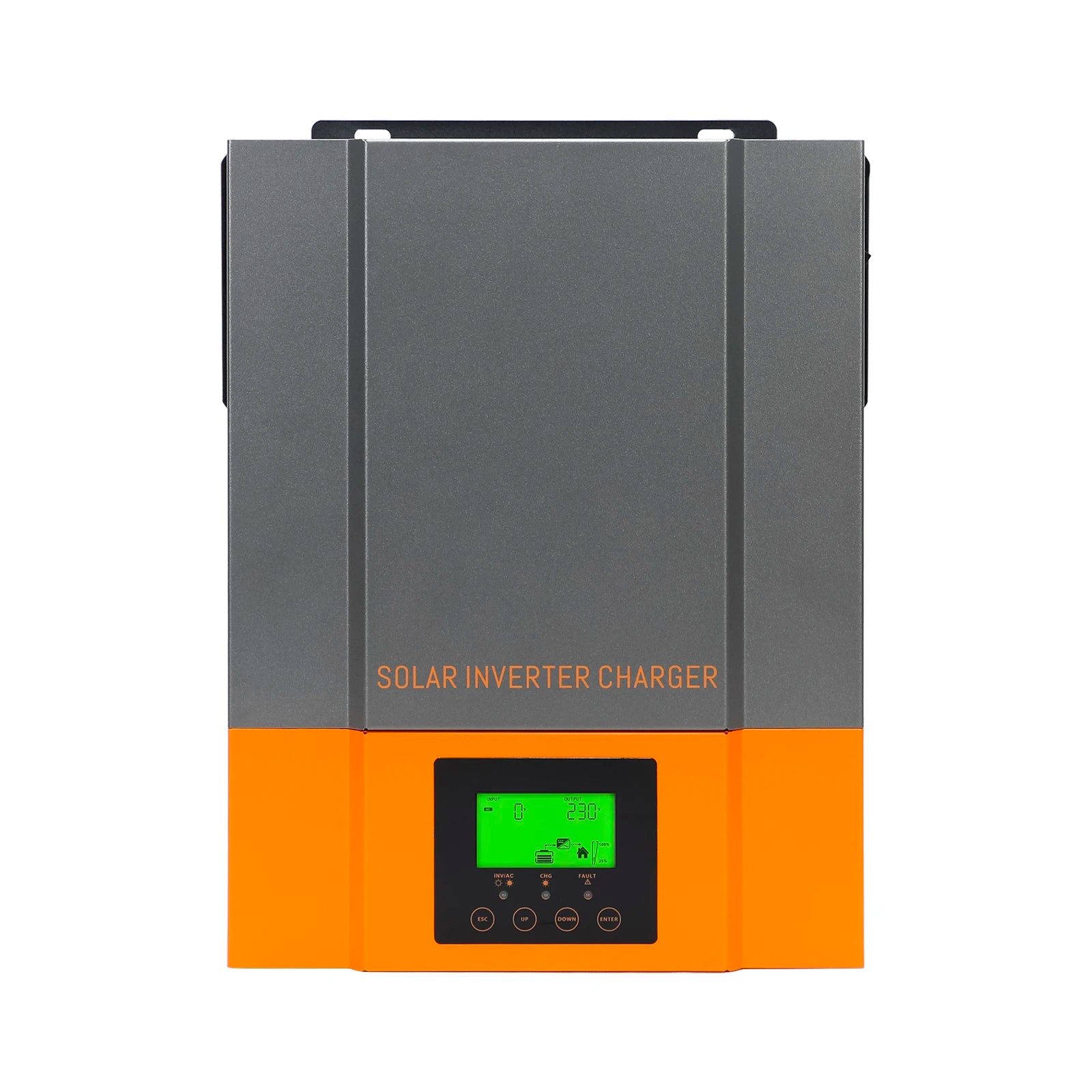

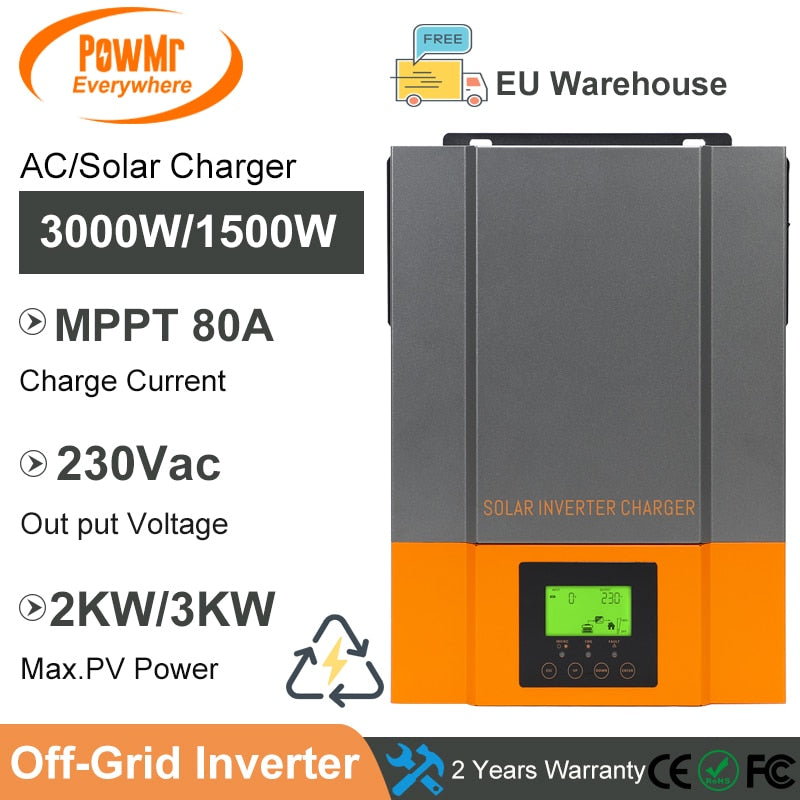

MPPT 80A Solar Charger 230VAC Max Solar Panel In-put 450vdc Pure Sine Wave Inverter 1.5KW 2.4KW 3KW with WIFI for Hybrid System
MPPT 80A Solar Charger 230VAC Max Solar Panel In-put 450vdc Pure Sine Wave Inverter 1.5KW 2.4KW 3KW with WIFI for Hybrid System
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 6.5KG
Type: DC/AC Inverters
Size: 348X270X95mm
Output Voltage Waveform: Pure Sine Wave
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz(Auto sensing)
Output Current: MPPT 80A
Origin: Mainland China
Nominal Input Voltage: 230Vac
Model Number: POW-HVM1.5H-12V/POW-HVM2.4H-24V/POW-HVM3.2H-24V
Max. PV Array Power: 2000W 3000W
Fearture5: POW 1500W MPPT Inverter
Fearture4: POW 3000W MPPT Inverter
Fearture3: POW 2400W MPPT Inverter
Fearture2: With WIFI work together
Fearture1: 450vdc Solar Panel Input
DC Input Voltage: 12Vdc/24Vdc
Certification: CE
Brand Name: PowMr
Application: Solar system
PowMr MPPT 80A Solar Charger 230VAC Max Solar Panel In-put 450vdc Pure Sine Wave Inverter 1.5KW 2.4KW 3KW with WIFI for Home Solar System
To European Union Countries: You also can choose from China we will help you send from the EU warehouse if we have stock in the EU warehouse, that you don't need to pay the additional fees. when you order before, please contact us first, thank you.
Introduction
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer
uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,
AC/solar charger priority, and acceptable input voltage based on different applications.
Feature
1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible with mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function
10.WIFI/GPRS(Option)
11.Can connect to lithium battery
MPPT Solar Charger: 1.5KW-3KW Power Output. Supports up to 450V DC input with MPPT technology. Wi-Fi enabled for remote monitoring. Suitable for hybrid power systems, charging lead-acid or lithium batteries, and powering home appliances. Max solar panel input voltage: 230VAC. Max charging current: 80A.

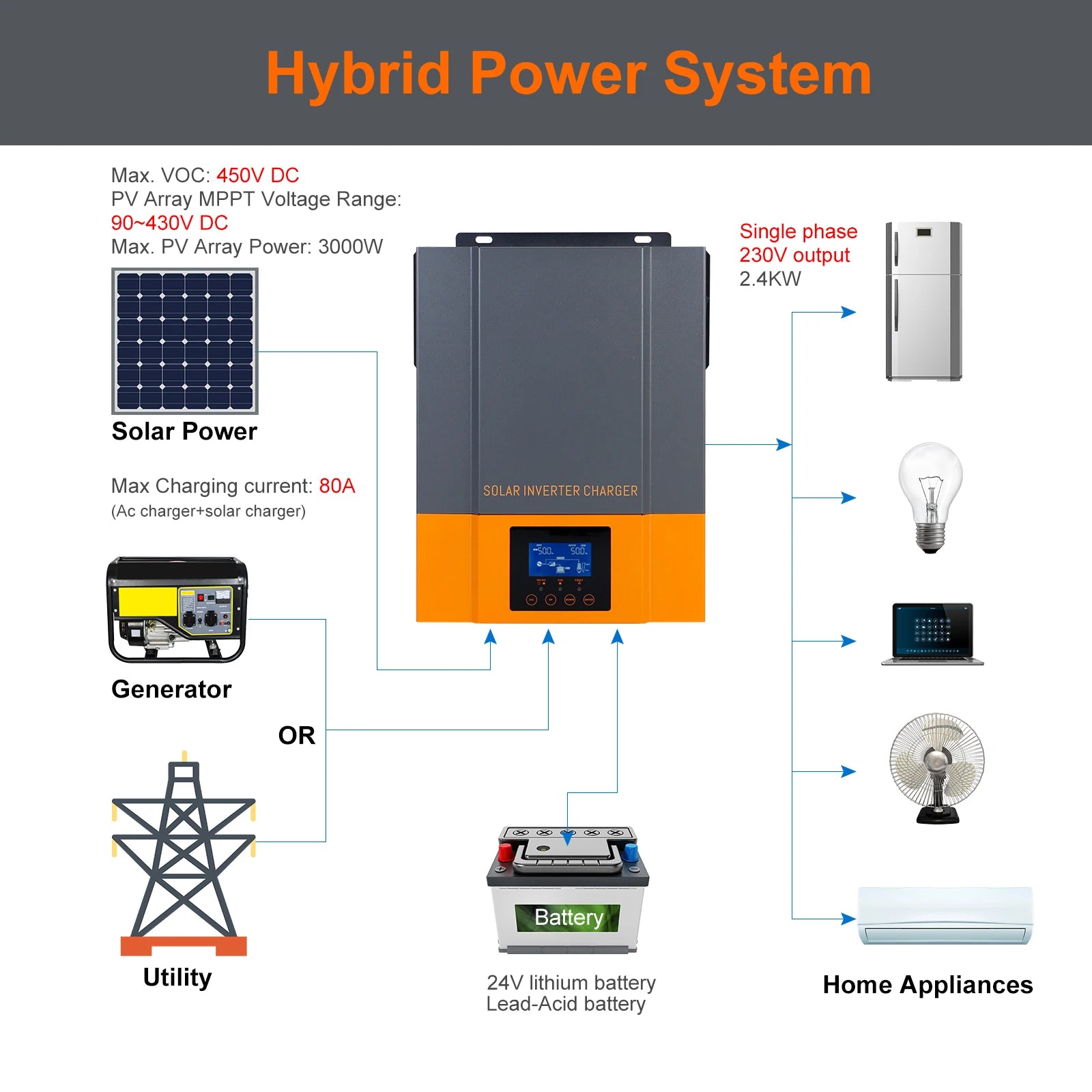

Basic System Architecture
The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
1.Generator or Utility.
2.PV modules
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
Introducing the MPPT 80A Solar Charger, a 1.5KW to 3KW pure sine wave inverter with WiFi connectivity for hybrid energy systems. Suitable for home, camping, RV, and boat applications, it charges solar panels up to 230VAC and supports DC inputs of 12V or 24V. This versatile charger can be used as a backup power source for various systems.
Specification
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Rated Output Power |
1.5KW |
2.4KW |
3200VA/3000W |
Output Voltage Waveform |
Pure Sine Wave |
||
Output Voltage Regulation |
230Vac±5% |
||
Utility Charging Mode | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Charging Algorithm |
3-Step |
||
AC Charging Current (Max) |
60 Amp |
||
Bulk Charging Voltage | |||
Flooded Battery |
14.6 |
29.2 |
|
AGM / Gel Battery |
14.1 |
28.2 |
|
Floating Charging Voltage |
13.5Vdc |
27.0Vdc |
|
MPPT Solar Charging Mode | |||
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
|
Max. PV Array Power |
2000W |
3000W |
3000W |
Nominal PV Voltage |
240Vdc |
||
PV Array MPPT Voltage Range |
90~430Vdc |
||
Max. PV Array Open Circuit Voltage |
450Vdc |
||
Max Charging Current (AC charger+solar charger) |
80Amp |
||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Safety Certification |
CE |
||
Operating Temperature Range |
-10°C to 50°C |
||
Storage temperature |
-15°C~ 60° C |
||
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
||
Input Voltage Waveform |
Sinusoidal (utility or generator) |
||
Nominal Input Voltage |
230Vac |
||
Low Loss Voltage |
170Vac±7V (UPS)； 90Vac±7V (Appliances) |
||
Low Loss Return Voltage |
180Vac±7V (UPS); |
||
100Vac±7V (Appliances) | |||
High Loss Voltage |
280Vac±7V |
||
High Loss Return Voltage |
270Vac±7V |
||
Max AC Input Voltage |
300Vac |
||
Nominal Input Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Low Loss Frequency |
40±Hz |
||
Low Loss Return Frequency |
42±Hz |
||
High Loss Frequency |
65±Hz |
||
High Loss Return Frequency |
63±Hz |
||
Output Short Circuit Protection |
Circuit Breaker |
||
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
||
Transfer Time |
10ms typical (UPS); |
||
20ms typical (Appliances) | |||
INVERTER MODEL |
1.5KW 12V |
2.4KW 24V |
3.2KVA/3KW 24V |
Output Frequency |
50Hz/ 60Hz (Auto-detection) |
||
Peak Efficiency |
91% |
94% |
|
Overload Protection |
5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad |
||
Surge Capacity |
2* rated power for 5 seconds |
||
Nominal DC Input Voltage |
12Vdc |
24Vdc |
|
Cold Start Voltage |
11.5Vdc |
23.0Vdc |
|
Low DC Warning Voltage | |||
@ Io ad < 50>% |
11.0Vdc |
22.0Vdc |
|
@ load >50% |
10.5Vdc |
21.0Vdc |
|
Low DC Warning Return Voltage | |||
@ load < 50% |
11.5Vdc |
22.5Vdc |
|
@ load >50% |
11.0Vdc |
22.0Vdc |
|
Low DC Cut off Voltage | |||
@ load < 50% |
10.2Vdc |
20.5Vdc |
|
@ load >50% |
9.6Vdc |
20.0Vdc |
|
High DC Recovery Voltage |
14.0Vdc |
32Vdc |
|
High DC Cut-off Voltage |
16.0Vdc |
33Vdc |
|
No Load Power Consumption |
<25W |
<30W |
<35W |

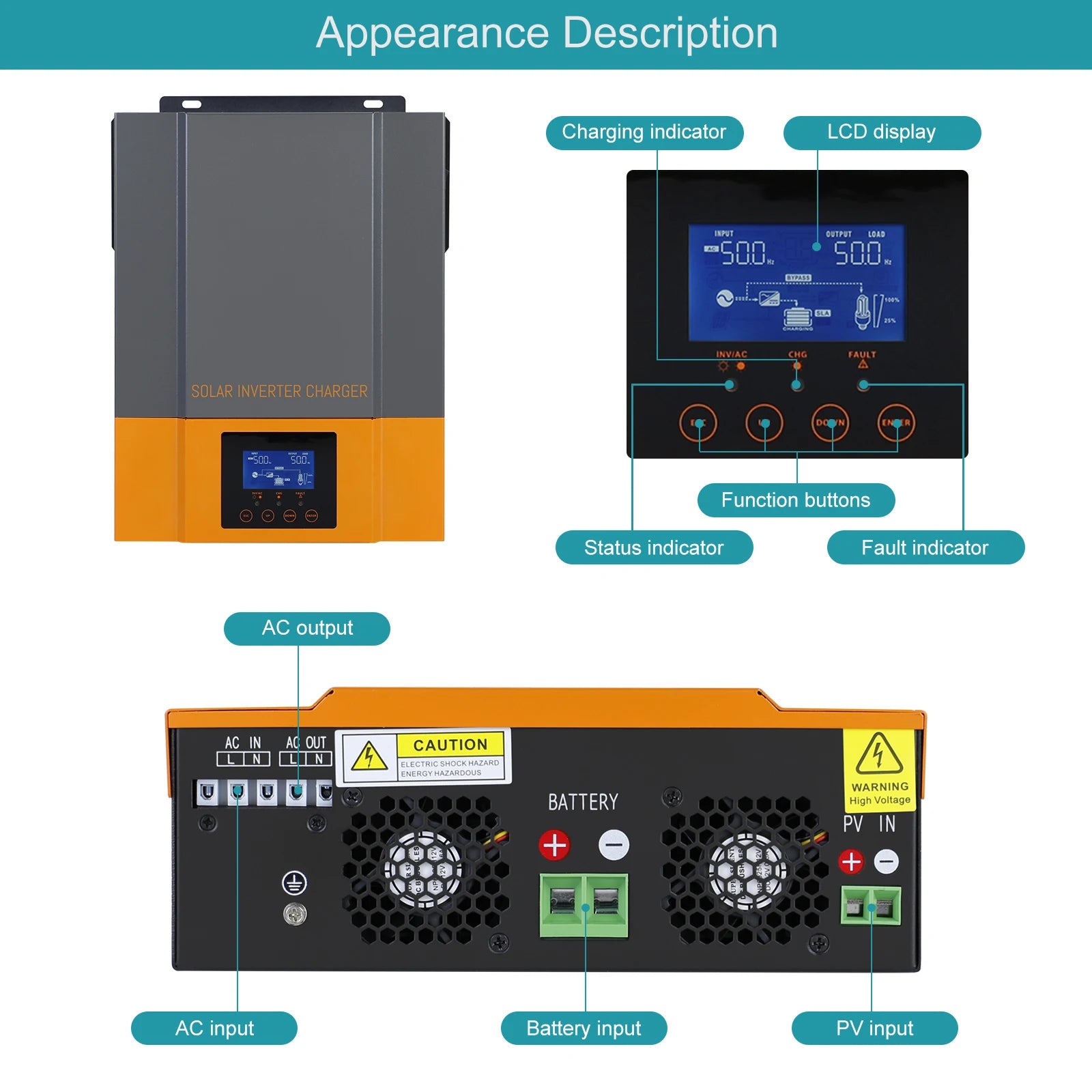

Product Overview
The MPPT 80A solar charger features a clear LCD display, providing real-time status updates. The device includes function buttons for easy operation and a warning system that alerts users to potential hazards such as electrical shock or hazardous voltage. It also comes with safety features like high-voltage and battery warnings.

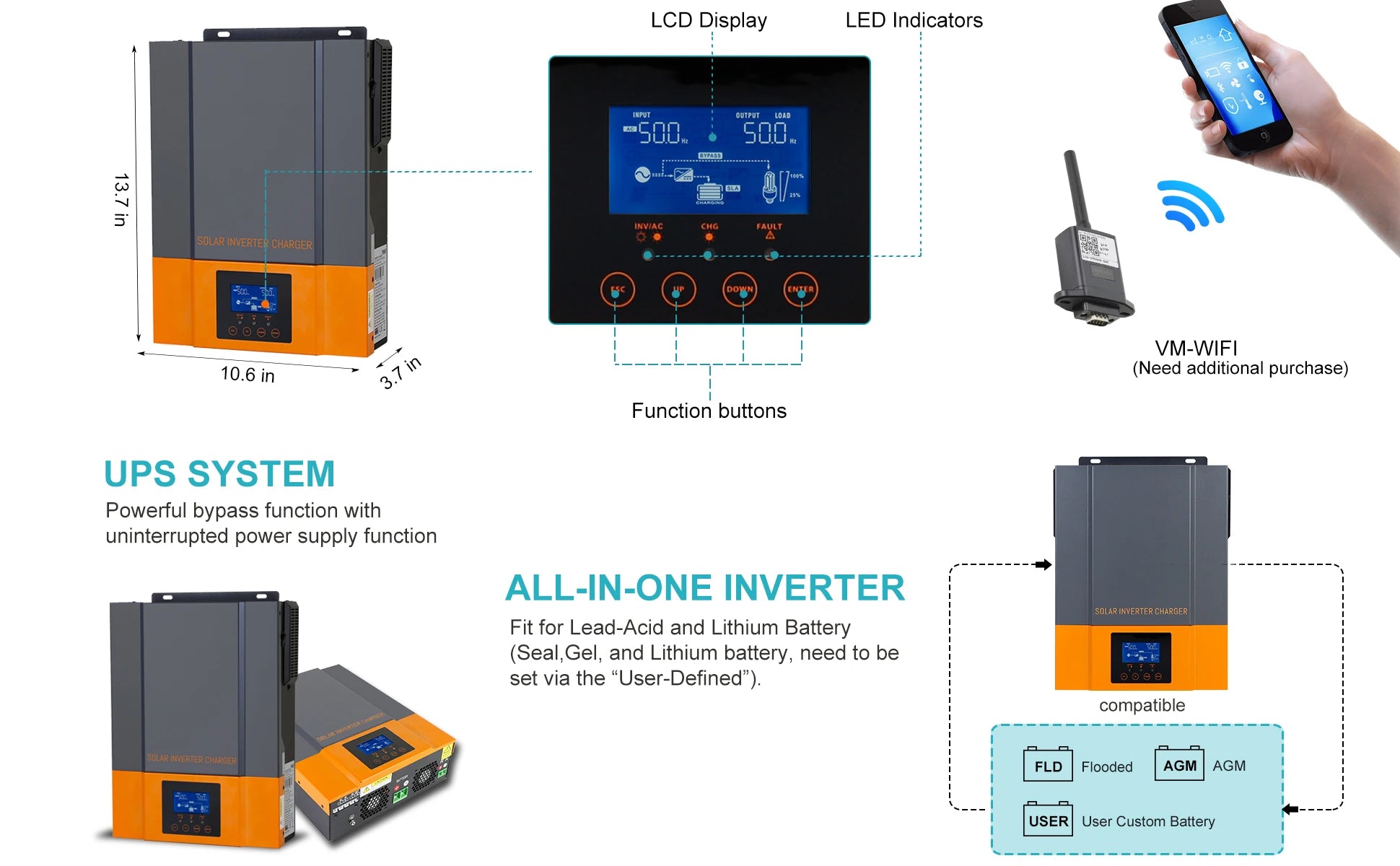

MPPT 80A Solar Charger features an LCD display, LED indicators, and WiFi connectivity. It has a max solar panel input of 230VAC and produces pure sine wave output up to 3kW. This all-in-one inverter solar charger is compatible with lead-acid and lithium batteries (including sealed, gel, and lithium types). It also includes a powerful bypass function for uninterrupted power supply. The user can customize battery settings via the user-defined interface.

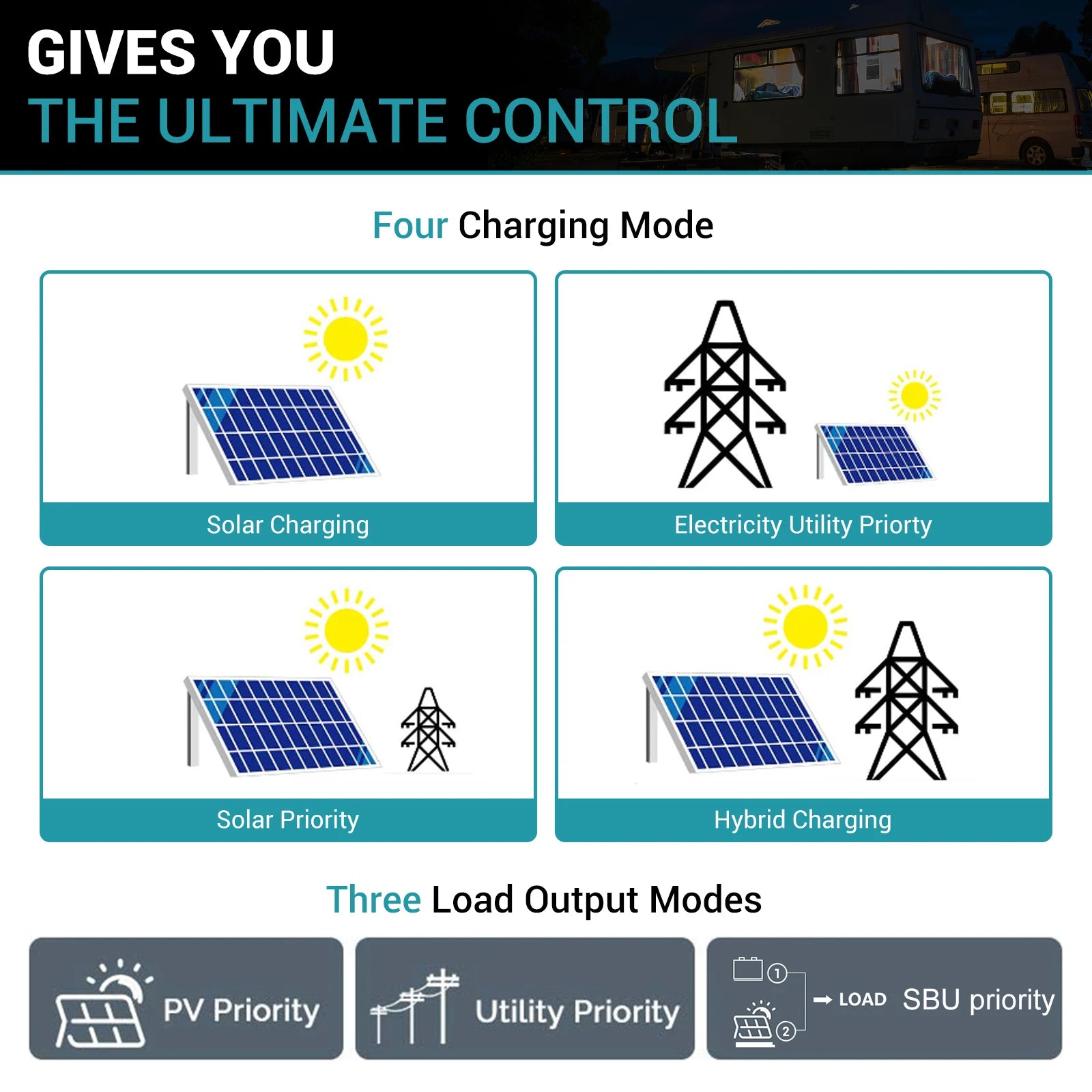

Gain control with four charging modes: solar, electricity, utility, and hybrid. Features three load output modes: PV priority, utility priority, and load priority. Optimize your energy use with this versatile MPPT 80A charger.

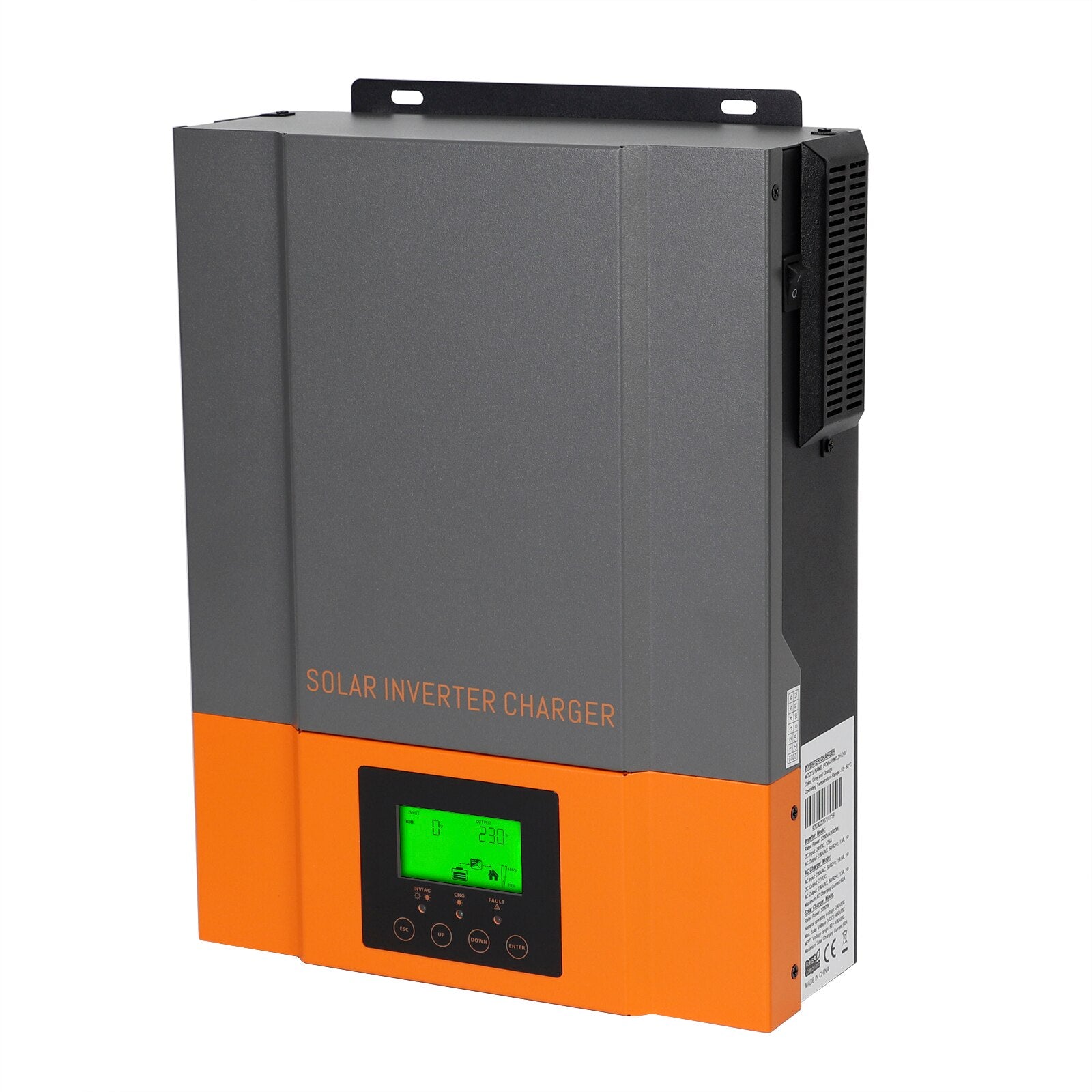

Product Picture

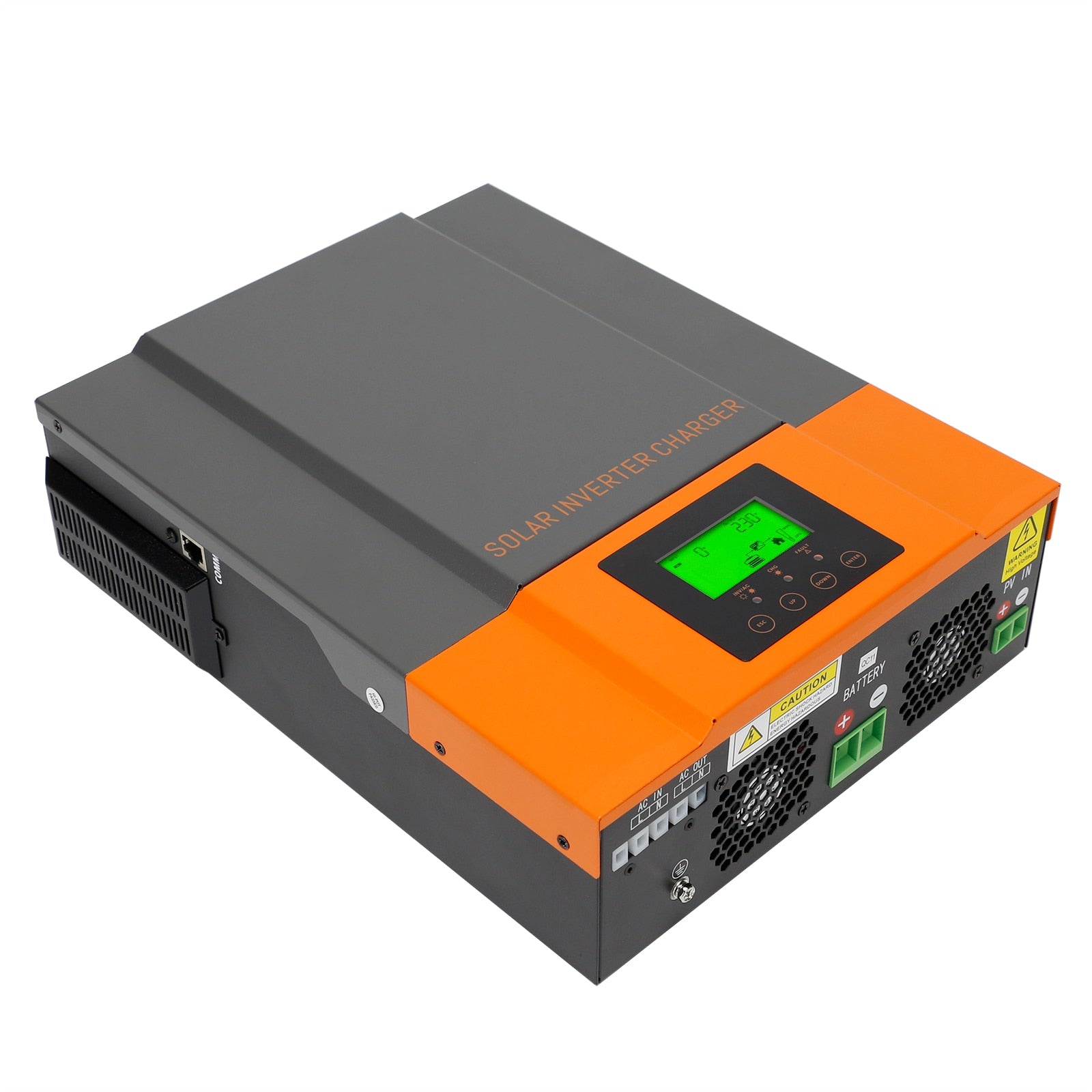

High-Power MPPT Solar Inverter Charger with 230V AC output and Wi-Fi connectivity for hybrid systems.
Warning: high voltage solar charger. Electric shock and energy hazards may occur. Use with caution.
