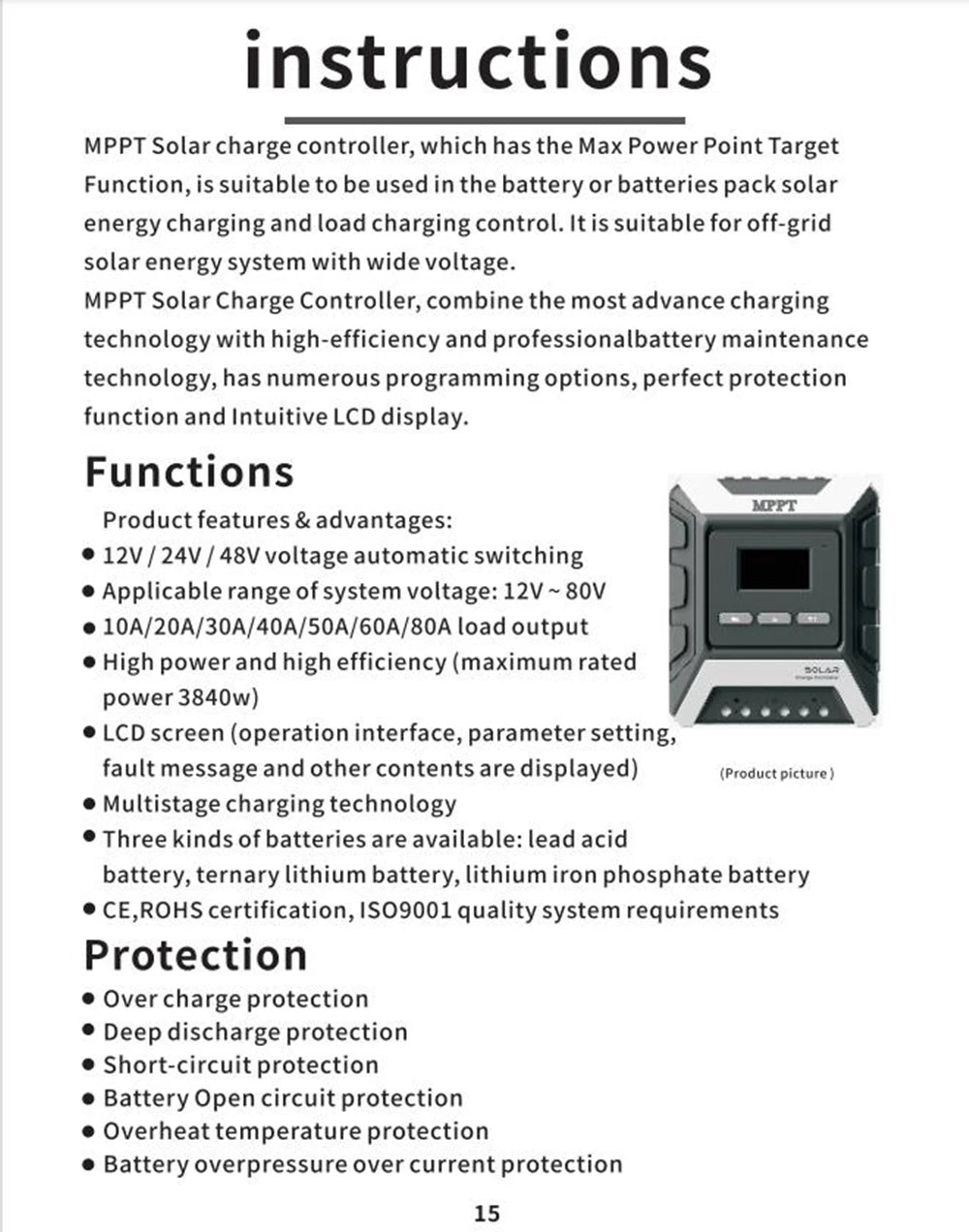

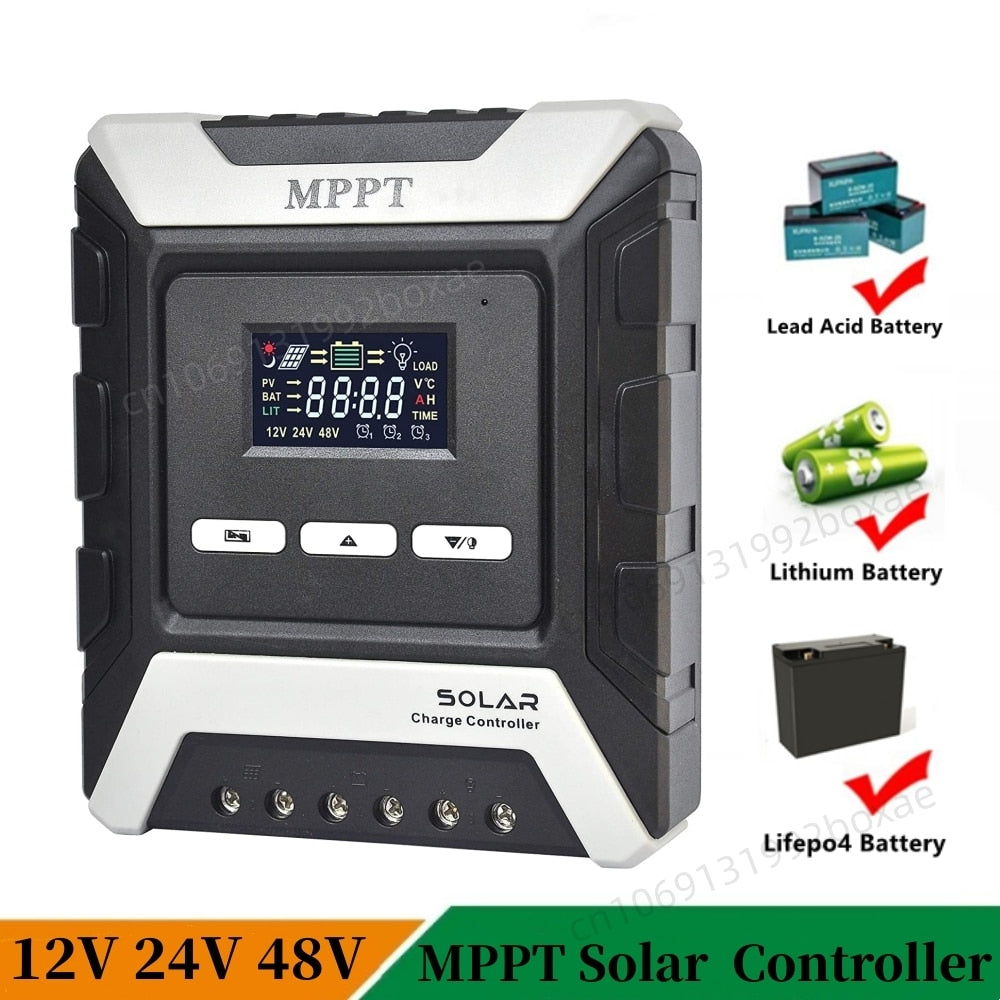

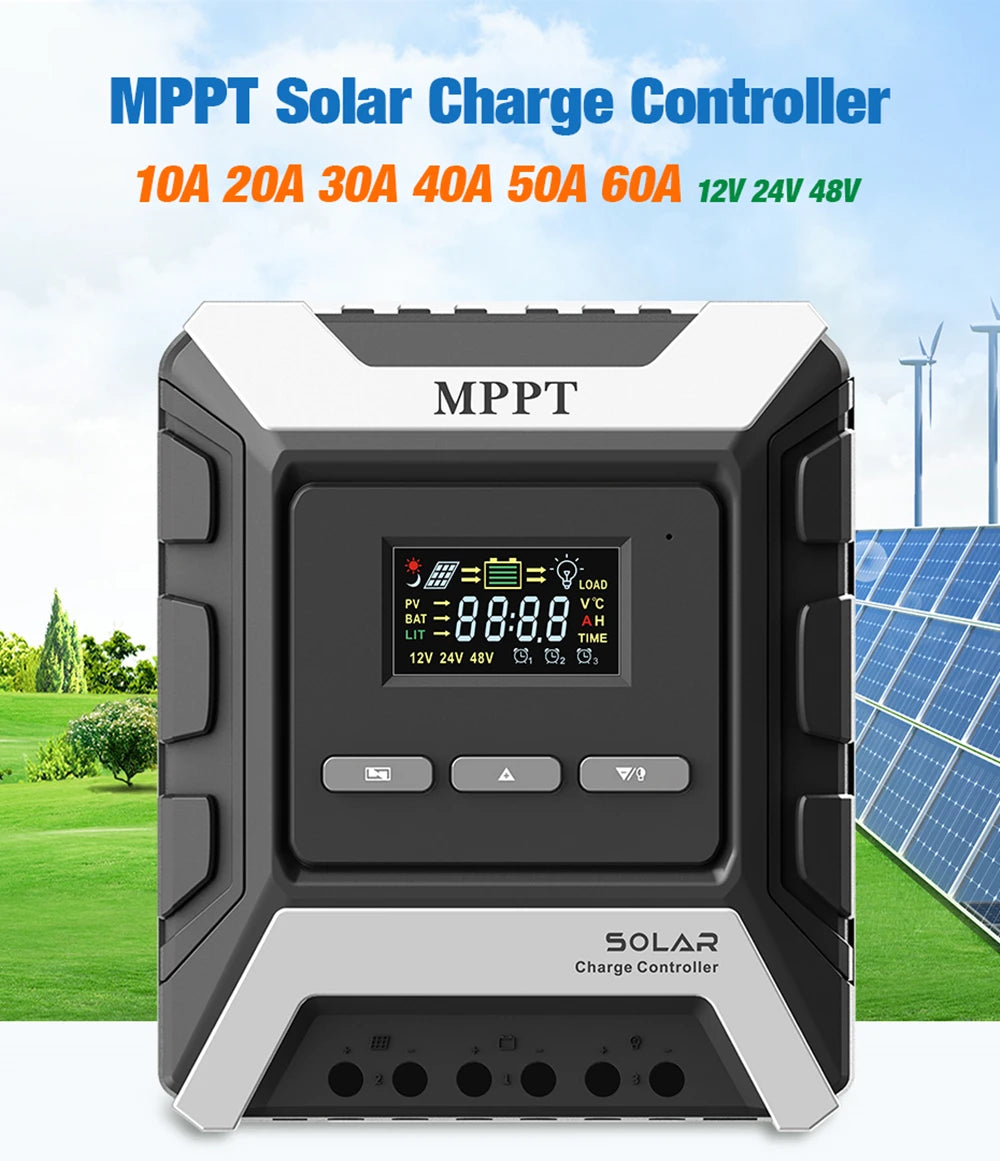

MPPT Solar charge controller, which has the Max Power Point Target Function, is suitable to be used in the battery or batteries pack solar energy charging and load charging control. It is suitable for off-grid solar energy system with wide voltage.
MPPT Solar Charge Controller, combine the most advance charging technology with high-efficiency and professionalbattery maintenance technology, has numerous programming options, perfect protection
function and Intuitive LCD display.

Functions

Product features & advantages:
●12V / 24V / 48V voltage automatic switching
●Applicable range of system voltage: 12V ~ 80V
●10A/20A/30A/40A/50A/60A/80A load output
●High power and high efficiency (maximum ratedpower 3840w)

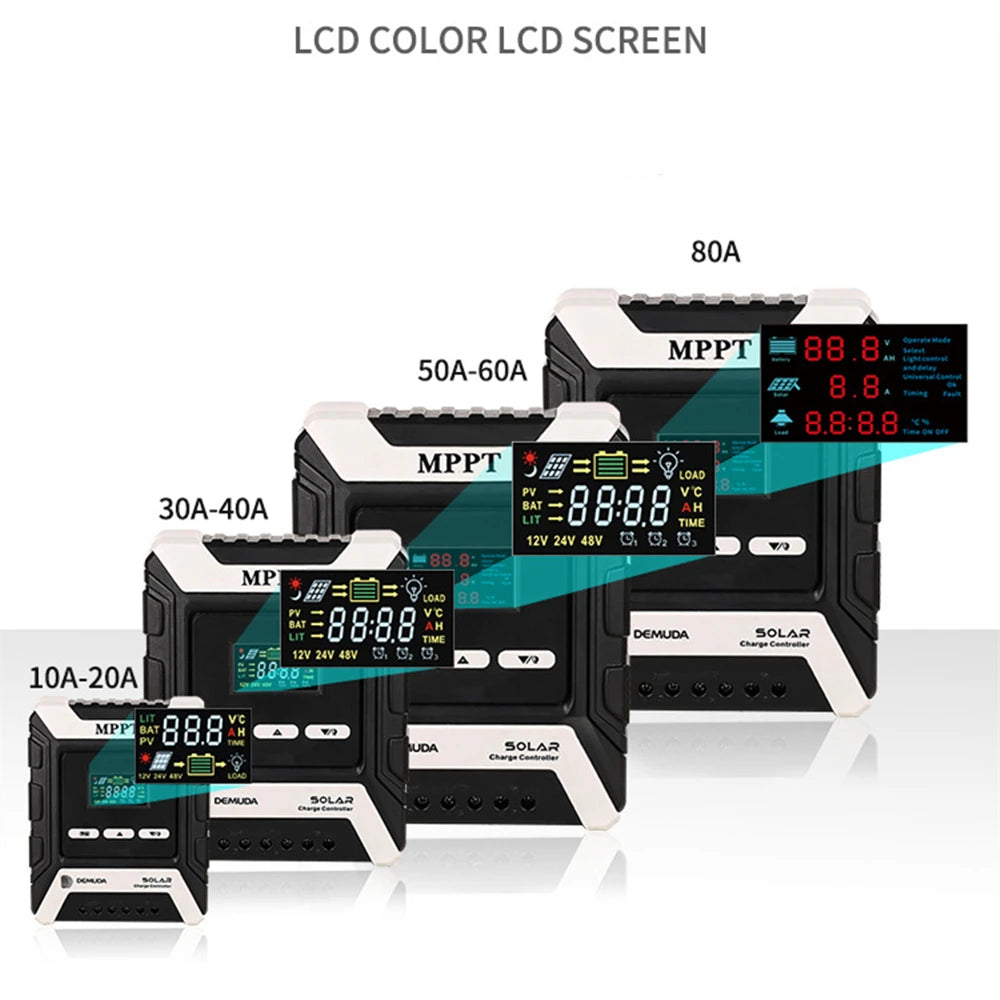

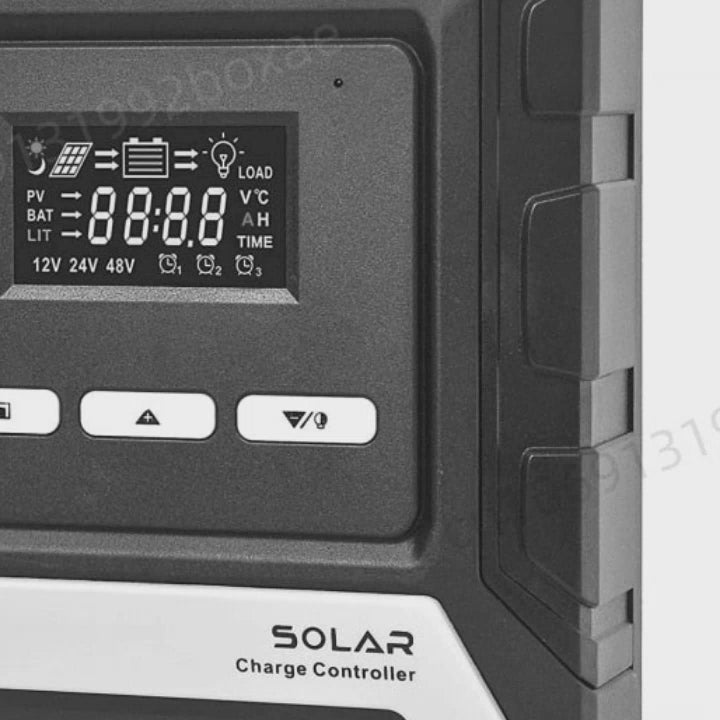

●LCD screen (operation interface, parameter setting,fault message and other contents are displayed)
●Multistage charging technology
●Three kinds of batteries are available: lead acid battery, ternary lithium battery, lithium iron phosphate battery
●CE,ROHS certification, IS09001 quality system requirements

Protection

●Over charge protection
●Deep discharge protection
●Short-circuit protection
●Battery Open circuit protection
●Overheat temperature protection
●Battery overpressure over current protection

So the mppt controller can be wildly used in RV/trailer/Marine/Boat/Camp/Home.

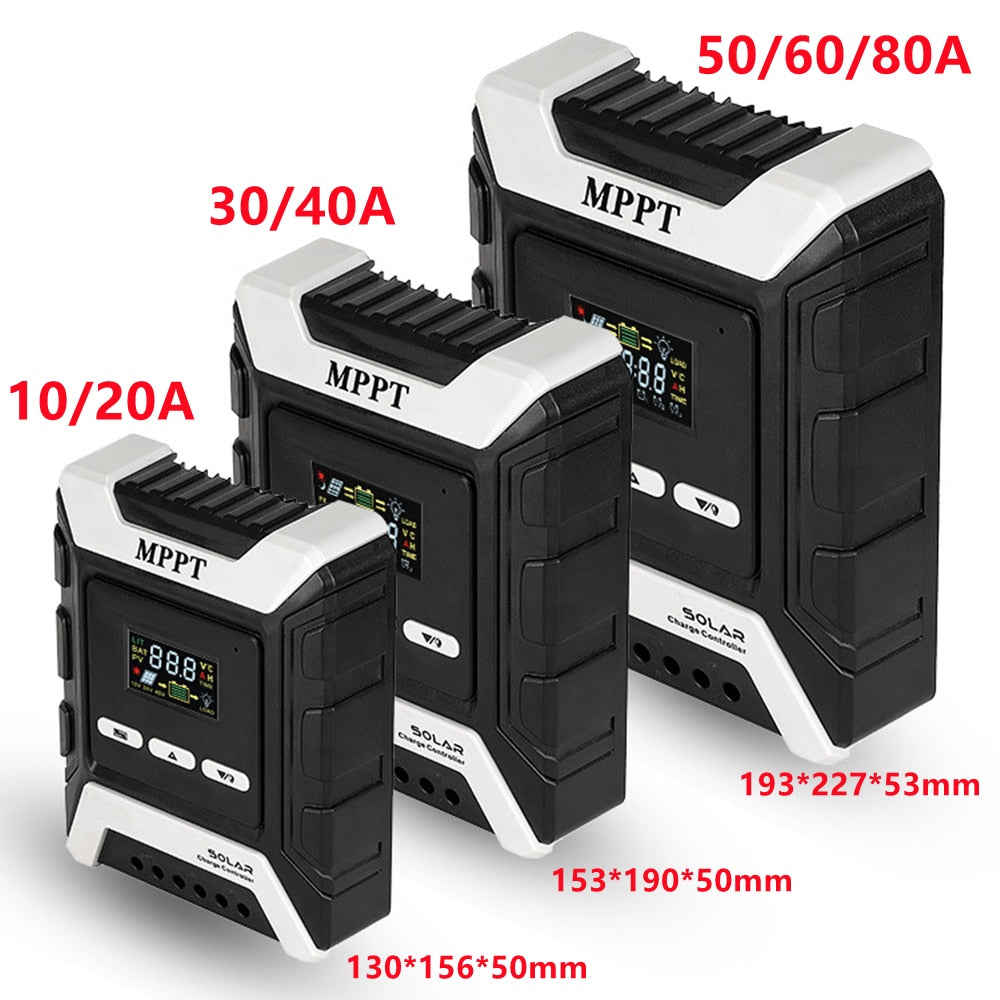

Product Size:130x156x50mm(10A/20A); 153x 190x53mm(30A/40A); 193x227x58mm(50A/60A/80A)

Net weight/gross weight:0.55kg/0.68kg(10A/20A); 0.8kg/0.85kg(30A/40A); 1.11kg/1.32kg(50A/60A/80A)



Model(MPPT)	10A 20A	30A 40A	50A 60A	80A
Parameter Characteristics
System Voltage	12V 24V 48V	12V 24V 48V	12V 24V 48V	12V 24V 48V
Max.Solar Power Input	240W/480W/960W	480W/960W/1600W	720W/1440W/2880W	960W/1920W/3840W
DC Input
MPPT Voltage	12V<operating voltage <80V	12V<operating voltage <80V	12V<operating voltage <80V	12V<operating voltage <80V
Open-circuit Voltage of Solar Module (in minimum operatng temperature)	15V~80V	15V~80V	15V~80V	15V~80V
Module Current	20A	Max.40A	Max.60A	Max.80A
DC Output
Load Current	0~20A	0~40A	0~60A	0~80A
Reconnect Voltage(LVR)	12.5V/28.2V/56.4V	12.5V/28.2V/56.4V	12.5V/28.2V/56.4V	12.6V/25.2V/50.4V
Deep Discharge Protection(LVD)	11.5V/23V/46V	11.5V/23V/46V	11.5V/23V/46V	10.7V/21.4V/42.8V
Battery
Charging Current	10A(20A)	30A(40A)	50A(60A)	80A
Charging Completed Voltage	14.2V/28.4V/56.6V	14.2V/28.4V/56.6V	14.2V/28.4V/56.6V	14.4V/28.8V/57.6V
Floating Charging Voltage	14.4V/28.8V/57.6V	14.4V/28.8V/57.6V	14.4V/28.8V/57.6V	13.7V/27.4V/54.8V
Constant Charging	15V/30V/60V	15V/30V/60V	15V/30V/60V	15V/30V/60V
Set Battery Type	liquid	liquid	liquid	liquid
Operating Condition
Environment Temperature	-20℃~+40℃	-20℃~+40℃	-20℃~+40℃	-10℃~+45℃
Accessories & Installation
Product Size	130×156×50mm	153×190×53mm	193×227×58mm	193×227×58mm
N.W/G.W	0.55kg/068kg	0.8kg/0.85kg	1.11kg/1.32kg	1.11kg/1.32kg

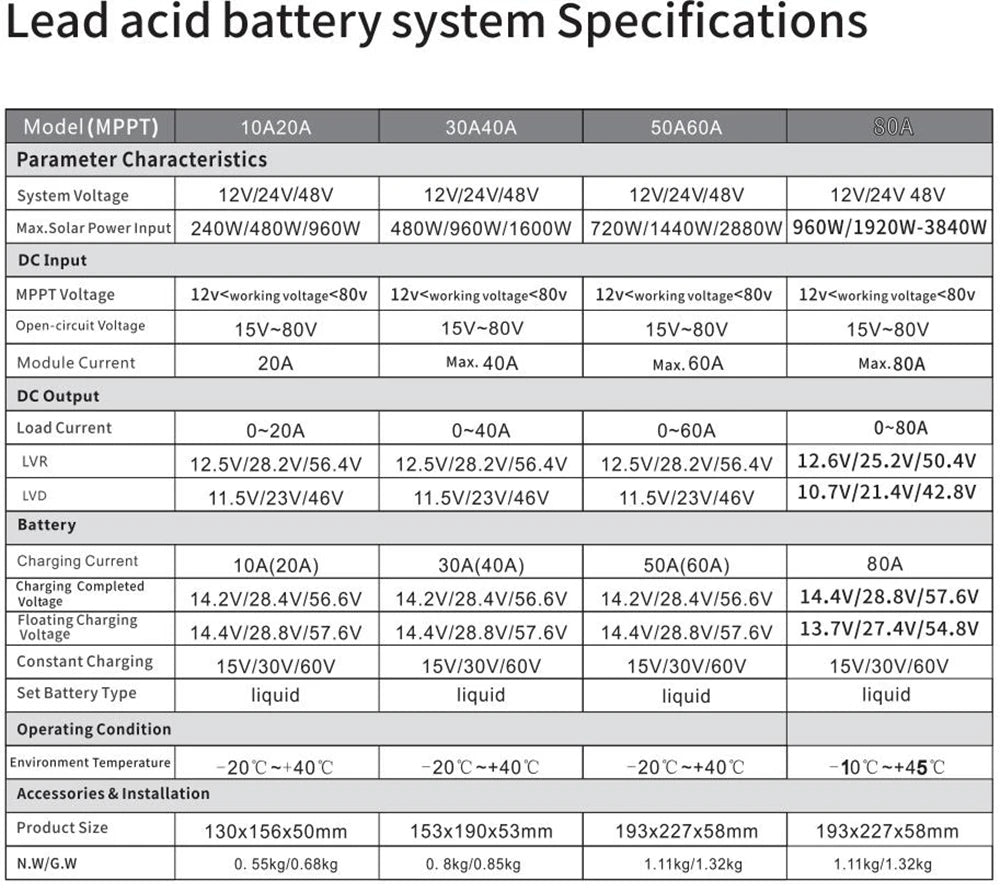

Lead acid battery system Specifications

Introducing the MPPT Solar Charge Controller! This device features four models: 10AZOA (30A), 4OA (40A), SOAGOA OA (60A), and Lead-acid Battery System Specifications. The controller supports various battery types, including LiFePo4, lead-acid, and lithium. It has a maximum solar power input of up to 3840W, with a working voltage range of 12V-80V. The device also features adjustable charging parameters, overcharge protection, and short-circuit protection. Its compact size makes it easy to install and use.

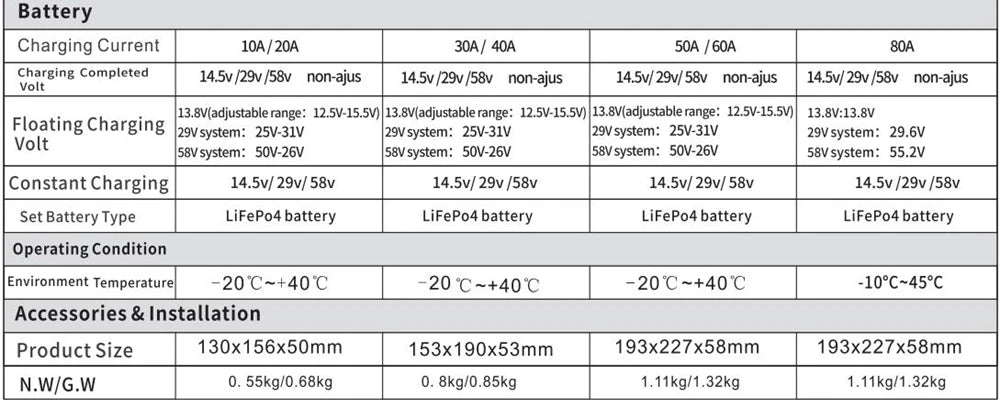

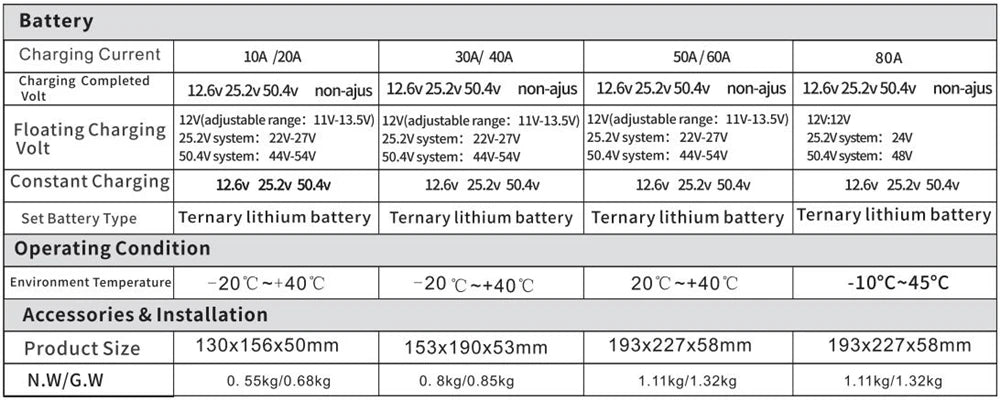

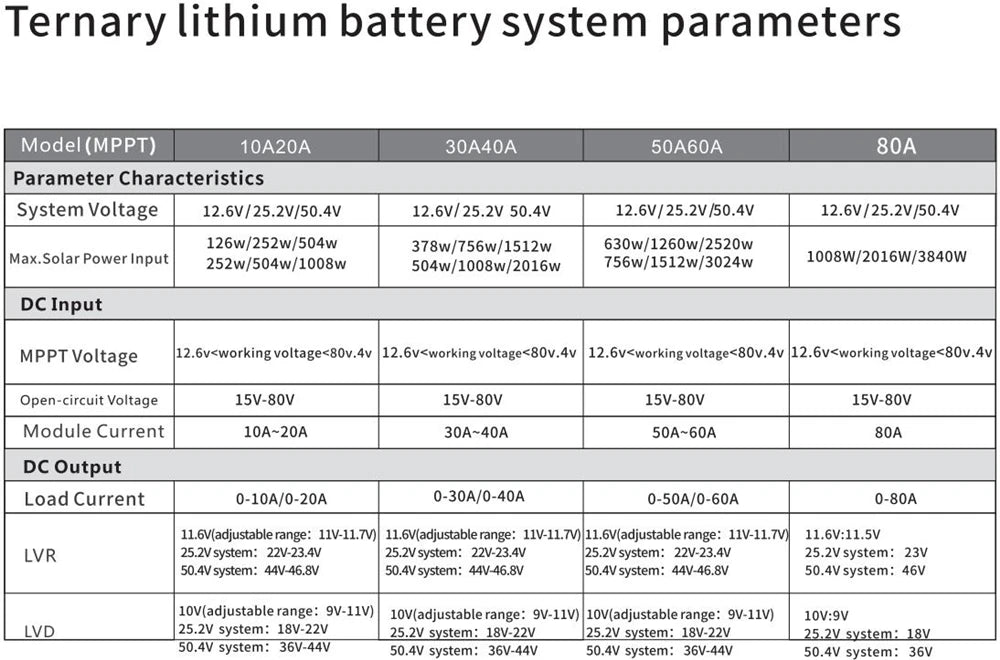

Ternary lithium battery system parameters

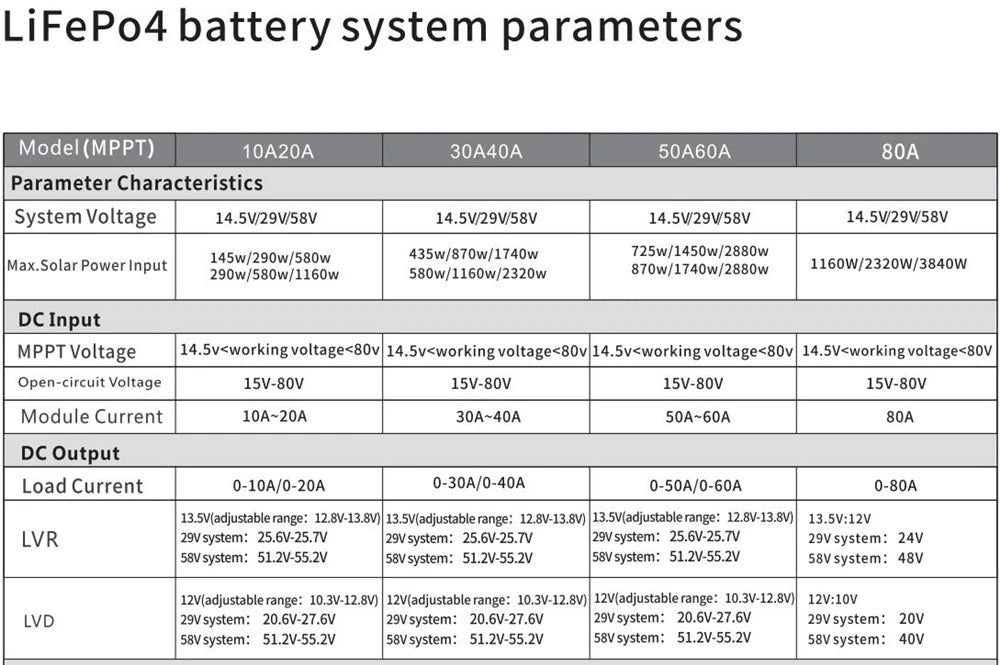

LiFePo4 battery system parameters

MPPT Solar Charge Controller: 12V/24V/48V with adjustable output voltage (10.3-12.8V) for LiFePo4/Lithium/Lead-Acid batteries. Features include MPPT voltage range (14.5V), open-circuit voltage (15V-80V), and load current up to 80A.

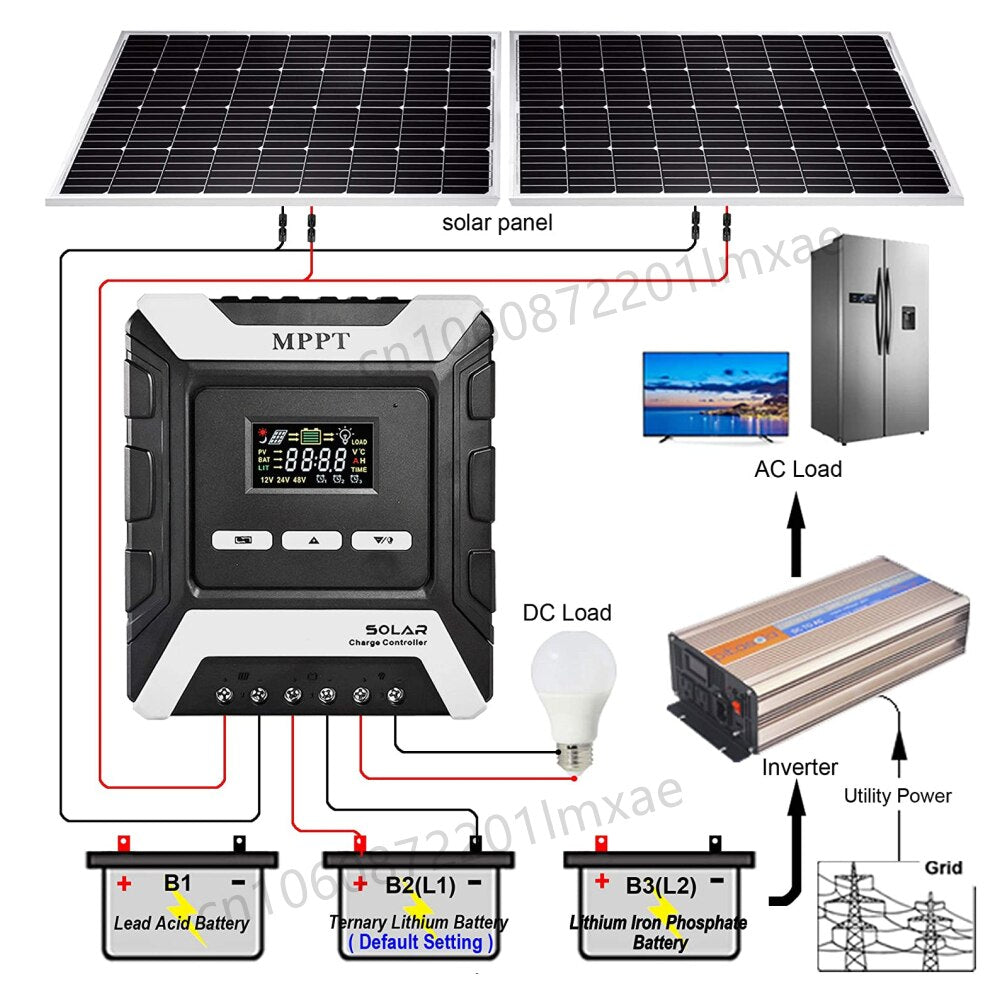

MPPT Solar Charge Controller: 12V/24V/48V, 80A/60A/50A/40A/30A, regulates solar panels for LiFePO4, lead-acid, and lithium batteries. Suitable for various applications including home power systems, camping equipment, and renewable energy projects.

MPPT Solar Charge Controller, 12V/24V/48V, 80A (60A, 50A, 40A, 30A), regulates solar panel power for LiFePo4, lead-acid, and lithium batteries.

MPPT Solar Charge Controller: Efficiently regulates solar power for LiFePo4, lead-acid, and lithium batteries. Maximum Power Point Tracking (MPPT) technology ensures optimal energy harvesting.

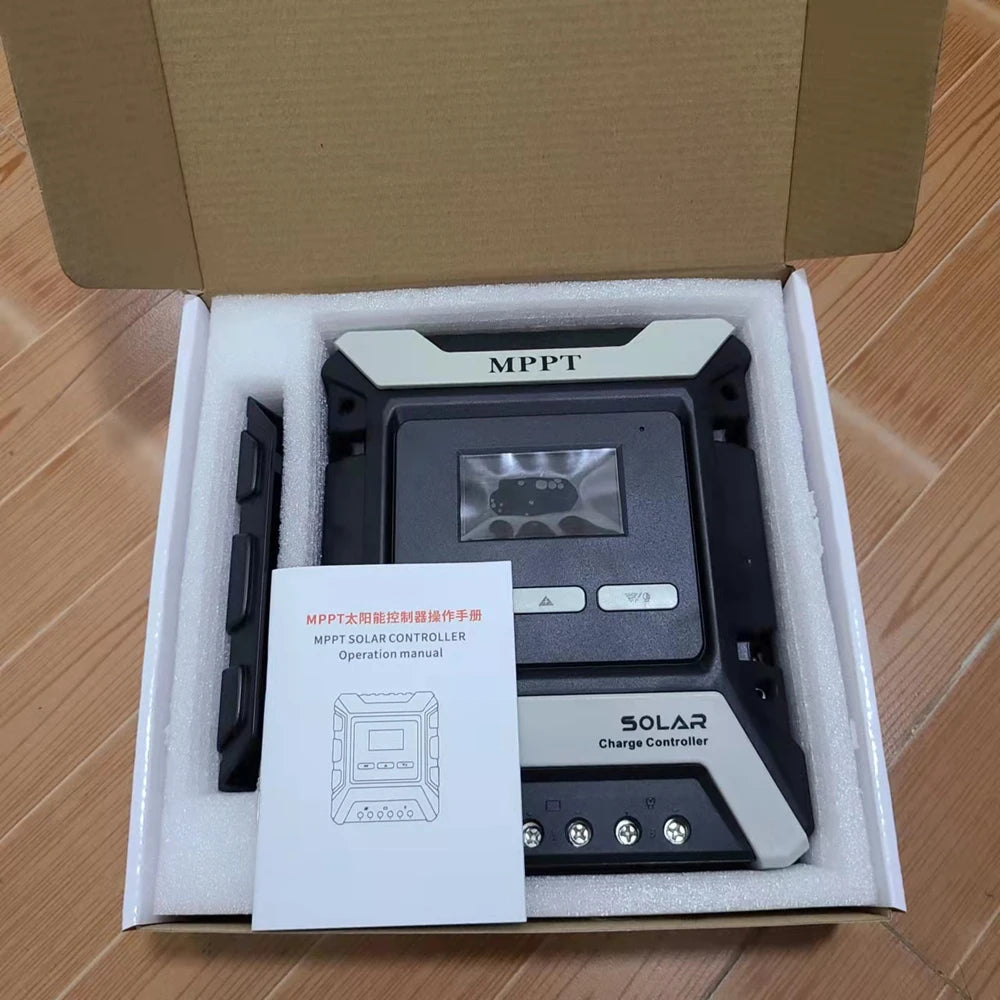

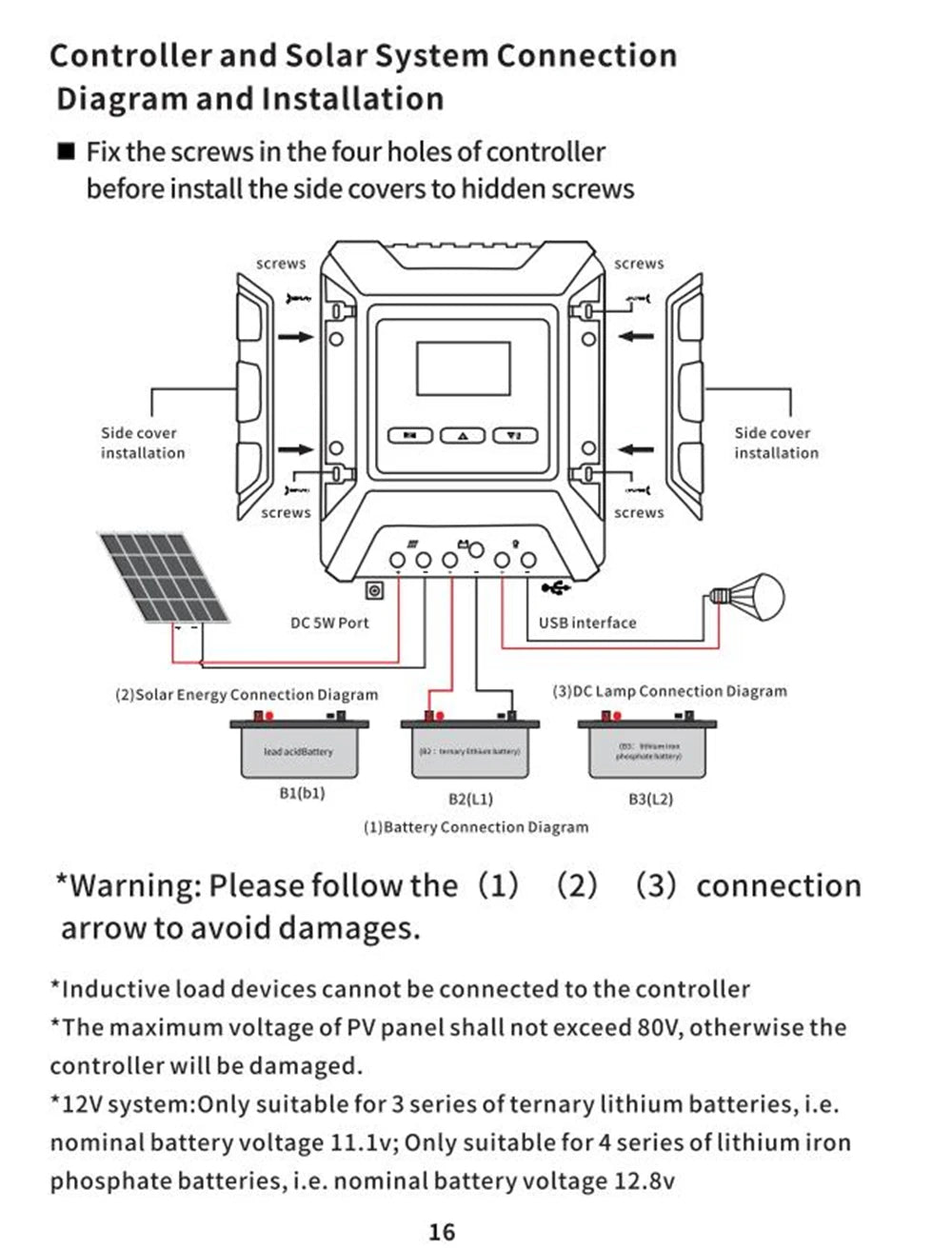

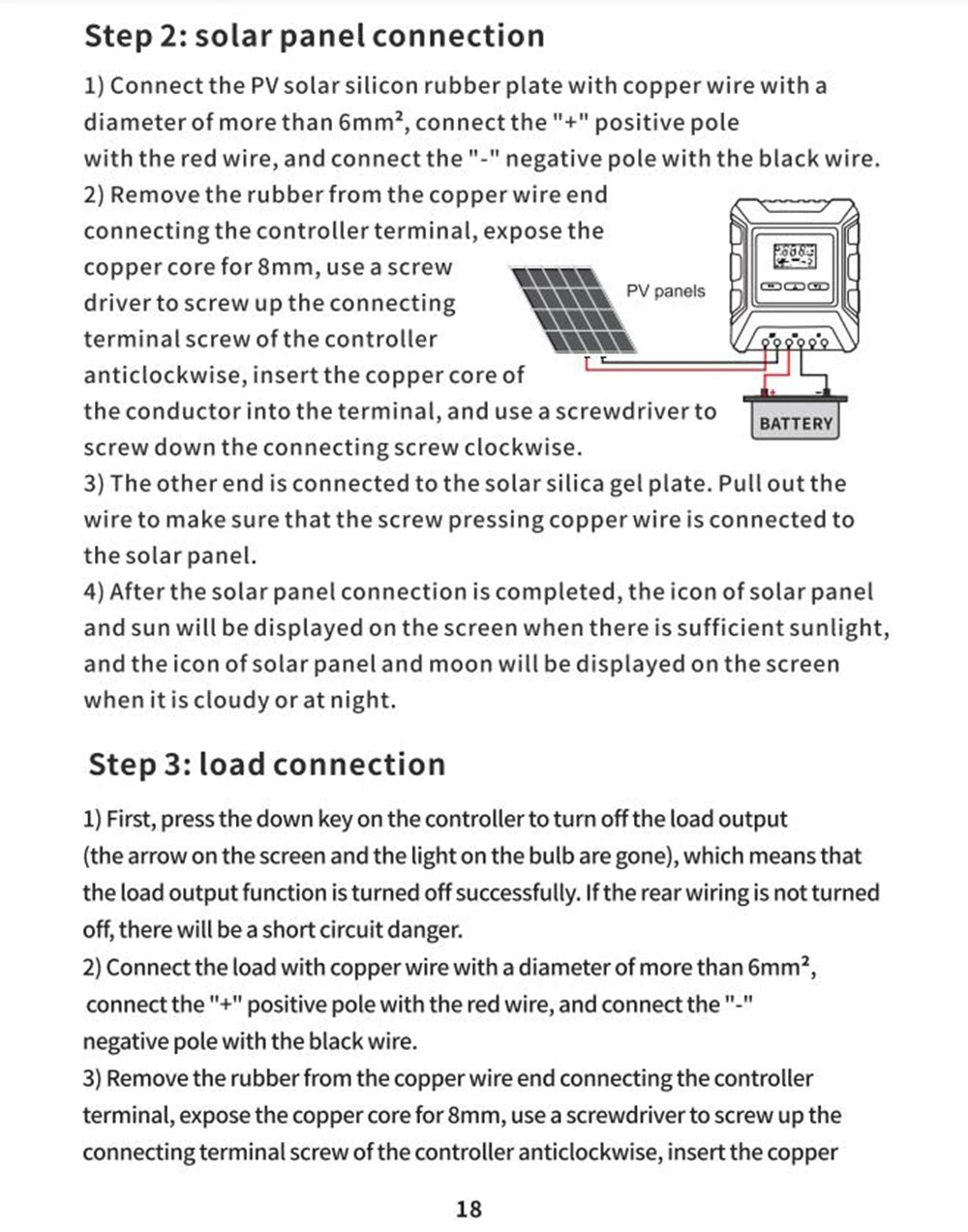

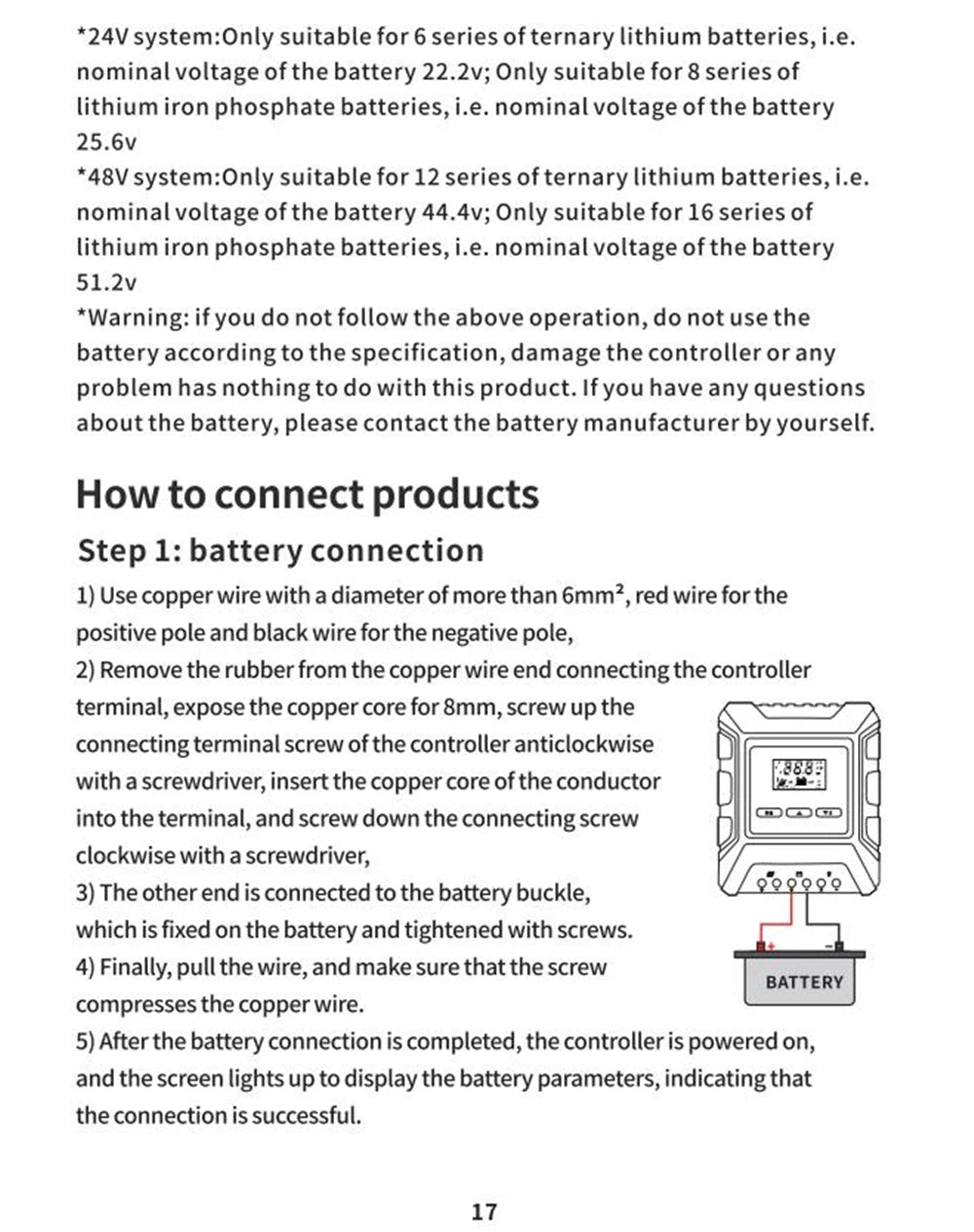

MPPT Solar Charge Controller Manual - A comprehensive guide for operating this 12V/24V/48V solar panel regulator for LiFePo4, lead-acid, and lithium batteries.

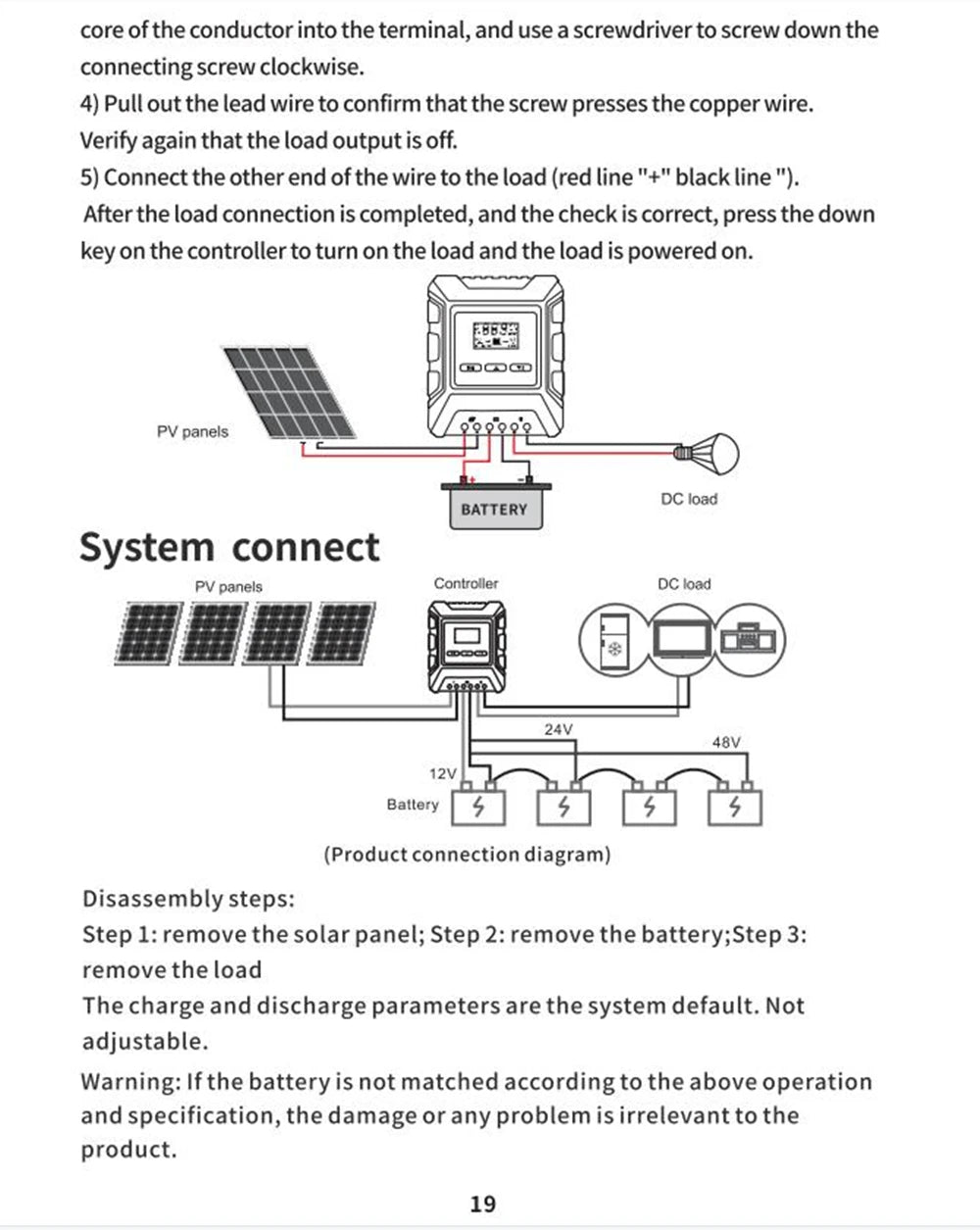

MPPT Solar Charge Controller: Max Power Point Tracking (MPPT) technology regulates solar energy for LiFePo4, lead-acid, or lithium batteries in DC operation.

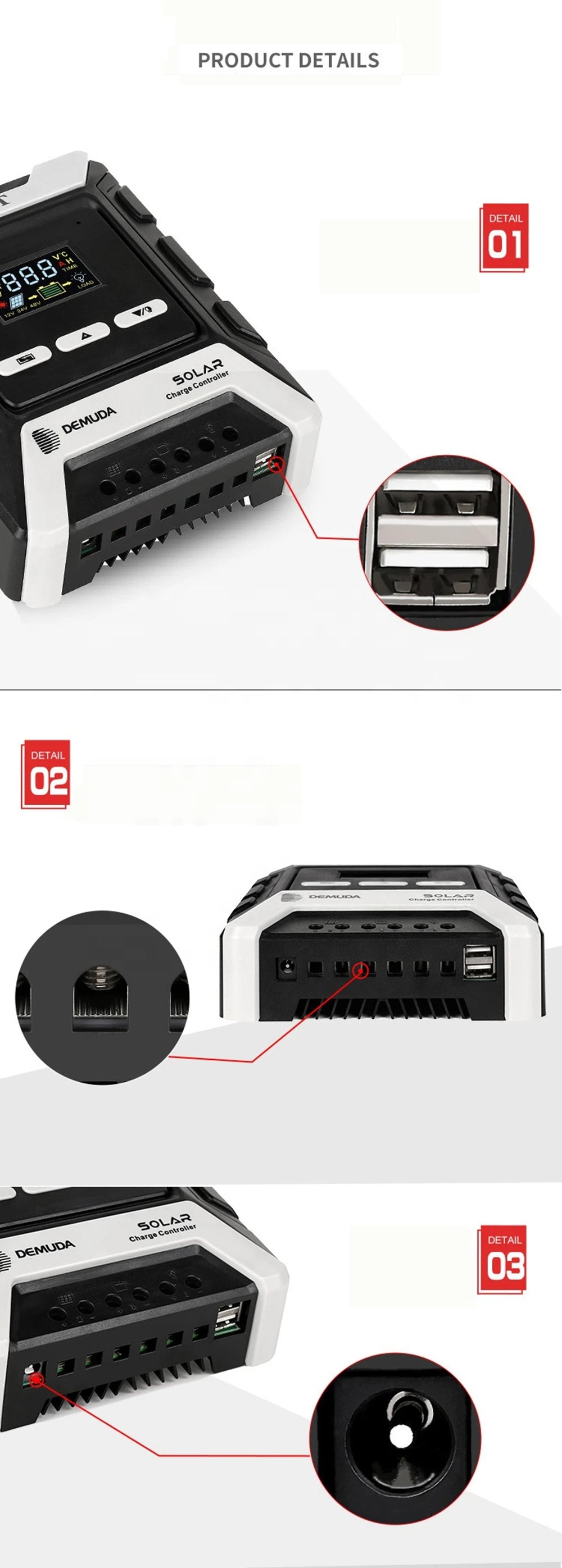

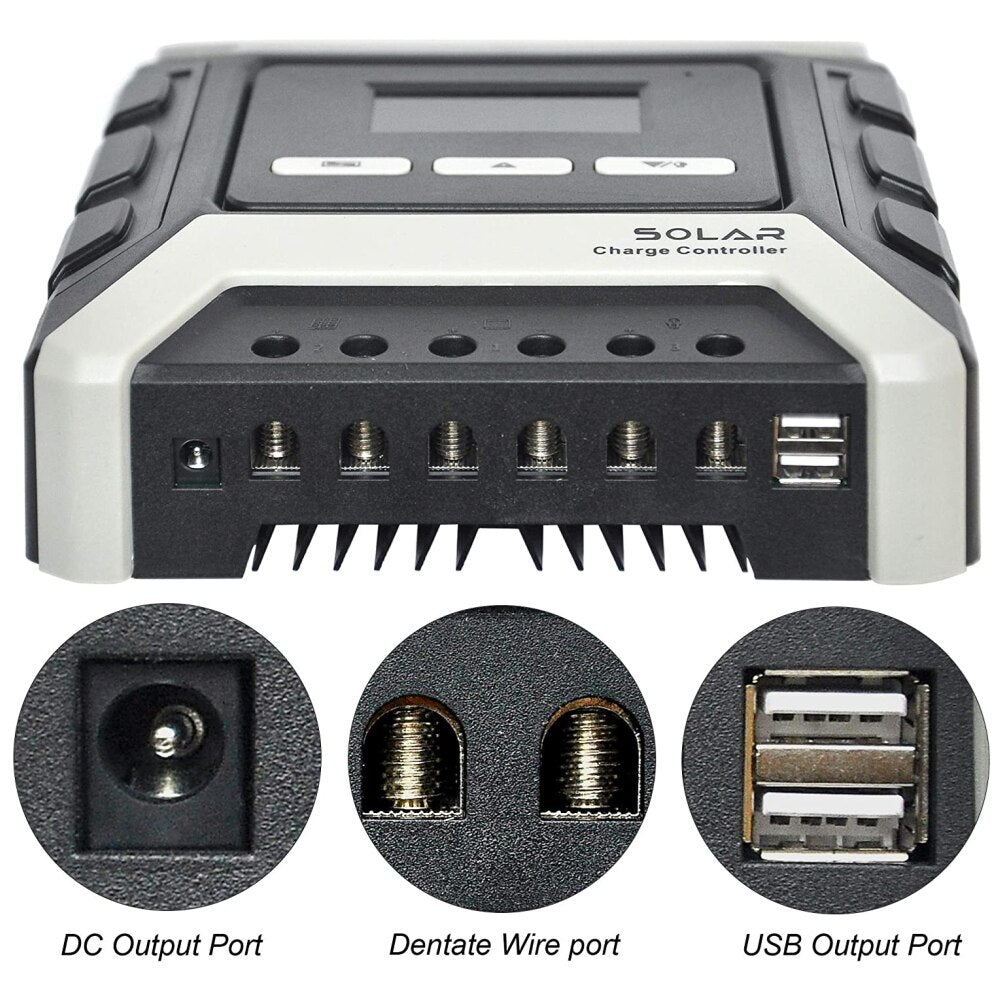

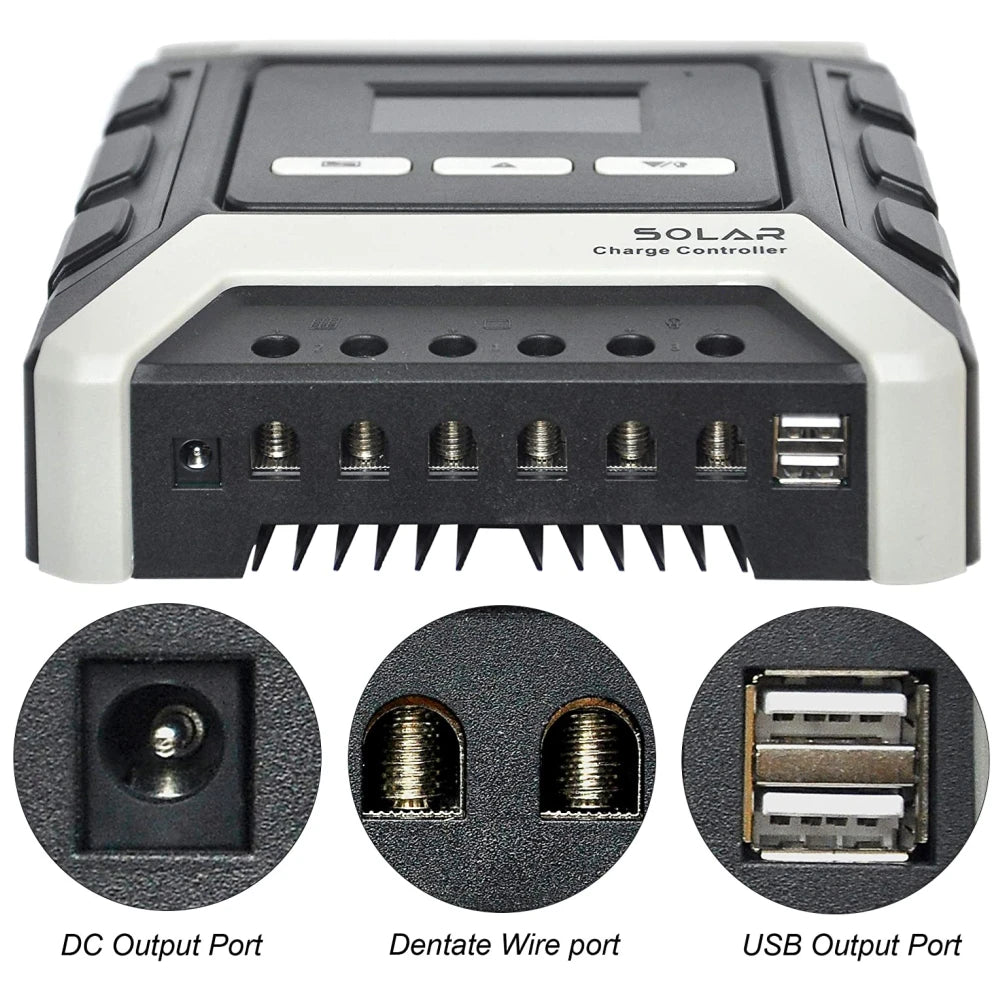

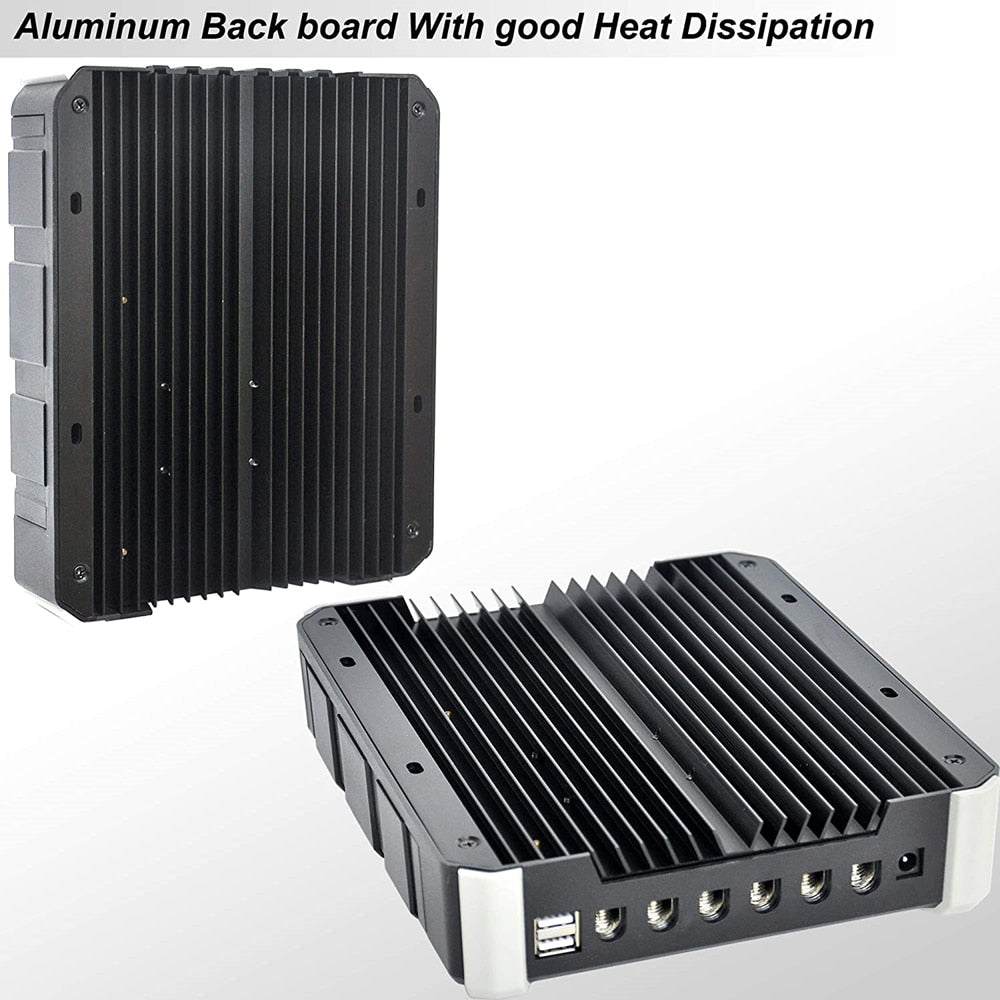

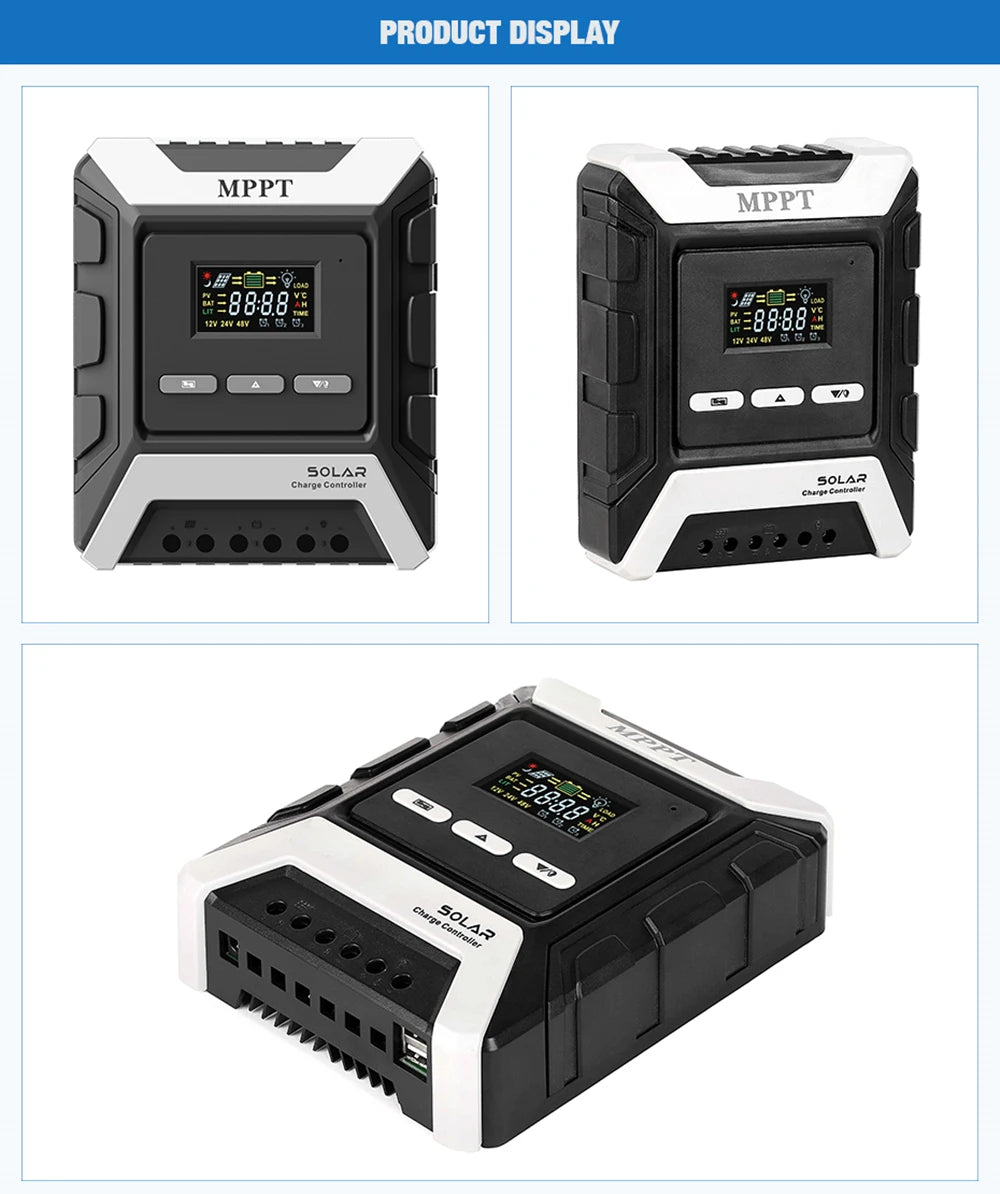

Features a DC output port, wire port, and USB output port for convenient charging.

MPPT Solar Charge Controller for LiFePo4, Lead-Acid, and Lithium batteries. Handles voltages up to 48V with currents ranging from 30A to 80A. Suitable for solar panel charging applications.

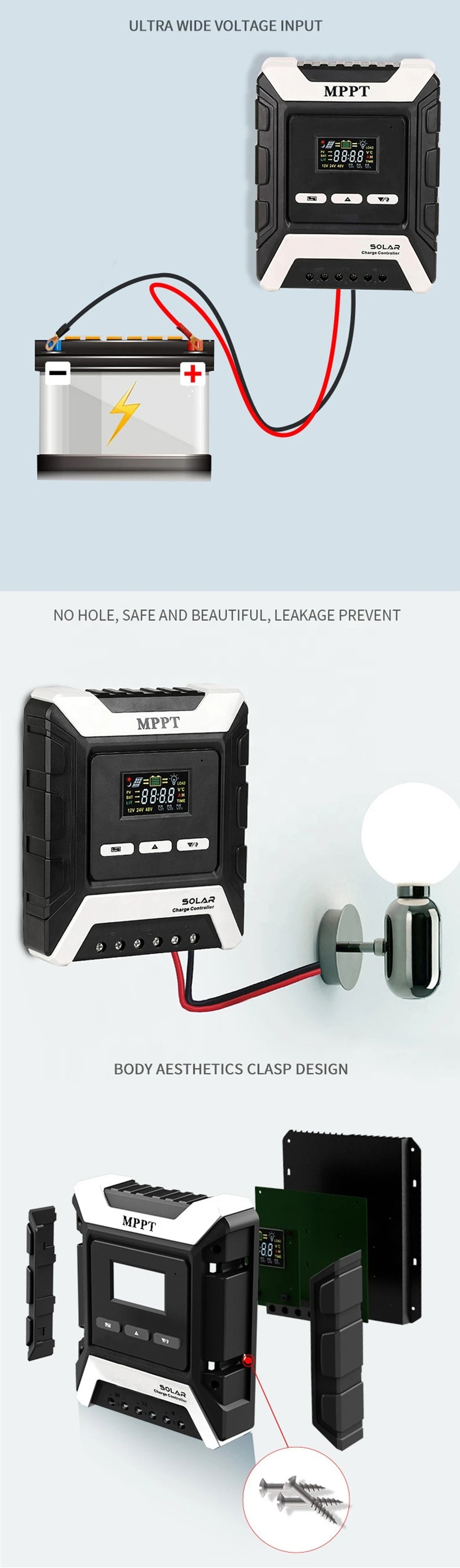

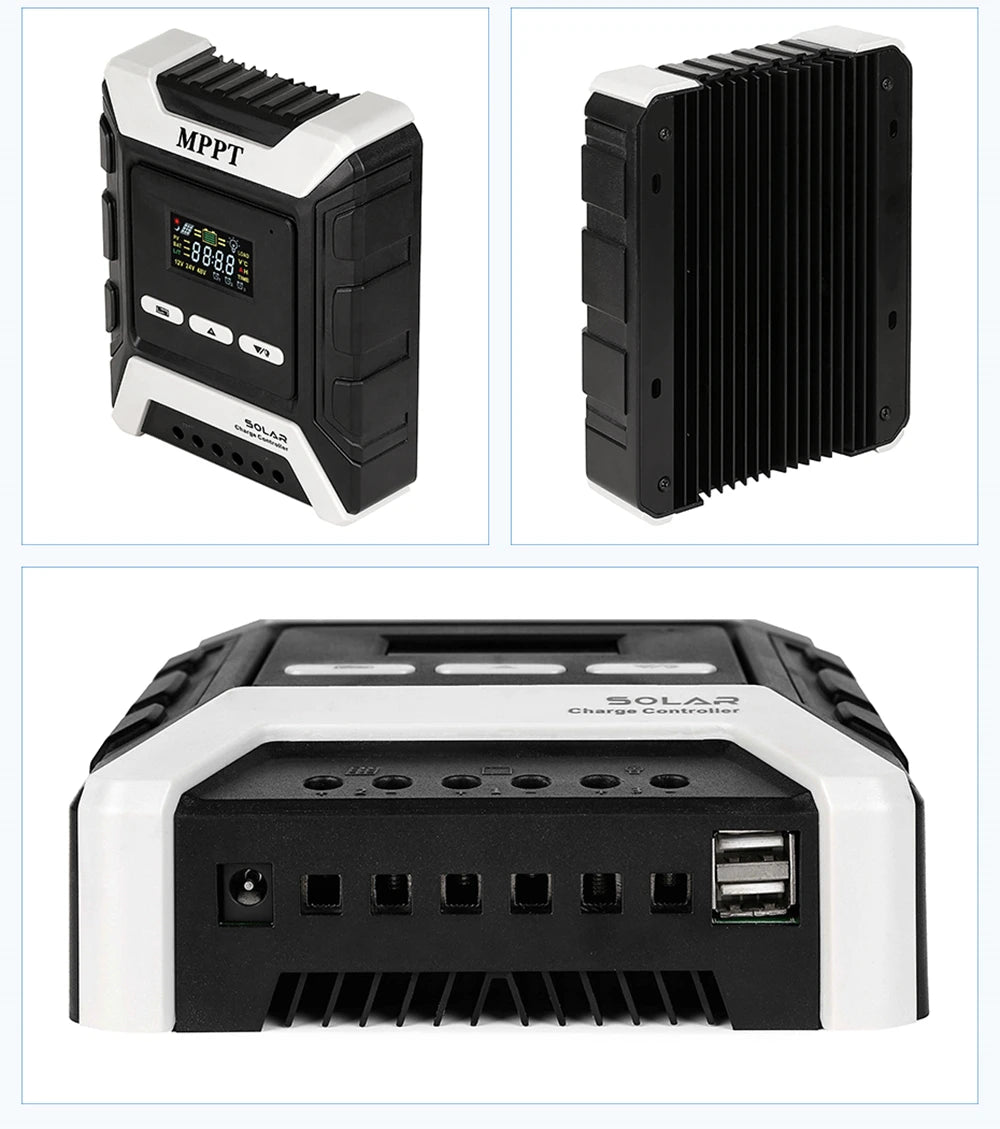

This MPPT solar charge controller features an ultra-wide voltage input and has no holes, ensuring safe and beautiful design. It also prevents leakage and boasts a clasp design for easy installation. Suitable for LiFePO4, lead-acid, and lithium batteries.

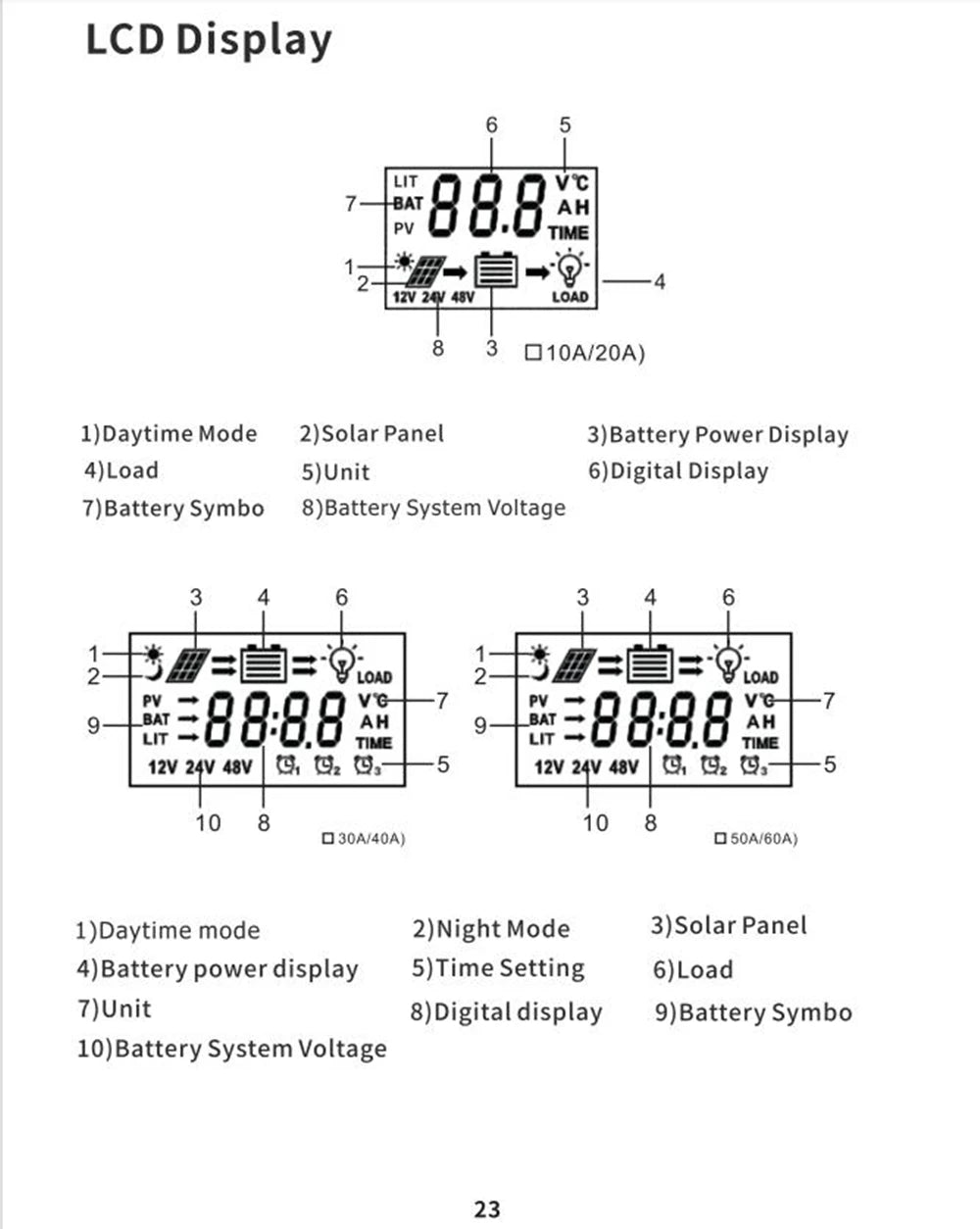

LCD Display shows battery voltage, capacity (888Ah), and time. It features daytime mode, solar panel monitoring, and load display. Unit options include digital display, battery symbol, and system voltage. The device supports various battery types (LiFePo4, lead-acid, lithium) and has adjustable load settings (30A/40A, 50A/60A).

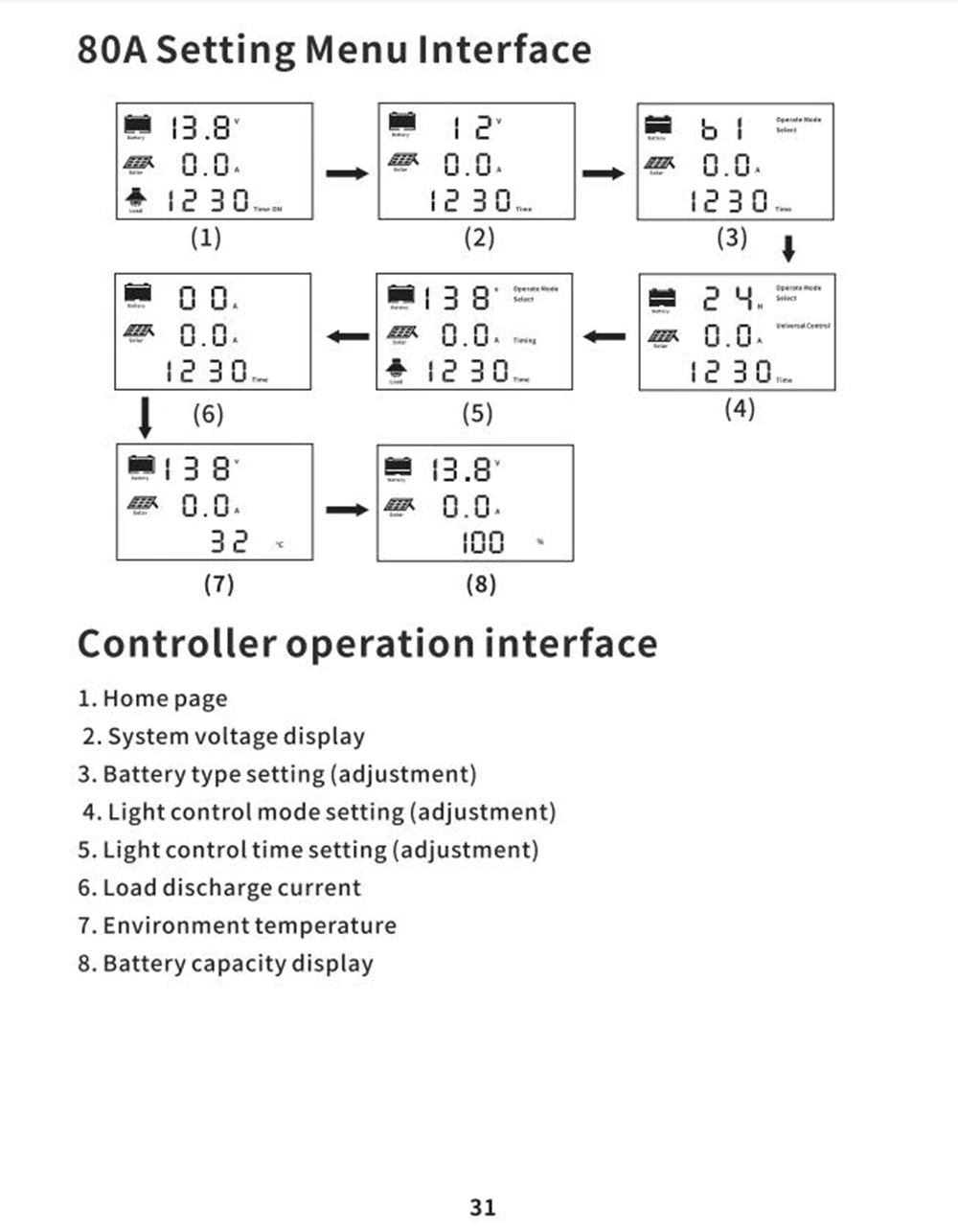

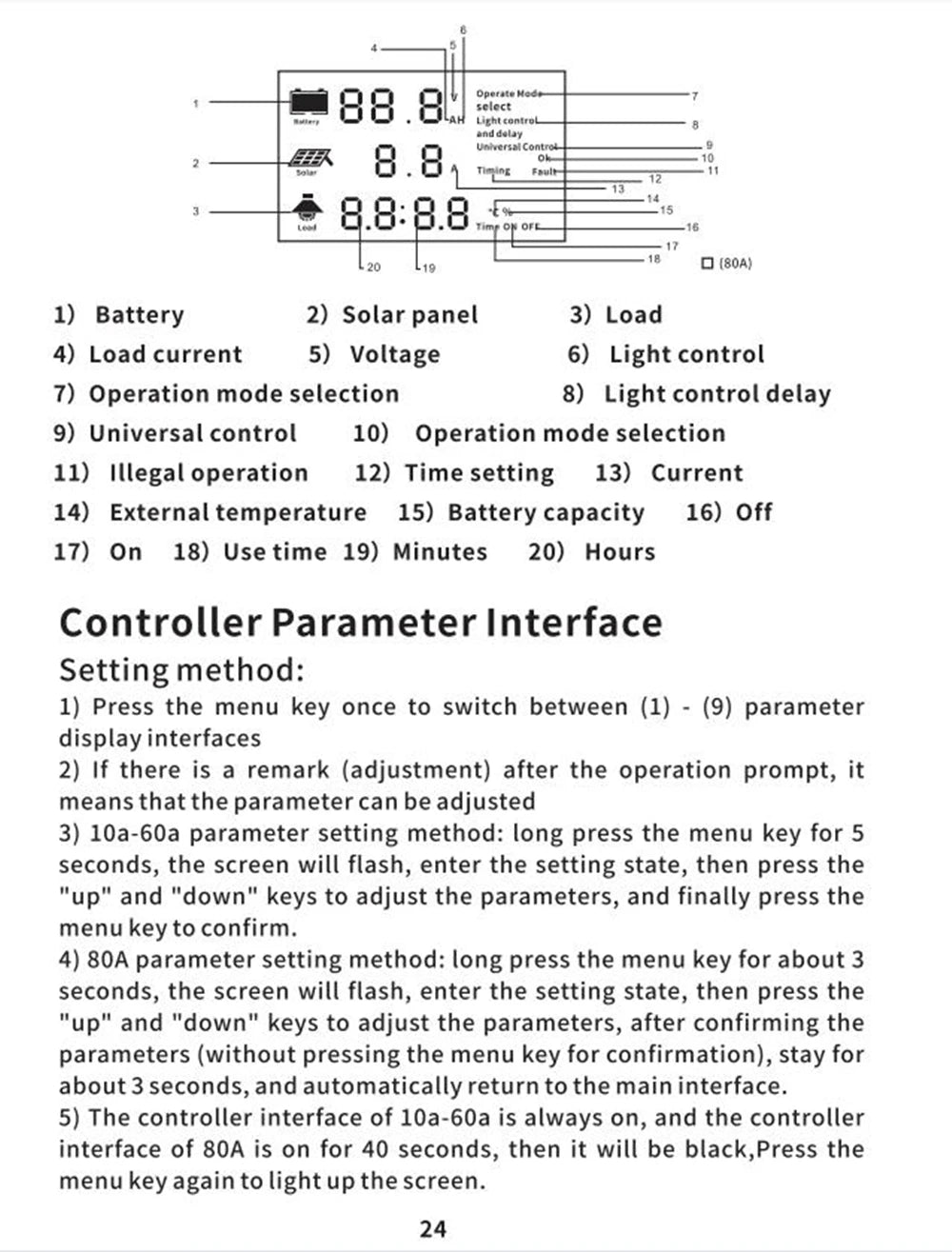

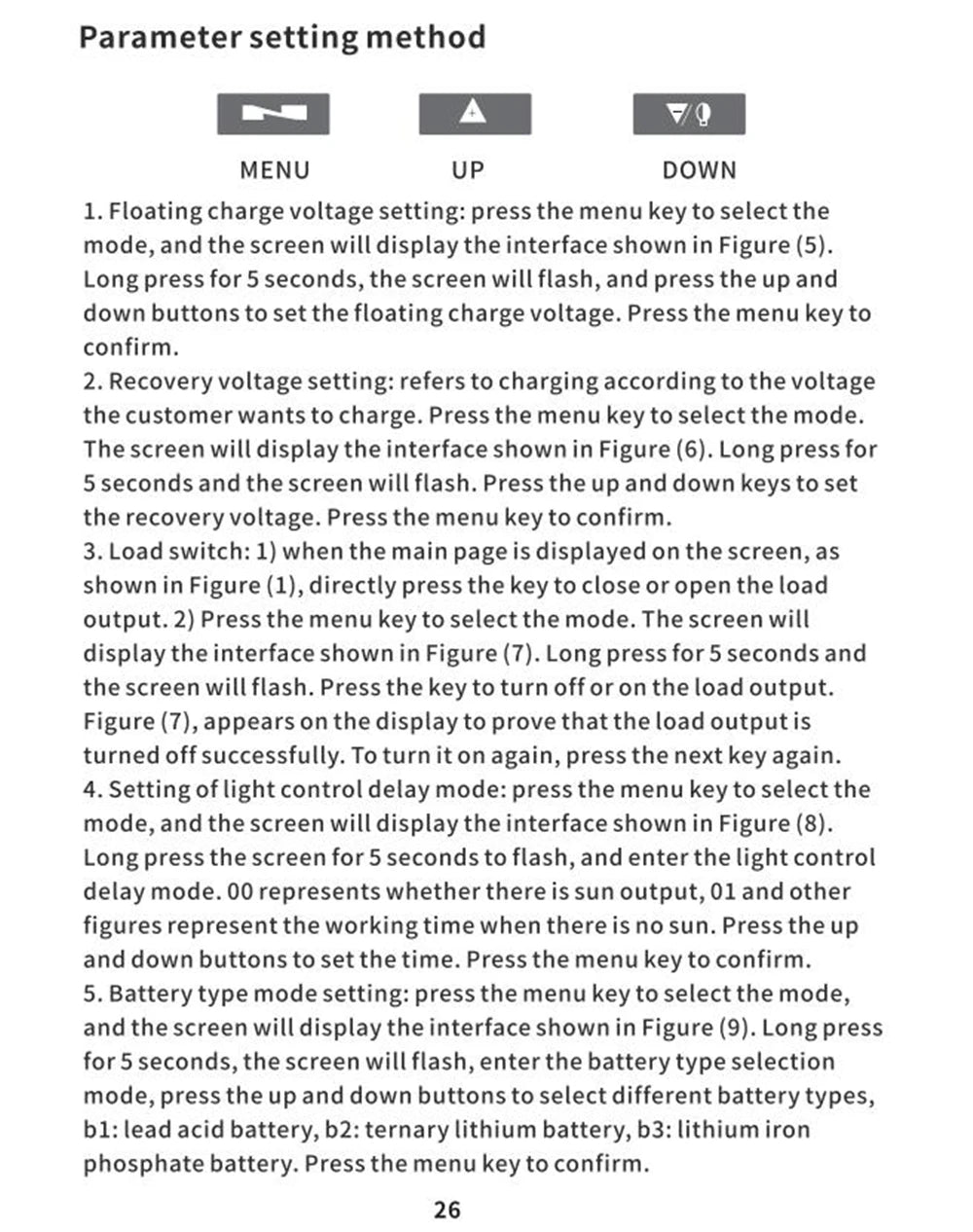

Controller interface provides settings for: Home page, Environment temperature, Charging current, Discharge current, Floating charge voltage adjustment, Recovery voltage adjustment, Load switch adjustment, Light control delay adjustment, and Battery type adjustment. The menu allows you to set parameters within the 10A-20A range.

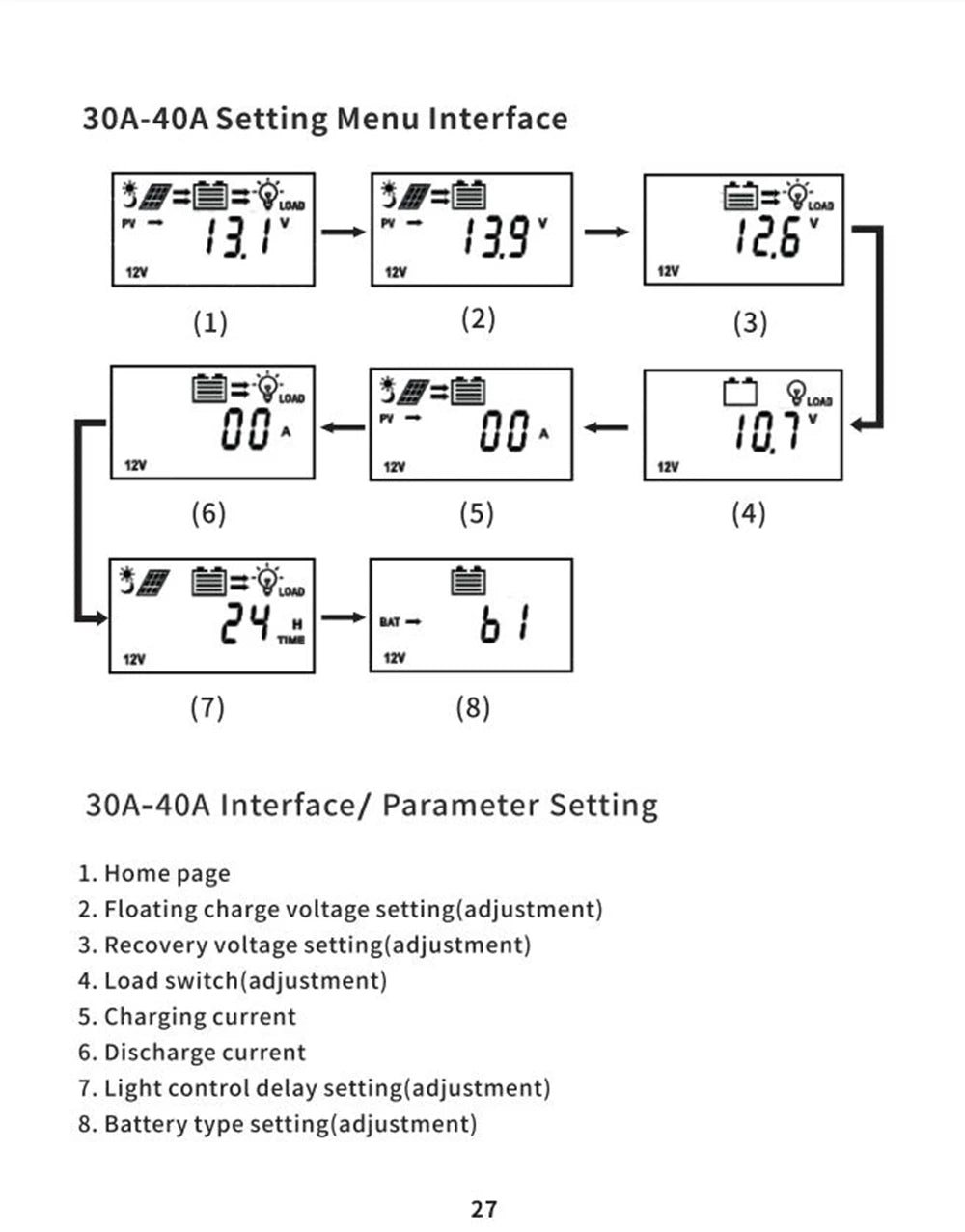

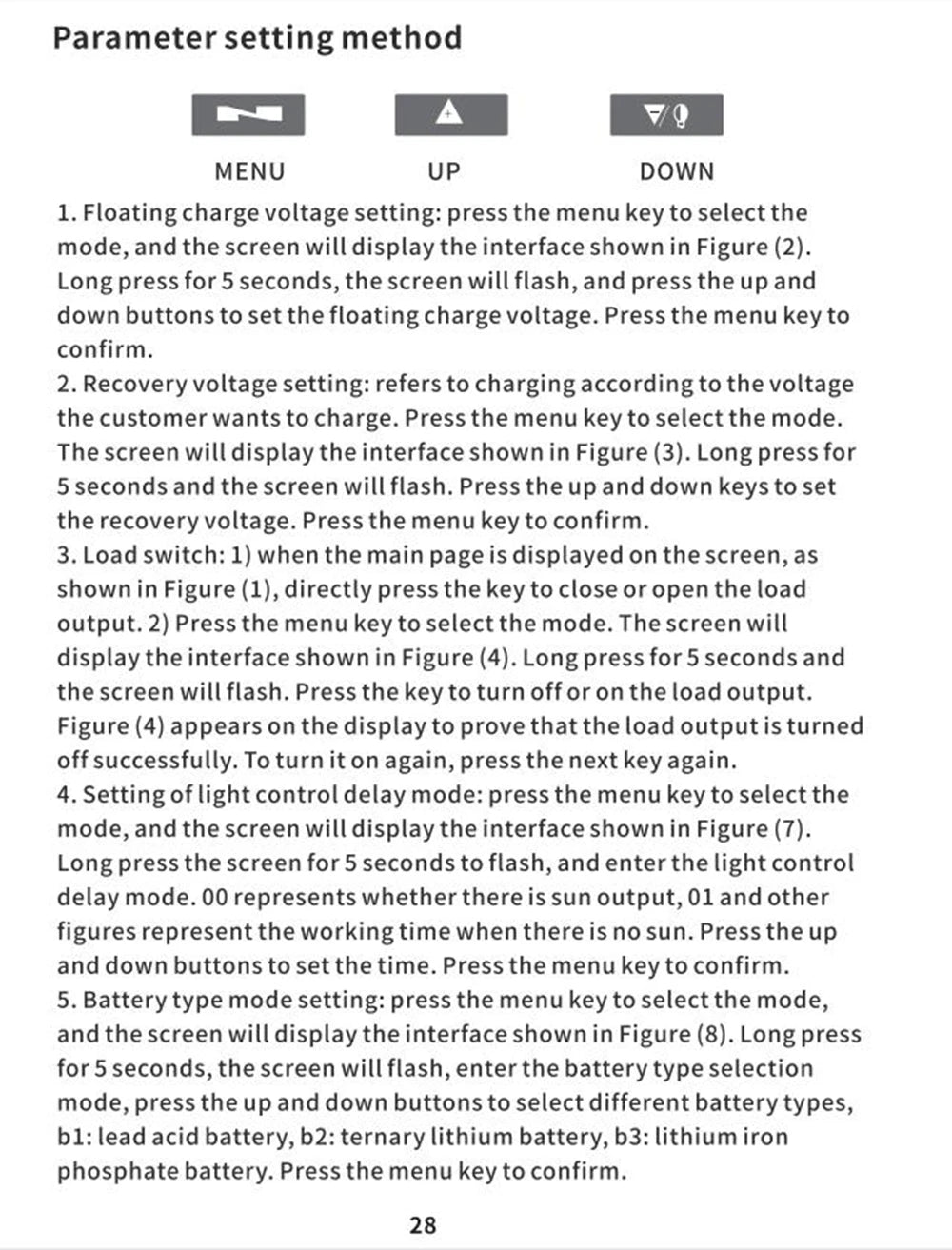

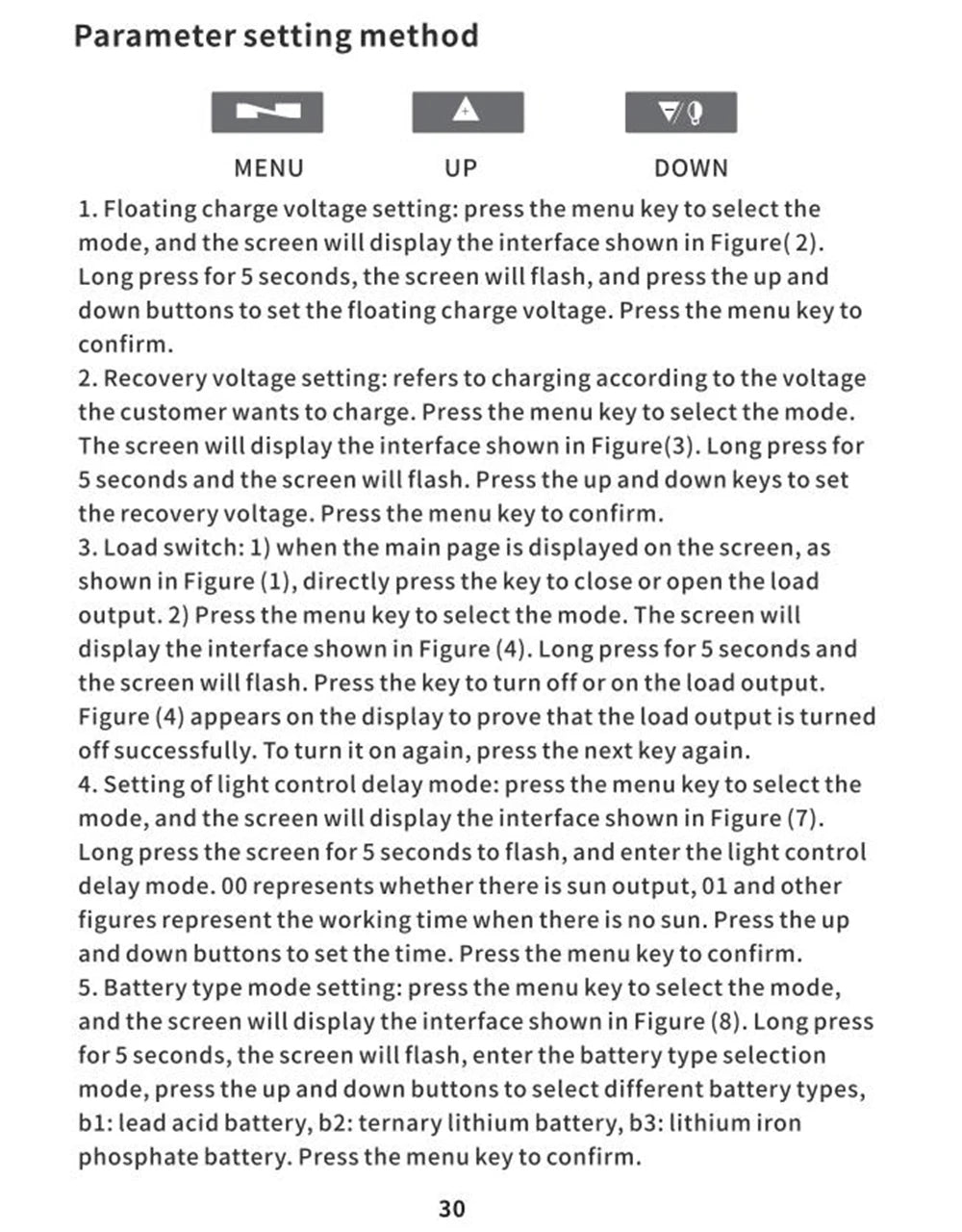

Easy-to-use menu interface for settings: Home page, floating charge voltage adjustment, recovery voltage adjustment, load switch adjustment, charging current, discharge current, light control delay setting, and battery type selection. This 30A-40A solar charge controller supports LiFePo4, lead-acid, and lithium batteries, with adjustable parameters to suit your needs.

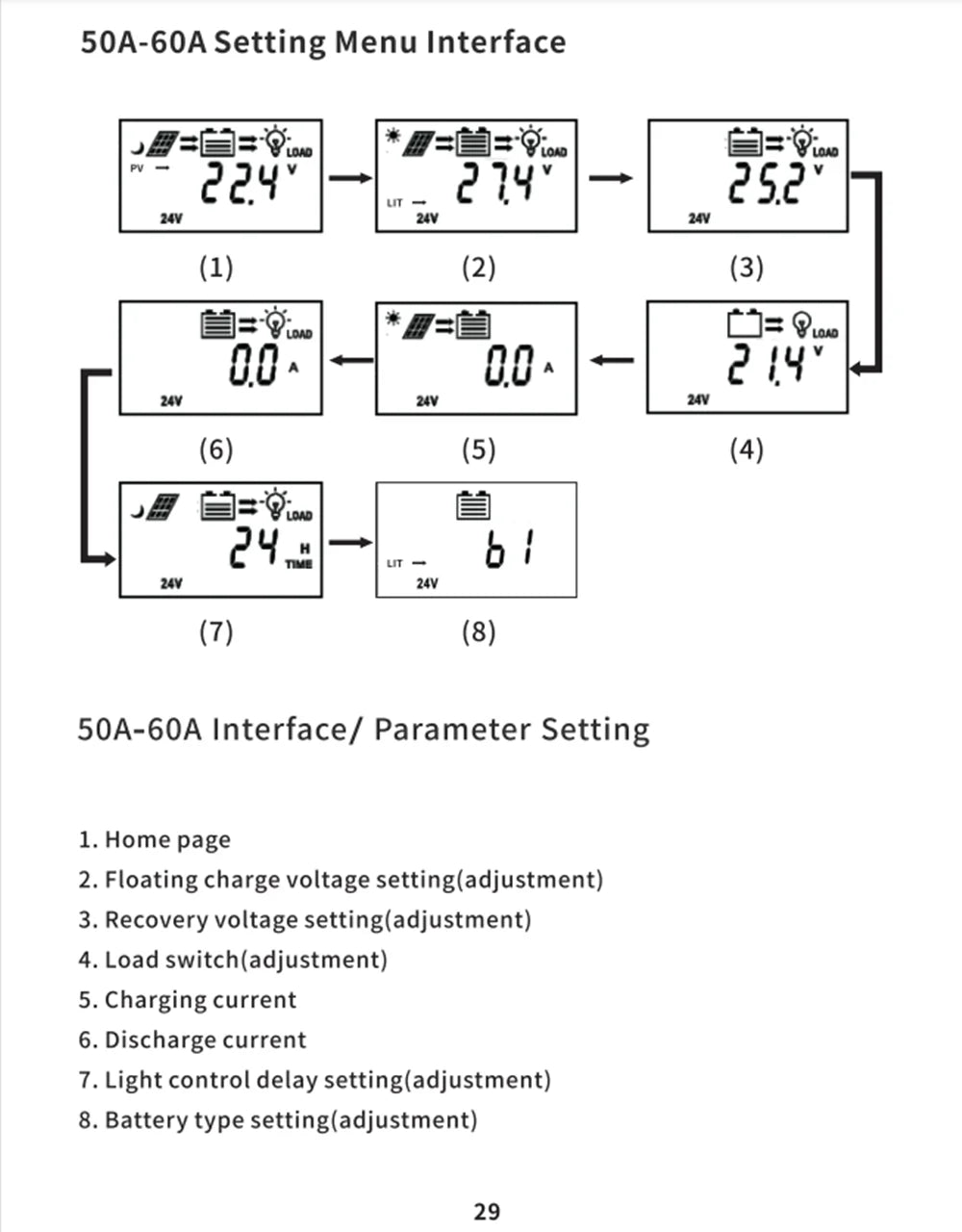

User-friendly interface: Set parameters for charging (50A-60A), including home page, floating charge voltage, recovery voltage, load switch, charging current, discharge current, light control delay, and battery type.

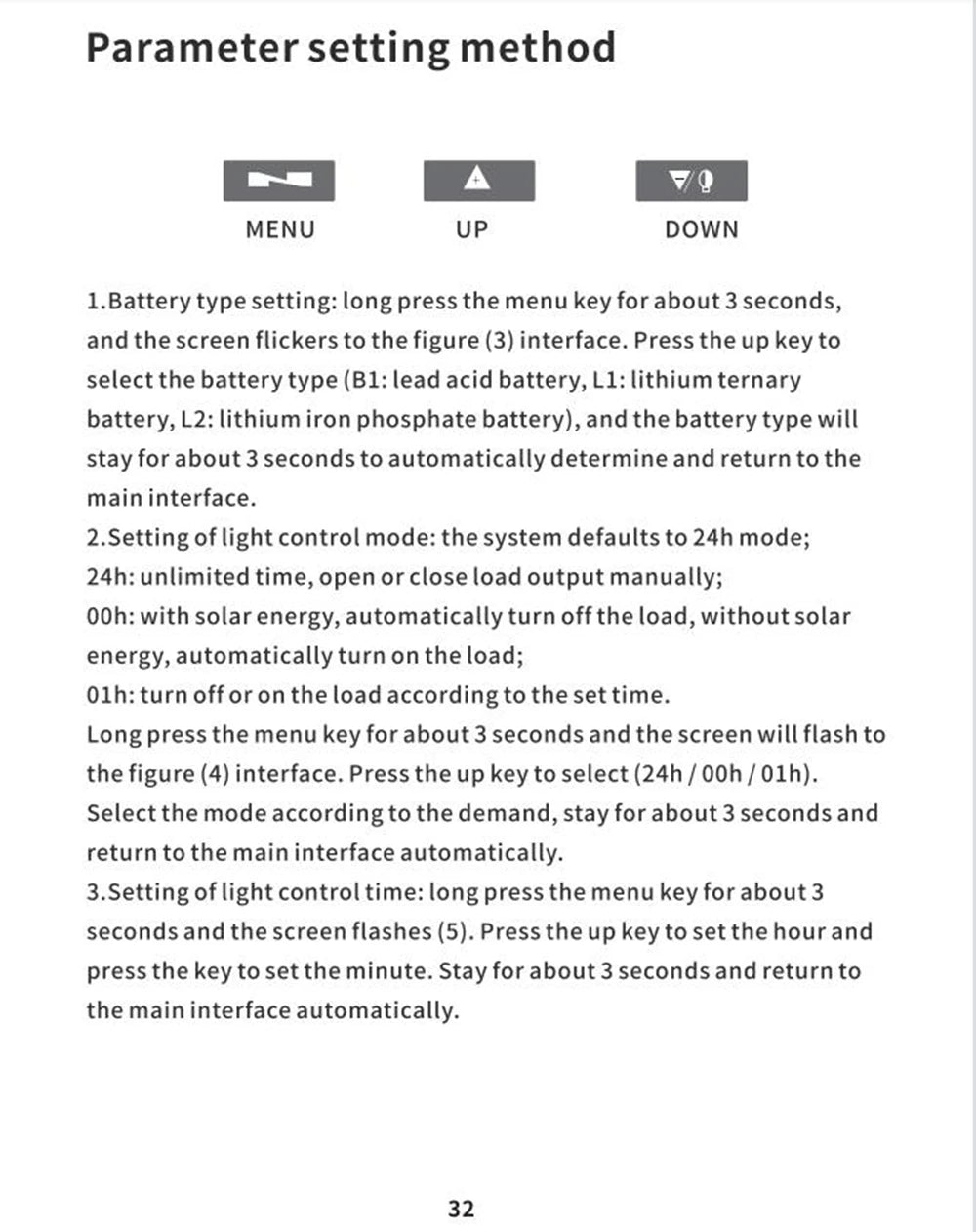

This MPPT solar charge controller features an intuitive interface with 8 settings: home page, system voltage display, battery type setting, light control mode setting, time setting, load discharge current, environment temperature, and battery capacity display. The settings are easily accessible through the 80A menu, allowing for precise control over your solar charging needs.
