Mppt Solar Charge Controller Solar Panel MPPT LCD Display 10A 20A 30A 40A With WIFI 12V/24V Battery Regulator Dual USB LifePo4
Mppt Solar Charge Controller Solar Panel MPPT LCD Display 10A 20A 30A 40A With WIFI 12V/24V Battery Regulator Dual USB LifePo4
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Warranty: 1 year
System voltage: 12V24V Auto
Origin: Mainland China
Model Number: MPPT110D/MPPT120D/MPPT130D/MPPT140D
Maximum Current: 10A-40A
Maximum Current: 40A
Max PV voltage: 100V
Is Smart Device: No
Certification: CE
Battery voltage range: 9-32V
Battery type: User,Flooed,AGM,GEL,LifePO4,Lithiu
Application: Charger Controller,Voltage Controller,Wind Controller,Lighting Controller,Solar System Controller
Item description
MPPT Solar Charge Controller with LCD display and WiFi connectivity, suitable for 12V/24V batteries, offering dual USB ports and up to 40A charging capacity.
MPPT solar charge controller with LCD display, suitable for 10A to 40A systems, features Wi-Fi connectivity and dual USB ports.

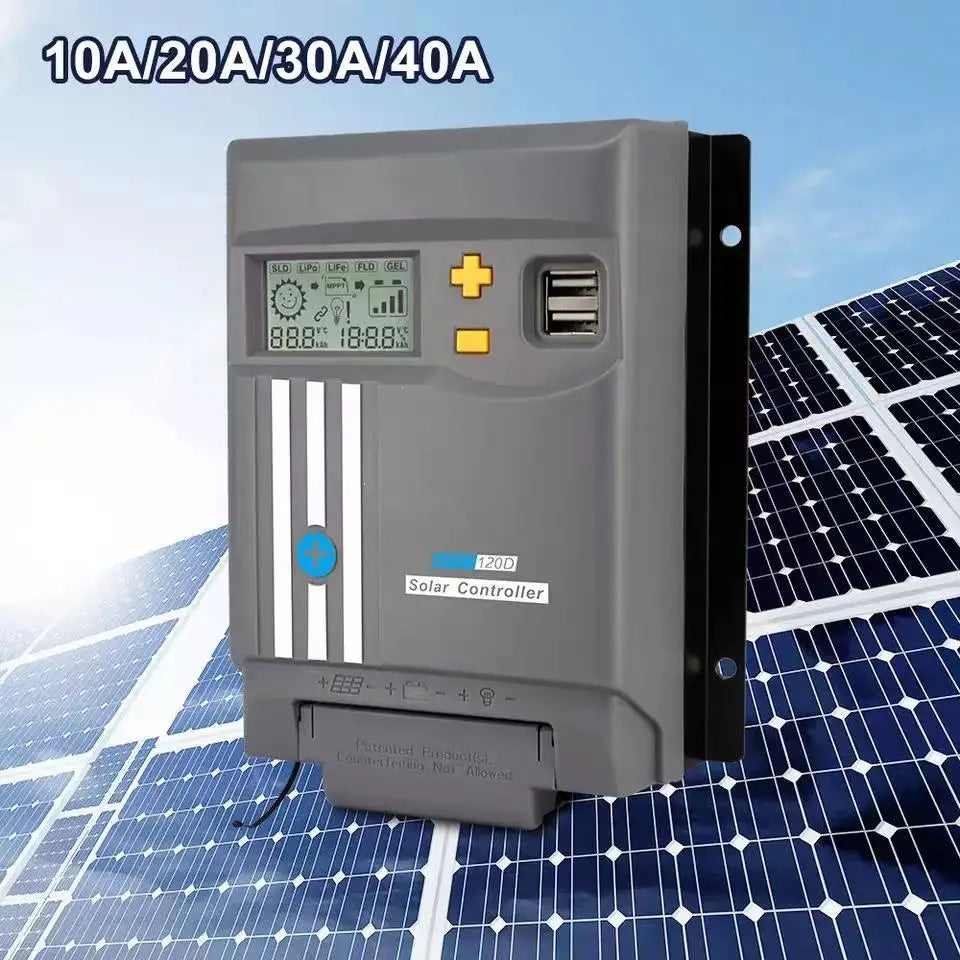

MPPT LCD Display 10A 20A 30A 40A with WIFI 12V/24V Solar Panel Battery Regulator Charge Controller Dual USB LifePo4 or Lithium
MPPT1 series products adopts DC/DC converting technology and MCU technology. It can adjust the working point of the solar array intelligently to make the solar array realize the maximum power output.When the external condition changes,MPPT controller bases on the MCU theory to track the maximum working point of solar panels,this can improve the using efficiency of the solar panels and decrease the solar generating costs.Compared with PWM solar charge controllers,MPPT improve the output efficiency of solar panel by 5% to 30%(the output increasing proportion affected by the factors such as the attribute of solar panels,environmental temperature and lighting conditions).
Features
1. Self-made algorithm,fast and accurate lock MPPT point,within 10 seconds,accuracy is greater than 99%,MPPT peck conversion efficiency 98%.
2. Four-stage charging:high current charing at MPPT points,float charging,absorption charging,equalized charging.
3. Can be used for lithium battery(LiFePO4 battery,ternary lithium battery),when the lithium battery is low voltage protected,the battery can be activated.
4. External temperature sensor,accurate temperature compensation.
5. PV input maximum voltage:100V.
6. The system voltage is 12V/24V automatically identification.
7. Communication function(with built-in or external WIFI,Bluetooth,GPRS module),providing standard MODBUS communication protocol.
Technical Specifications: • System voltage: 12V/24V • Auto-range: 9-32V • Charging current: up to 10A, 20A, or 40A • Max PV voltage: 30V • Battery types supported: Flooded, AGM, GEL, and LifePo4 (Lithium) • Equalize charge settings: + SLD: 14.6V + GEL: 14.2V + FLD: 14.8V • Absorption charge: 13.8V for all battery types • Low voltage disconnection and reconnection settings • Power consumption: 4OmA (no load) • High voltage disconnect: 6.5V • Equalize charge time: 2 hours • Absorption charge time: 1 hour • Light control voltage: ~15mA/cell • Temperature compensation: ±20.29V • Charge loop voltage: not specified • Discharge voltage drop: <0.16V • LCD screen temperature range: -20°C to +70°C (-4°F to +158°F) • Working temperature: 30°C (86°F) to 80°C (176°F) • Storage temperature: -55°C to +150°C (-67°F to +302°F) • Humidity: no condensation • Grounding: Positive grounding • Communication port: RS485 or RJ45, with drop-loop communication mode

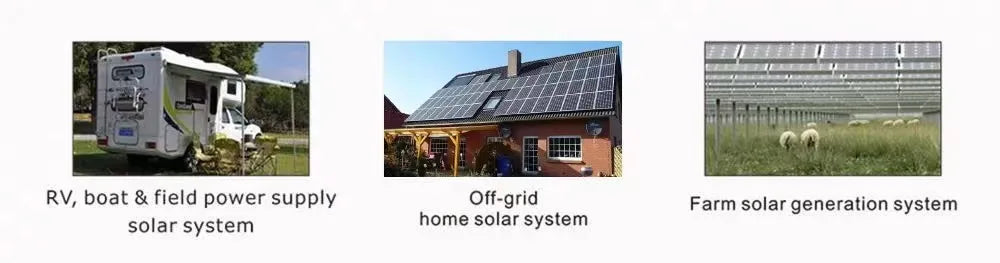

Suitable for RVs, boats, fields, and off-grid homes, this solar charge controller regulates dual USB outputs and supports 12V/24V battery systems.

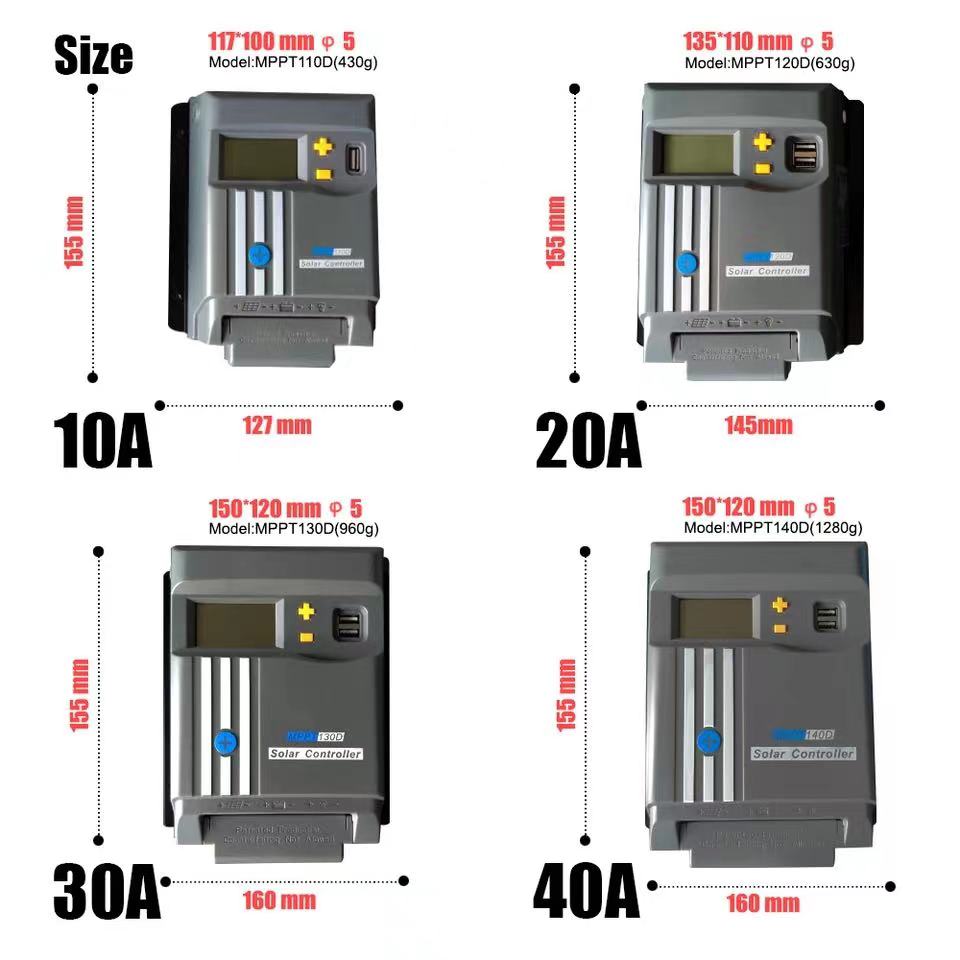

Introducing the MPPT11OD/12OD/1300/14OD Solar Charge Controller with LCD display. It supports 10A, 20A, 30A, or 40A charging for your 12V/24V battery. Features include Wi-Fi connectivity, dual USB ports, and a compact design (135x110mm). Weighing 430g to 1280g, this controller is perfect for LifePo4 batteries.
Mppt Solar Charge Controller: A smart solar panel regulator with LCD display, dual USB ports, and Wi-Fi connectivity for 12V/24V battery control, suitable for small to medium-sized systems.
