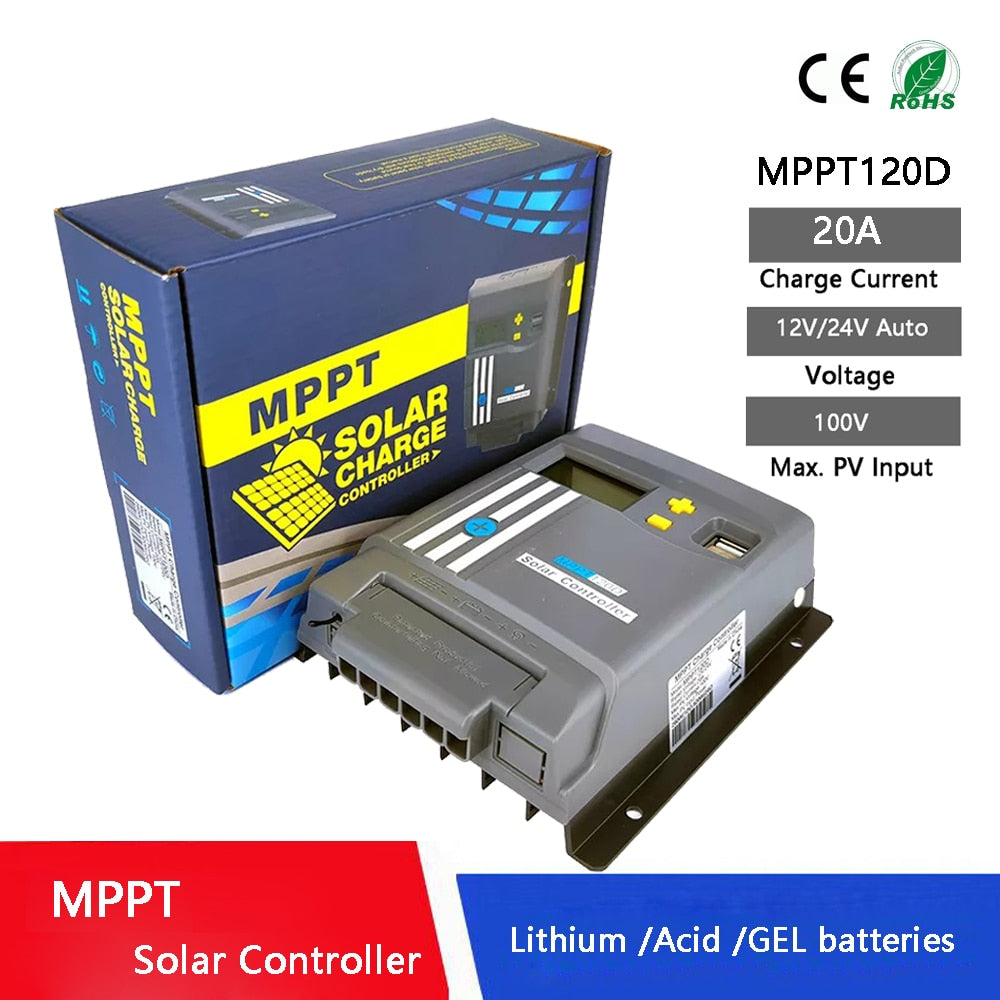

MPPT Solar Charge Controller 20A 12V/24V Auto with WiFi Bluetooth Device LCD Display Battery Regulator Dual USB LifePo4
MPPT Solar Charge Controller 20A 12V/24V Auto with WiFi Bluetooth Device LCD Display Battery Regulator Dual USB LifePo4
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
System voltage: 12V/24V Auto.
Origin: Mainland China
Model Number: MPPT120D
Maximum Current: 20A
Max.Solar Panel Input Power: 240W/480W
Max. PV voltage: 100V
Is Smart Device: YES
Certification: CE,RoHS
Battery type: Flooded,AGM,GEL,LifePO4,Lithium
Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station
Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station

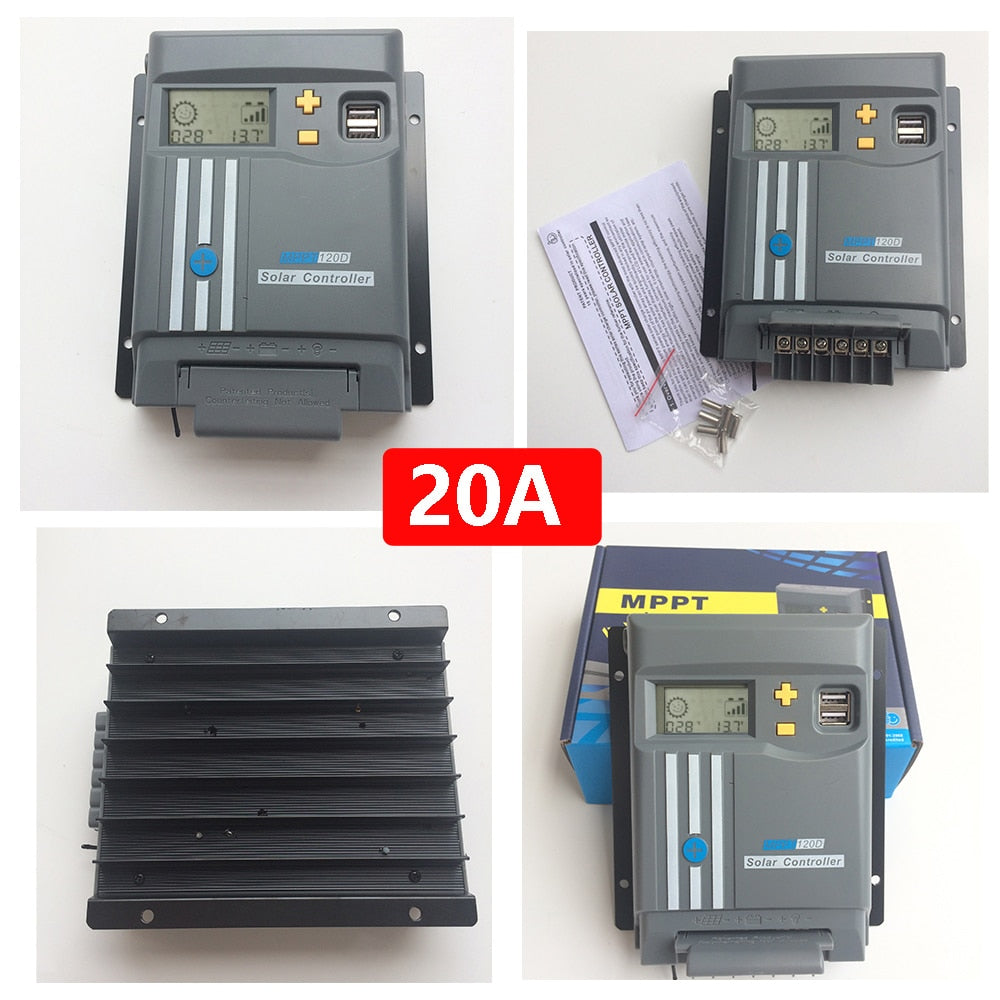

20A MPPT Solar Charge Controller with WiFi Bluetooth Device 12V/24V LCD Display Battery Regulator Dual USB LifePo4
MPPT1 series products adopts DC/DC converting technology and MCU technology. It can adjust the working point of the solar array intelligently to make the solar array realize the maximum power output.When the external condition changes,MPPT controller bases on the MCU theory to track the maximum working point of solar panels,this can improve the using efficiency of the solar panels and decrease the solar generating costs.Compared with PWM solar charge controllers,MPPT improve the output efficiency of solar panel by 5% to 30%(the output increasing proportion affected by the factors such as the attribute of solar panels,environmental temperature and lighting conditions).

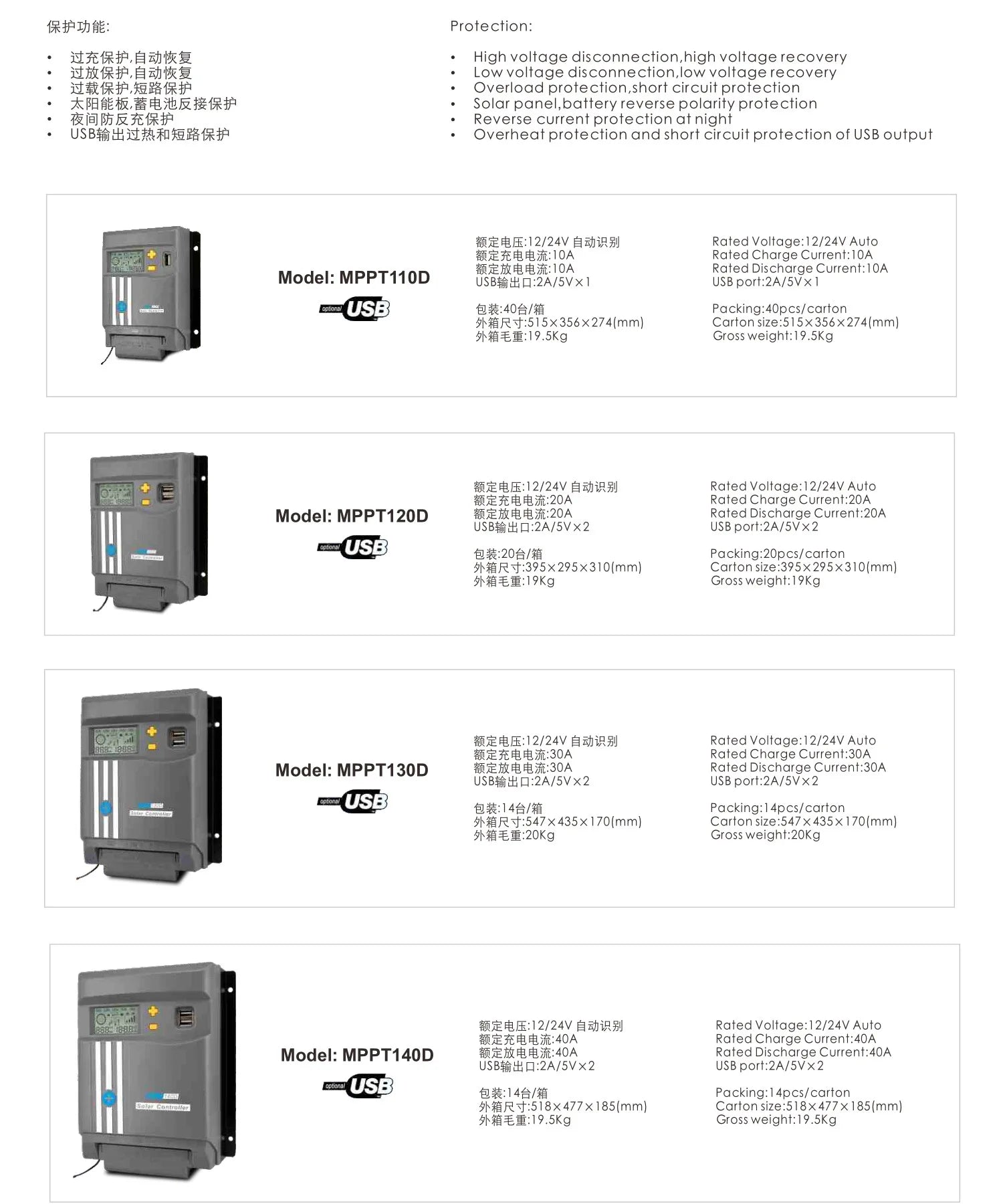

There are optional 10A 20A 30A 40A model：
Model |
Battery Voltage |
Max solar panel input |
12V |
100V 120W |
|
24V |
100V 240W |
|
12V |
100V 240W |
|
24V |
100V 480W |
|
12V |
100V 360W |
|
24V |
100V 720W |
|
12V |
100V 500W |
|
24V |
100V 1000W |
Features:
1. Self-made algorithm,fast and accurate lock MPPT point,within 10 seconds,accuracy is greater than 99%,MPPT peck conversion efficiency 98%.
2. Four-stage charging:high current charing at MPPT points,float charging,absorption charging,equalized charging.
3. Used for lead-acid batteries/Gel batteries.Can be used for lithium battery(LiFePO4 battery,ternary lithium battery),when the lithium battery is low voltage protected,the battery can be activated.
4. External temperature sensor,accurate temperature compensation.
5. PV input maximum voltage:100V.
6. The system voltage is 12V/24V automatically identification.

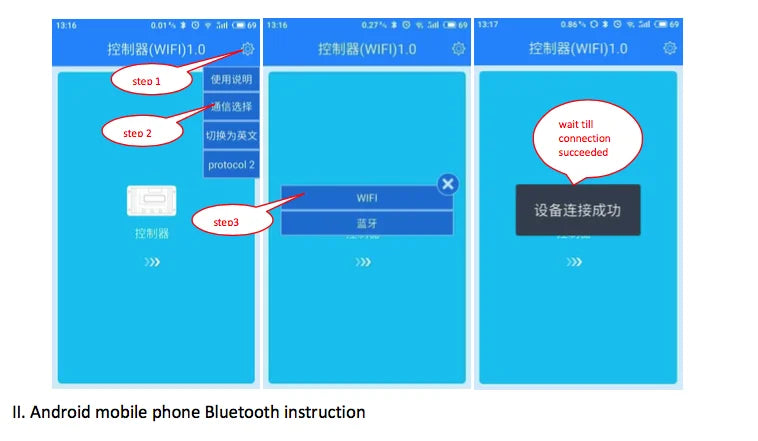

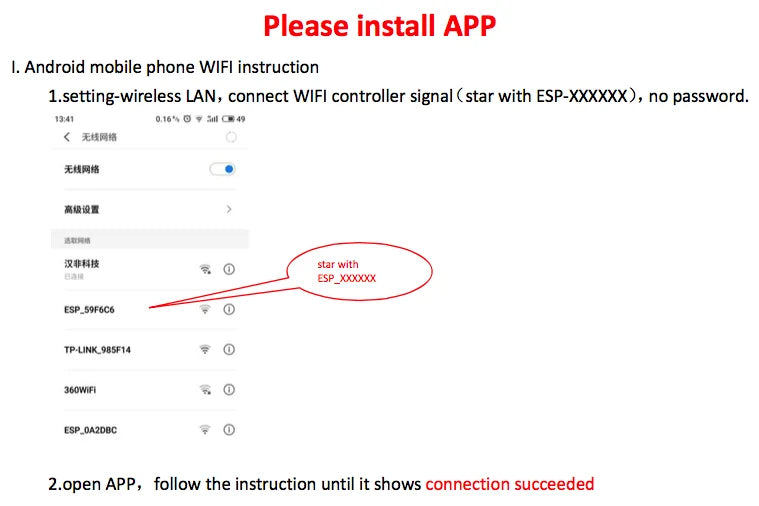

7. Communication function(with built-in or external WIFI,Bluetooth,GPRS module),providing standard MODBUS communication protocol.
Technical Parameters:
|
Model |
MPPT110D |
MPPT120D |
MPPT130D |
MPPT140D |
|
Rated charge current |
10A |
20A |
30A |
40A |
System rated voltage |
12/24V Auto recognized |
|||
Voltage range of battery |
9V-32V |
|||
Max open voltage of solar panel |
100V |
|||
Battery type |
User default, Sealed, Flooded, GEL, LiFePO4, lithium. |
|||
Equalized charging voltage |
Maintenance-free lead-acid battery:14.6V,GEL:No;Lead-acid Flooded battery: 14.8V |
|||
Absorption charging voltage |
Maintenance-free lead-acid battery :14.4V,GEL:14.2V ;Lead-acid Flooded battery: 14.6V |
|||
Float charging voltage |
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :13.8V |
|||
Low voltage reconnection(LVR) |
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :12.6V |
|||
Low voltage disconnection(LVD) |
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :10.8V |
|||
Static loss |
≤45mA/12V, ≤37mA/24V |
|||
High voltage disconnection(HVD) |
16V |
|||
Duration of absorption charging |
2hs |
|||
Duration of equalized charging |
2hs |
|||
Light control voltage |
5V |
|||
Temperature compensation coefficient |
-4mV/°C/2V(25°C) |
|||
Discharge loop voltage drop |
≤0.16V |
|||
LCD temperature |
-20°C ~ +70 °C |
|||
Operating temperature |
-20°C ~ +55 °C |
|||
Storage temperature |
-30 ~ +80 °C |
|||
Working humidity |
≤90%, No condensation |
|||
Protection class |
IP30 |
|||
Grounded type |
Positive grounded |
|||

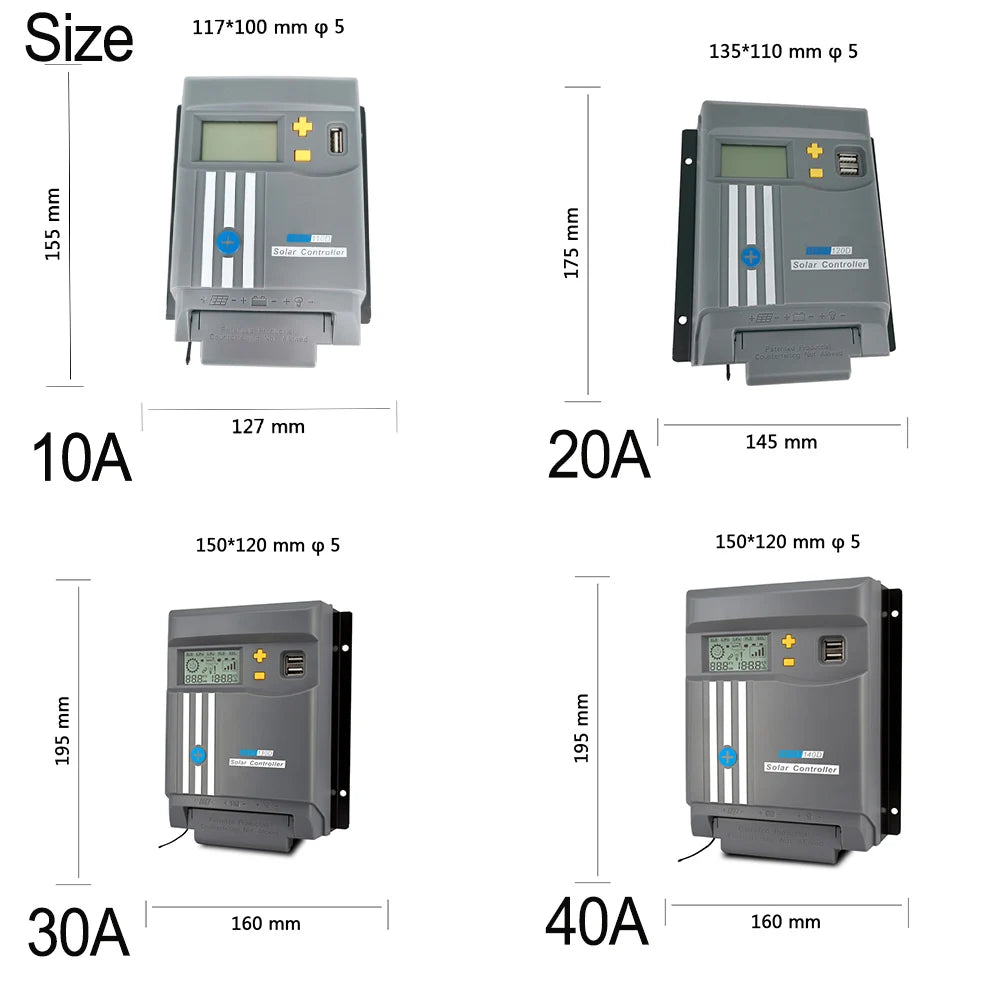

Dimension |
155.5*127*42.5mm |
174.5*145*50mm |
195* 160* 60mm |
215.5*174*65mm |
Hole size for installation |
117*100mm |
135* 110mm |
150*120mm |
164*160mm |
Aperture for installation |
Φ5mm |
|||
Terminal wiring |
10mm2 /7AWG |
16mm2 /5AWG |
||
Net weight |
0.360kg |
0.525kg |
0.835kg |
1.125kg |
Optional function |
RS485,RS232,BT,wifi |
|||
|
Above the Parameters are in 12V system at 25℃,twice in 24V system. | ||||

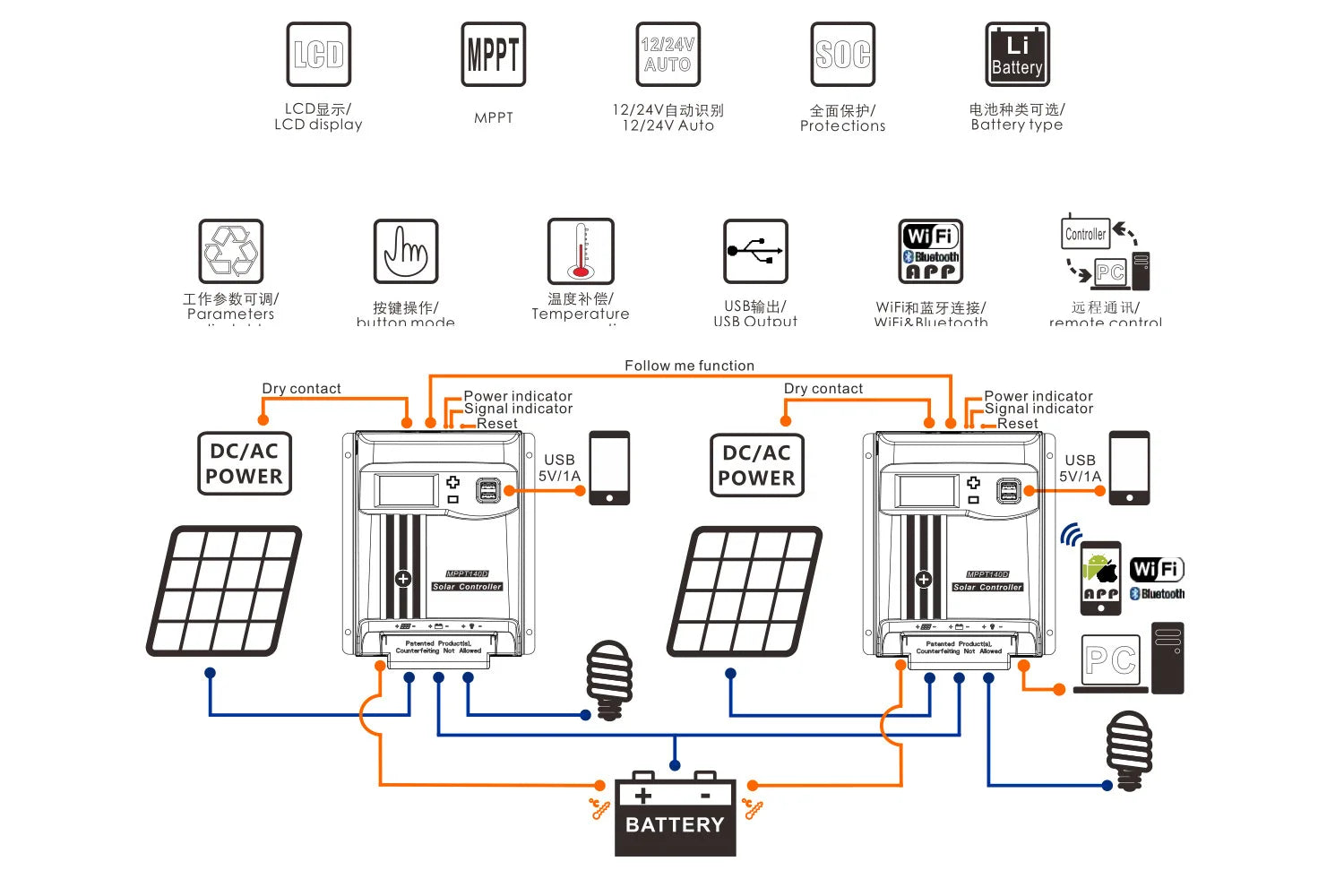

MPPT Solar Charge Controller with WiFi Bluetooth, 20A, 12V/24V, auto-adjusting LCD display, battery parameters, protections, and adjustable button modes for temperature-compensated charging via dual USB outputs.

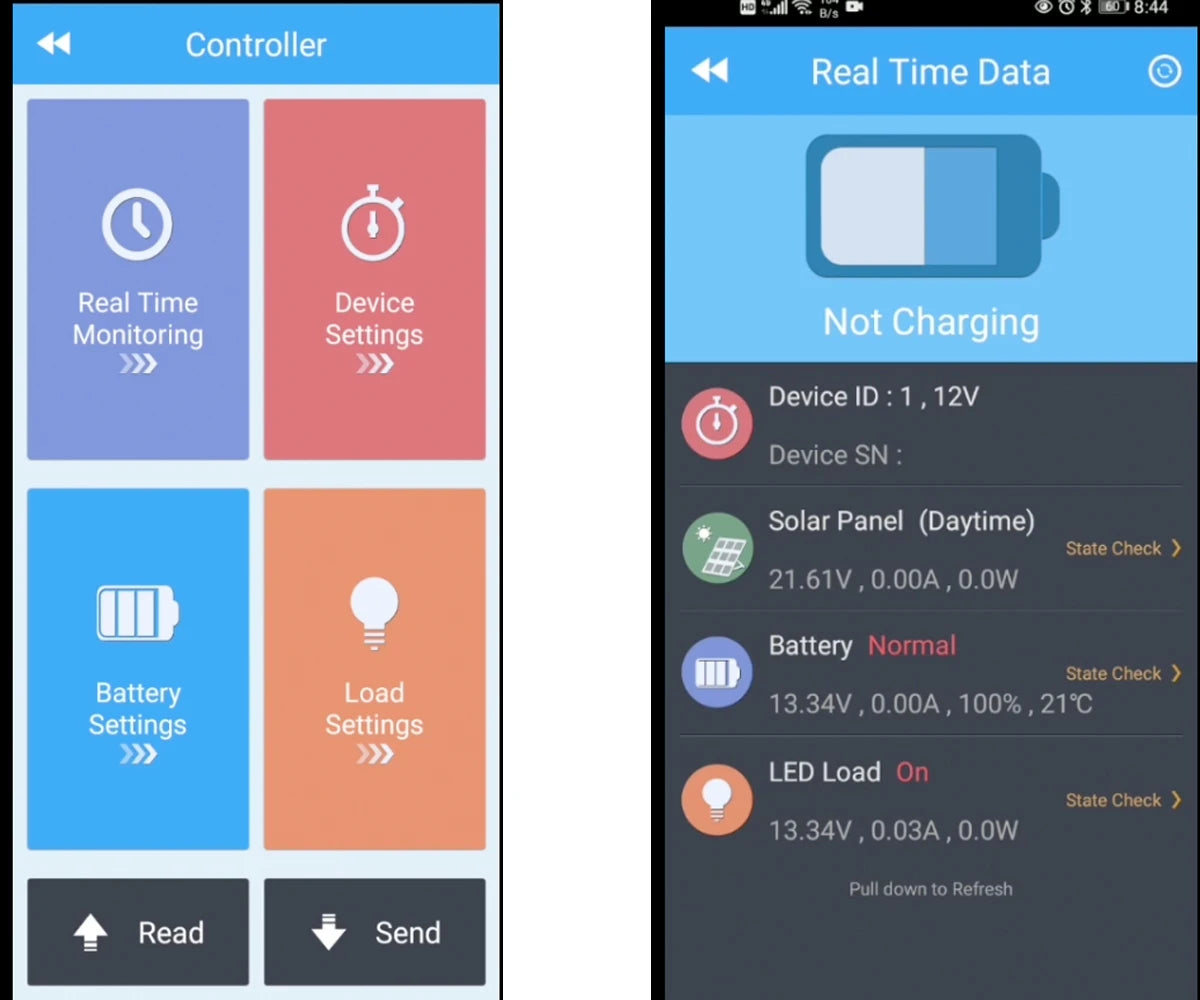

Real-time monitoring: Solar panel voltage (21.61V), battery load status (100%), and temperature (21°C). Device settings include device ID #1, 12V device serial number #, and daytime solar panel state check. The MPPT controller shows real-time data, including charging status and battery normal state check.

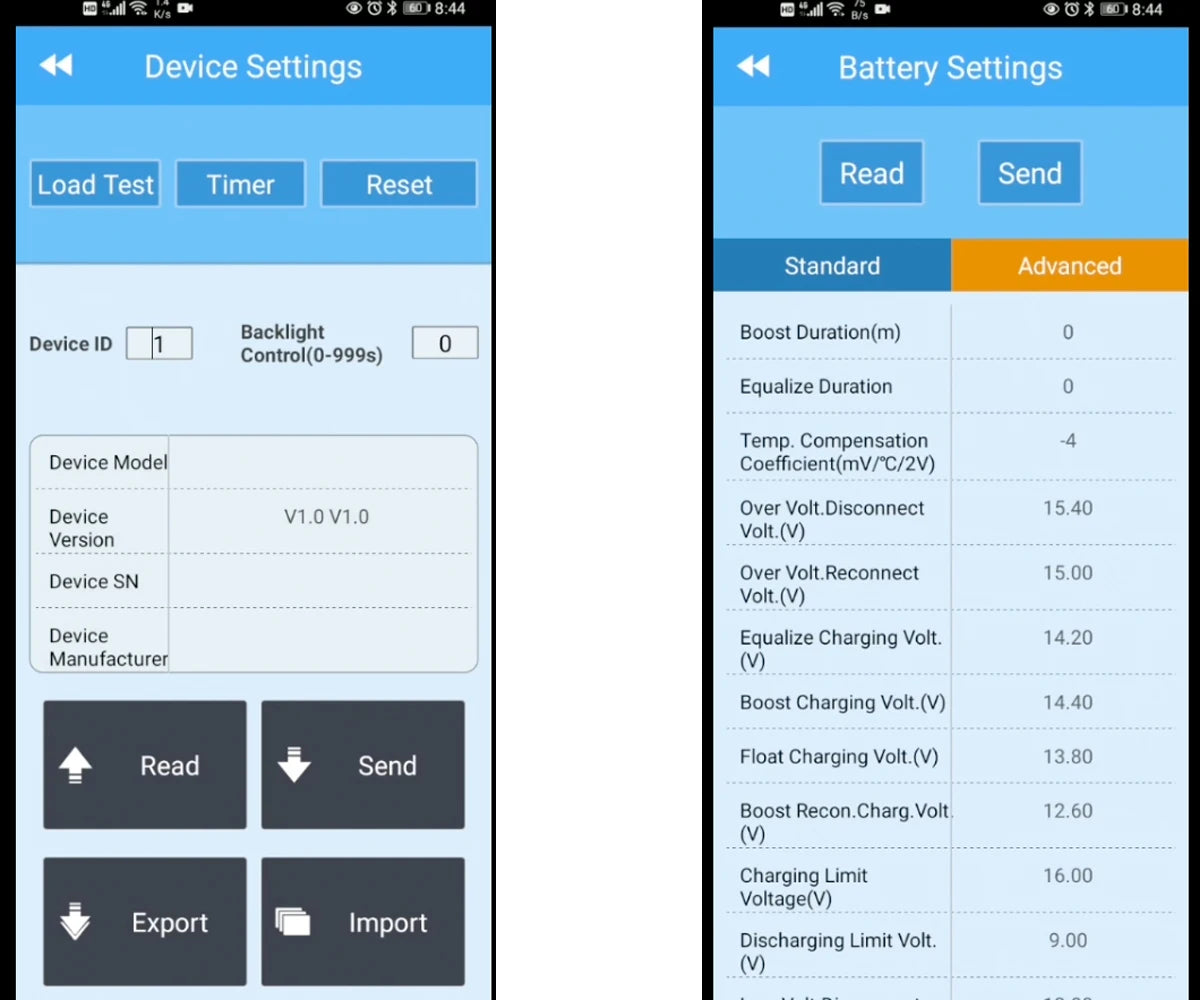

Settings for [Device Settings] include battery settings, load testing, timer reset, read/send modes, standard/advanced device ID, backlight control, and temperature compensation. Device model coefficient: 14.40mV/*C/2V. Overvoltage disconnect at 15.40V, reconnect at 15.00V. Equalize charging voltage: 14.20V; boost charging voltage: 14.40V; float charging voltage: 13.80V.
