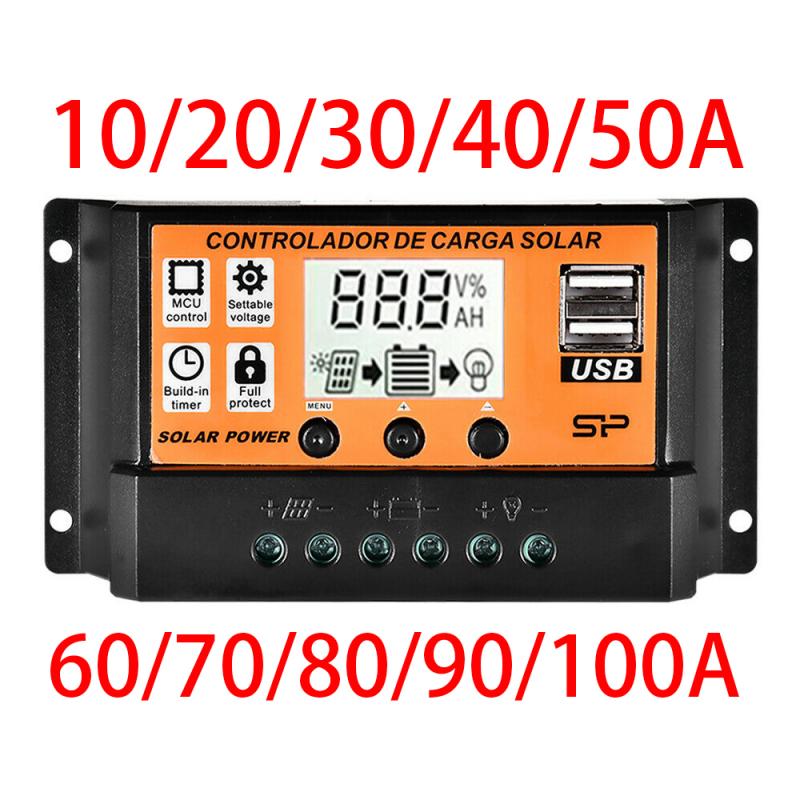

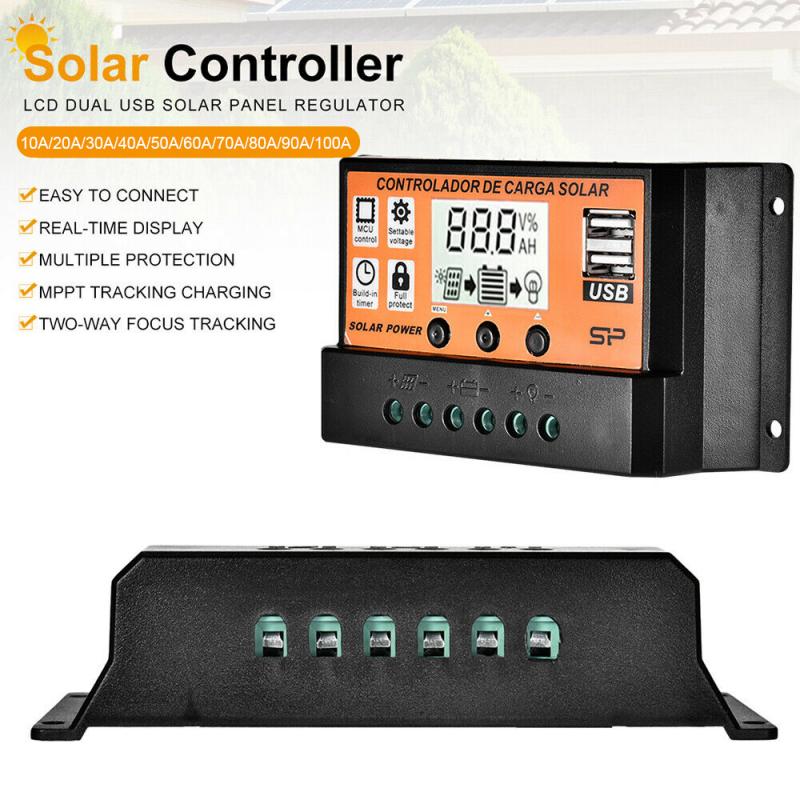

MPPT Solar Charge Controller 12V 24V 10A 20A 30A 40A 50A Solar Controller Solar Panel Battery Regulator Dual USB 5V LCD Display
MPPT Solar Charge Controller 12V 24V 10A 20A 30A 40A 50A Solar Controller Solar Panel Battery Regulator Dual USB 5V LCD Display
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
Origin: Mainland China
Is Smart Device: No
Application: -
Description:
- Advanced maximum power point tracking (MPPT/PWM) technology, the efficiency is not less than 99.5%. High-quality components improve the system performance, and the maximum conversion efficiency is 98%. Super fast tracking speed and guarantee tracking efficiency.
- Large screen LCD display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control + delay control; adjustable charge and discharge parameters, with power-off memory and other functions.
- Dual USB output, the maximum current is 2.5A. Equipped with all necessary protection devices, the control parameters of the system are adjustable, easy to set up and operate. Built-in overheating, overcurrent, short circuit, open circuit protection, fault elimination, controller automatic recovery. Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat.
- Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection. Reverse current protection, low calorific value, with self-recovery function, will not damage the controller.
- Real-time display of temperature, charging current and discharge current. Current autofocus MPPT tracking charging, high charging efficiency, charging process does not stop detection, two-way focus tracking.
Specifications:
Name: LCD screen solar controller
Voltage: DC 12V / 24V
Display: LCD screen
Self-consumption: <10MA
Overcharge protection: 14.4V / 28.8V
Overcharge Float charge: 13.7V / 27.4V
Charge recovery voltage: 12.6V / 25.2V
Over discharge protection: 10.7V / 21.4V
Over discharge recovery: 12.6V / 25.2V
Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
Working temperature: -35 ℃ -60 ℃
12V fits 18V solar panel, 24V fits 36V solar panel
12.0 volt lead acid battery corresponding
The float voltage is set to: 13.6
The recovery discharge voltage is set to: 12.6
The discharge cut-off voltage is set to: 10.7
12.8 volt lithium iron phosphate battery corresponding
The float voltage is set to: 14.6
The recovery discharge voltage is set to: 13.6
The discharge cut-off voltage is set to: 11.0
11.1 volt lithium battery corresponding
The float voltage is set to: 12.6
The recovery discharge voltage is set to: 11.6
The discharge cut-off voltage is set to: 9.6
The minute is adjustable when the output is turned off, which is more convenient (there is no adjustment when the market is only available).
PV system power Description:
10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 12V photovoltaic system: power is respectively 100-1000W
10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 24V photovoltaic system: power is respectively 200-2000W
Package Included:
1X Solar Panels Battery Charge Controller
1X User Manual
Notes:
1. The charge regulator is suitable for lead-acid batteries: OPEN, AGM, GEL, nickel hydride, lithium, Liions, or other batteries.
2. This controller can only use photovoltaic panels as charging power. Do not use DC or other power as charging power.
3.The LCD display has an error of 0.2 V- 0.3 V, but this is normal
4. Old batteries may be degraded the capacity after hundereds of cycles, easily drop lower than 8V, which results in the controller will be shut off (LCD screen become totally “DEAD”).
5. Indoor u

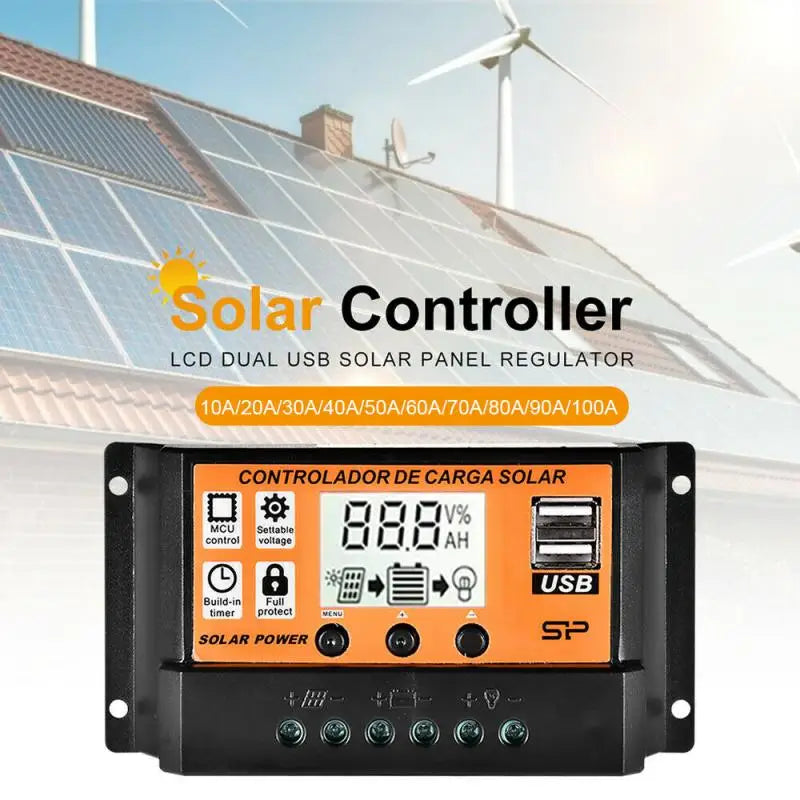

MPPT Solar Charge Controller with LCD Display and Dual 5V USB Ports. Regulates solar power to charge batteries up to 50A. Features include overcharge protection, built-in voltage regulator, and MCU control.

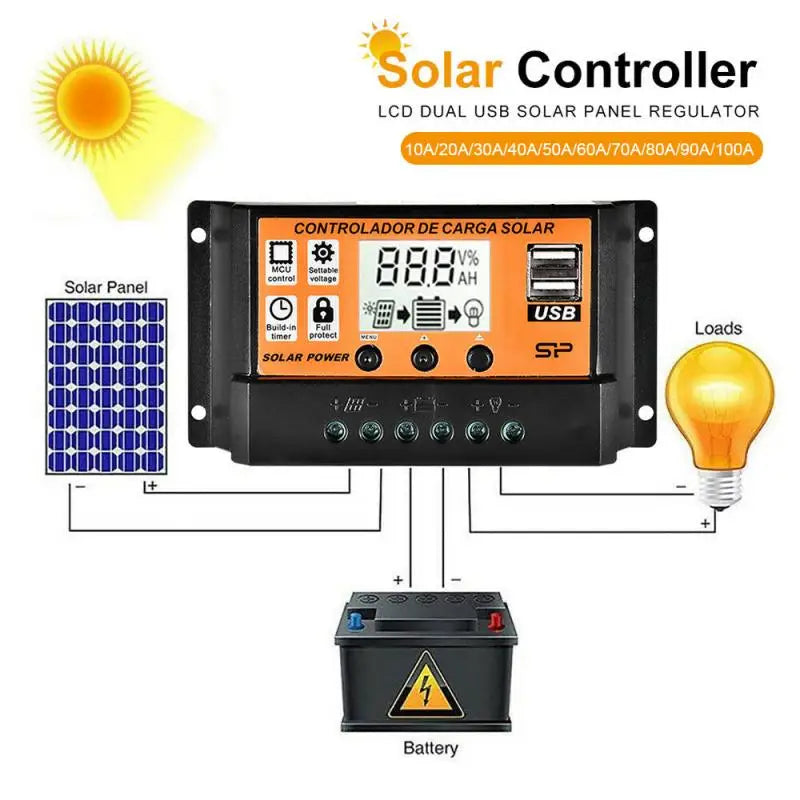

This MPPT solar charge controller regulates power from 12V/24V solar panels, supporting up to 50A current. It features a dual USB port with 5V output, an LCD display for monitoring performance, and can charge multiple battery types. Perfect for off-grid systems or remote applications.
MPPT Solar Charge Controller with Dual USB, LCD display, and real-time monitoring. Easy to connect and control, featuring multiple protection functions, MPPT tracking charging, and two-way focus tracking. Perfect for solar panel systems and battery regulation, with 5V output for your devices.
Control solar power with this MPPT charge controller, suitable for 12V/24V systems up to 50A, featuring dual USB ports and LCD display.

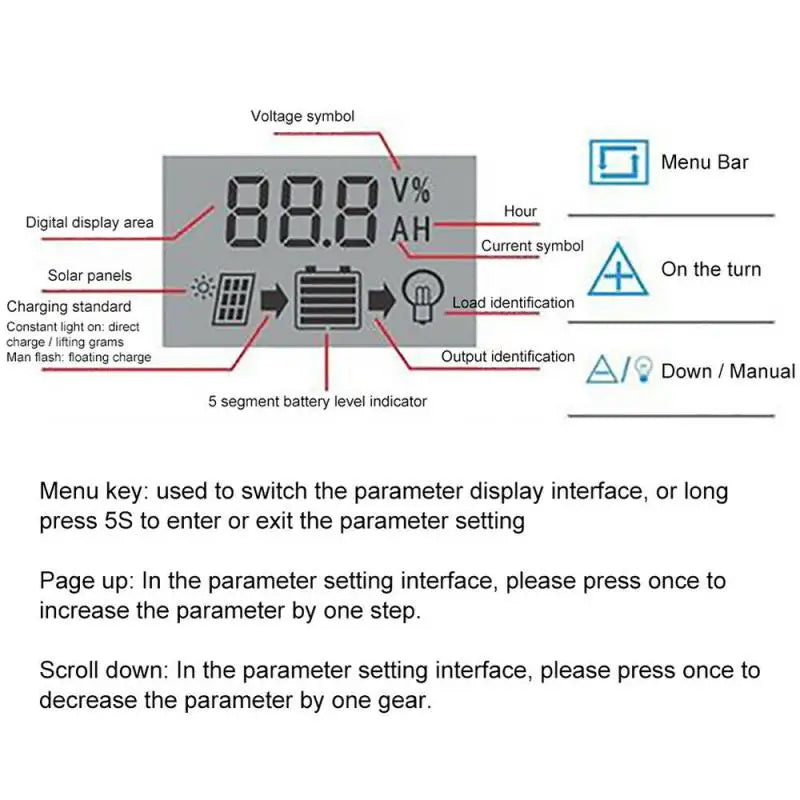

View menu options on the LCD display: voltage (%), hour counter, and digital display. The solar panel icon indicates charging mode. On/Off button lights up when charging occurs. Man symbol shows direct charging; flashing gram indicates floating charge. Output status is displayed. Pressing the menu key switches between parameter displays or enters settings (long press for 5 seconds). In settings, use the arrow keys to increase/decrease parameters and page through menus.

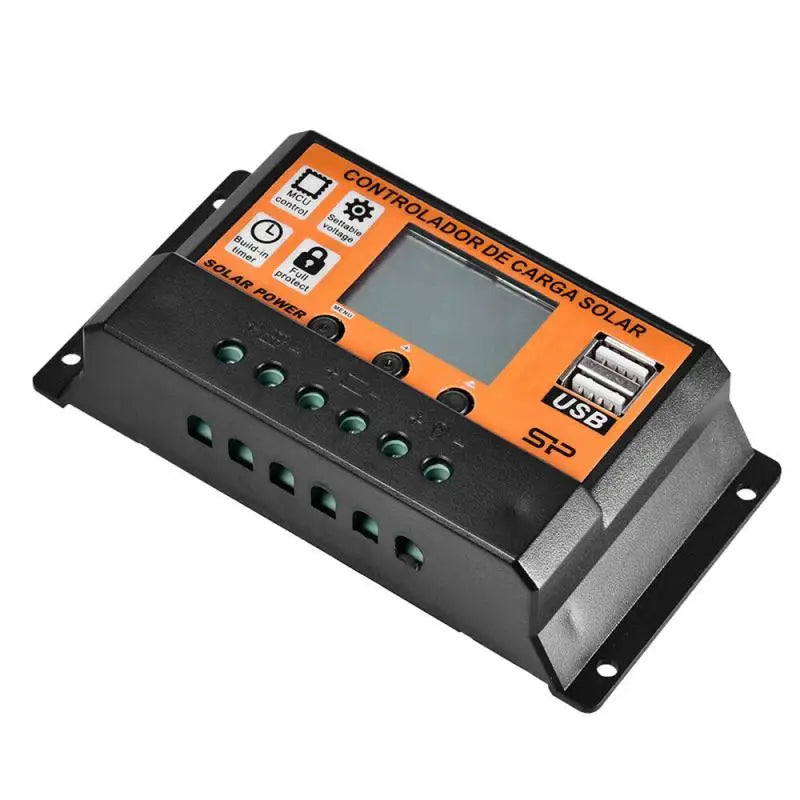

MPPT Solar Charge Controller for 12V/24V batteries, supporting 10-50A charging current. Features dual USB ports and LCD display.

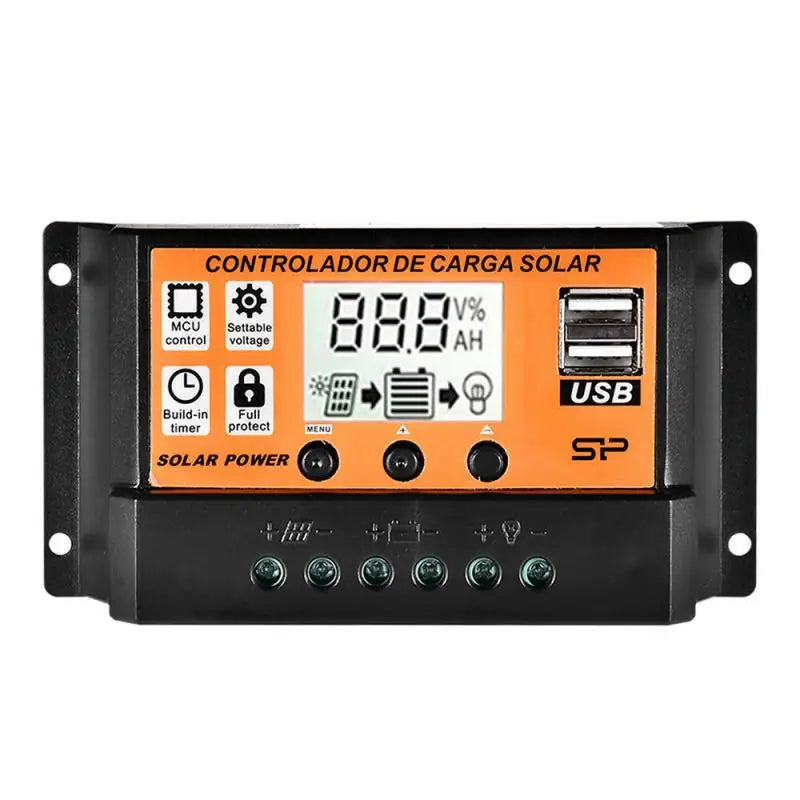

Multi-Panel MPPT Solar Charge Controller with settable control voltage, built-in full timer and protector for solar power systems. Dual USB ports available.

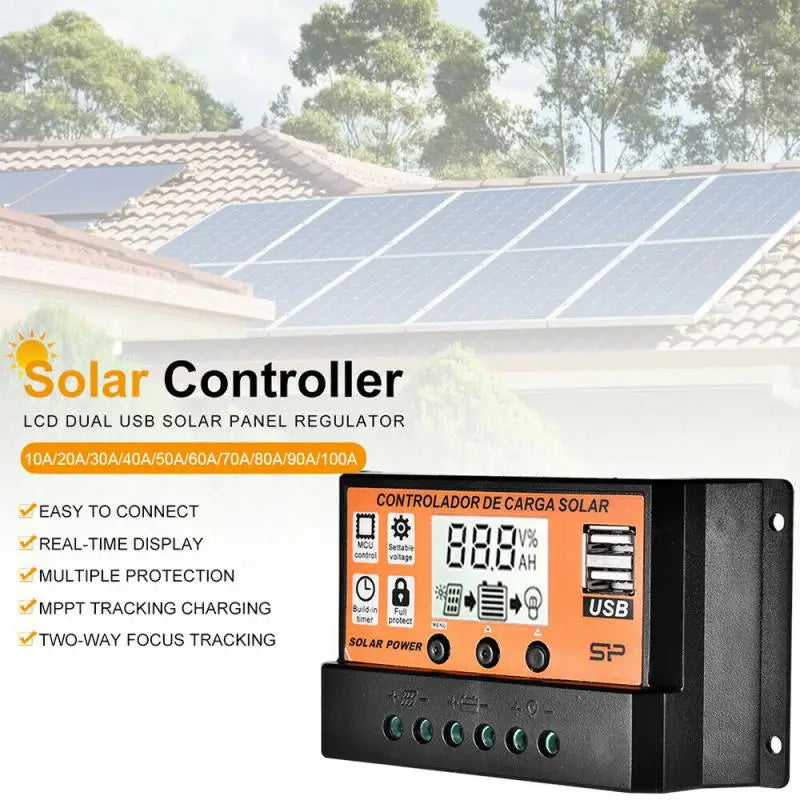

MPPT Solar Charge Controller with Dual USB, real-time LCD display, and multiple protection features. Easy to connect and track charging progress. Supports 12V/24V solar panels and adjustable charging current up to 50A. Includes two-way focus tracking and 5V USB ports for powering devices.
10A Solar Charge Controller for 12V/24V systems, featuring adjustable voltage, built-in USB port, and full-time protection for solar power applications.
10A-50A Solar Charge Controller with MCUs, adjustable voltage, built-in full-time protection and dual USB ports for charging multiple devices simultaneously.
30A MPPT Solar Charge Controller with adjustable voltage, built-in full-time protection and dual USB ports for charging devices.

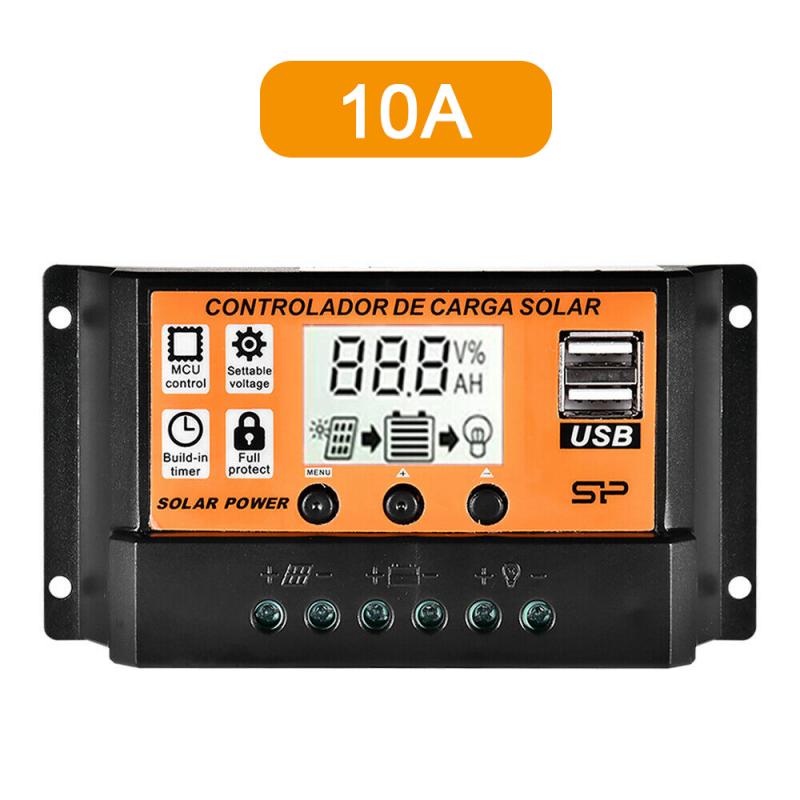

10A Solar Charge Controller for 12V/24V batteries with selectable voltage, built-in full-timer protection and dual USB outputs.
10A MPPT Solar Charge Controller with MCU Selectable Control, Built-in Full-Timer Protection and Dual 5V USB Ports for Efficient Charging of Solar Power Systems.
MPPT solar charge controller for 12V/24V systems, with adjustable control voltage and USB output. Features full-time protection and built-in timer.
MPPT Solar Charge Controller for 12V/24V systems, with adjustable voltage, built-in full-time protection, and dual USB ports (5V).
MCU-controlled solar charge controller with selectable voltage, built-in full-time protector, and dual USB ports for charging devices.
10A MPPT Solar Charge Controller with MCU selectable control voltage, built-in full-time protection and USB port for solar power systems.

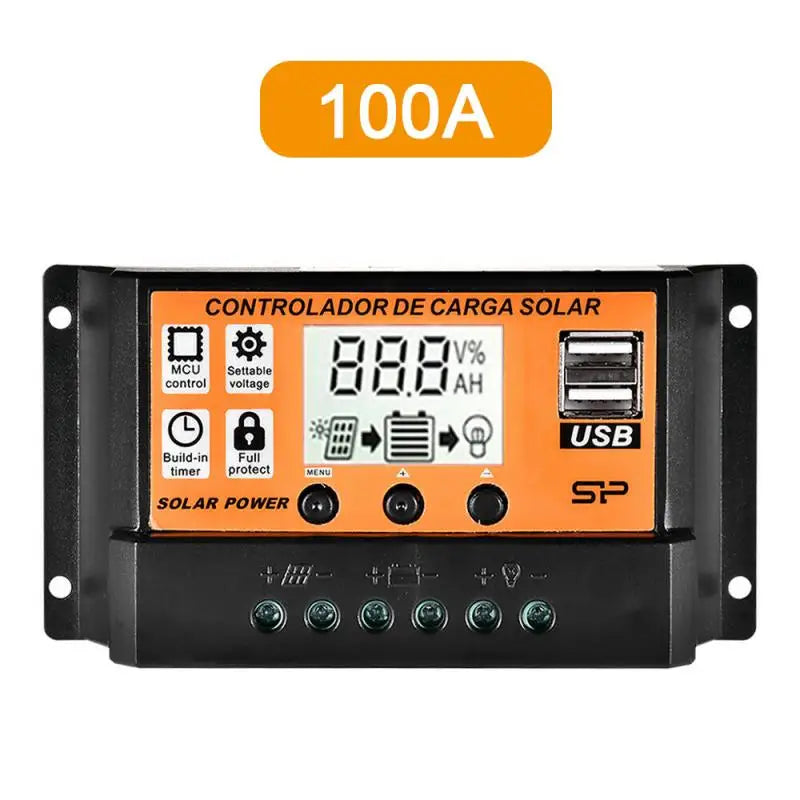

100A Solar Charge Controller with MCU Selectable Voltage, USB Port and Built-in Full-Time Protection for Solar Power Applications.
