mppt solar charge controller 12v 24v 10A 20A 30A Solar Controller Dual USB 5V LCD Display Solar Panel Battery Regulator

mppt solar charge controller 12v 24v 10A 20A 30A Solar Controller Dual USB 5V LCD Display Solar Panel Battery Regulator

Regular price $14.78 USD
Regular price Sale price $14.78 USD
Sale Sold out
Shipping calculated at checkout.
Color

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

stock: sufficient

drop shipping: fast shipping

Origin: Mainland China

Model Number: Solar regulator

Certification: CE

mppt solar charge controller 12v 24v 10A 20A 30A Solar Controller Dual USB 5V LCD Display Solar Panel Battery Regulator

mppt solar charge controller, Solar charge controller with adjustable voltage settings and USB output, suitable for -35°C to 60°C temperatures.

Features:

1.Build-in industrial microcontroller for automatical management, memorizing various parameters set by the user and the data won't be lost when the battery runs out, suitable for lead-acid batteries: OPEN, AGM, GEL.

2.Easy to install and operate, Intuitive LCD display that can clearly indicate the status and data is able to switch modes and parameter configuration, The level of complete power-off is adjustable, which can perfectly protect the lithium battery from over-discharge, suitable for home, industrial, commercial etc.

3.Fully 3-stage PWM regulation charging using direct charge, lifting charge, floating charge three-stage PWM regulation charging mode. Using the controller to realize efficient and fast intelligent charging, and effectively prolong the service life of the battery.

4.Built-in overcurrent protection, short circuit protection, reverse connection protection, open circuit protection, all automatic recovery, no damage to the controller, a reliable protector for your devices.


Specifications:

Rated Voltage: 12V/24V

Charge Current: 10A/20A/30A

Discharge Current: 10A

Max. PV Voltage: 50V

Max Solar input: <50V

Float Charge: 13.7V (defaul,adjustable)

Discharge Stop: 10.7V (defaul,adjustable)

Discharge Reconnect: 12.6V (defaul,adjustable)

Operating temperature: -35~+60℃

USB output: 5V/2.5A


Package List:

1 x Solar Charge Controller

1X User Manual


Safety instructions:

1: How to install it? 1.Battery 2.Solar panels 3.load

2: Please install the charger controller on a flat, well-ventilated place (indoor)

3: The LCD screen has an error of 0.2V to 0.3V, but this is normal.

4: The charge regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL, it is not suited for nickel hydride, lithium, Liions, or other batteries.

5: This controller can only use photovoltaic panels as charging power. Do not use DC or other power as charging power.



mppt solar charge controller, Use alternative power source, not DC power, to charge device.

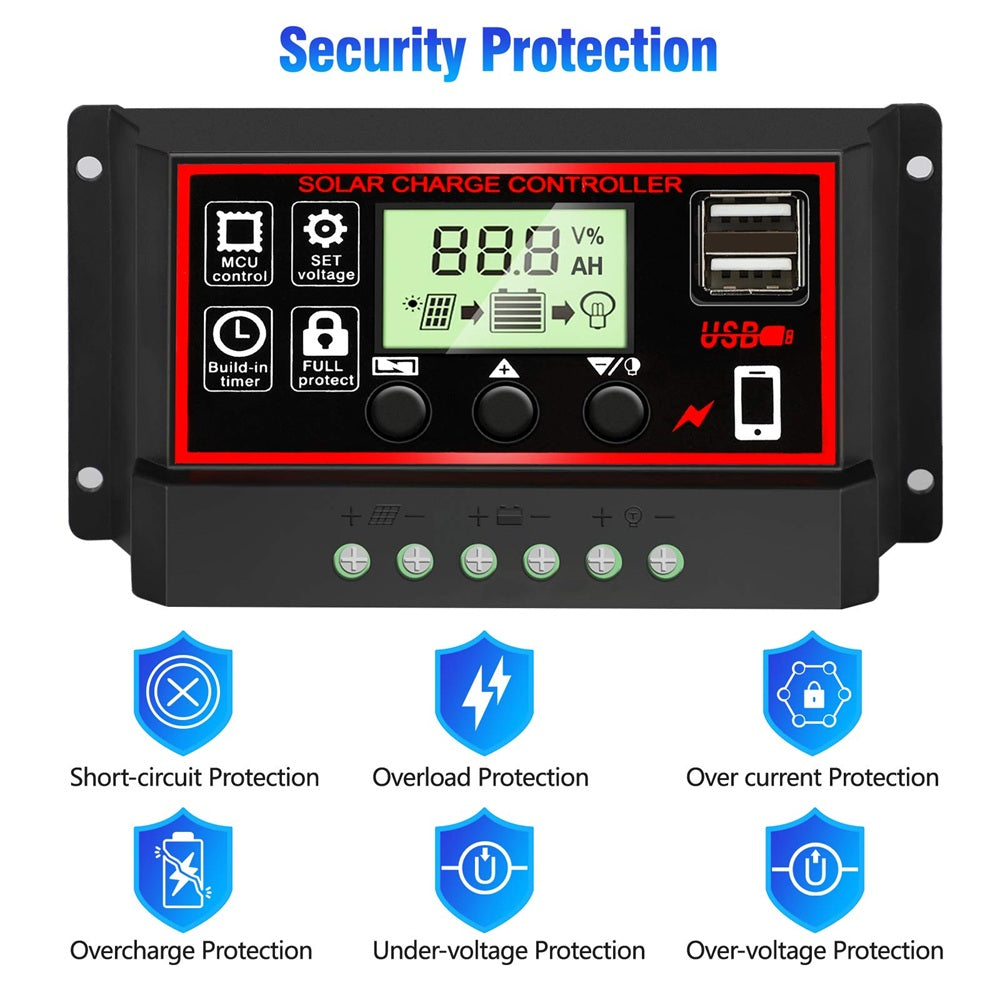

MPPT solar charge controller regulates 12/24V solar panels and batteries, with dual USB outputs and LCD display.

This solar charge controller features advanced security protection, including voltage setting, built-in full timer, and protections against short circuits, overloads, overcurrents, overcharging, under-voltages, and over-voltages.

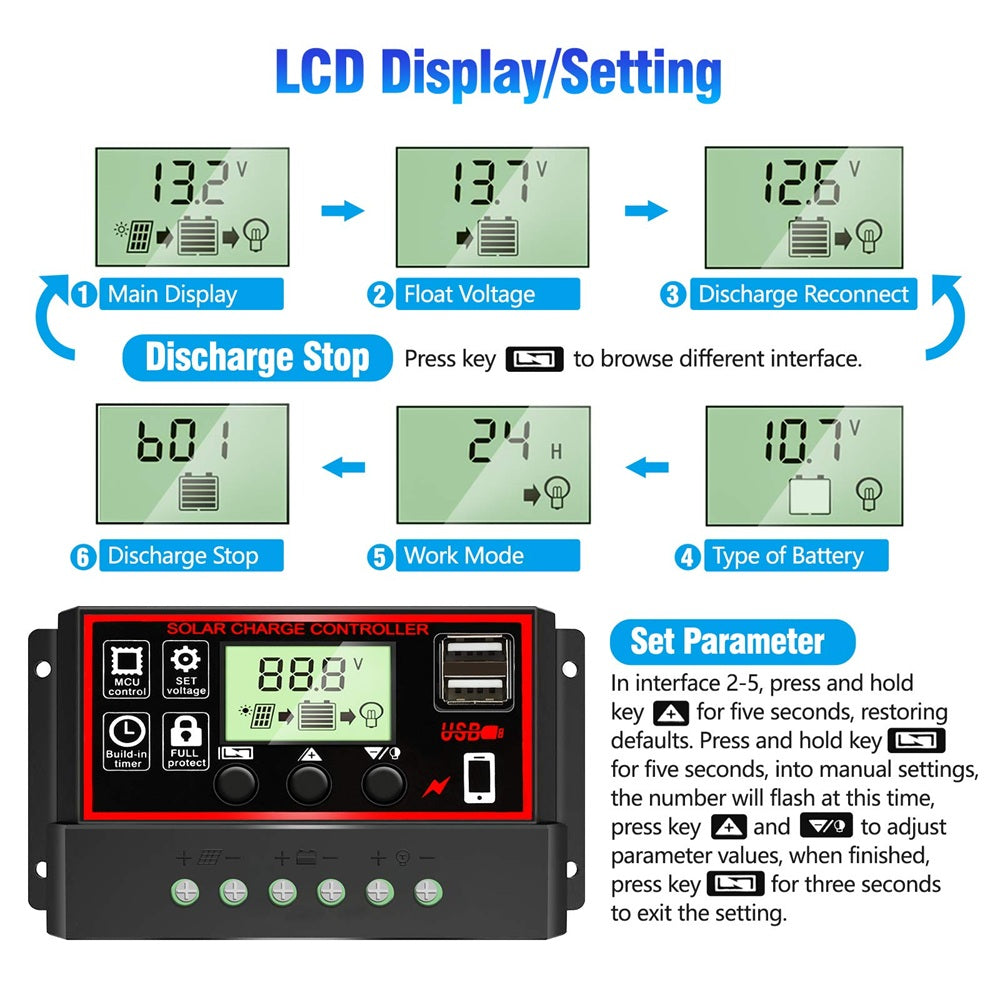

mppt solar charge controller, Adjust device settings by pressing +/-. Hold for 5 seconds to reset, or +/- to customize.

View various interfaces by pressing [+] or [-] on the LCD display. To reset settings to default, hold for 5 seconds. Press and hold to access manual settings, and then use +/- to adjust parameters. When finished, press [+] or [-] three times to exit.

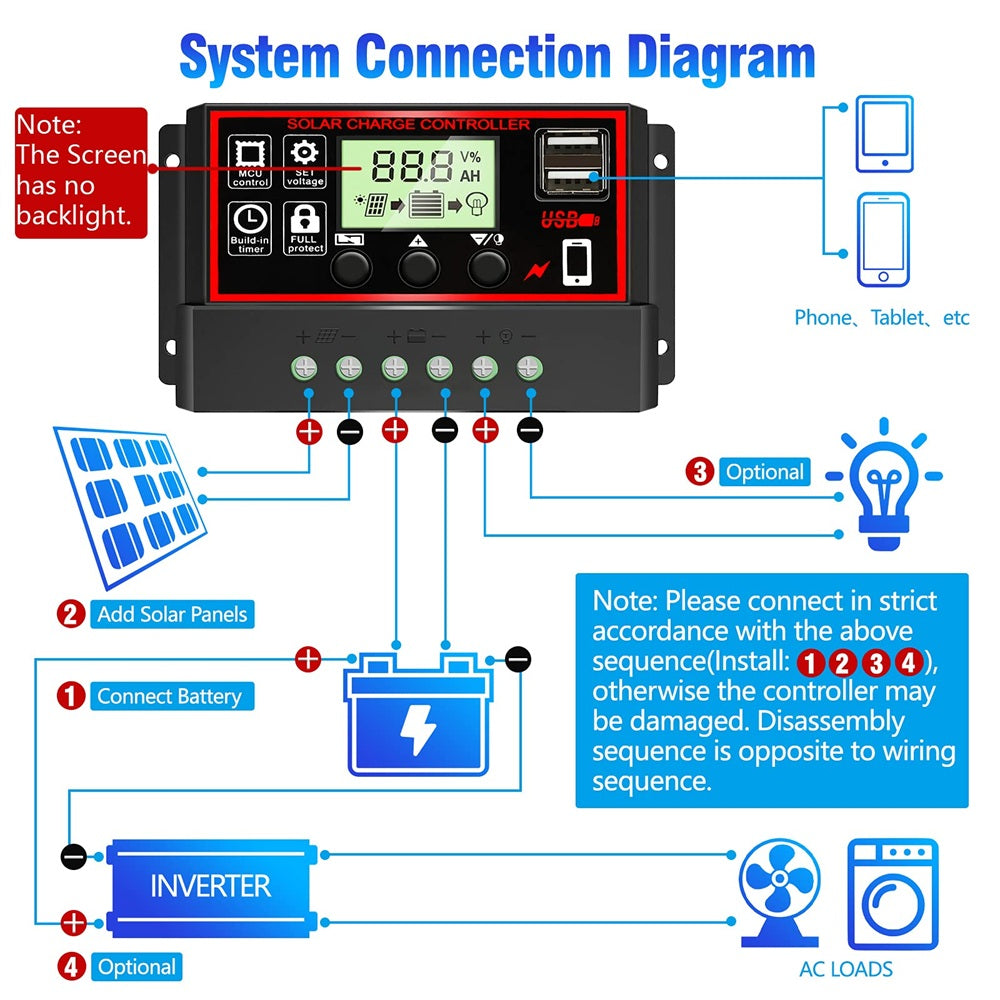

mppt solar charge controller, Solar charge controller regulates power from solar panels to battery, with dual USB ports and LCD display.

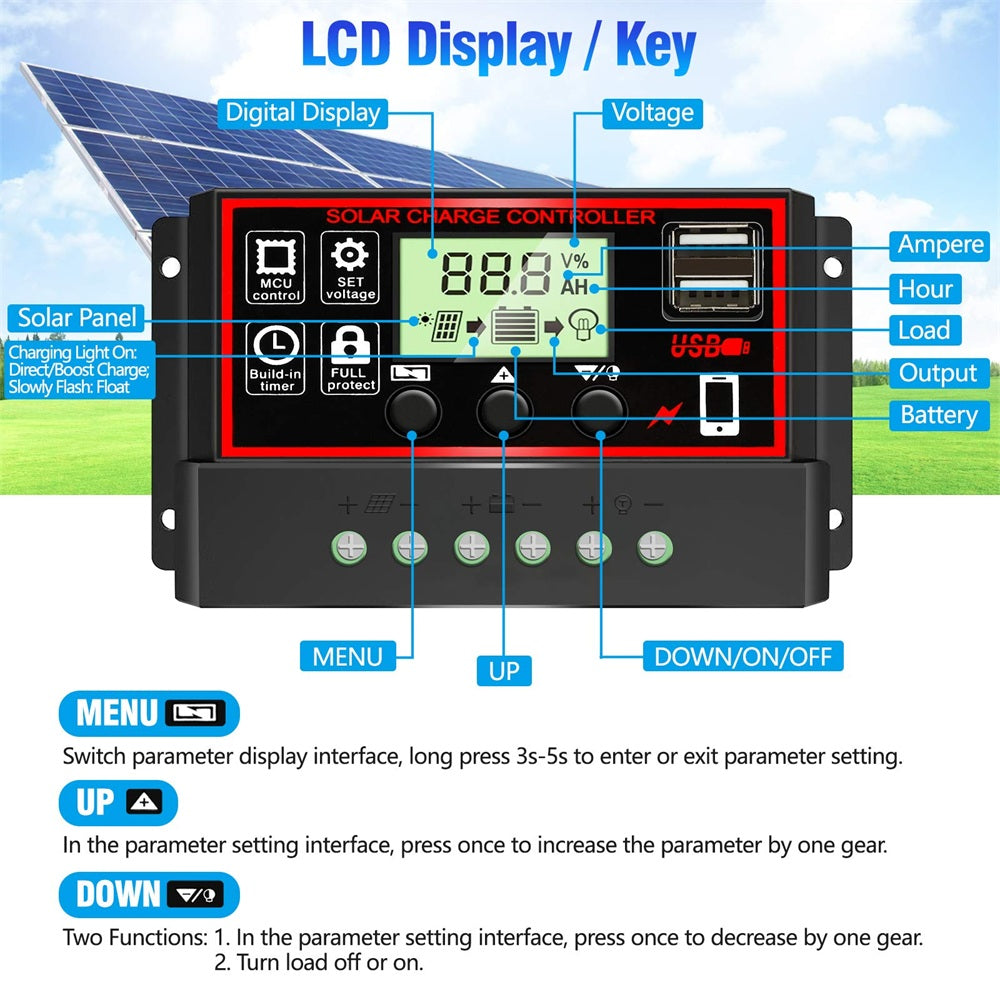

MPPT Solar Charge Controller with LCD Display: monitors solar panel charging status, voltage, and ampere.

mppt Solar Charge Controller with LCD Display. Features include: 12V/24V input, 10A/20A/30A output, dual USB ports (5V), voltage monitoring, MCU set, and overcharge protection. The display shows solar panel charging status, voltage, ampere, and percentage. Menu options allow for parameter setting and interface navigation.

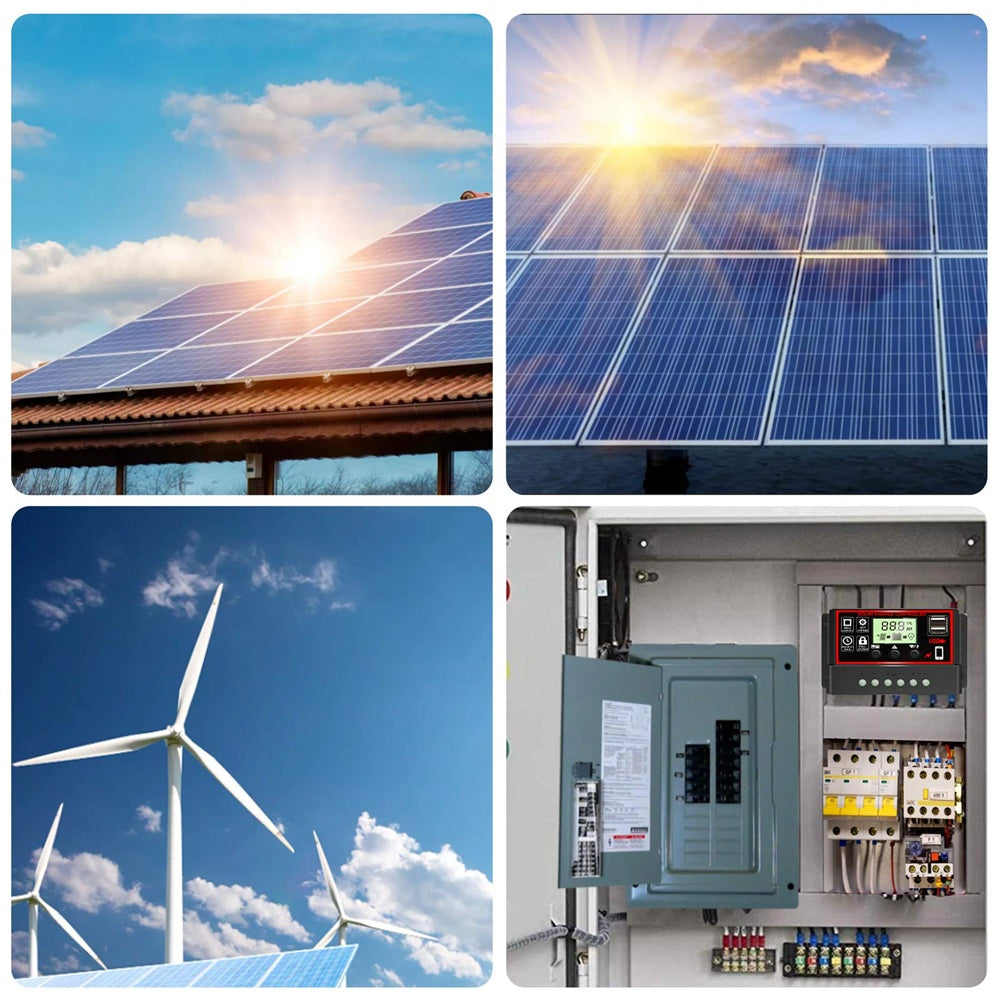

mppt solar charge controller, Charge regulator designed specifically for lead-acid batteries (OPEN, AGM, GEL), not suitable for other types.

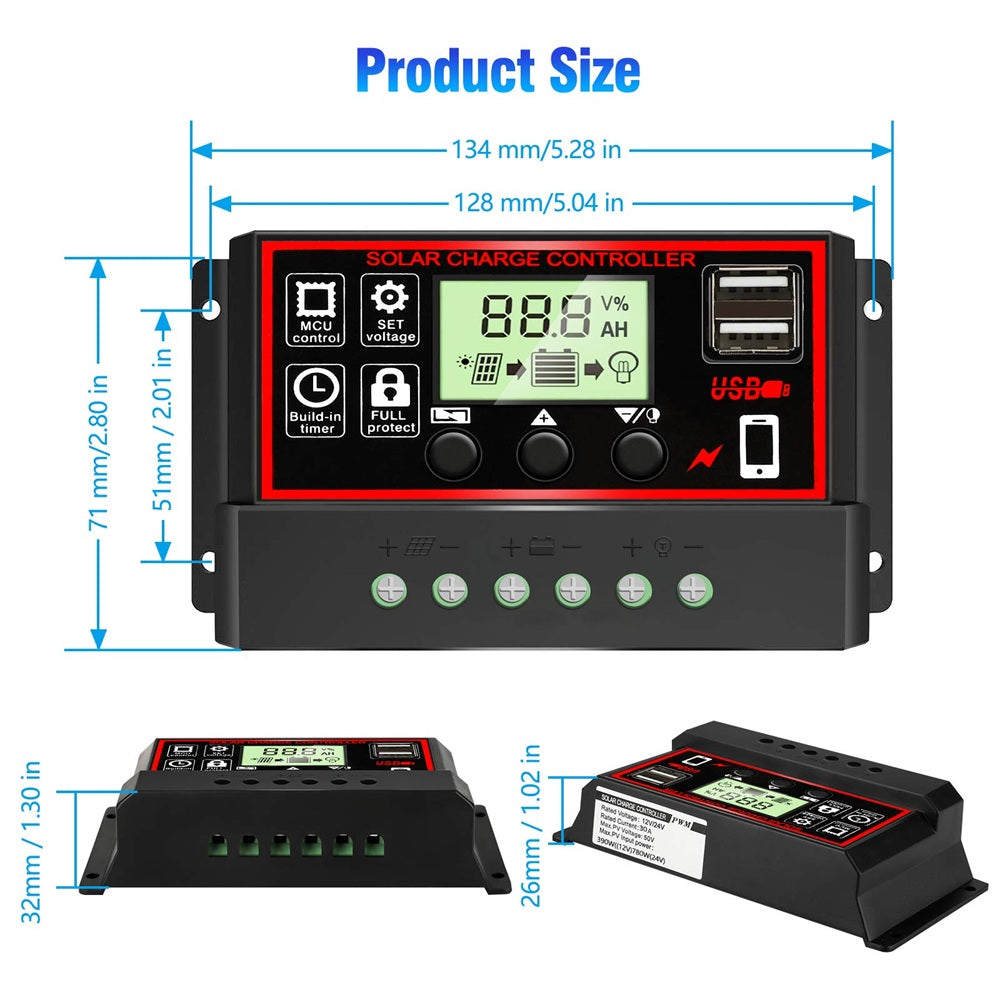

mppt solar charge controller, Solar-powered controller charges via photovoltaic panels.
