MPPT Solar Charge Controller 12V 24V AUTO Battery Regulator 40A 30A 20A Max PV 100V 75V 50V LCD Display Dual Usb Charging
MPPT Solar Charge Controller 12V 24V AUTO Battery Regulator 40A 30A 20A Max PV 100V 75V 50V LCD Display Dual Usb Charging
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Voltage range voltage: 50V 70V 100V
Type: mppt solar controller
Origin: Mainland China
Model Number: POW-Keeper1220 1230 1240
Maximum Current: MPPT 40A 30A 20A
Is Smart Device: YES
Feature1: Real-time data
Feature: Various load control modes
Current: MPPT 40A 30A 20A
Certification: CE
Brand Name: PowMr
Battery Voltage: 12/24V Auto
Battery Type: Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

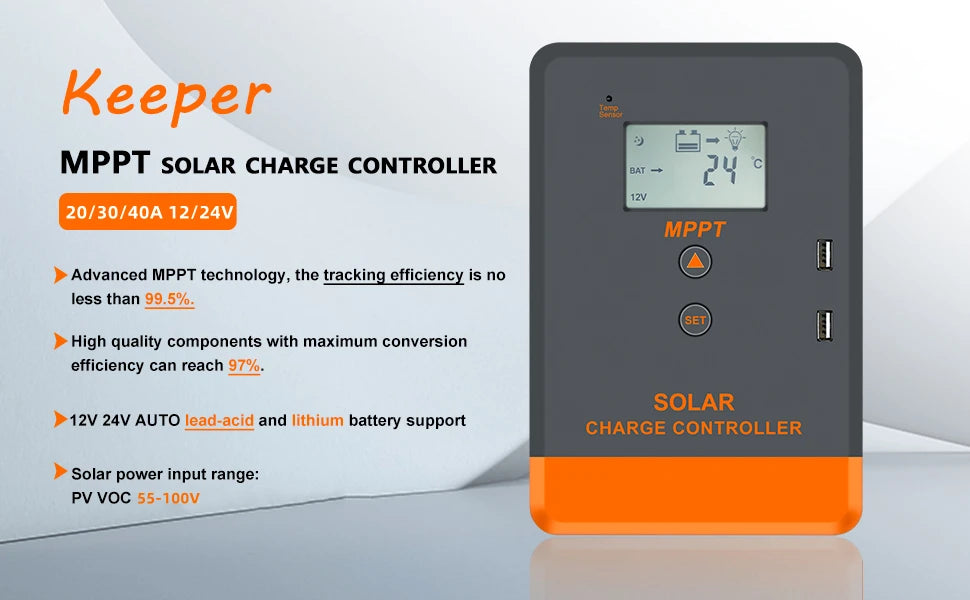

MPPT Solar Controller POW-KEEPER Series

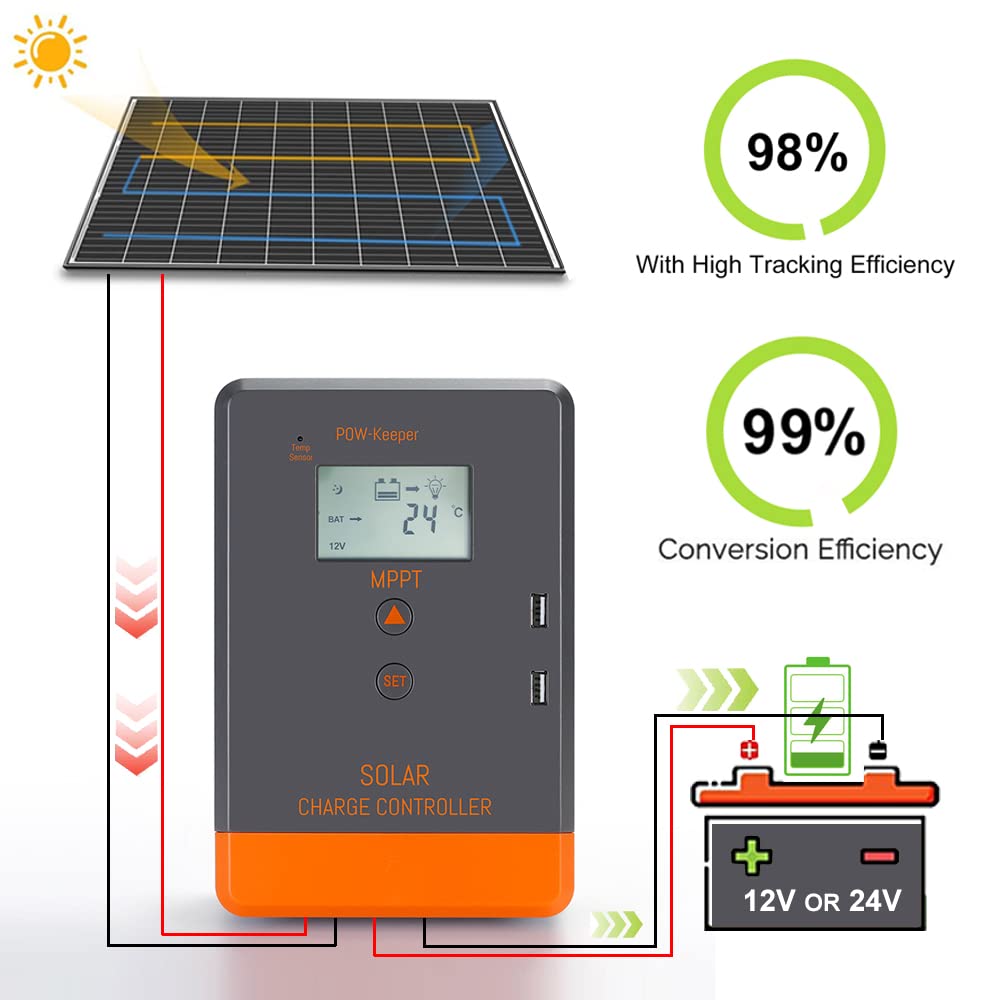

Advanced MPPT maximum power point tracking technology charge controller with tracking efficiency is no less than 99.5%.

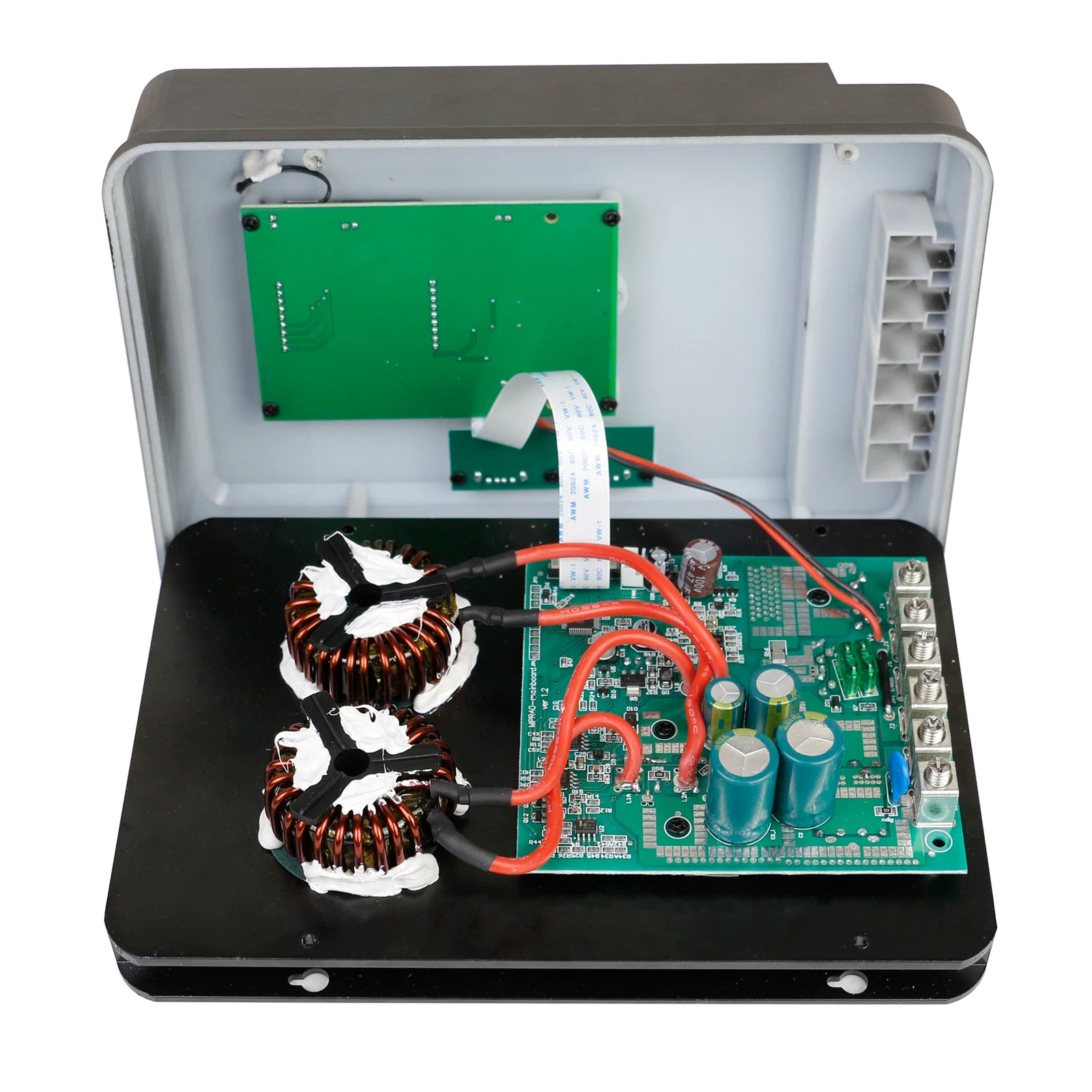

High quality components solar charger the maximum conversion efficiency can reach97%.
Super fast maximum power tracking speed controller while ensuring tracking efficiency.

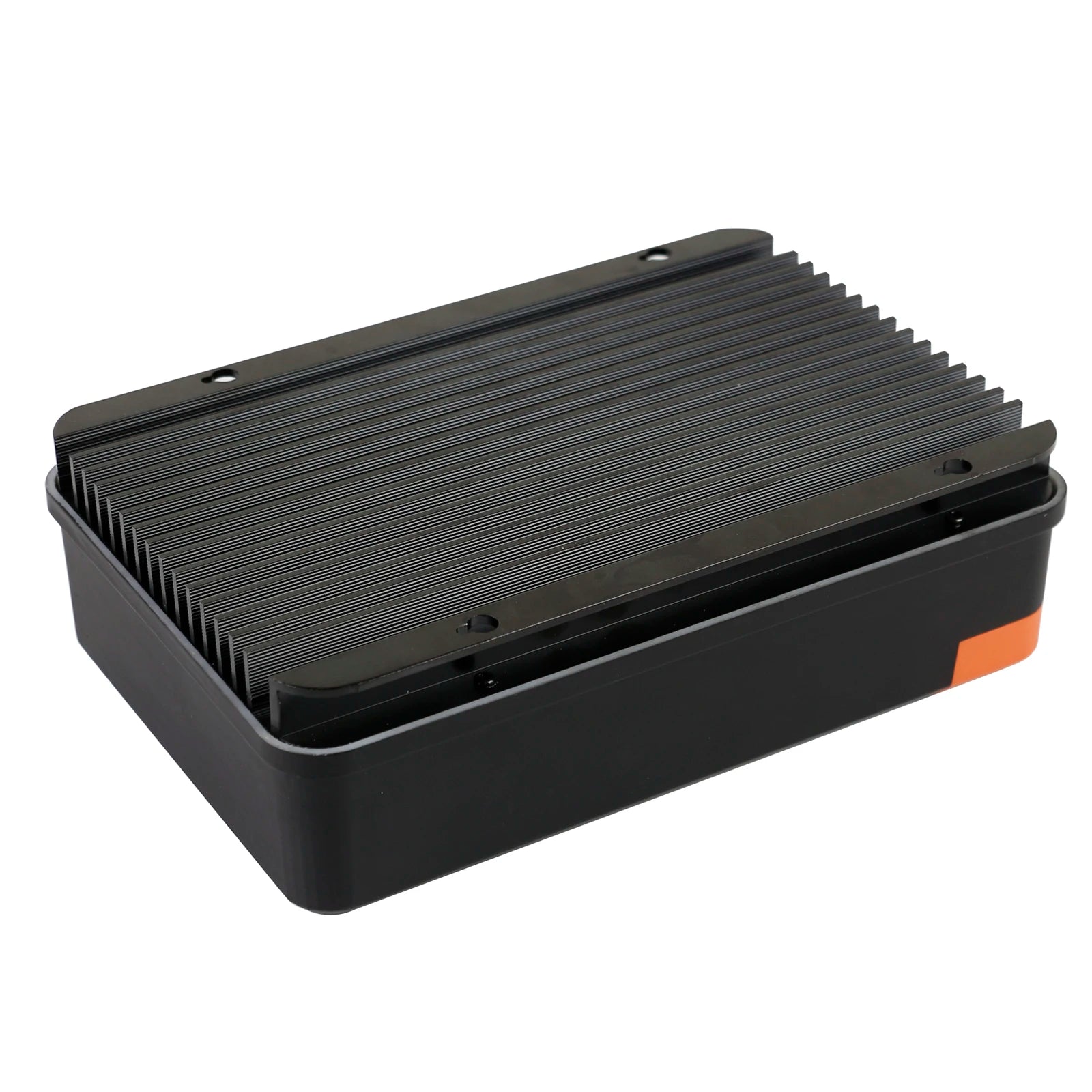

Accurate identification and tracking of the maximum power point of multi-wave peak.
Reliable maximum input power of PV array to ensure the safety of equipment.
12 24v AUTO voltage identification, wide PV array maximum power point operating voltage range.
The charger's LCD is designed to dynamically display the operation data and working status of the equipment.
Various load control modes: general mode, light control mode, dual-time mode, pure charger mode and timing mode.
Lead-acid and lithium charging processes can be selected.
Dual USB port charging

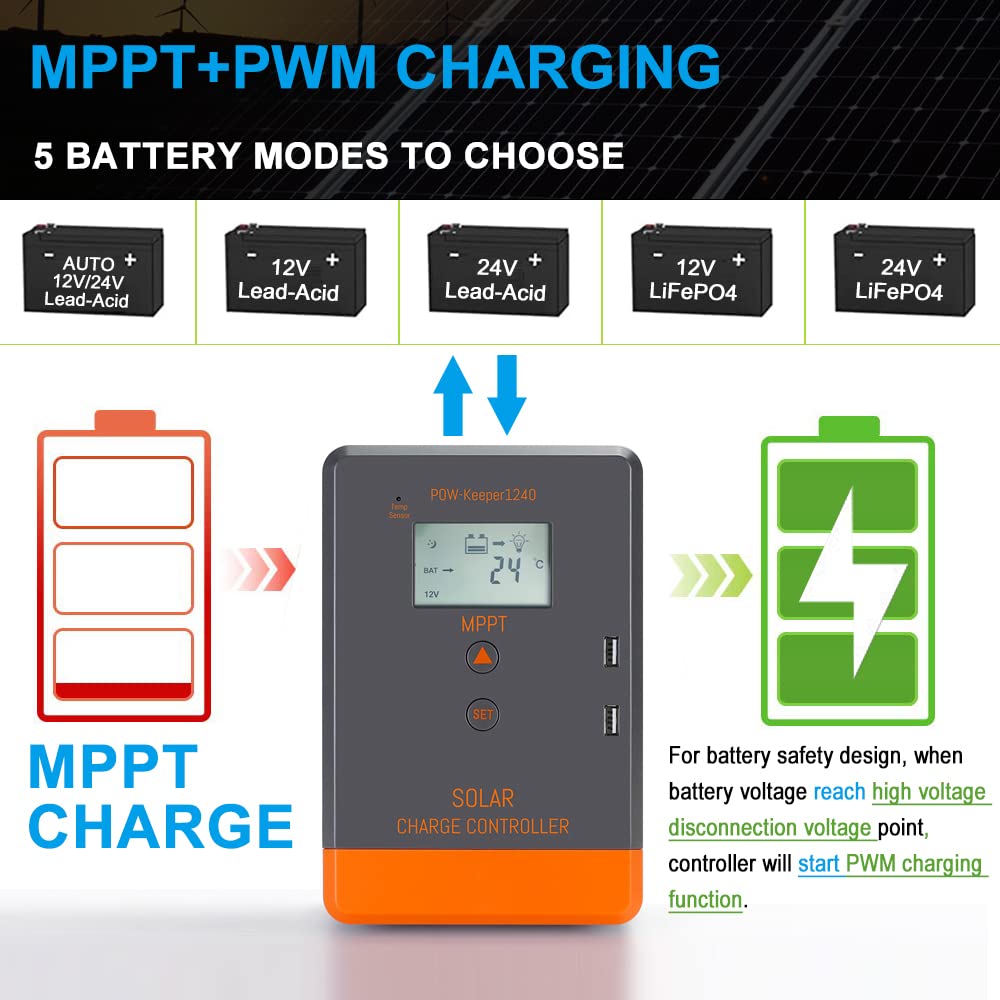

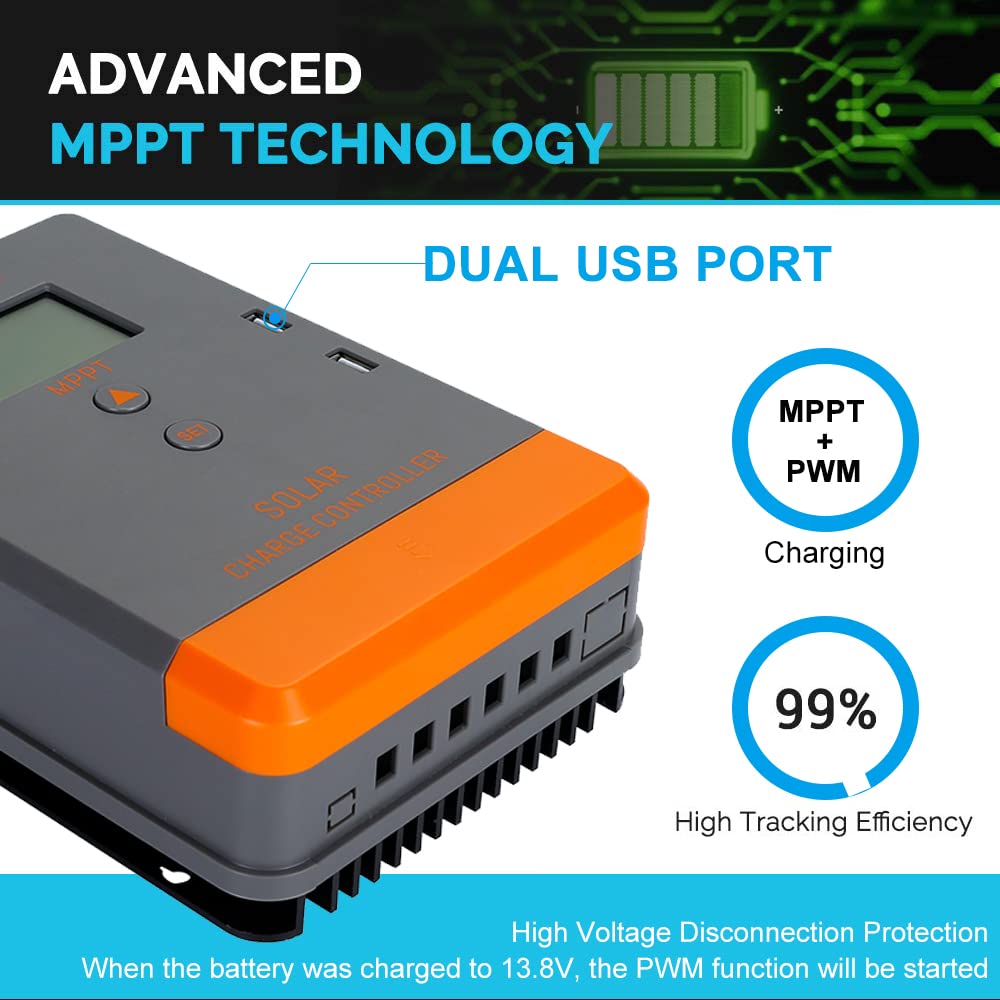

NOTE: The controller will start PWM function at high voltage disconnection (HVD)
voltage point, which limits voltage rising to protect battery.
Rated Charge Current |
20A |
30A |
40A |
System rated voltage |
12V/24VAuto work |
||
Voltage range of battery |
8-32V |
||
Max open voltage of PV module |
55V |
75V |
100V |
Battery Type |
User default,Sealed,Flooded,GEL,LiFePO4 |
||
Equalized charging voltage |
Maintenance-fee lead acid battery 14.6V, GEL: No; Lead acid flooded battery:14.8V |
||
Absorption charging voltage |
Maintenance-fee lead acid battery 14.4V, GEL:14.2; Lead acid flooded battery:14.6V |
||
Floating charging voltage |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:13.8V |
||
Low voltage re-connection(LVR) |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:12.6V |
||
Low voltage disconnection(LVD) |
Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:10.8V |
||
Static loss |
≤9.2mA 12V; ≤11.7mA24V |
||
High voltage disconnection(HVD) |
16V(24V×2) |
||
Duration of absorption charging |
2 Hours |
||
Light control voltage |
5V |
||
Charge loop voltage drop |
≤0.29V |
||
LCD Temperature |
-20℃~+70℃ |
||
Operating Temperature |
-20℃~+55℃(To run at full rated current continuously) |
||
Working humidity |
≤95% No condensation |
||
Protection class |
IP30 |
||
Dimension(LxWxH)mm |
123×178×48 |
133×195×55 |
150×220×67 |
Installation hole size(LxW)mm |
108×120ȼ5 |
116×140ȼ5 |
132×130ȼ5 |

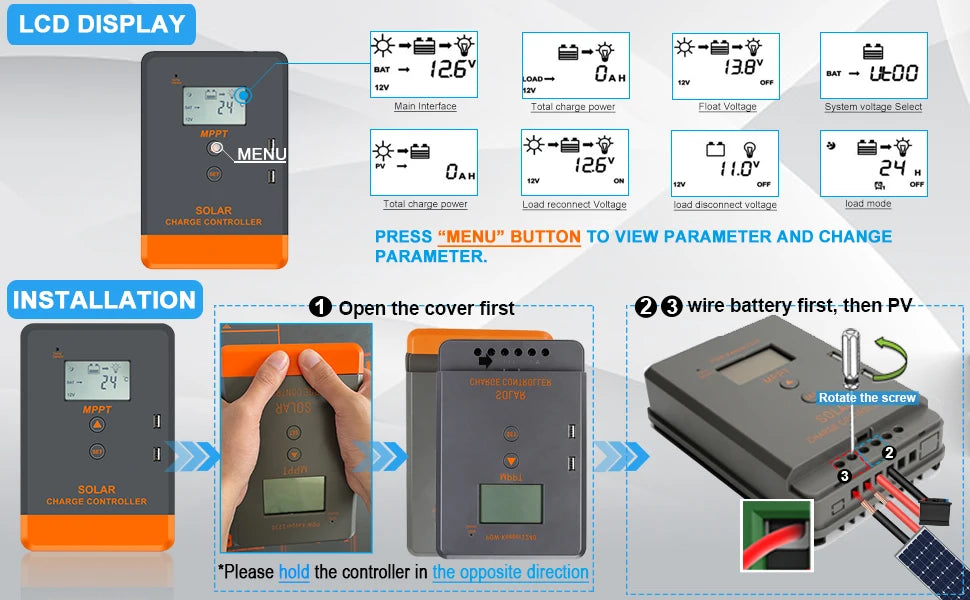

Clear display and Simple wiring to use
EASY WIRING: Press and push forward controller's cover first, then insert your battery cable and PV cable,
Clear display: Use Menu and Set, view controller's charging parameter.

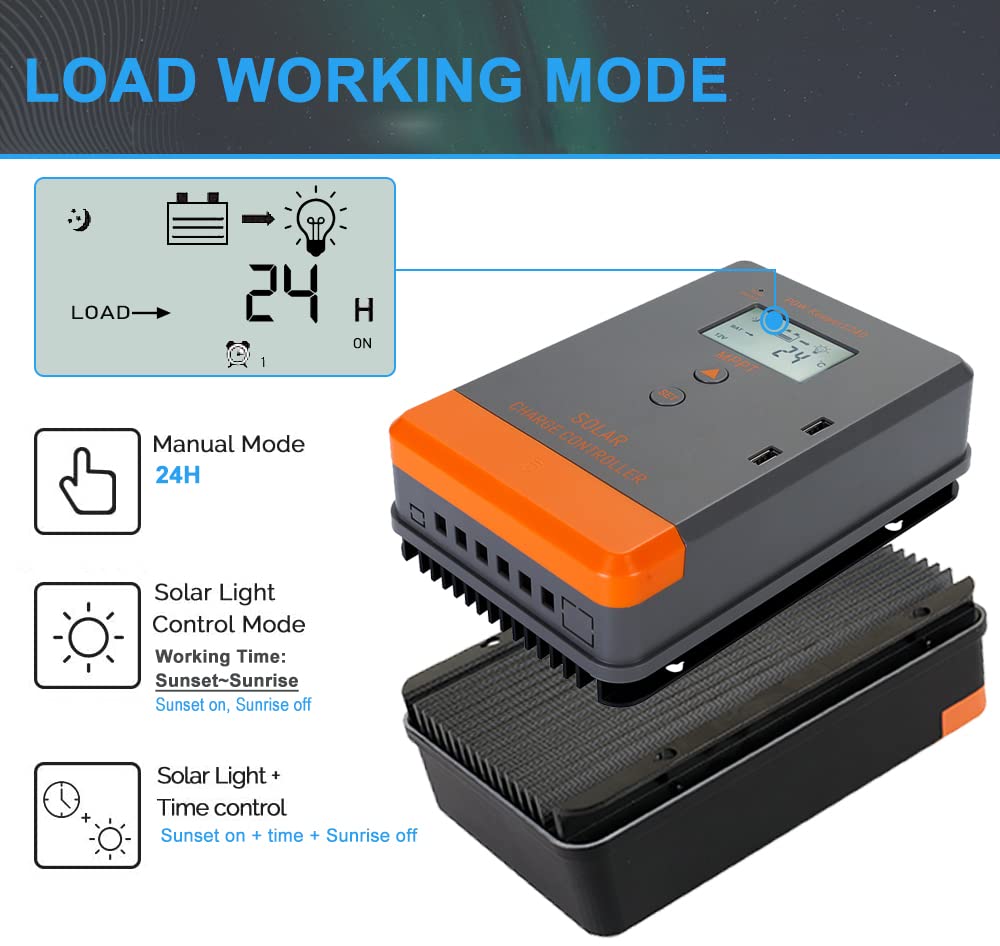

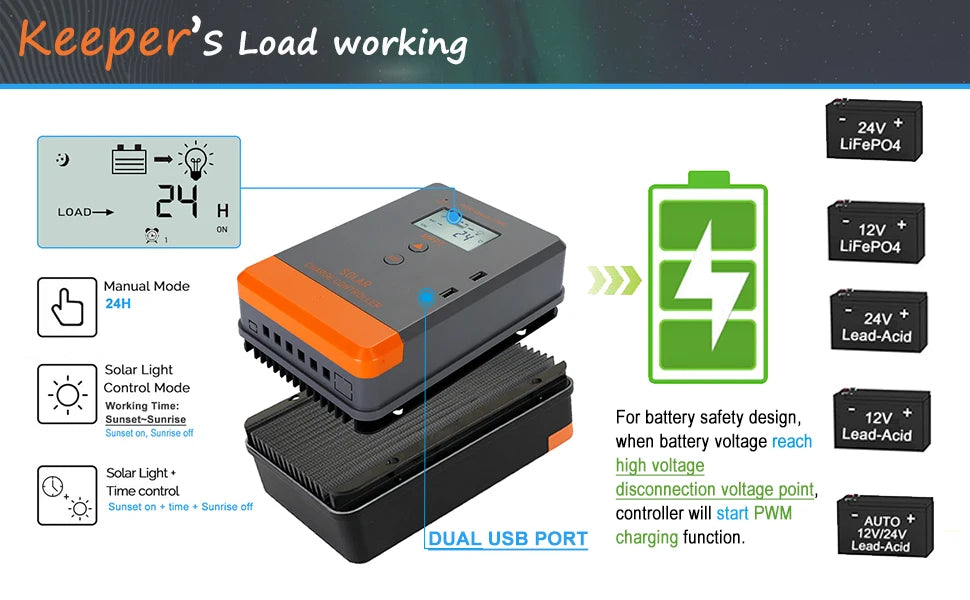

3 modes load working design:
Manual mode: you can turn on/off your LOAD manual.
Solar light control Mode: When PV voltage drop to 5V, controller is identified as sunset, then turns on the LOAD; Morning PV voltage raise to 5V, controller identified as Sunrise will turn off your Load.
Solar light+Time Control Mode: Sunset turns on Load, then set a working time, controller will turn off at specified time which set by yourself.

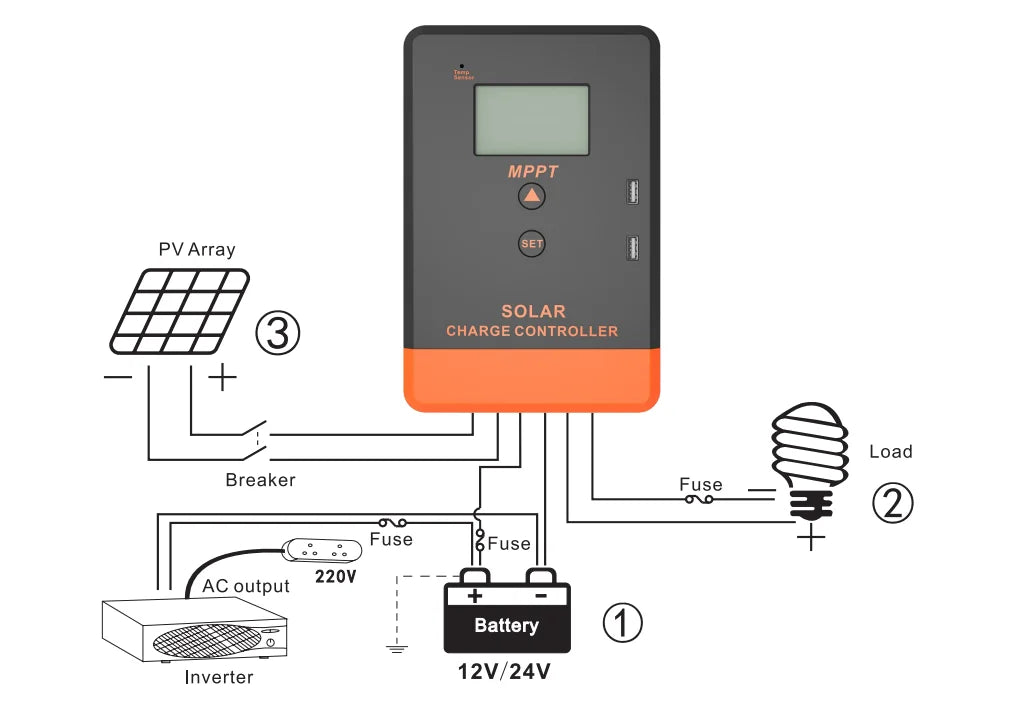

MPPT solar charge controller for 12V or 24V batteries, with AC output and battery inverter functionality.

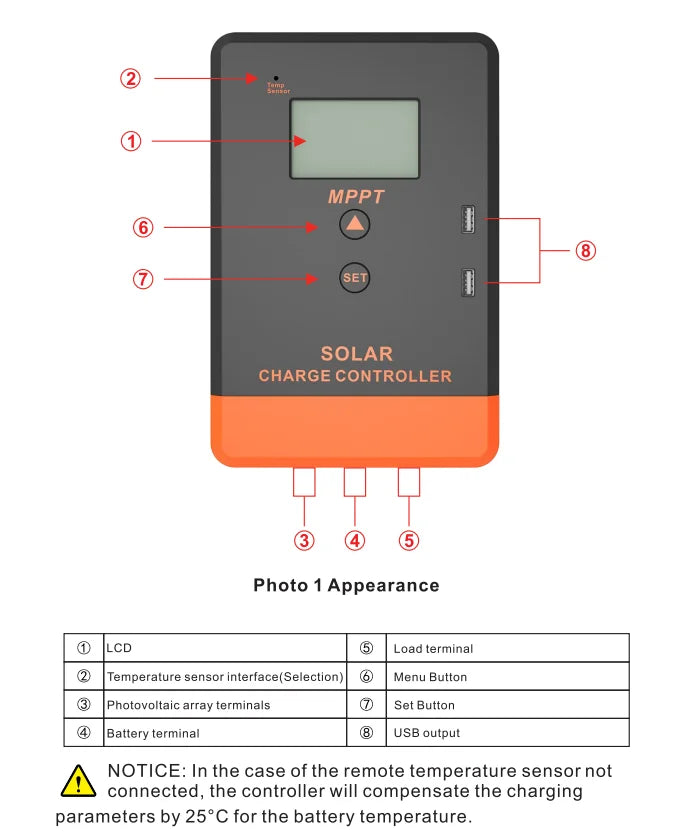

This MPPT solar charge controller features an LCD display and has dual USB charging ports. It includes a temperature sensor interface and menu button. If no remote temperature sensor is connected, the controller will automatically adjust charging parameters based on an assumed battery temperature of 25°C.

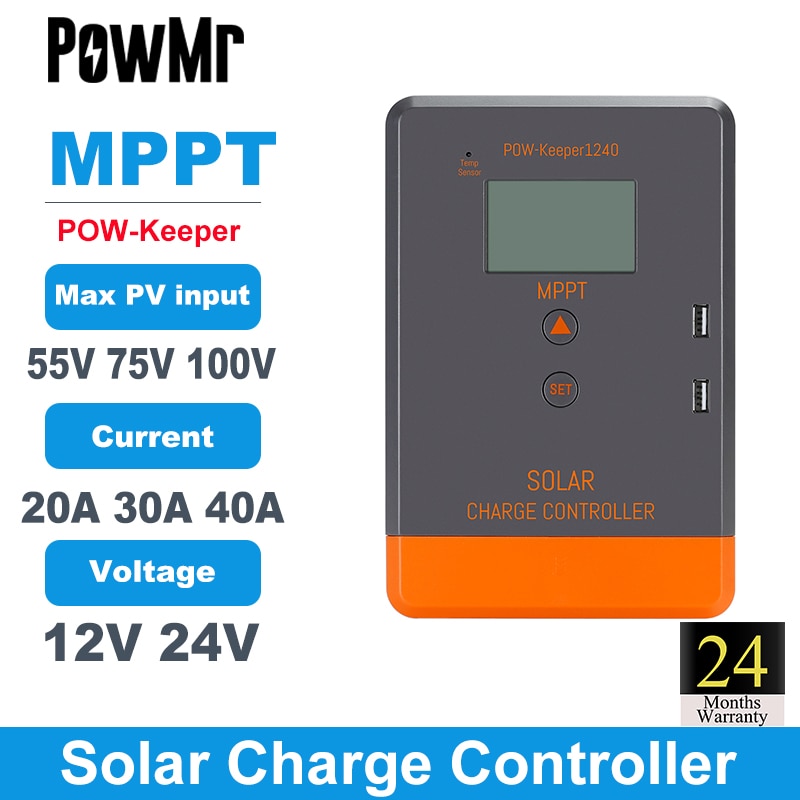

MPPT Solar Charge Controller: POW-Keeper1220. A maximum power point tracking solar charger controller that regulates 12V or 24V batteries, with dual USB charging and an LCD display. It can handle up to 20A, 30A, or 40A of charge current.

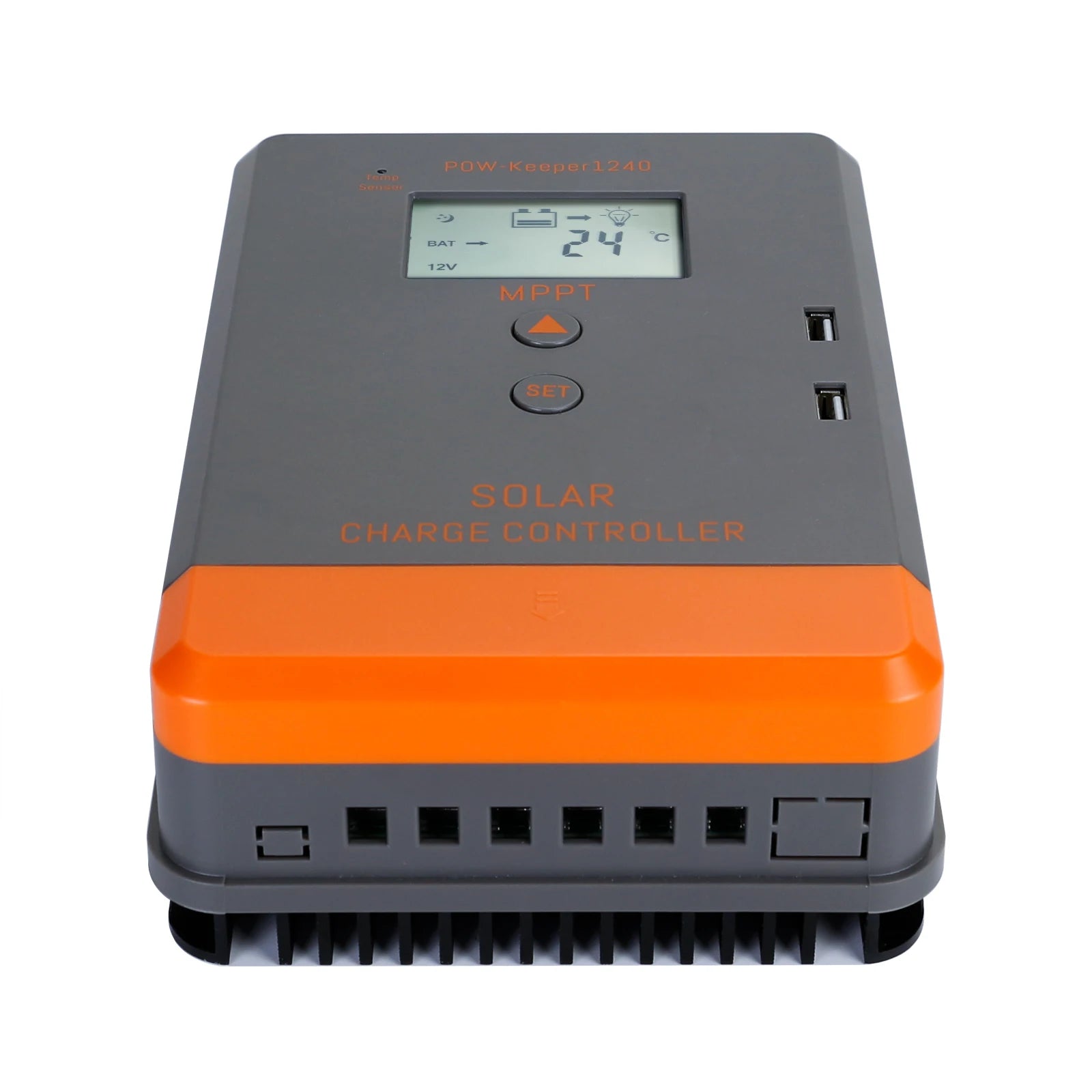

Power Keeper 1240 MPPT Solar Charge Controller for 12V or 24V batteries, featuring advanced maximum power point tracking technology.

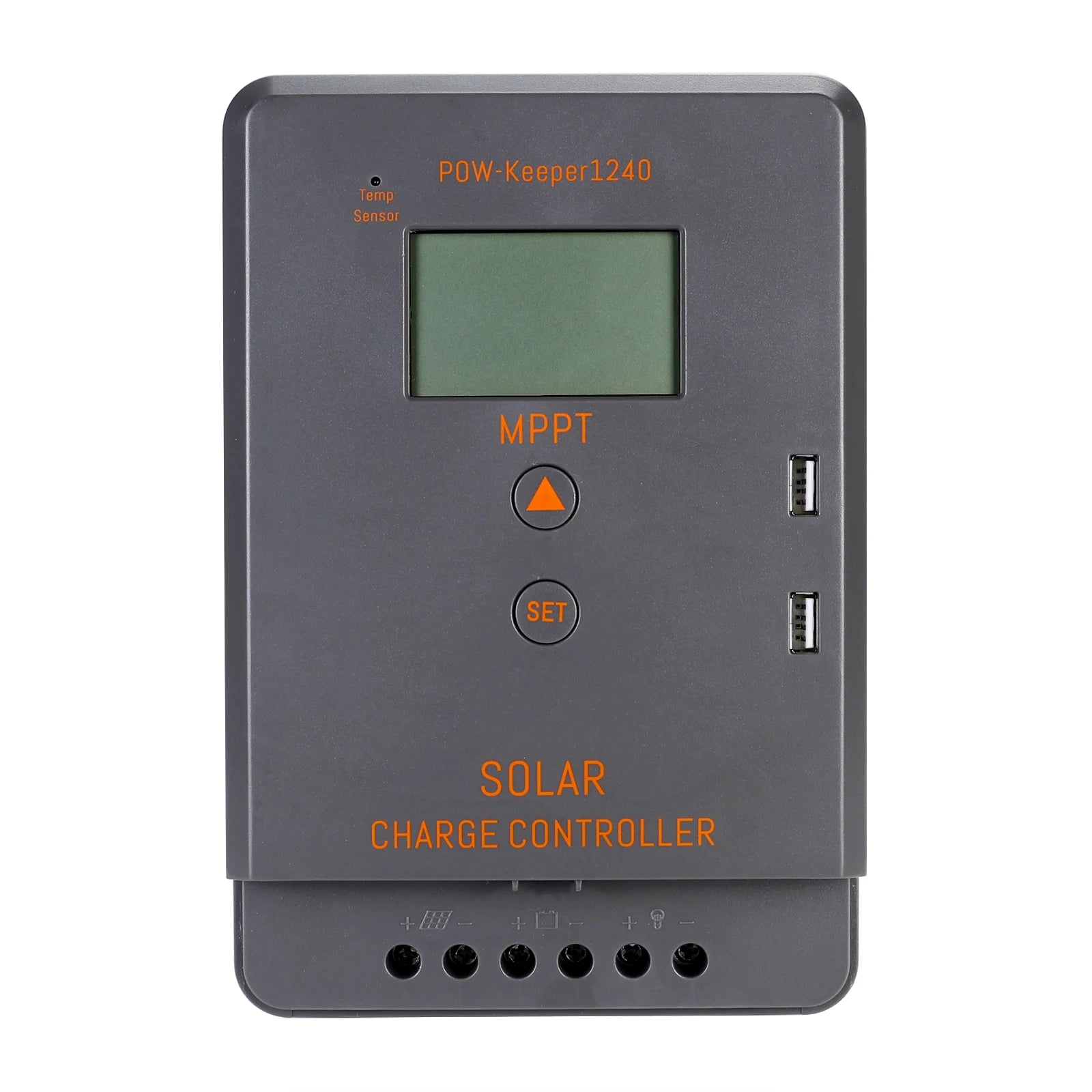

Powkeeper 12V/40A or 24V/20A MPPT solar charge controller with temperature sensor and LCD display.
