SPECIFICATIONS
is_customized: Yes
Origin: Mainland China
Model Number: MPPT
Certification: CE
Brand Name: diymore
Application: Charger Controller
MPPT Solar Controller 1A 5V for 3.7V 4.2V Lithium Ion and Lithium Polymer Batteries for 6V 9V 12V 18V 24V 36V 48V Solar Panel
Feature:
1: Suitable for solar power generation system
2: Constant current/constant voltage operation, with thermal regulation function, which can maximize the charging rate without the risk of overheating
3: Automatically low power consumption when the input power supply voltage is removed. Power consumption sleep mode
4: Battery overvoltage protection
5: Wiring is simple and easy to understand

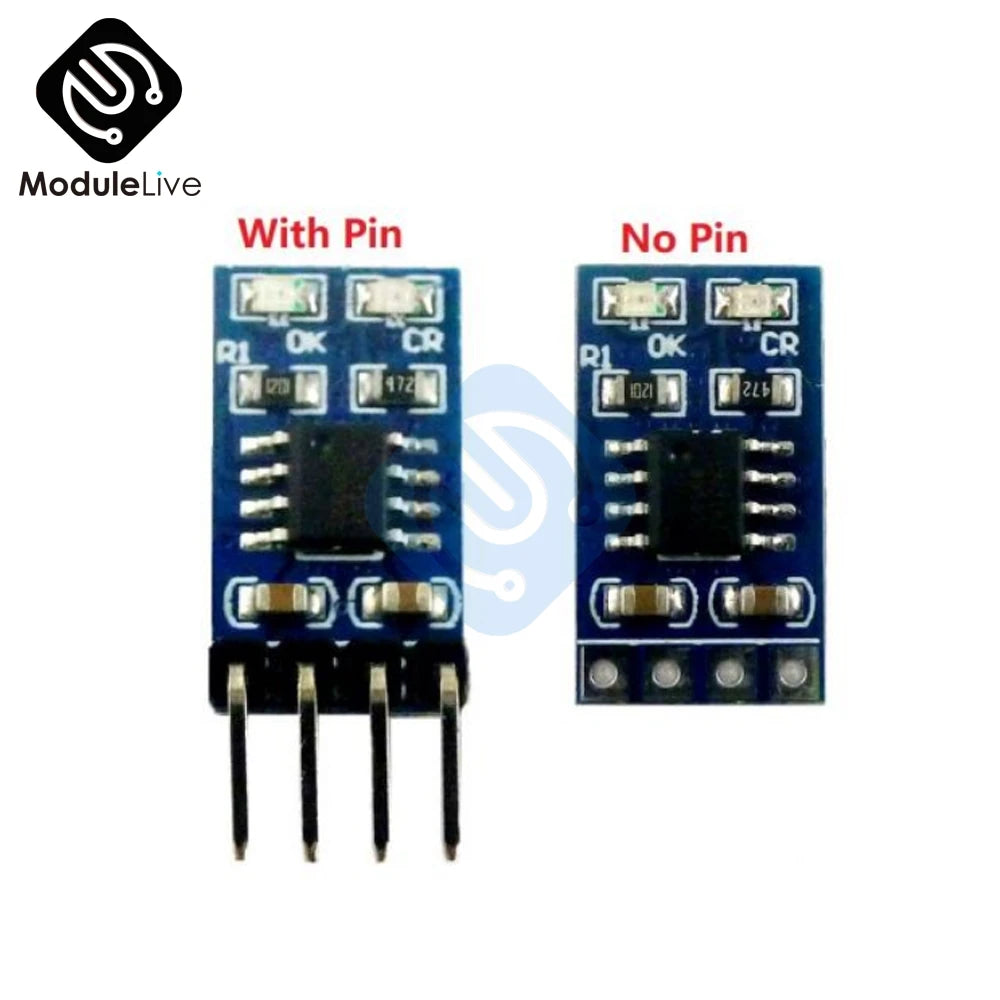

6: Two options, no needle and with needle. It is convenient for customers. If there is no special welding tool, choose with pin. If you want to change the pin direction, choose without pin. Product name: MPPT solar controller 3.7V 4.2V 18650 lithium battery charging 1A charger module
Packing list:
1 PCS x 1A 5V MPPT solar controller for 3.7V 4.2V lithium ion and lithium polymer batteries
Description:
Lithium-ion battery charger for solar power system
Power supply voltage DC 4.4-6V, charging output voltage DC 4.2V;
The maximum charging current/output current is 1A, but you can change the current by changing the value of the R1 resistor.
Automatically adjust the charging current according to the output capacity of the input power supply
Suitable for solar power supply system
Pre-charge adjustment for recovering deeply discharged batteries and minimizing heat dissipation in the initial stage of charging
Constant current/constant voltage operation with thermal regulation function can maximize the charging rate without the risk of overheating
Automatic low-power sleep mode when the input power supply voltage is removed
C/10 charge termination
Automatic recharge
Battery overvoltage protection
LED indicator: ``CR'' LED is the charging status indicator
''OK'' LED is fully charged or constant voltage mode;
Working environment temperature -40℃~+85℃
Size 18mm x 10.16mm x 2.7mm
Weight: 0.9g (with needle), 0.6g (without needle)
If you need the chip manual, please contact me

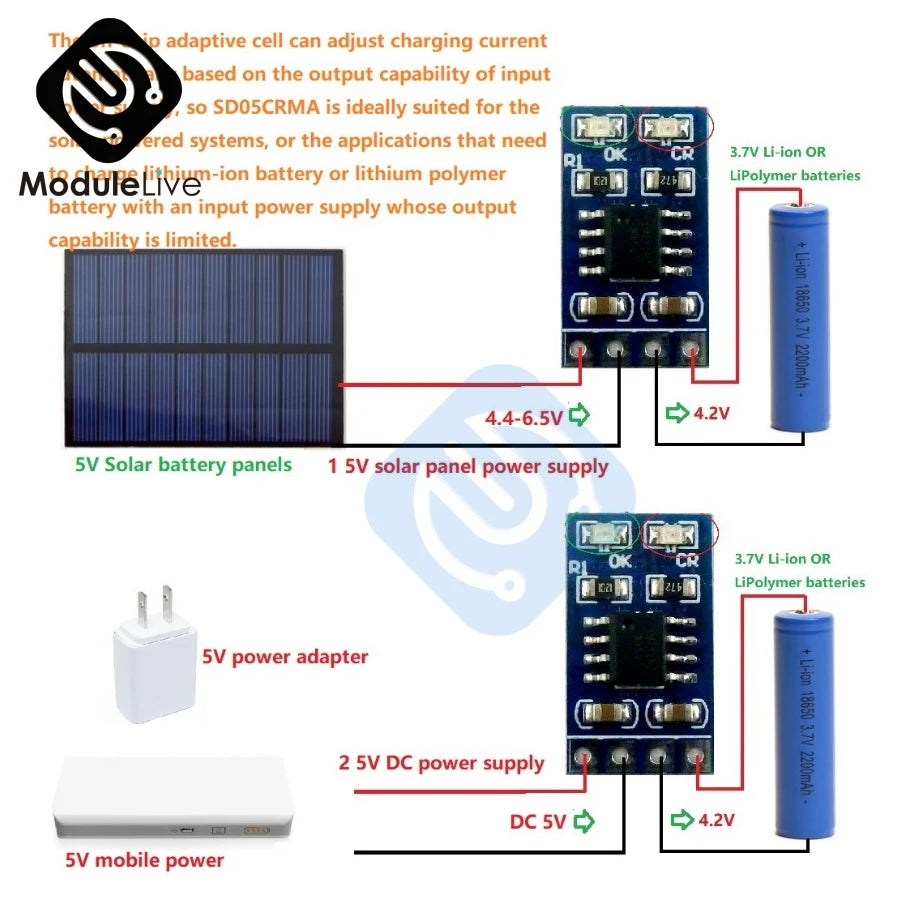

The on-chip adaptive battery can automatically adjust the charging current according to the output capacity of the input power source. Therefore, the SD05CRMA is very suitable for solar power systems or applications that need to charge lithium-ion batteries or lithium-polymer batteries. Input power with limited output capacity.

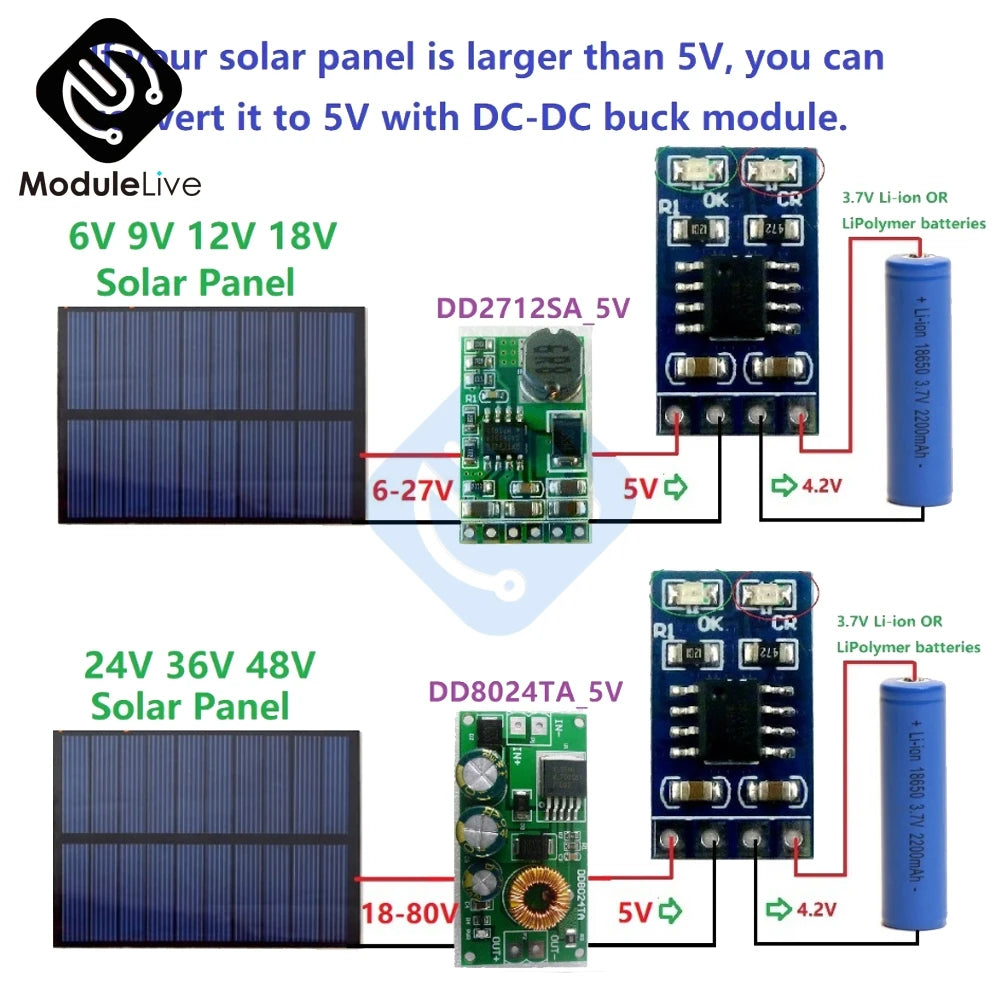

If your solar panel is 5V, then you can use it directly. Of course, the module can also be powered by a 5V DC power supply.
This MPPT solar controller features adaptive charging, adjusting current based on input capability. It's suitable for systems with limited output capacity, such as 3.7V Li-ion or lithium polymer batteries (4.2V) connected to solar panels (6V-48V). This power adapter is ideal for mobile power supplies and DC power sources.

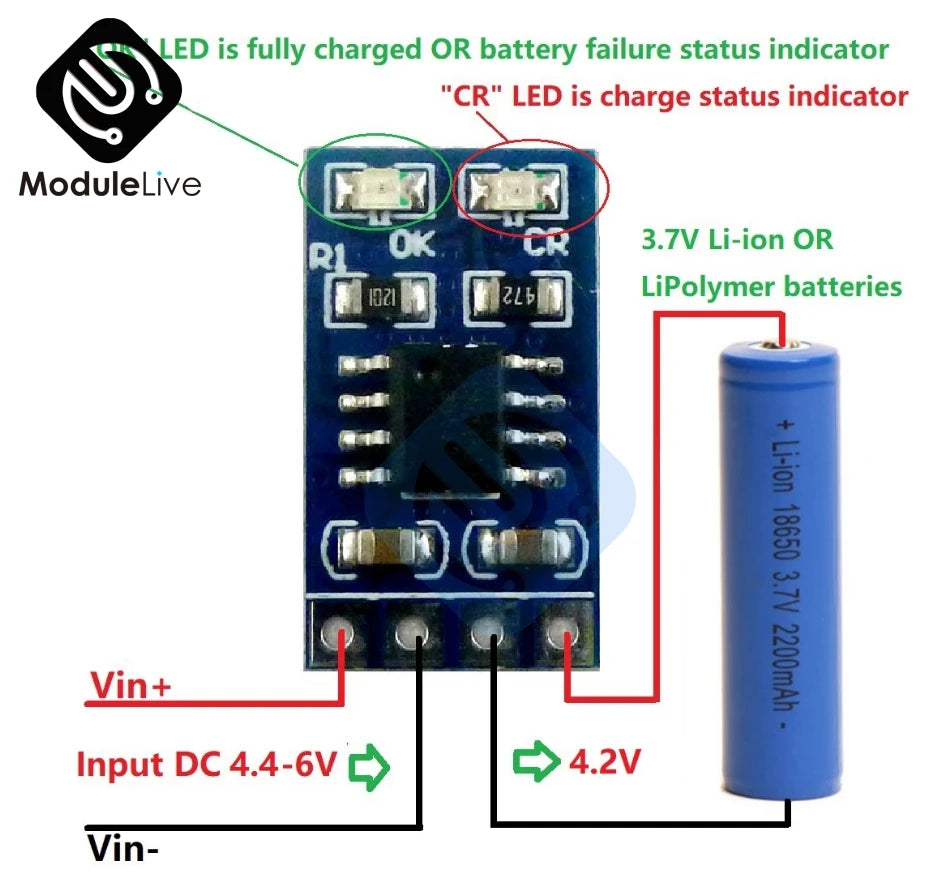

Features a fully charged or battery failure status indicator, with a 'CR' LED that shows charge status. Compatible with Li-ion and Li-Polymer batteries (3.7V/4.2V). Input DC range: 4.4-6V.

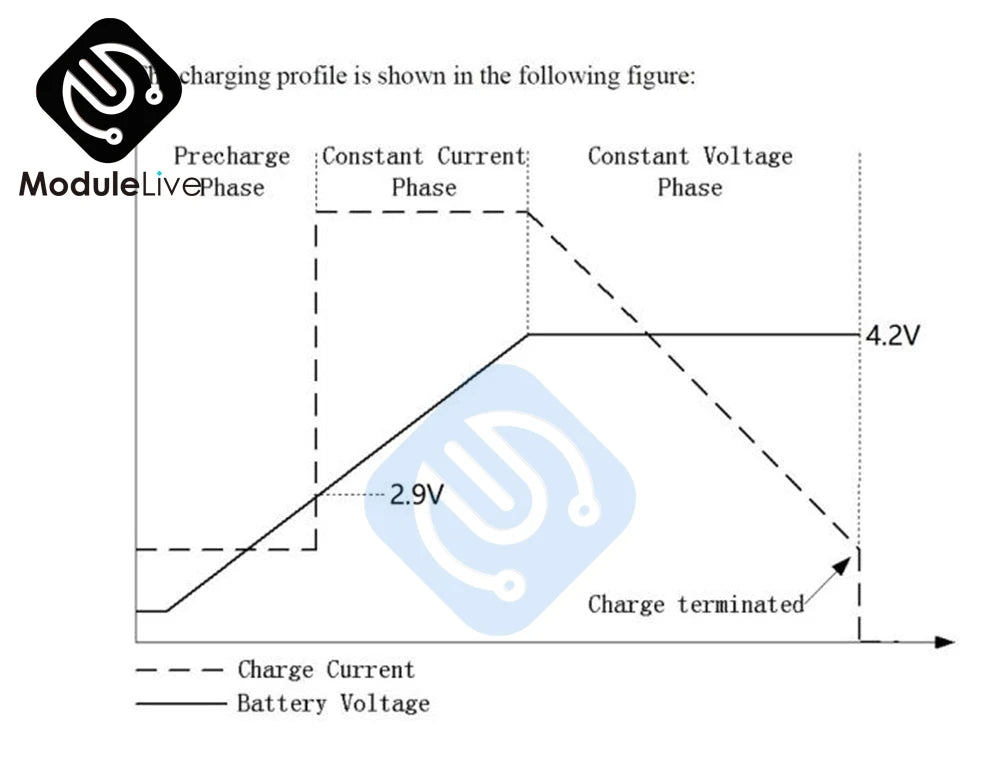

Charging profile includes pre-charge constant current, then constant voltage mode, with phases: 4.2V termination, and battery voltage monitoring.

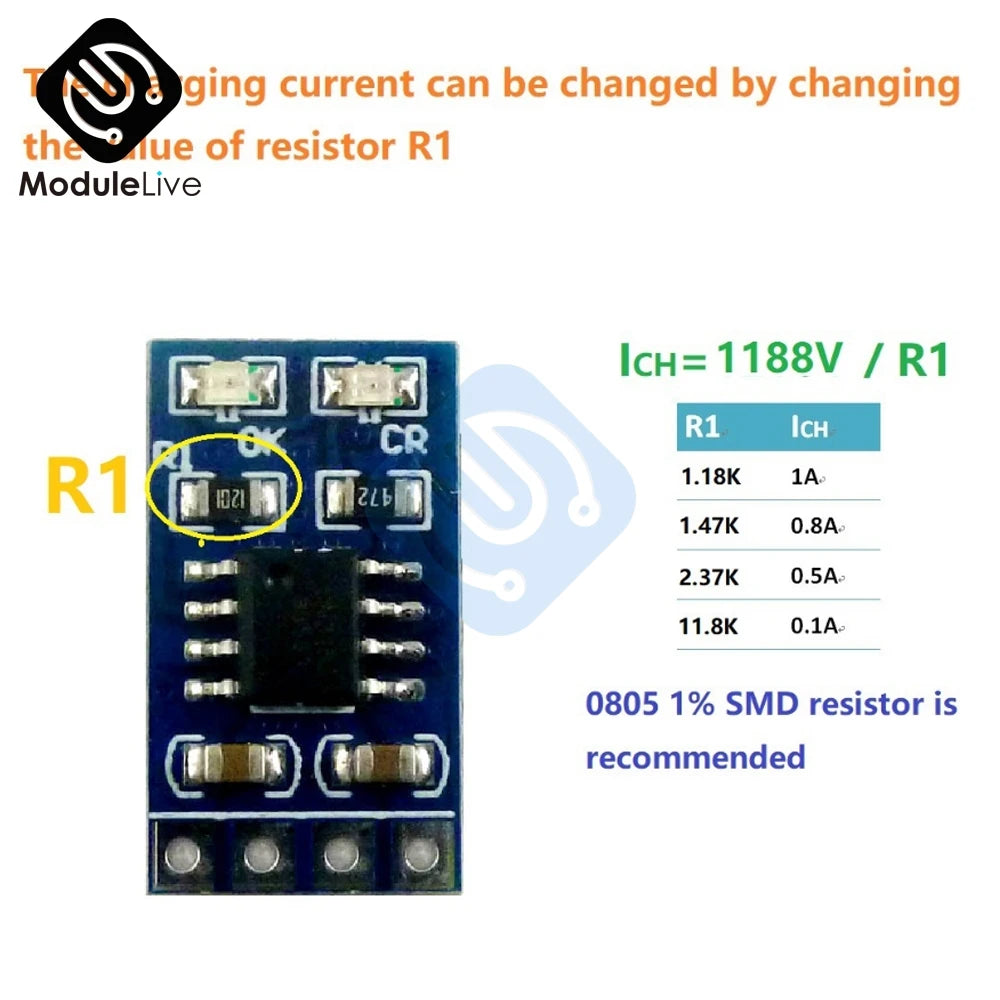

Adjustable current: modify resistor R1 to change output current from 0.1A (11.8K) to 1A (1.47K), suitable for a range of applications.

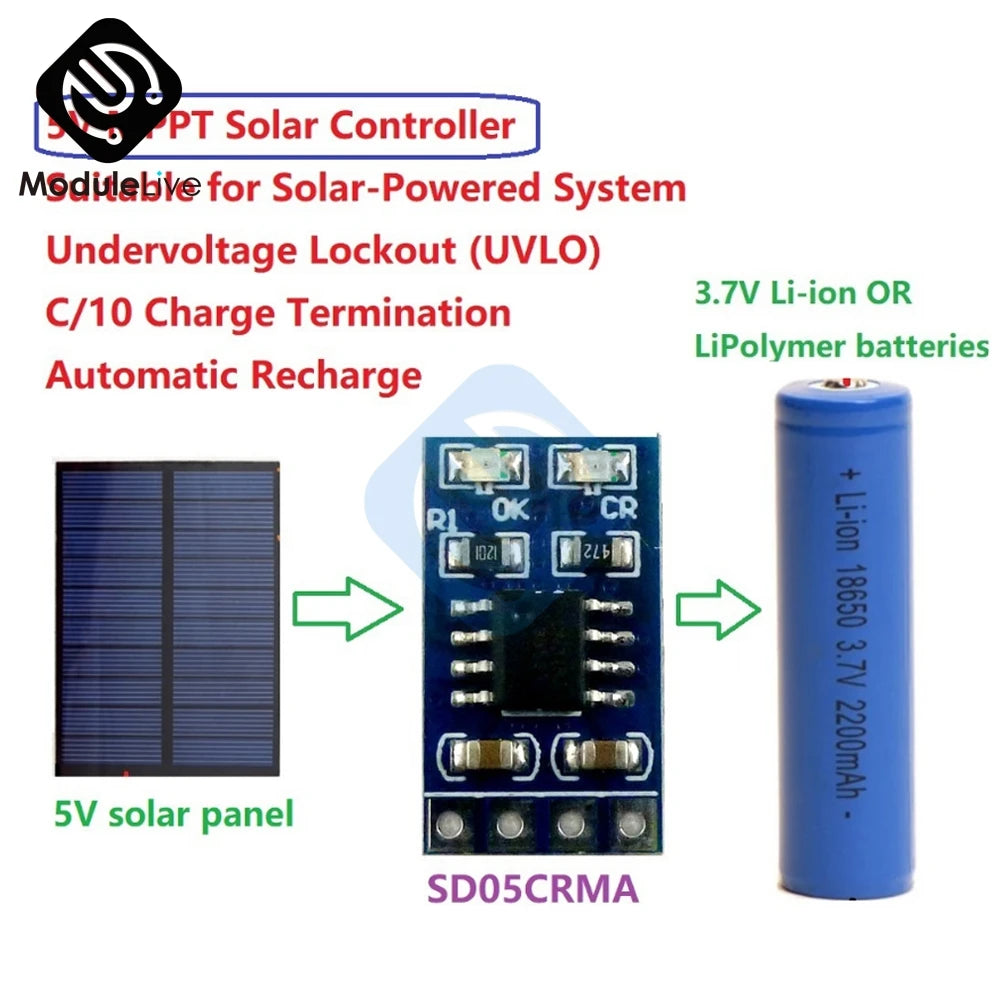

This MPPT solar controller module features undervoltage lockout (UVLO) protection for Li-ion/Li-Polymer batteries. It also includes automatic recharge, overcharge termination, and can handle 3.7V-4.2V battery input with 6V-48V solar panel output.
