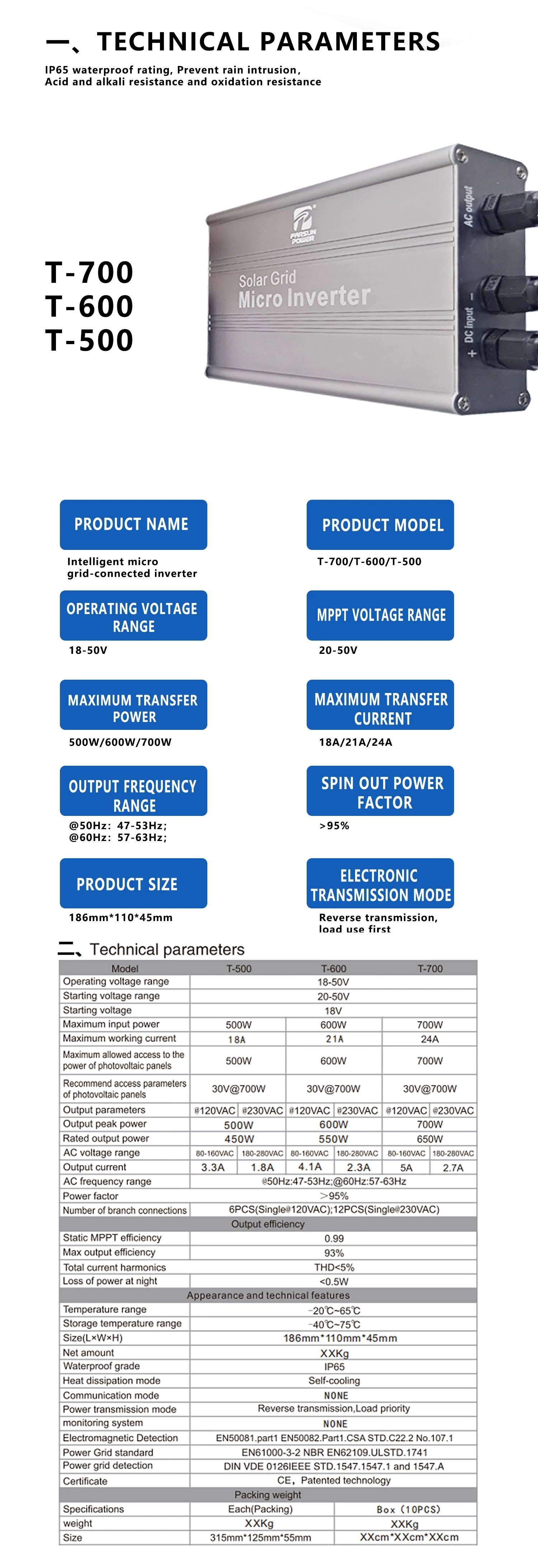

SPECIFICATIONS

is_customized: Yes

Weight: 1.08kg

Size: 315*125*55mm

Output Power: 500-700W

Output Frequency: 50/60Hz

Origin: Mainland China

Model Number: T-500W/T-600W/T-700W

Certification: CE

Brand Name: FARSUN POWER

Solar Grid Micro Inverter T-500/T-600/T-700

Introduction:

FARSUN POWER T-500W/T-600W/T-700W On Grid Tie MPPT Micro Solar
Inverter Using IP65 waterproof streamline
design, Can effectively prevent rainwater on the surface erosion, Built in high
performance Maximum Power Point Tracking(MPPT)Function,Better able to track
changes in the solar luminosity and control different output power, Effectively
capture and collect sunlight.

Features:

1.  High performance maximum power point tracking (MPPT).

2.  Reverse power
transmission.

3.  Input /output is
fully isolated to protect the electrical safety.

4.  Multiple parallel
stacking.

5.  Digital control
system.

6. Single unit connects to two PV modules.

7.Maximum 500W/600W/700W AC output power.

8.Single-phase output, Flexible 3-phase PV
systems.

9.Customizable various input (DC, PV) voltage
range.

10. Simplify
maintenance (user serviceable).

11. Operation and
maintenance costs low.

12.  Flexible
installation, Ready-To-Use.

LED Indicate:

1. Long
bright green light--- Micro inverter to normal;

2. Green light flashing---Micro inverter power;

3. Long bright red light---An island
protection and fault;

4.
Red light flashing:

①. AC voltage under-voltage
protection (flash a red light);

②. AC voltage overpressure protection (red light
flashing 2);

③. Frequency protection (red light flashes three
times).

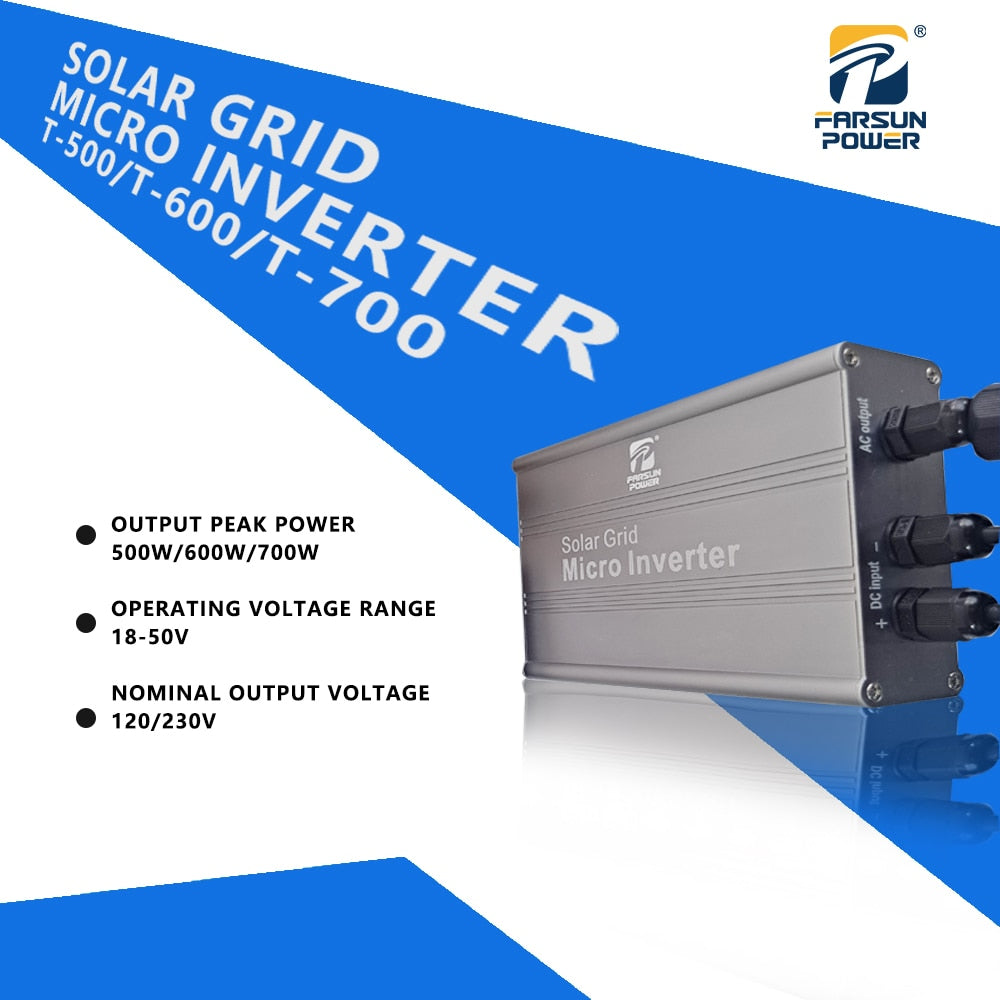

Carsun Power's MPPT solar grid tie micro inverter supports 500W, 600W, and 700W output. Operating voltage range is 18-50V with a nominal output voltage of 120/230V. It's suitable for residential on-grid systems.

Introducing our T-500, T-600, and T-700 Micro Inverters for on-grid solar systems. Boasting fine workmanship, excellent materials, and quality assurance since 2009. This product features stable output, corrosion protection, and multiple frequency adjustments to ensure optimal performance and a high power conversion ratio.

Micro Inverter Features: LED Indication Lights. The unit has a streamlined design with a high-pressure oxidation process. Normal operation is indicated by a green light, while fault conditions trigger red lights. The micro inverter also features AC voltage under-voltage and overpressure protection, as well as frequency and water resistance (IP65 rating) to prevent rain intrusion and ensure durability.

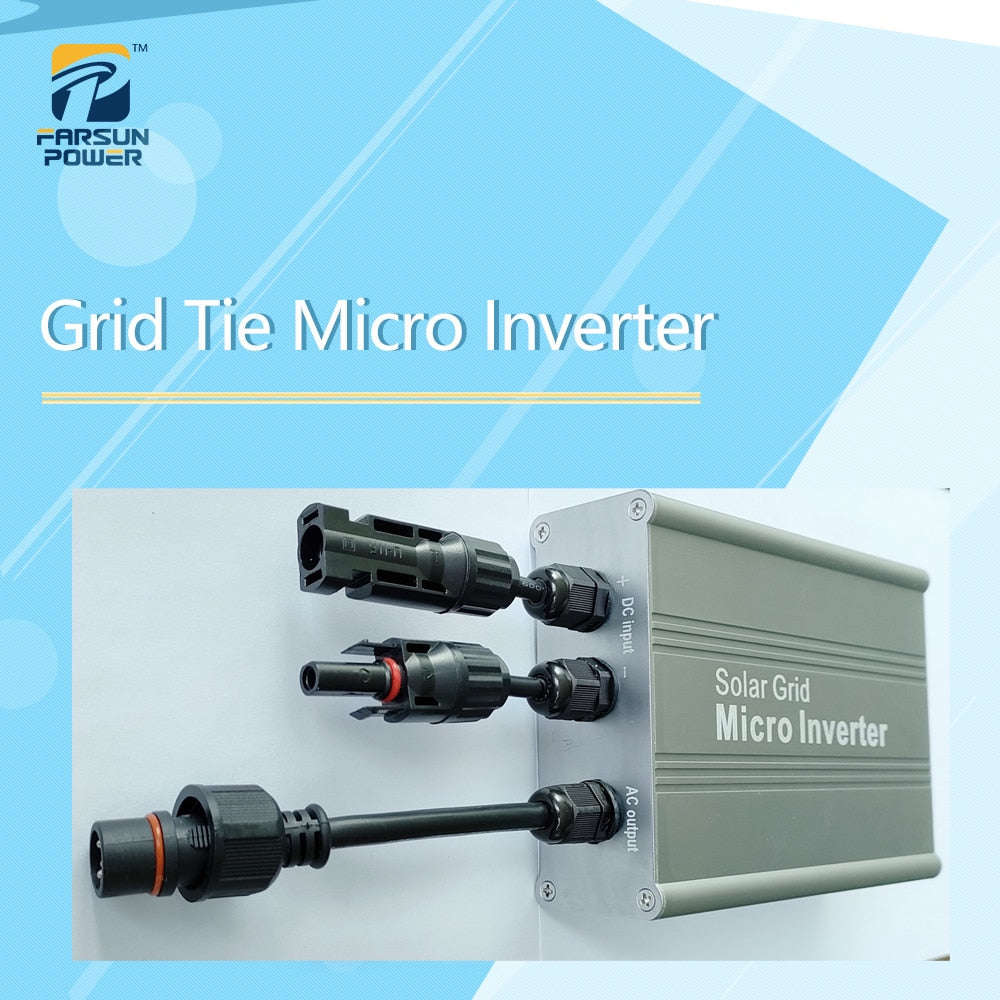

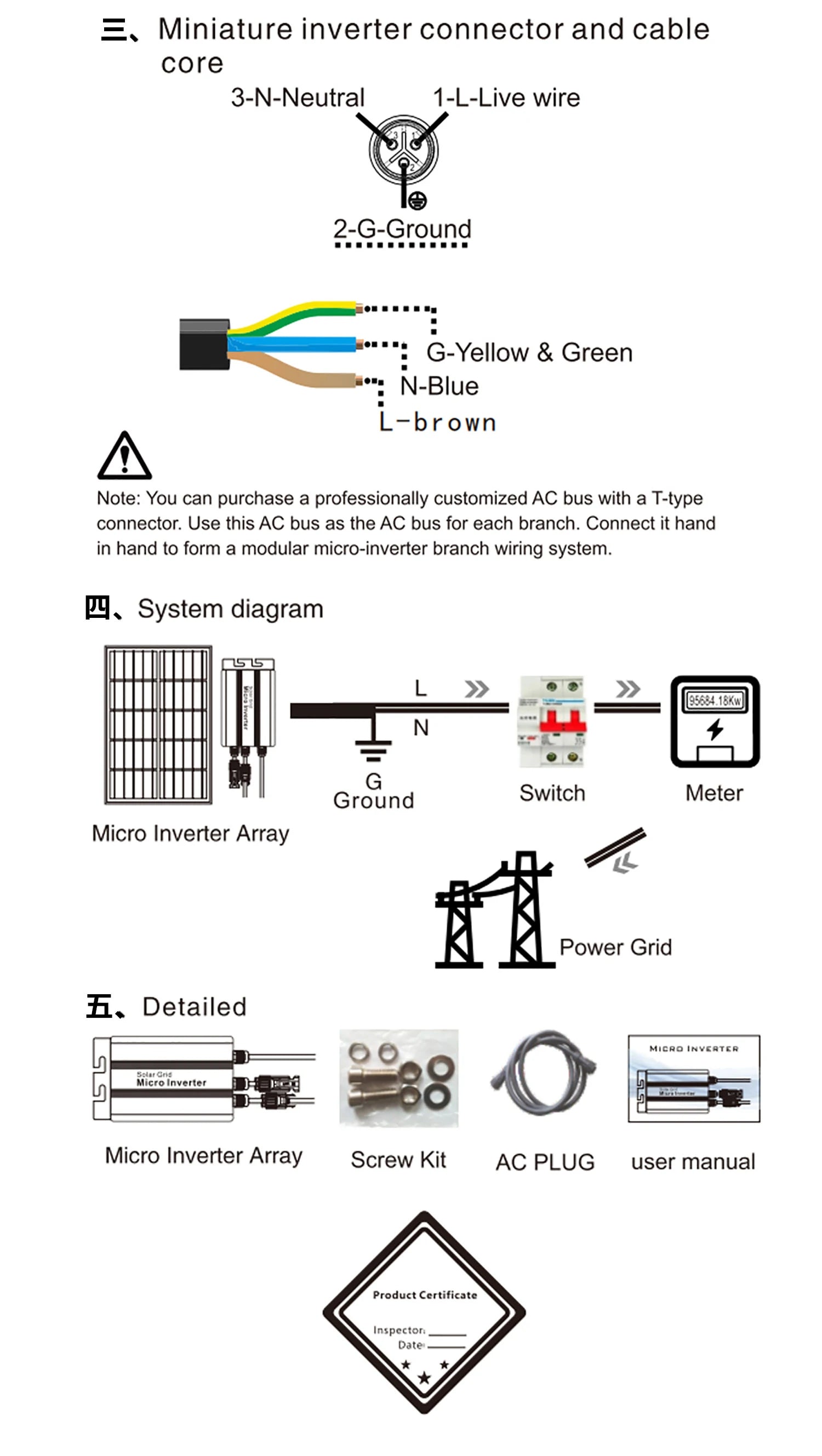

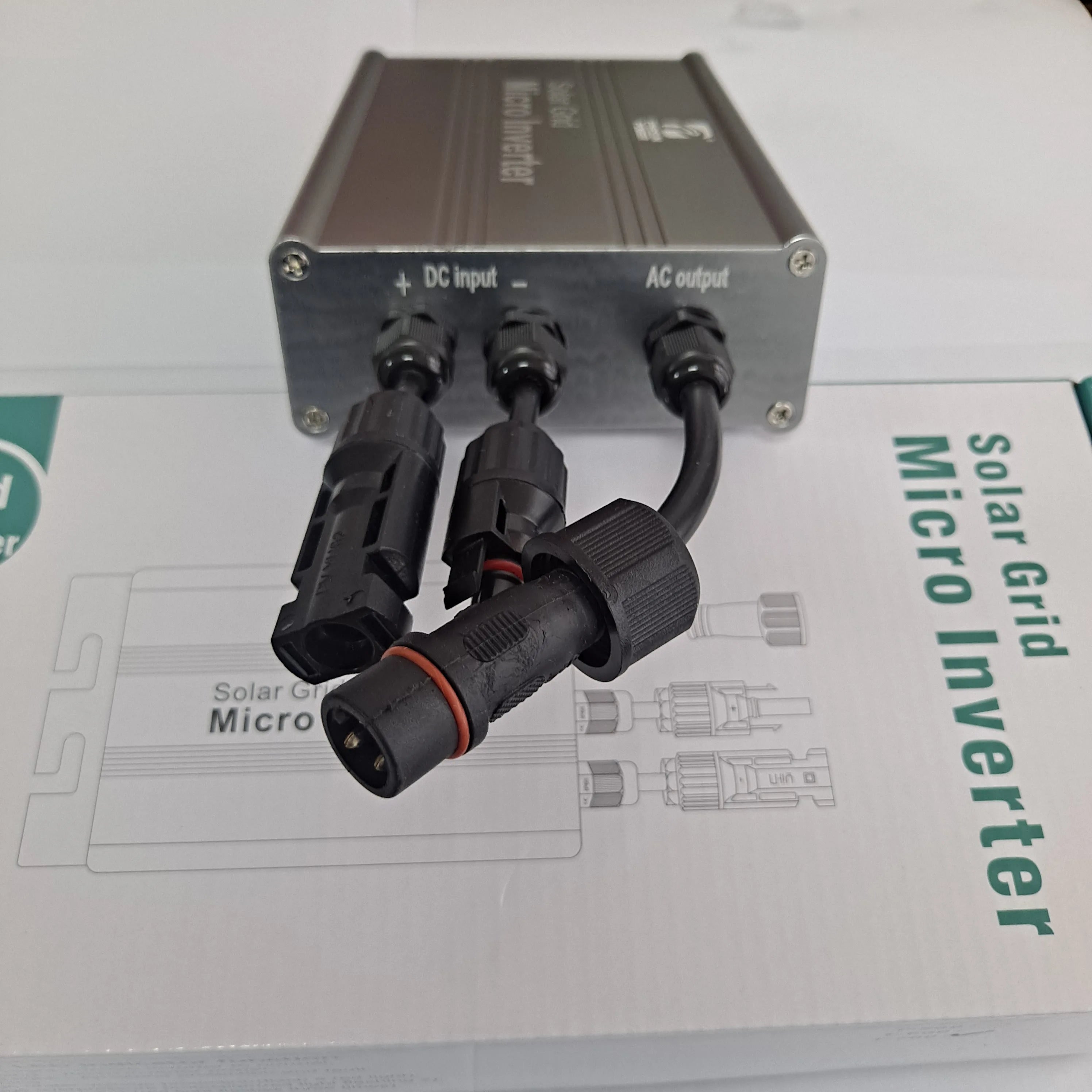

Connect the MPPT solar grid tie micro inverter to your on-grid solar system. The miniature inverter features a T-type connector for easy integration into a modular branch wiring system. A professionally customized AC bus with 3-N-Neutral, 1-L-Live, and 2-G-Ground wires is recommended. Refer to the system diagram B3*18 for detailed installation instructions.

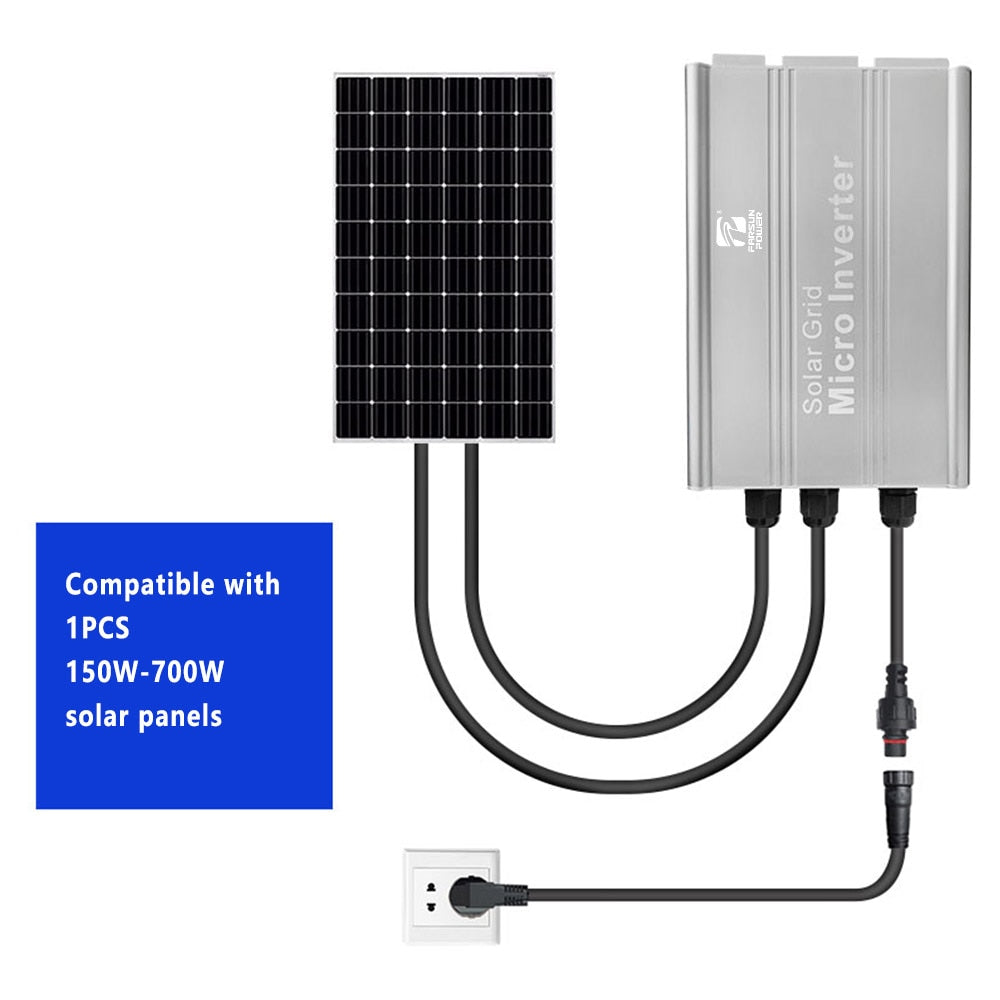

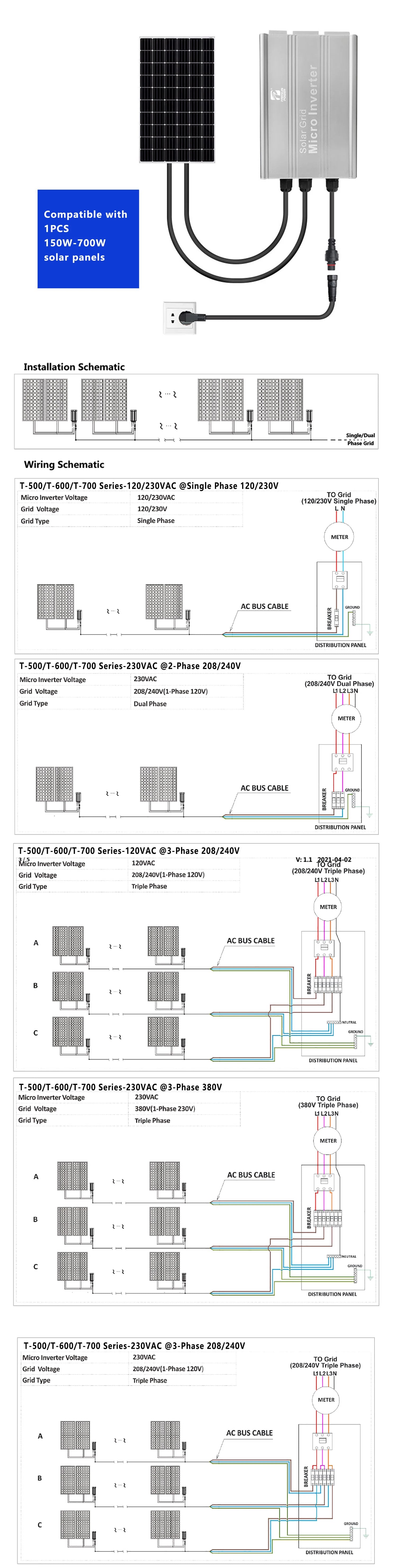

Compatible with 150W-700W solar panels. Installation schematic: single-phase grid wiring (120V/230V), dual-phase grid wiring (208V/240V), and triple-phase grid wiring (208V/240V). Micro inverter voltage: 120V, 230V, or 380V. Output power: 500W, 600W, or 700W. Grid tie micro inverter for home solar on-grid systems.

Shenzhen Jiaxun Electronics Co., Ltd. presents their detailed display of micro inverters for grid-tied solar systems, offering 500W/600W/700W output at 120V or 230V.

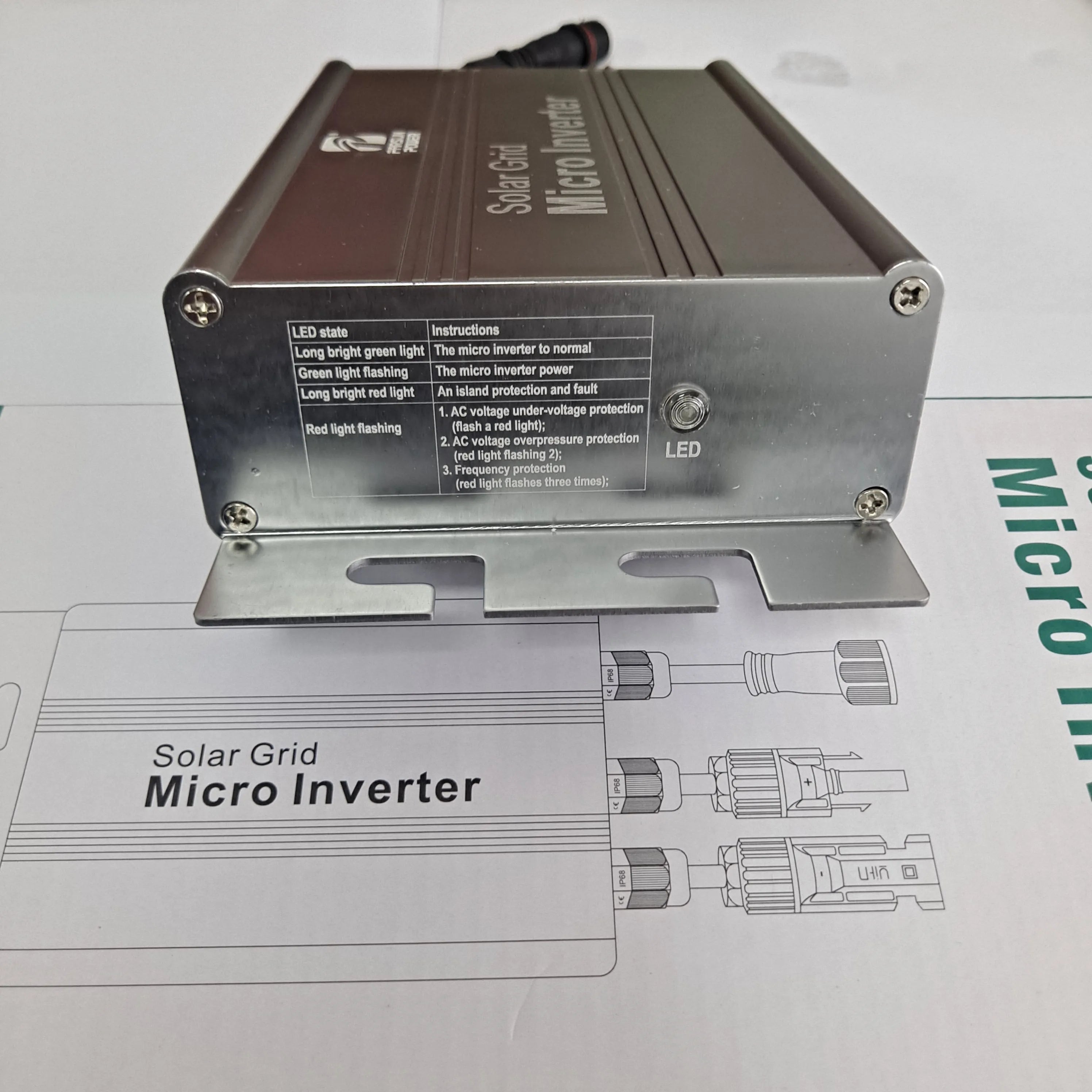

LED indicators show various states: a long bright green light indicates normal operation, while flashing red lights indicate fault conditions: under-voltage (1 flash), over-voltage (2 flashes), or frequency protection (3 flashes).

FARSUN MPPT solar grid tie micro inverter for home solar on-grid systems, output: 500W/600W/700W, 120V/230V.

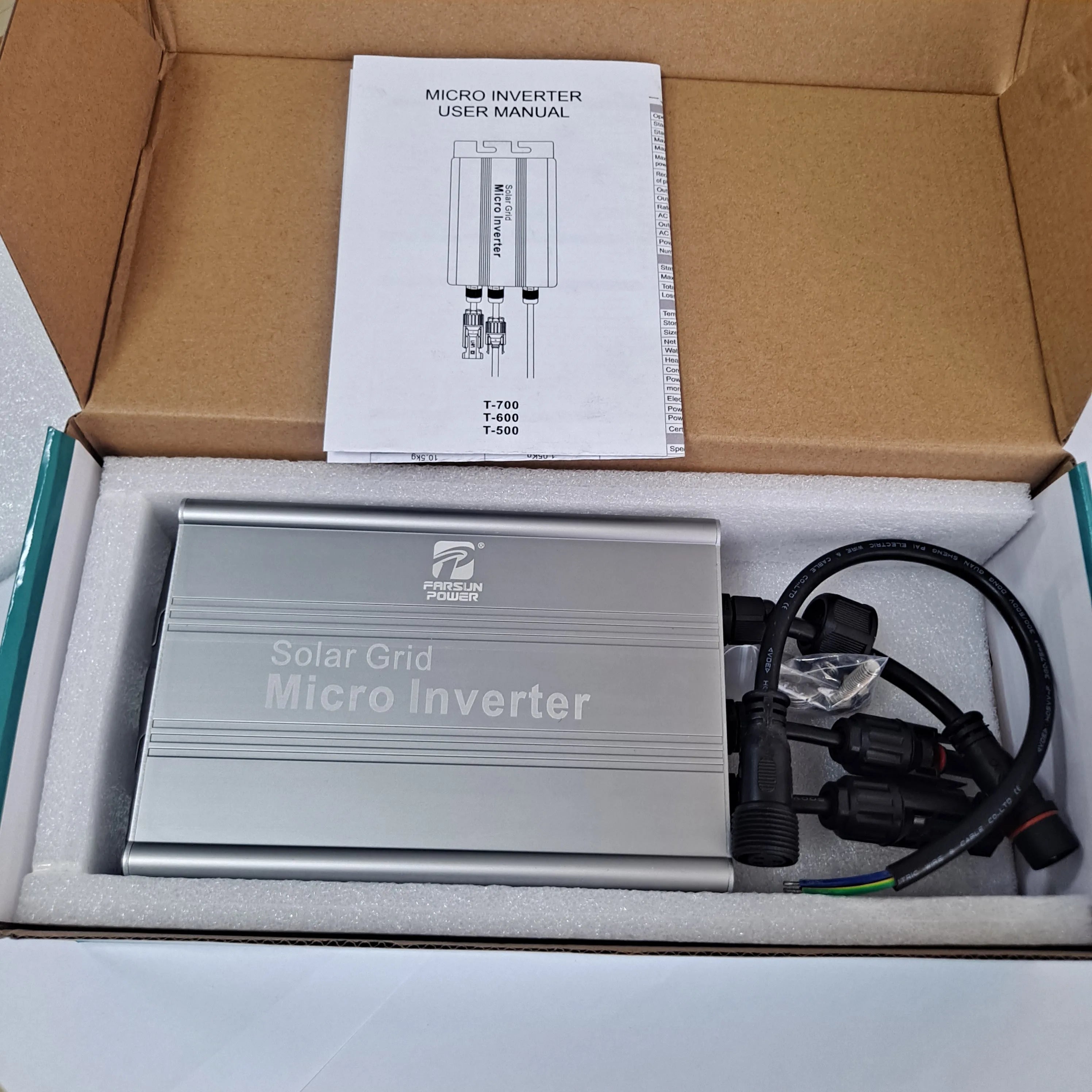

Grid-tie micro inverter for on-grid solar systems, output 120V/230V, suitable for 500W/600W/700W panels.
