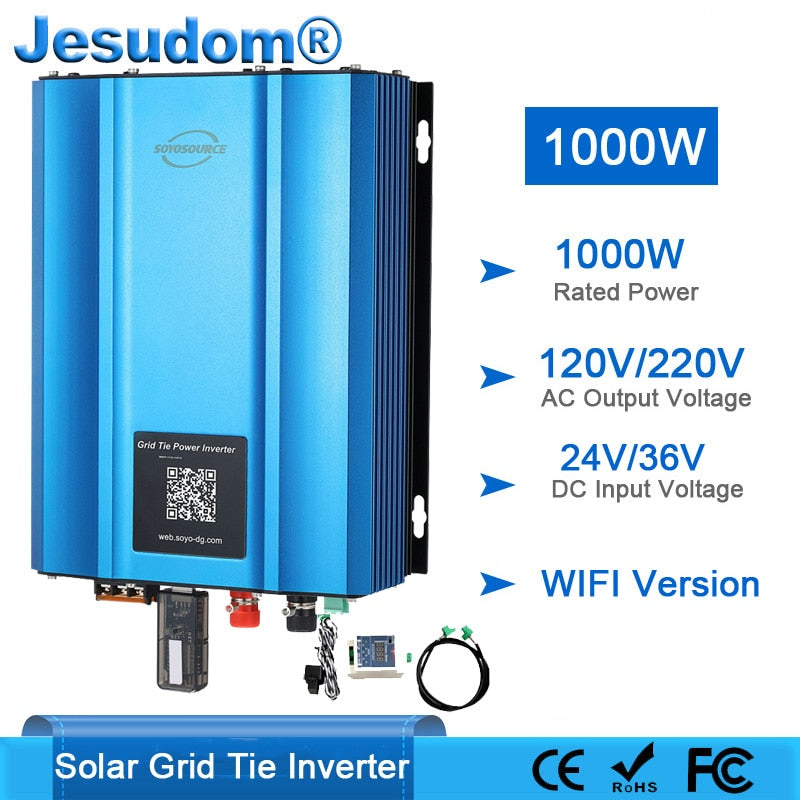

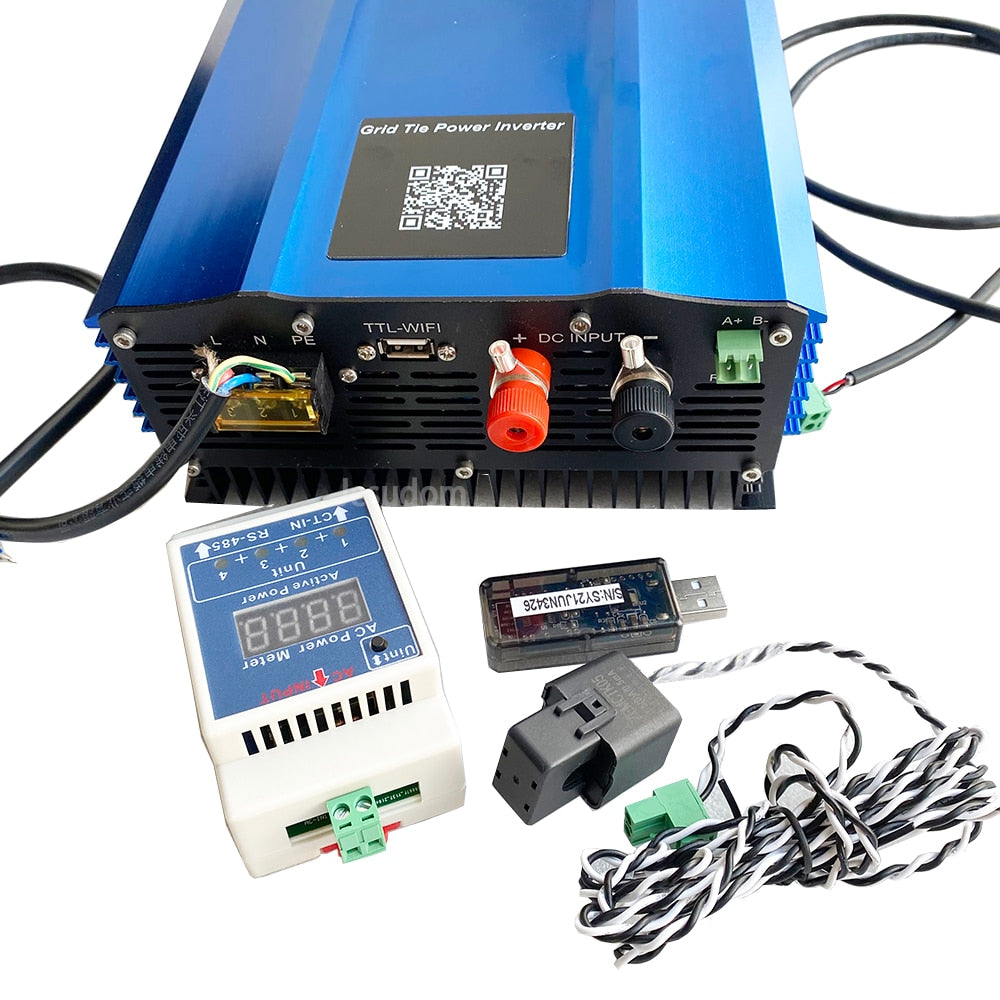

MPPT Solar Grid Tie Inverter 1000W Pure Sine Wave Output WIFI Version with Limiter Sensor Power Converter Battery Discharge
MPPT Solar Grid Tie Inverter 1000W Pure Sine Wave Output WIFI Version with Limiter Sensor Power Converter Battery Discharge
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping:Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ

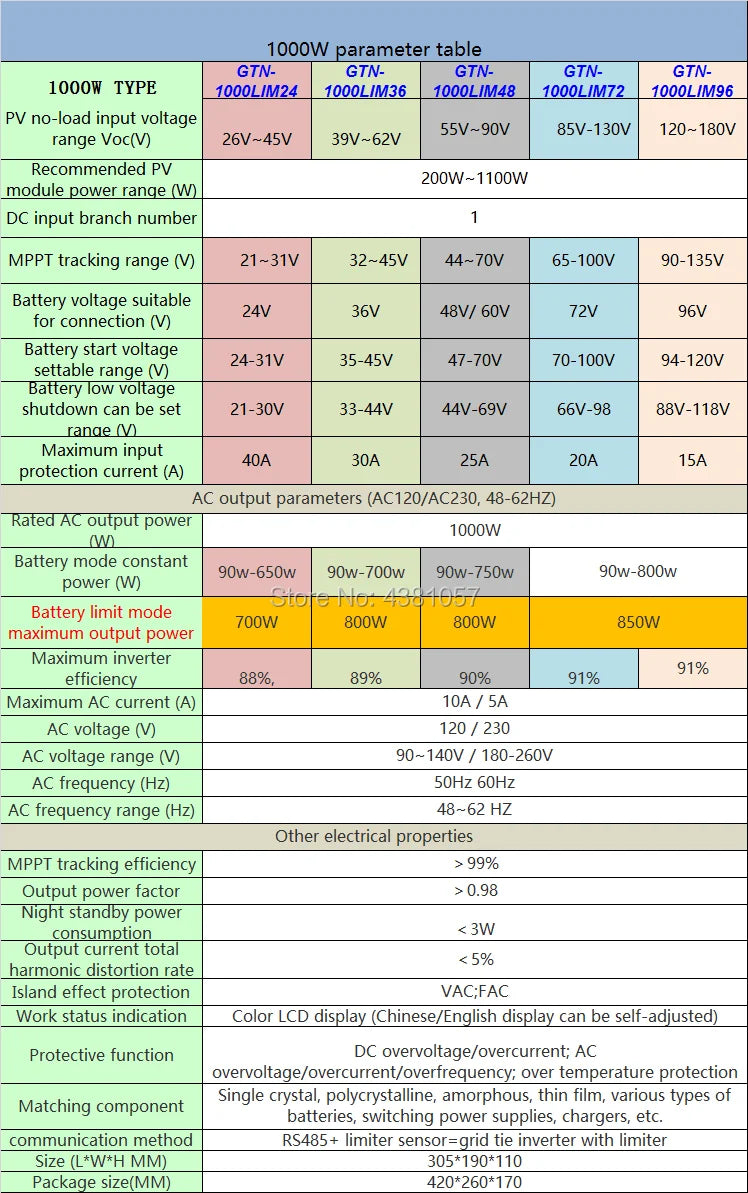

SPECIFICATIONS
is_customized: Yes
Weight: 4.5KG
Type: DC/AC Inverters
Size: 42*26*17cm
Output Wave: Pure Sine Wave
Output Voltage: 100V-120V or 220V-240VAC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50HZ60HZ
Origin: Mainland China
Model Number: GTN-1000W
Input Voltage(PV input): 26-45v/40-60v
Input Voltage(Battery input): 24V/36V
Features: Auto-limit function
Display: LCD Display
Compatible: Solar Panels or battery
Certification: CE,RoHS
Certification: CE/Rohs
Brand Name: Jesudom
Application: Work for solar panel. battery, battery discharge

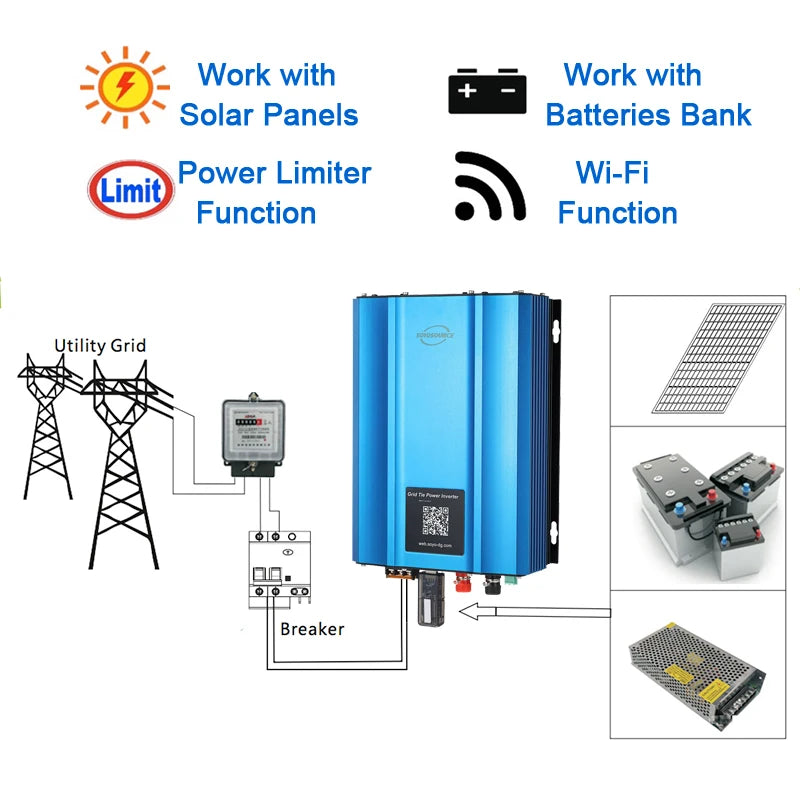

Works with solar panels, battery banks, and grid tie; features power limiter, Wi-Fi connectivity, and LAL function for utility grid backup.
1 PV-voc voltage range: 26V~45V or 24v battery
2 PV-voc voltage range: 40V-60V or 36v battery
Product description :

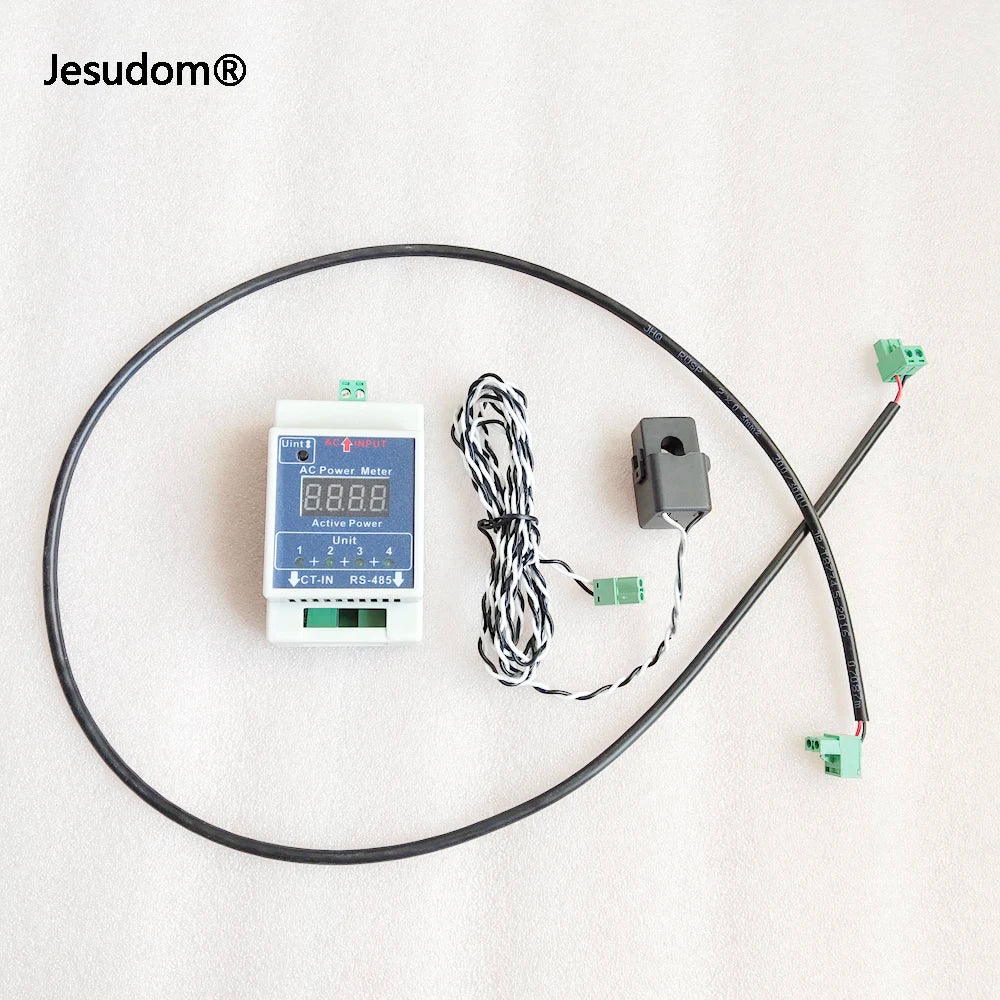

Active Power Limit (APL) and RS-485 communication protocol enabled by Jesudom (@uintt AI), for efficient power monitoring.

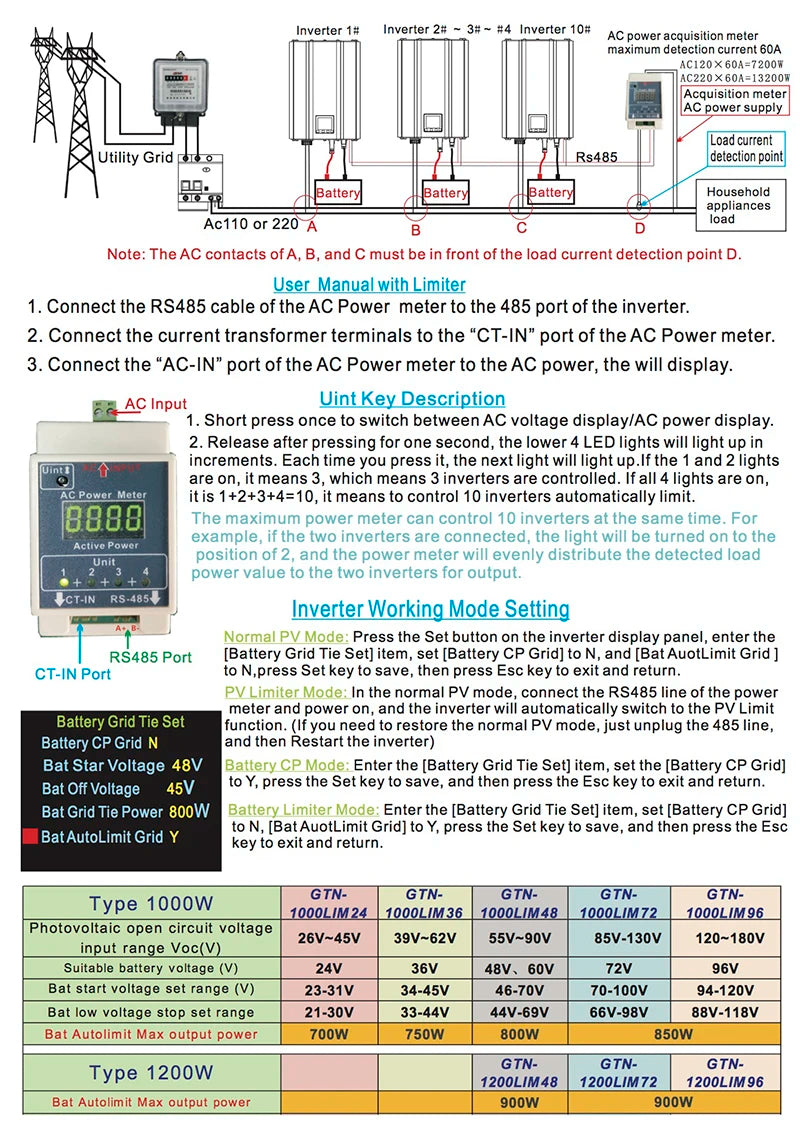

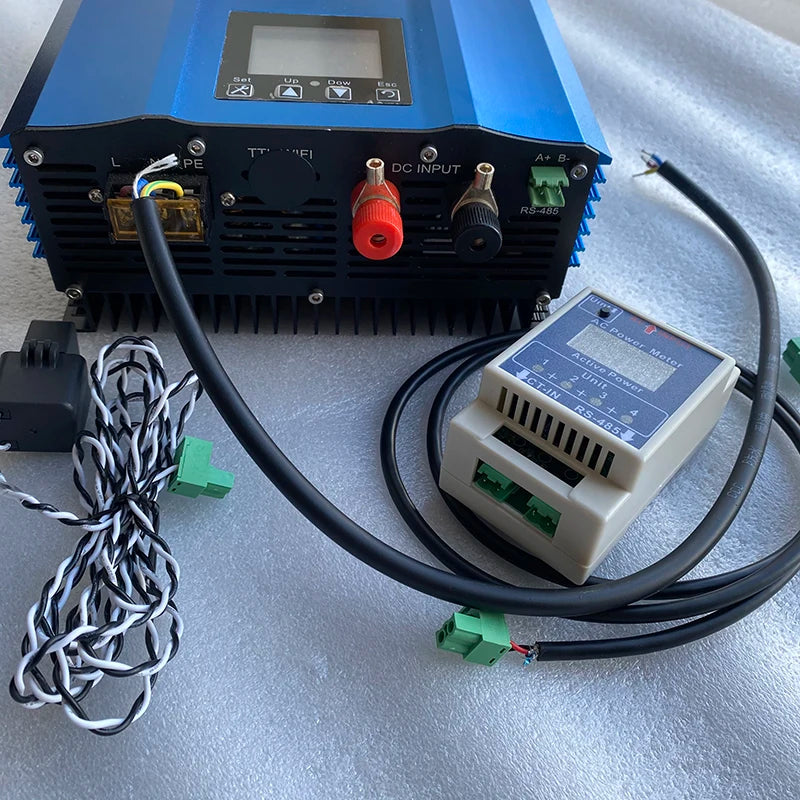

How to connect the sensor?

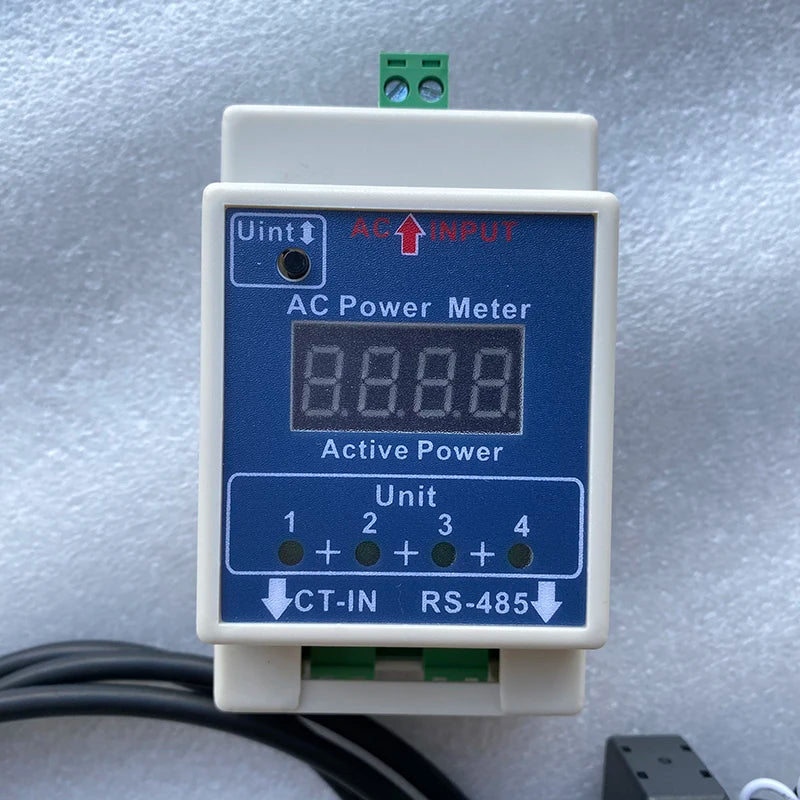

1.Connect the RS485 cable of the AC power acquisition meter to the 485 port of the inverter.
2.Plug the connection terminal of the transmitted current sensor into the port of the collector "CT-IN" (no +-)
3.Connect the AC power supply port "AC-IN" of the collector to the same AC power supply for the load. After the connection, it will light up.

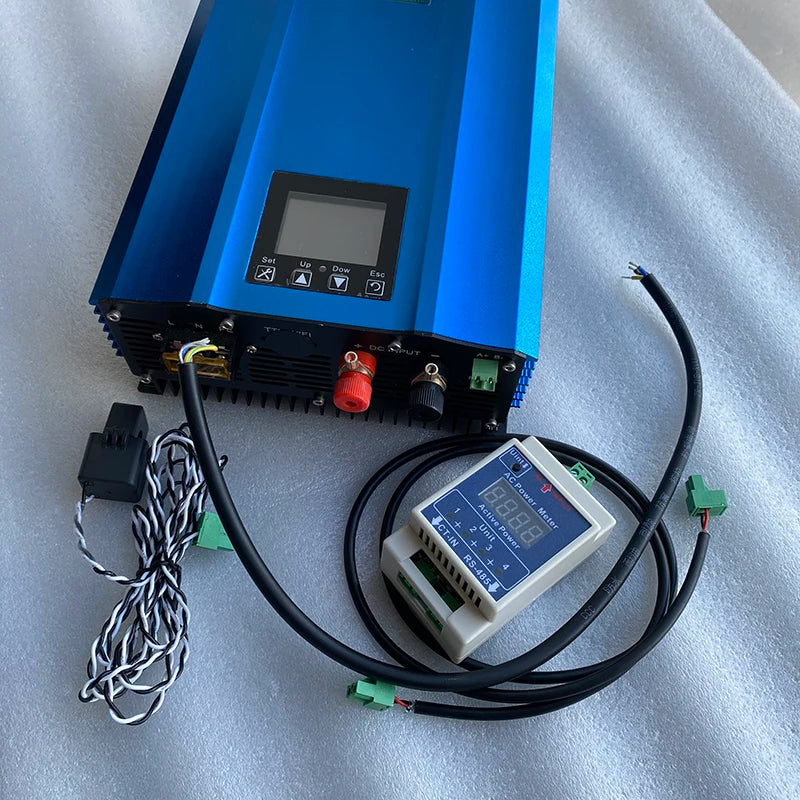

4.In the inverter LCD, enter the "battery grid connection", through the SET {Bat AutoLimit Grid} for Y 4.Connect the inverter to AC power first, then connect the battery, the inverter will automatically output the same power as the power detected by the collector.Therefore, the inverter will not have excess electricity to be sent to the grid (ie: automatic limiter function)
3 PV-voc voltage range:120V-180V or 96V battery

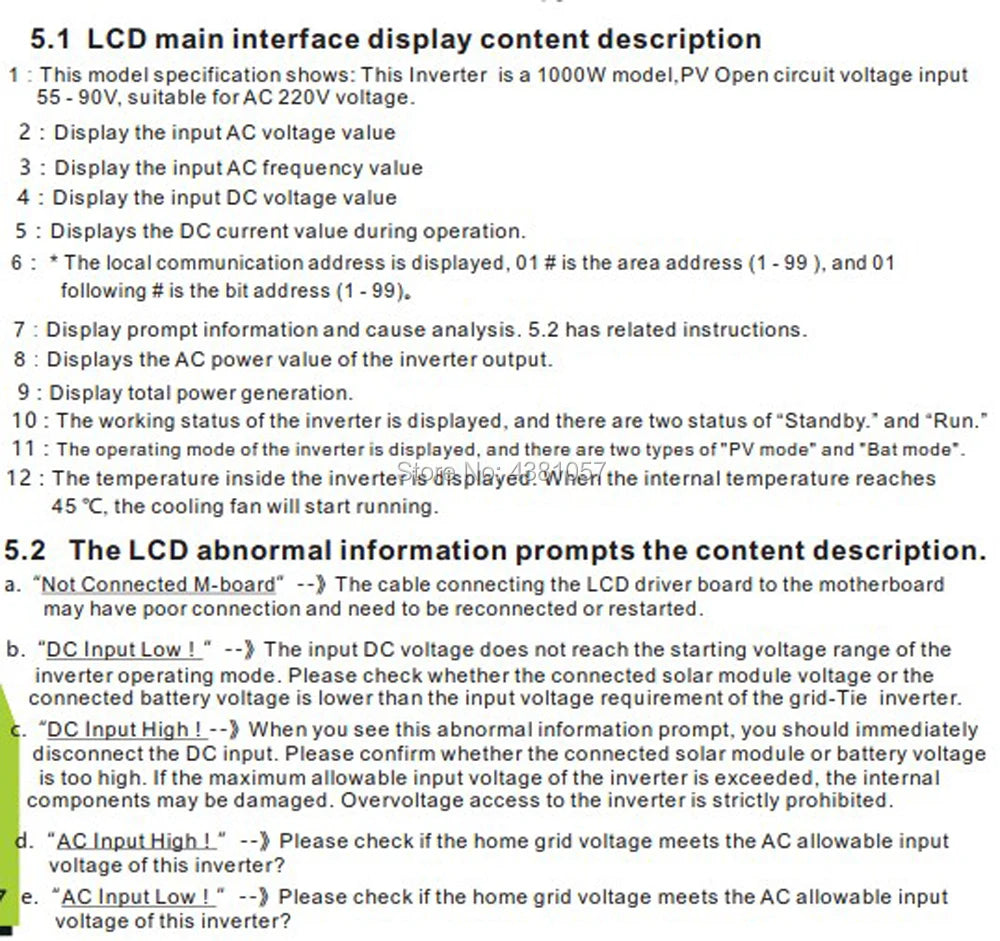

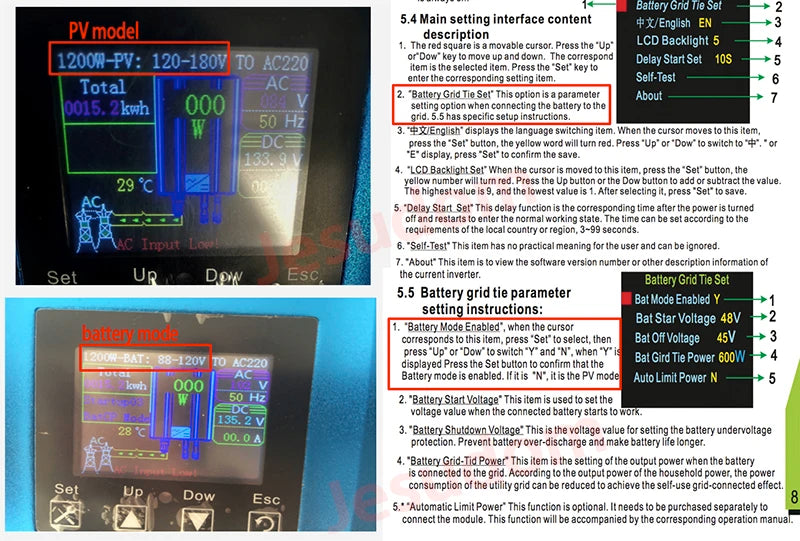

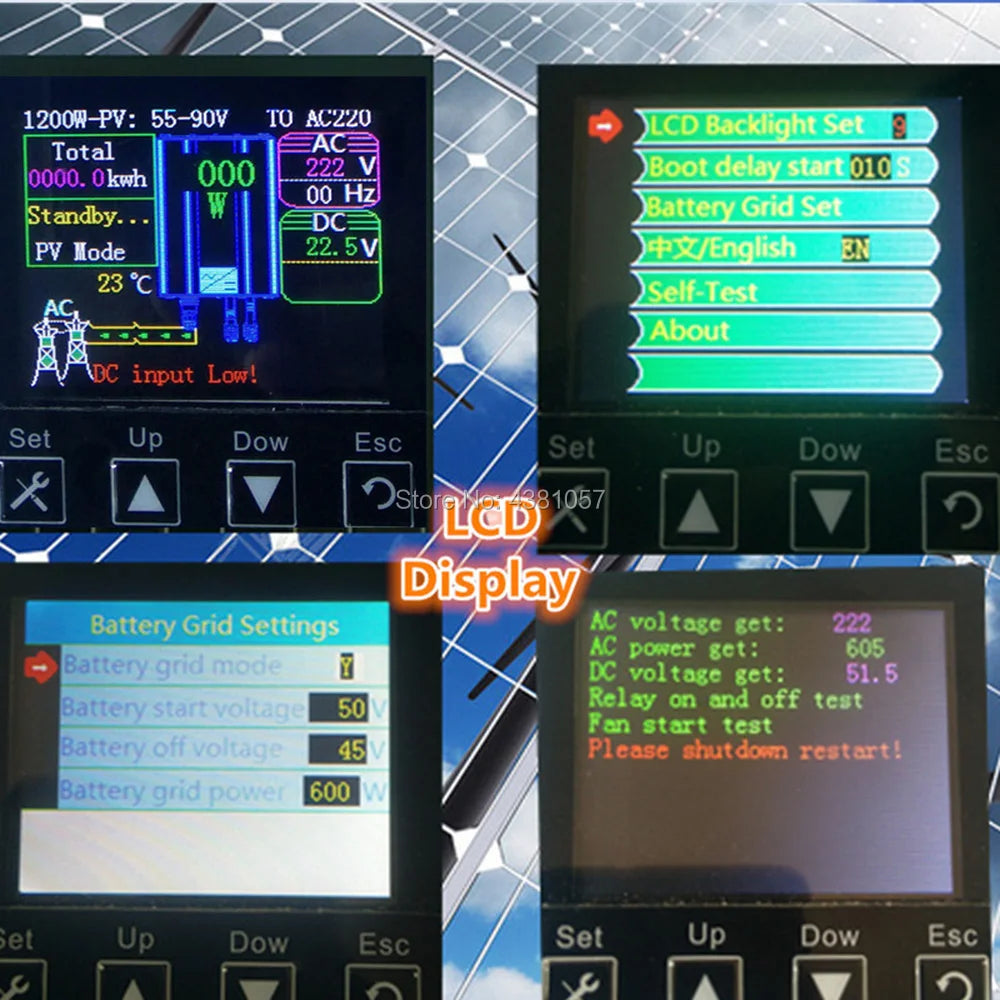

WIFI-enabled MPPT solar grid tie inverter with pure sine wave output. Specifications: 1200W PV input, 55-90V DC input, and 0-60Hz AC output. Includes LCD display and backlight. Features: automatic boot delay startup, standby mode, and battery discharge limiting. Settings include AC voltage set (222V), DC input low battery alert (51.5V), and start test function. Relay on/off testing also available. Please shut down and restart if error occurs.

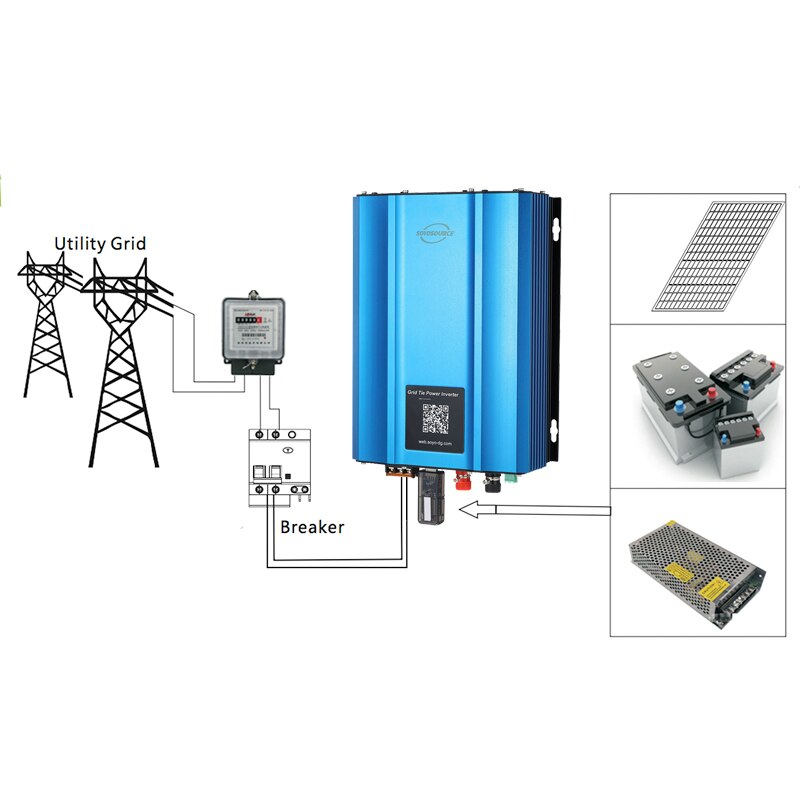

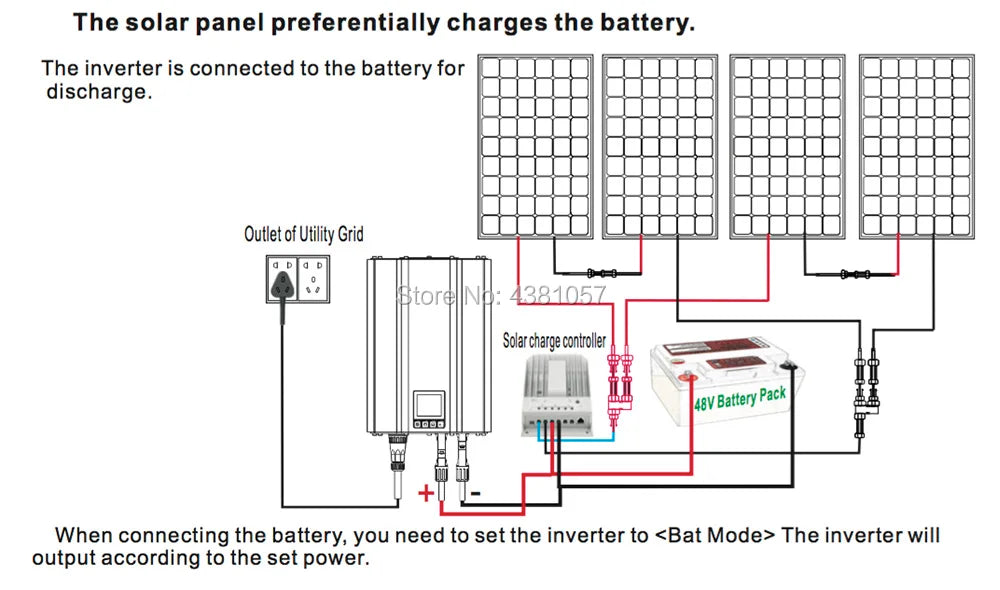

This MPPT solar grid tie inverter charges batteries and discharges them as needed. It can be connected to the utility grid, and when doing so, it automatically switches to 'Bat Mode' to regulate battery discharge according to the set power level.

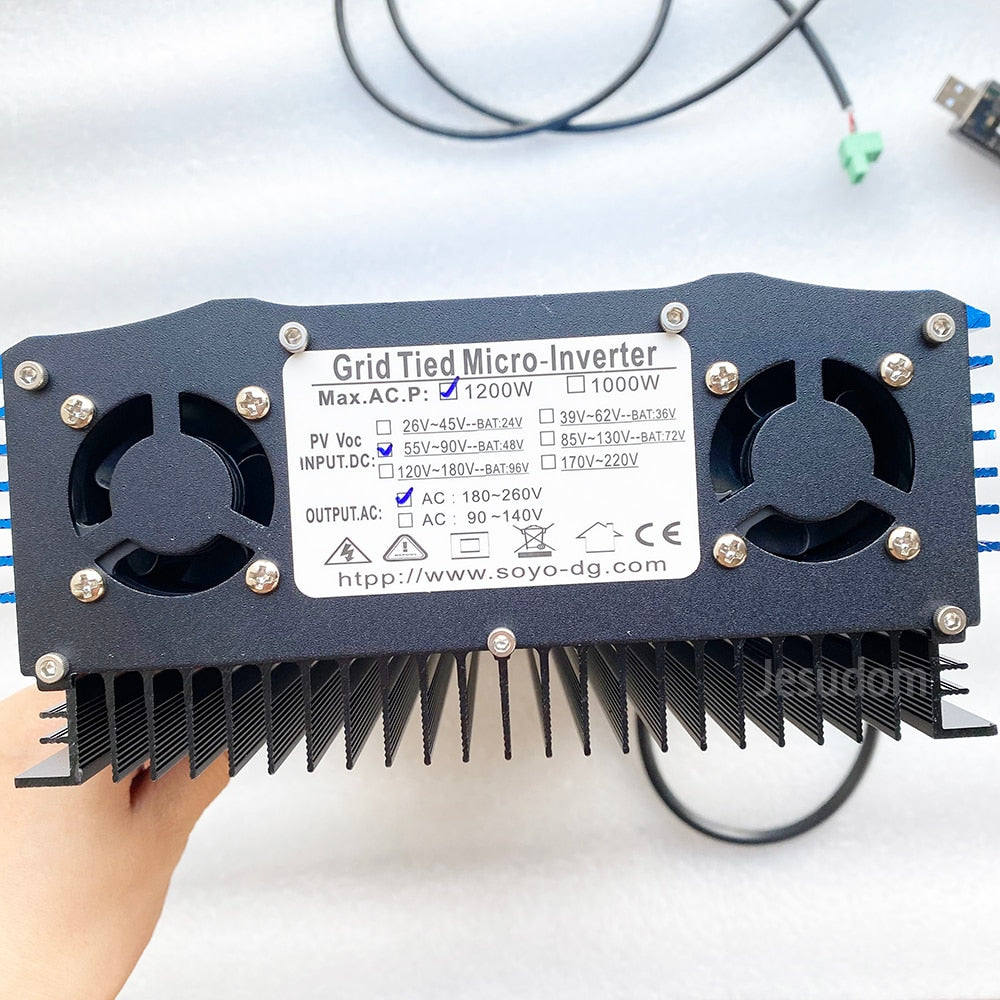

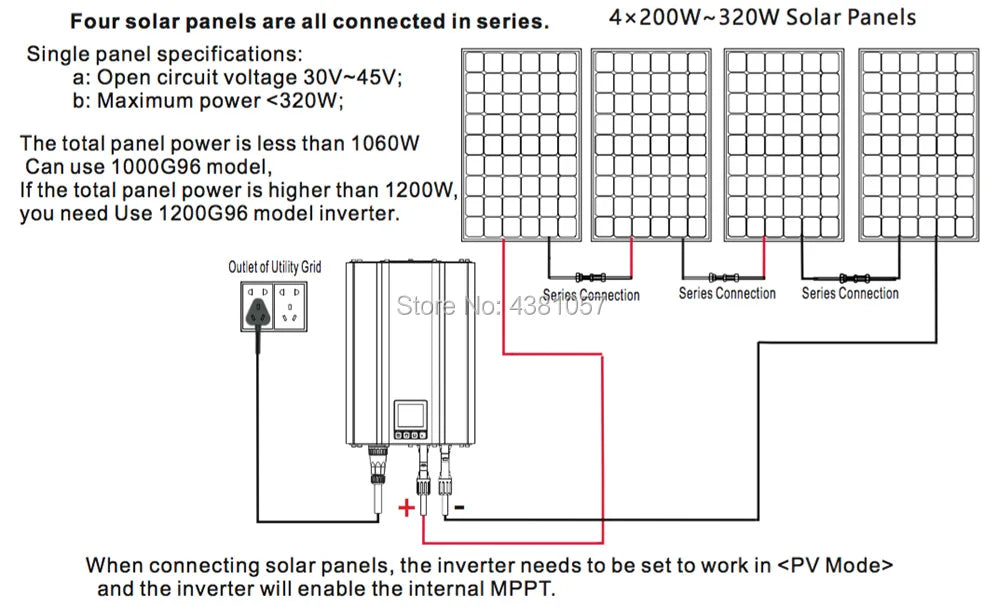

Note that this inverter supports up to 1060W of total panel power, which means you can connect four panels with a maximum power output of 200-320W each. If your total panel power exceeds 1200W, you'll need to use a different model inverter. To ensure proper connection, the inverter must be set to 'PV Mode' and the internal MPPT will automatically start.

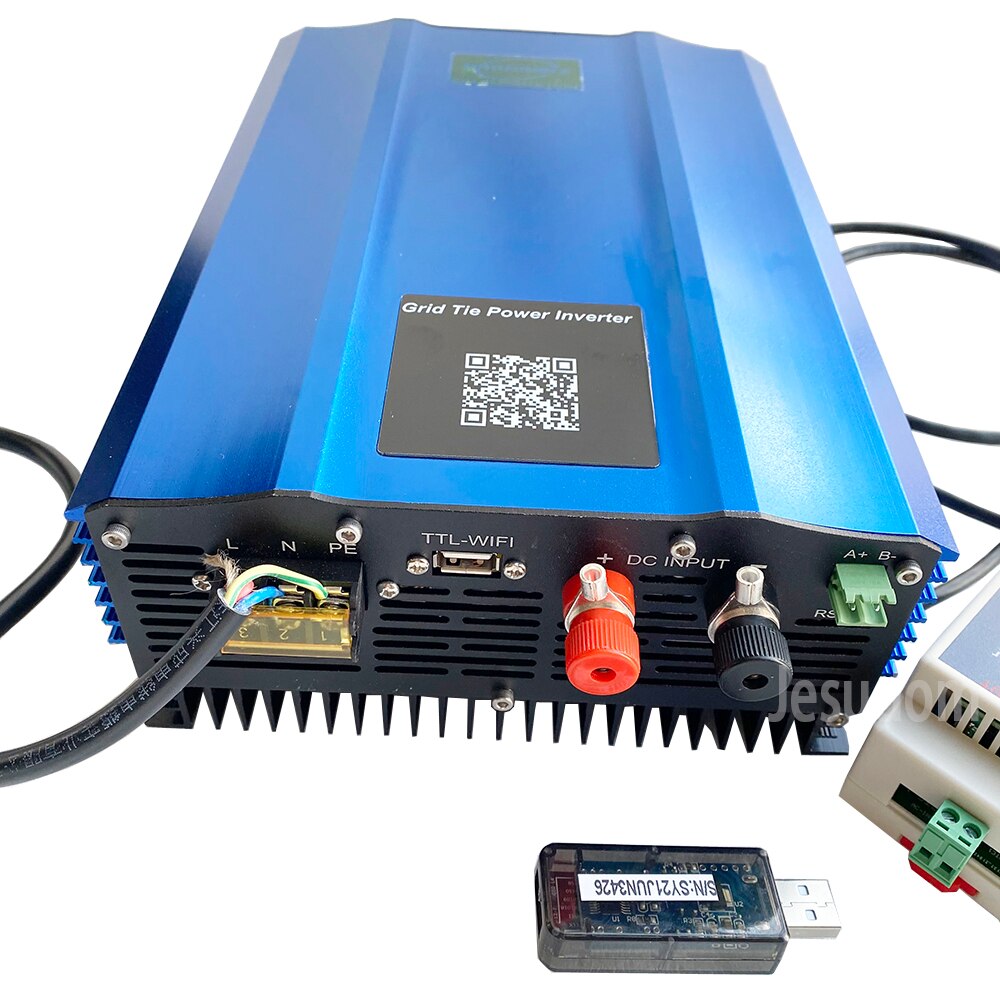

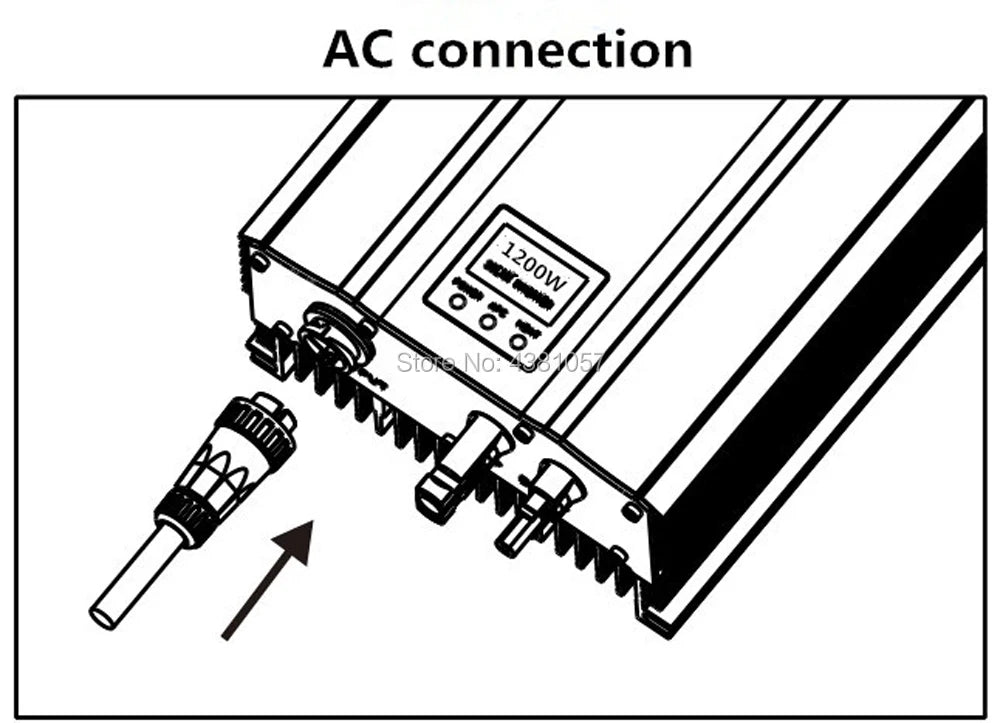

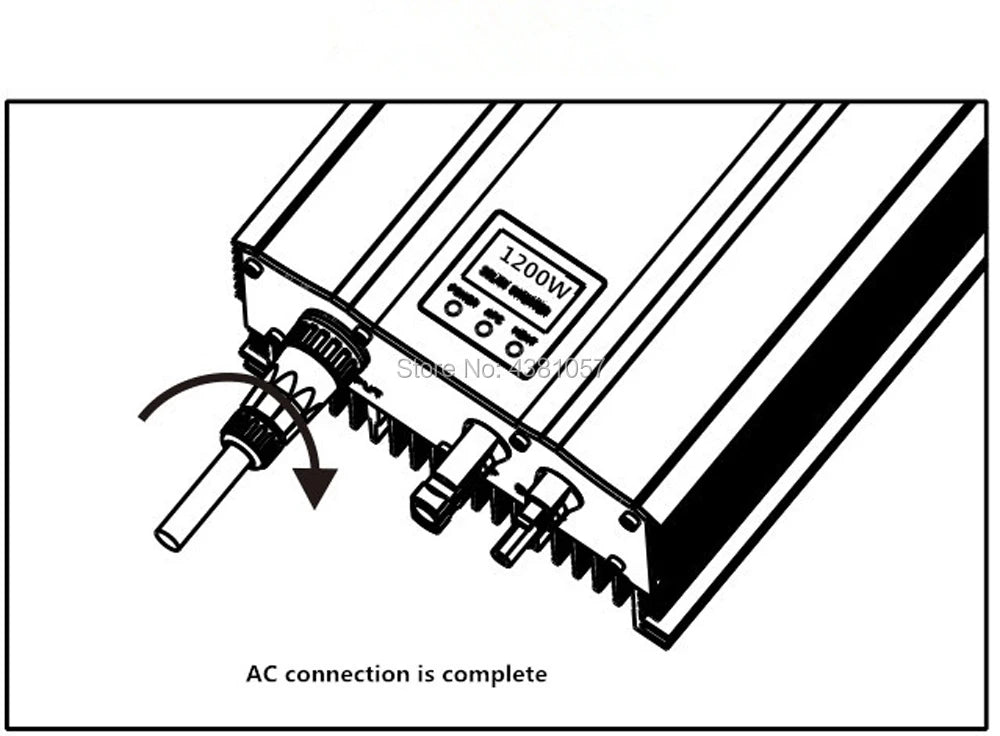

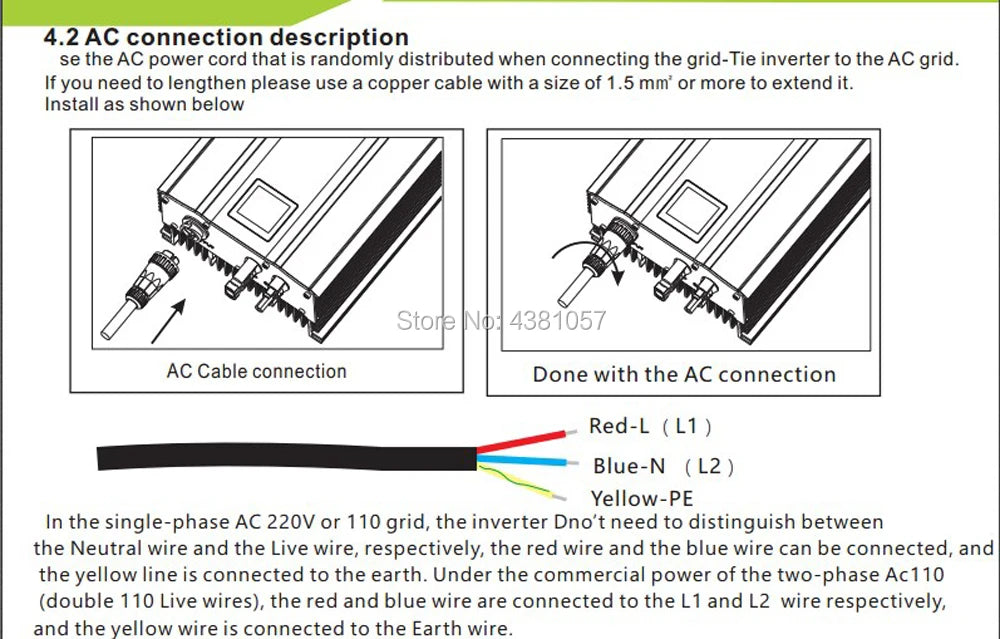

To connect your MPPT solar grid tie inverter to an AC power grid, use the provided AC power cord. If you need to extend it, use a copper cable with a minimum size of 1.5mm. The AC connection is shown below: Red (L1), Blue (N/L2), and Yellow (PE) connect to the single-phase AC 220V/110V or two-phase AC 220V (double 110V live wires). Note that in single-phase AC, the red and blue wires can be connected indiscriminately. In two-phase AC, the yellow wire connects to Earth.

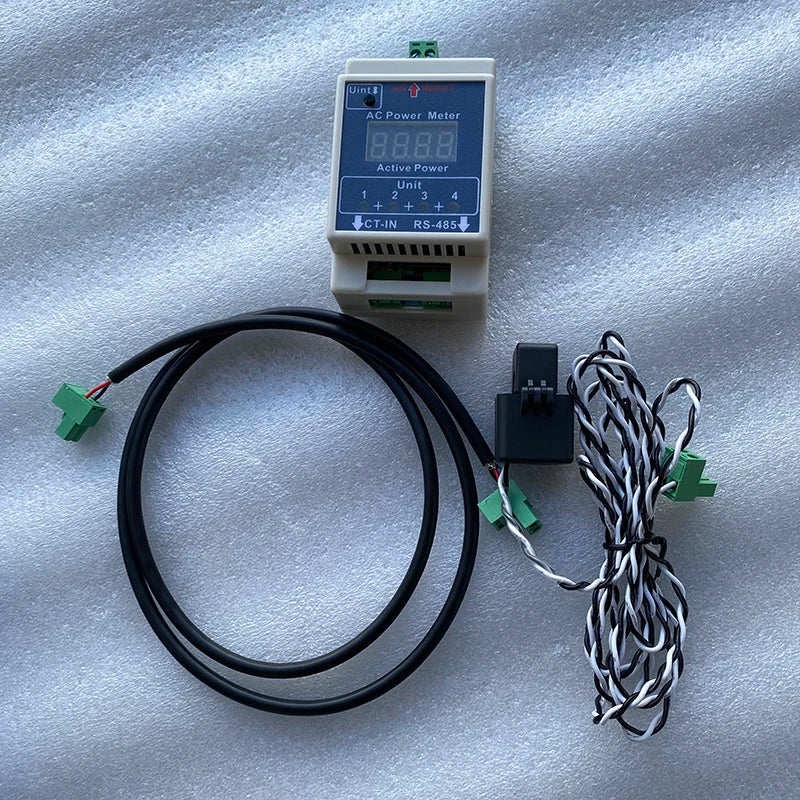

AC Power Meter with unit 8888, active power monitoring and RS-485 communication for efficient energy management.

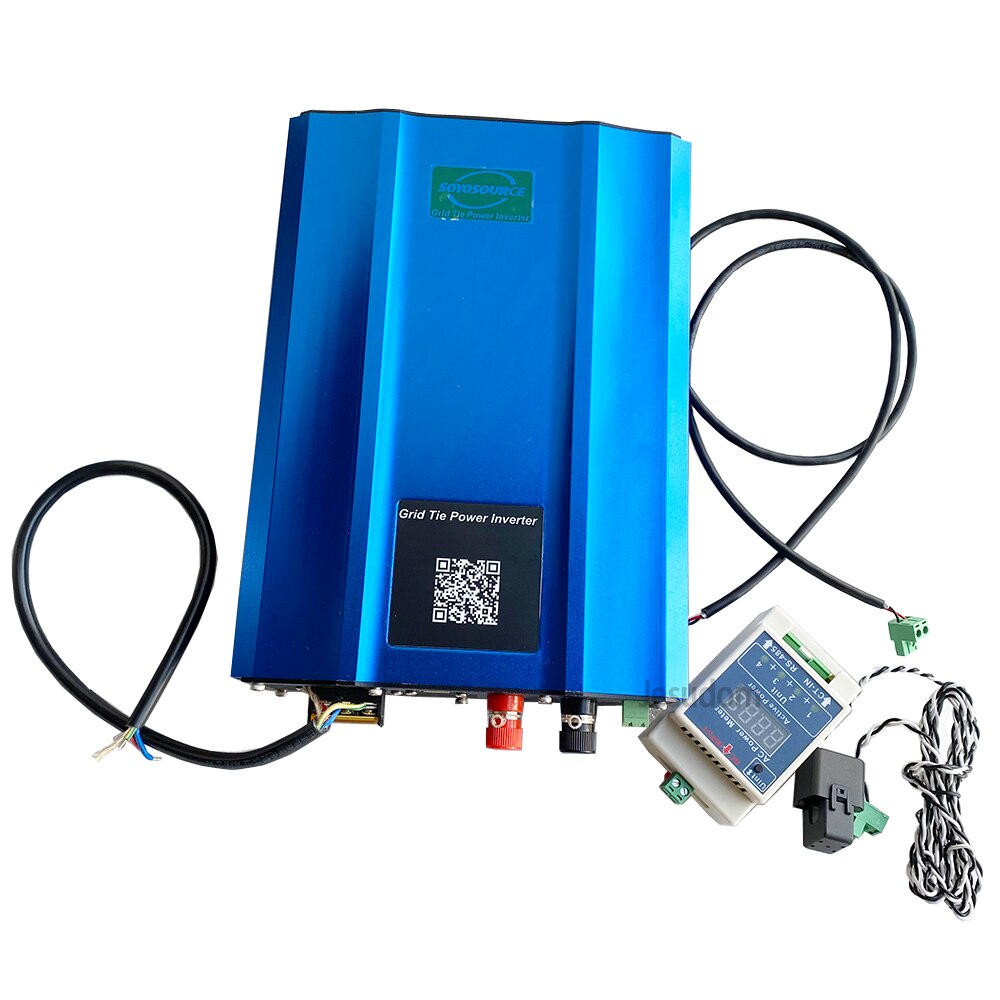

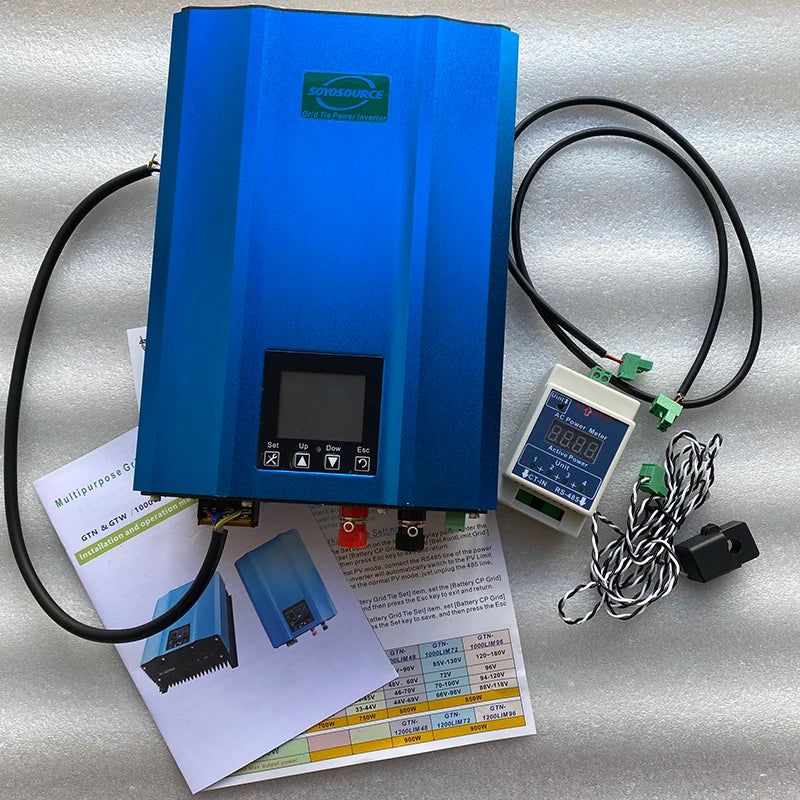

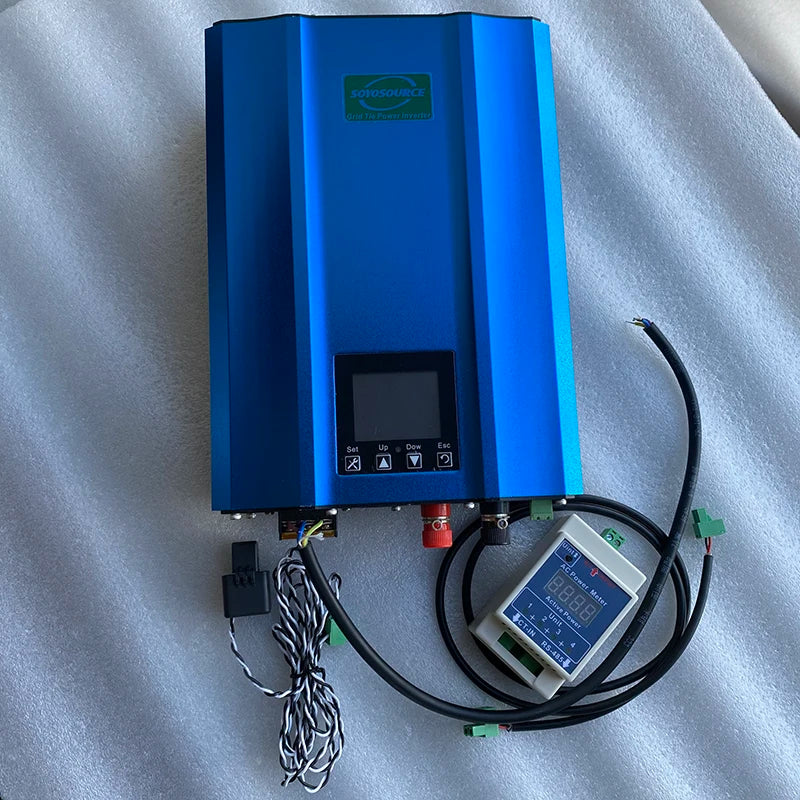

MPPT Solar Grid Tie Inverter with Pure Sine Wave Output, WiFi Version, and Limiter Sensor for Power Converter and Battery Discharge. This product features 1000W output power, suitable for residential or commercial use.
Pure Sine Wave MPPT Solar Grid Tie Inverter with WiFi, 1000W output, limiter sensor, and power converter for battery discharge control.

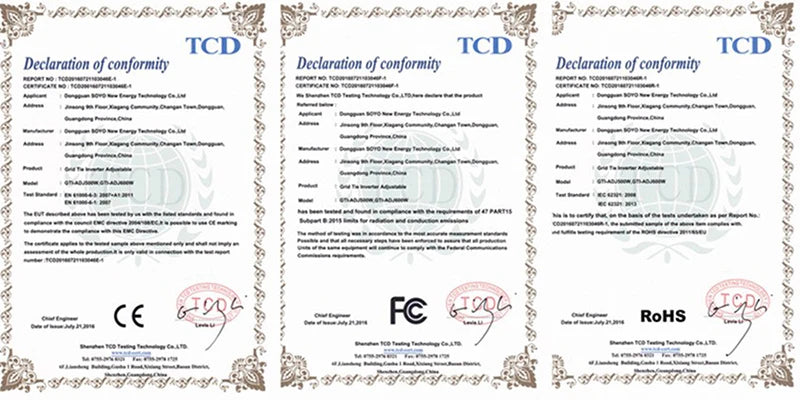

This product conforms to EU RoHS directives, ensuring safety and environmental compliance.
