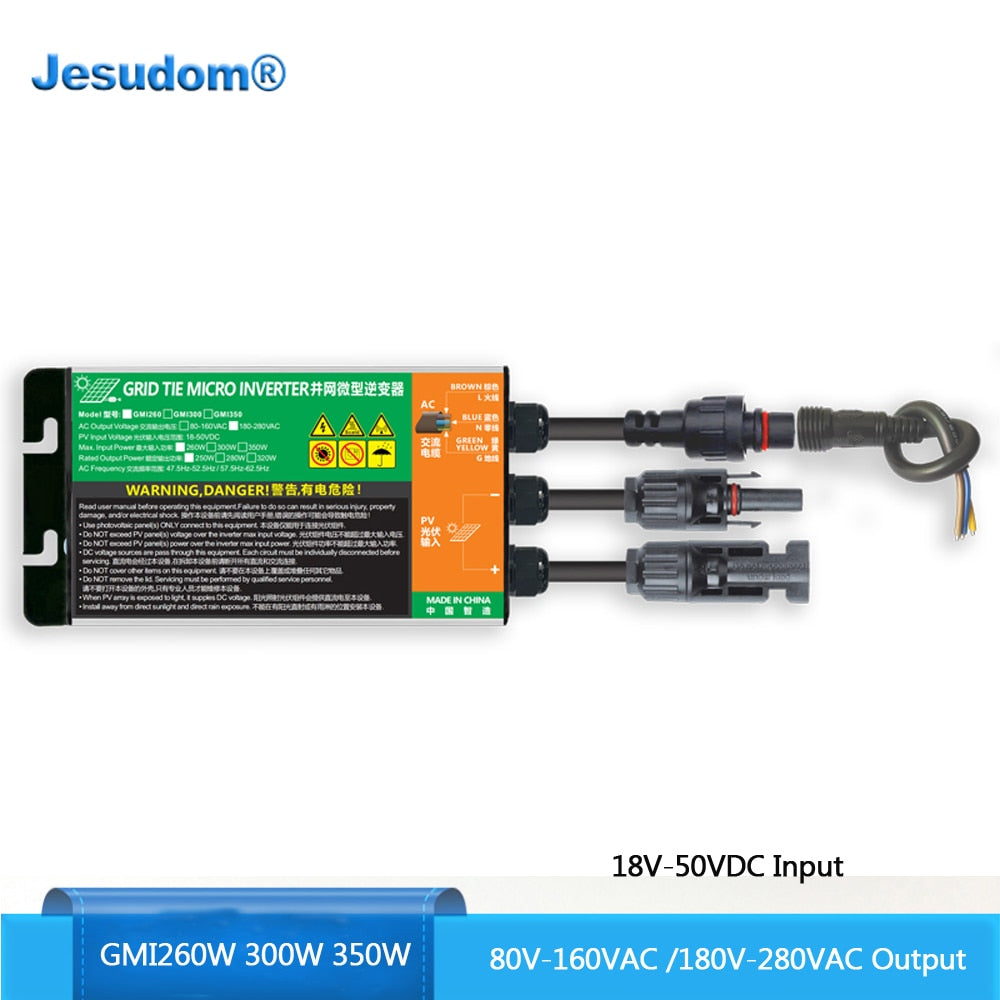

MPPT Solar Grid Tie Micro Inverter 260W 300W 350W 500W 600W DC18V-50V to AC110V-230V 50HZ/60HZ Solar PV Inverter Waterproof IP55

Features:

1.Use photovoltaic panel(s) ONLY connect to this equipment.

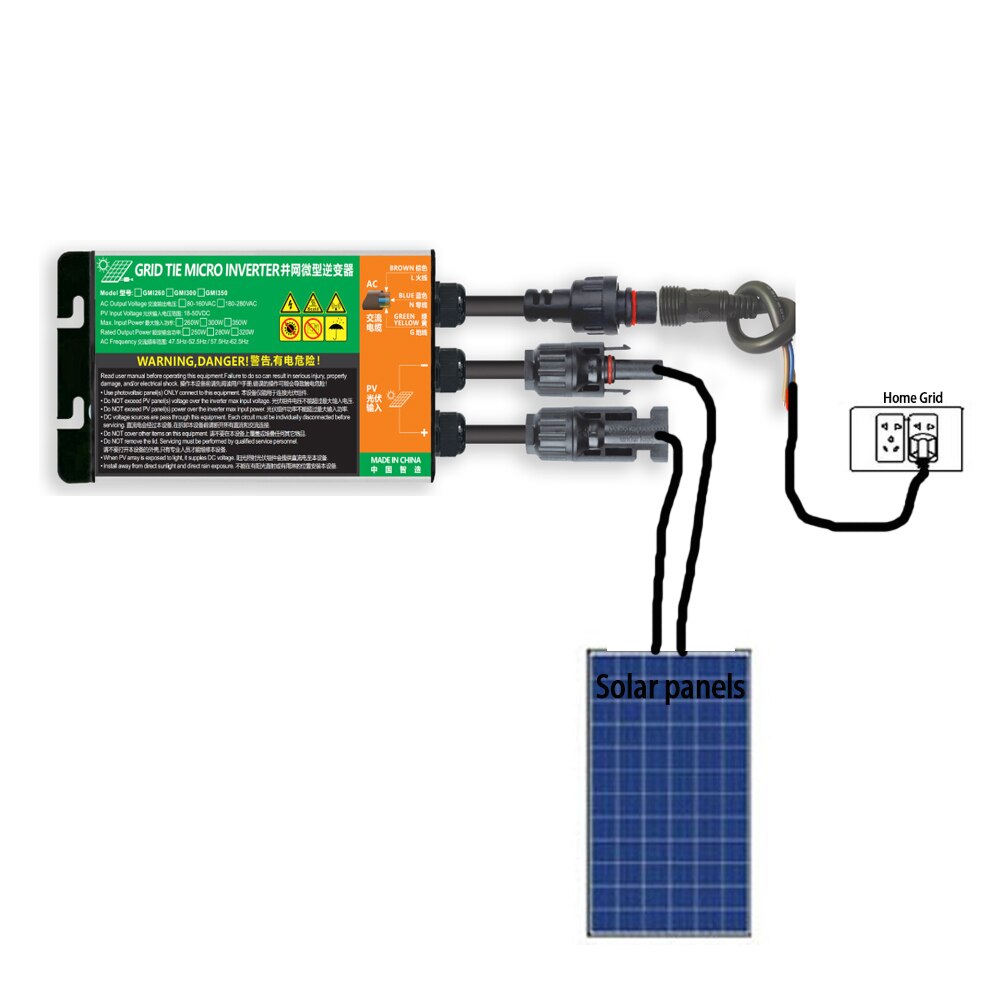

2.This equipment is ON-GRID Micro inverter,To make it work properly,it must be connected to the power grid correctly,and the power grid is working properly,When the power grid stopped working,it will also stop generating.

3.Do NOT exceed PV panel(s) voltage over the inverter max input voltage.

4.Do NOT exceed PV panel(S) power over the inverter max input power.

5.Do voltage sources are pass through this equipment,Each circuit must be individually disconnectec before servicing.

6.Do NOT cover other items on this equipment.

7.Do NOT repove the lid.Servicing must be performed by qualified service personnel.

8.When pv array is exposed to light,it supplies DC voltage to this equipment.

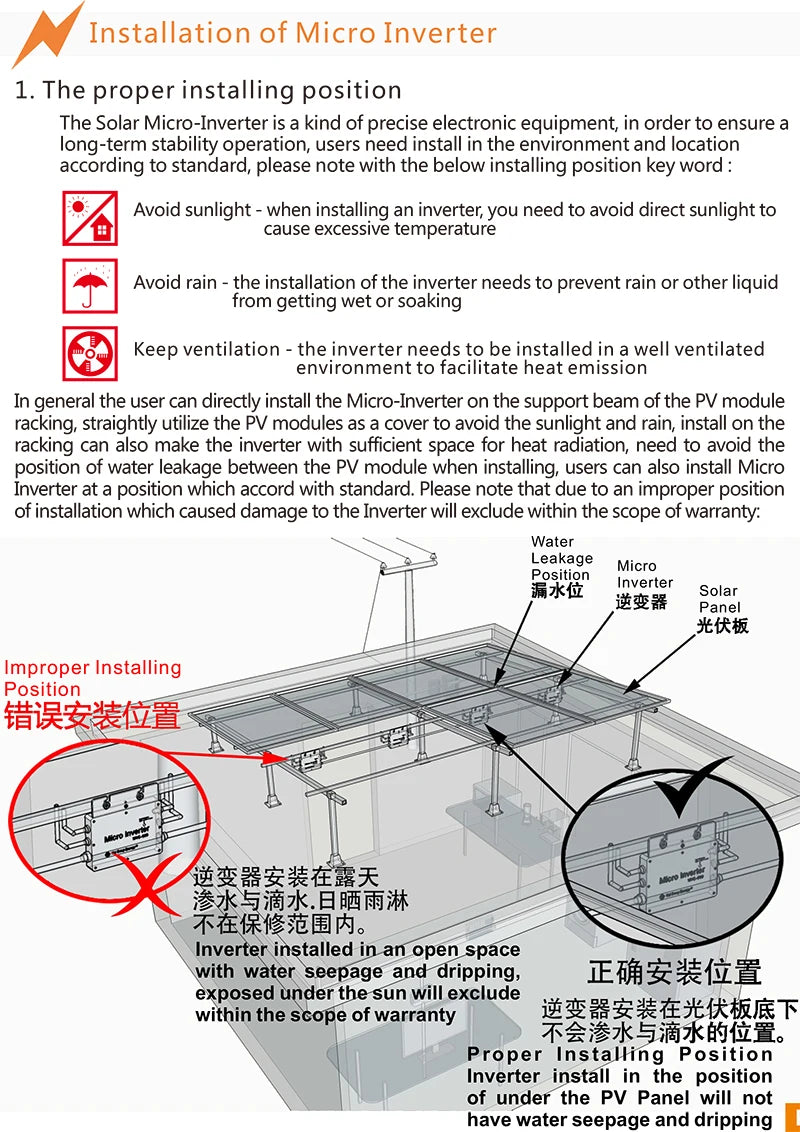

9.Install away from direct sunlight and direct rain exposure.

LED DISPLAY:

1.Green light steady=Micro inverter in generating.

2.Red flash=Micro inverter in waiting.

3.Red light steady=

a.Island protection.

b.Over-temperature protection.

c.Over/low AC voltage protection.

d.Over/low DC voltage protection.

e.Over/low AC frequency protection.

f.Fault.

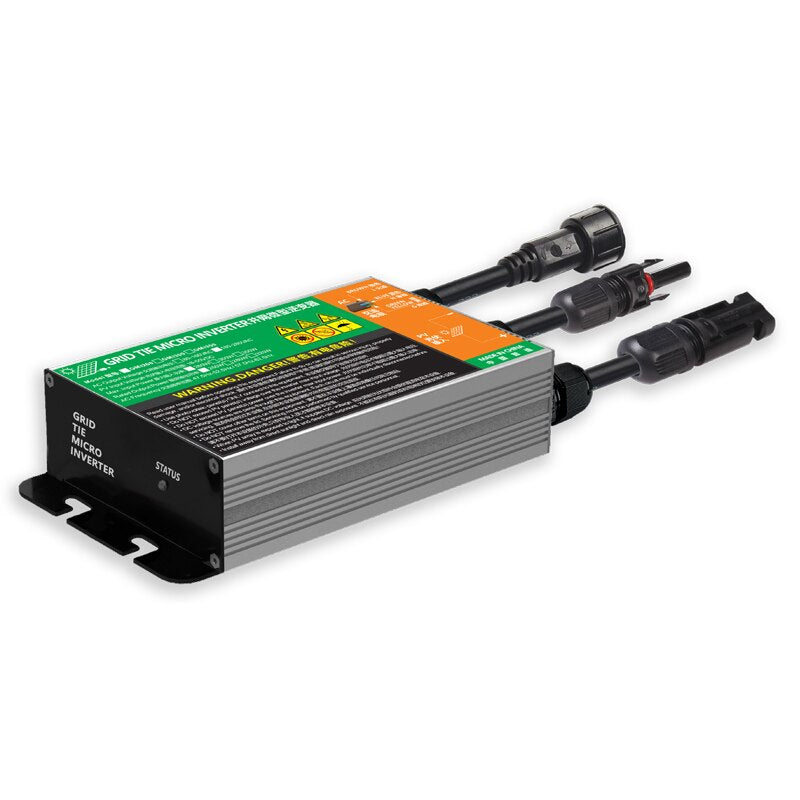

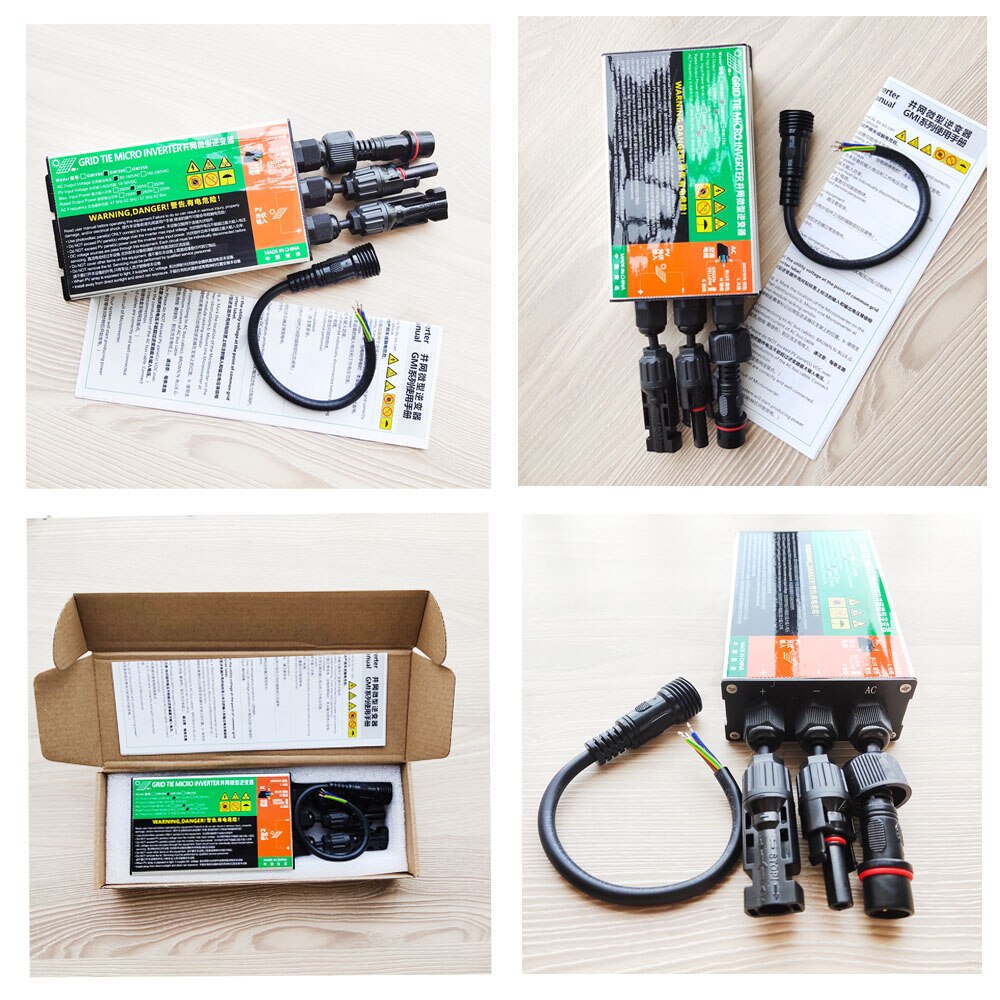

Product pictures :

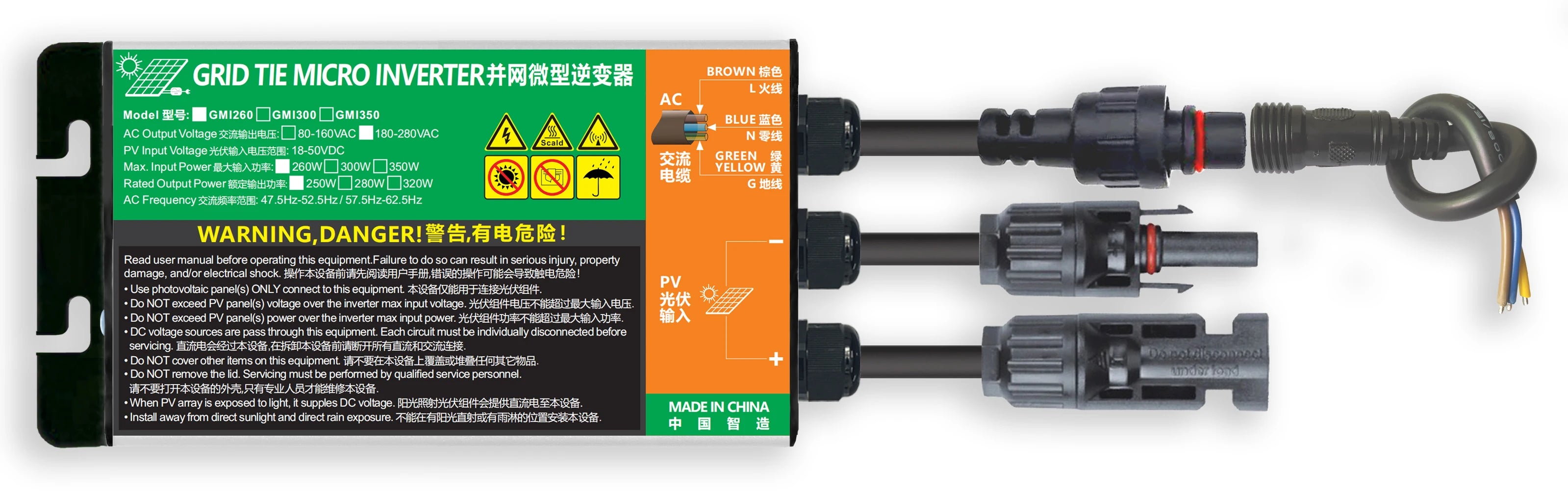

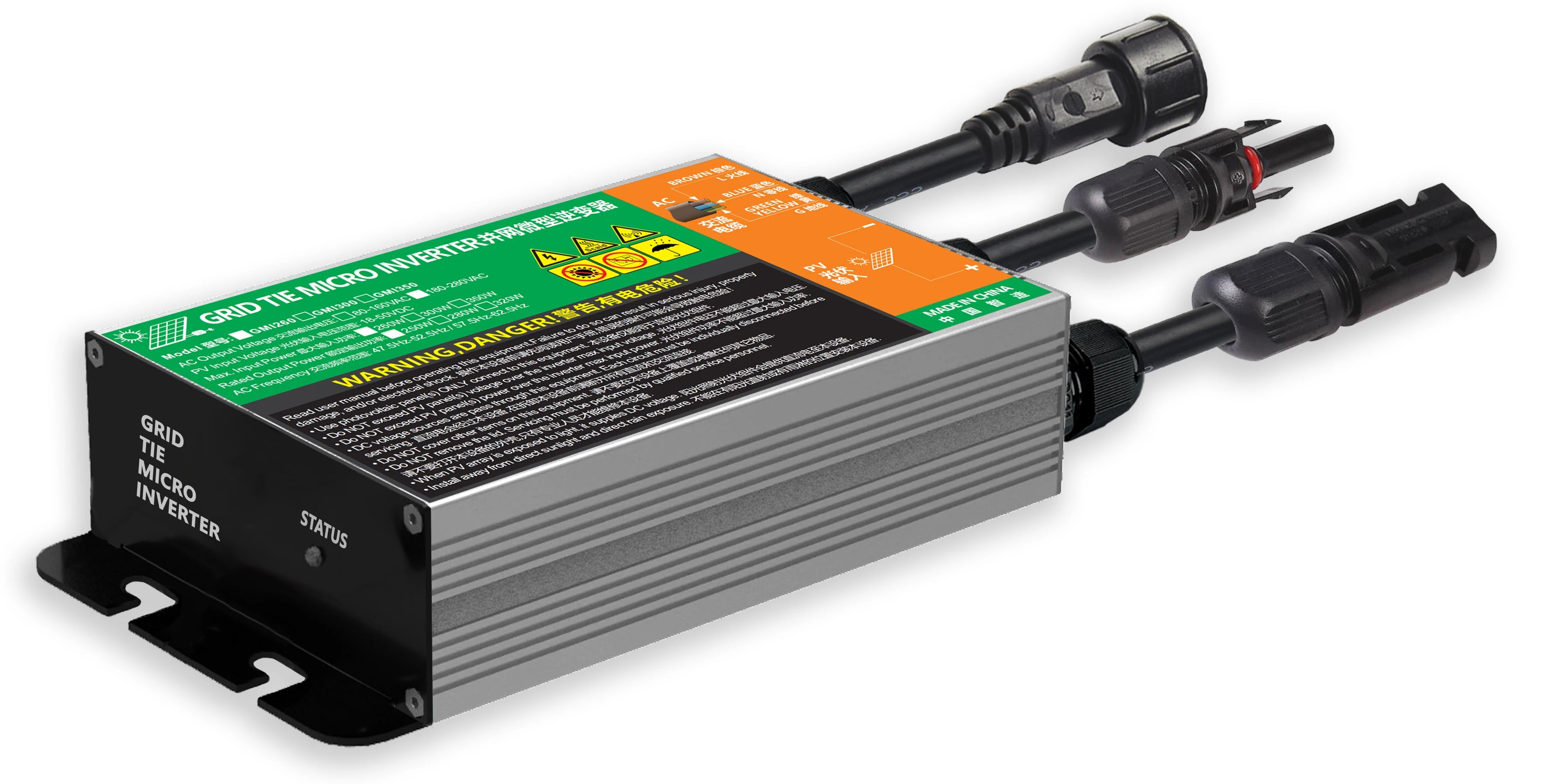

MPPT Solar Grid Tie Micro Inverter, 260W-600W, DC18V-50V to AC110V-230V, 50Hz/60Hz. Waterproof IP55, suitable for solar PV systems.

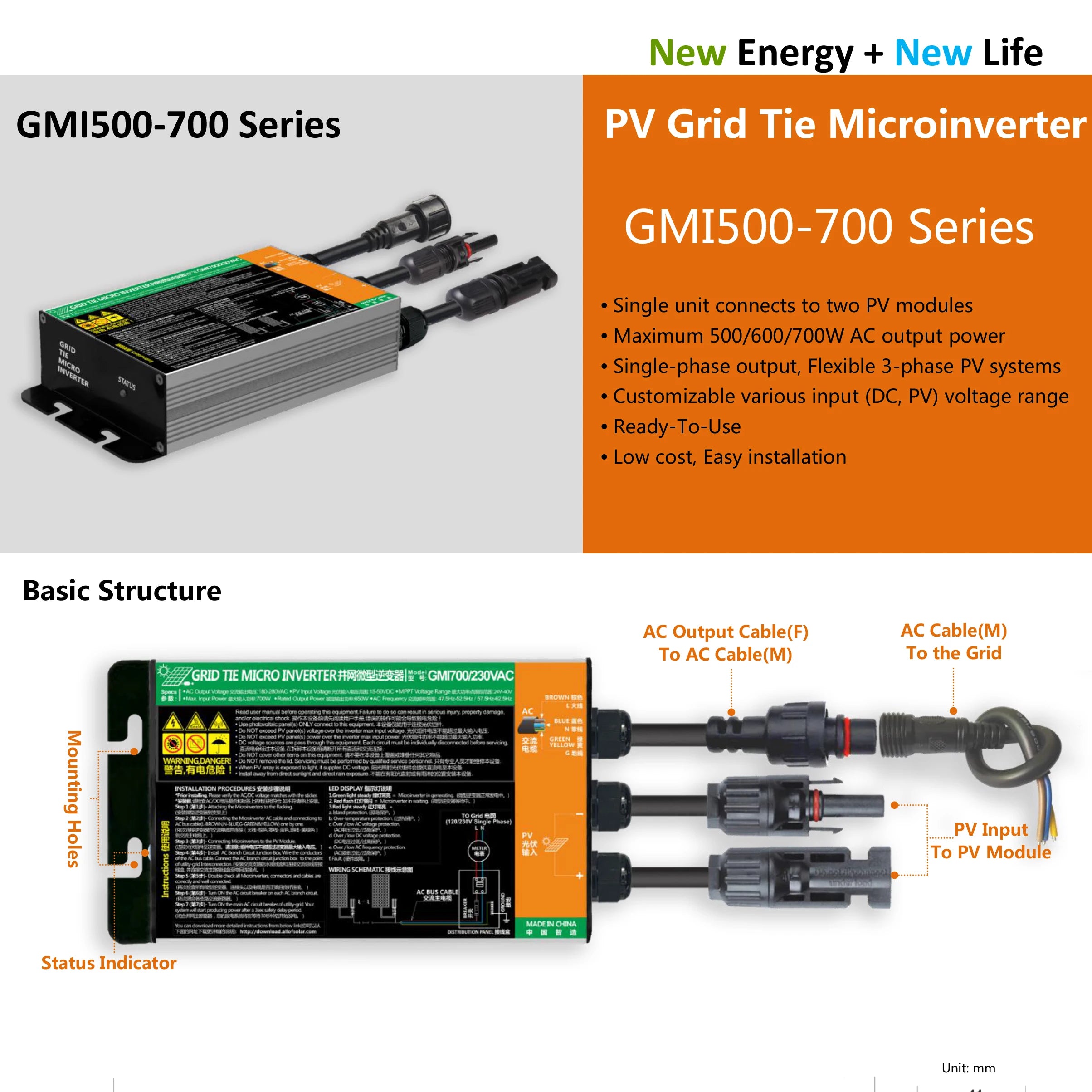

Introducing the GMISOO-700 Series PV Grid Tie Microinverter. This compact device connects to two PV modules, offering up to 500/600/700W AC output power. It features single-phase output and flexible input voltage range, making it suitable for various applications. The microinverter is ready-to-use, with a low cost and easy installation process. Its basic structure includes an AC Output Cable (F) and AC Cable (M) for connection to the grid. This product is designed for residential and commercial solar energy systems.

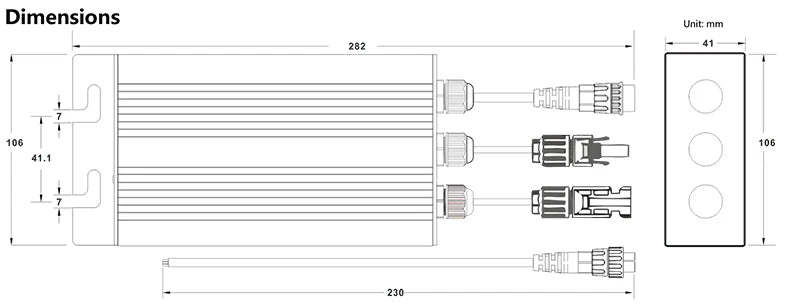

Dimensions: 282mm (Length) x 106mm (Height) x Height adjustable from 0-

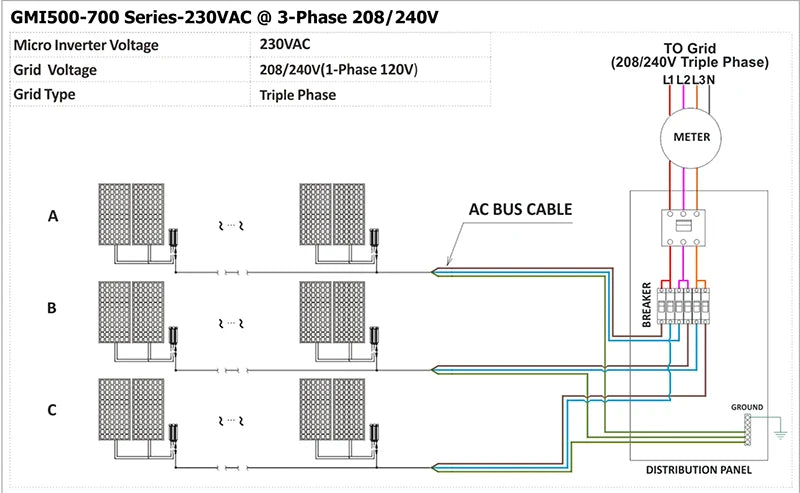

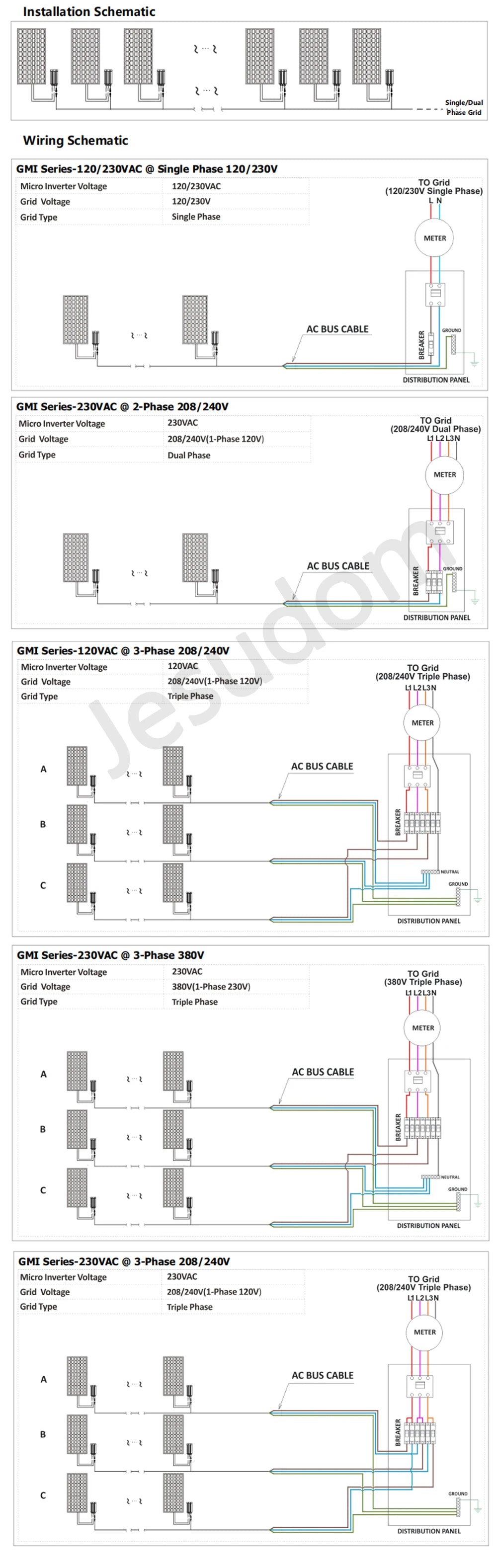

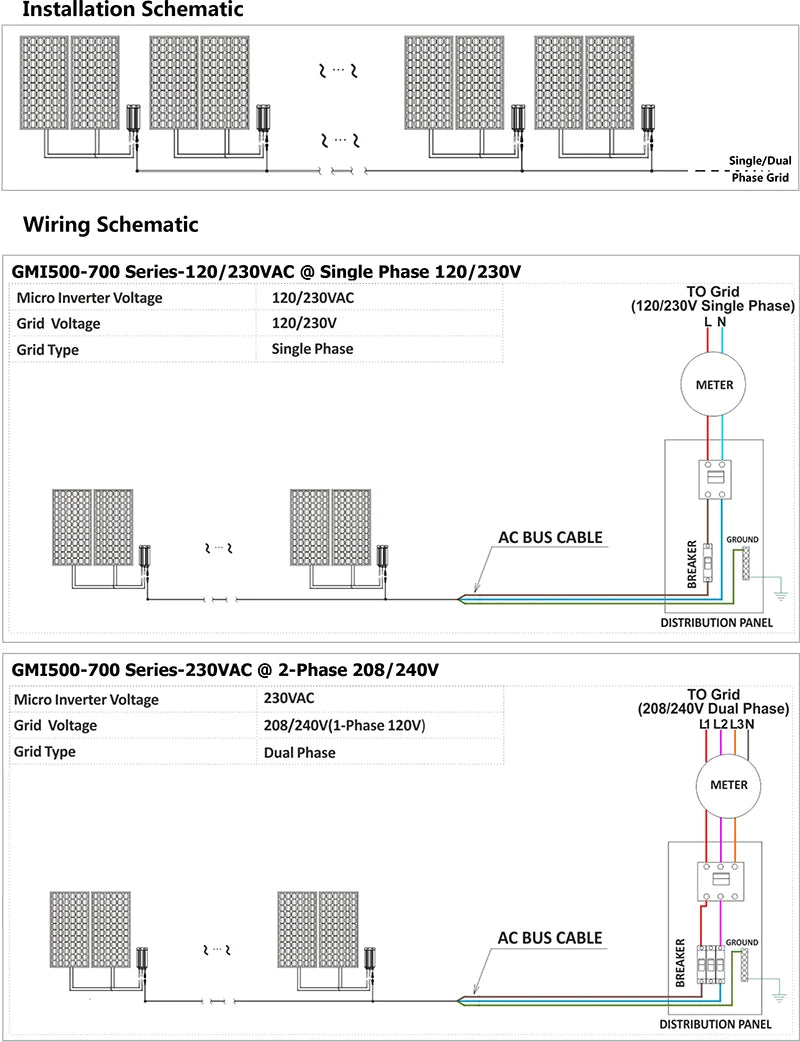

This micro inverter supports single-phase (120/230V) or dual-phase (208/240V) grid connections. It features a compact design with waterproof IP55 rating, making it suitable for outdoor installations. The installation schematic includes wiring diagrams for both single- and dual-phase configurations.
