MUST ENERGY 80A 100A MPPT Solar Charge Controller Lifepo4 Charger 12V 24V 36V 48V Solar Panel Regulator PV Input 145V

MUST ENERGY 80A 100A MPPT Solar Charge Controller Lifepo4 Charger 12V 24V 36V 48V Solar Panel Regulator PV Input 145V

Regular price $283.44 USD
Regular price Sale price $283.44 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color
Current|Rated Voltage|Controller Type

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Radiating Mode: Fan cooling

Product name: PC1800F Series MPPT Solar Charge Controller (60/80/100A)

Peak Conversion Efficiency: 98% (MPPT Efficiency 99%)

Parallel: Yes

Origin: Mainland China

Nominal Battery System Voltage: 12V / 24V / 48VDC (Auto detection); 36V (Setting)

Mounting: Wall mount

Model Number: ME-PC1800F

Maximum Solar Input Voltage: 145V

Maximum Current: 100A

Is Smart Device: YES

Certification: CE

Brand Name: Must

Application: Thermal Controller,Charger Controller,Water Heater Controller,Voltage Controller,Collector Controller,Lighting Controller,Solar System Controller,Solar Working Station

2023 MUST PC1800F Series MPPT Solar Charge Controller (80/100A)

MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.



Recommend Product Send From Poland


Features

*// LCD display , easy to operate on LCD screen

*// Multi stage charging (3-stage charging , parallel charging and equalized charging function)

*// BTS - Battery remote temperature sensor terminal

*// Enable to charge Li-thium, Gel , lead-acid battery

*// With RS485 & USB communication port

*// Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit


This Products is Ship From Poland Warehouse, No Need To Make Customs Clearance
Arrive 25 EU country at 3days

Netherlands

Bulgaria

France

Estonia

Czech Republic

Denmark

Sweden

Croatia

Finland

Austria

Germany

Spain

Portugal

Slovenia

Latvia

Italy

Slovakia

Romania

Belgium

Poland

Luxembourg

Lithuania

Greece

Hungary

Ireland

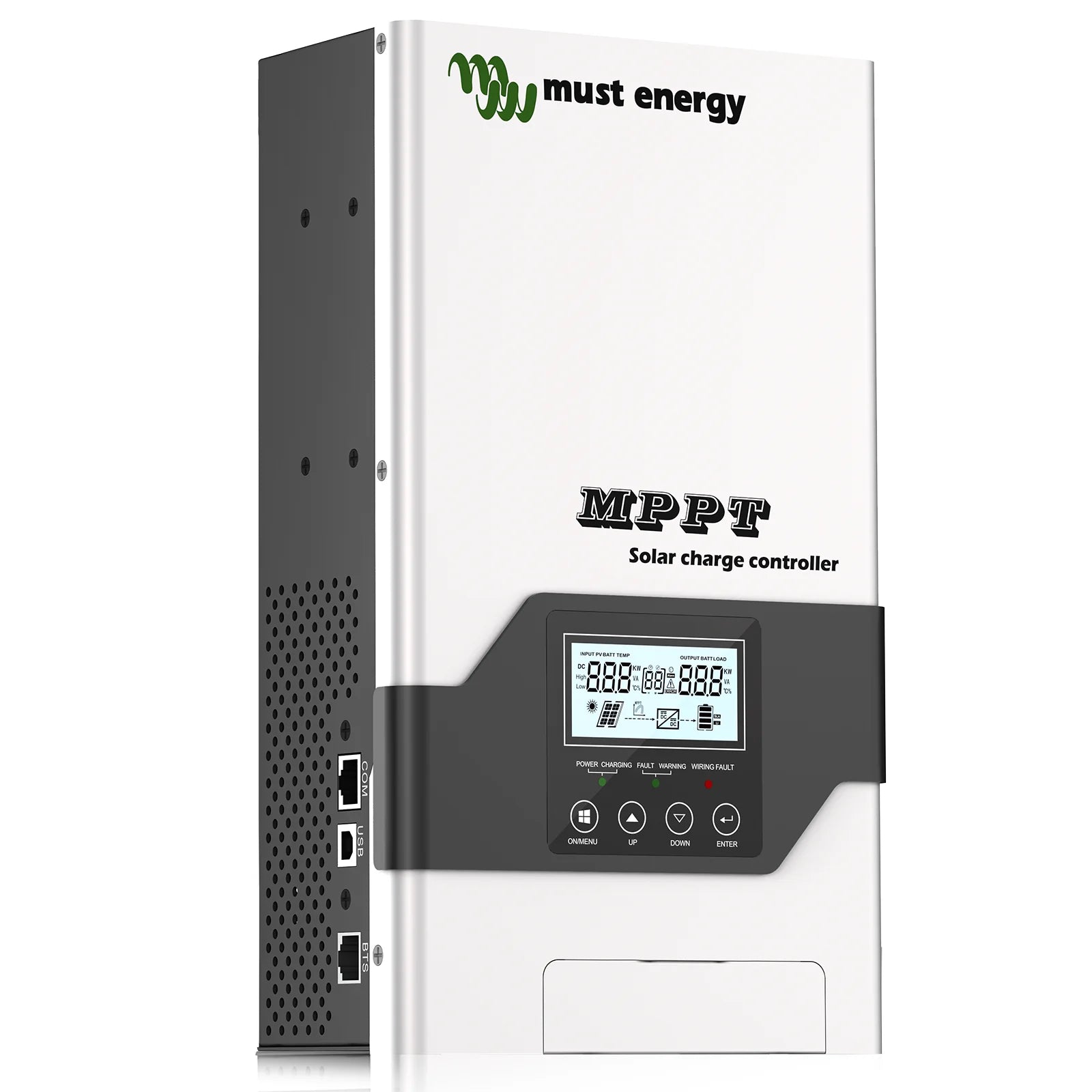

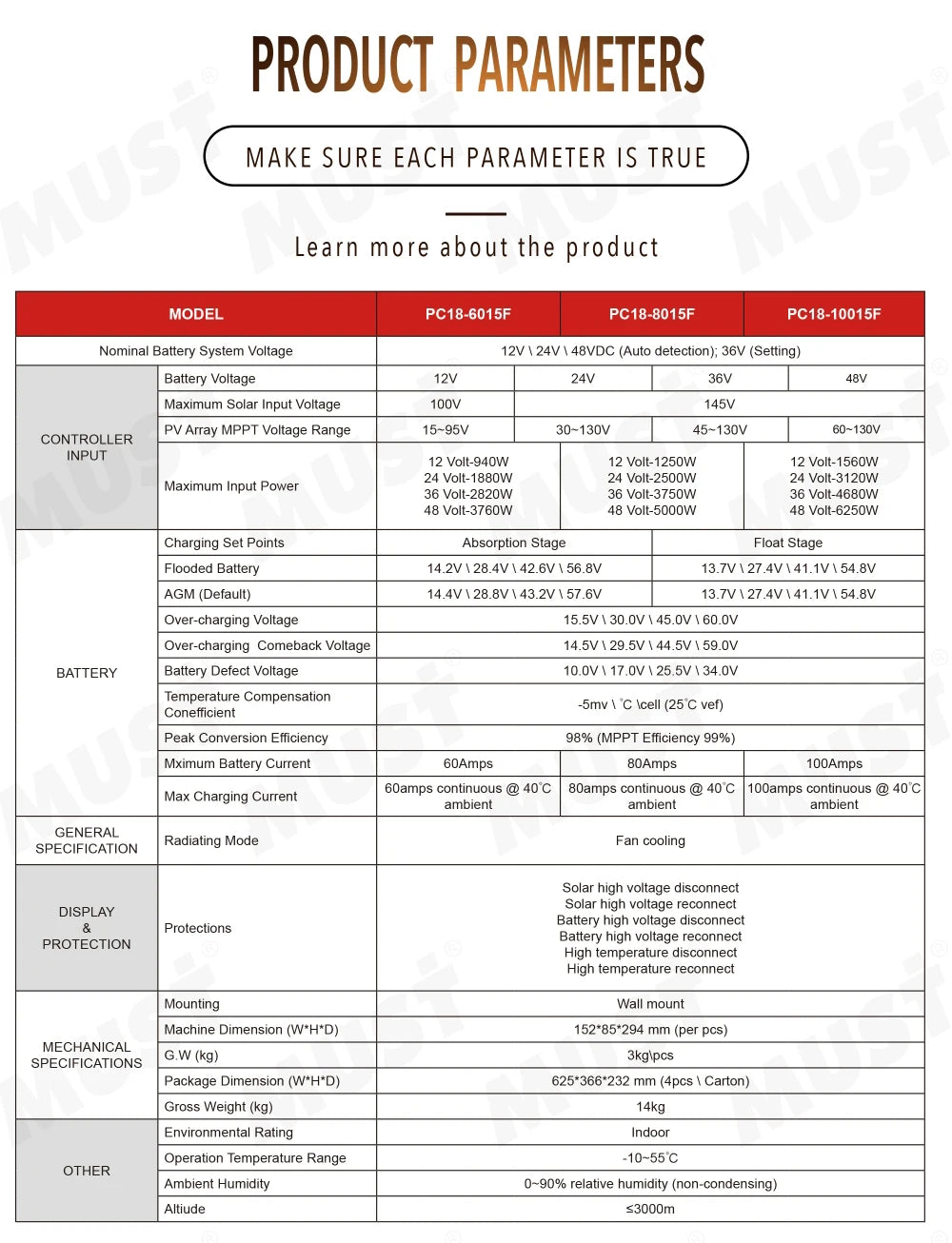

MUST ENERGY 80A 100A MPPT Solar Charge Controller, MUST Energy solar charge controller for 12/24/36/48V lifepo4 batteries and 80A/100A MPPT charging.MUST ENERGY 80A 100A MPPT Solar Charge Controller, Solar charge controller with MPPT tech, suitable for 12V-48V systems, featuring fault warnings and protections.

MUST MPPT Solar Charge Controller for 12V, 24V, 36V, or 48V systems. Features maximum power point tracking (MPPT) technology and a wide input voltage range up to 145V. Includes fault warning and protection features.

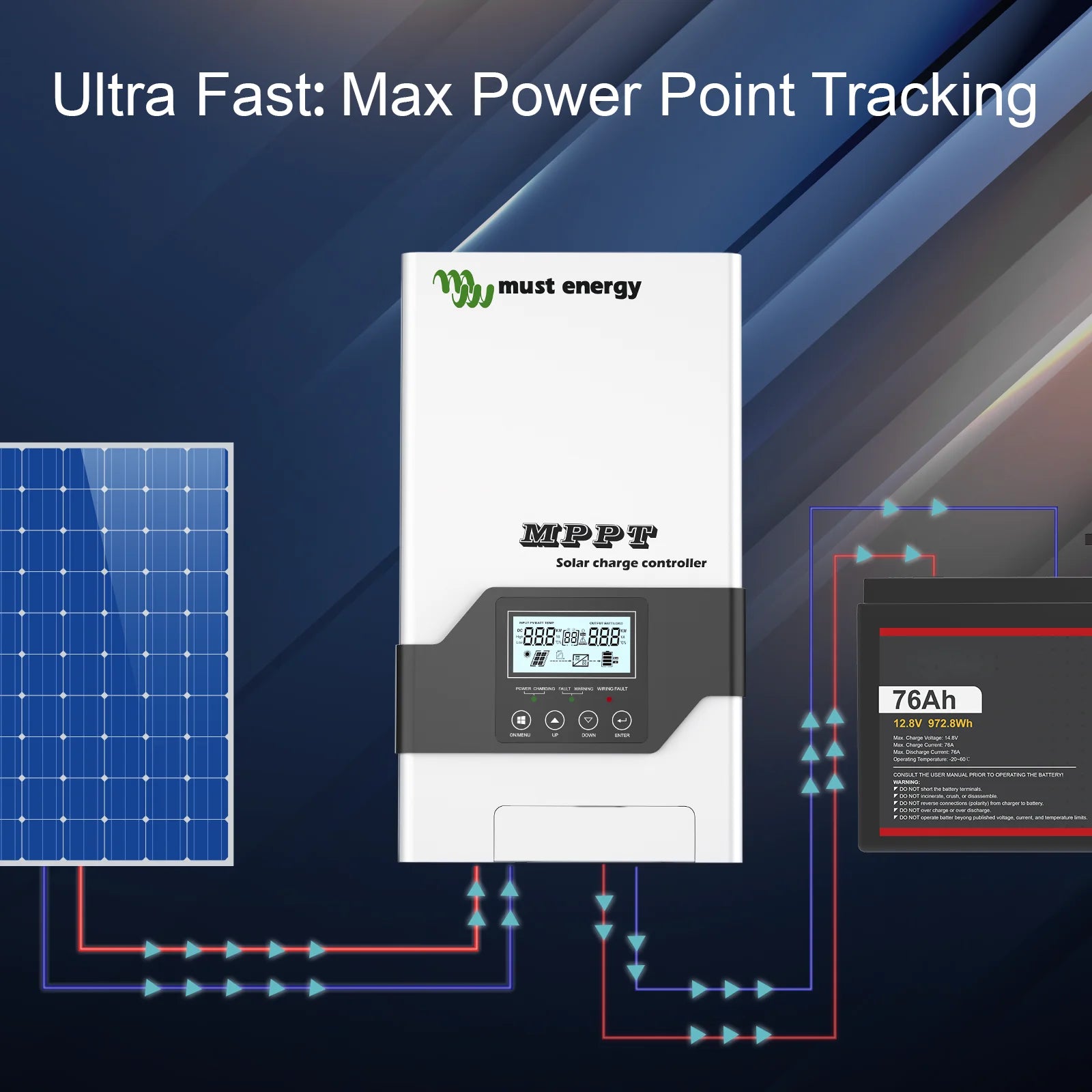

MUST ENERGY 80A 100A MPPT Solar Charge Controller, Ultra-fast MPPT solar charge controller with 80A or 100A output for 12V/24V/36V/48V panels.

**Must Energy MPPT Solar Charge Controller**: Ultra-fast, maximum power point tracking (MPPT) charger for 12V/24V/36V/48V solar panels. Output: 80A or 100A. Input voltage: up to 145V. Features fast charging and advanced protection against overcharge, overheating, and more. Consult the user manual before use.

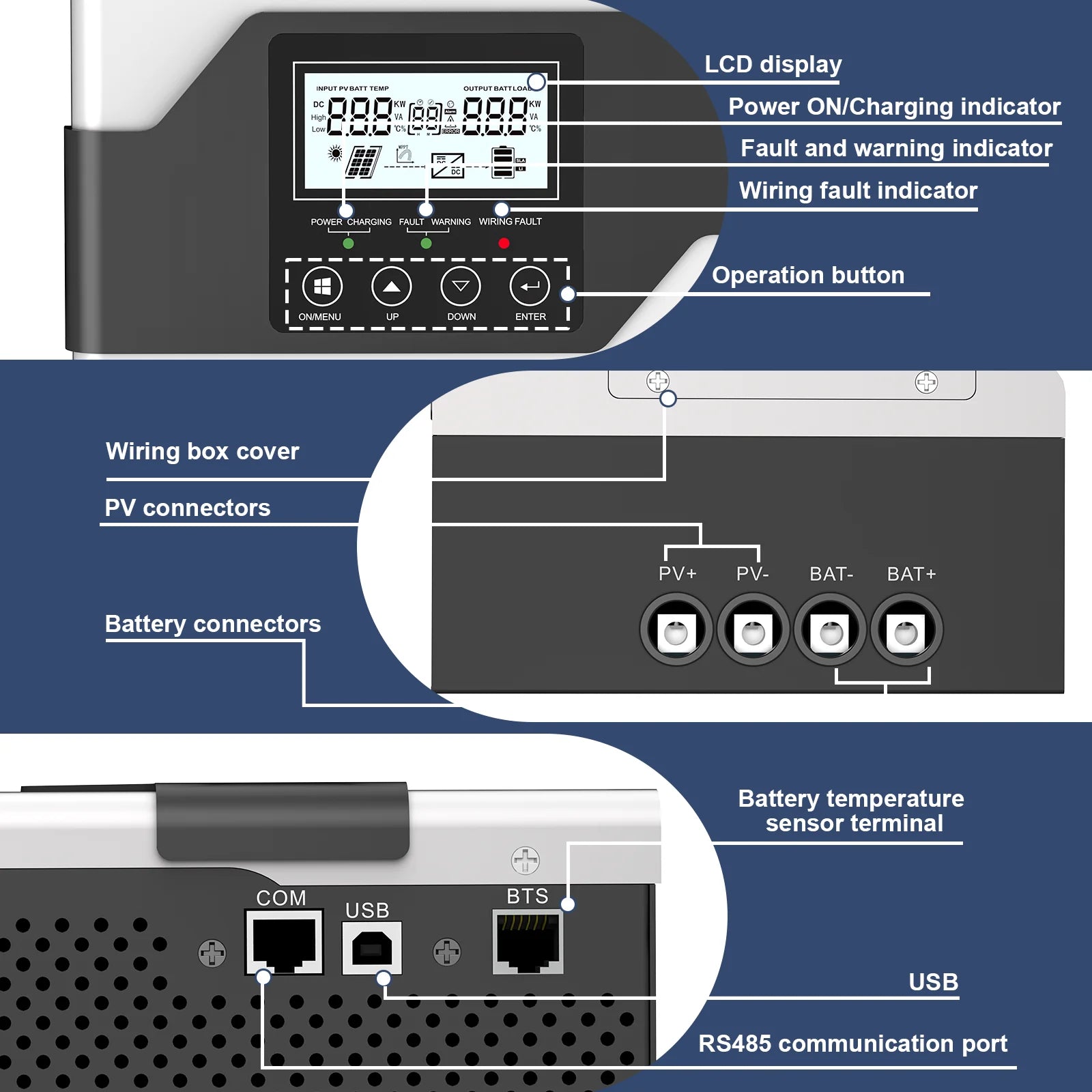

MUST ENERGY 80A 100A MPPT Solar Charge Controller, Display shows voltage, temperature, power, and battery level with indicators for charging status and warnings.

Features a user-friendly LCD display showing input voltage, temperature, output power, and battery level. The unit includes indicators for charging status (high/low), fault warnings, wiring faults, and operation mode. A menu button allows for easy navigation. The device also features PV connectors, battery terminals, and a USB/RS485 communication port for monitoring and control.

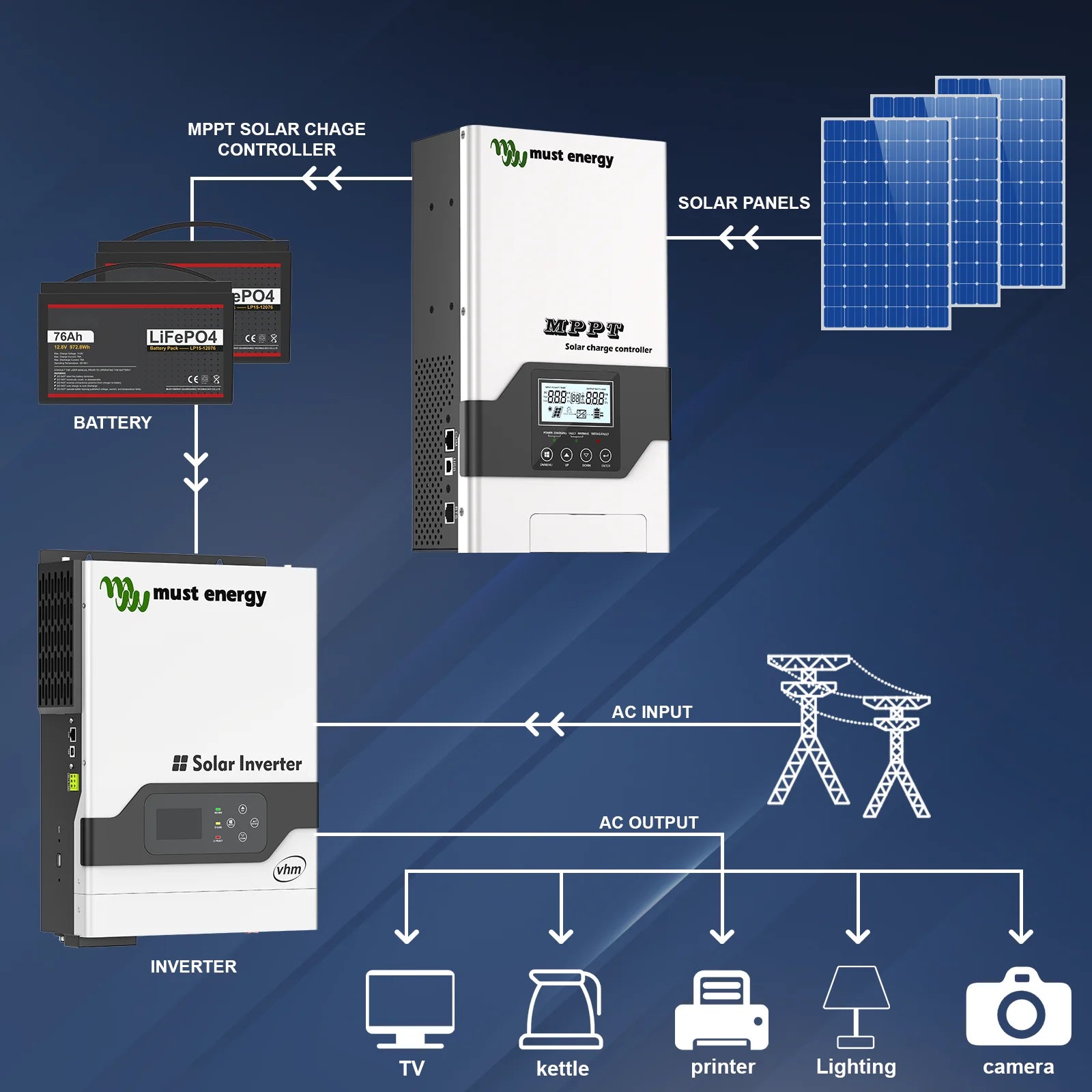

MUST ENERGY 80A 100A MPPT Solar Charge Controller, MPPT solar charge controller for LiFePO4 batteries, suitable for 12V-48V solar panels.

Must Energy MPPT solar charge controller for LiFePO4 batteries, suitable for 12V/24V/36V/48V solar panels with a maximum input voltage of 145V. It's ideal for charging applications such as powering home appliances, TV, kettle, printer, lighting, and camera equipment.

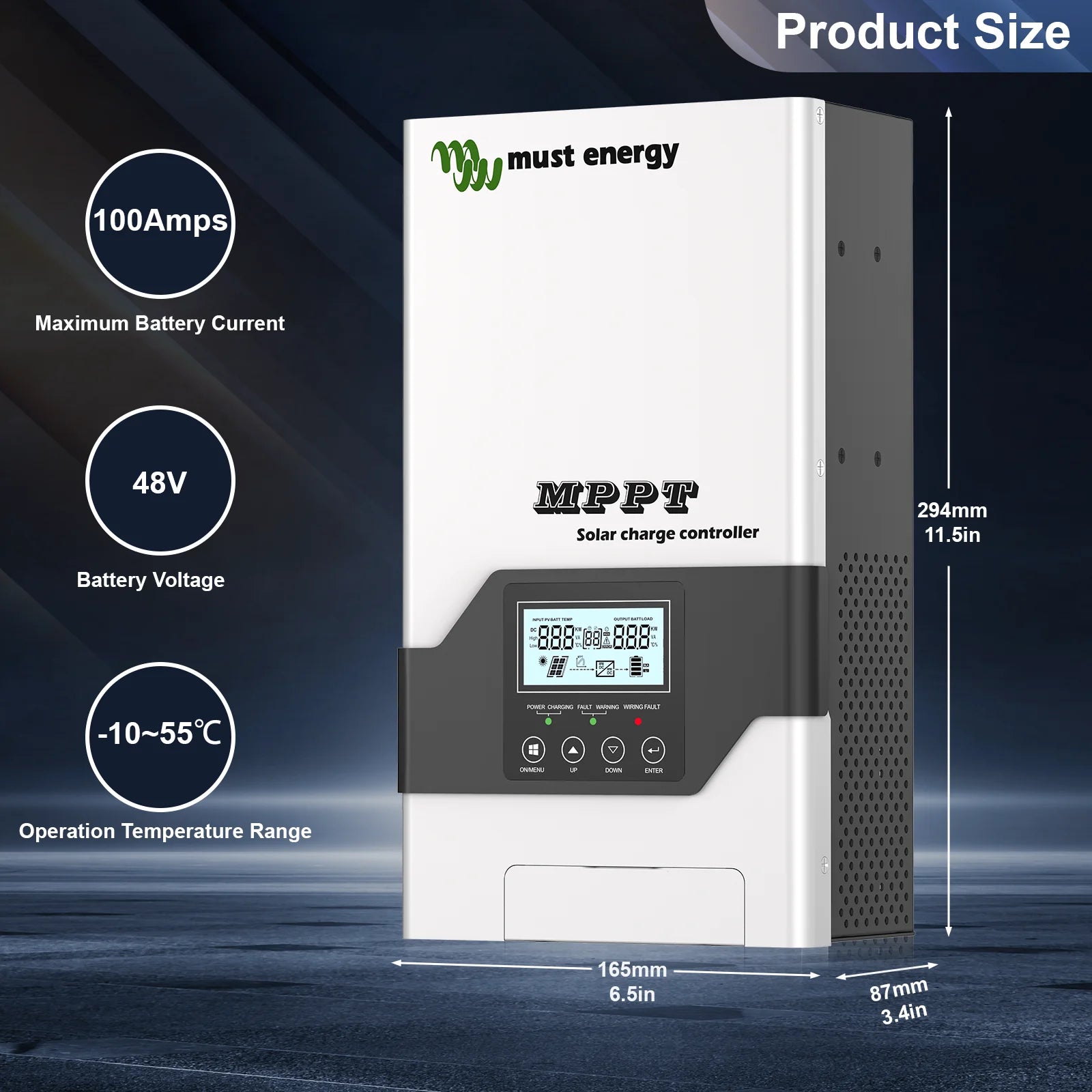

MUST ENERGY 80A 100A MPPT Solar Charge Controller, MUST Energy's 100A MPPT Solar Charge Controller with 11-stage protection circuit and temperature range -10°C to 55°C.

MUST Energy's 100A MPPT Solar Charge Controller supports up to 48V, with a maximum battery current of 100A. It features an 11-stage protection circuit and operates within a temperature range of -10°C to 55°C. The product measures 294mm x 87mm x 165mm (6.5in x 3.4in x 6.5in).

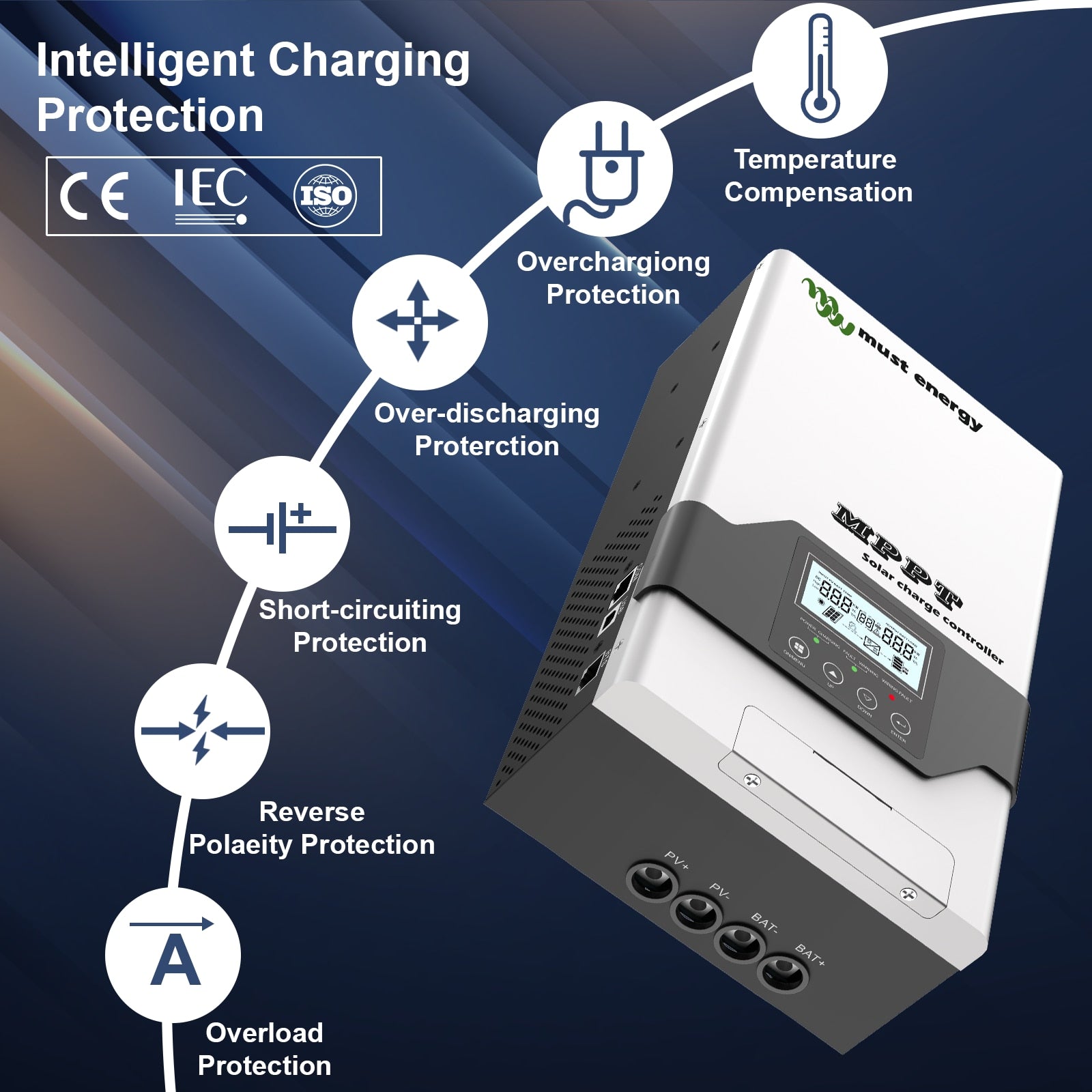

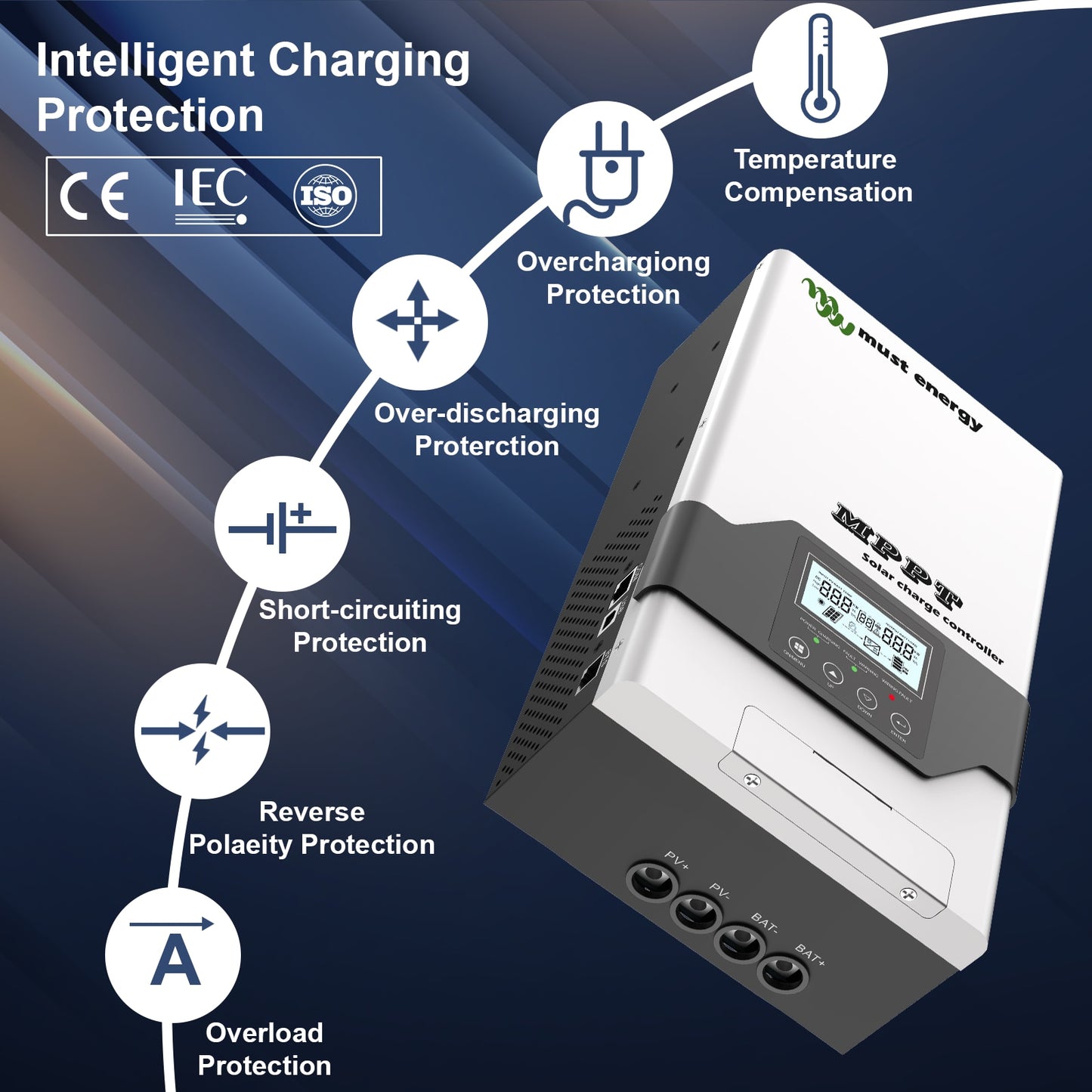

MUST ENERGY 80A 100A MPPT Solar Charge Controller, Solar charger controller with intelligent protection features for safe charging of MPPT solar panels.

This solar charger controller features intelligent charging protection, including temperature compensation and overcharging/over-discharging prevention. It also has four protections: short-circuit, reverse polarity, overload, and IEC/ISO compliance. Ideal for MPPT solar panels with 12V, 24V, 36V, or 48V input up to 145V.

MUST ENERGY 80A 100A MPPT Solar Charge Controller, High-efficiency solar charge controller by Must Energy for safe and rapid charging.

Must Energy's MPPT solar charge controller offers rapid, efficient, and safe charging with up to 98% peak conversion efficiency. Compatible with 12V, 24V, 36V, or 48V systems.
