MUST MPPT 60A 80A 100A PC1800F Series Parallel 12V 24V 36V 48V PV 145V Solar Charge Controller For Home Use Solar Regulator

MUST MPPT 60A 80A 100A PC1800F Series Parallel 12V 24V 36V 48V PV 145V Solar Charge Controller For Home Use Solar Regulator

Regular price $229.07 USD
Regular price Sale price $229.07 USD
Sale Sold out
Shipping calculated at checkout.
Color
Current
Rated Voltage|Controller Type

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 9-15 days
  • Paid Express: Ships within 2days,arrives within 5-8 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

is_customized: Yes

Product name: PC1800F Series MPPT Solar Charge Controller (60/80/100A)

Origin: Mainland China

Model Number: PC1800F series

Maximum Current: 60/80/100A

Is Smart Device: YES

Functions 4: mppt solar charge controller 60a

Functions 3: mppt charge controller for home use

Functions 2: mppt charge controller

Functions 1: mppt solar charge controller

Features 3: mppt controller

Features 2: MUST solar charge controller

Features 1: mppt charge controller 100a

Certification: CE

Brand Name: Must

Application: Charger Controller,Solar System Controller

MUST PC1800F Series MPPT Solar Charge Controller (60/80/100A)

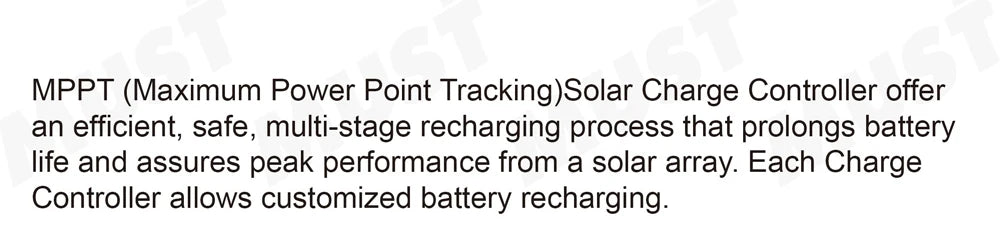

MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.



Recommend Product

PWM solar charge controllers and PV1800 solar inverter




Features

*// LCD display , easy to operate on LCD screen

*// Multi stage charging (3-stage charging , parallel charging and equalized charging function)

*// BTS - Battery remote temperature sensor terminal

*// Enable to charge Li-thium, Gel , lead-acid battery

*// With RS485 & USB communication port

*// Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit


Poland Warehouse arrive at 25 EU country at 3-5days

This product we have warehouse in poland, Click the picture to see, no need to make customs clearance

Arrive 25 EU country at 3days

Netherlands

Bulgaria

France

Estonia

Czech Republic

Denmark

Sweden

Croatia

Finland

Austria

Germany

Spain

Portugal

Slovenia

Latvia

Italy

Slovakia

Romania

Belgium

Poland

Luxembourg

Lithuania

Greece

Hungary

Ireland

Fast delivery within 3 days from EU warehouse, ships to 25 European countries.

Order now and get fast delivery within 3 days from our EU warehouse. Ships to 25 European countries, click to see details.

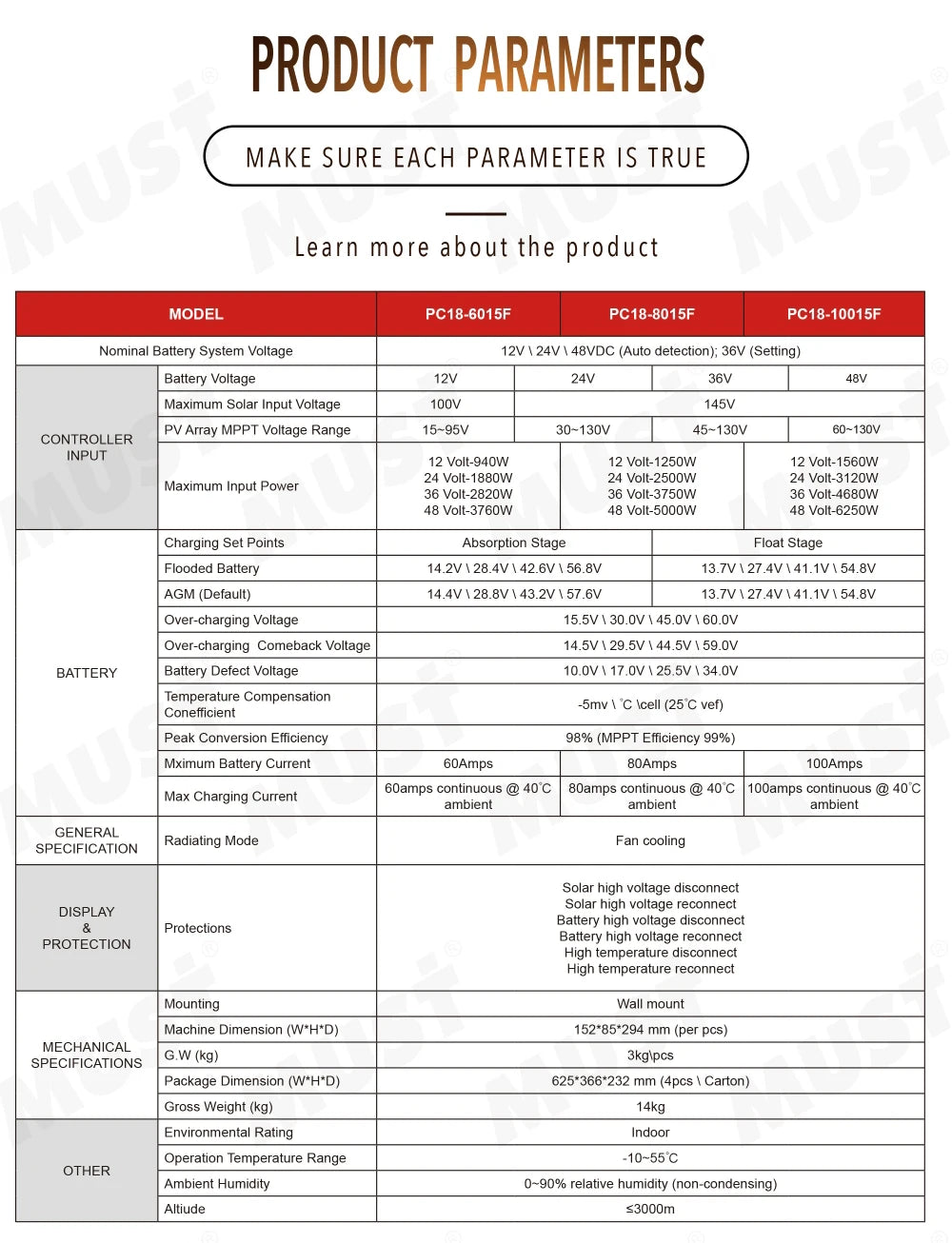

Product parameters

Solar charge controller for home use, regulates 12V, 24V, 36V, 48V, and 60V PV systems.

Product Description

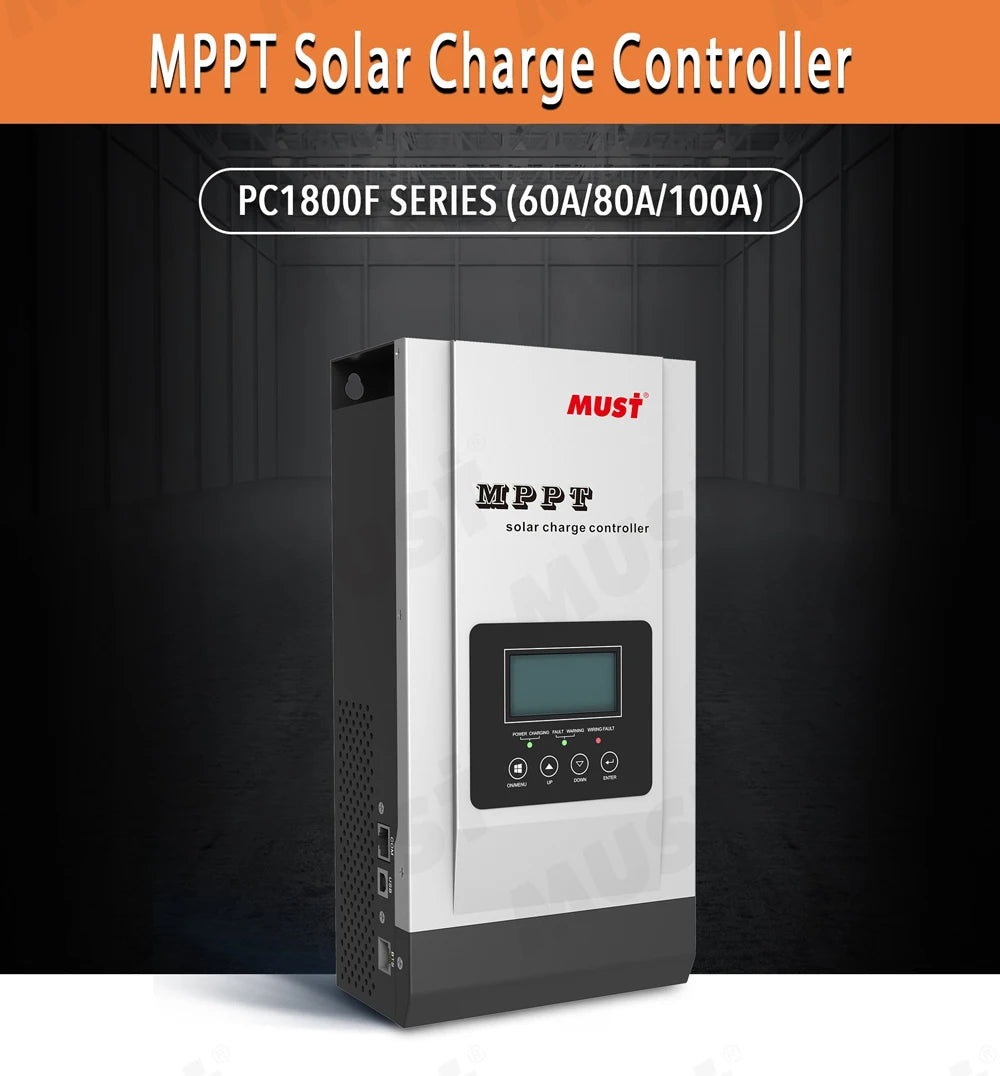

Efficiently regulate home solar power with MUST's MPPT controller.MPPT charge controllers efficiently recharge batteries, prolonging lifespan and optimizing solar panel performance with customizable settings.Smart solar charger controller with advanced features for efficient battery charging.

Monitoring system

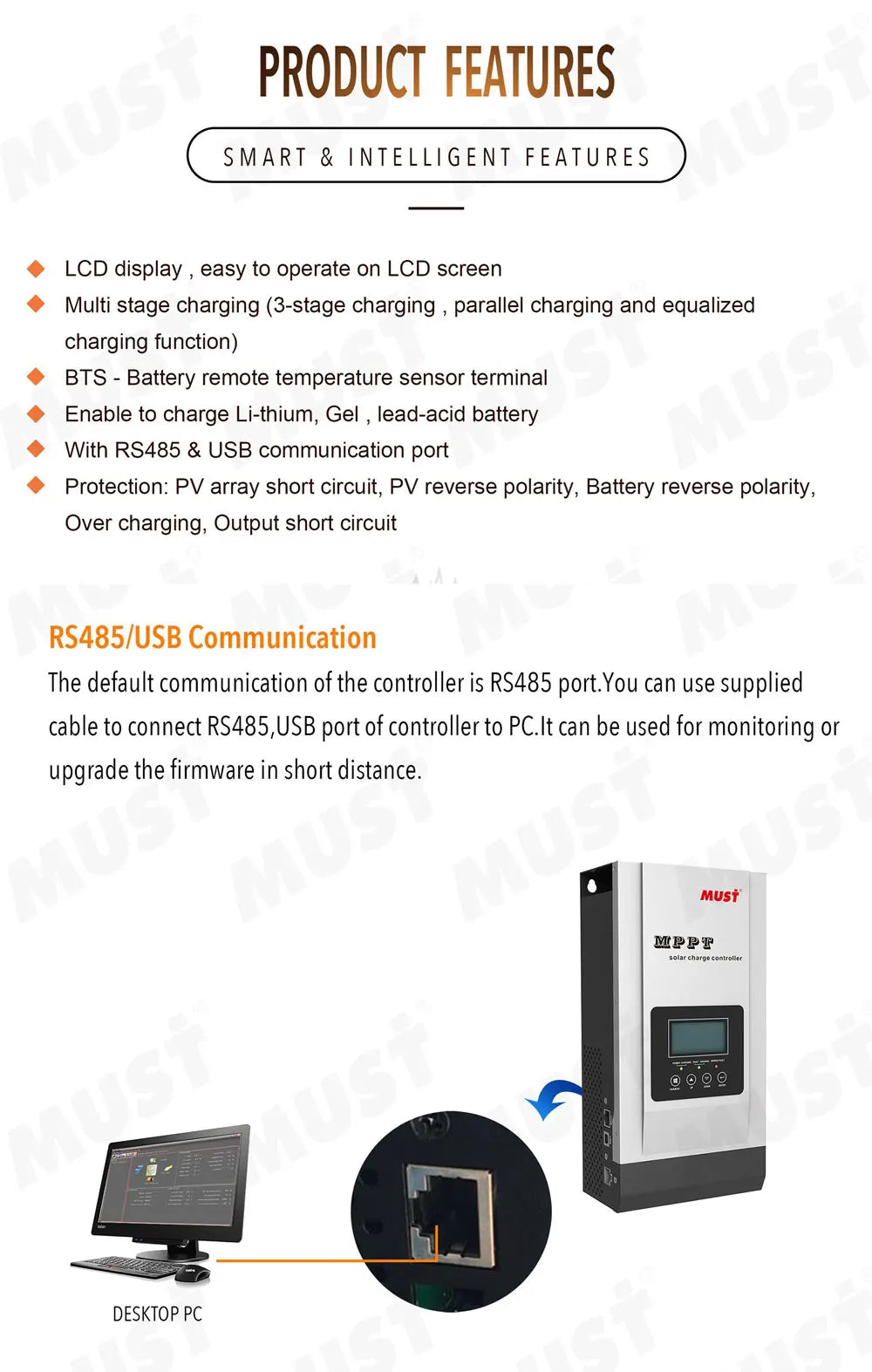

Solar charge controller regulates solar power input, suitable for home use with parallel and series connections.

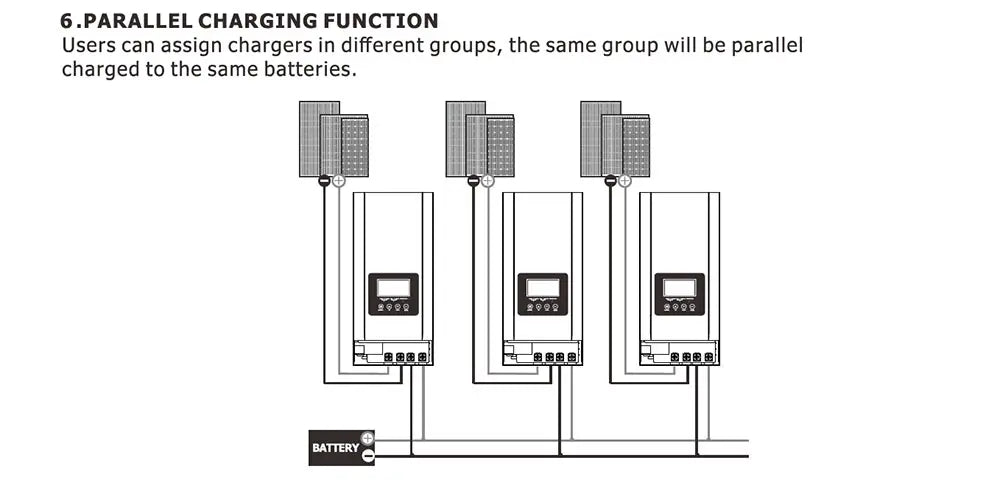

PC1800F Parallel Funciton

Group charging for multiple solar-powered batteries to same level, streamlining energy management.

Parallel charging function allows for grouping and simultaneous charging of multiple batteries to the same level, simplifying solar power management.

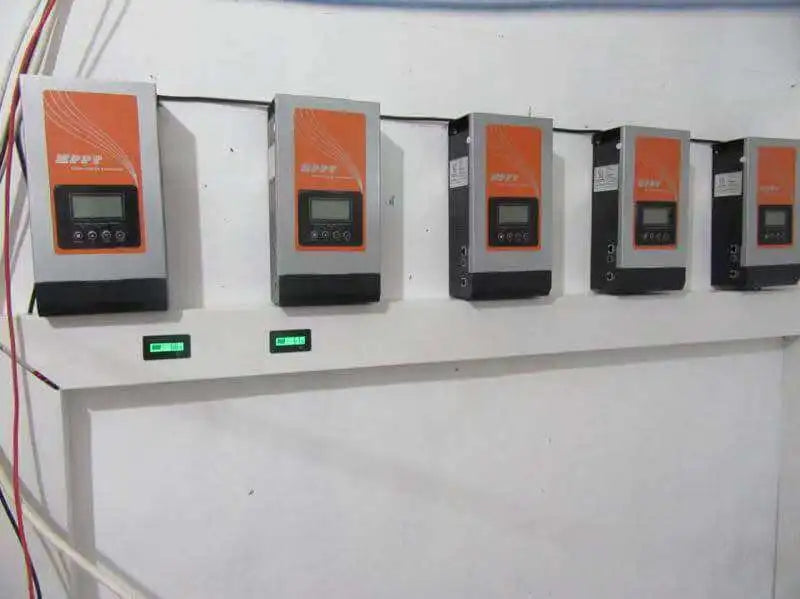

Recommend Product: PWM solar charge controllers and PV1800 solar inverters with advanced features and fast EU shipping.

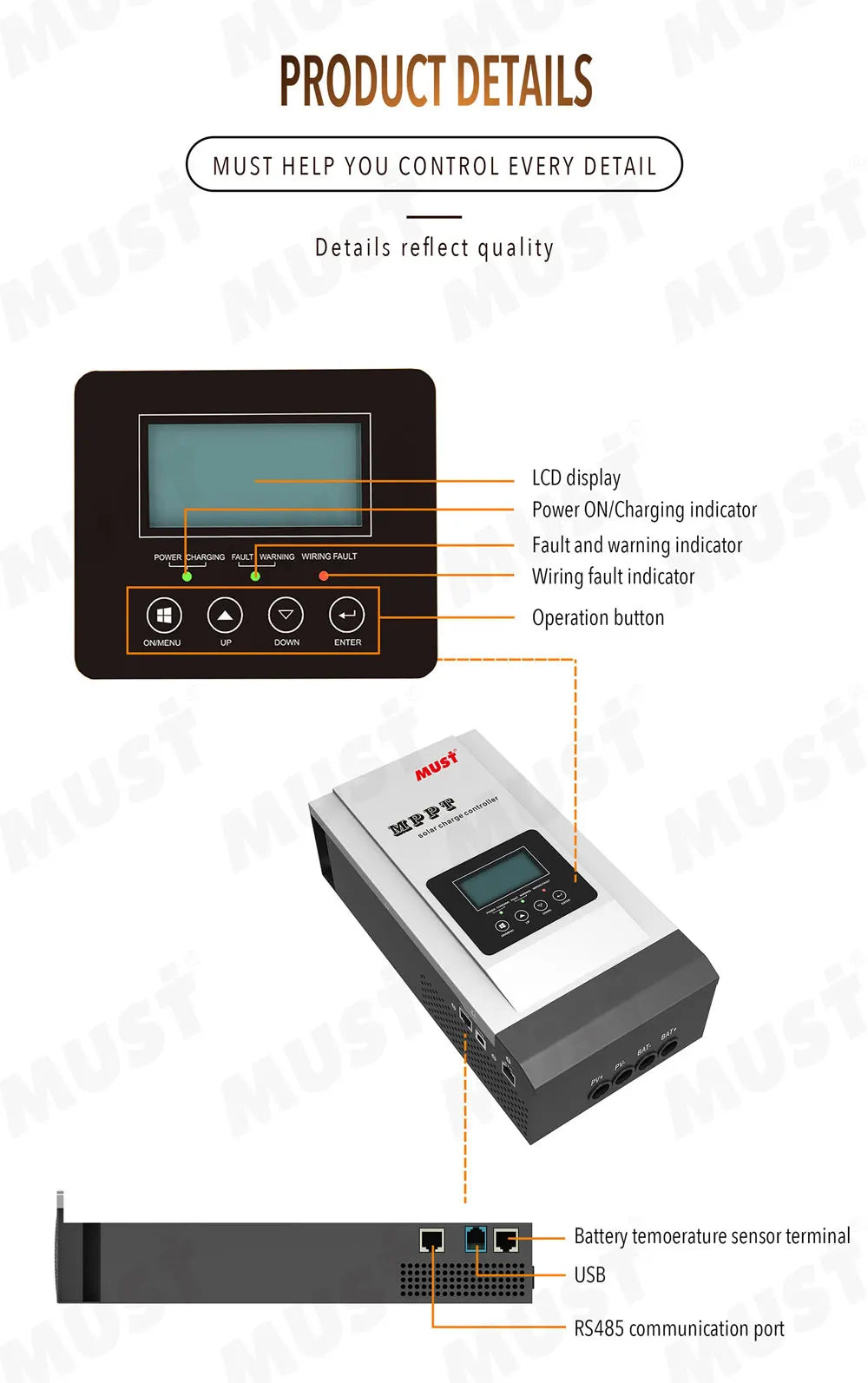

PC1800F ports introduction

MUST MPPT solar charge controller with LCD display and indicators for easy monitoring.

Product Details: MUST MPPT 60A/80A/100A PC1800F Series Solar Charge Controller features an LCD display with power ON/charging indicator, fault warning indicators for wiring faults and battery temperature, and USB/RS485 communication port. Control every detail with ease.

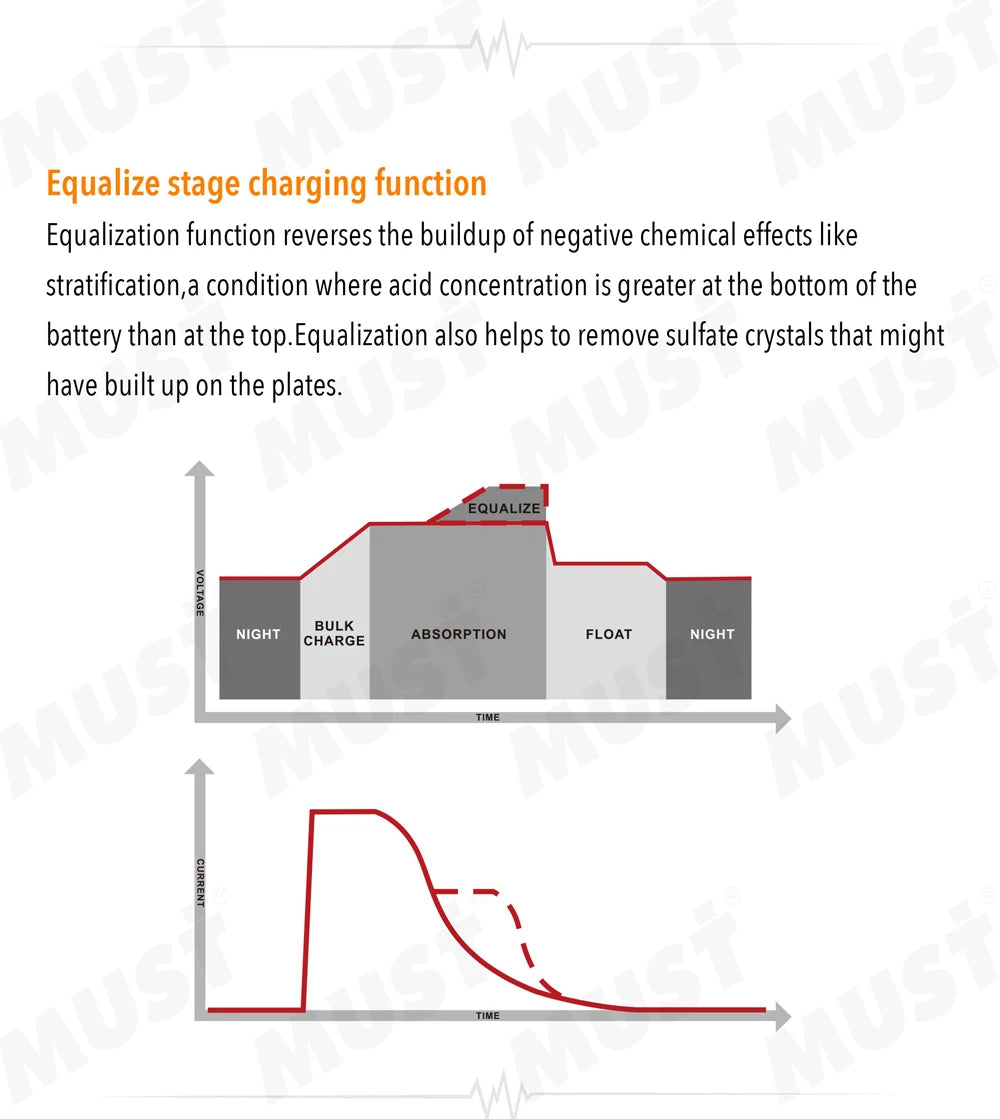

Equalization function balances charging, prevents acid buildup in batteries.

This MPPT solar charge controller features an equalization function, which reverses negative effects like stratification and removes sulfate crystals that build up on battery plates. This ensures balanced charging and prevents acid concentration buildup at the bottom of batteries.

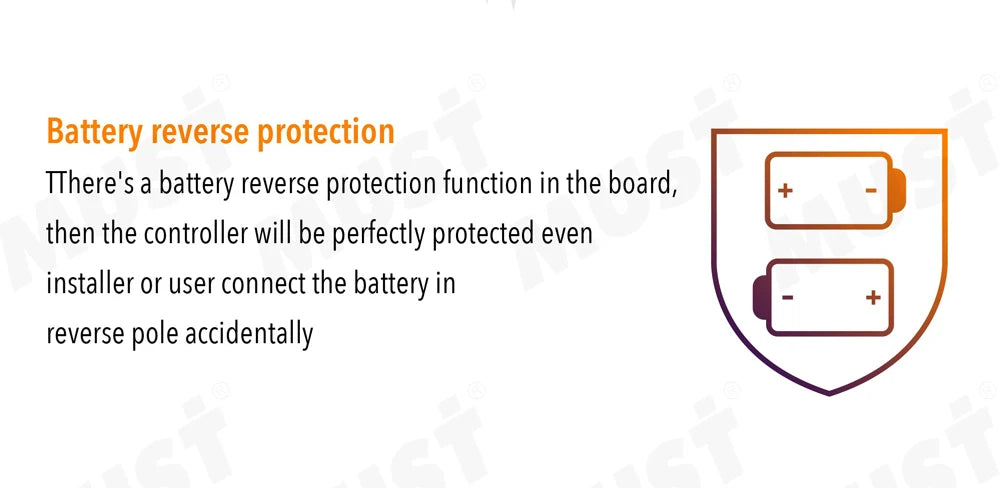

Reverse polarity protection for safe and reliable solar charging.

Equipped with battery reverse protection, this MPPT charge controller safeguards against accidental reverse polarity connections, ensuring safe and reliable operation.

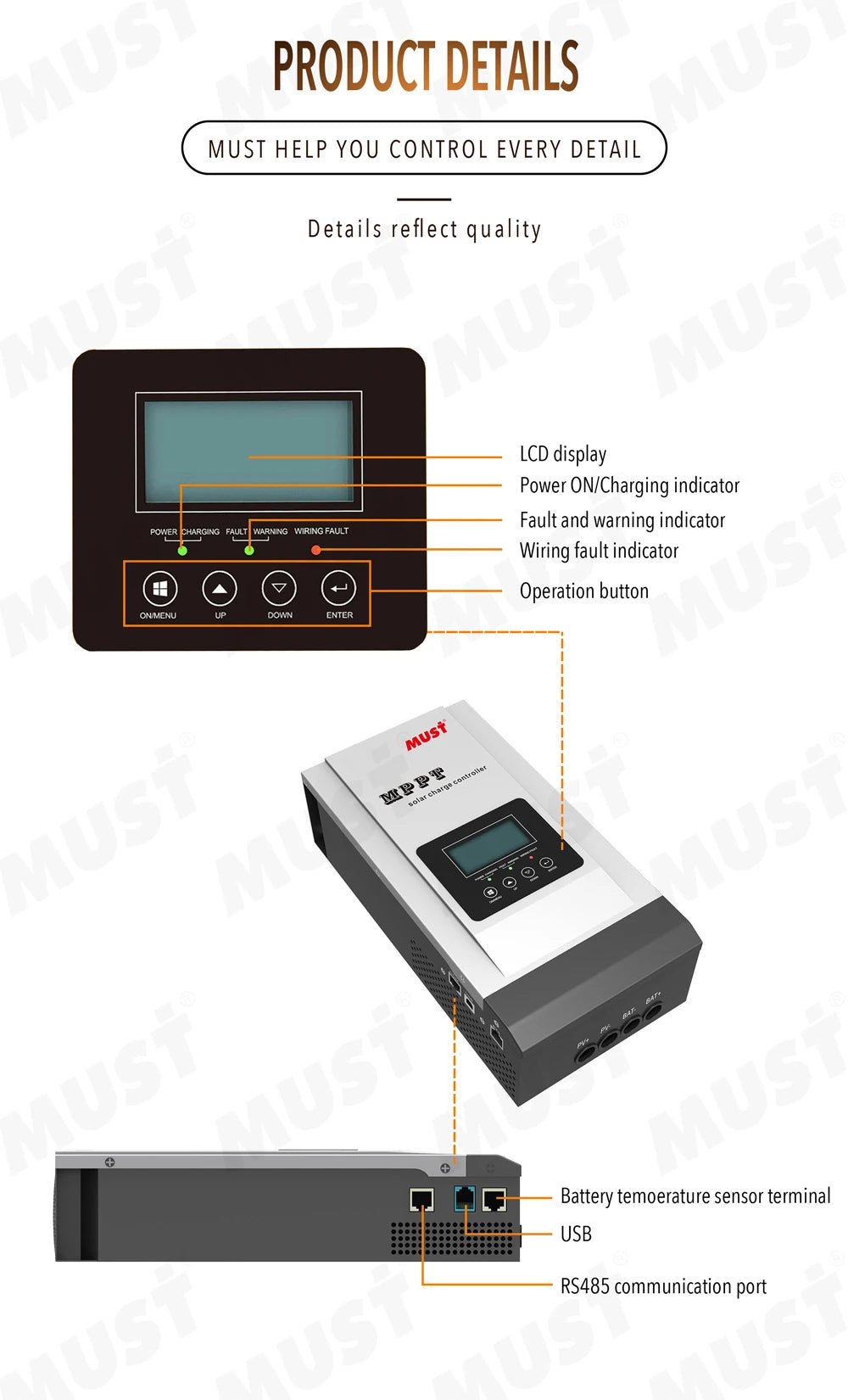

Clear display shows charging status, faults, and temperature; USB and RS485 ports for control.

Must's MPPT series solar charge controller features a clear LCD display, power ON/charging indicator, and warning indicators for faults. Monitor battery temperature and charging status with ease. The device includes a USB port, RS485 communication port, and operation buttons for easy control.

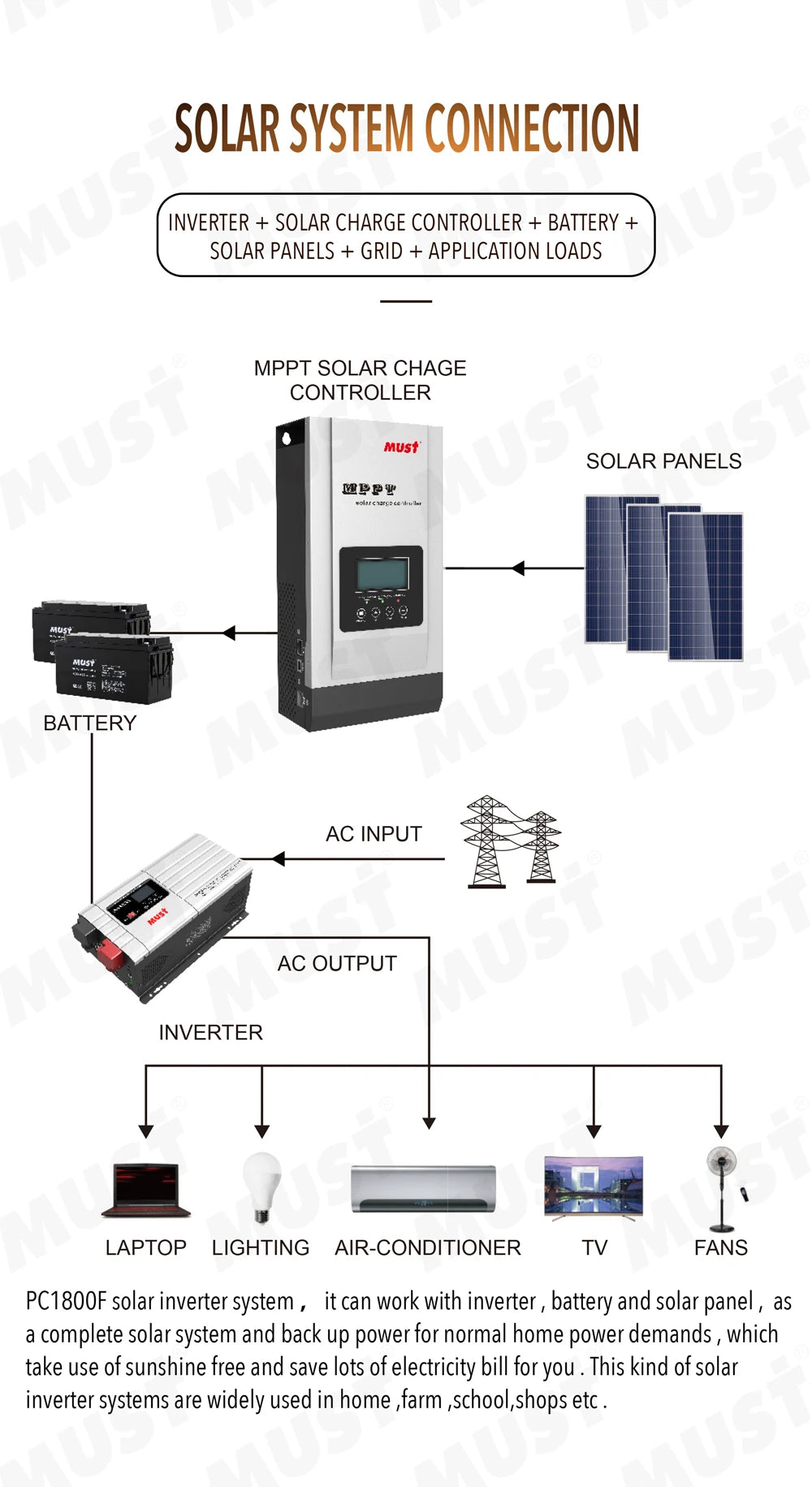

Comprehensive solar inverter system for home use, providing backup power for daily needs.

Must MPPT Solar Charge Controller (MPPT-60A/80A/100A) is a comprehensive solar inverter system that integrates solar panels, batteries, inverters, and loads. It's suitable for home use, providing back-up power for daily needs like lighting, air-conditioning, TV, fans, and laptops. This system takes advantage of free sunshine, saving you electricity bills while being widely used in homes, farms, schools, and shops.

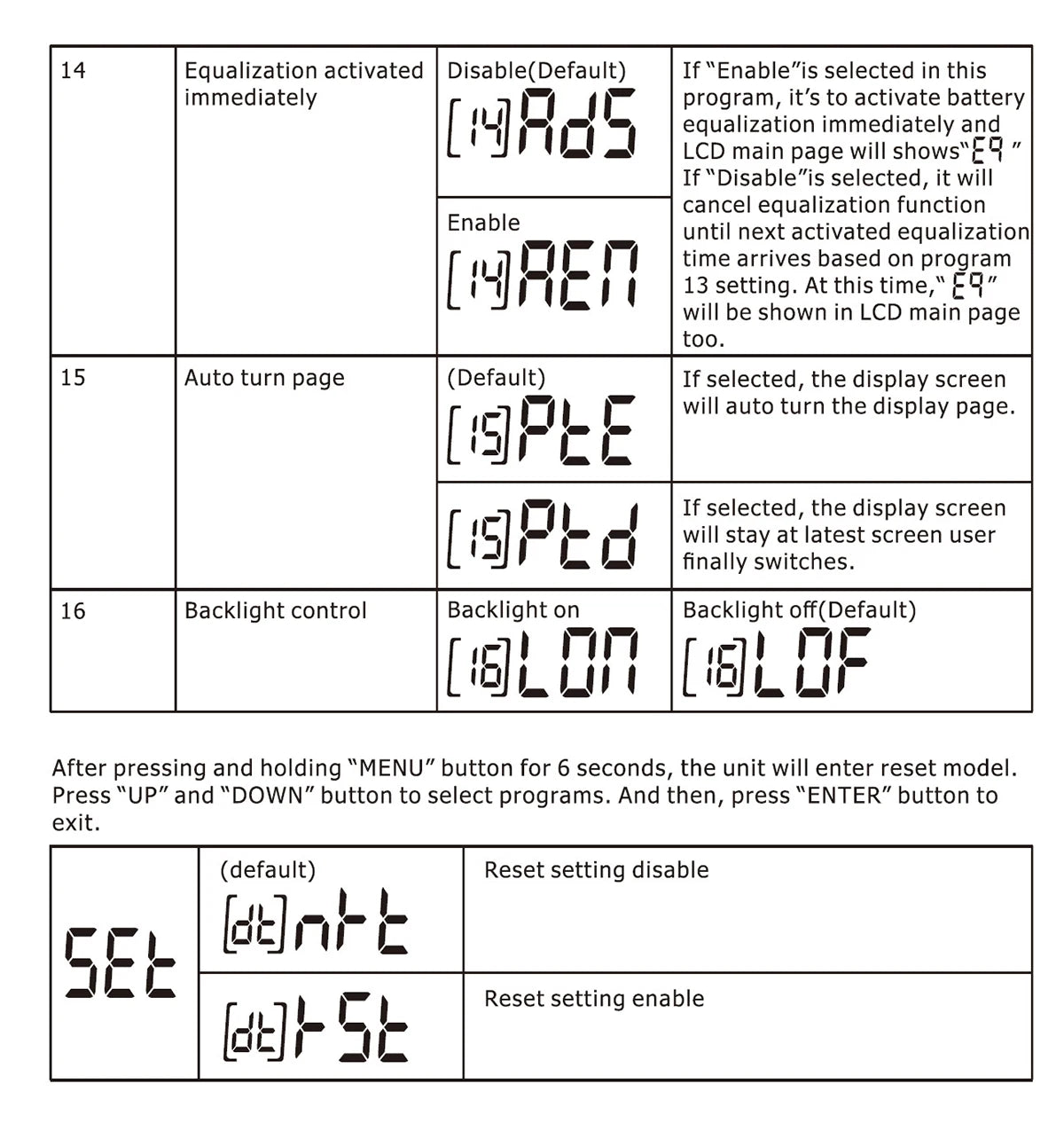

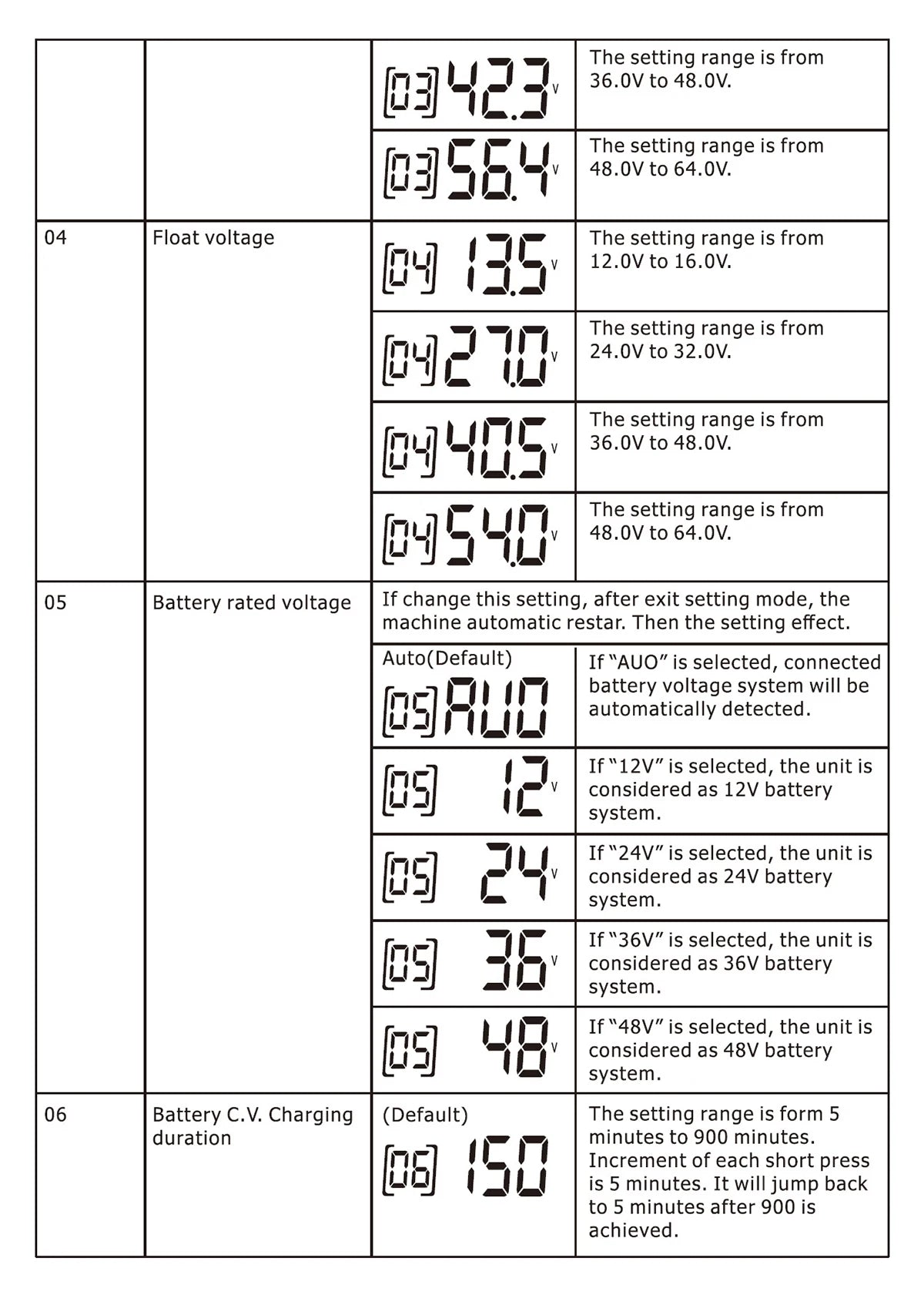

LCD display and setting

Before you using the product, pls check this step carefully. This is very important

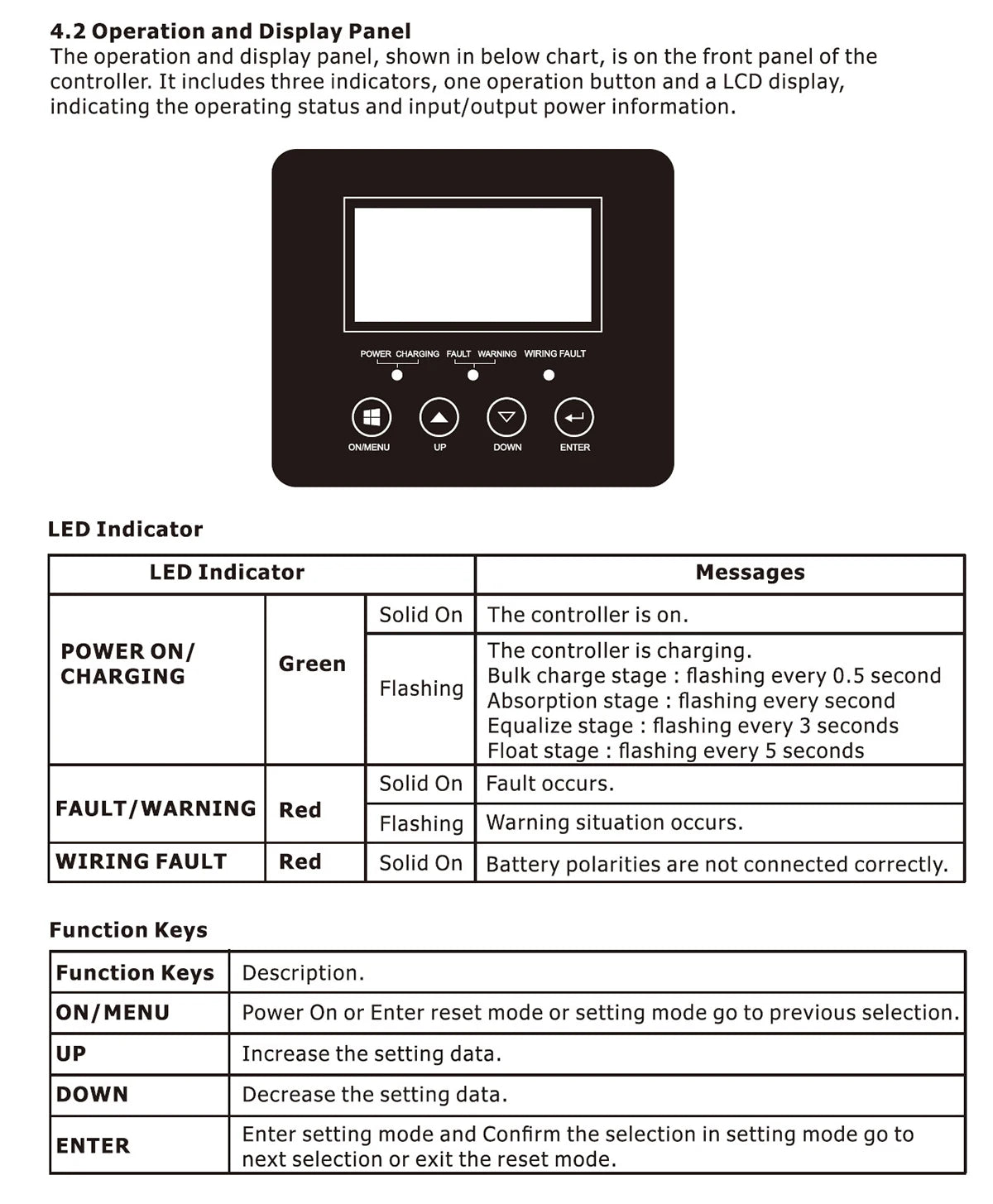

Front panel with three indicators, button, and LCD display for operating status and menu navigation.

The operation and display panel on the front of the controller features three indicators, an operation button, and an LCD display. The indicators show the operating status and input/output power information. The buttons allow you to navigate through menus, adjust settings, and confirm changes. Key functions include turning the controller on or off, entering reset mode, increasing/decreasing setting data, and confirming selections.

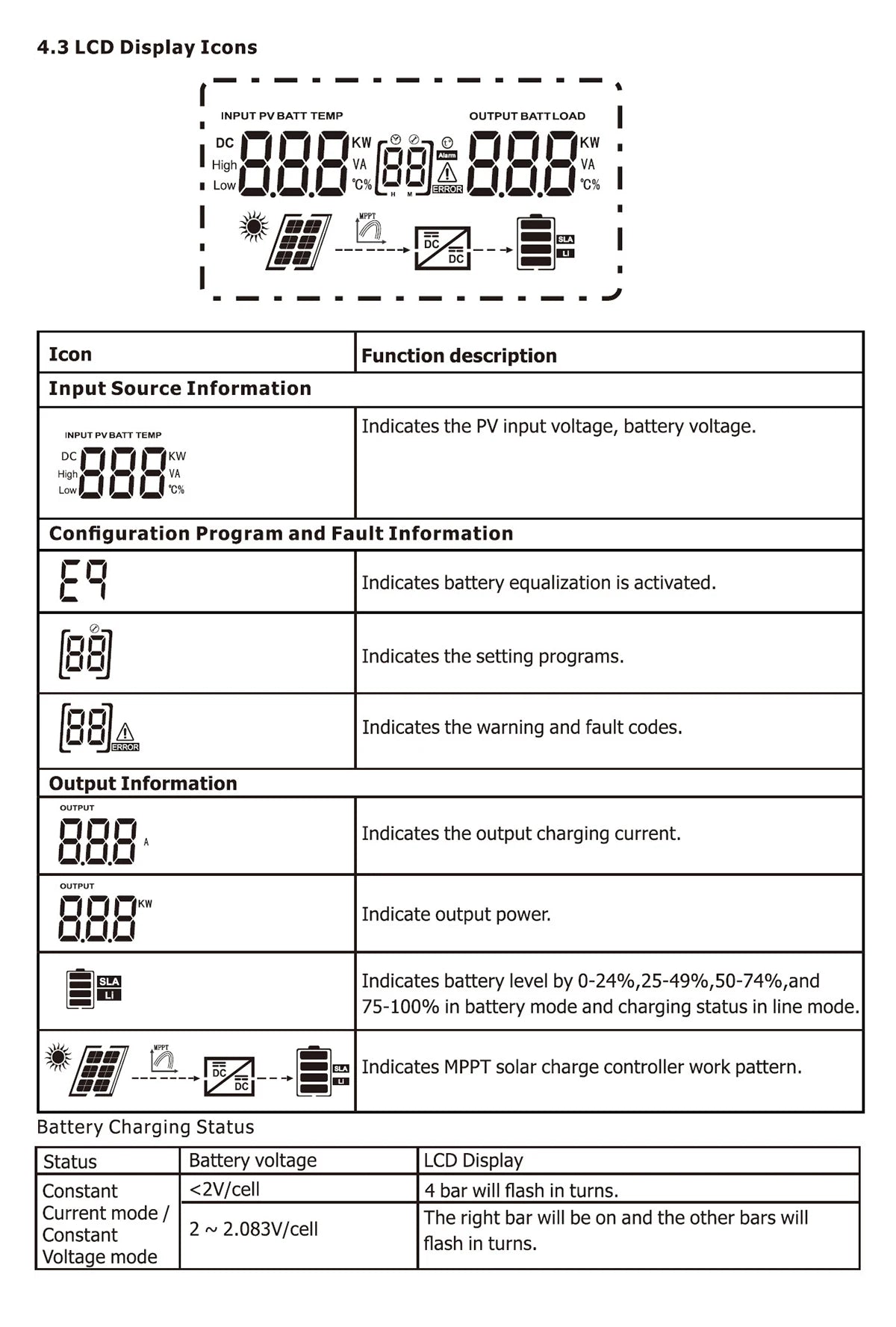

4.3 LCD display shows input voltage, temperature, charging current, power, and battery level with indicators for program settings, faults, and charging status.

4.3 LCD Display: - INPUT: PV input voltage, battery voltage, temperature - OUTPUT: Charging current (888), power (838) - BATTLOAD: Battery level (0-24%, 25-49%, 50-74%, 75-100%) and charging status - DC KW: MPPT work pattern indicator - Icons: + B8: Program settings and warning/fault codes + SLA: Battery level indication in battery mode + DC: Charging status in line mode

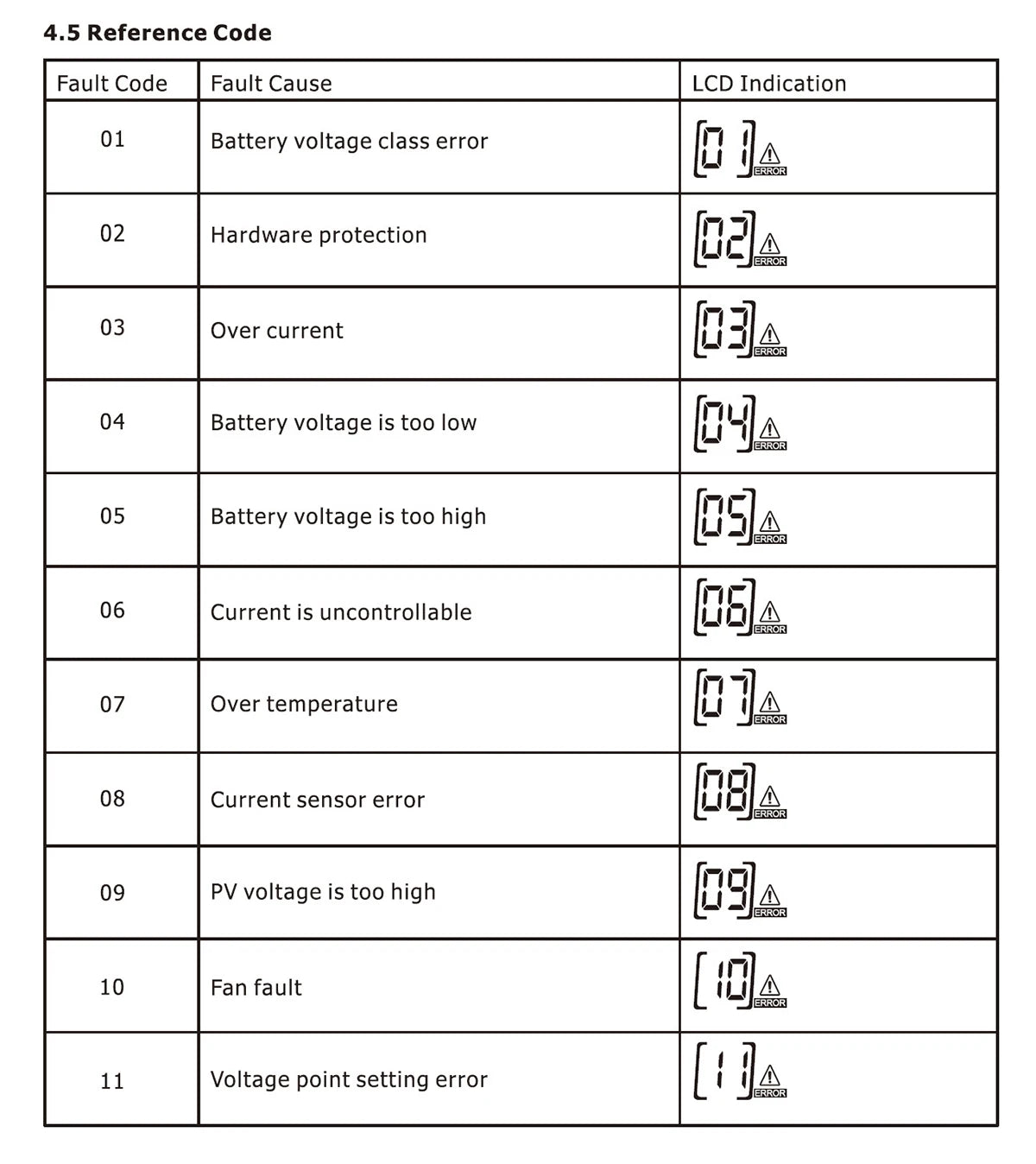

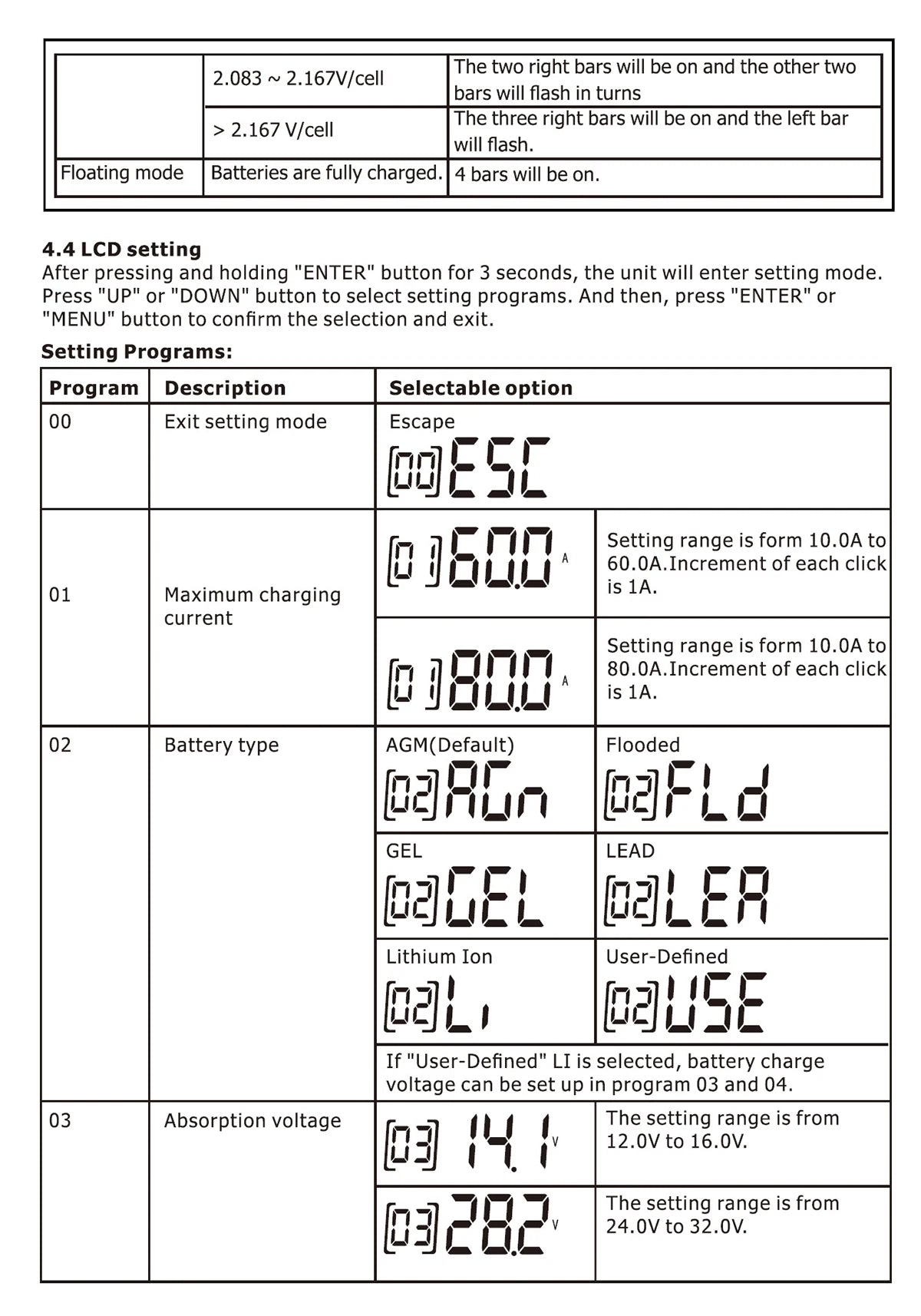

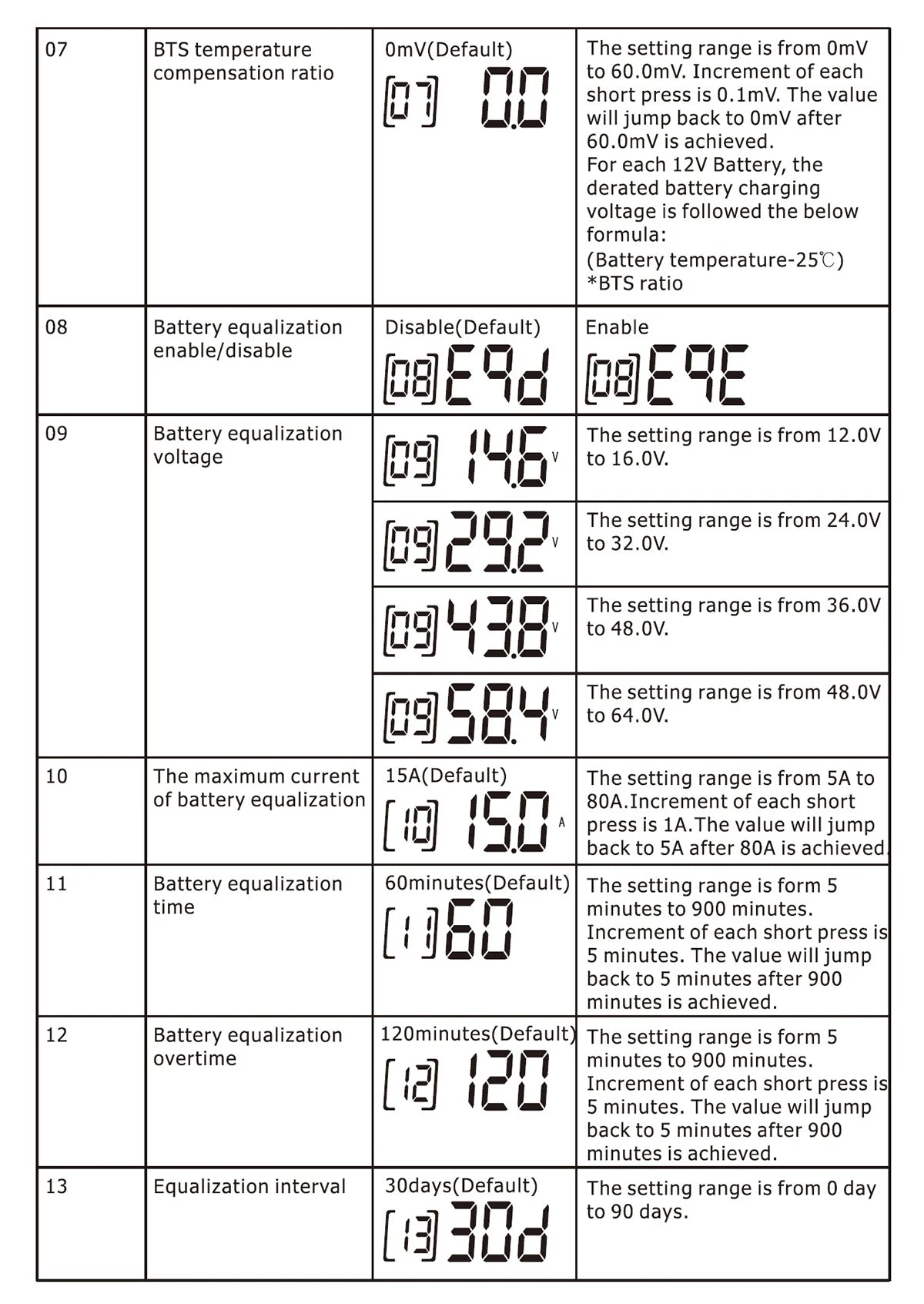

Full ChargeMUST MPPT 60A 80A 100A PC1800F Series Parallel 12V 24V 36V 48V PV 145V Solar Charge Controller For Home Use Solar RegulatorSolar charge controller regulates voltage and current for home solar panel systems.Solar charge controller for home use, regulates voltage and current for parallel connections.Fault codes: battery, hardware, overcurrent, low/high voltage, overheating, sensor errors, and more.

Fault codes include: battery voltage class error (01), hardware protection (02), over current (03), low battery voltage (04), high battery voltage (05), uncontrollable current (06), overheating (07), current sensor error (08), PV voltage too high (09), fan failure (10), and voltage point setting error (11).

Packing details

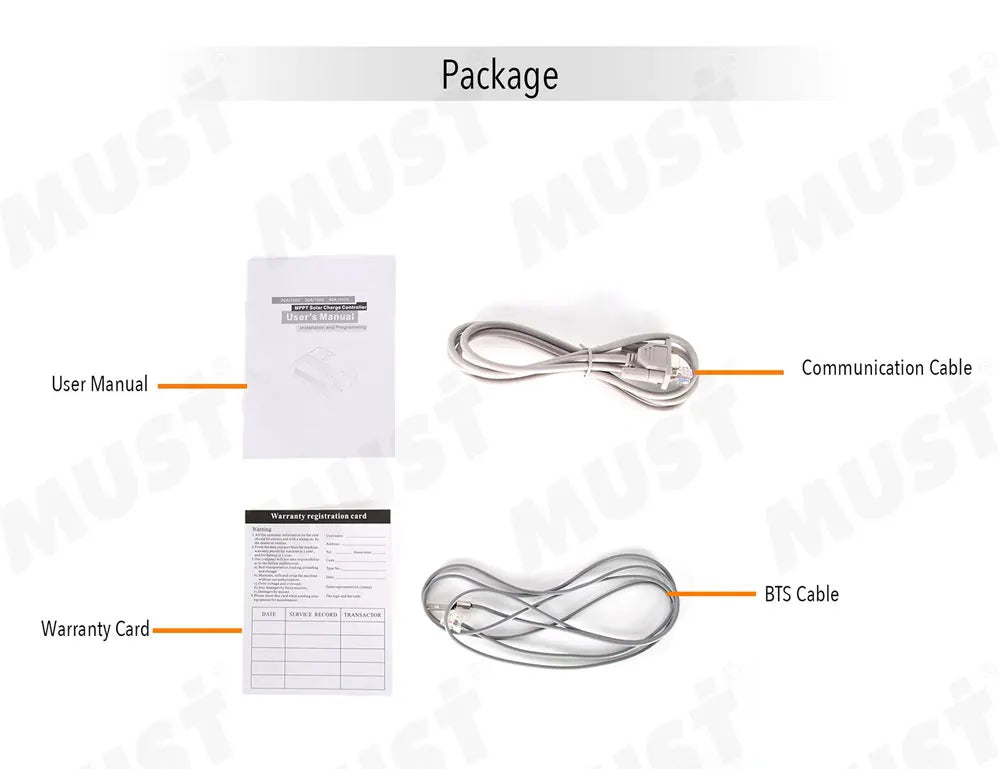

Packaging contents: cables, manual, app link, Bluetooth adapter, and warranty card.Dimensions: 359x149x217mm; carton size: 625x366x232mm; suitable for large quantities up to 7200 pieces.About MUST

Shenzhen MUST ENERGY Power Co., Ltd established in 1998, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.


Our comprehensive product lines include: Power inverter, Solar inverter, Solar charge controller, Solar battery and some other related Solar products.Our products have passed SAA,CE, SONCAP certificate and IS9001 quality certificate. We are one of the authorized suppliers for China Government.
