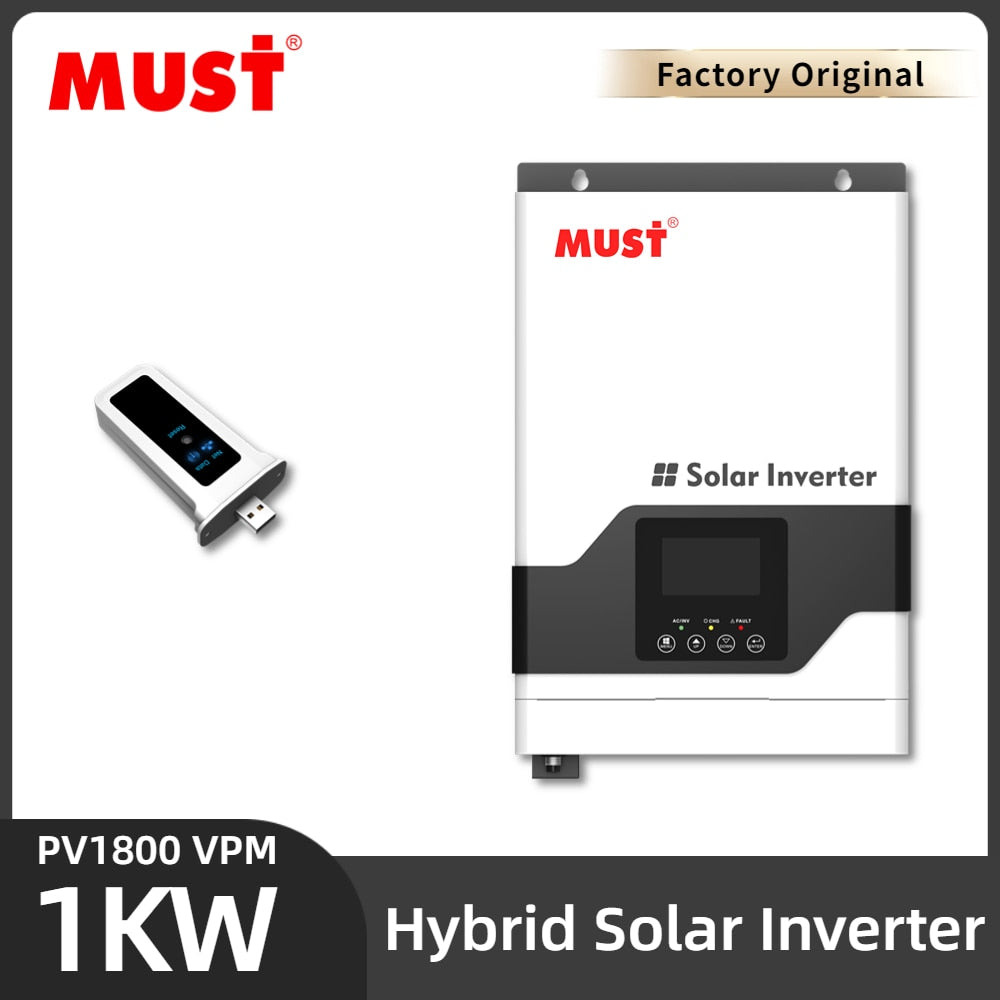

MUST PV18 VPM 1KW MPPT 1KW Hybrid Off Grid Solar Inverter Built In 70A Charge Controller High Frequency With WiFi-PLUG
MUST PV18 VPM 1KW MPPT 1KW Hybrid Off Grid Solar Inverter Built In 70A Charge Controller High Frequency With WiFi-PLUG
Couldn't load pickup availability
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 9-15 days
- Paid Express: Ships within 2days,arrives within 5-8 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
is_customized: Yes
Weight: 6KG
Waveform: Pure sine wave
Transfer Time: 10ms (UPS / VDE4105) 20ms (APL)
Surge Power: 2000W
Size: 272*355*100mm
Rated Power: 1000W
Product name: PV1800 VPM Series High Frequency Solar Inverter
PV Array MPPT Voltage Range: 15~75VDC
Output Type: single
Output Power: 1 - 200KW
Output Frequency: 50Hz/60Hz
Output Current: 4.16-4.55A
Origin: Mainland China
Model Number: MUST Offcial PV18 1012 VPM
Maximum Solar Charge Current: 60A
Maximum PV Array Power: 1000W
Maximum PV Array Open Circuit Voltage: 75VDC
Maximum Charge Current: 70A
Maximum AC Charge Current: 10A or 20A
Is Smart Device: YES
Inverter Efficiency(Peak): 93%
Certification: CE
Brand Name: Must
BATTERY Overcharge Protection: 15.5VDC
BATTERY Normal voltage: 12VDC
BATTERY Floating Charge Voltage: 13.7VDC
AC Voltage Regulation (Batt.Mode): (220VAC~240VAC)±5%

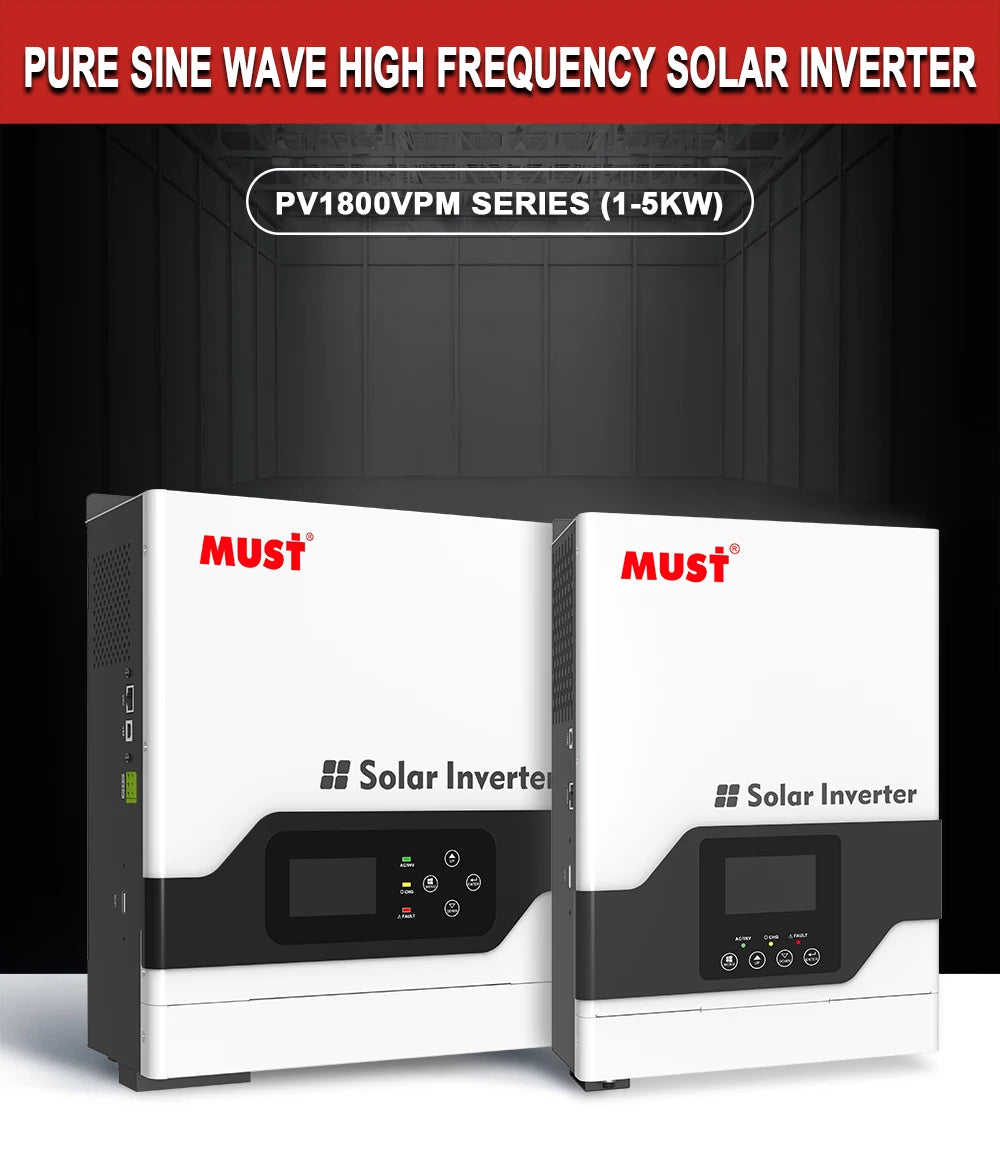

MUST PV1800 VPM Series High Frequency Off Grid Solar Inverter

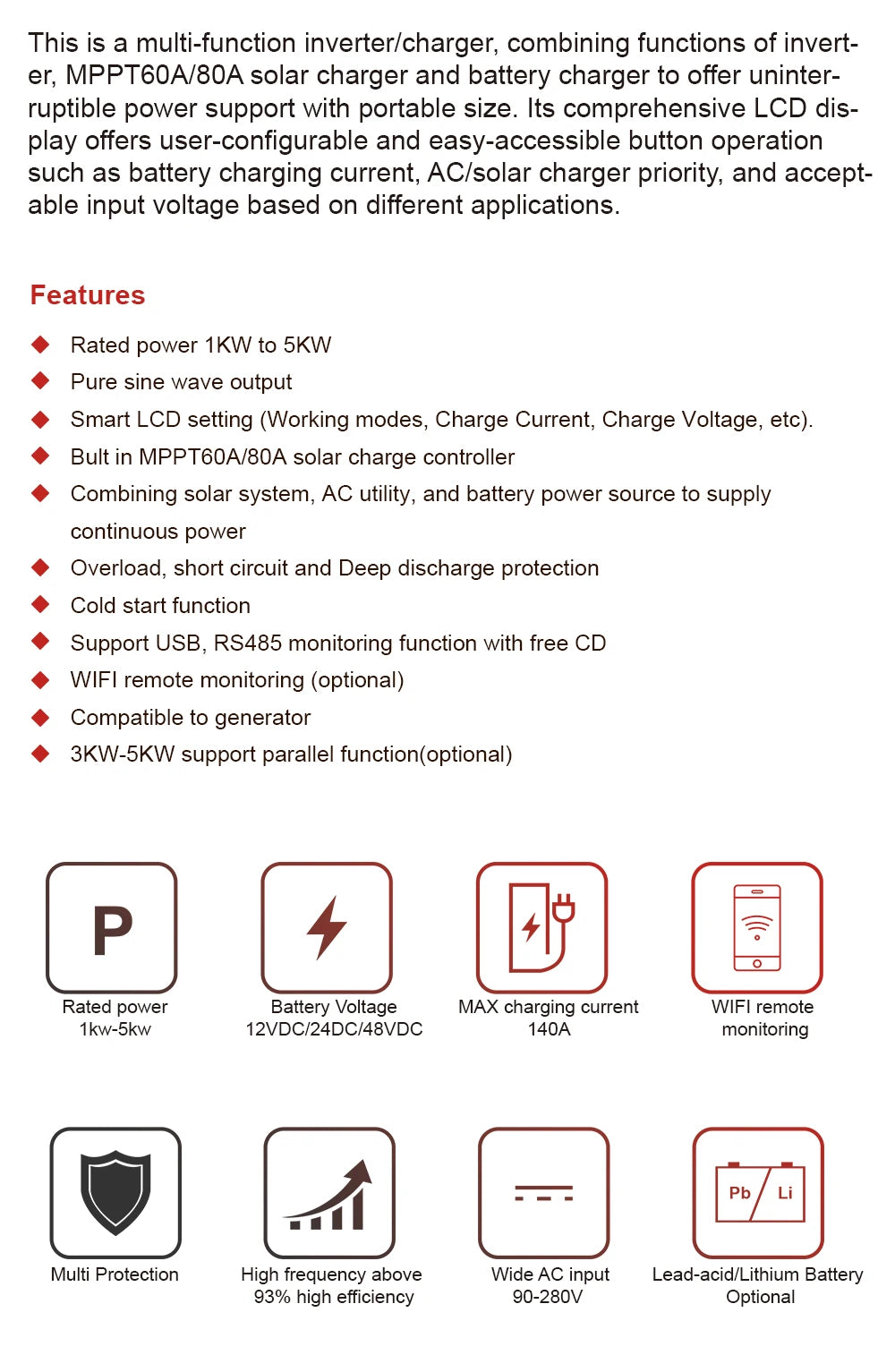

This is a multi-function inverter/charger, combining functions of inverter, MPPT50A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Recommend Product
Send From Poland
Must Energy's PV18 hybrid solar inverter with built-in 70A charge controller and WiFi connectivity offers fast EU delivery (3 days) from our warehouse, shipping to 25 countries.
Product parameters
MODEL |
PV18-1012 VPM |
Default Battery System Voltage |
12VDC |
INVERTER OUTPUT | |
Rated Power |
1000VA/1000W |
Surge Power |
2000VA |
Waveform |
Pure sine wave |
AC Voltage Regulation (Batt.Mode) |
220VAC ~ 240VAC (Setiing) |
Inverter Efficiency (Peak) |
90%~93% |
Transfer Time |
10ms（For Personal Computers）20ms（For Home Appliance） |
AC INPUT | |
Voltage |
230VAC |
Selectable Voltage Range |
170~280VAC(For Personal Computers)、90~280VAC(For Home Appliances)、184~253VAC(VDE) |
Frequency Range |
50Hz/60Hz (Auto sensing) |
BATTERY | |
Normal voltage |
12VDC |
Floating Charge Voltage |
13.7VDC |
Overcharge Protection |
150VDC |
SOLAR CHARGER&AC CHARGER | |
Maximum PV Array Open Circuit Voltage |
60VDC |
PV Array MPPT Voltage Range |
15~60VDC |
Standby Power Consumption |
2W |
Maximum PV Array Power |
625W |
Maximum Solar Charge Current |
50A |
Maximum Efficiency |
98% |
Maximum AC Charge Current |
10A or 20A |
Maximum Charge Current |
70A |
MECHANICAL SPECIFICATIONS | |
Machine Dimensions (W*H*D)(mm) |
225*355*92 |
Package Dimensions (W*H*D)(mm) |
410*300*78 |
Net Weight(kg) |
5 |
Gross Weight(kg) |
6.5 |
OTHER | |
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
Operating Temperature |
0°C -55°C |
Storage Temperature |
-15°C -60°C |
Product description
MUST PV18 VPM Series Pure Sine Wave High Frequency Solar Inverter with WiFi, features 1kW output power and a built-in 70A charge controller for off-grid solar systems.

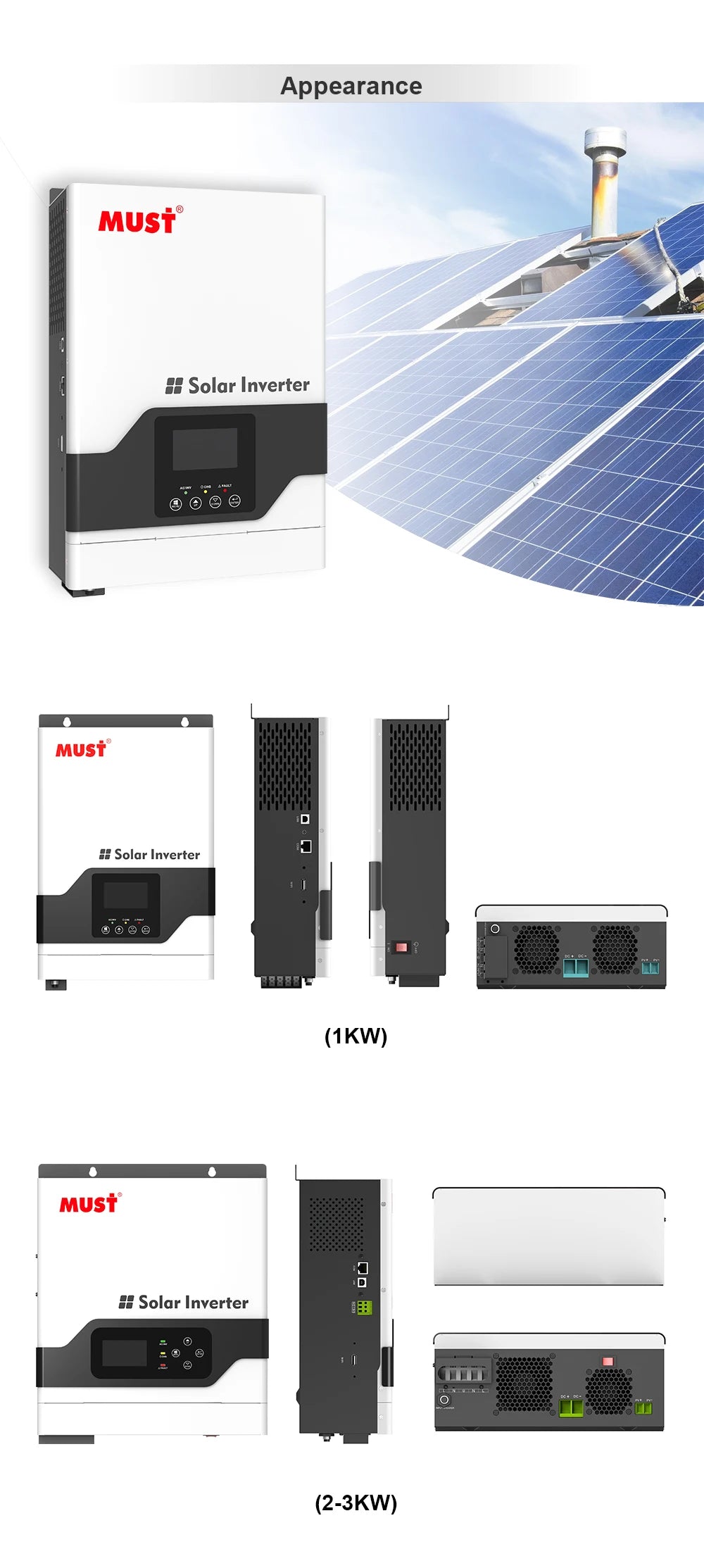

This 1KW solar inverter features a built-in 70A charge controller and WiFi connectivity for easy monitoring.

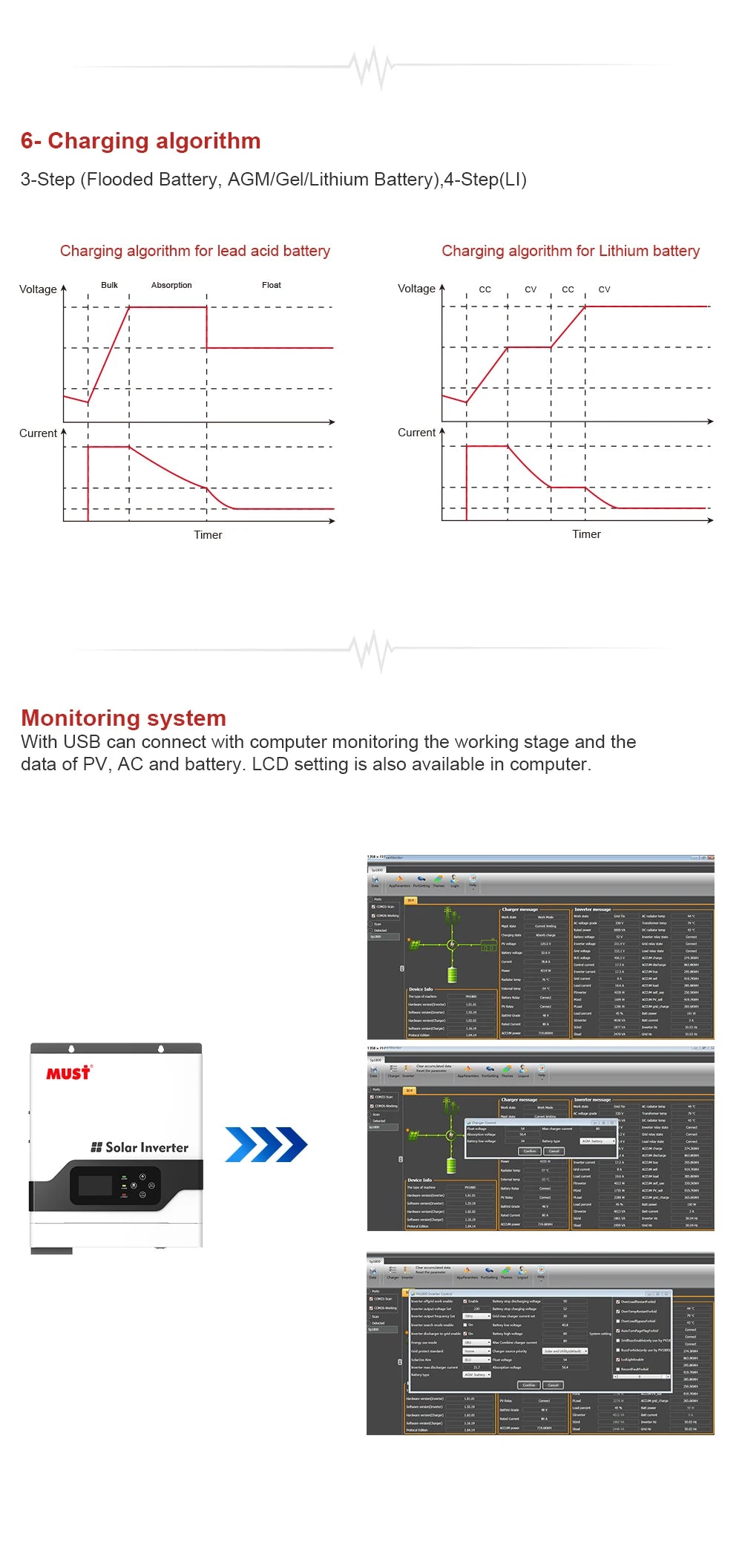

This solar inverter features a multi-stage charging algorithm for different battery types, including flooded, AGM/Gel/Lithium batteries. The algorithm includes bulk, absorption, and float stages. A monitoring system allows real-time tracking via USB connection to a computer, with LCD settings available. This comprehensive system tracks PV, AC, and battery data, ensuring optimal performance and efficiency.

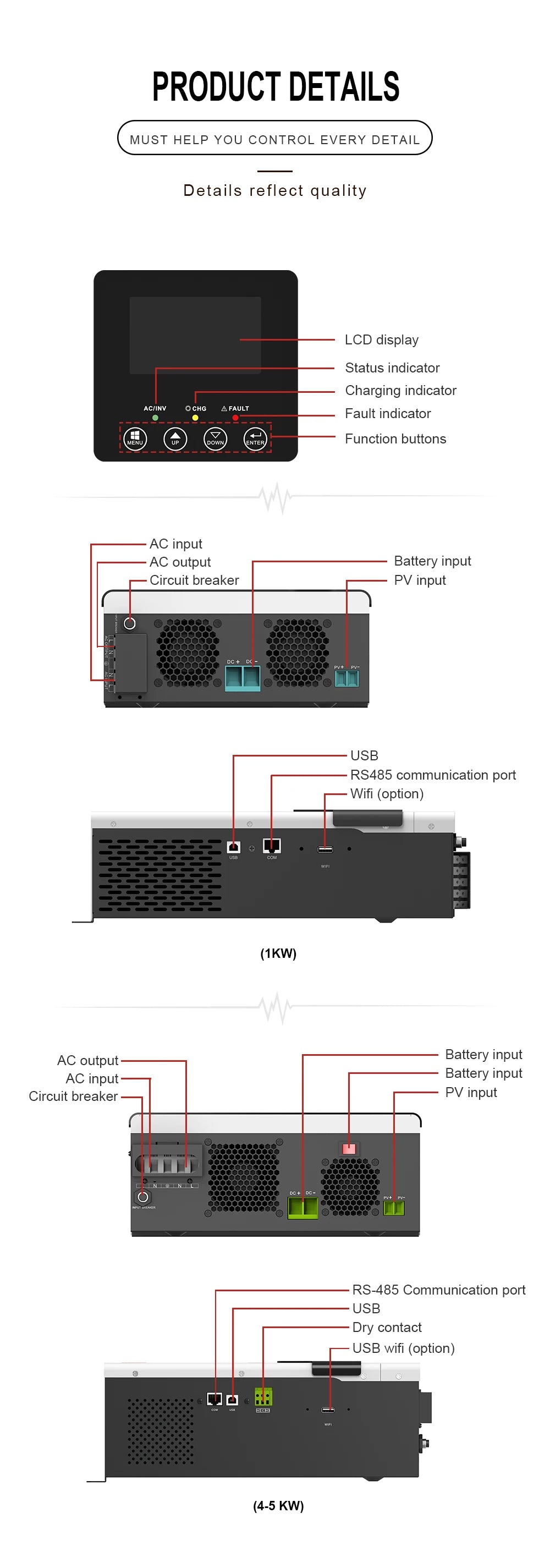

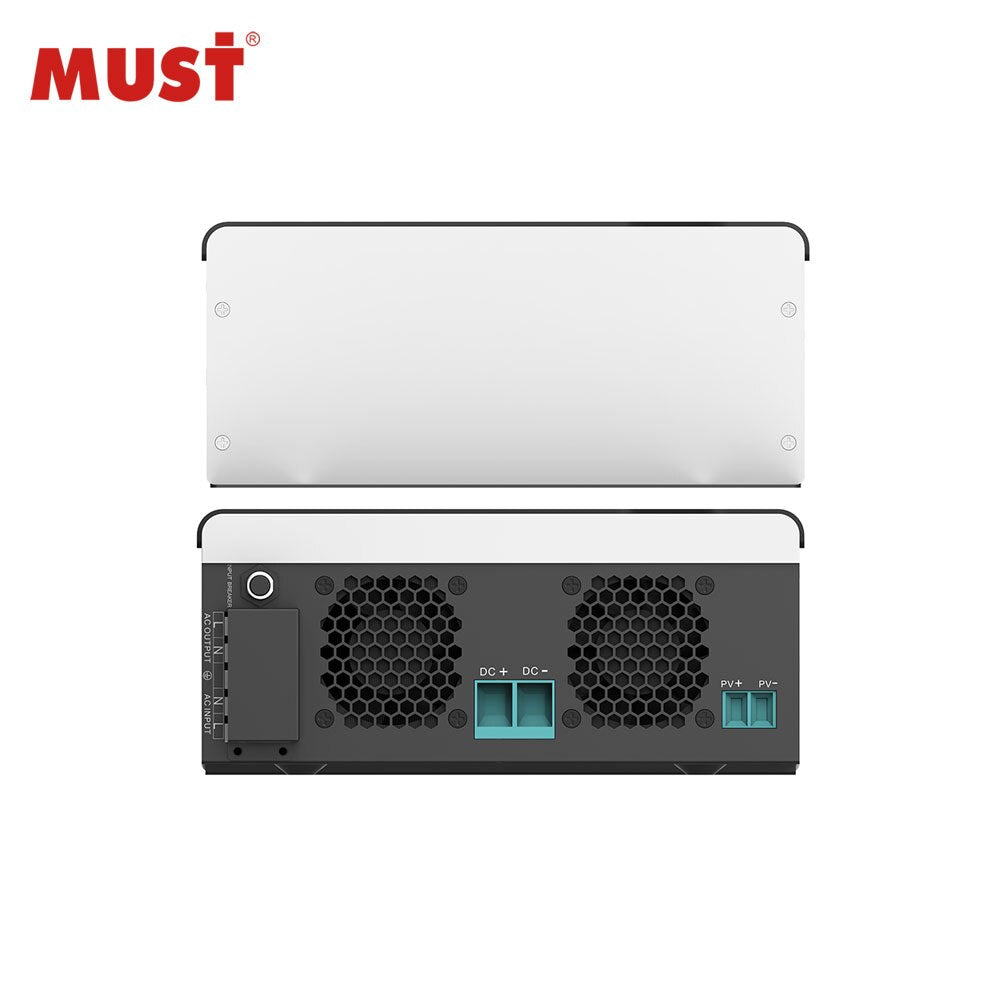

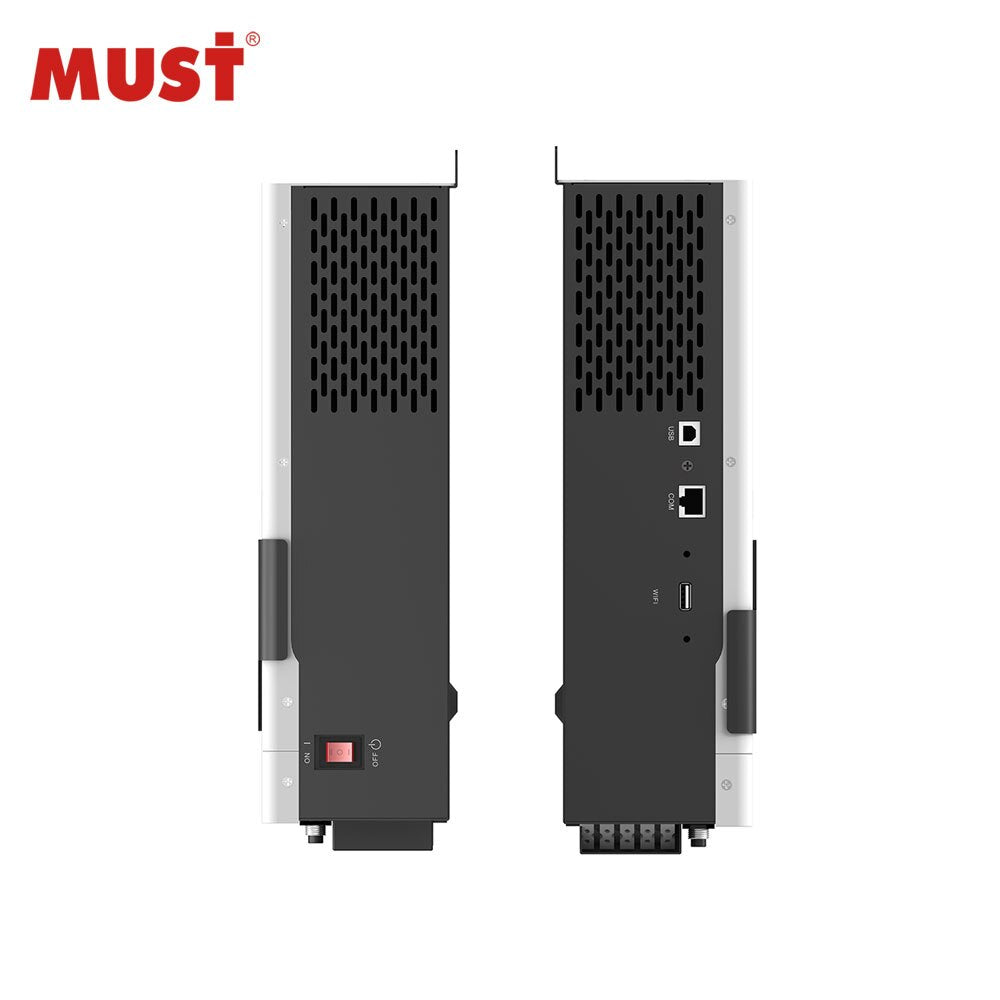

Control every aspect with ease. The MUST PV18 hybrid inverter features: * A high-quality LCD display for monitoring * Status indicators for charging and AC output * Function buttons for easy operation * Multiple ports: USB, RS485, and WiFi (optional) * A 1kW AC output and a circuit breaker for safety * A battery input and PV input for seamless integration

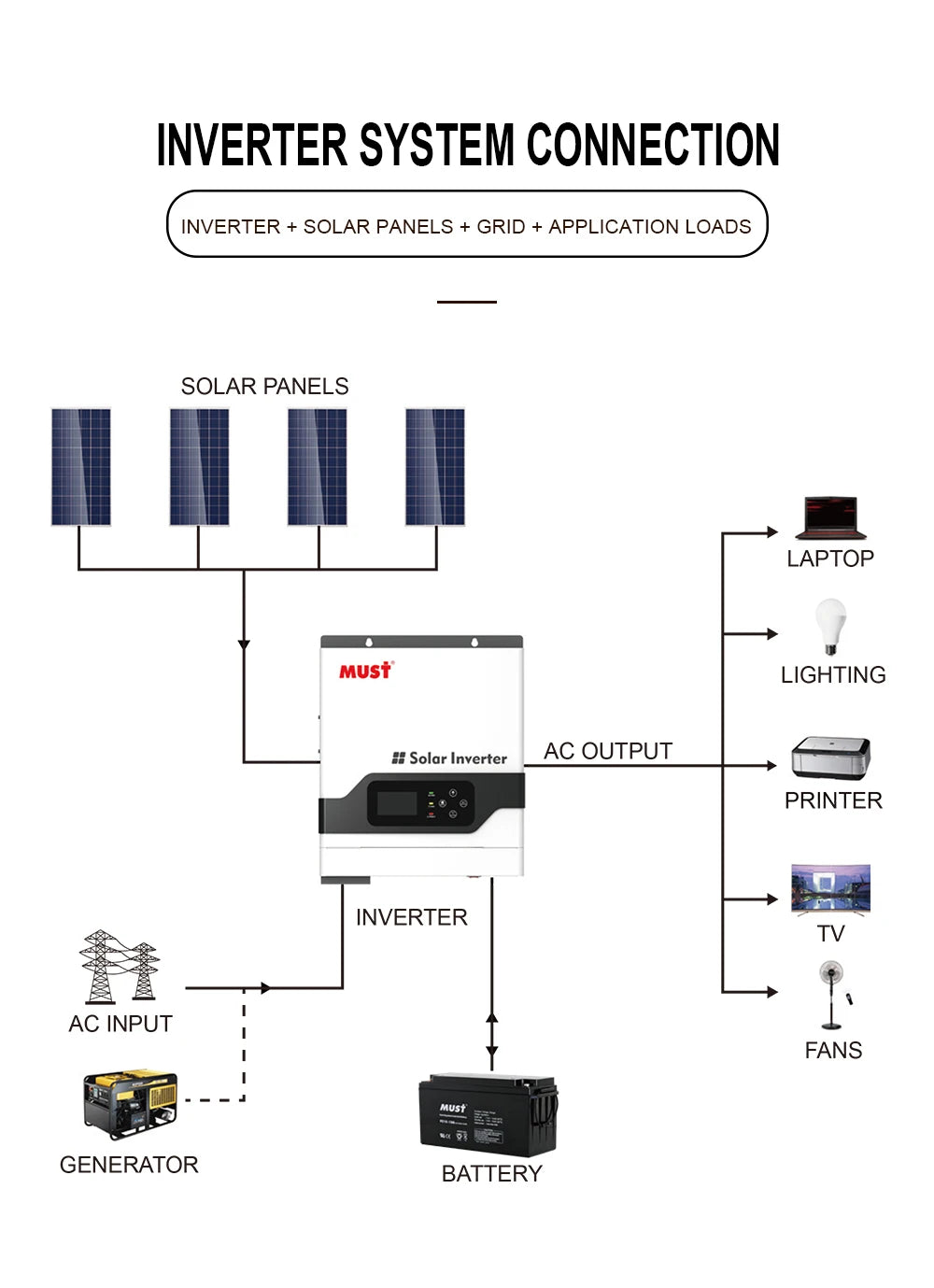

Connect MUST PV18 to solar panels, grid, and loads like laptops, lighting, printers, fans. It also supports generator backup and battery charging via high-frequency MPPT technology with WiFi monitoring capabilities.
This solar inverter is suitable for powering various appliances, including LED lights, washing machines, electric irons, lamps, fans, drills, dryers, desktop PCs, projectors, laptops, pumps, air conditioners, refrigerators, and more. It can be used in offices, industries, homes, and even commercial spaces like supermarkets.
This product meets high standards for quality and safety, certified by CE, FCC, SAA, ISO 9001:2015, and others. Professional testing and inspection ensure reliable performance. The manufacturer, Shenzhen Must Power Limited, guarantees its compliance with regulations.

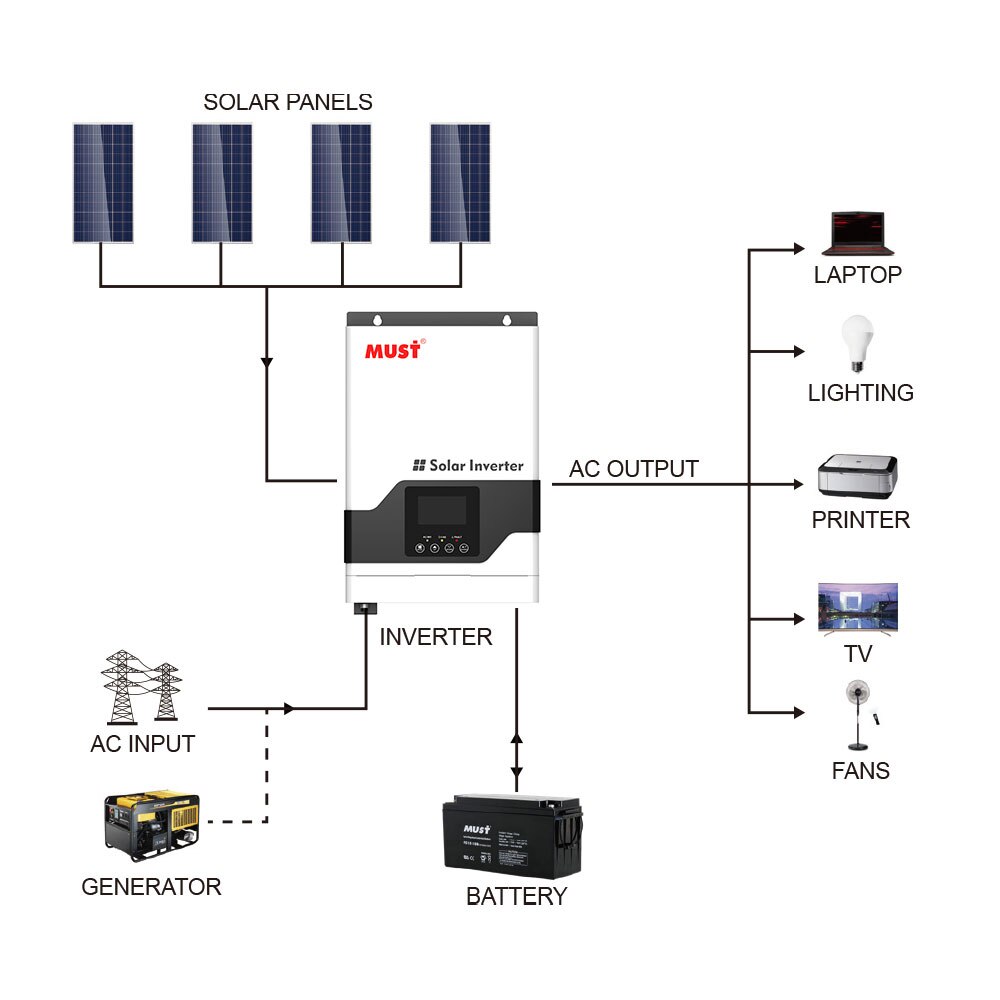

PV1800 VPM system diagram
This product can operating in many conditions, because of its smart settings.

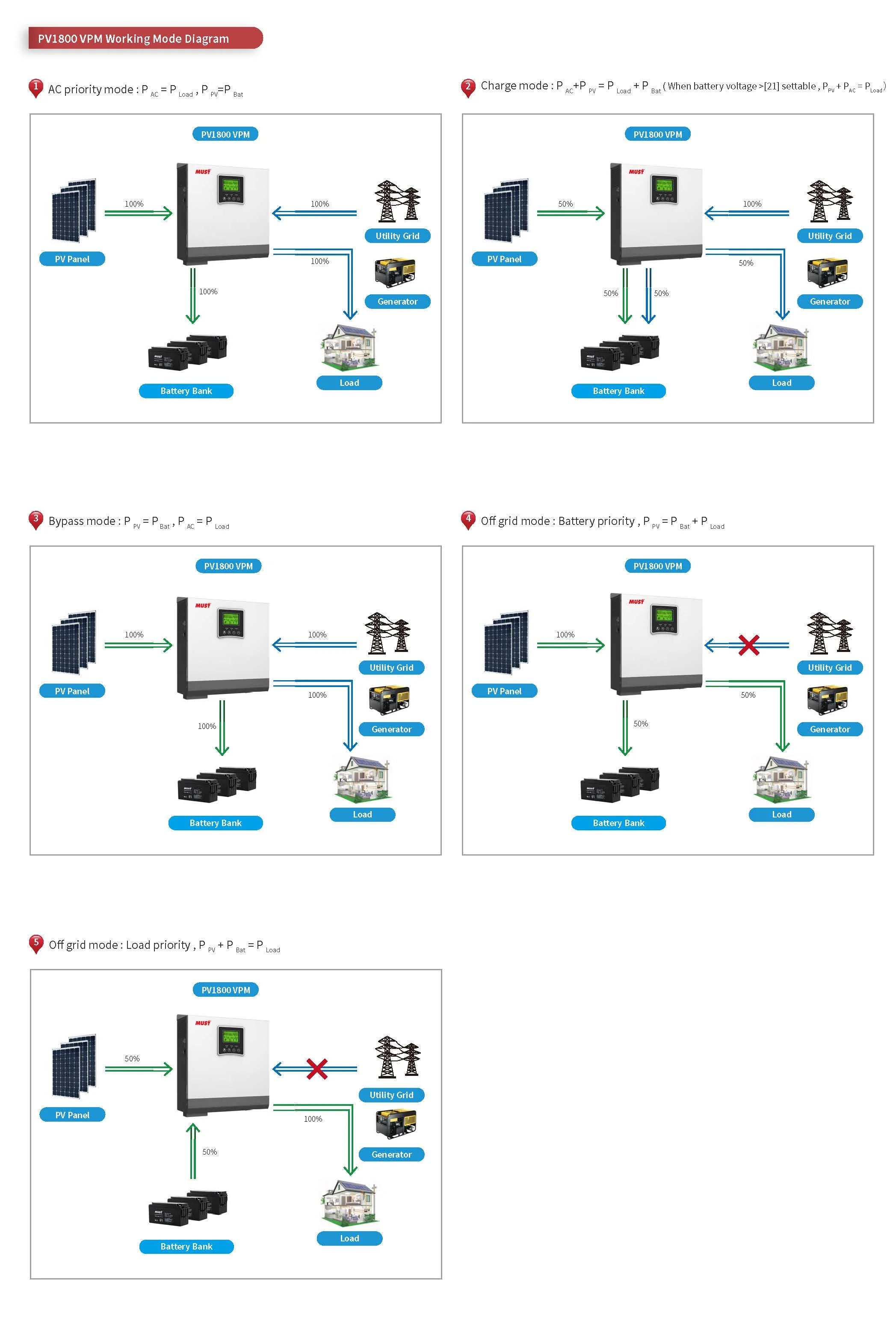

5 working mode
1. AC priority mode: AC utility provide power to your loads. PV charging your battery.
2. Charge mode: AC and PV charging your battery together, and AC utility provide power to your loads.
3. Bypass mode: AC utility provide power to your loads. PV charging your battery.
4. off grid mode, battery priority: when AC utility is shut down, PV provide power to your loads and charging you battery
5. off grid mode, load priority: when AC utility is shut down, PV and battery provide power to your loads together.
MUST's PV18 hybrid inverter features three working modes: AC priority mode (charging battery and powering load), charge mode (charging battery only), and off-grid mode (load prioritization). In AC priority mode, excess energy is stored in the battery. The unit supports up to 1kW of solar power and has a built-in 70A charge controller. WiFi connectivity allows remote monitoring and control. The inverter's bypass mode enables grid-tied operation when connected to a utility grid.

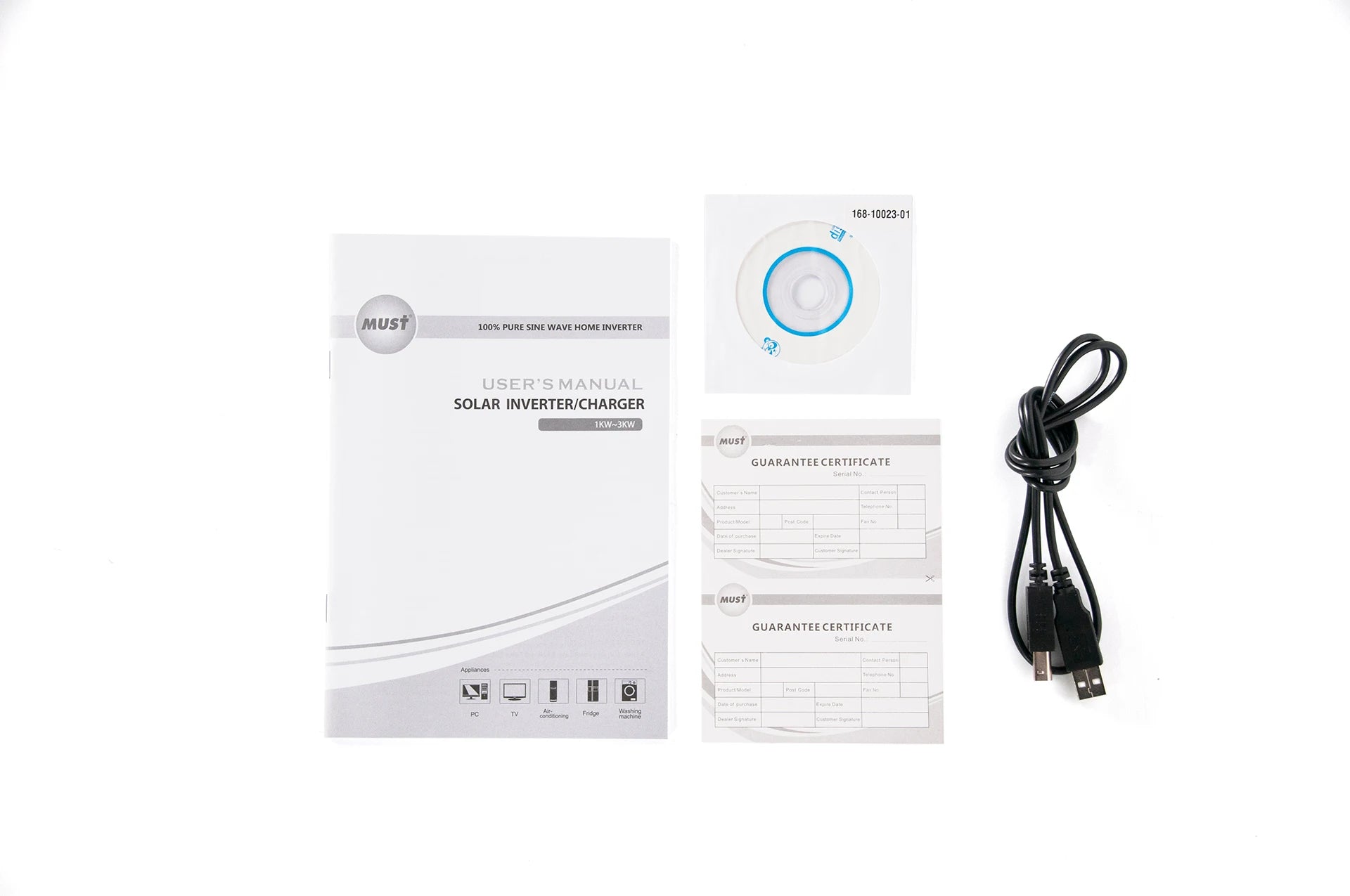

Packing details
1x User manual
1x Warranty card
1x CD driver download
1x USB cable
MUST PV18 VPM 1KW Hybrid Off-Grid Solar Inverter with Built-in 70A Charge Controller and WiFi connectivity. This high-frequency inverter produces pure sine wave output, suitable for green energy applications.
About MUST
Shenzhen MUST ENERGY Power Co., Ltd established in 1998, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include: Power inverter, Solar inverter, Solar charge controller, Solar battery and some other related Solar products.Our products have passed SAA,CE, SONCAP certificate and IS9001 quality certificate. We are one of the authorized suppliers for China Government.
FAQ
1.How to choose an inverter that suits you?
Please confirm your loads, battery capacity and voltage, solar panel string capacity; you can contact us for professional help
2.Who we are?
We are a MUST source manufacturer, selling original MUST products
3.What Is an Inverter Charger with MPPT?
It is an Integrated unit with PWM solar charge controller, pure sine wave inverter, and battery charger in one compact unit to let you enjoy
the stable power from the sun and the utility grid to keep you powered under any circumstances. PV1800 VPM 1KW Solar Inverter Charger
combines solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to
the hybrid level.
4.Can I use this inverter to charge my batteries?
Yes. Compatible with 12V battery banks, this solar inverter charger keeps your battery charged with solar panels and AC/generator.
5.Can I use the inverter with a 24V system?
No. This model can only work with 12V battery system.
6.How many solar panels can I connect to this inverter?
For example Vmp 30.9Vdc, Imp 8.42A, Voc 37.7Vdc, Isc 8.89A 260W solar panel, you can connect 3pcs of it to our inverter, 1S3P
7.How do I hook up the Inverter? What size cable should I use, and is it included?
When connecting the inverter to the battery and solar panels, please read all of the instructions and cautions in the manual before
beginning the installation. The minimum recommended wiring gauge for battery wiring is 4AWG(for a 100AH battery) 2*8AWG
(for a 200AH battery), PV wiring is 8AWG, AC input and out wiring is 16AWG.
Incorrect or improper connection points and corroded wires can cause great heat to melt the wire insulation, burning surrounding materials,
and even cause fire, so ensure that the connection is tightened
8.Can I use the solar inverter without batteries when using PV or Mains?
No, at minimum you need to have batteries connected to the unit. But our PV1800/PH1800 PRO series can run without battery. You can
have a look at our store
9.Does this solar inverter limit PV current? I'm not getting my full power?
When setting up the solar inverter, ensure Program 11 (PV Charging Current) and Program 13 (Maximum Charge Current) are set to their
maximum to ensure no PV current clipping.
10.Can I use the WIFI Module to monitor the inverter from my phone? Which WIFI Module should I buy?
Yes. The WIFI-PLUG is compatible with this inverter. Please choose your inverter with WIFI-PLUG to order
11.Warranty Policy
The MUST products we sell are covered by a one-year warranty. In case of product failure, contact our after-sales engineers for help in the
first instance. If necessary, we will send you free parts (within the warranty period).
Wrong way of operation may cause the product to burn out, such as not following the standard installation when connecting cables. Please read the manual carefully when installing.
12.Shipping Policy
Normally we send the goods the second days after payments. We use air cargo to send the goods. Aliexpress Standard Shipping arrive at
15-20days(EU country arrive at 7-10 days), DHL/FedEx/UPS arrive at 7-10 days, Cainiao Heavy Line arrive at 20 days(EU 15-20 Days).
